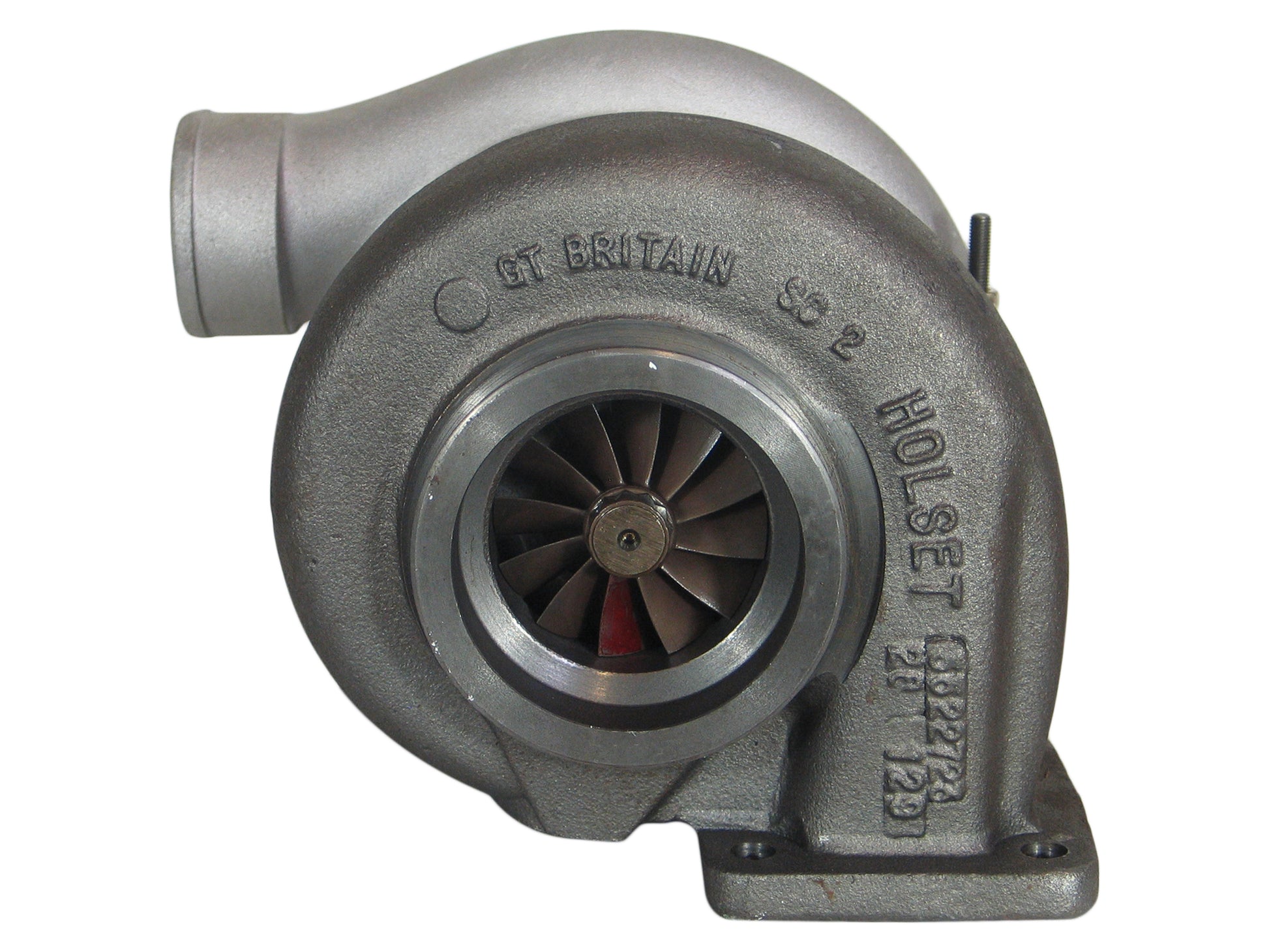

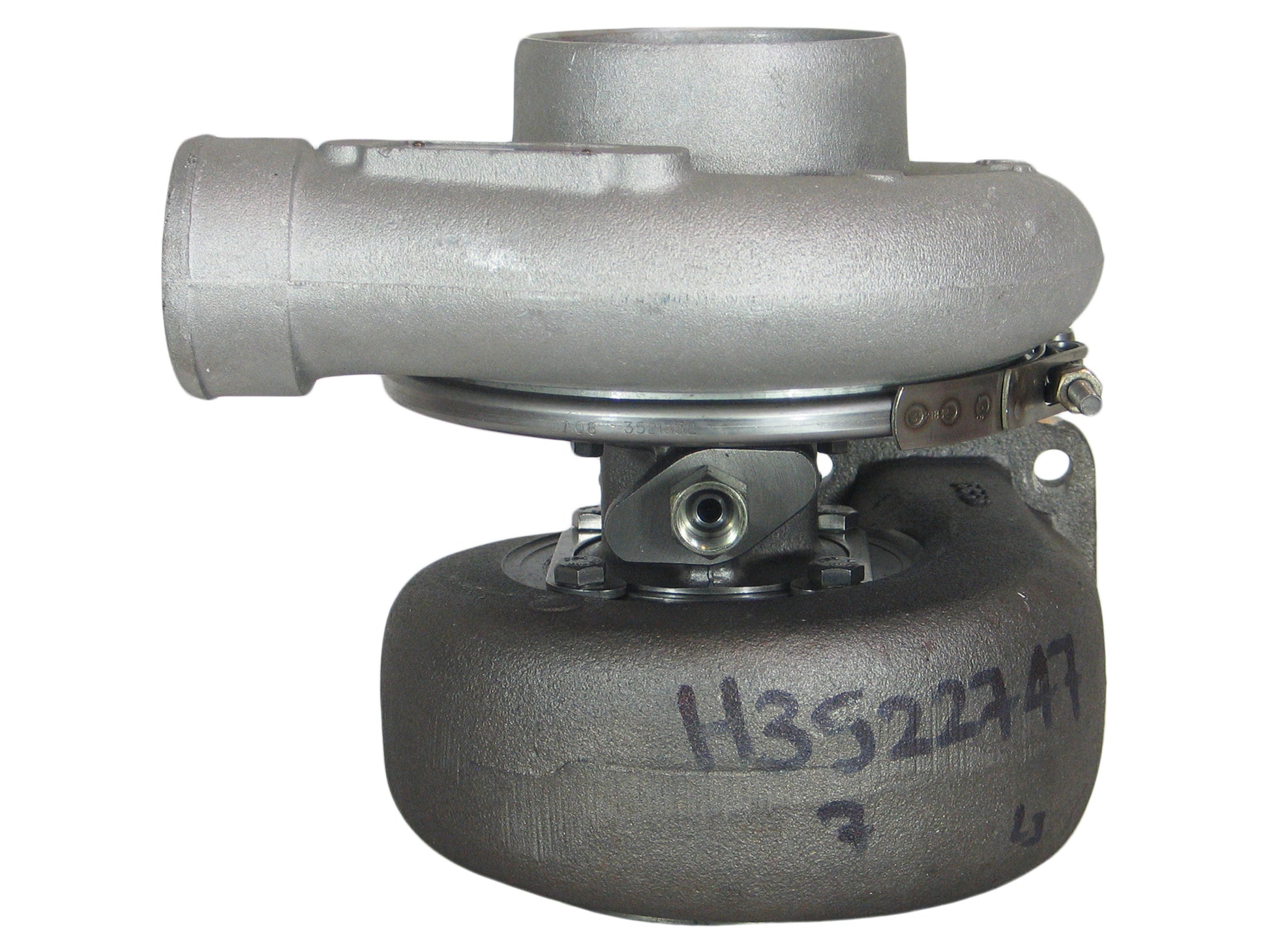

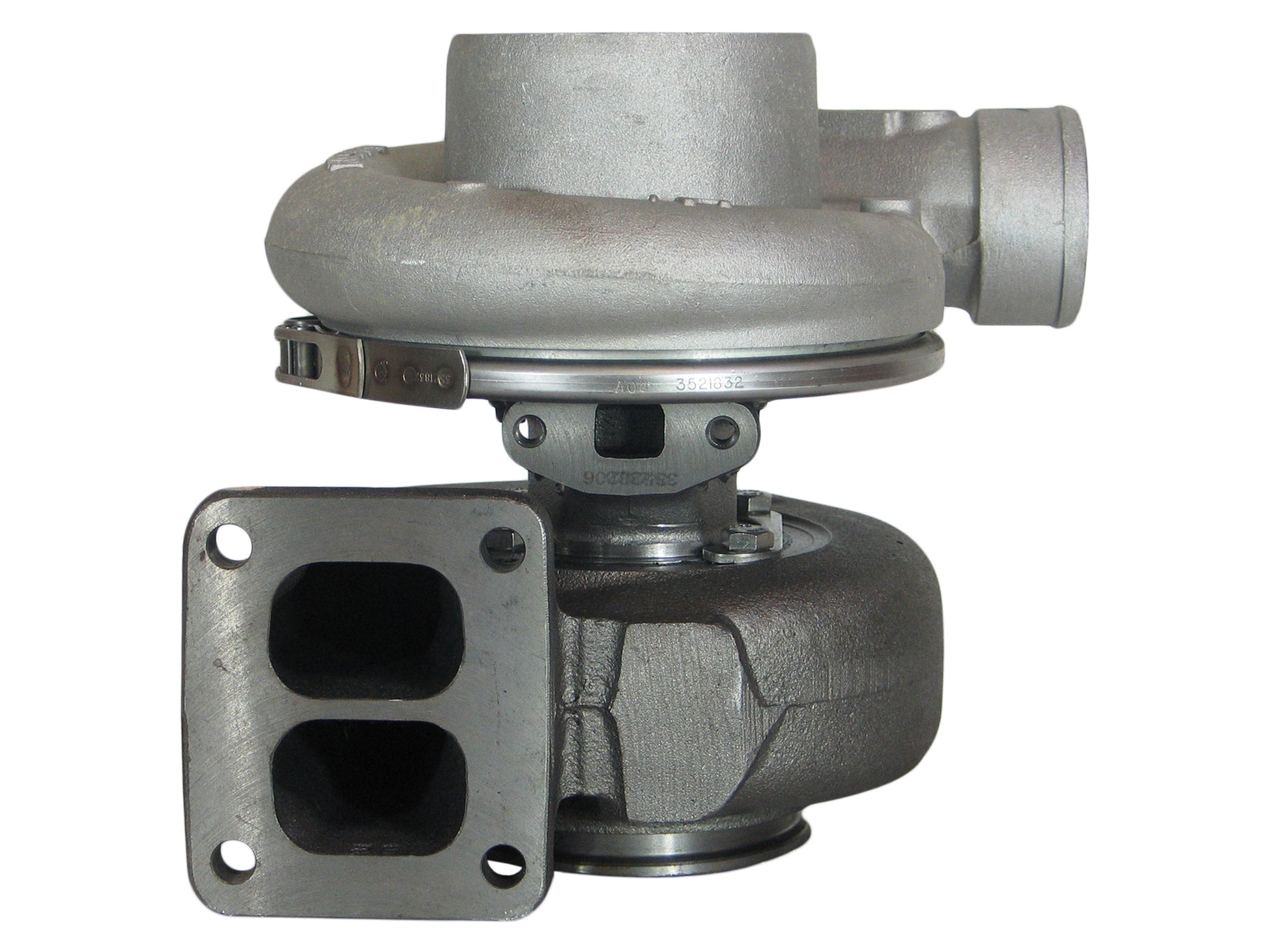

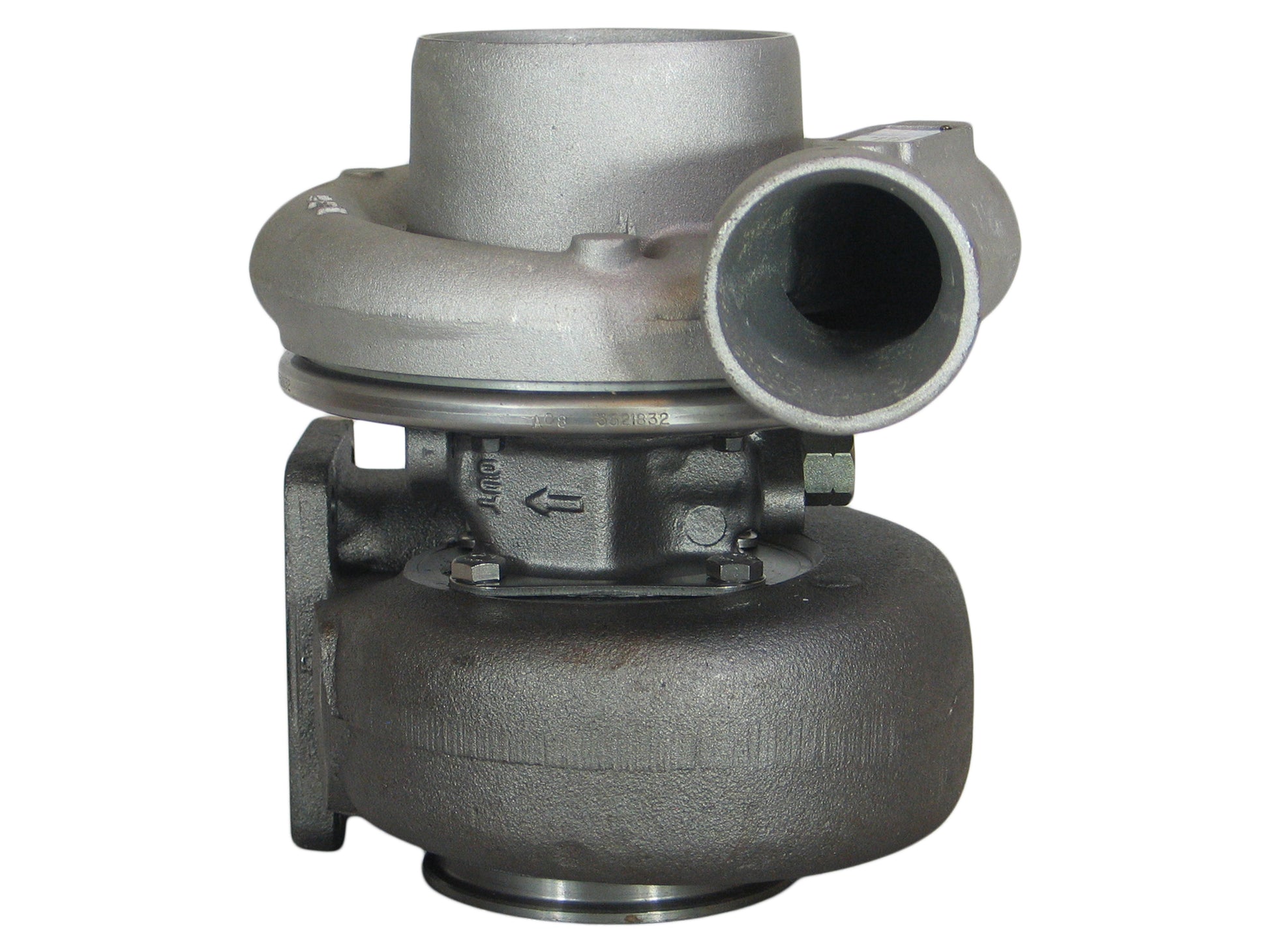

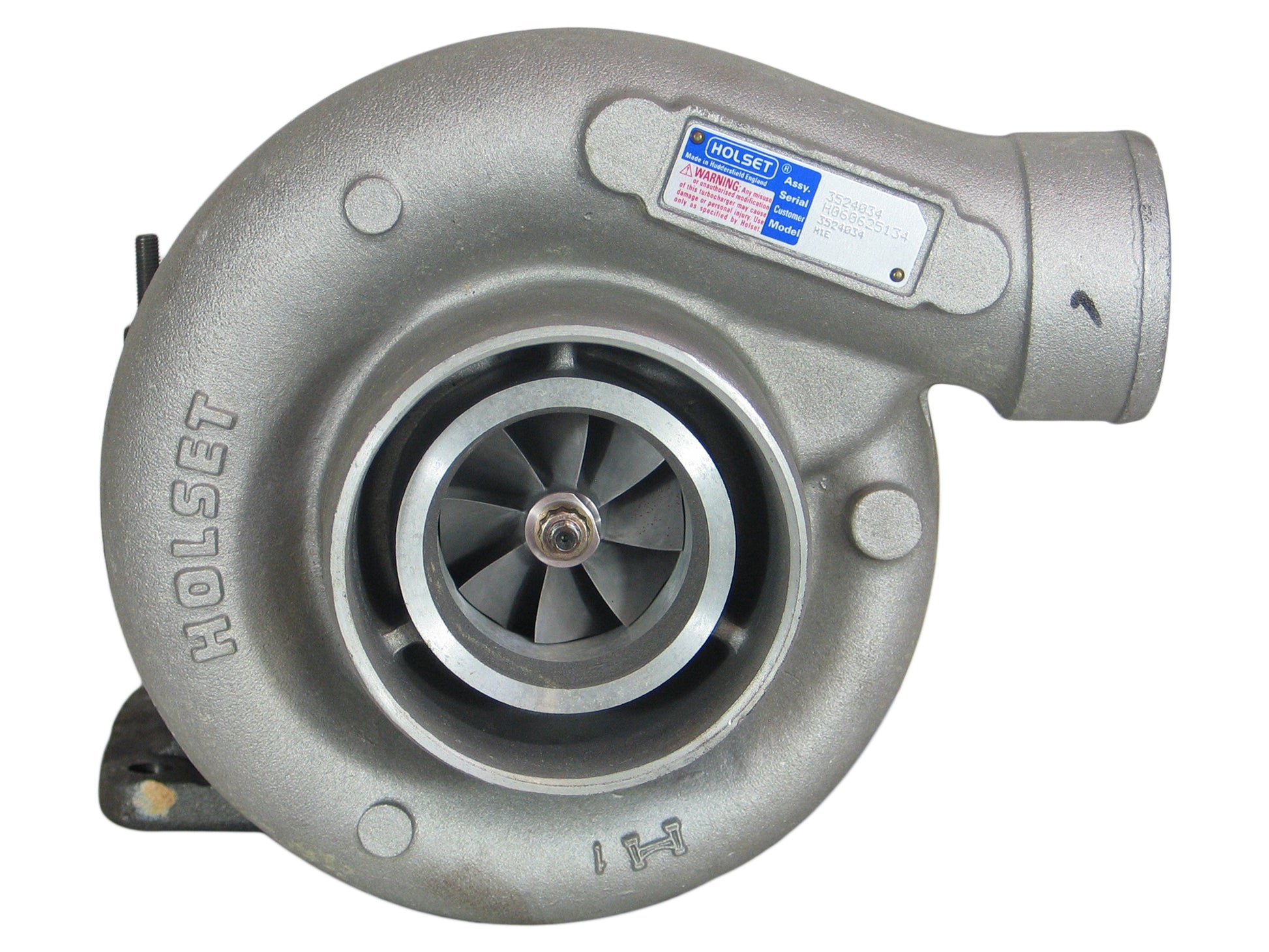

NEW OEM Holset H1E Turbo Industrial Cummins 6BT 6CT 6CTA Diesel Engine 3524034

BRAND NEW GENUINE HOLSET TURBOCHARGER

This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

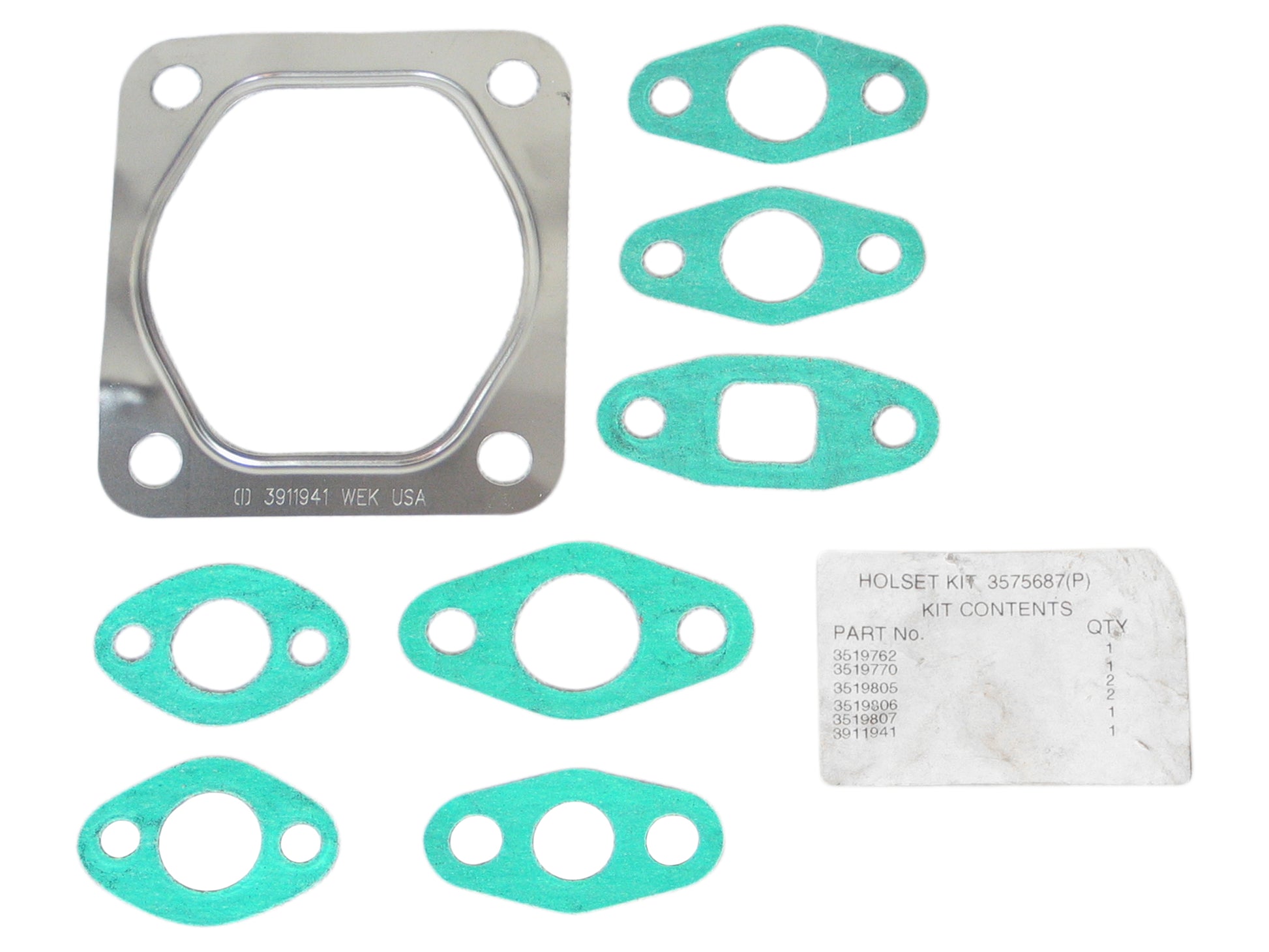

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 3524034
Interchangeable Number: 316468, 3524035H, 3528777, 3528778, 3802126, 3802126NX, 3802126RX, 380230300, 3802303NX, 3802303RX, 3802307NX, 3802307RX, 3802309, 3802309NX, 3802309RX, 3909308, 3909309, 3919199, 4035235, 465843-0001, 465843-5001, 465843-5001S, 466589-0001, 466589-5001, 466589-5001S
OEM Number: 3524035, 3802303, 3910877, 3919201, 75208275, 76191575, FJR802303, J802303, J909308, J919199, JR802303, JR802651, JR909308, JR919199, OTR2080019R
Turbo Model: H1E, H1E-8263AE/FA26CA11
Manufacturer: Holset

Year: 1986-03
Engine: 6BT, 6CT, 6CTA
Engine Manufacturer: Cummins, CDC
Displacement: 5.9L, 5900 ccm (6BT)/8.3L, 8300 ccm (6CT, 6CTA)
Fuel: Diesel

Angle α (Compressor Housing): 345°
Angle β (Turbine Housing): 15°
Back Plate: 3522801 (167543)
Bearing Housing: 3500591 (316519)
CHRA: 3545701
Compressor Cover: 3521693
Compressor Wheel: 3599637 (316518)
Gasket (Oil Outlet): 210021 (148062, 311496)
Gasket (Turbine Inlet): 407294-0001 (312617)
Gasket Kit: 3575687H
Heat Shield: 3519302 (167550)
Repair Kit (Major): 4027309 (4027309H, 318393)
Turbine Housing: 3522747
Turbine Wheel: 3522880 (314372)
Turbocharger Kit: 3524035H

NOTE: This turbo is mainly used for 6CT & 6CTA 8.3L engines. May work for 6BT 5.9L engines on special occasions.

Application:
1986-03 Industrial with Cummins 6CTA Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
