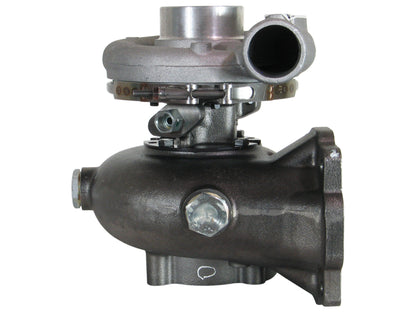

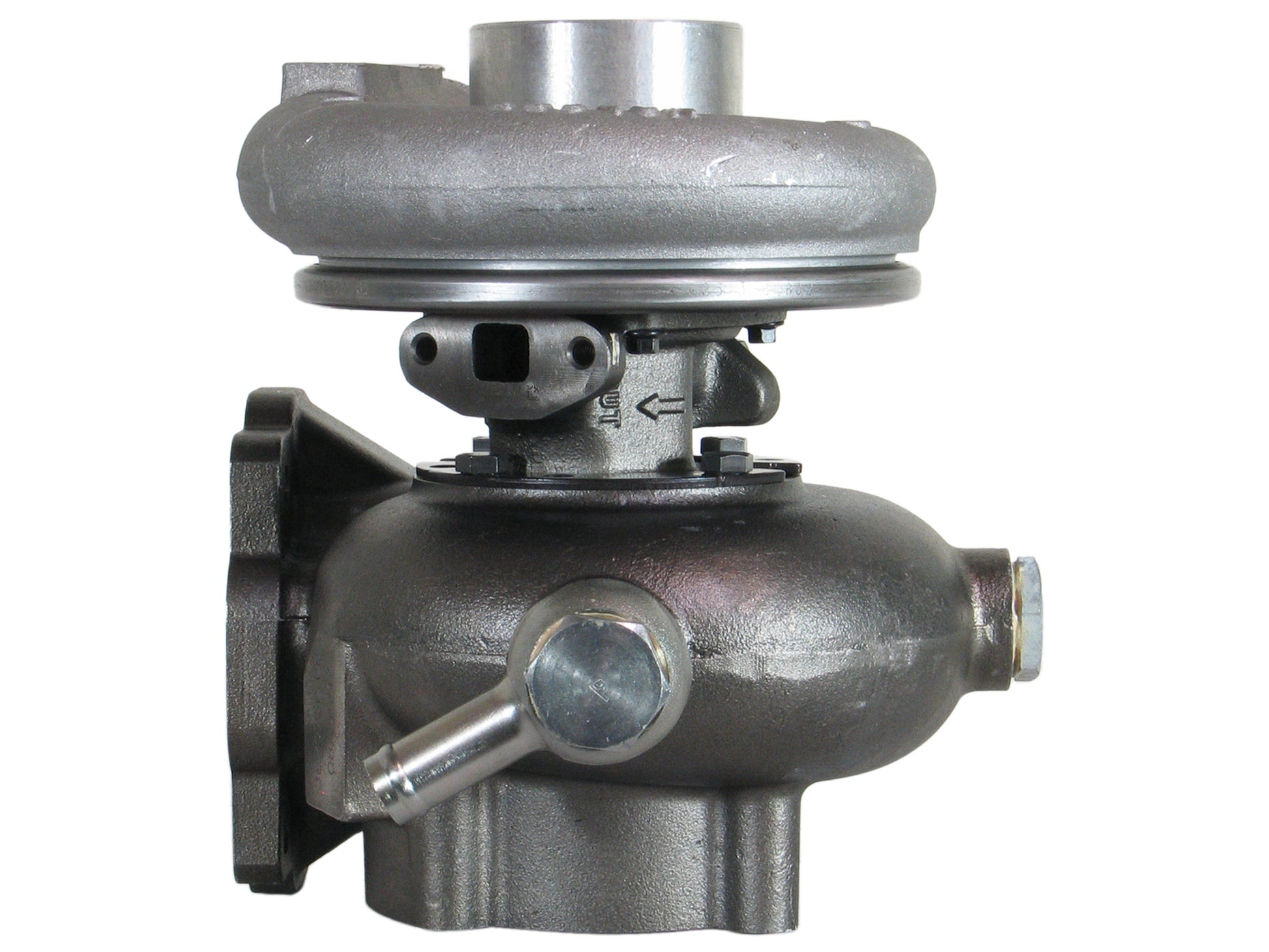

NEW OEM Holset H1C Turbo Marine Various Cummins 4BT 6BT 5.9L 3524427 3524424SKU: 3524427
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
NOTE: This turbocharger package also comes with the gaskets.
Fits the following:
Part Number: 3524424
Interchangeable Number: 352442700, 3524427H, 3528761, 3531034H, 3532207, 3533732, 3534373, 3534374H, 3538723, 3538780, 3539466, 3539467H, 3539472, 3539473H, 3802297H, 3802297NX, 3802297RX, 3802589, 3802589NX, 3802589RX, 3802594NX, 3802594RX, 3802870NX, 3802870RX, 3802911NX, 3802911RX, 3897539, 3897540
OEM Number: 3524427, 3528762, 3531034, 3533733, 3533734, 3534374, 3535434, 3535435, 3538760, 3538781, 3539467, 3539473, 3802297, 3802594, 3802870, 3802911
Turbo Model: H1C-8253AF/J13S11, H1C
Engine: 4BT, 6BT
Engine Manufacturer: Cummins, CDC
Displacement: 5.9L, 59080 ccm
Angle α (Compressor Housing): 199.5/241°
Angle β (Turbine Housing): 360/301°
Back Plate: 3522801 (1300016005)
Bearing Housing: 3530591 (3500591, 3530592)(Oil Inlet)(1152301450, 1900011017)
CHRA: 3537827 (353782700, 3523754)(1000020184)
Compressor Cover: 3522389
Compressor Wheel: 3599638 (3537155, 359963800)(Ind. 51.99 mm, Exd. 82.95 mm, Trim 10.3, 8+8 Blades)(1152301400, 1200016054)
Gasket (Oil Inlet): 210850 (392196100)(Inox Steel)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Gasket (Turbine Inlet): 210849 (3921926, 3916300, 3905033)(Stainless Steel)(Marine)
Gasket Kit: 3545575 (1900100057)
Heat Shield: 3519302 (1152301340, 2030016031)
Repair Kit: 4027309 (3545652, 3802148)(1152301750, 5000020014)
Rotor Assembly: 3523755 (352375500)
Turbine Housing (Water Cooled): 3524425

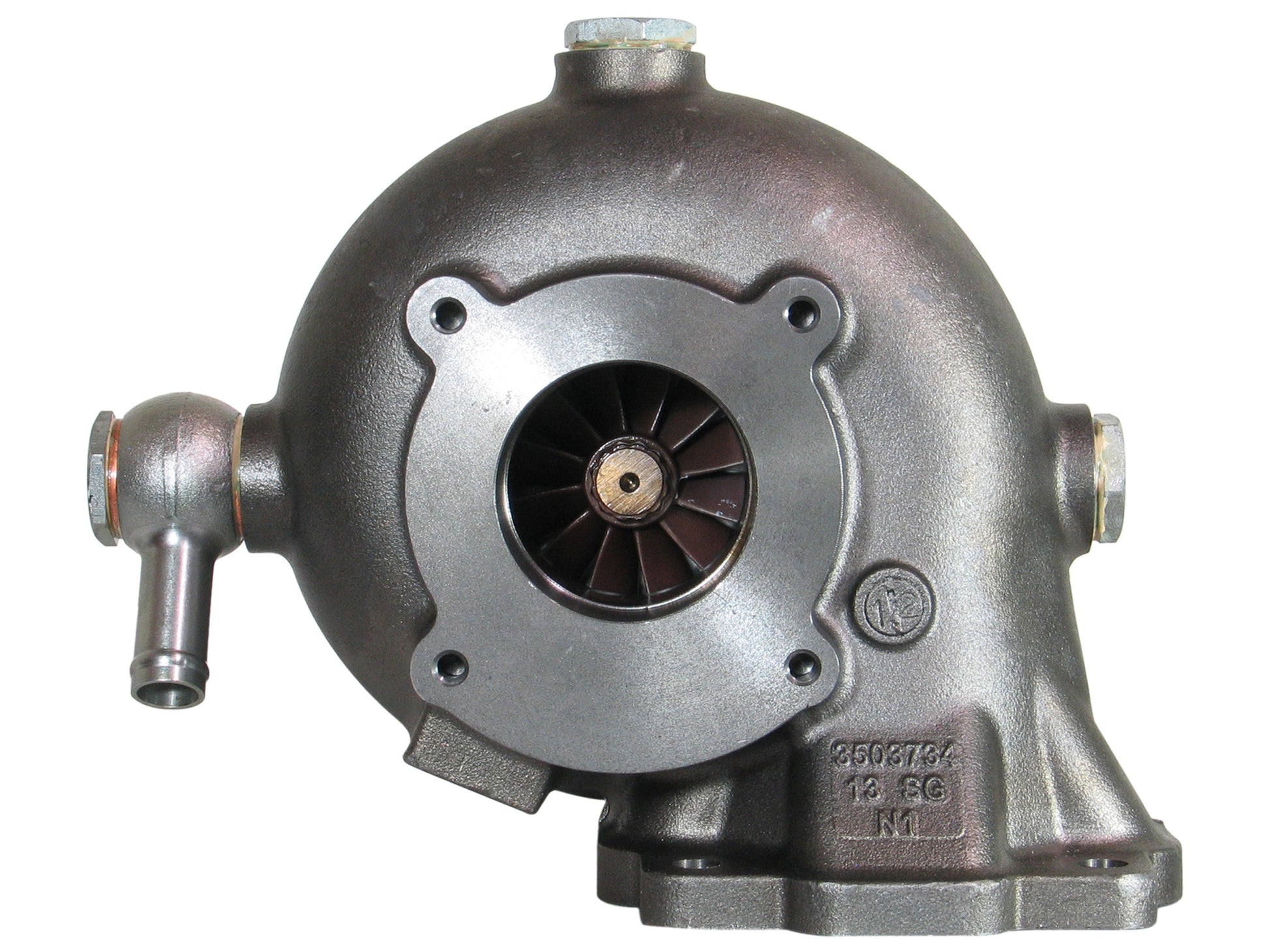

Turbine Housing: 3519934

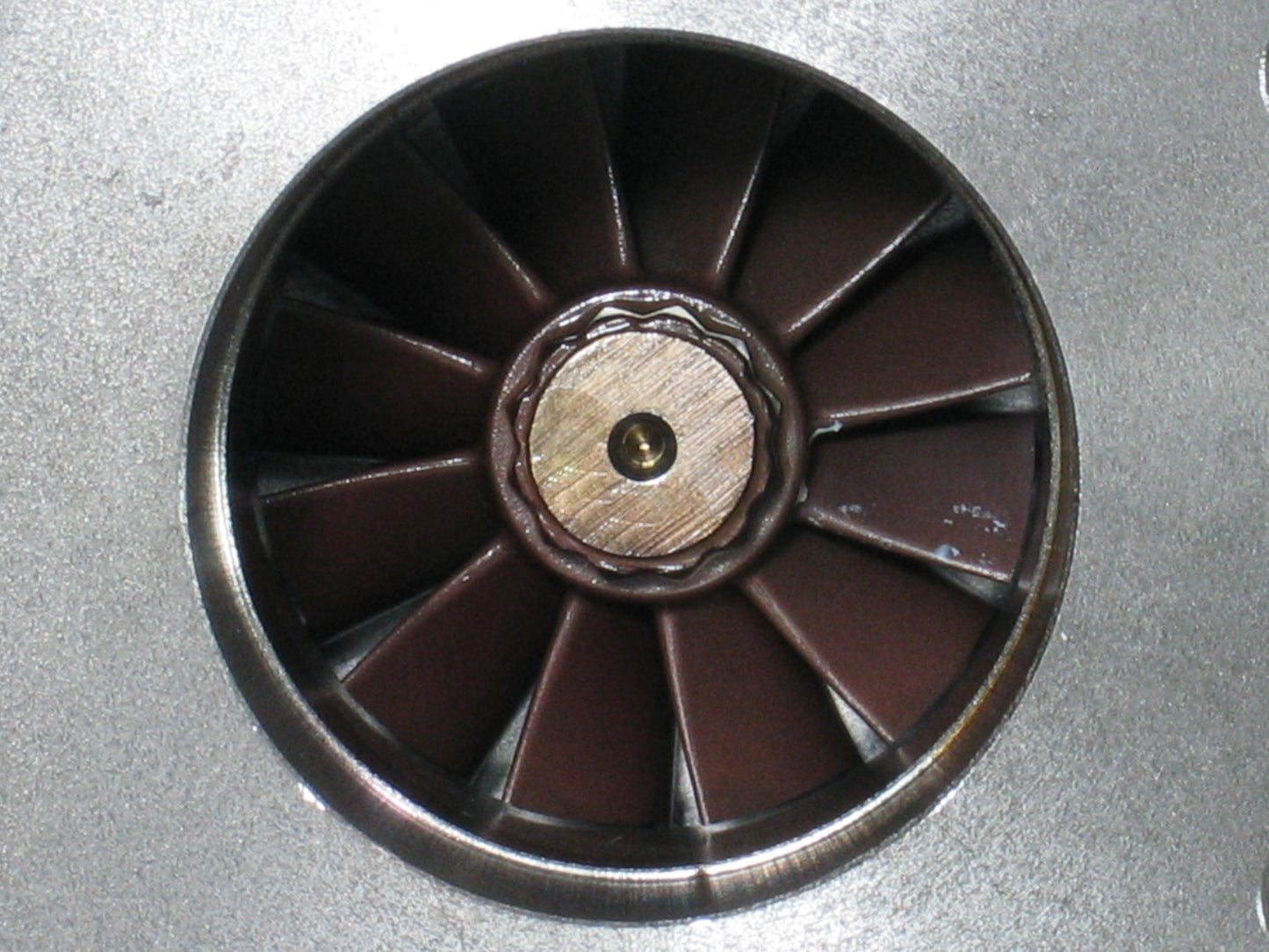

Turbine Wheel: 3519336 (3595832)(Ind. 70 mm, Exd. 60 mm, Trim 11, 12 Blades)(1152301435, 1100030005)
1985- Marine, Various with Cummins 4BT, 6BT Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
