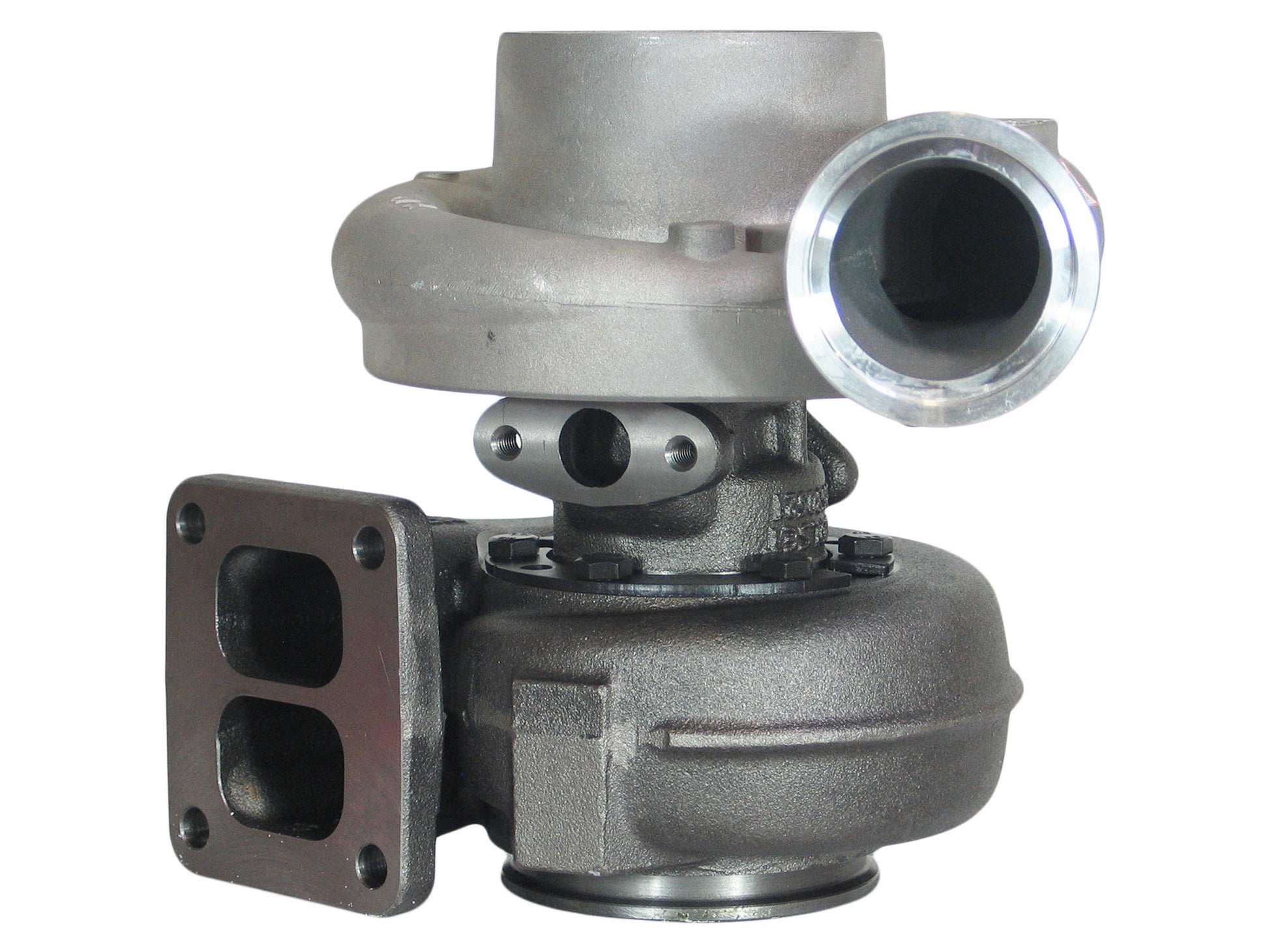

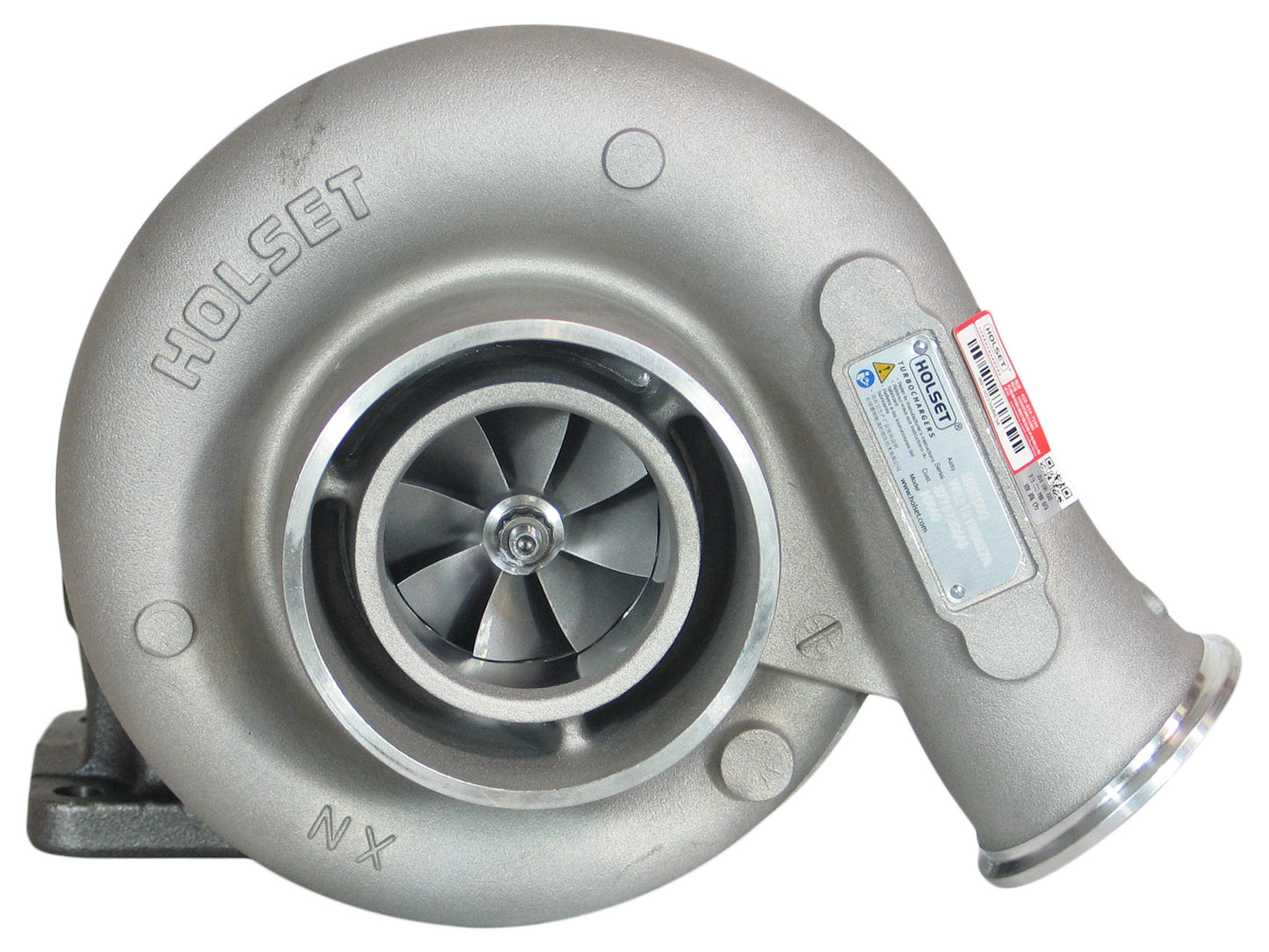

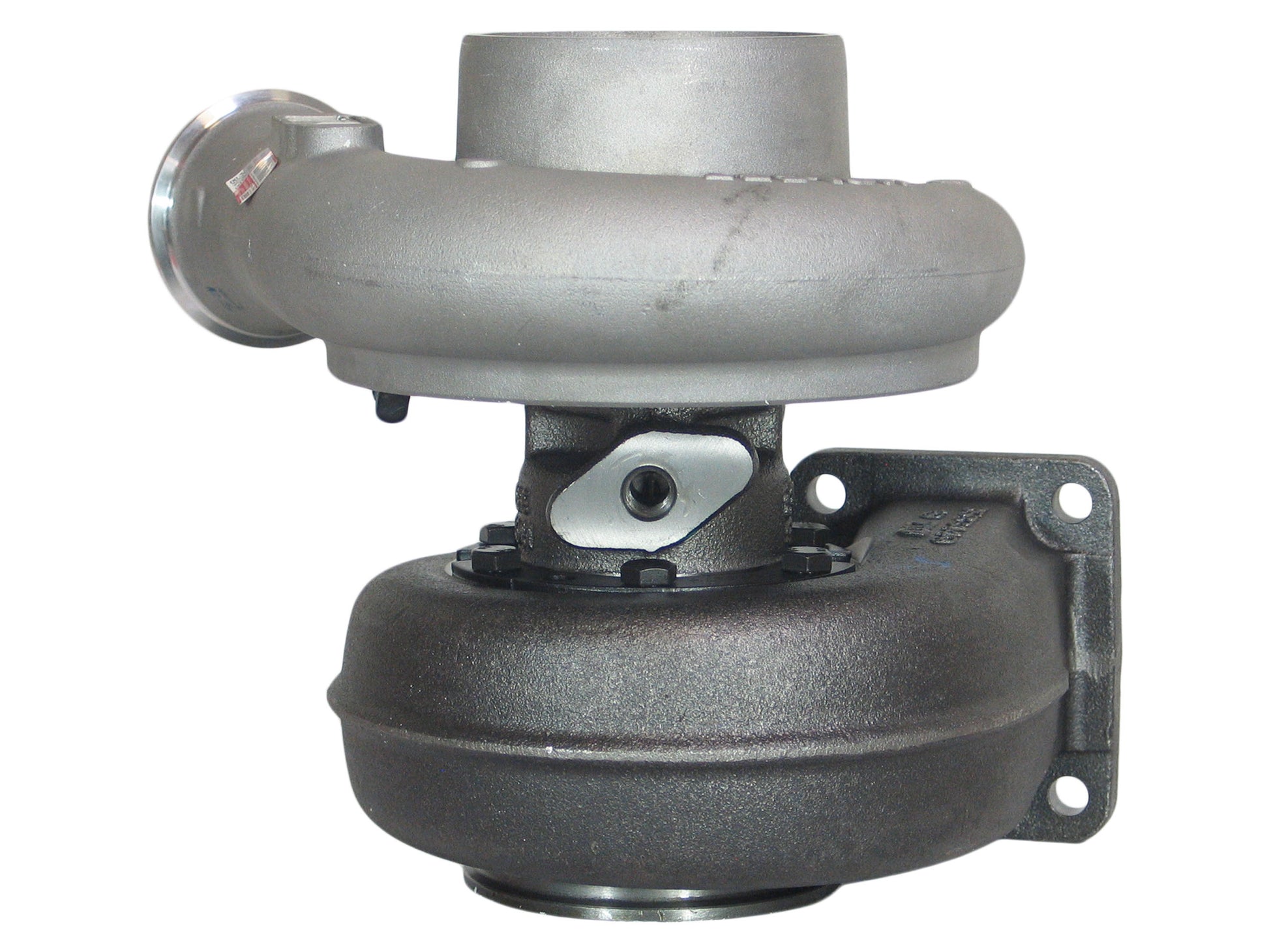

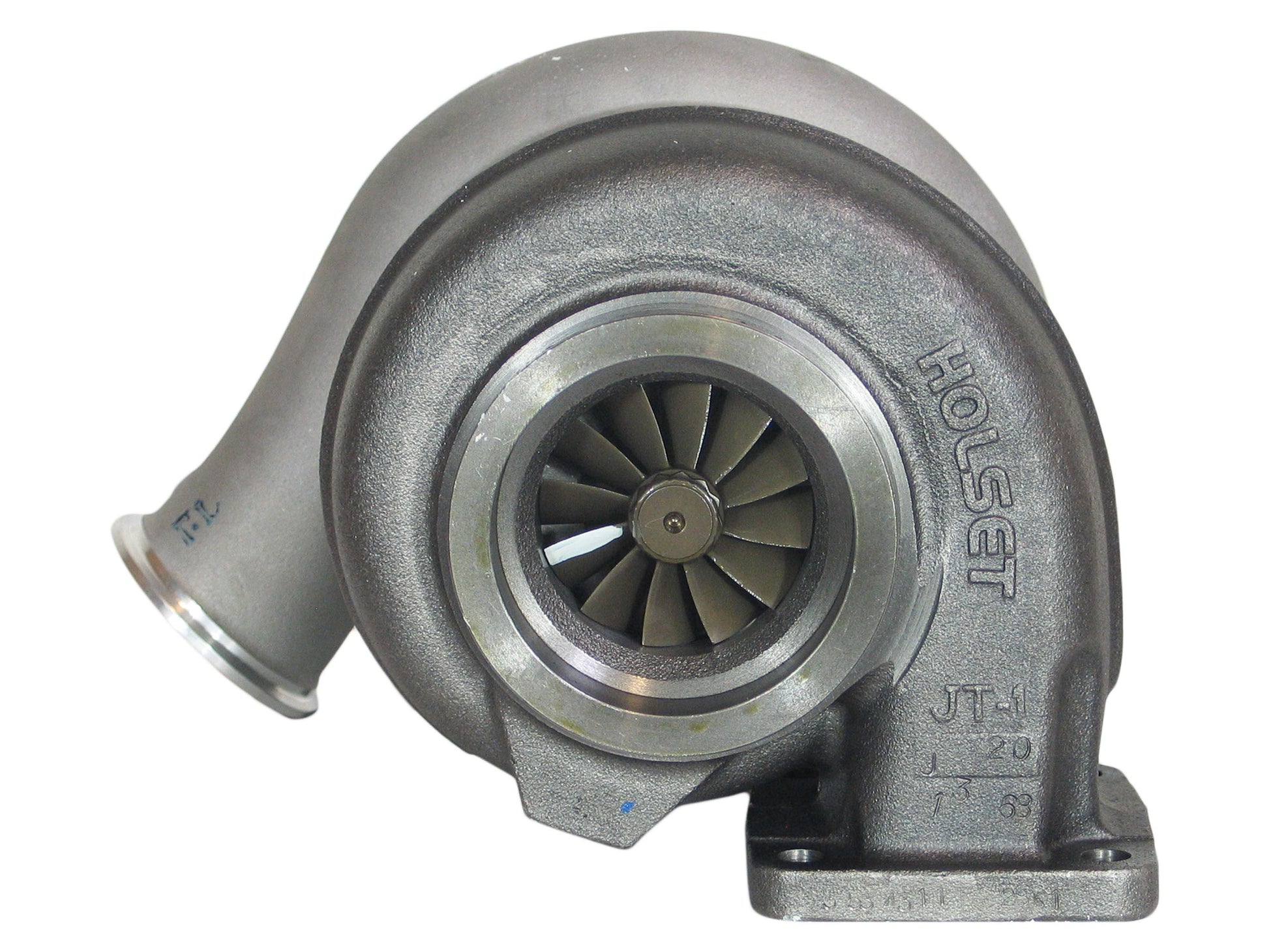

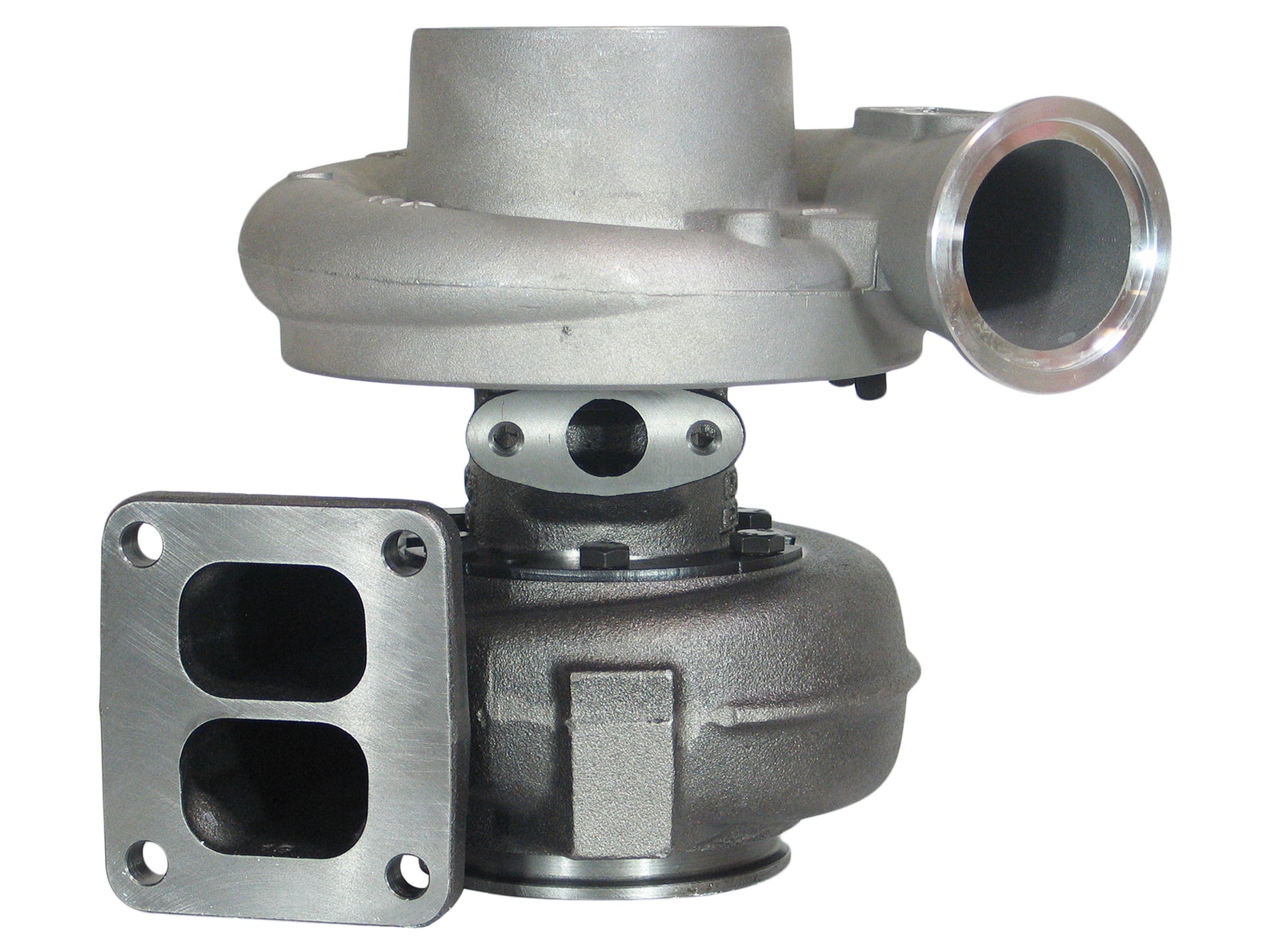

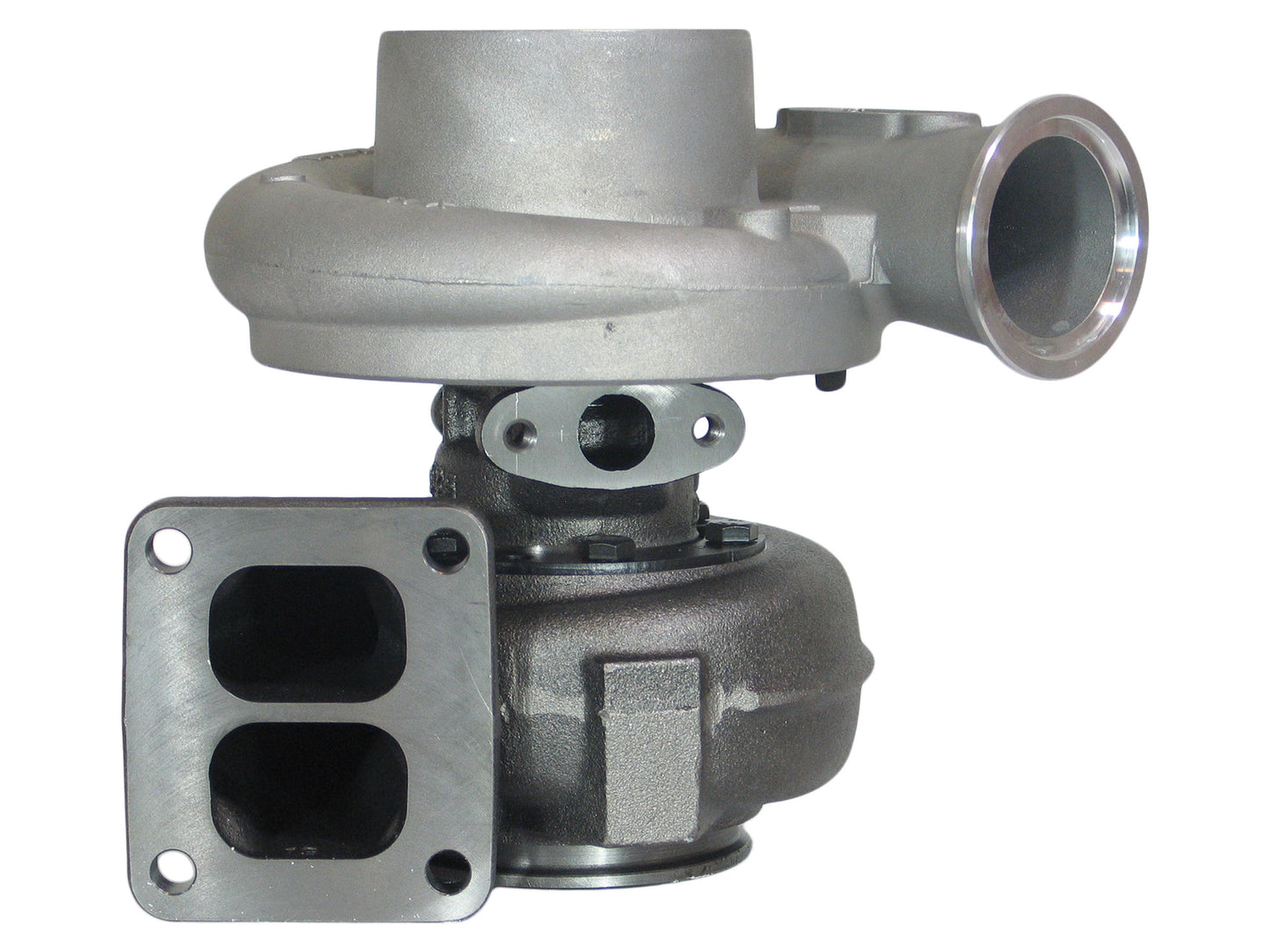

NEW OEM Holset HX40 Turbo Freightliner Cummins 6CTA 6CT 94 C Series 3533000SKU: 3533000
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 3533000
Interchangeable Number: 2841384, 2843102, 2843103, 3533001, 3533368, 3533369, 3533370, 3535004, 3536818, 3537557, 3537558, 3537559, 3537559H, 3539265, 3775720, 3779331, 3783077, 3799966, 4047707
OEM Number: 2882059, 3533371, 3802577
Turbo Model: HX40-8284L/FA19SA8, HX40
Engine: 6CT, 6CTA, 6CTAA, 94 C Series, C Series, C215
Engine Manufacturer: Cummins, DCEC, CDC
Power: 220 HP
Angle α (Compressor Housing): 158°
Angle ß (Turbine Housing): 22°
Back Plate: 3530923 (1154351300)
Bearing Housing: 3532632 (4027872, 4027869)
CHRA: 4027612 (4027849, 3535324)
Compressor Cover: 3532423
Compressor Wheel: 3599592 (3599591)(3537168)(6743818050)(Ind. 58 mm, Exd. 81.3 mm, 8+8 Blades)
Gasket (Oil Outlet): 210060 (2475013)(409267-0003, 409267-0002, 210060-0000, 51914, 148062, 311585)
Gasket (Turbine Inlet): 407294-0001 (310694)
Heat Shield: 3519302 (194149)(1152301340)
Repair Kit: 3575169 (1153035750)
Turbine Housing: 3534311
Turbine Wheel: 3522879 (3535359)(Ind. 76 mm, Exd. 64 mm, 12 Blades)(1152301436)
1993- Freightliner Truck with Cummins 6CTA, 6CT-94 C Series, 94 C Series Engine
Dongfeng Industrial with Cummins C215 Engine
Various with Cummins 6CT, 6CTA, 6CTAA Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
Any questions or concerns, please feel free to email or call us.
For our Warranty / Return Policy, please see our Policies at the top of the website.
