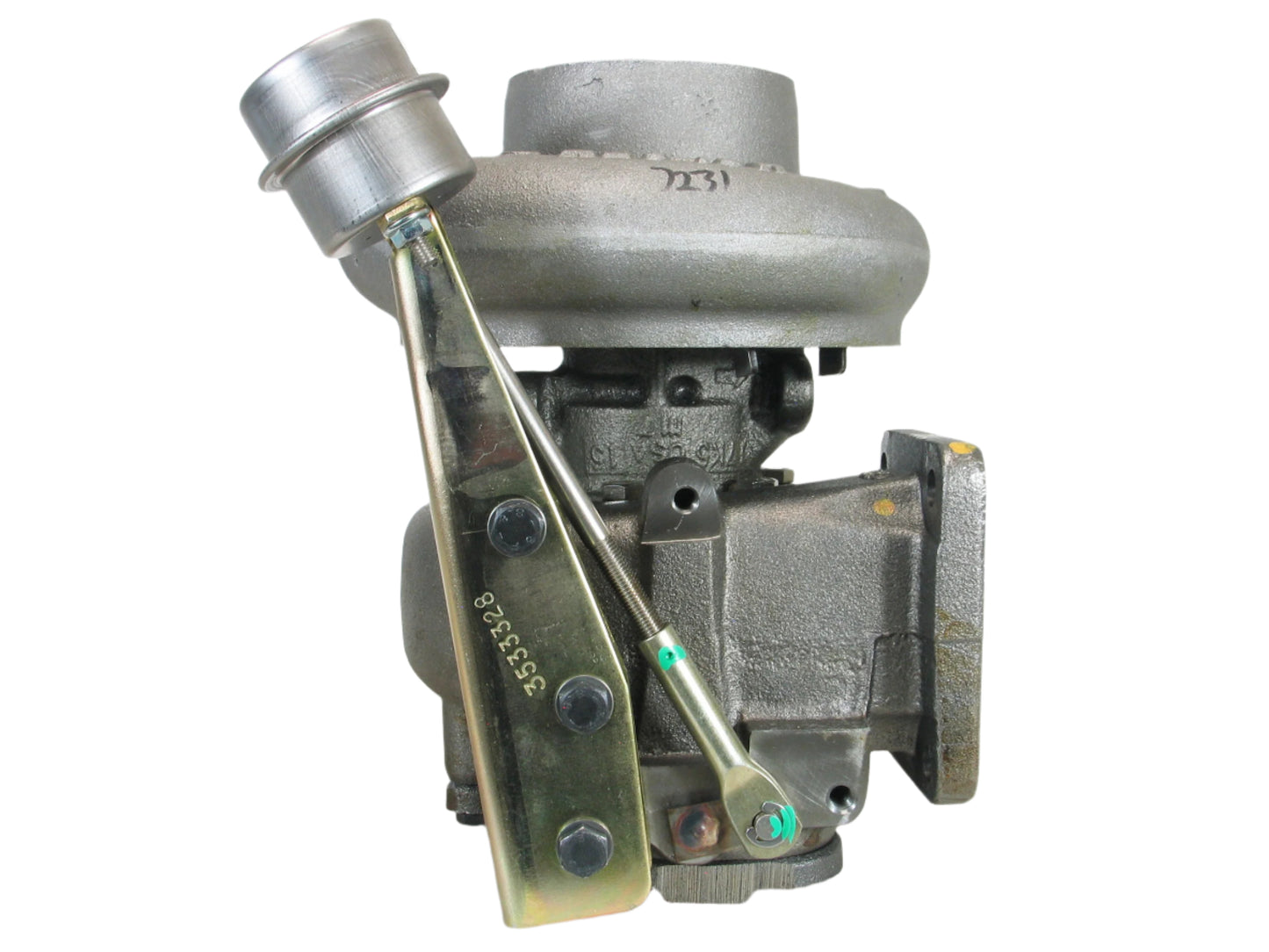

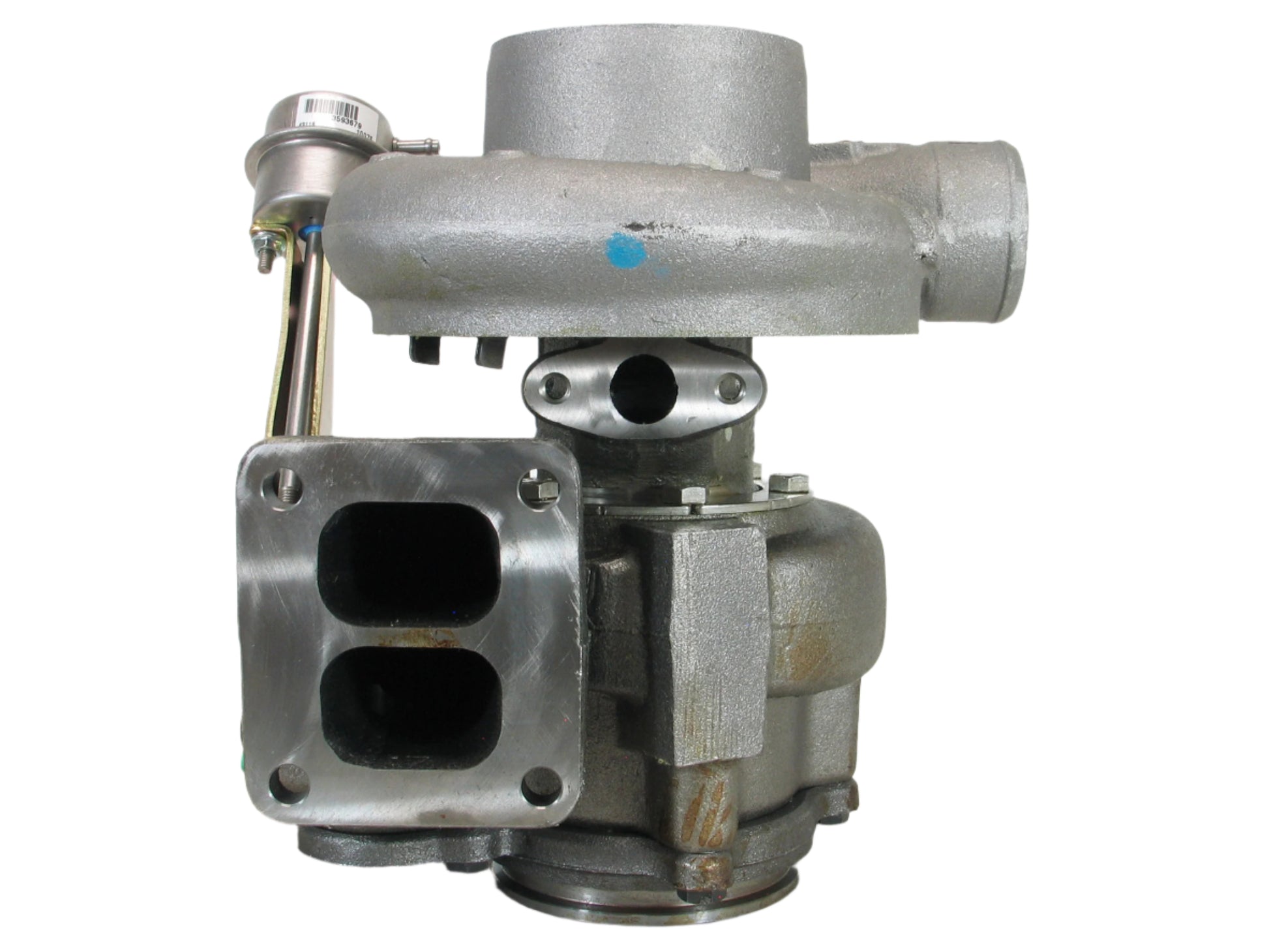

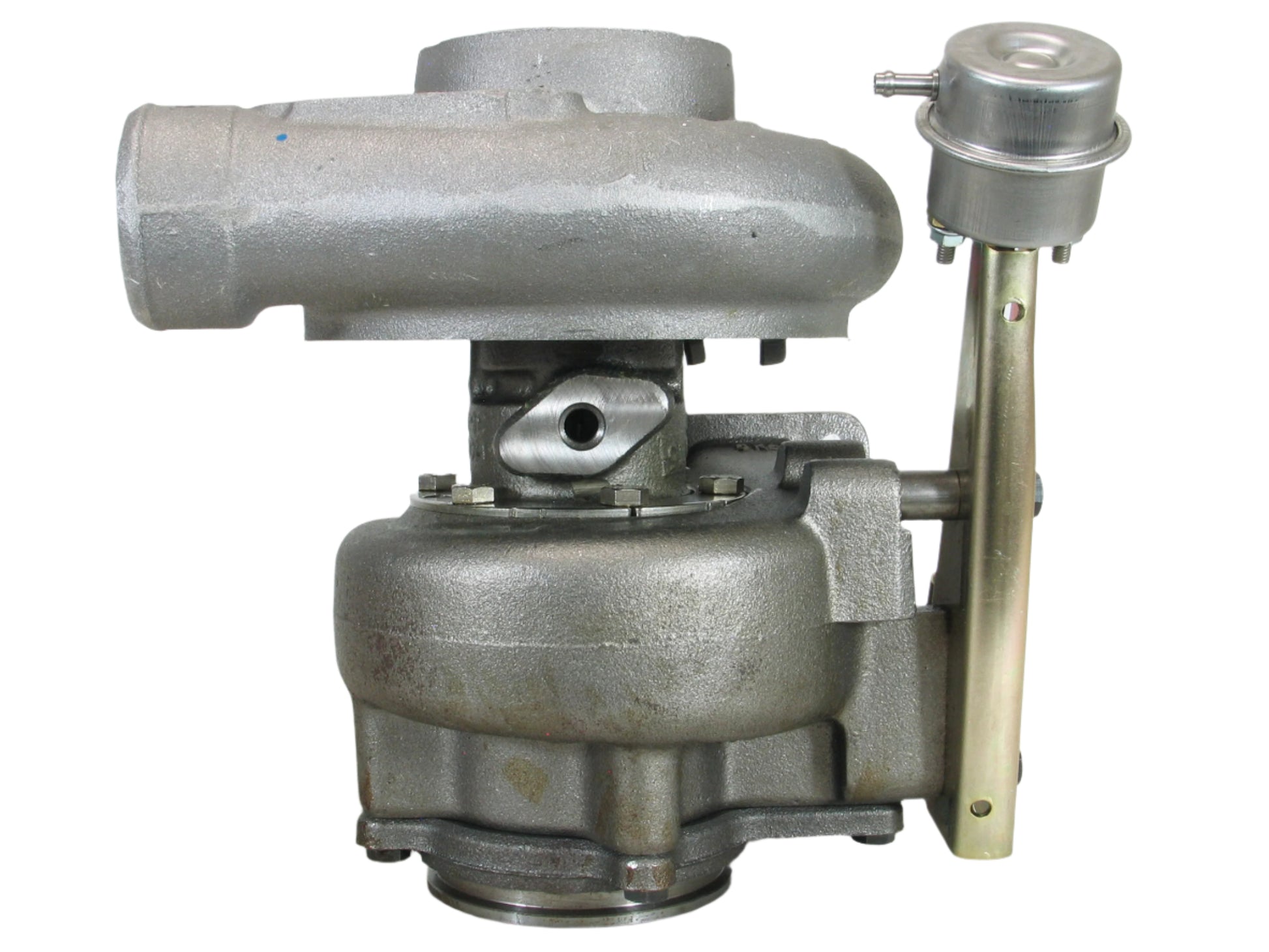

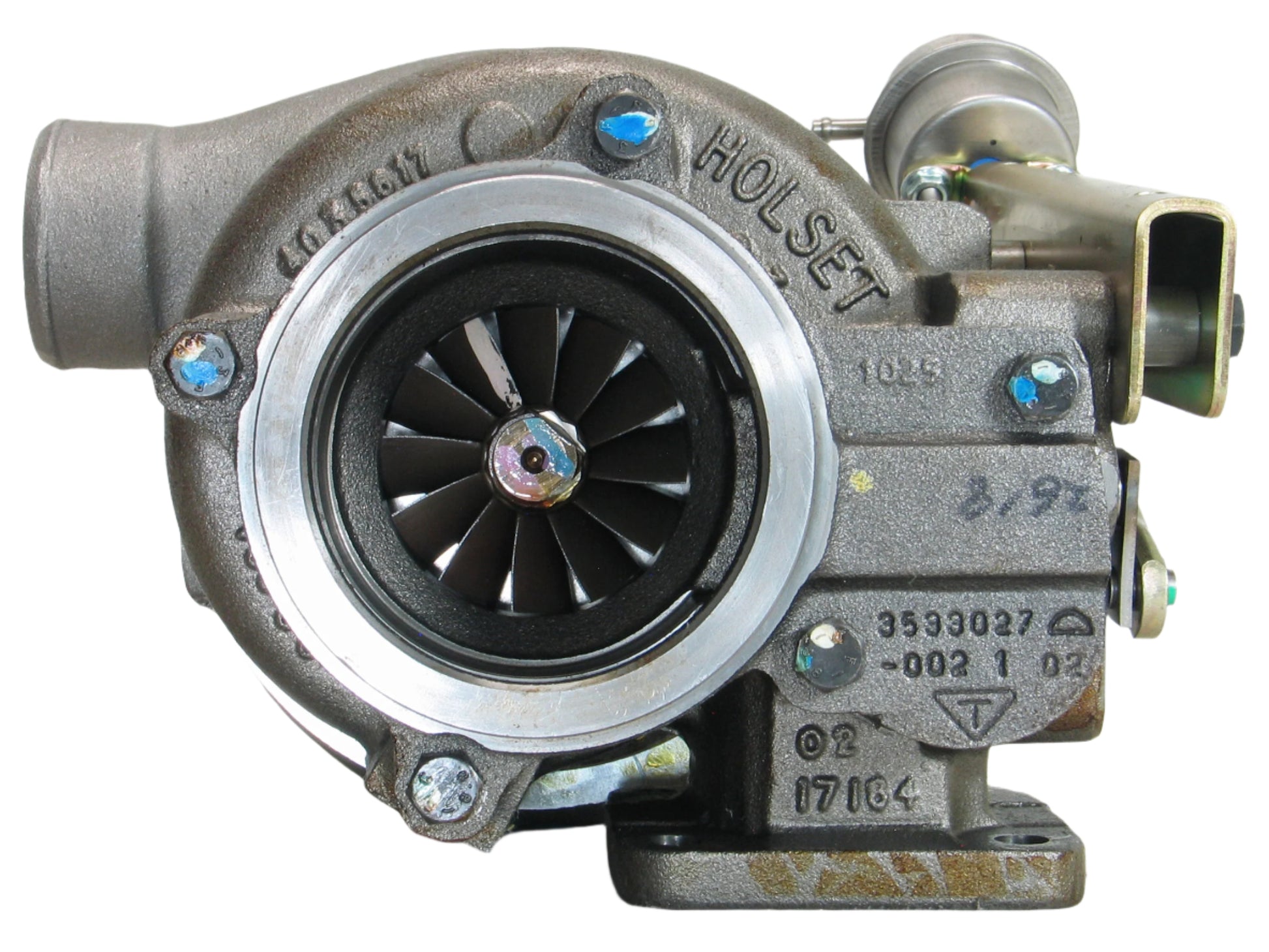

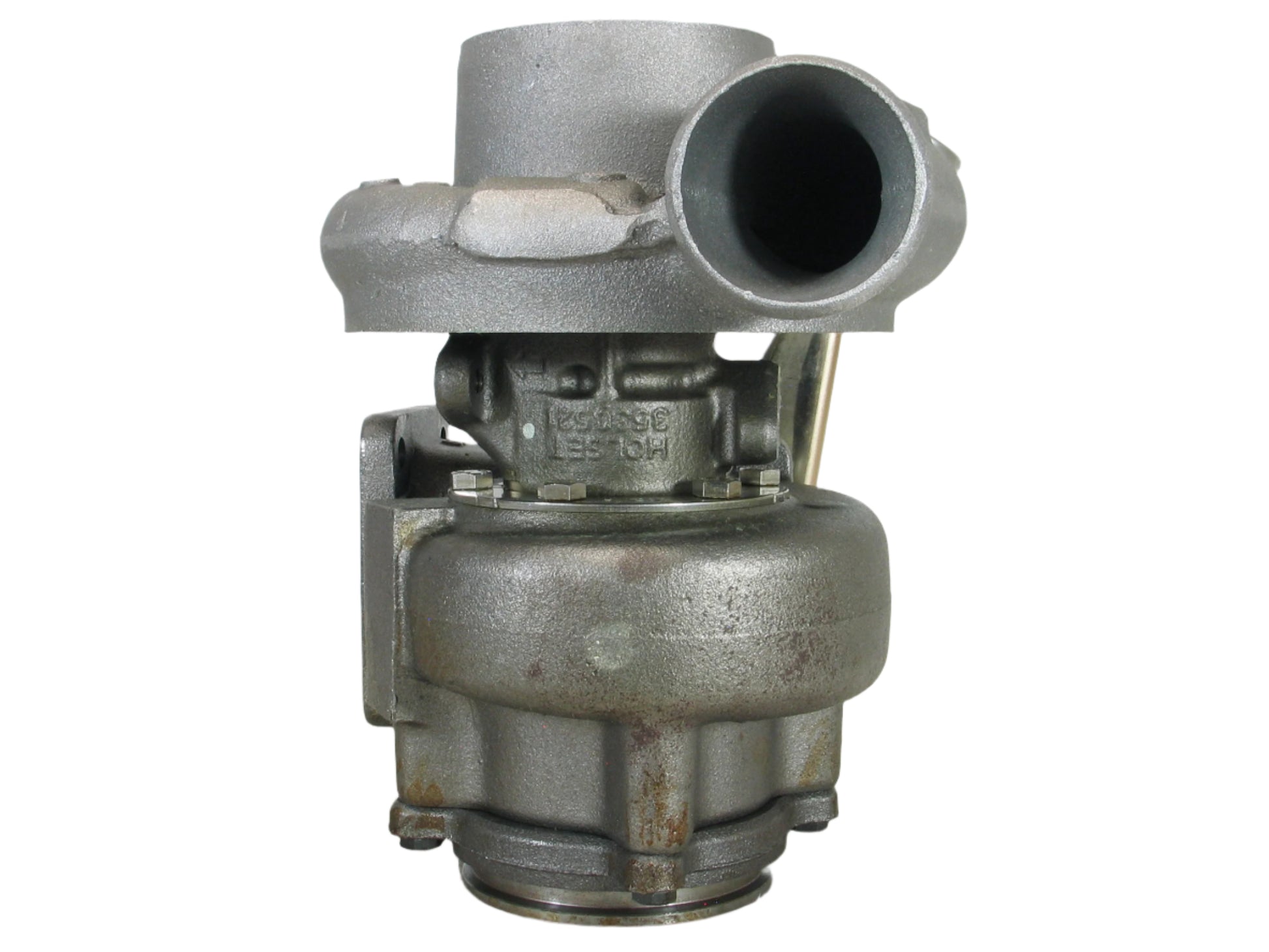

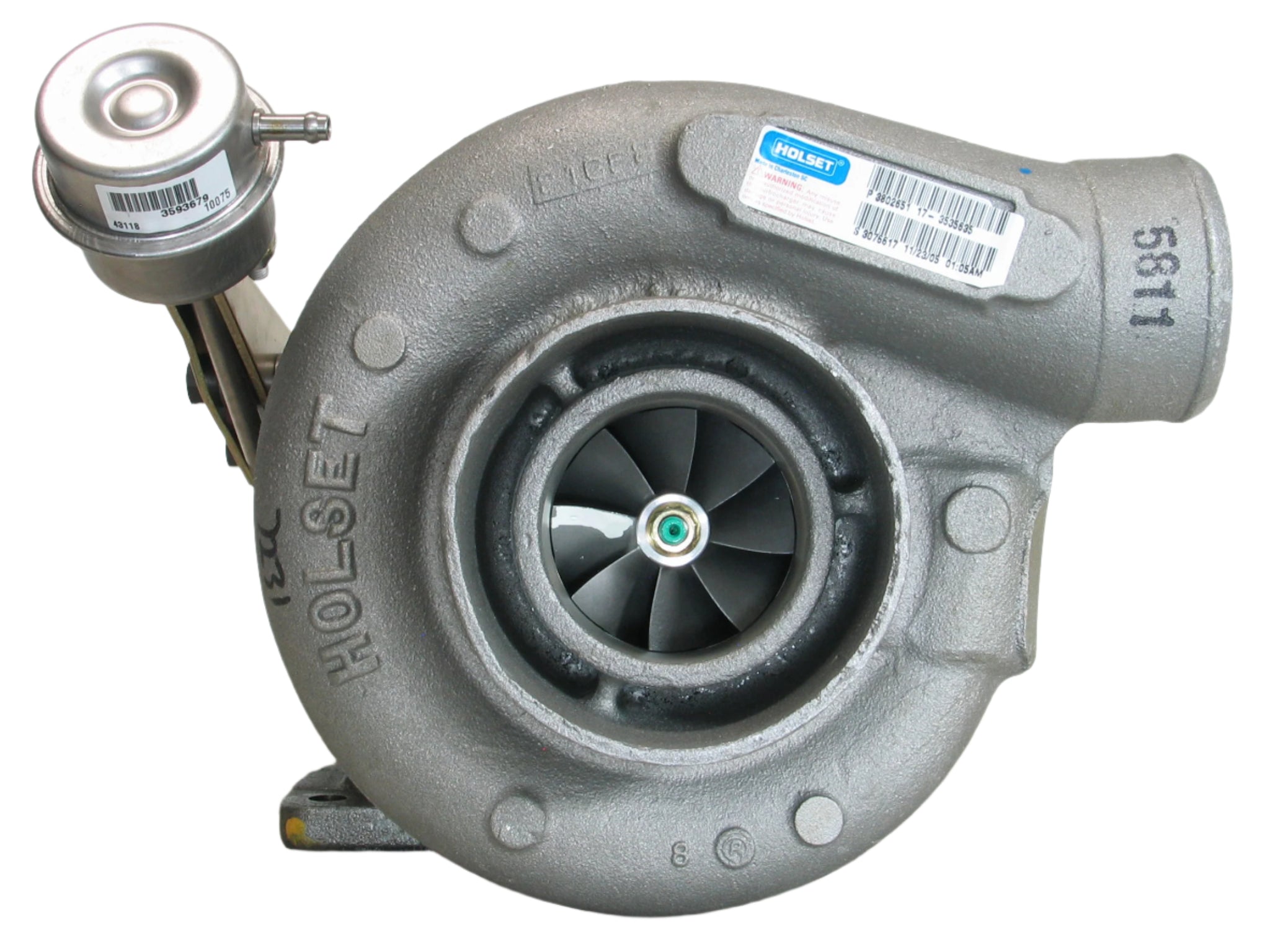

NEW OEM Holset HX40W Turbocharger Industrial Cummins 6CT Engine 3802651 3535635

BRAND NEW GENUINE HOLSET TURBOCHARGER

This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

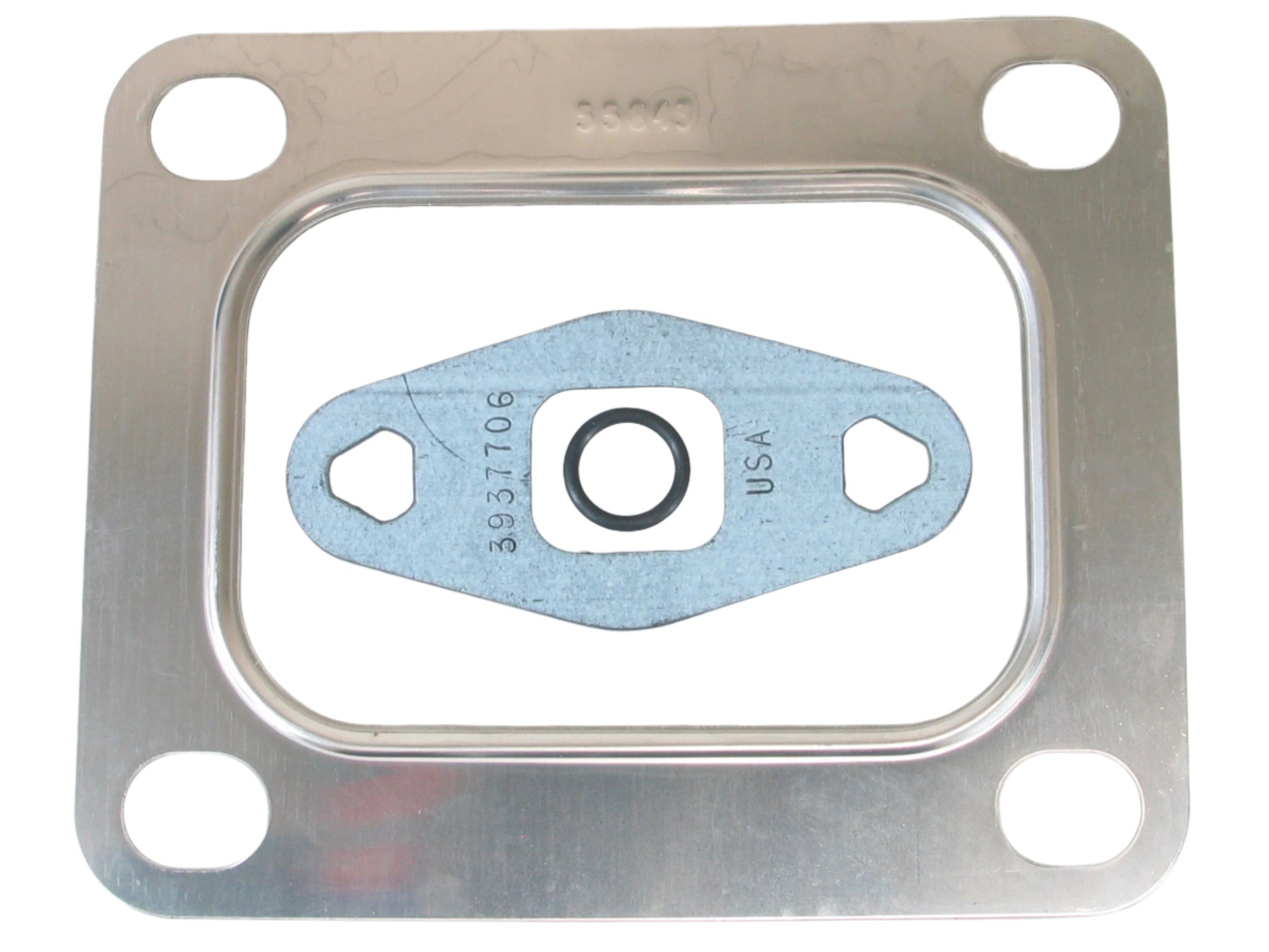

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 3535635
Interchangeable Number: 3535636, 3535638, 3535638H, 3535640, 3535641
OEM Number: 3802651, 76192436
Turbo Model: HX40W-A82N71GT/A76L84FFA17JD-, HX40W
Manufacturer: Holset

Year: 1994-09
Engine: 6CT
Engine Manufacturer: Cummins
Fuel: Diesel

Angle α (Compressor Housing): 340°
Angle β (Turbine Housing): 15°
Actuator: 3593679
Back Plate: 3530923 (1154351300)
Bearing Housing: 3532632 (4027872, 4027869)
CHRA: 4027612 (4027849, 3535324)
Compressor Cover: 3535811
Compressor Wheel: 3599592 (3599591)(3537168)(6743818050)(Ind. 58 mm, Exd. 81.3 mm, 8+8 Blades)
Gasket (Oil Outlet): 210060 (2475013)(409267-0003, 409267-0002, 210060-0000, 51914, 148062, 311585)
Gasket (Turbine Inlet): 407294-0001 (310694)
Heat Shield: 3519302 (194149) (1152301340)
Repair Kit: 3575169 (1153035750)
Turbine Housing: 4038948
Turbine Wheel: 3522879 (3535359)(Ind. 76 mm, Exd. 64 mm, 12 Blades)(1152301436)
Wastegate Settings (Pressure): 1.600 bar

Application:
1994-09 Industrial with Cummins 6CT Engine

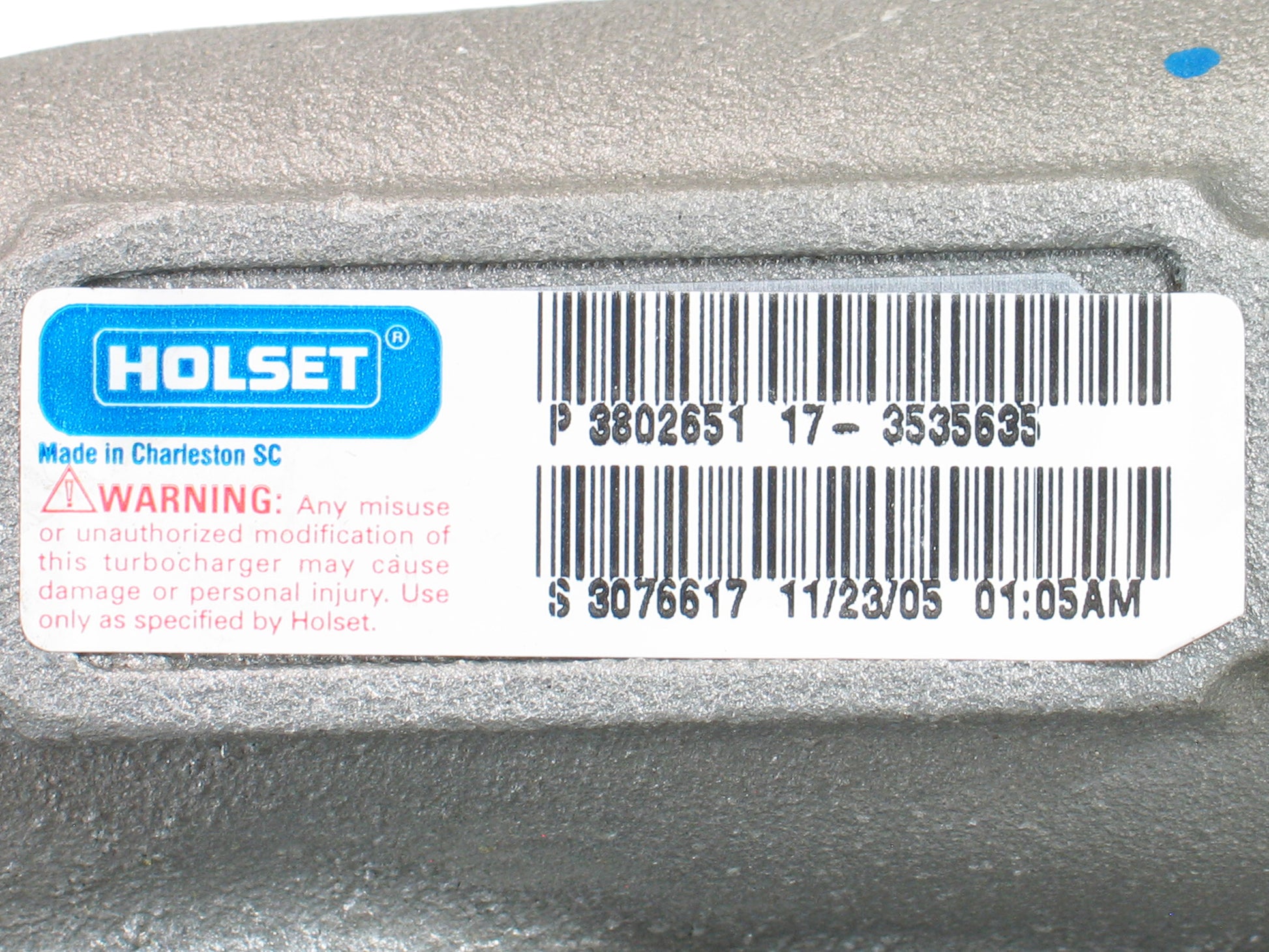

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
