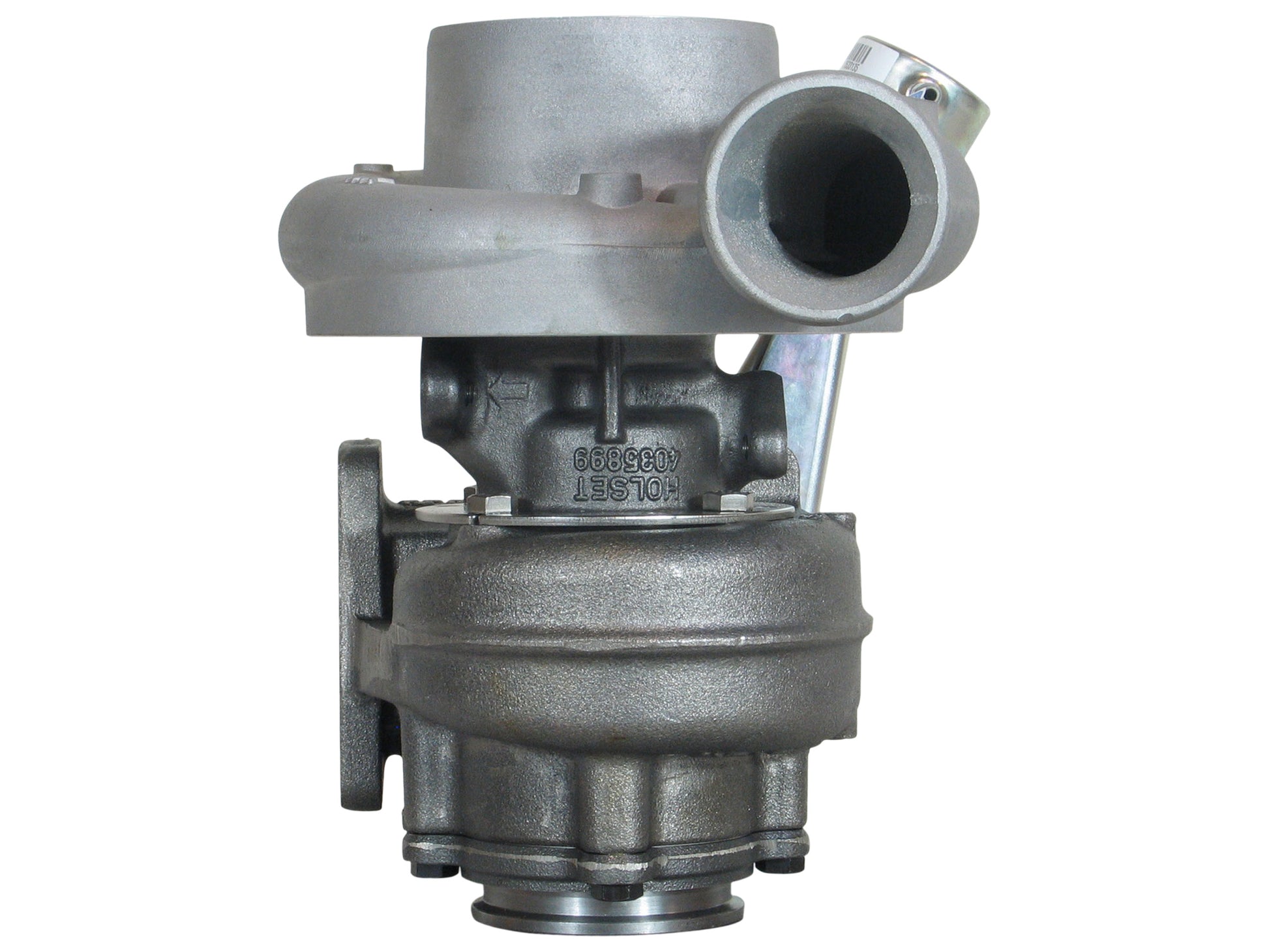

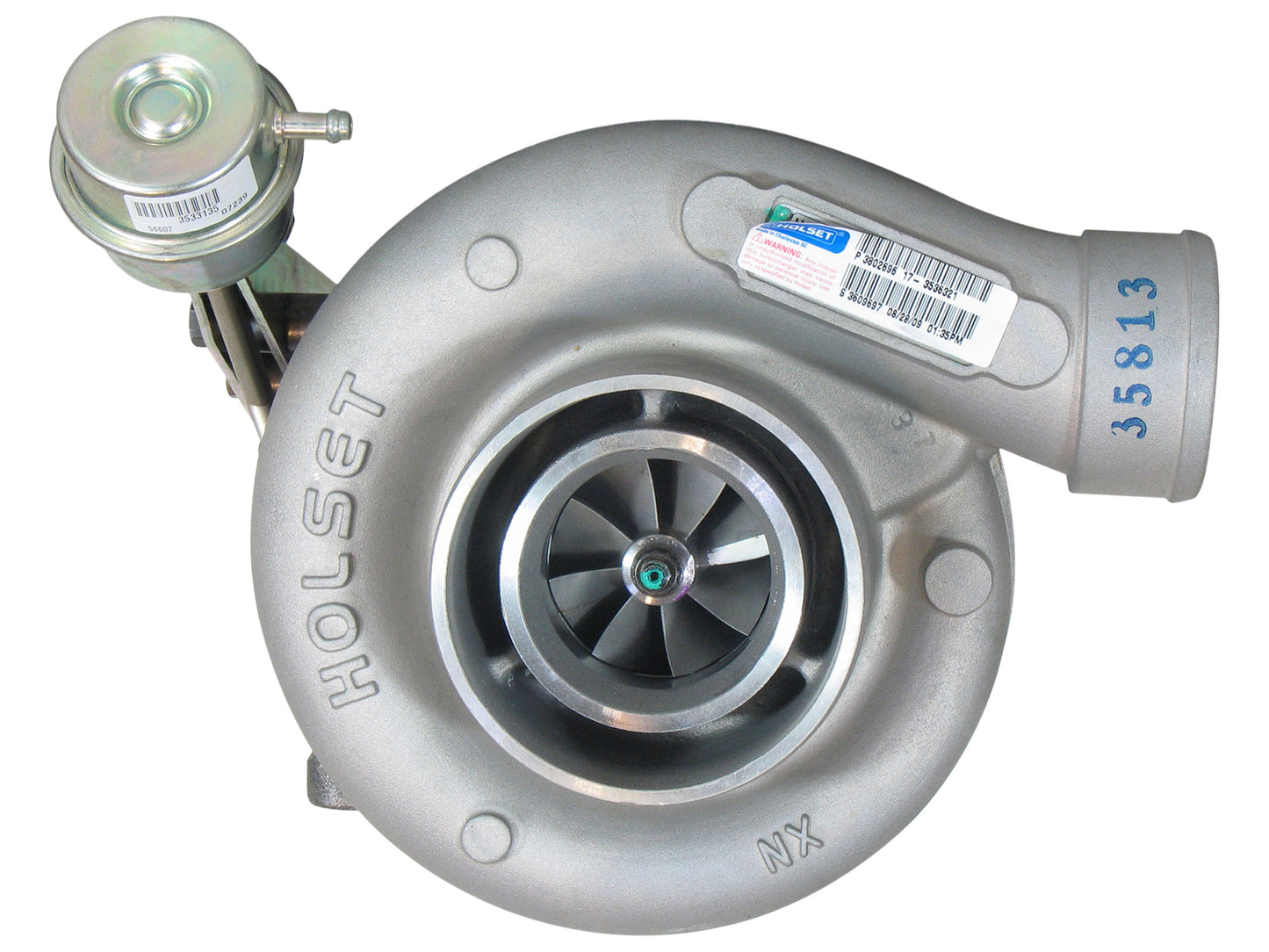

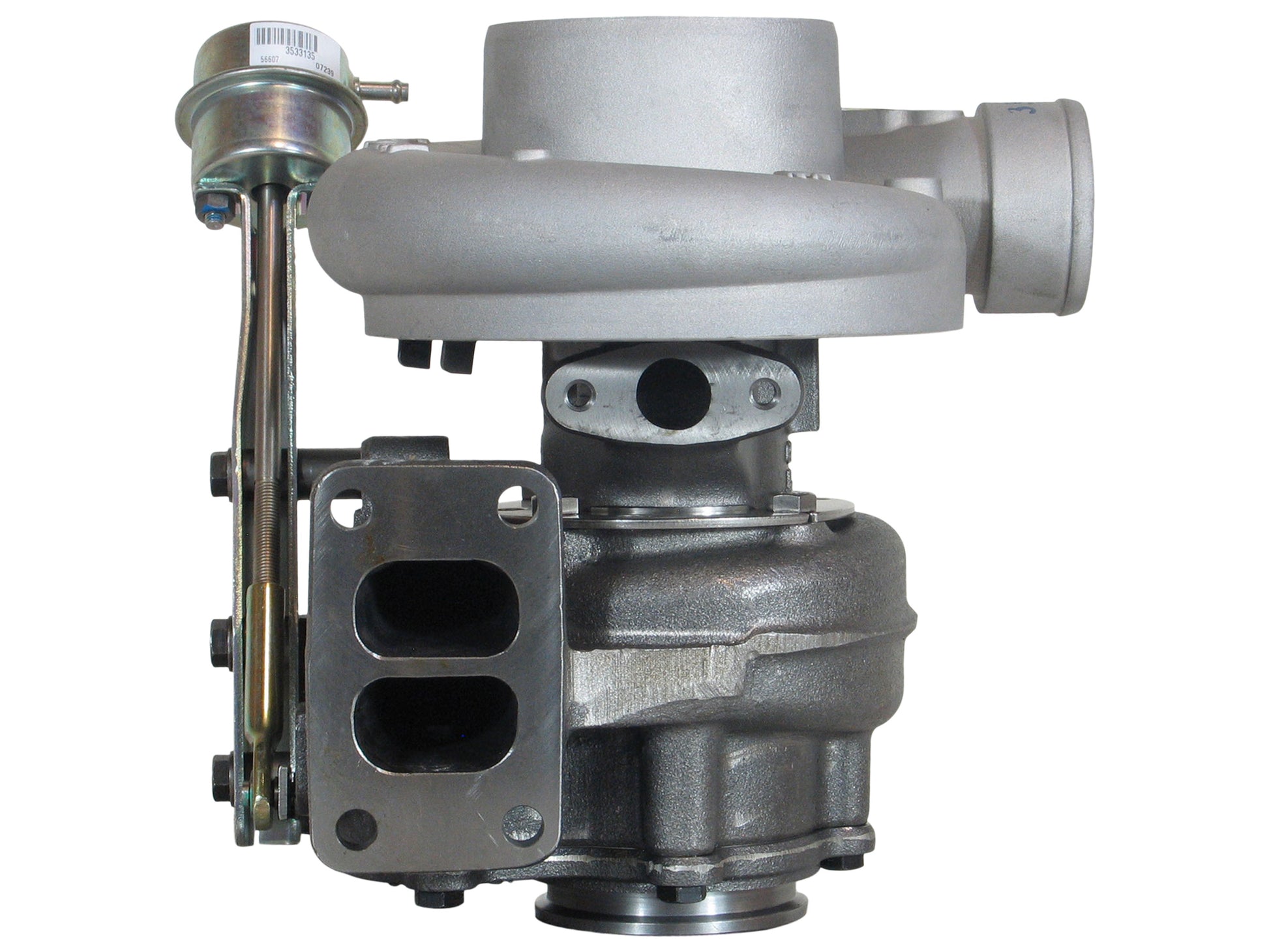

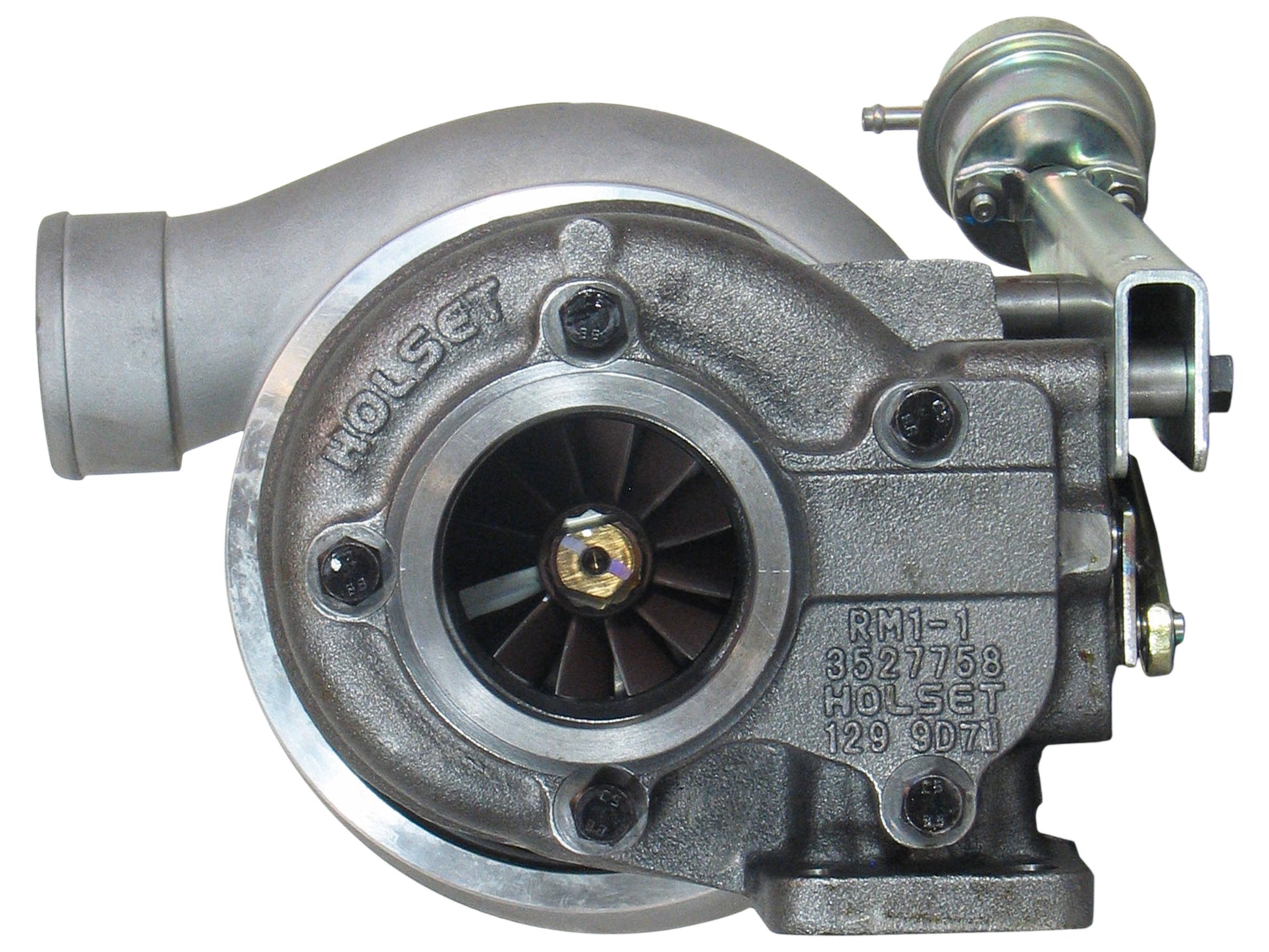

NEW OEM Holset HX35W Turbo Off Highway Cummins 6BTA 5.9L Diesel 3802696 3536321

BRAND NEW GENUINE HOLSET TURBOCHARGER

This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

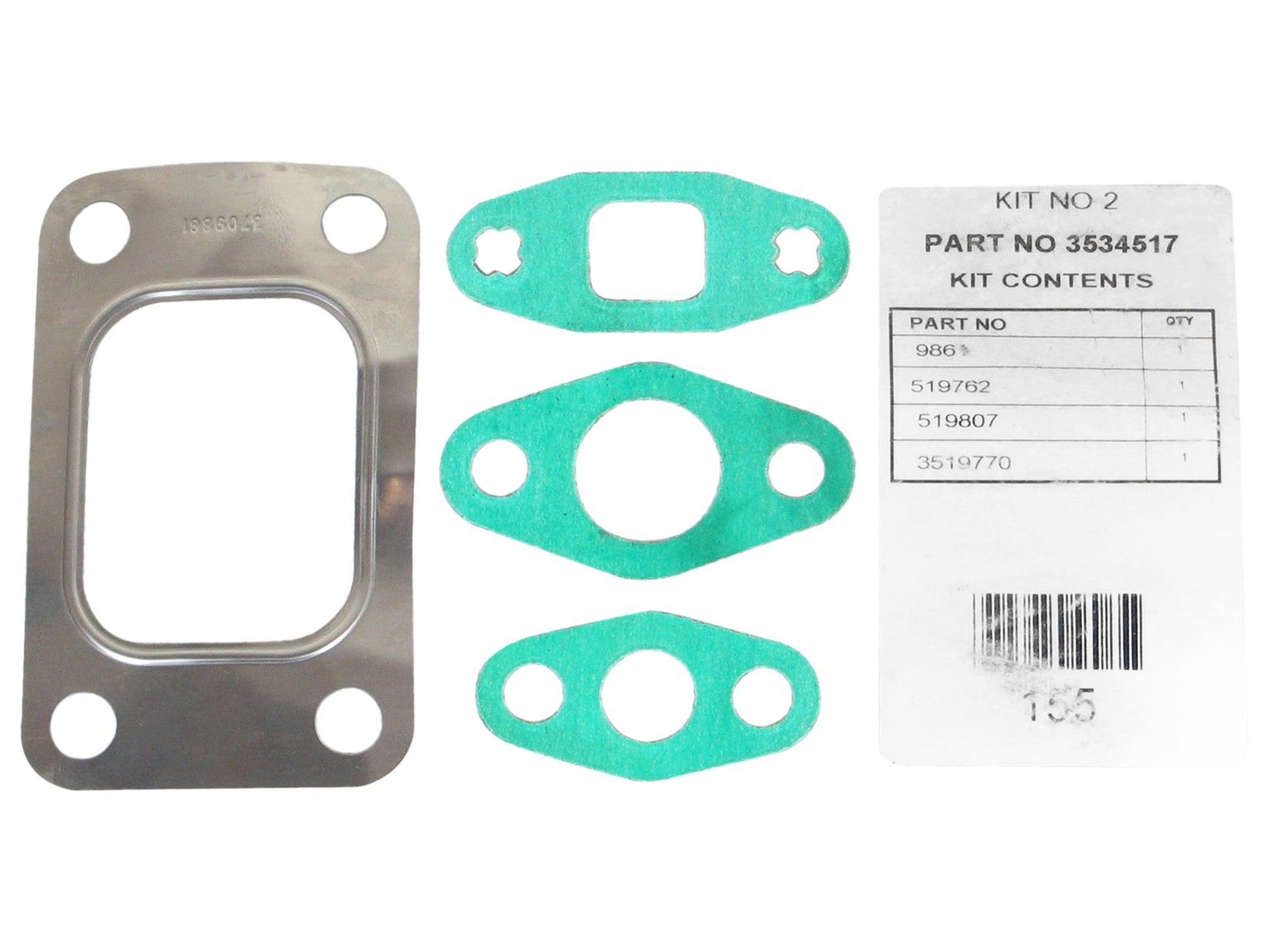

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 3536321
Interchangeable Number: 3536313, 3536314H, 3536319, 3536320H, 3536322, 3536322H, 3536323, 3536324, 3536325, 3536326, 3536327, 3536328H, 3802694NX, 3802694RX, 3802695NX, 3802695RX, 380269600, 3802696NX, 3802696RX, 3802697NX, 3802697RX
OEM Number: 3536314, 3536315, 3536316, 3536317, 3536318, 3536320, 3536328, 3802694, 3802695, 3802696, 3802697, 98331221
Turbo Model: HX35W, HX35W-8264T/E12PB11
Manufacturer: Holset

Year: 1995-05
Engine: 6B, 6BT, 6BT5.9-C150, 6BTA
Engine Manufacturer: Cummins
Displacement: 5.9L, 5900 ccm
Fuel: Diesel

Angle α (Compressor Housing): 206/320/329/340°
Angle β (Turbine Housing): 5/20/165°
Actuator Kit (Pneumatic): 4030067H

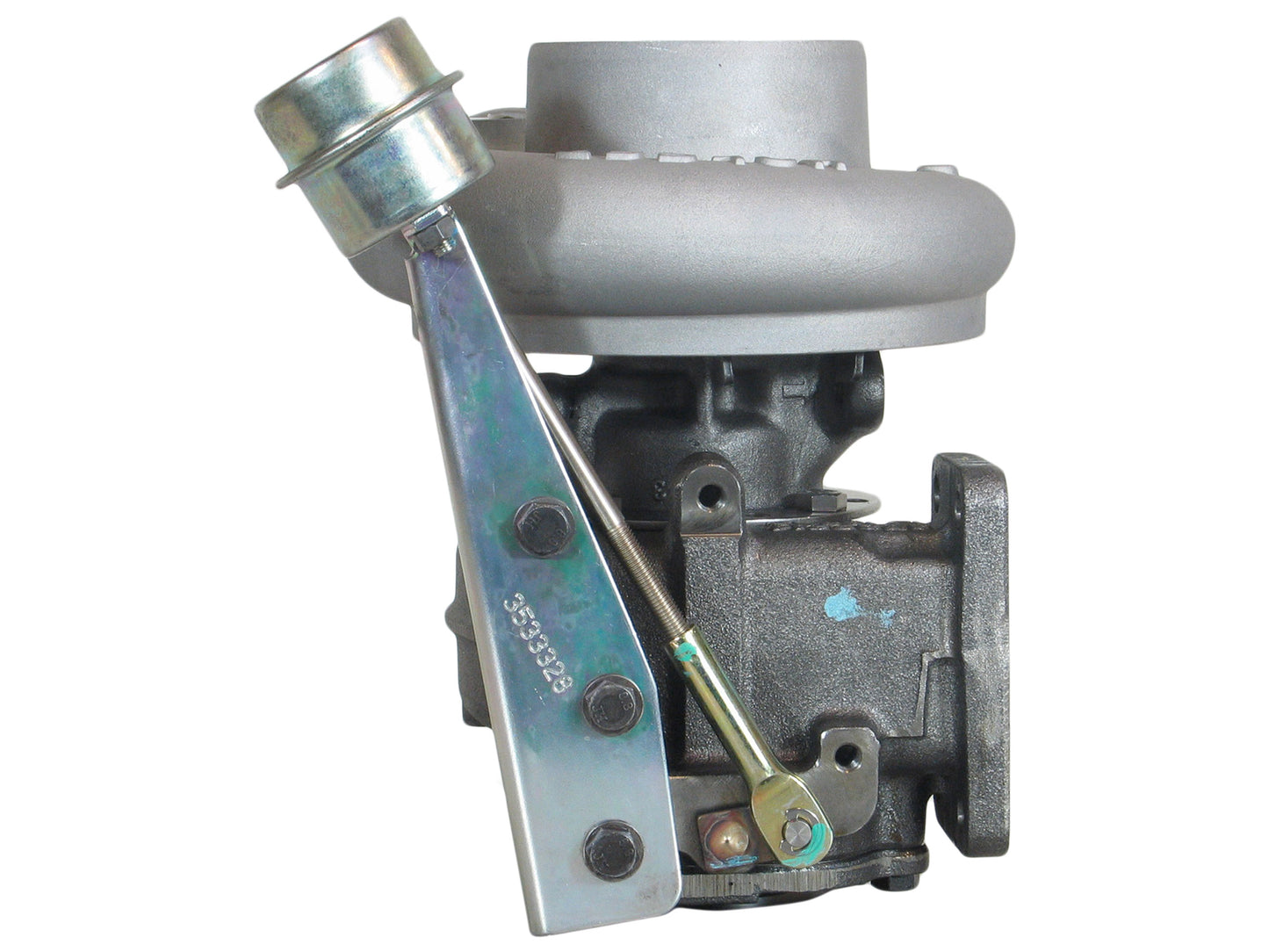

Actuator: 3533135
Bearing Housing: 4032032/4027443 (84.5 mm)
Bracket Kit: 4027123H
CHRA: 3537817 (3537817H)
Clamp Plate (Turbine): 2839879H
Compressor Cover: 3535813
Compressor Wheel: 3537168/3599594 (3537147, 3599638)(6735818031)(Ind. 53.88 mm, Exd. 83.03 mm, 8+8 Blades)(1152301400)
Gasket (Oil Drain): 3519805H
Gasket (Oil Inlet): 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Gasket (Turbine Outlet): 3535001H
Gasket Kit: 3545575H
Heat Shield: 3519304 (3519302)(1152301340)
Repair Kit (Major): 3575169 (3575169H, 4027448H)(1153035750)
Repair Kit (Minor): 4031746H
Retaining Ring: 3533163H
Seal Plate: 3530923 (1154351300)
Split Ring Seal (Compressor): 3758848H
Turbine Housing: 3532710 (3532710H)
Turbine Wheel: 3519336/3595832 (Ind. 70 mm, Exd. 60 mm, 11 Blades)(1152301435)
Turbocharger Kit: 3536322H
Wastegate Settings (Pressure): 2.100 bar

Application:
JCB with Cummins 6BTA Engine
Off Highway with Cummins 6BTA Engine
Various with Cummins 6BT5.9-C150 Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
