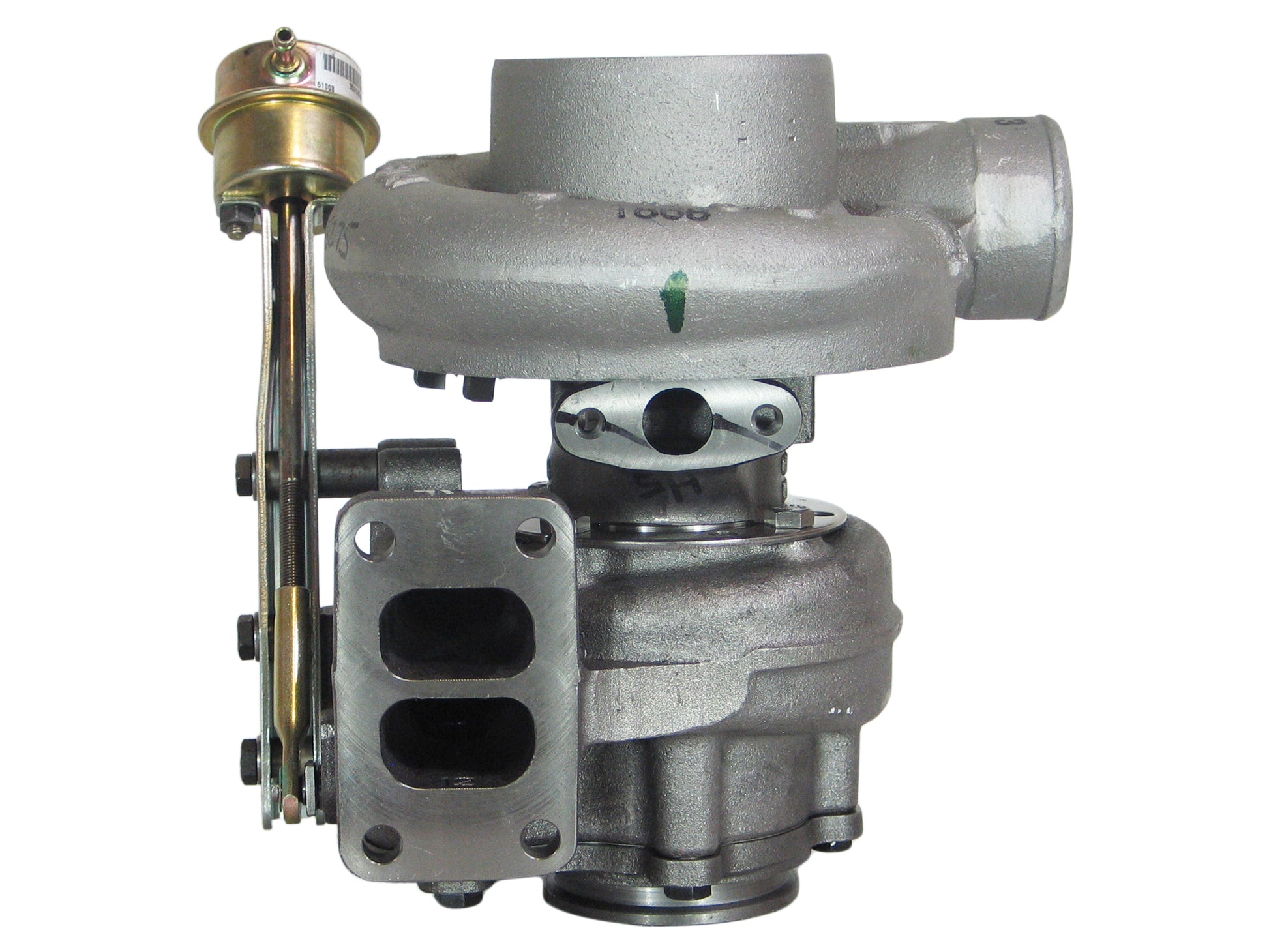

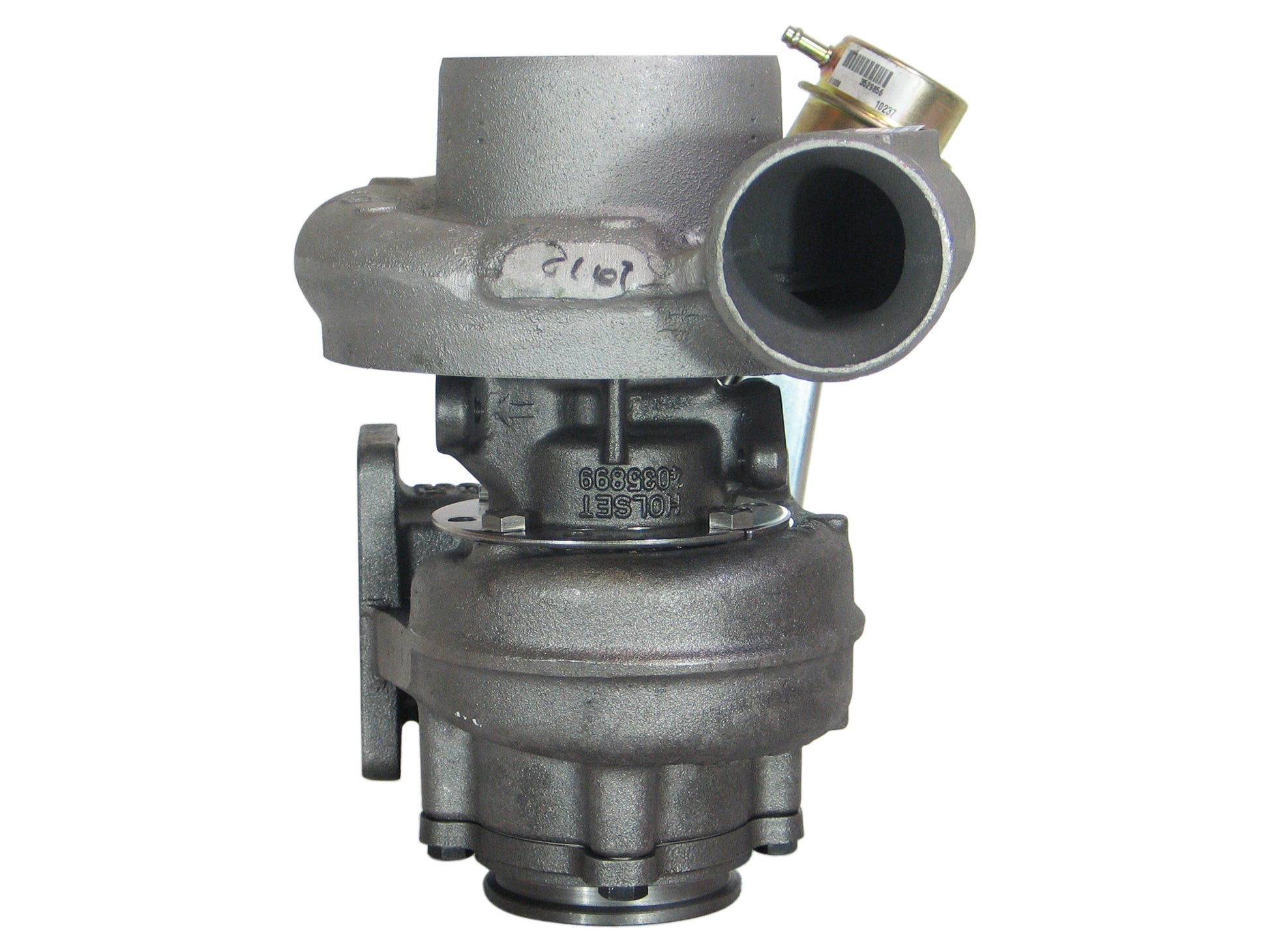

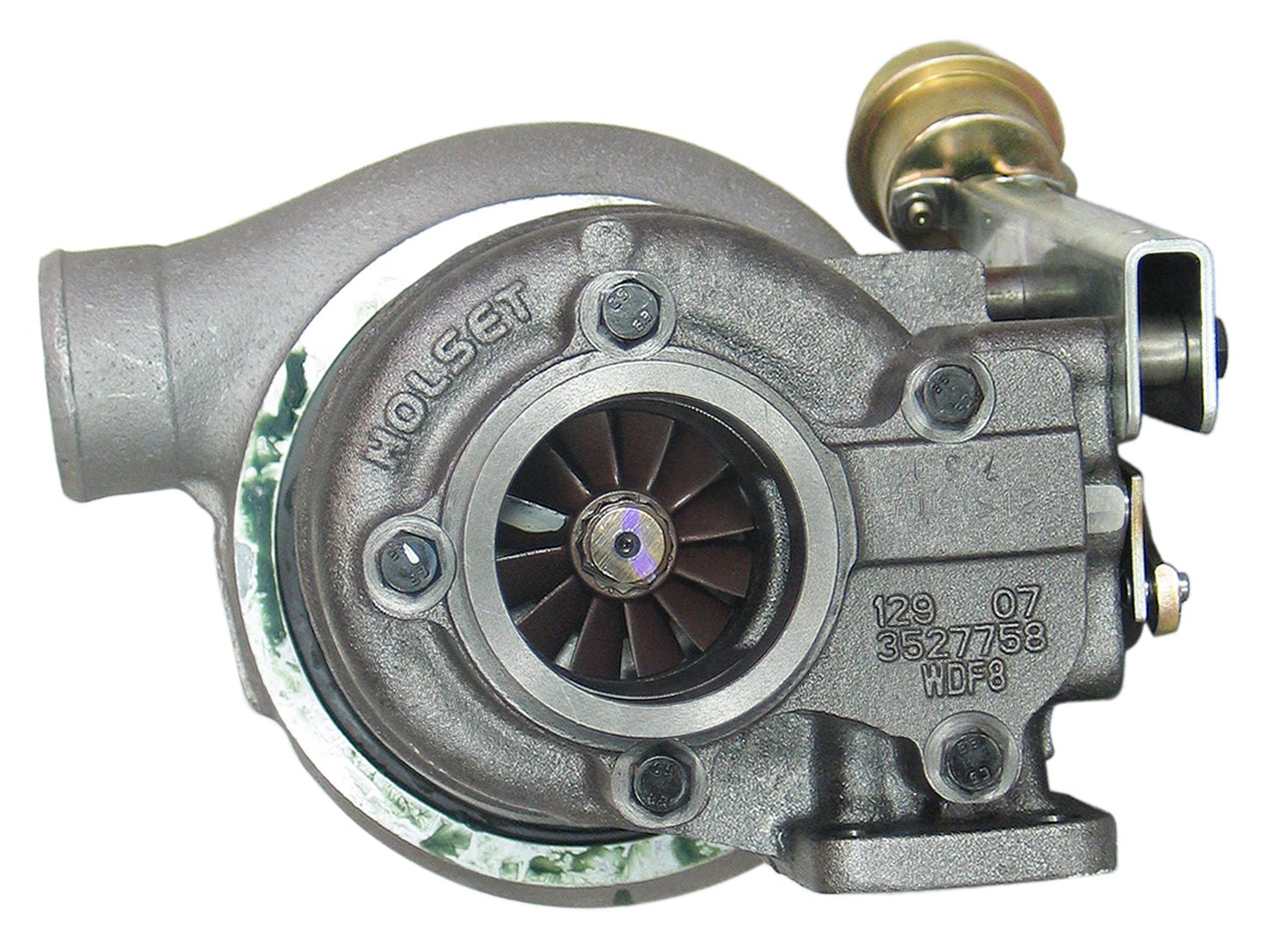

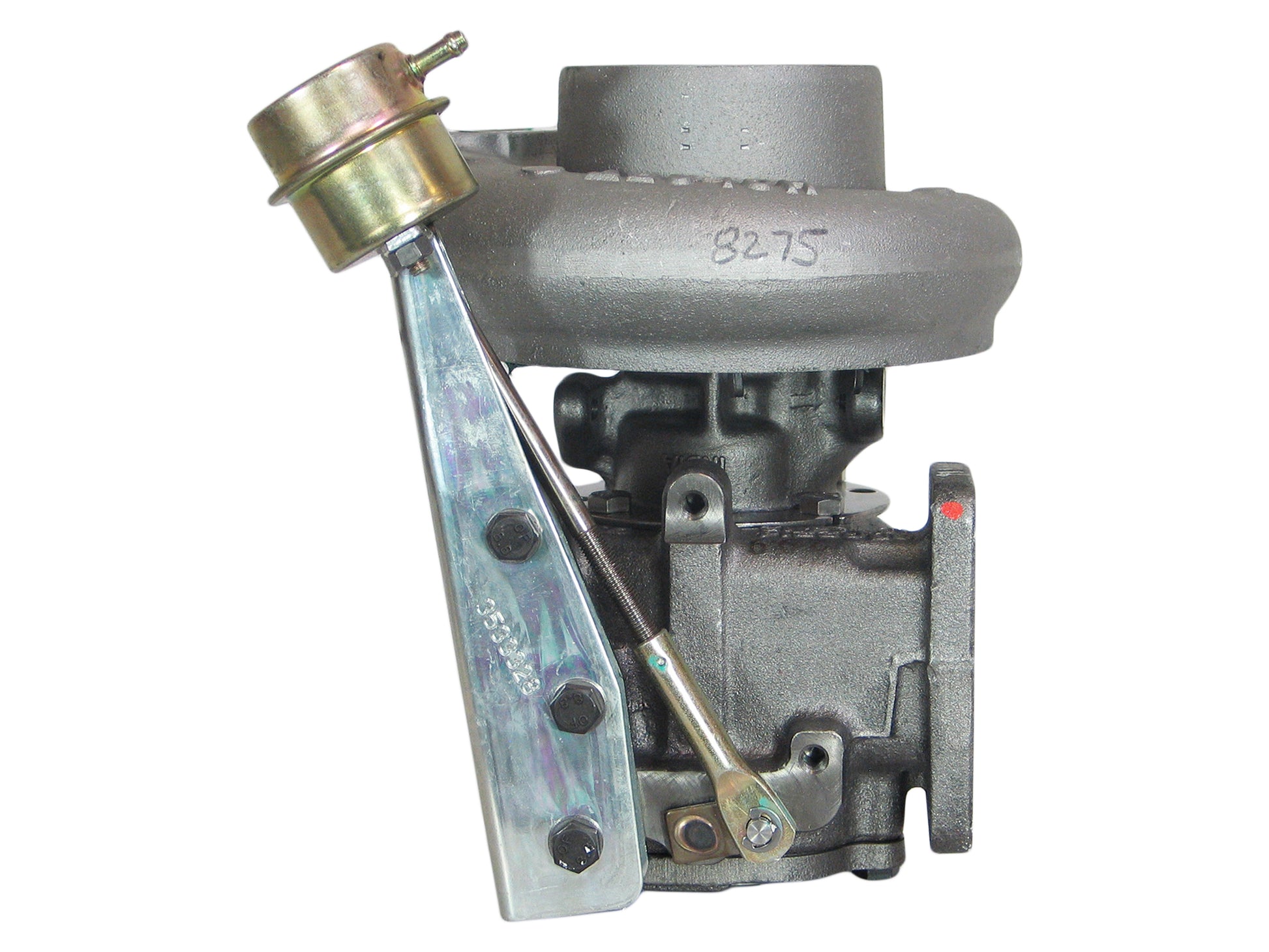

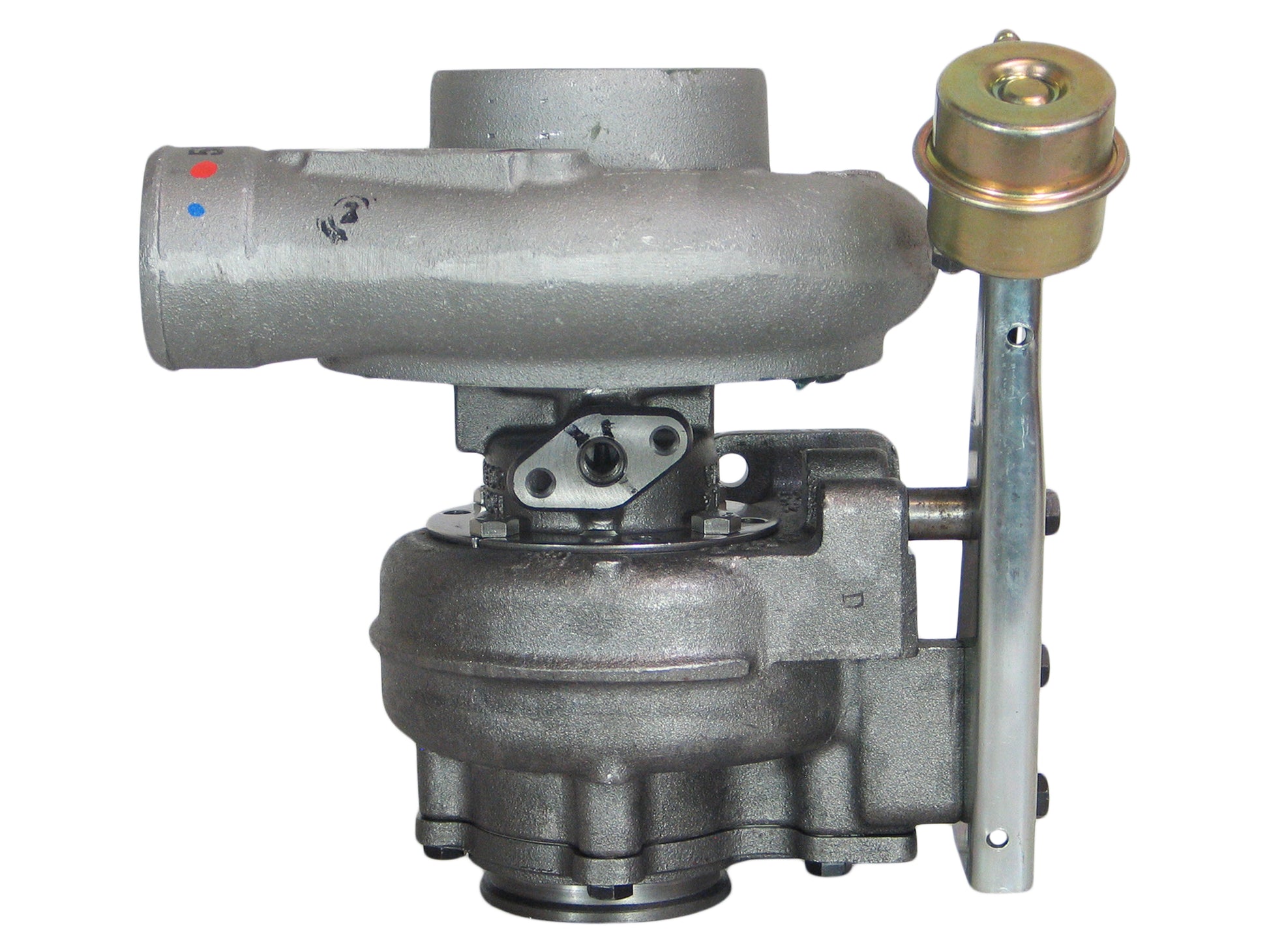

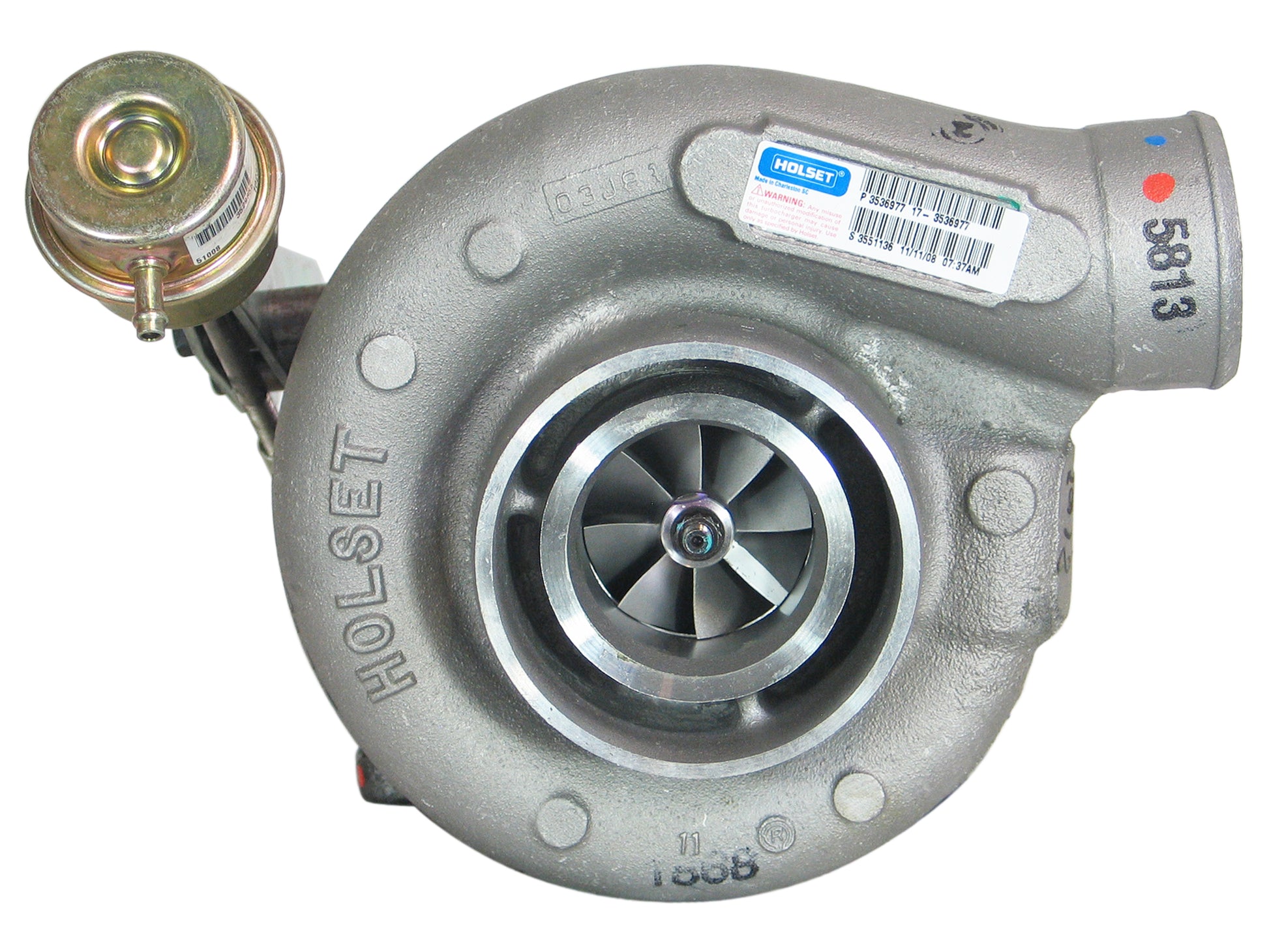

NEW OEM Holset HX35W Turbo Cummins 6BT Komatsu WA300 Wheel Loader S6D102 3536977SKU: 3536977
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

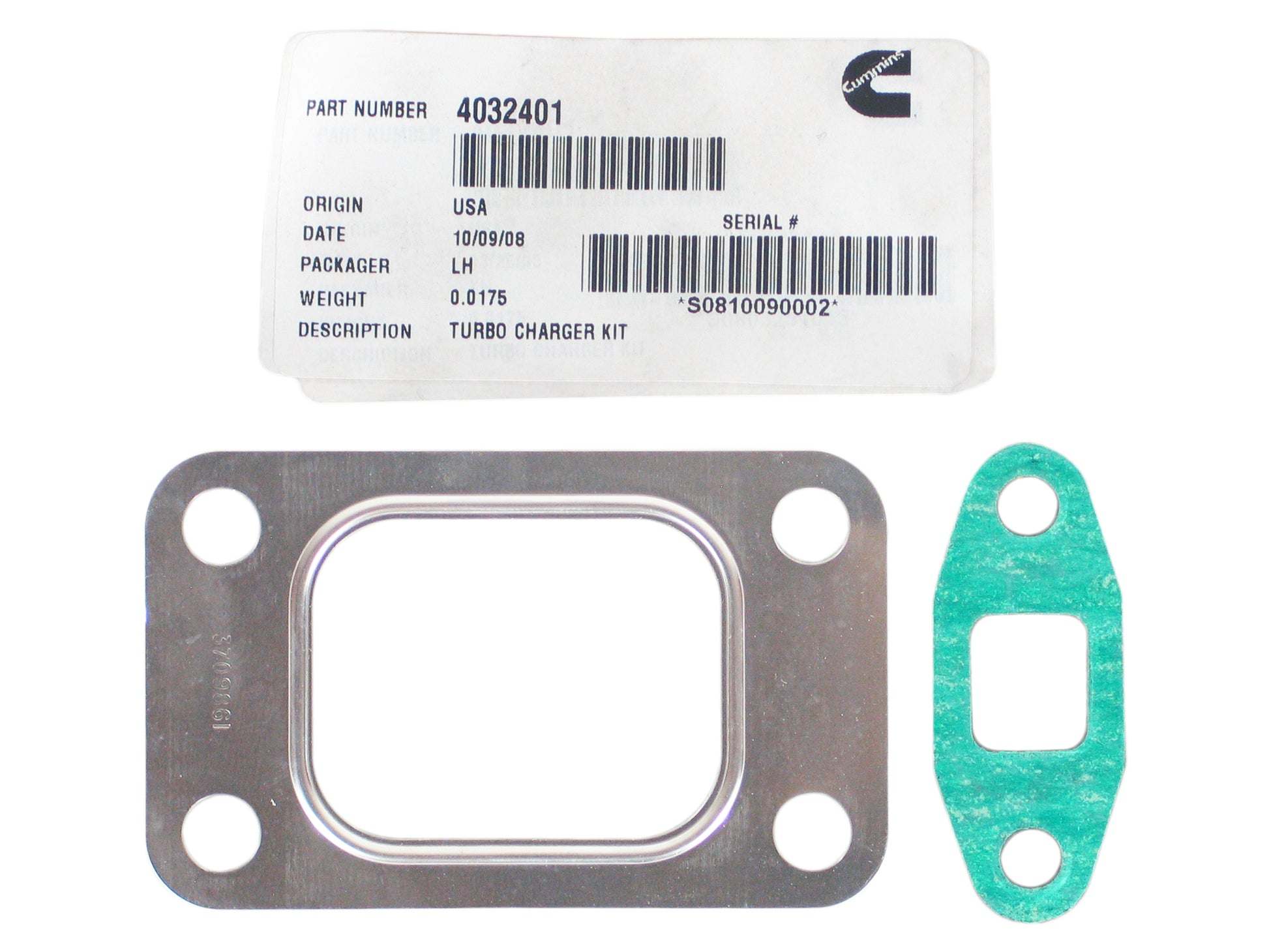

NOTE: This turbocharger package also comes with the gaskets.
Fits the following:
Part Number: 3536977
Interchangeable Number: 3536978, 3536978H, 3536971, 3536972, 3536973, 3536974, 3536975, 3536976, 3536972H
OEM Number: 3802768, 6736-81-8030, 6736818030, 6736-81-8190, 6736818190
Turbo Model: HX35W, HX35W-L8264T/E12PB11
Engine: 96 SA6D102E, 6BTA
Engine Manufacturer: Cummins
Displacement: 5.9L, 5900 ccm
Angle α (Compressor Housing): 206°
Angle β (Turbine Housing): 5°
Back Plate: 3530923 (1154351300)
Bearing Housing: 3532632/4027869 (84.5 mm)
Compressor Wheel: 3599650/3599594 (Ind. 53.97 mm, Exd. 83.01 mm, 8+8 Blades)
Gasket (Oil Inlet): 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Heat Shield: 3519304 (3519302)(1152301340)
Repair Kit: 3575169 (1153035750)

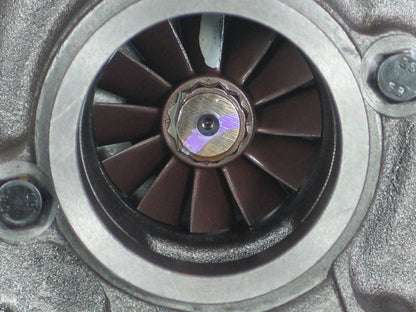

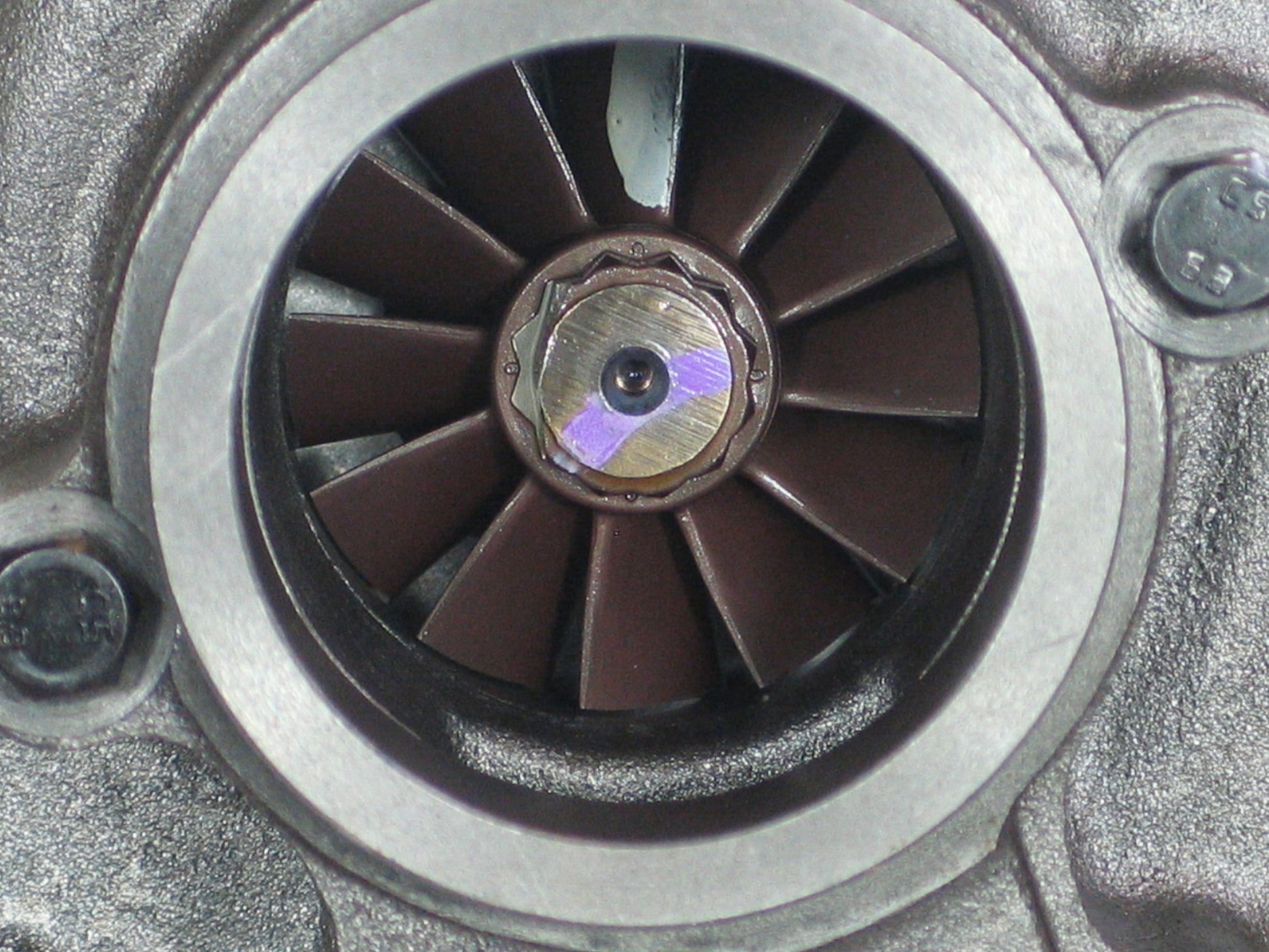

Turbine Wheel: 3519336 (Ind. 70 mm, Exd. 59.9 mm, 12 Blades)(1152301435)
1995- Off Highway with Cummins 6BTA Engine
1995- Komatsu WA300 with S6D102 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
