NEW OEM Holset HX30W Turbo Komatsu Industrial Excavator Cummins 4BT 3.9L 3592015

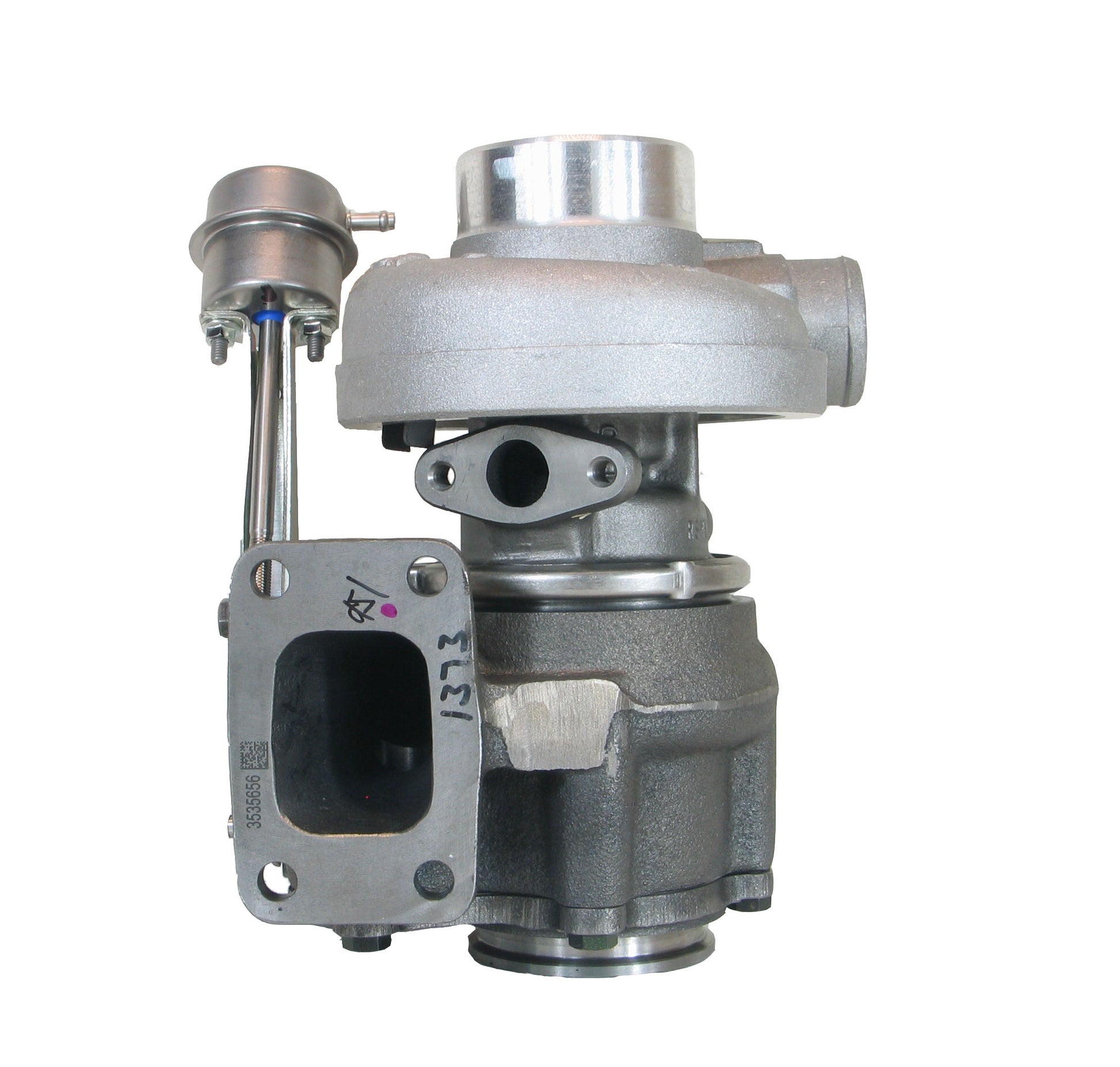

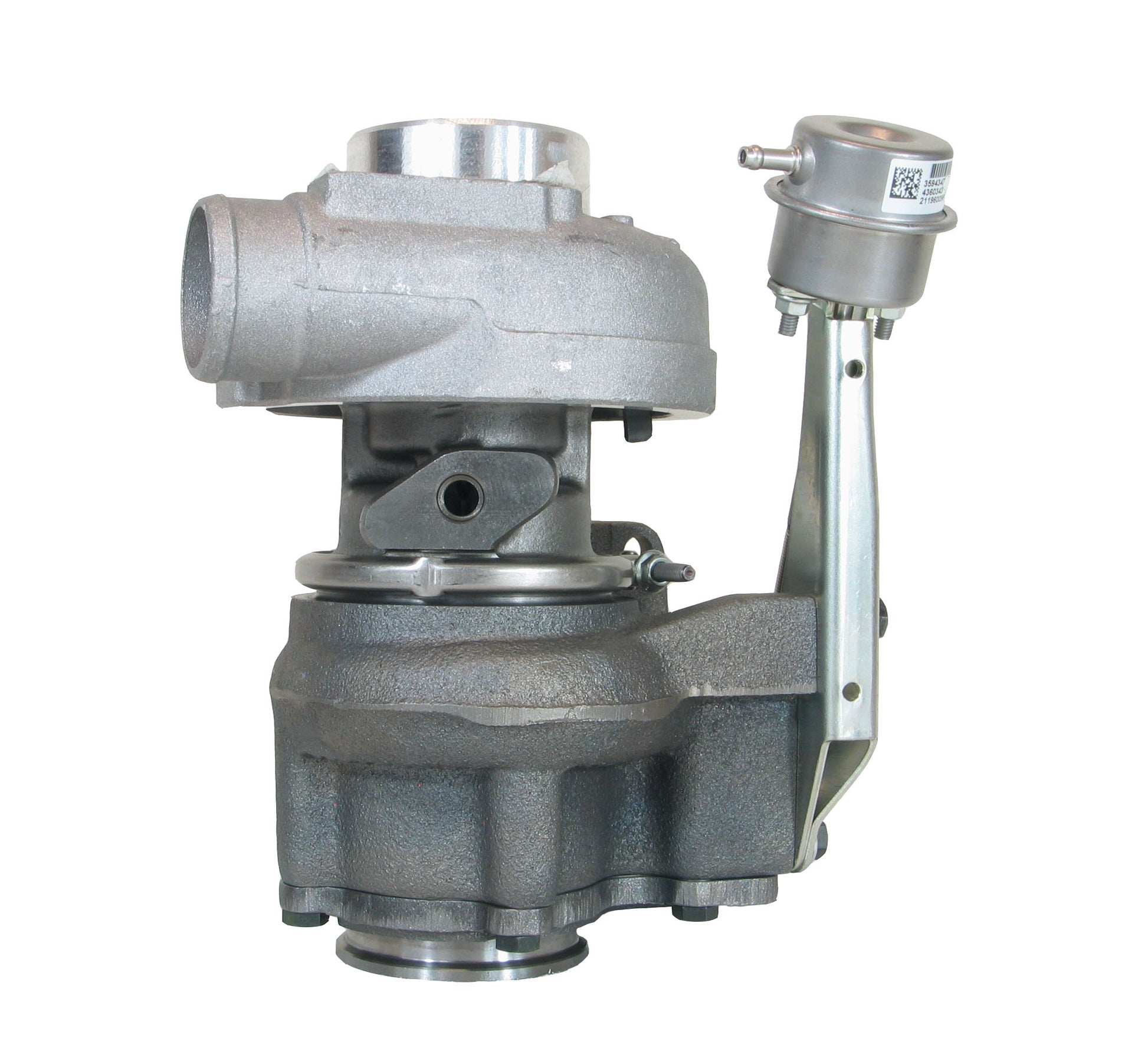

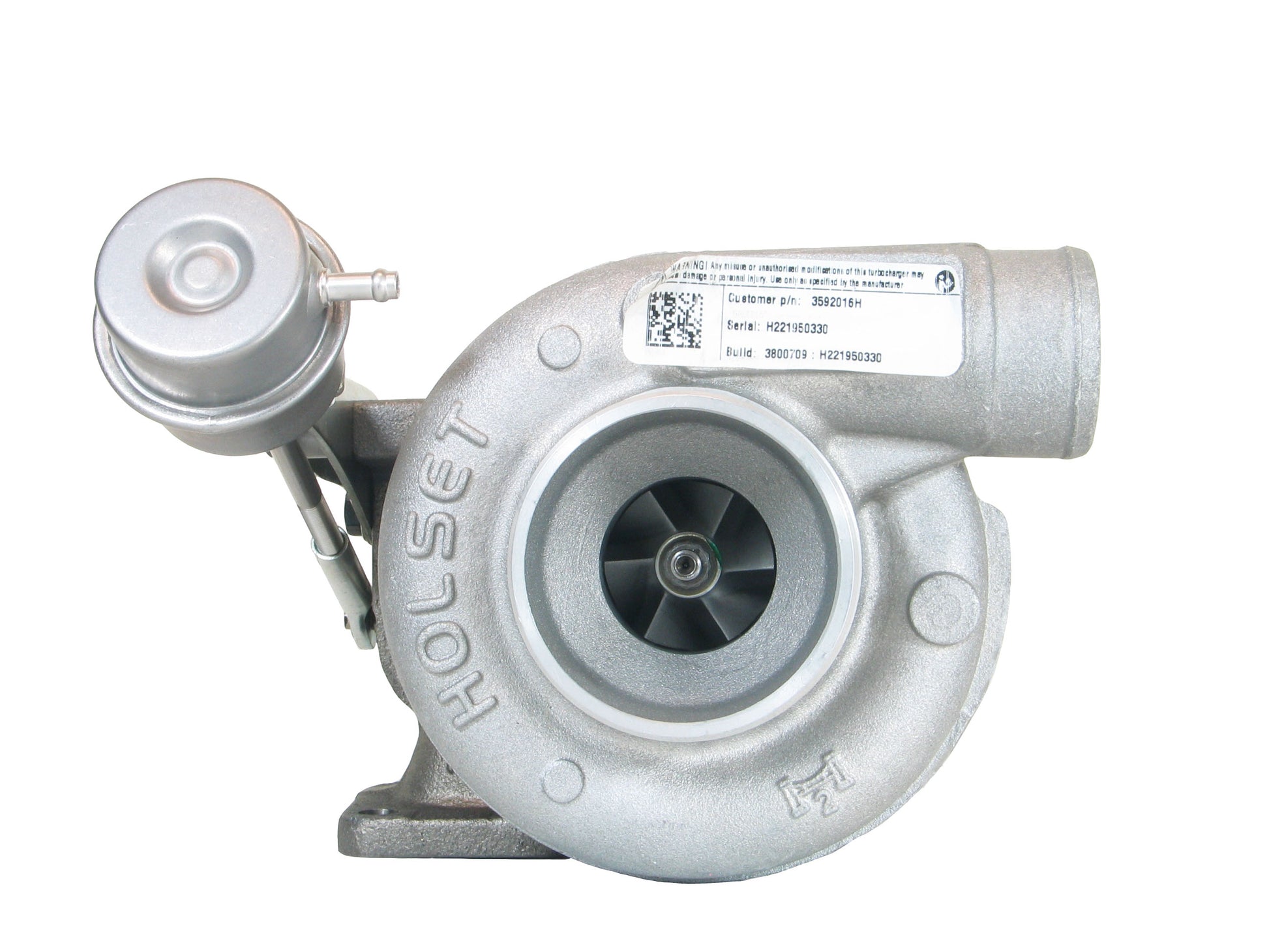

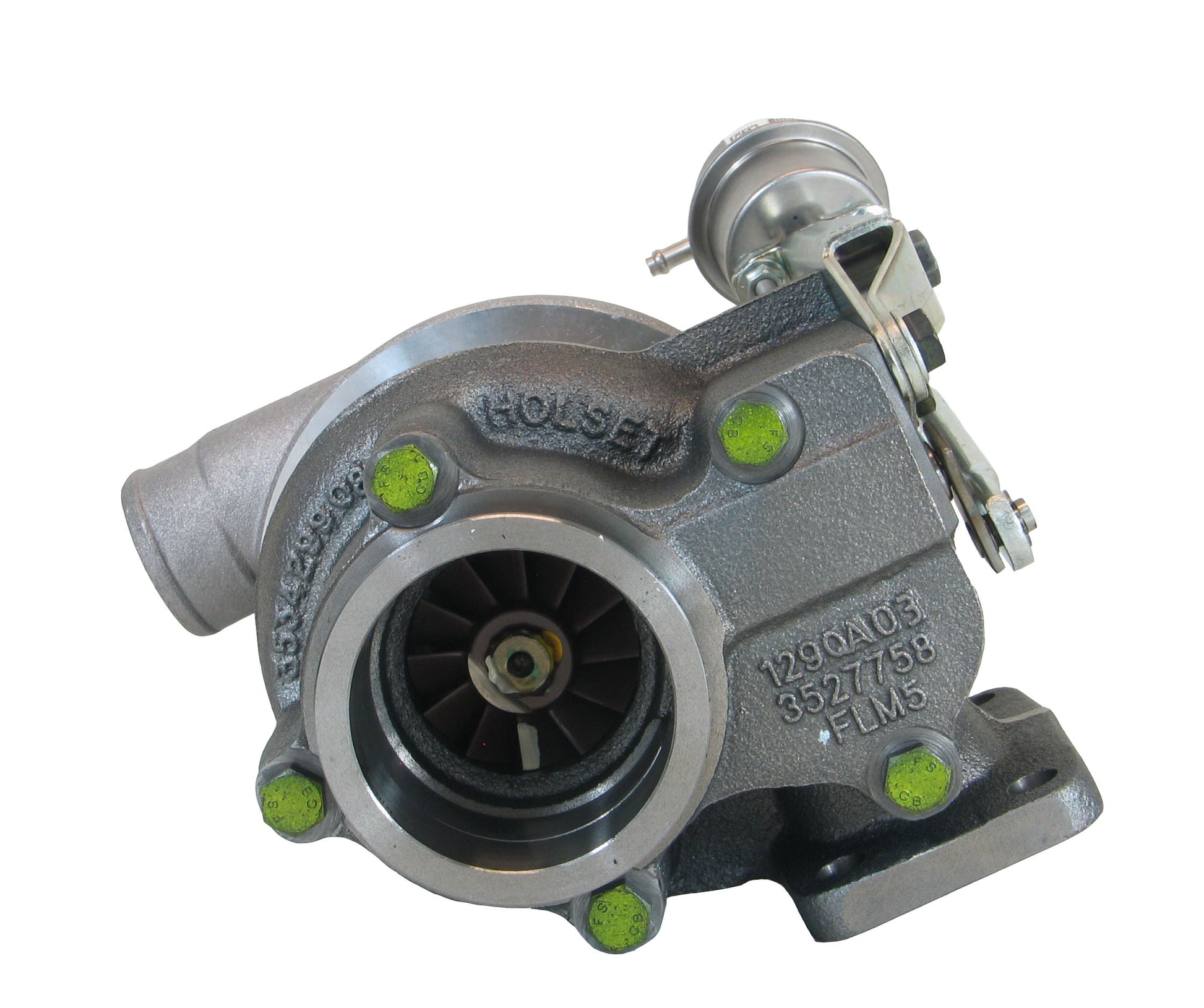

BRAND NEW GENUINE HOLSET TURBOCHARGER

This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

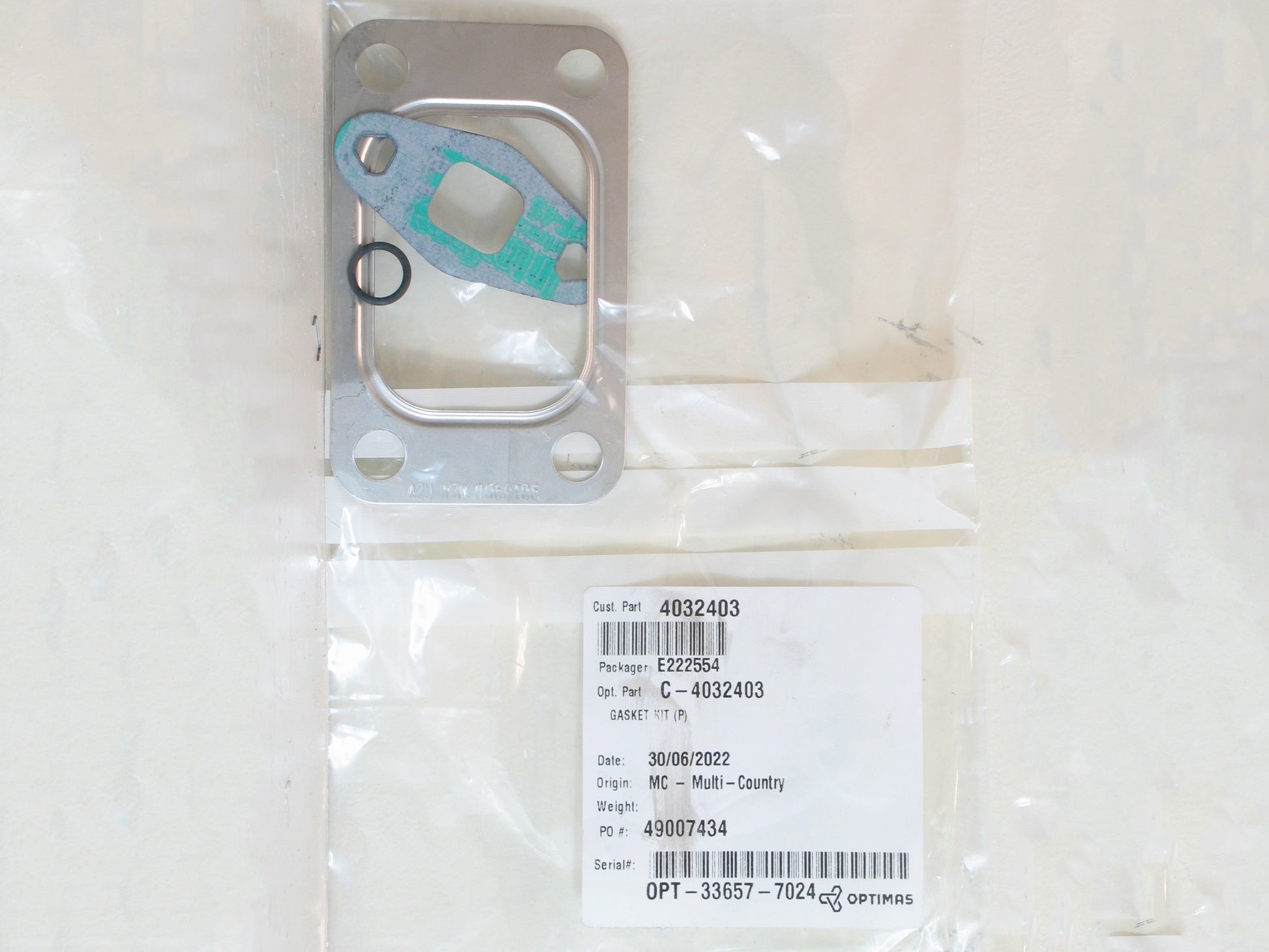

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 3592015
Interchangeable Number: 3537562, 3592016H, 3592016HX, 3802798
OEM Number: 3537033, 3538288, 3539710, 3590127, 3592016, 3593089, 3593090, 3800709, 6732-81-8200, 6732818200, 6732-81-8900, 6732818900, JR802798
Turbo Model: HX30W, HX30W-Q6819A/B06BX33
Manufacturer: Holset

Year: 1995-06
Engine: 4BT
Engine Manufacturer: Cummins
Displacement: 3.9L, 3900 ccm
Power: 110 HP

Angle α (Compressor Housing): 201°
Angle β (Turbine Housing): 0°
Actuator (Pressure): 1.800 bar
Actuator: 3594347
Back Plate: 3530923 (1154351300)
Bearing Housing: 3539227/4030799
CHRA: 3593410 (4032115, 4032374, 3580234)
Compressor Cover: 3539806
Compressor Wheel: 3599693 (Ind. 65 mm, Exd. 52 mm, Trim 5.01, 6+6 Blades)
Gasket (Oil Outlet): 210060 (311585, 148062, 2475013)(Paper)
Gasket (Turbine Inlet): 409039-0000 (Inox Steel)(409039-0001, 210019, 2405022)(1900000006)
Heat Shield: 3519304 (3519302)(1152301340)
Repair Kit: 3575205 (3575205)(1153030750)
Turbine Housing: 4030523
Turbine Wheel: 3539805 (Ind. 40.1 mm, Exd. 67.97 mm, 12 Blades)(1153035436)

Application:
1995-06 Komatsu Industrial with Cummins 4BT Engine
1995-06 Truck with Cummins 4BT Engine
Komatsu 355A
Komatsu GD305 Motor Grader
Komatsu PW128UU Wheel Excavator

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
