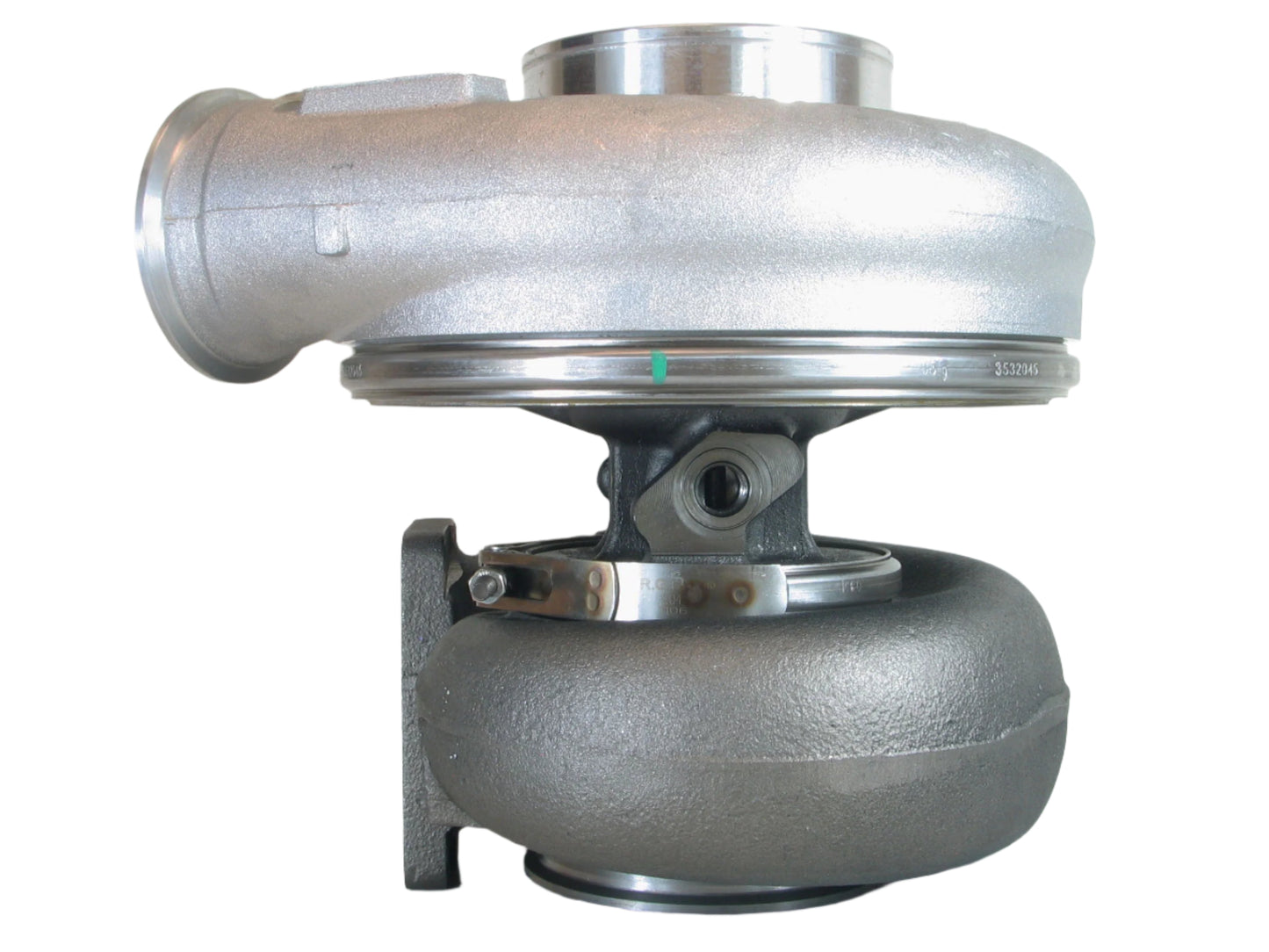

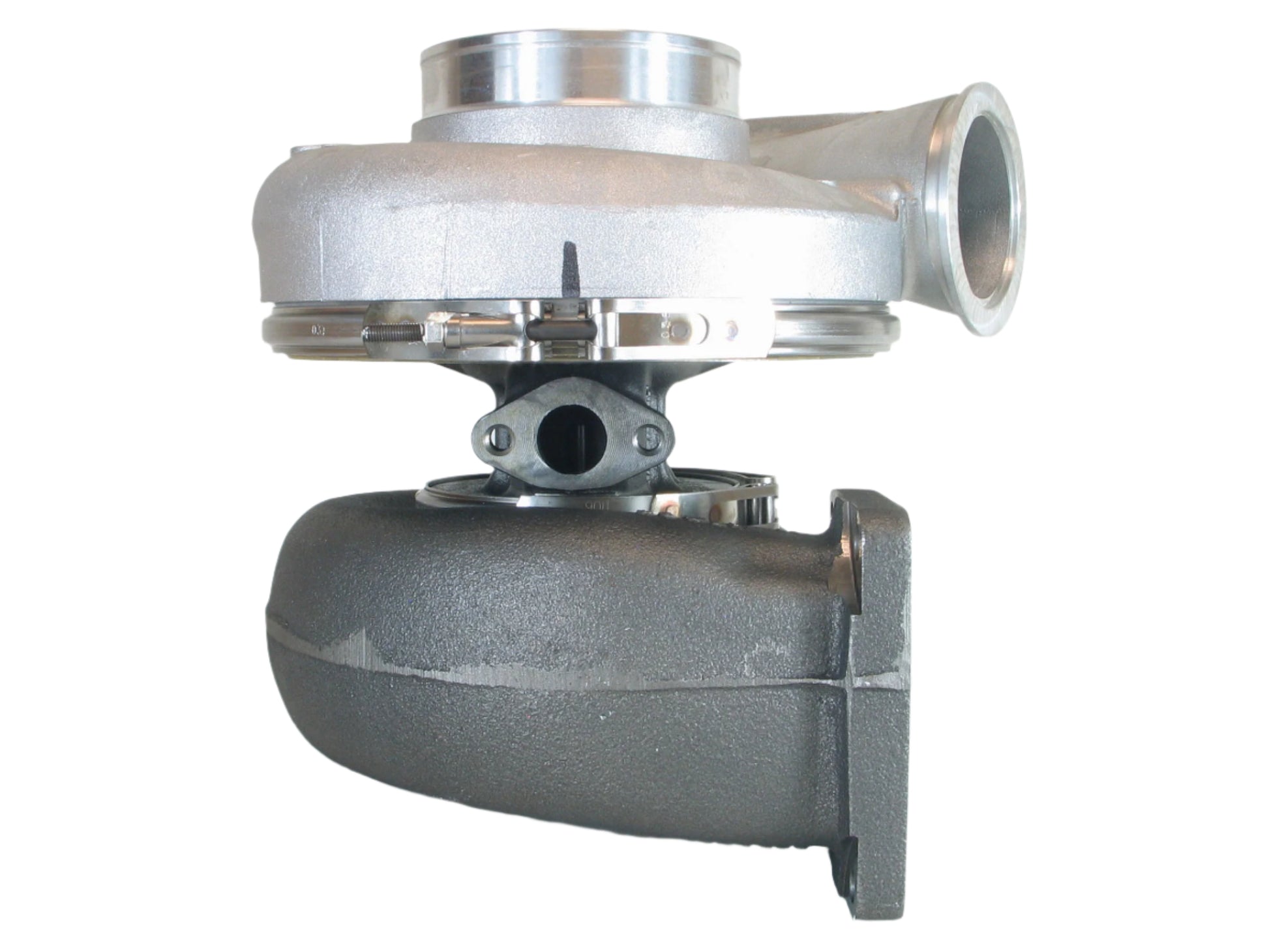

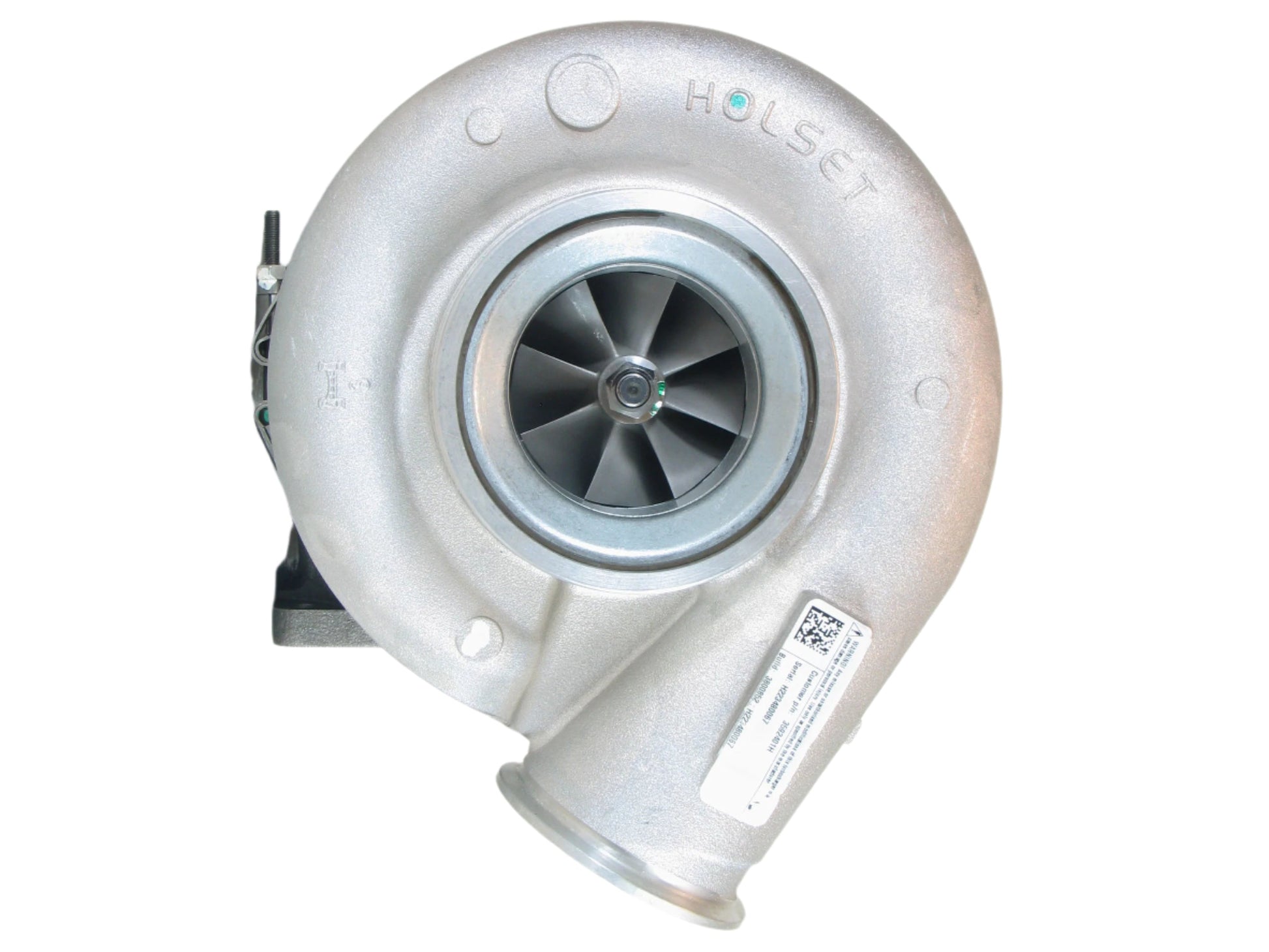

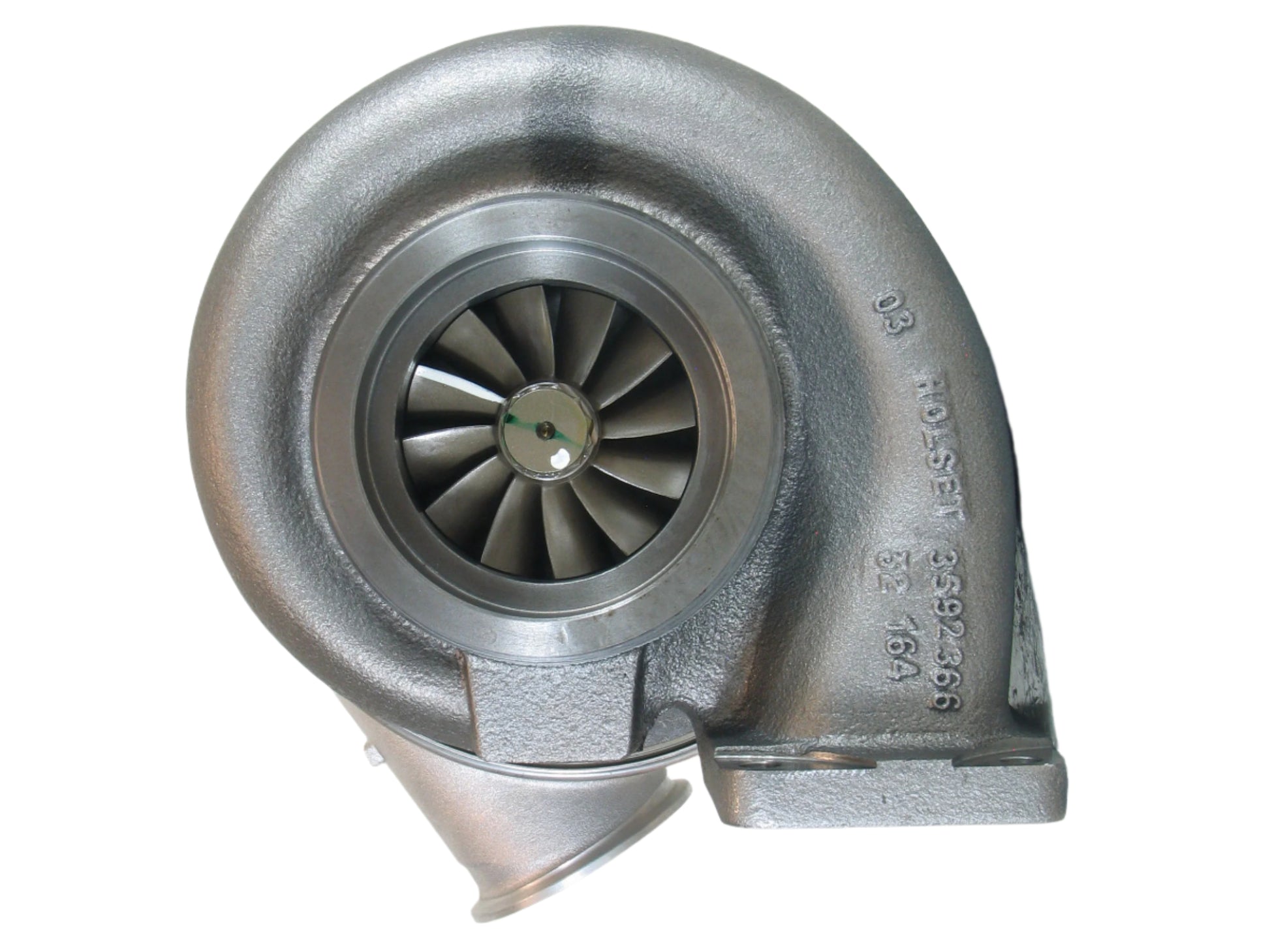

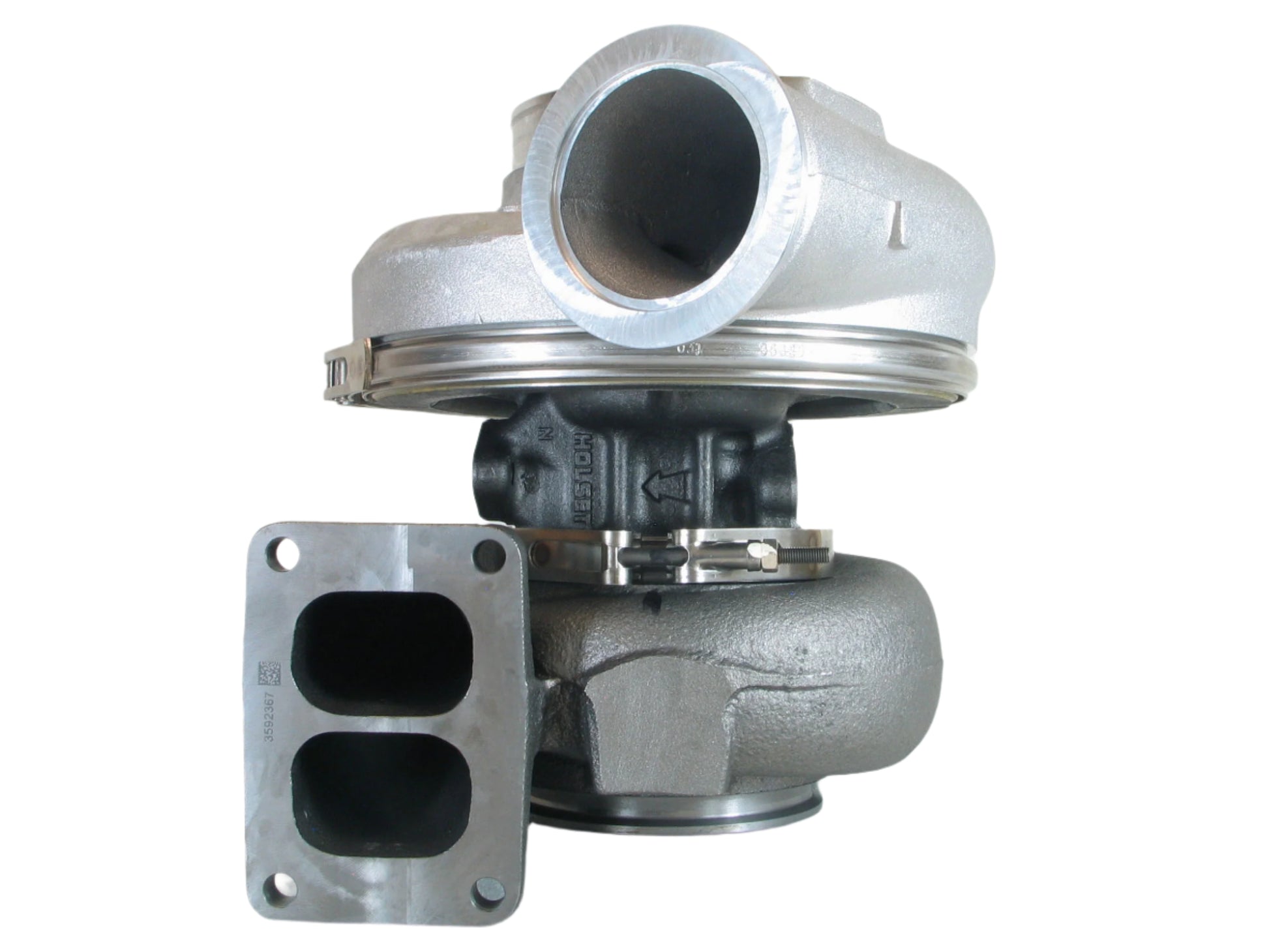

NEW Holset HX60 Turbo Marine Cummins QSM11 QSM11-M Diesel Engine 3592401 3592369
SKU: 3592401This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

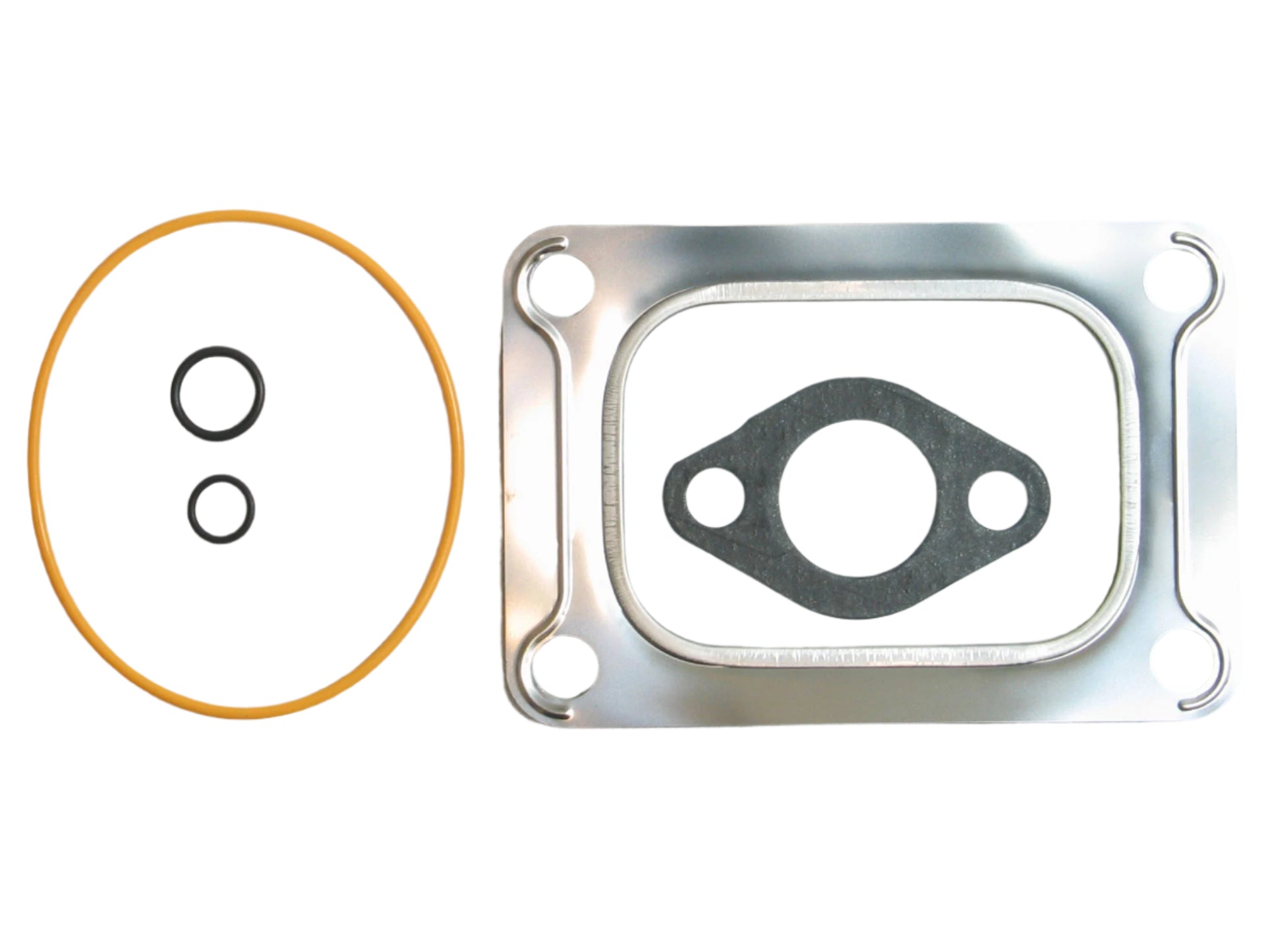

NOTE: This turbocharger package also comes with the gaskets.
Fits the following:
Part Number: 3592369
Interchangeable Number: 3592401H, 3800852NX, 3800852RX
OEM Number: 3592401, 3800852
Turbo Model: HX60, HX60-A1292C/B32JA1, HX60M
Manufacturer: Holset
Year: 1999-06
Engine: ISM CM570, ISM CM870, ISM CM875, ISM CM876 E, ISM CM876, ISM11 CM876 M103, ISM11 CM876 SN, M11 CELECT PLUS, M11 CELECT, M11 MECHANICAL, M11, QSM11 CM570, QSM11 CM876, QSM11, QSM11-M
Engine Manufacturer: Cummins
Displacement: 6 Cylinders
Fuel: Diesel
Power: 635 HP
CPL Number: 2443, 8363, 8753
Angle α (Compressor Housing): 30°
Angle β (Turbine Housing): 90°
Back Plate: 3531917 (1250403300)
Bearing Housing: 3536802 (353680200, 3536802H, 4038724)(Oil Cooled)
CHRA: 3594608 (3594608H, 4027259, 4027252, 4027259H)
Compressor Cover: 3591396
Compressor Wheel: 3534650 (353465000)(Ind. 80 mm, Exd. 113 mm, Trim 9.25, 8+8 Blades, Super Back)
Gasket (Oil Drain): 3519805H
Gasket (Oil Outlet): 3519763 (129120, 210018-0000, 201048, 157602, 3037537)(1900000025)
Gasket Kit: 3545577H (468189-0000)(215082, 2090505397)
Heat Shield: 3519155 (3758538, 18373, 351915500)
Repair Kit: 4027881 (3545345, 3580568, 4027880H)(1153060750)
Turbine Housing: 3533986 (3592367H)
Turbine Wheel: 3533025 (3533025H)(Ind. 97 mm, Exd. 86.3 mm, Trim 16.9, 12 Blades)(1153060435)
Turbocharger Kit: 3592401H
Application:
1999-06 Marine with Cummins QSM11 Engine
Marine with Cummins QSM11-M Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
