NEW Holset HX30W Turbo 1995-2009 Truck Cummins 4BTA 4BTAA 3.9L Diesel 3593408

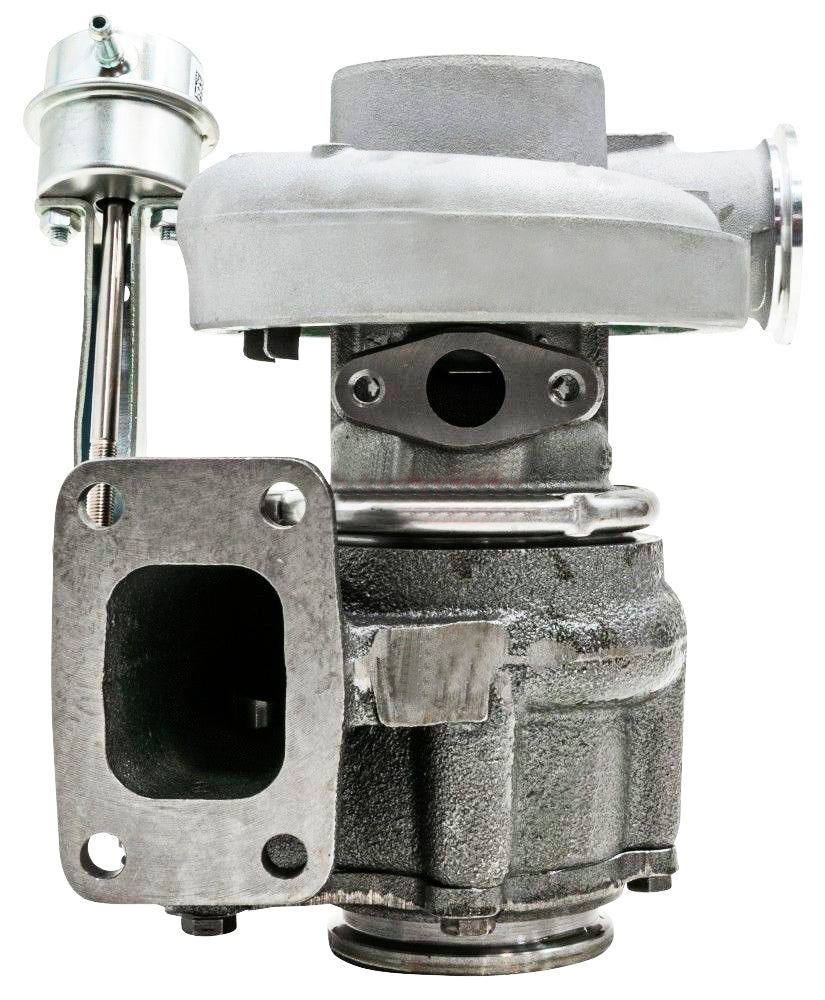

BRAND NEW GENUINE HOLSET TURBOCHARGER

This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number:
Interchangeable Number: 3533128, 3590124, 3592306, 3593407, 4025417, 4025417RX, TS3593406, 3533125, 3539334, 3590125, 3592307, 3593408, 402541700, TS3592308, TS3593406R, 3533126, 3539335, 3590126, 3593406, 3593408H, 4025417NX, TS3592308R, 1700320233, 170-032-0773, 170-032-0233, 1700320773
OEM Number: 3800734, 3802646, 3802950, 3806273, 3800734NX, 3802646NX, 3802950NX, 3806273NX, 3800734RX, 3802646RX, 3802950RX, 3806273RX,
Turbo Model: HX30W, HX30W-A7229Q/B06GX33
Manufacturer: Holset

Year: 1995-2009
Engine: 4BT, 4BTA, 4BTAA
Engine Manufacturer: Cummins
Displacement: 3.9L
Fuel: Diesel
Power: 130 HP

Angle α (Compressor Housing): 340°
Angle β (Turbine Housing): 142°
Actuator Kit (Pneumatic): 4030037H
Actuator Pressure: 1.530 bar
Actuator: 3535718 (3535718H)
Bearing Housing: 4038780
Bracket Kit: 4027125H
CHRA: 3593409H
Compressor Housing: 3534544
Compressor Wheel: 3599673H (Ind. 42 mm, Exd. 72 mm)
Gasket (Turbine Outlet): 3535001H
Heat Shield: 3519304 (3519302)
Repair Kit (Major): 3575205 (3575205H)
Turbine Housing: 3535656H
Turbine Housing: 4030449
Turbine Wheel: 3539805 (3539805H) (Ind. 65 mm, Exd. 52 mm)
Turbocharger Kit (Wastegate): 3593408H

Application:

1995-2009 Truck with Cummins 4BTA 4BTAA 3.9L Engine


*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
