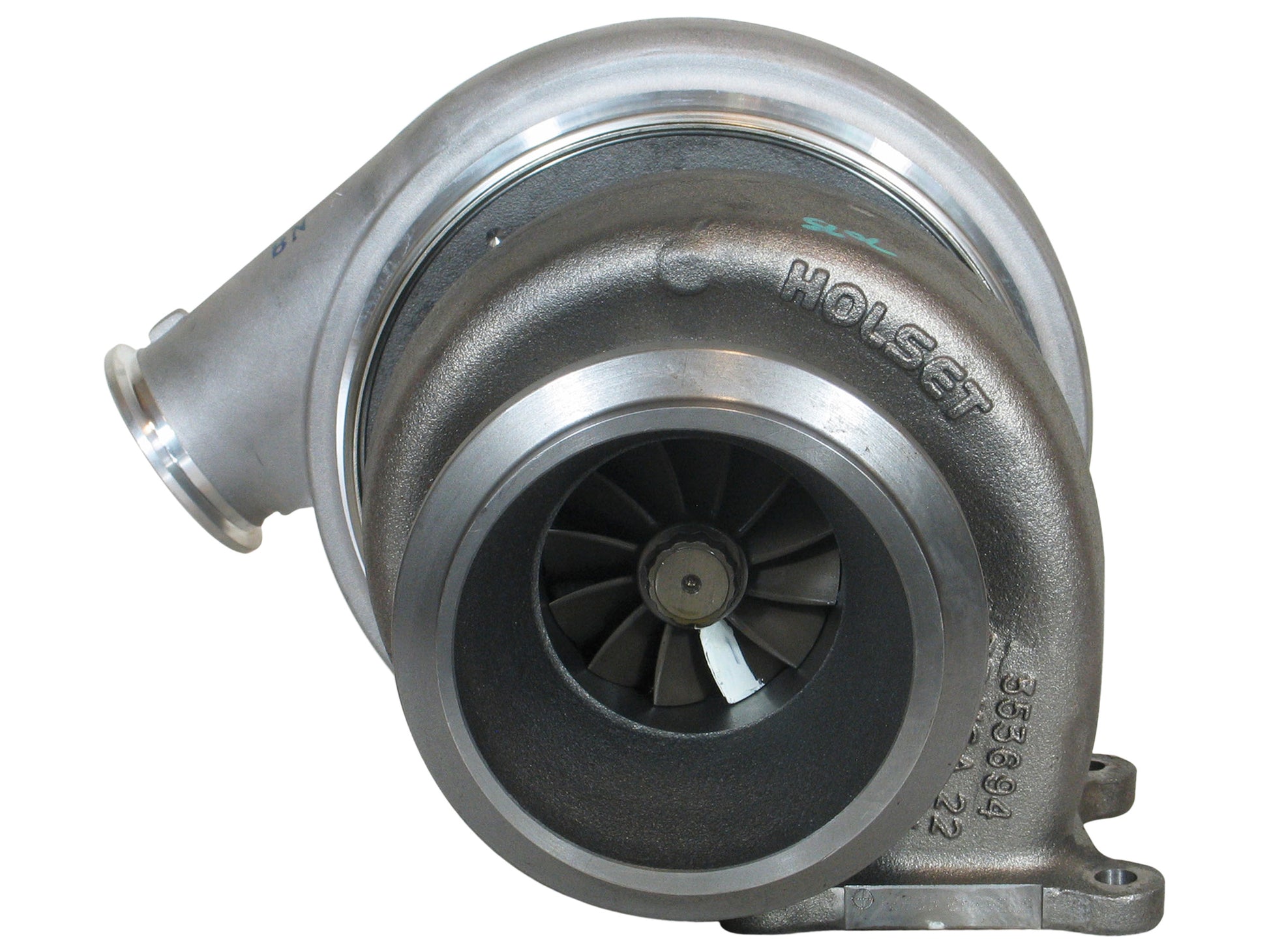

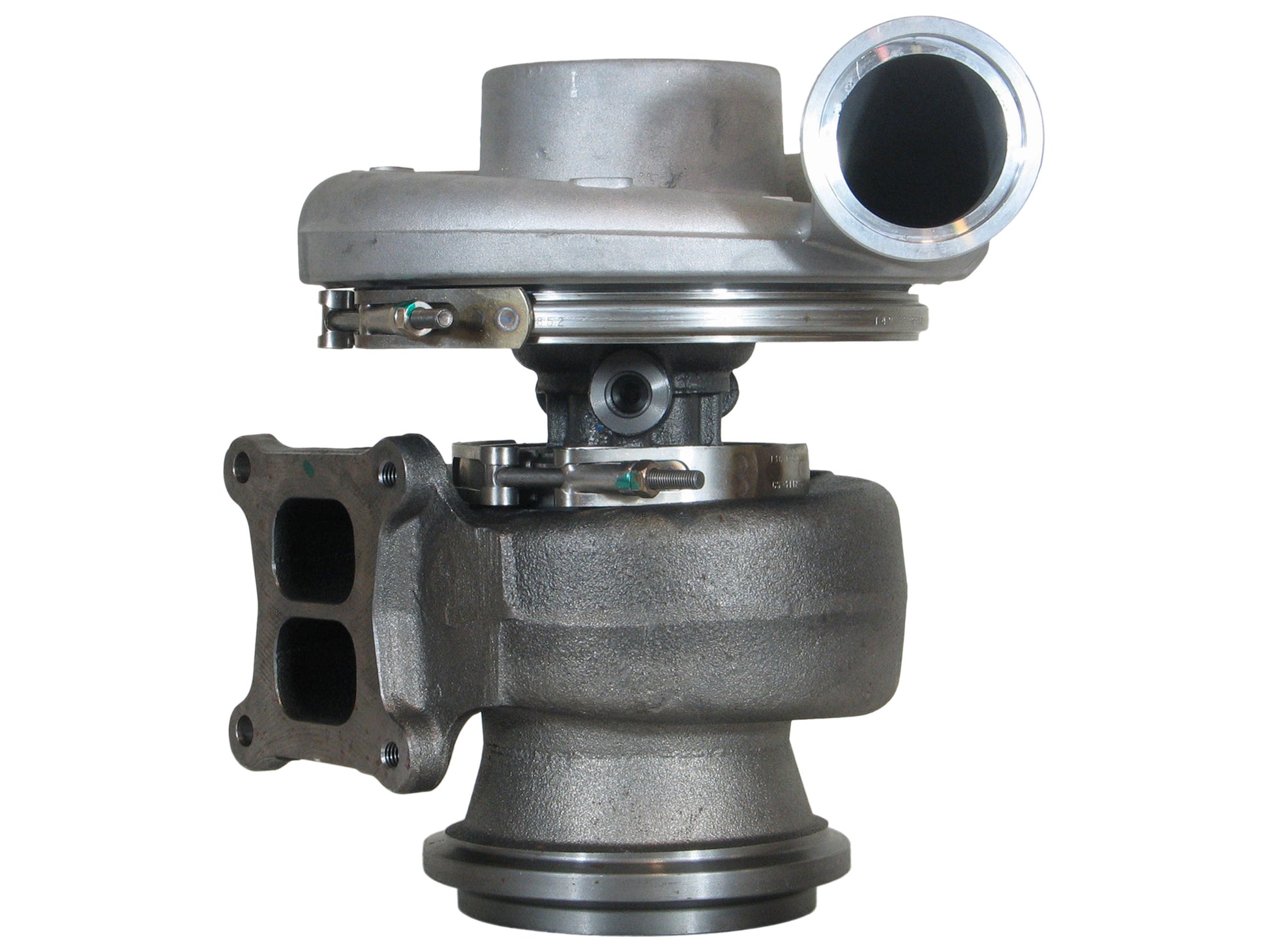

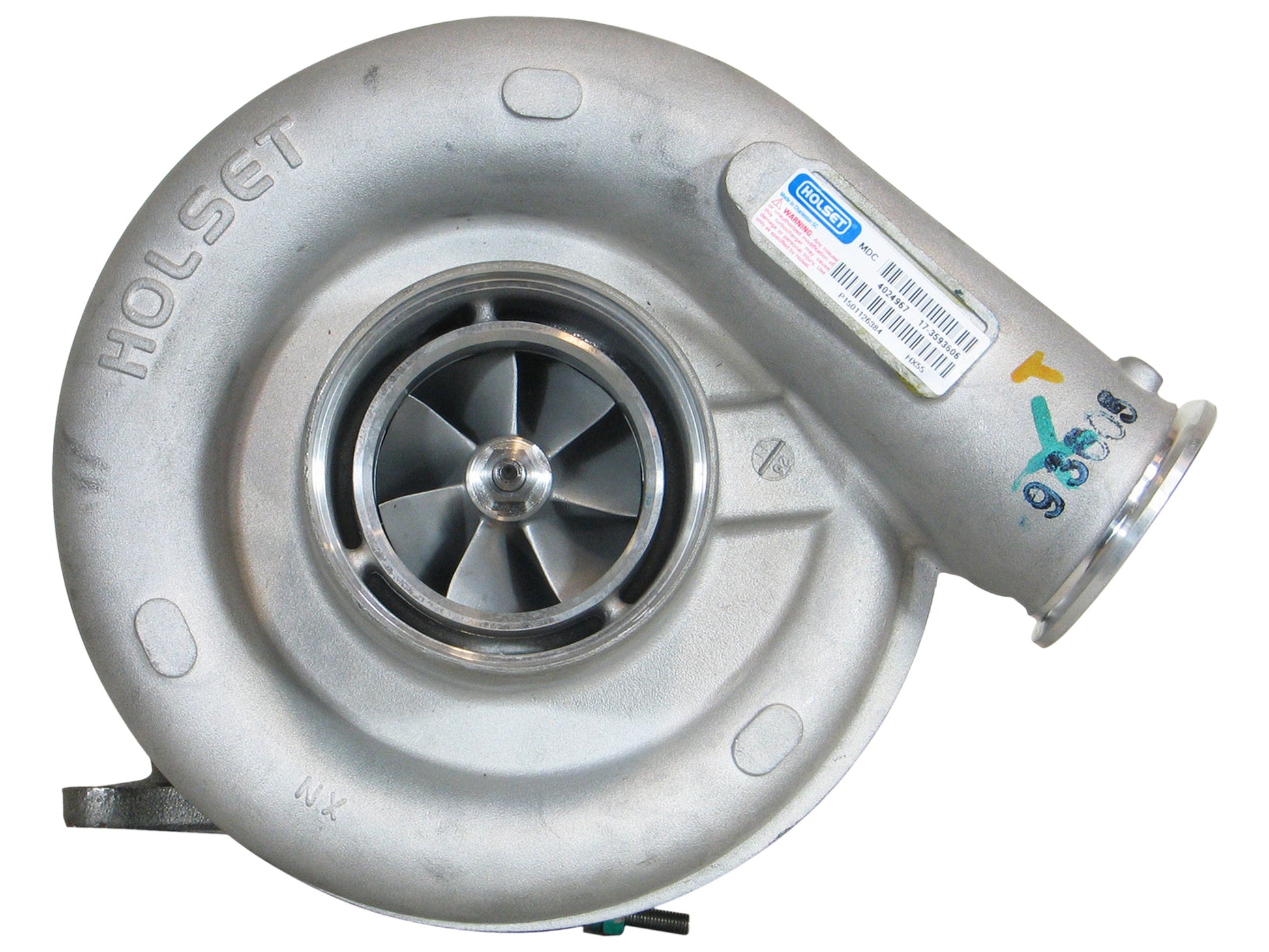

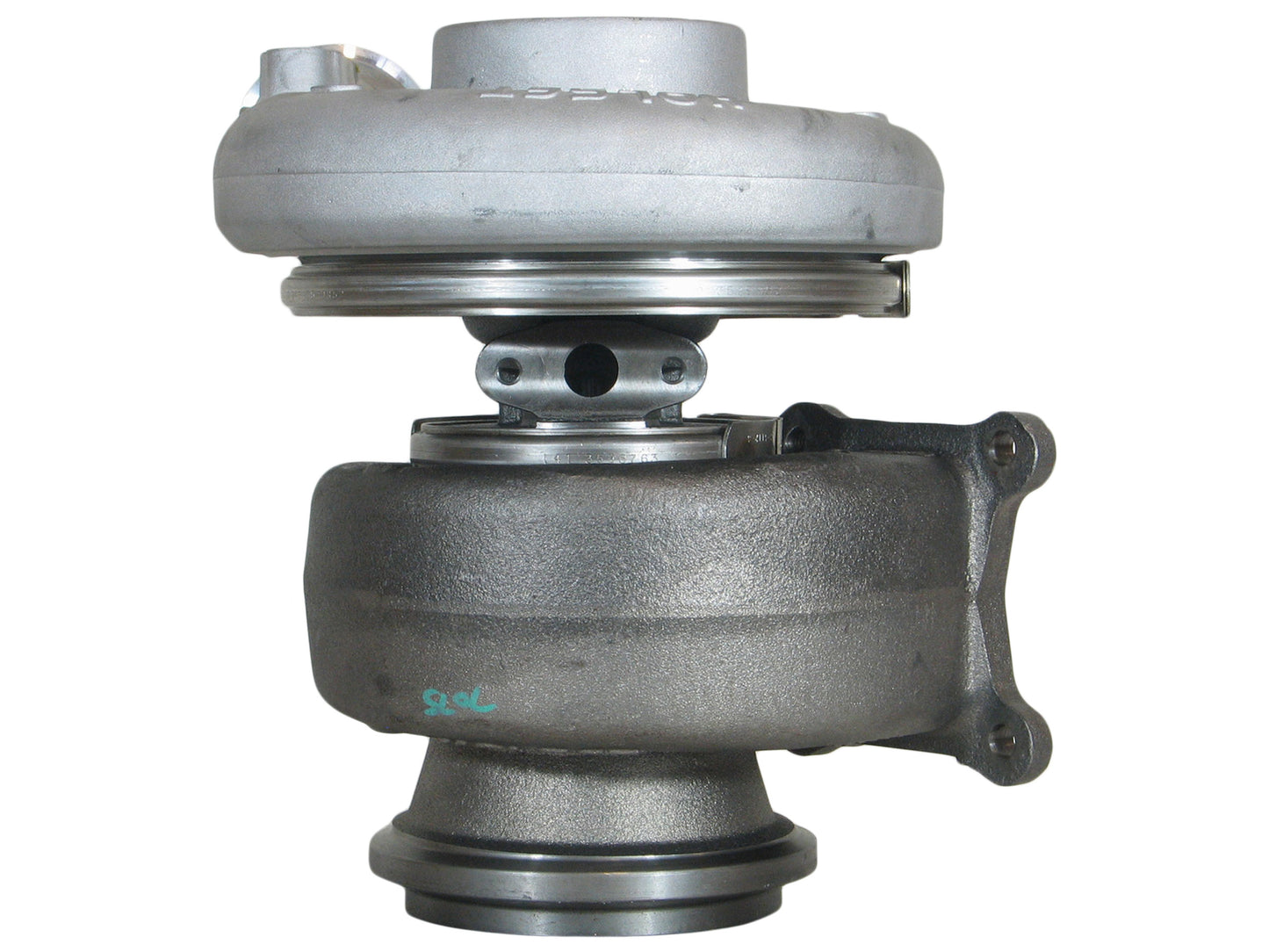

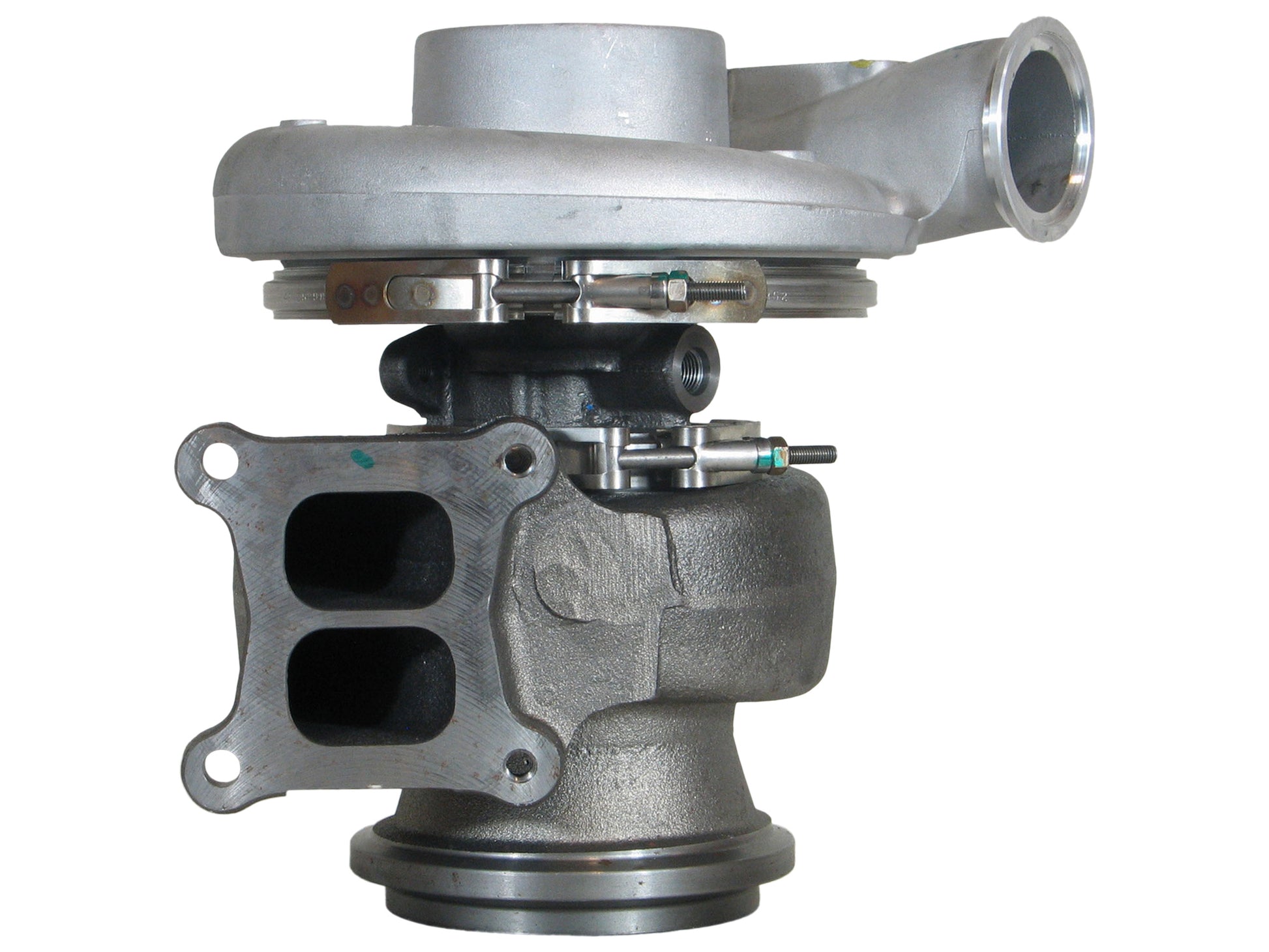

NEW OEM Holset HX55 Turbo Industrial Cummins M11 Diesel Engine 3593607 3593606SKU: 3593606
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 3593606
Interchangeable Number: 3593607, 3593607H
OEM Number: 4024967, 76194940
Turbo Model: HX55, HX55-E9871M/H22E11D
Engine Manufacturer: Cummins
Angle α (Compressor Housing): 264°
Angle ß (Turbine Housing): 130°
Back Plate: 3528096 (1153055300)
Bearing Housing: 3535704 (1153055450)
Compressor Cover: 3593605
Compressor Wheel: 3593686 (Ind. 67 mm, Exd. 99 mm, 12 Blades)

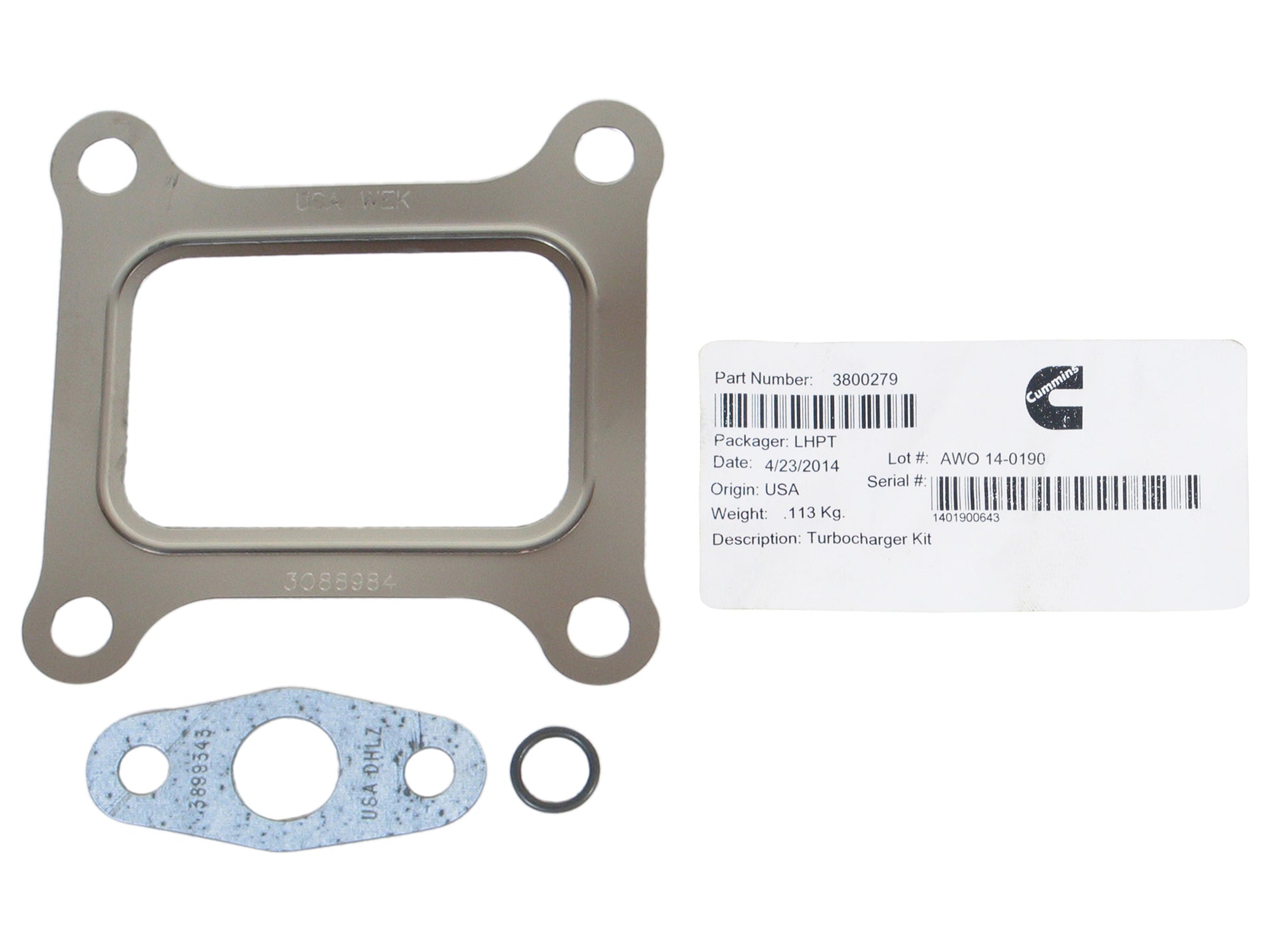

Gasket (Oil Inlet): 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)
Gasket (Oil Outlet): 210021 (210023-0000, 147837, 210023, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)
Heat Shield: 3529846/3533038
Repair Kit: 3580762/3575181 (1153055750)
Turbine Housing: 3536942
Turbine Wheel: 3535983 (Ind. 77 mm, Exd. 85.8 mm, 12 Blades)(1153055436)
2000-02 Industrial with Cummins M11 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
