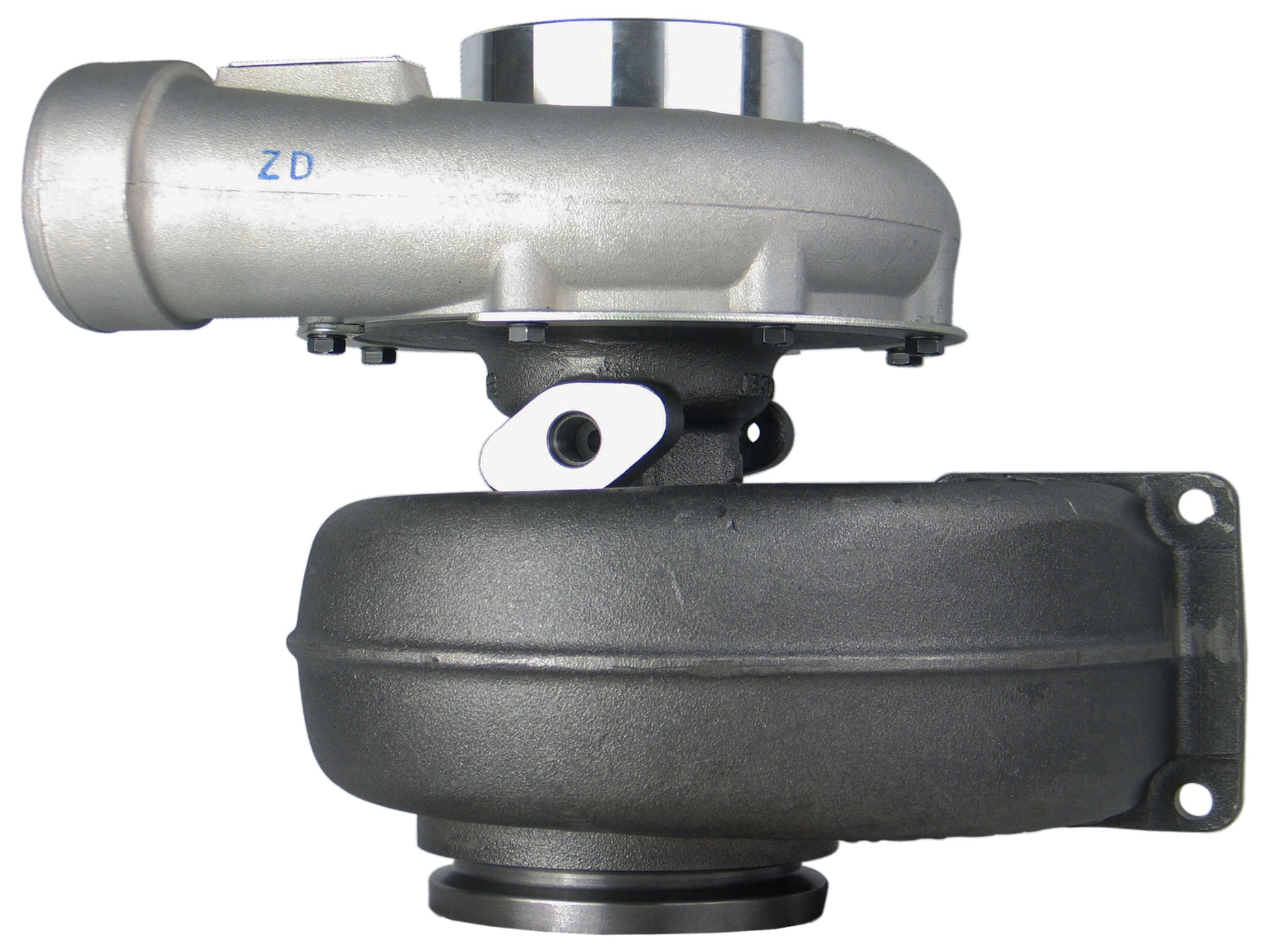

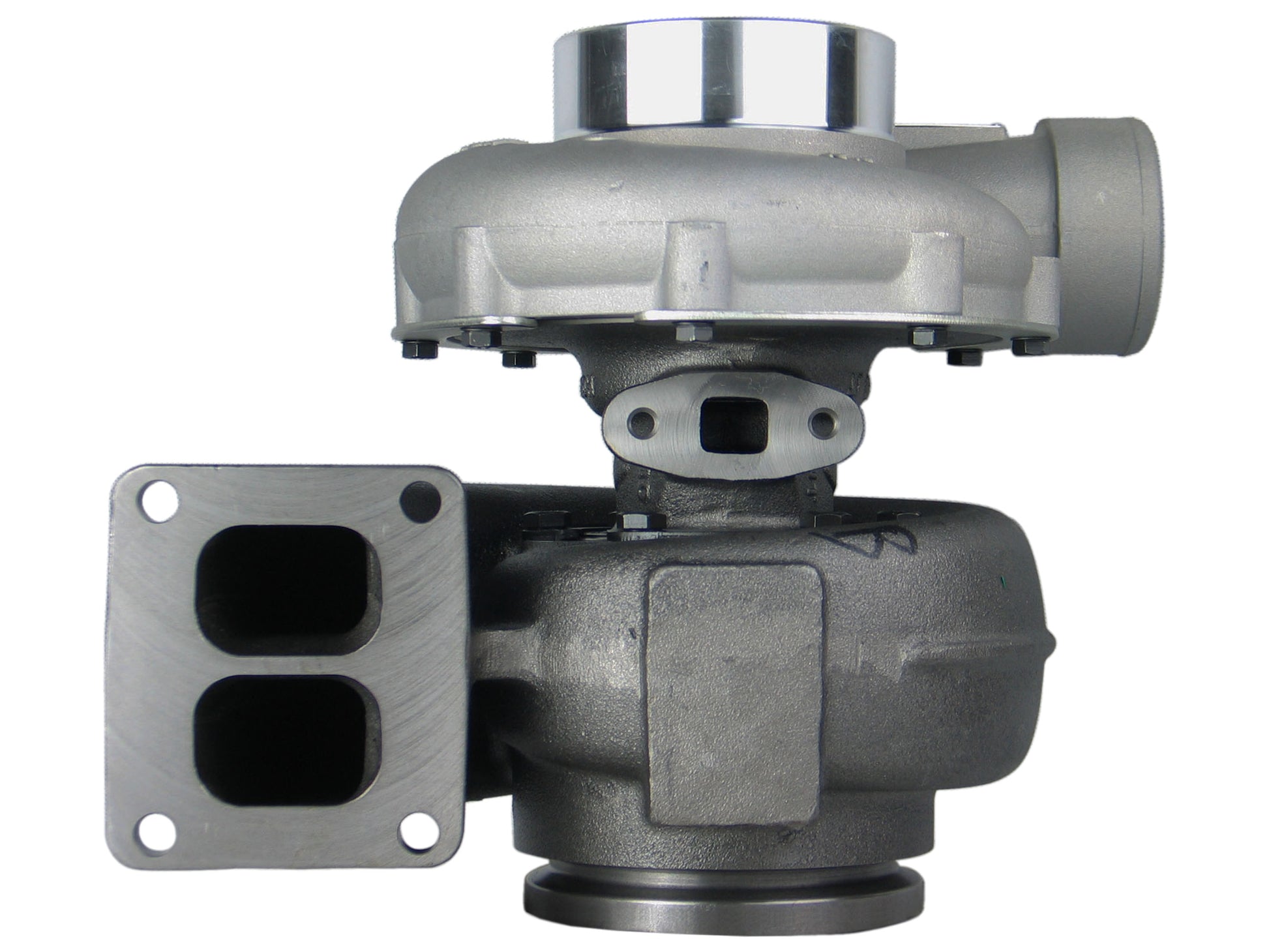

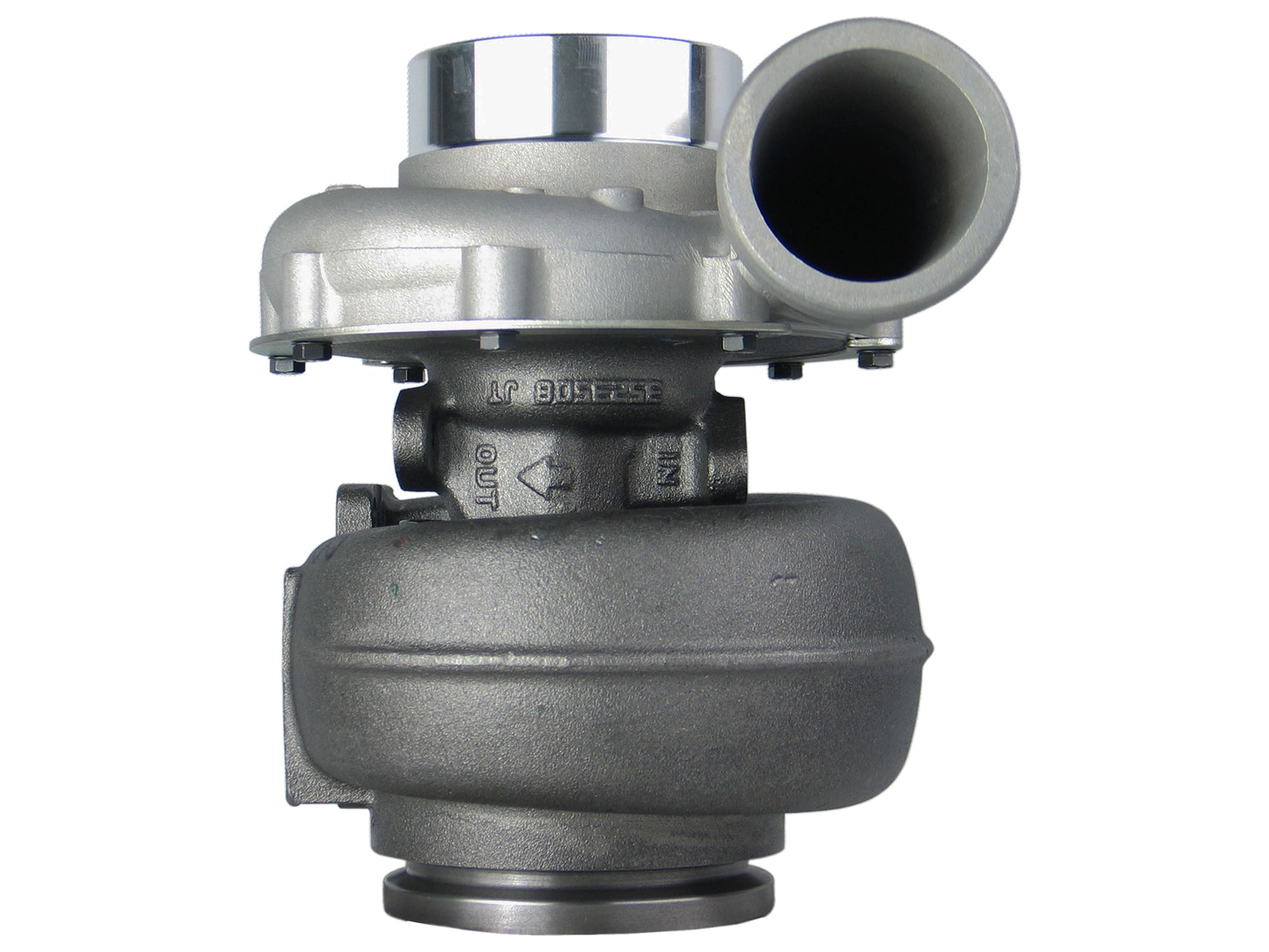

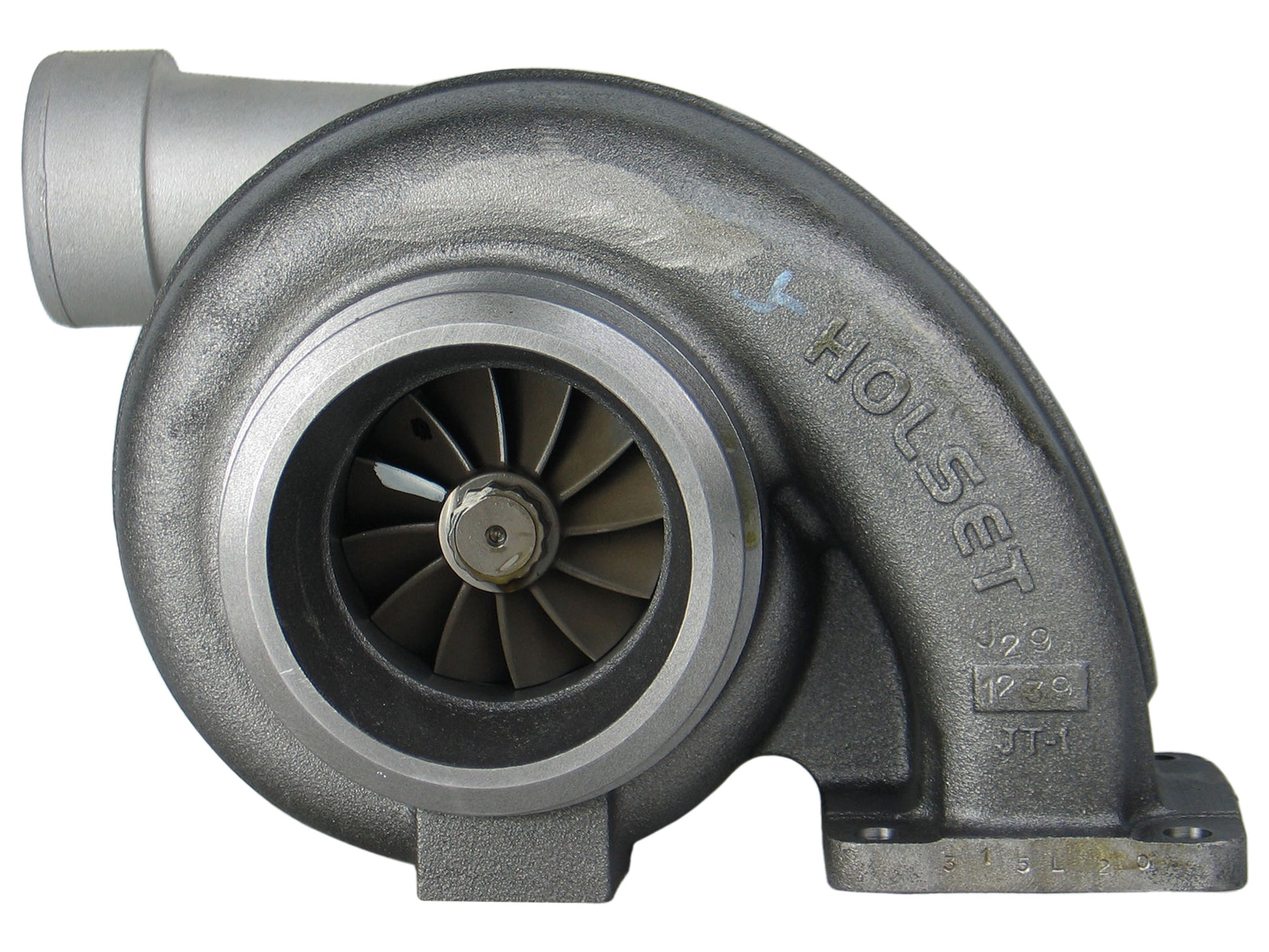

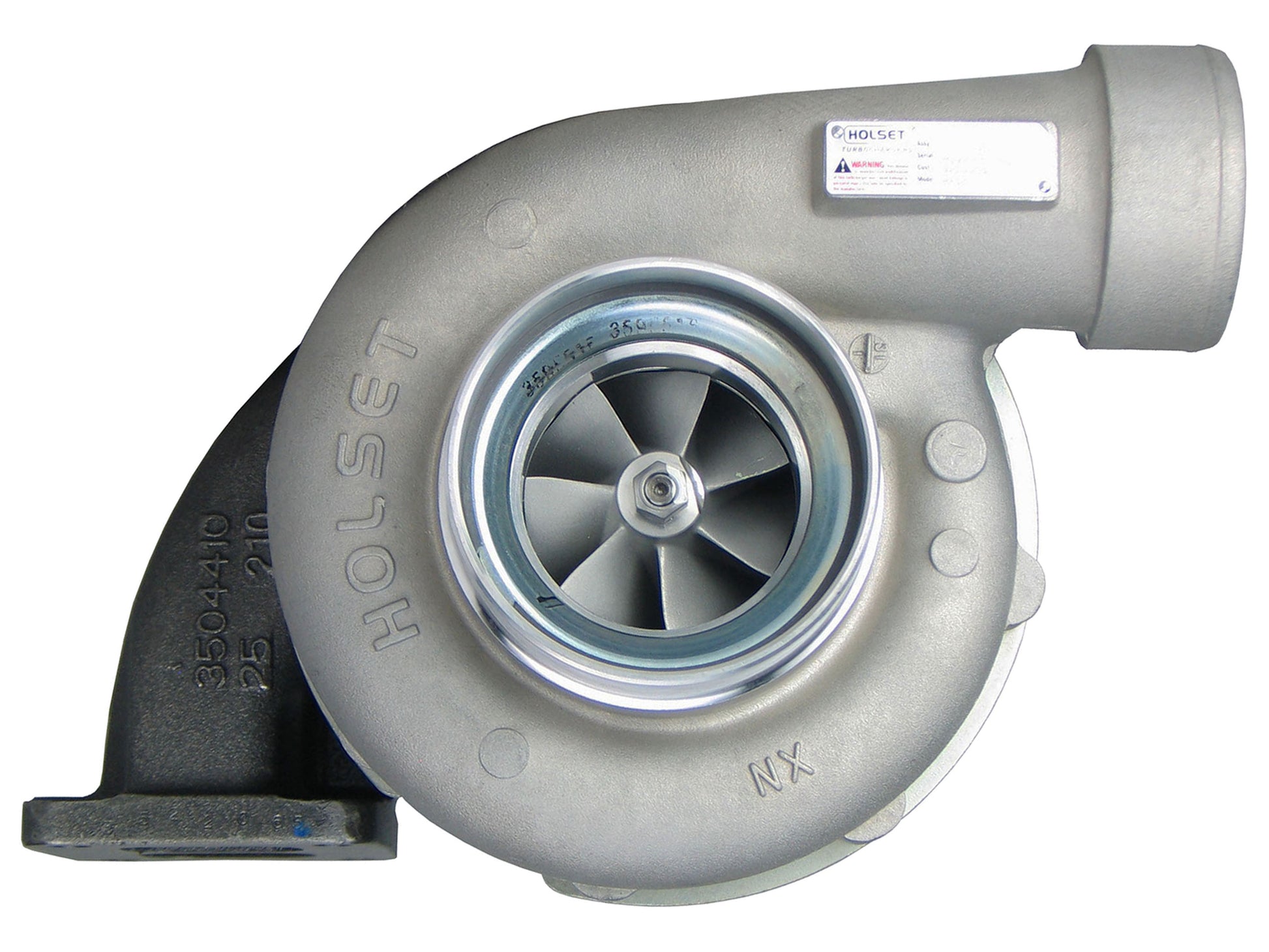

NEW OEM Holset HX50 Turbo BOMAG Truck Cummins M11 Diesel Engine 3594810 3594809SKU: 3594809
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 3594809
Interchangeable Number: 3537037, 3537038, 3594810, 3594810H, 3804546
OEM Number: 35086457, 4024969, 76194635
Turbo Model: HX50, HX50-E9871BS/X25Q11
Engine Manufacturer: Cummins
Angle α (Compressor Housing): 0°
Angle ß (Turbine Housing): 0°
Back Plate: 33528096 (1153055300)
Bearing Housing: 3537051
CHRA: 3580540 (4027216)
Compressor Cover: 3528999
Compressor Wheel: 3593686 (Ind. 67 mm, Exd. 97.69 mm, 7+7 Blades, Super Back, Billet)
Gasket (Oil Outlet): 311496 (210021, 148062, 311496)
Gasket (Turbine Inlet): 409123-0002 (310694)
Gasket Kit: 3545577
Heat Shield: 3533038 (3529846)(1153052340)
Repair Kit: 3545627 (1153050750)
Turbine Housing: 3522065
Turbine Wheel: 3531763 (Ind. 86.5 mm, Exd. 77 mm, 12 Blades)
2000-02 BOMAG Truck with Cummins M11 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
