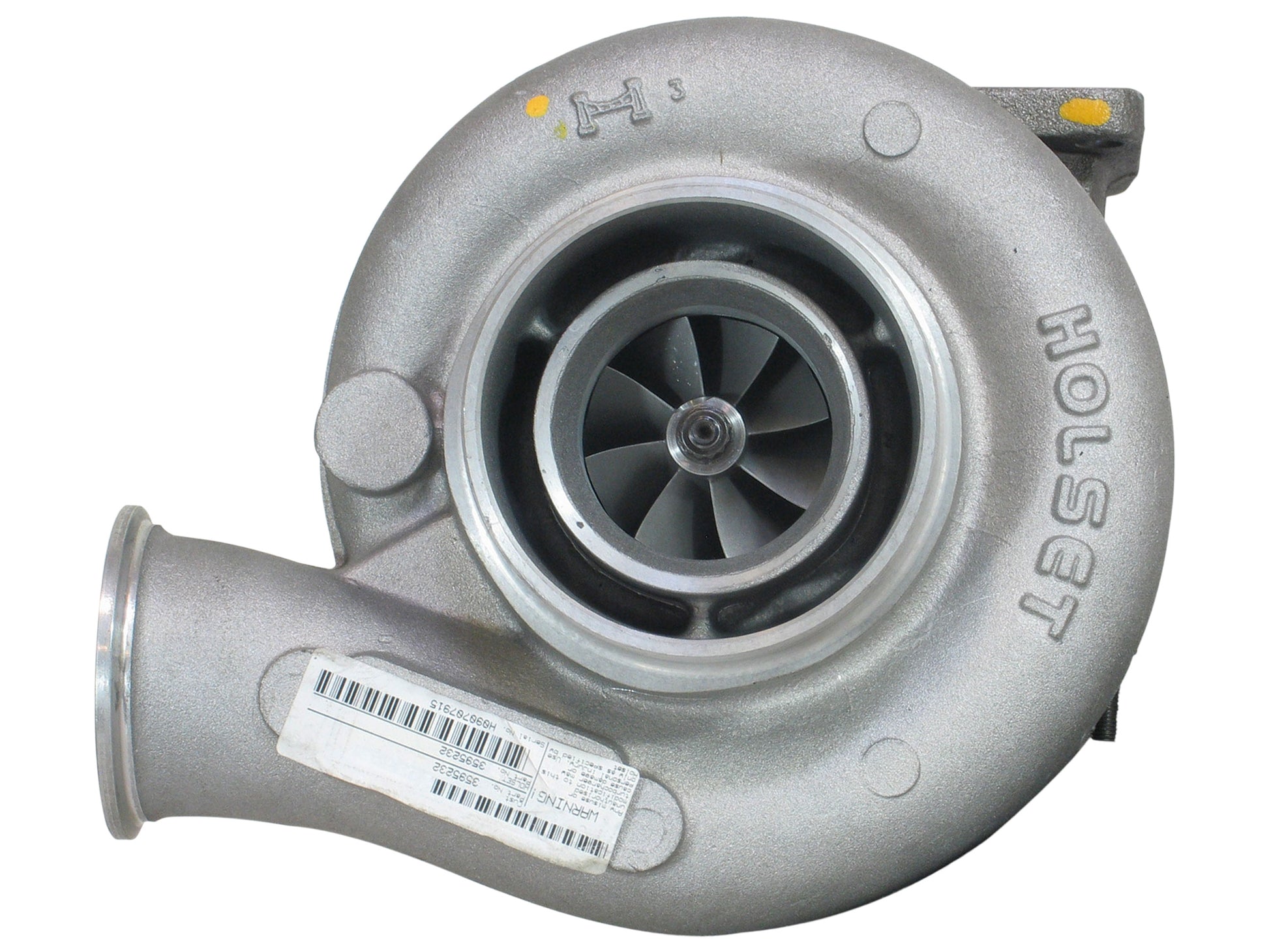

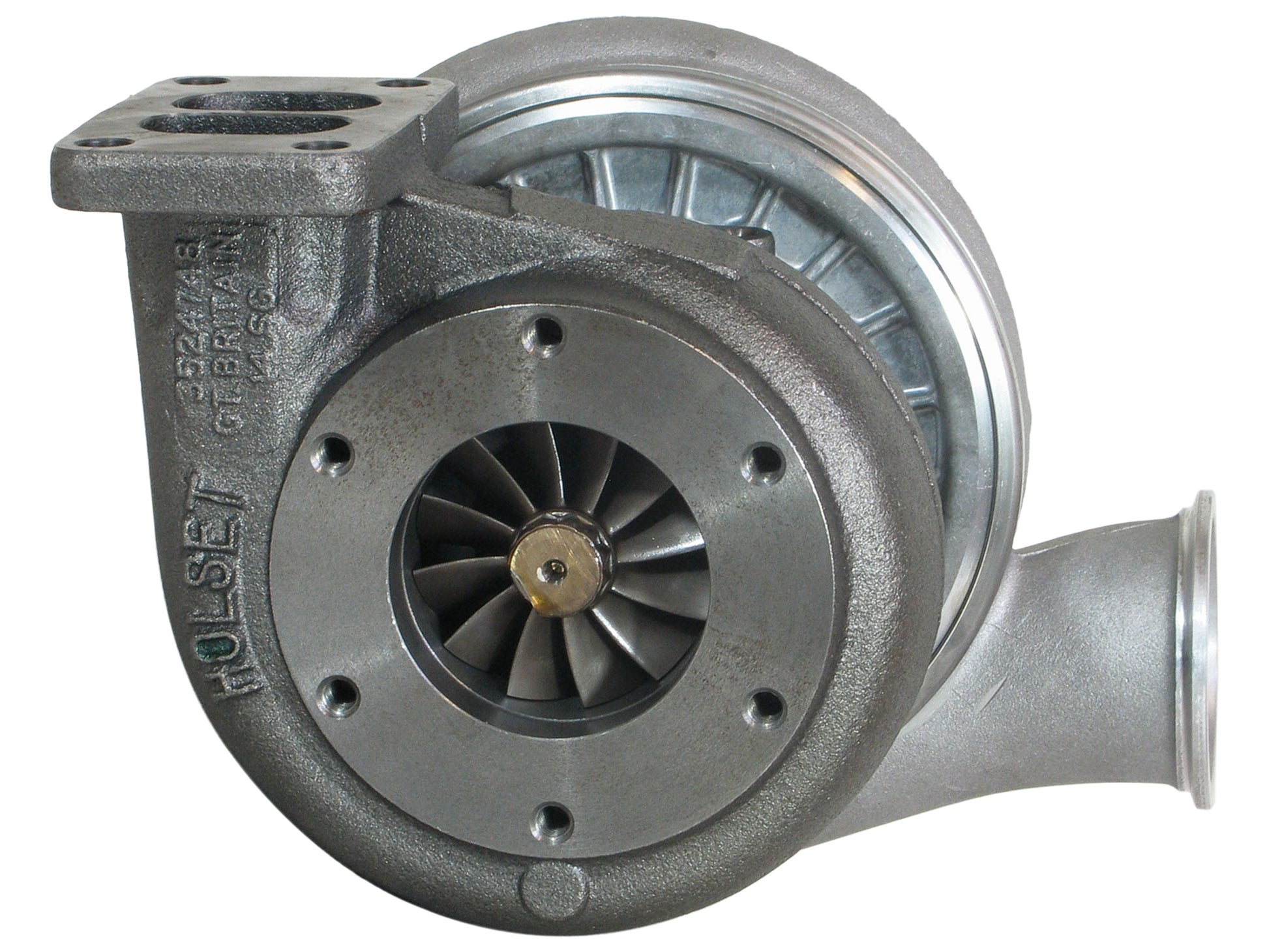

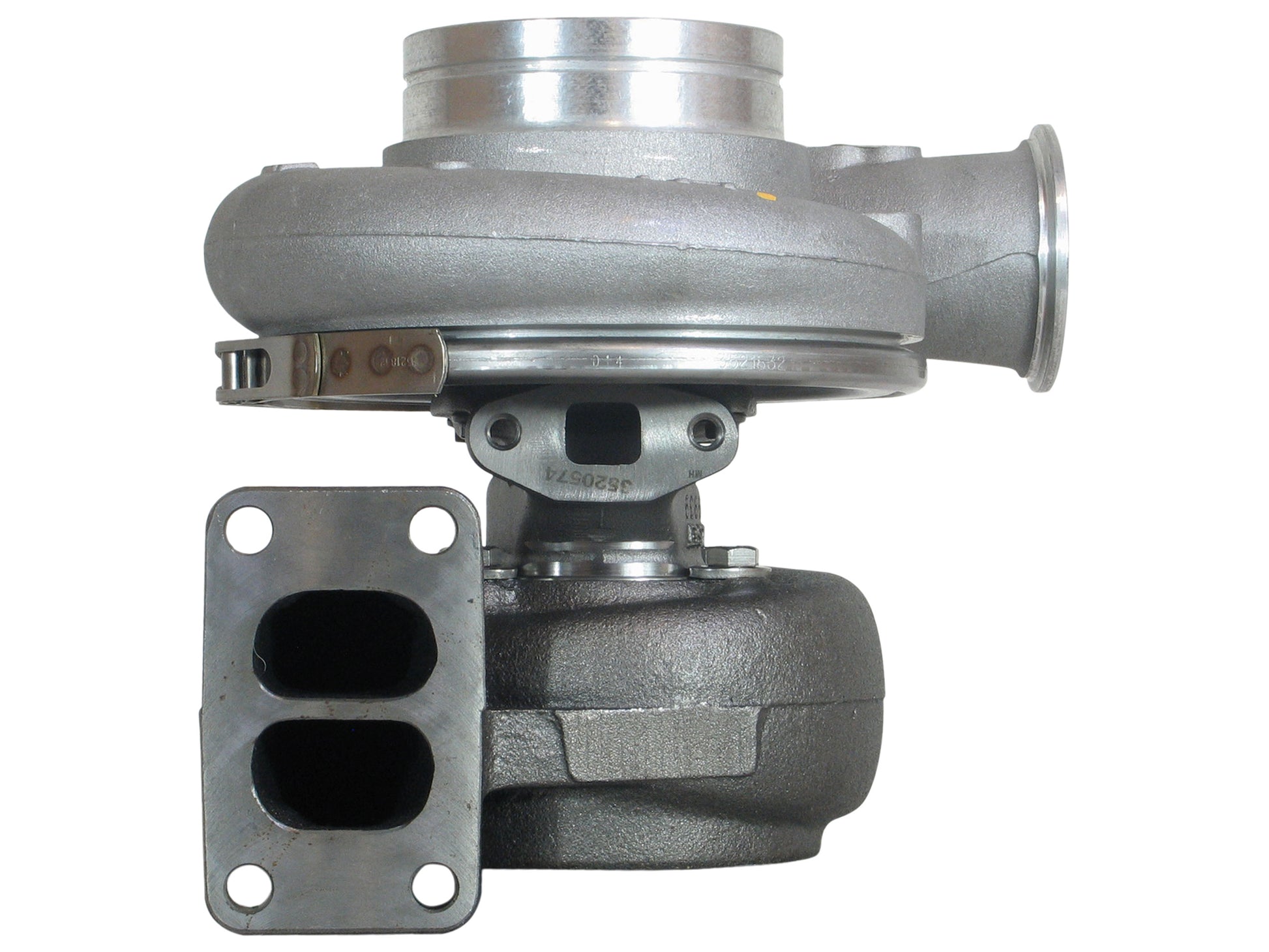

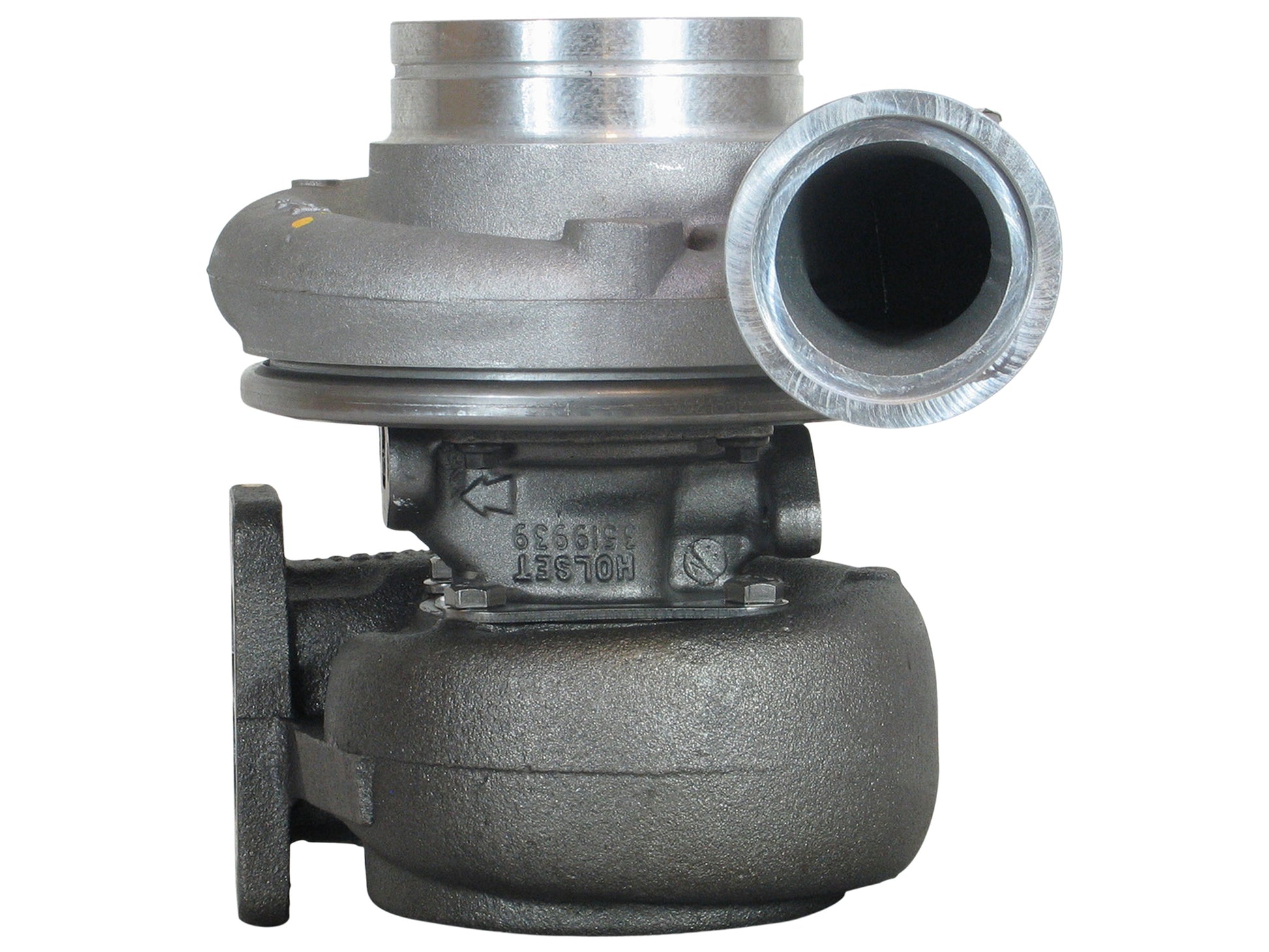

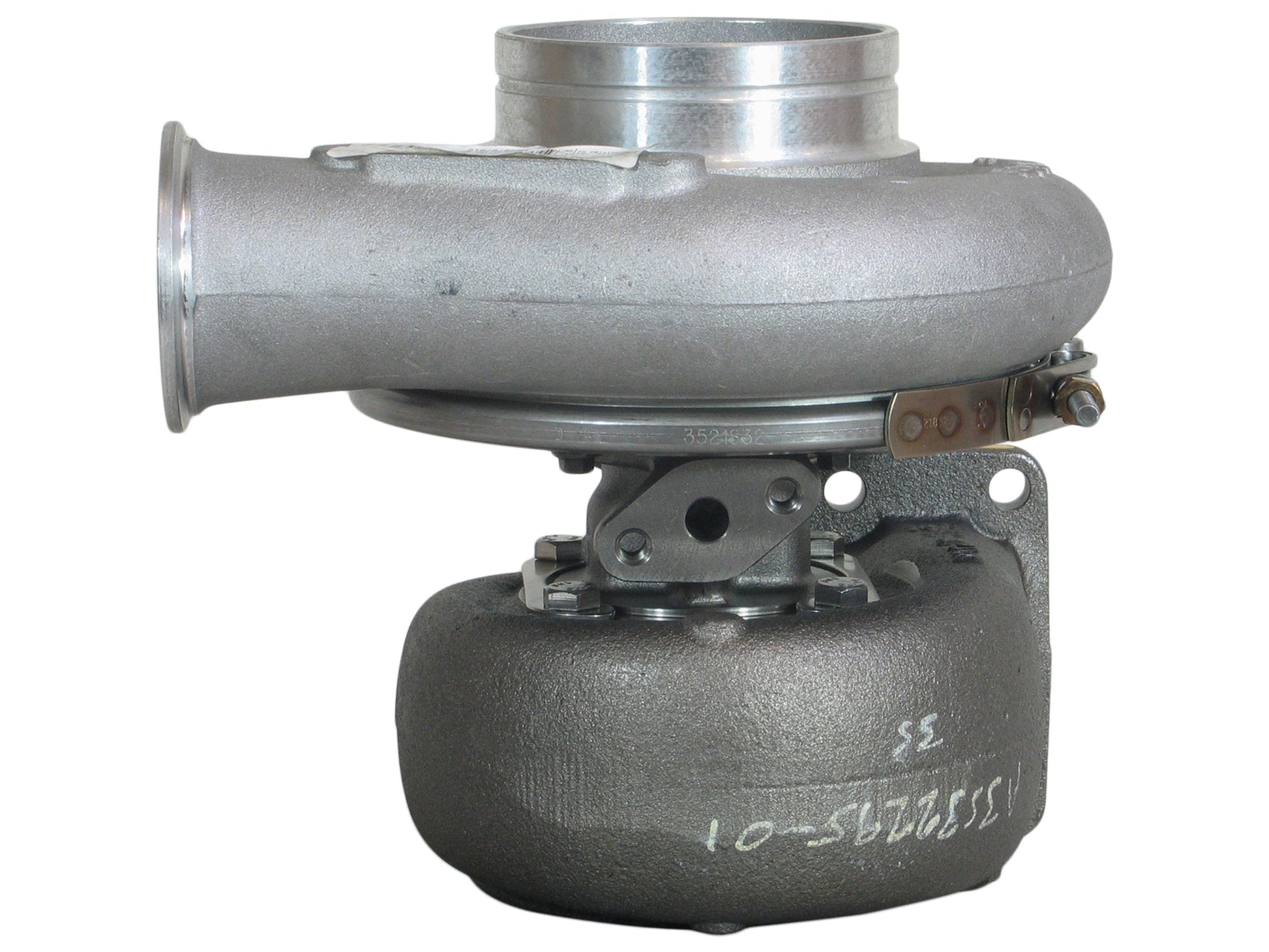

NEW OEM Holset H1E Turbo Volvo Truck TD73ES B7R 4X2 Euro 2 Diesel Engine 3595232SKU: 3595232
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 3595232
Interchangeable Number: 3595233, 3595234, 4033341, 4033341H
OEM Number: 20411831, 20411838
Turbo Model: H1E-8264BV/H14JA8, H1E
Engine: TD73ES, TD 73ES, B7R 4X2 Euro 2
Engine Manufacturer: Volvo
Power: 230 HP
Angle α (Compressor Housing): 115/2.5°
Angle ß (Turbine Housing): 45/360°
Back Plate: 3522801
Bearing Housing: 3502500/3520574 (1152301450)
CHRA: 3545711 (3545731, 3575683)
Compressor Wheel: 3599646 (Ind. 54 mm, Exd. 83 mm, 8+8 Blades, Super Back)(1152301403)

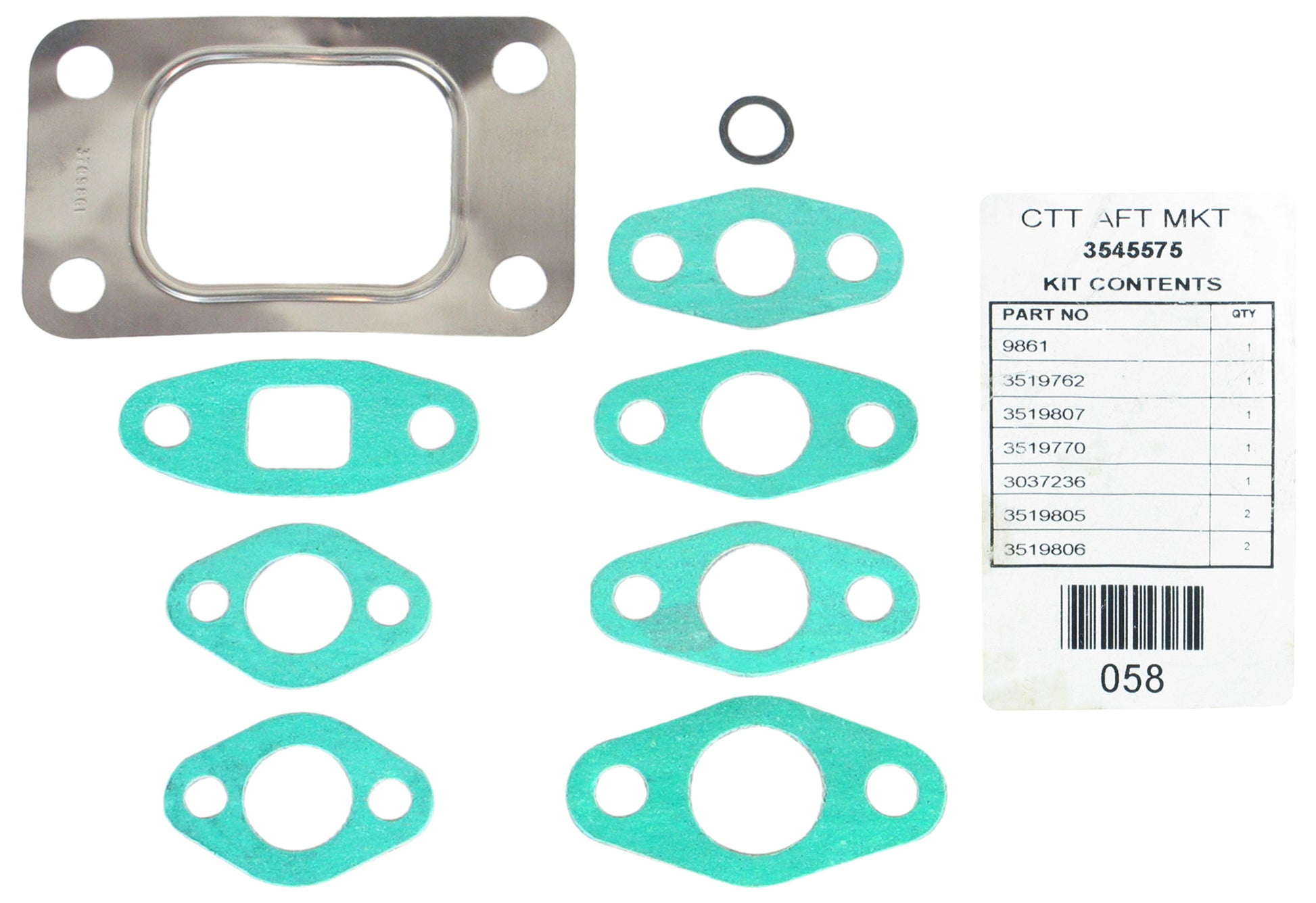

Gasket (Oil Inlet): 147837 (210023)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Gasket (Turbine Inlet): 3545652/4027309 (1152301750)
Gasket (Turbine Outlet): 210226 (Stainless Steel)
Turbine Wheel: 3522879/3535359 (Ind. 76 mm, Exd. 64 mm, Trim 71, 6+6 Blades, LH)(1152301436)
2000-05 Volvo Truck with TD 73ES, TD73ES Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
