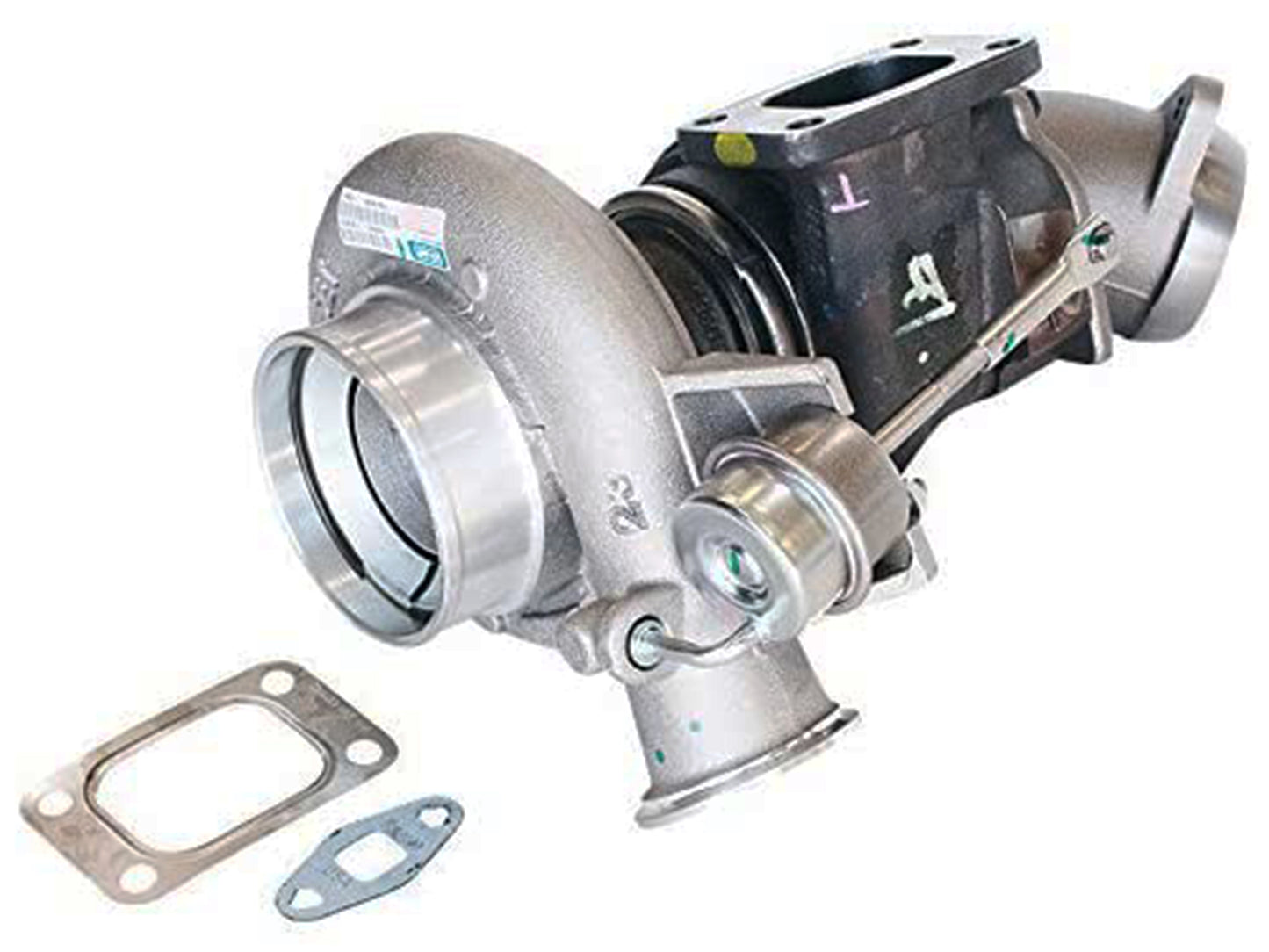

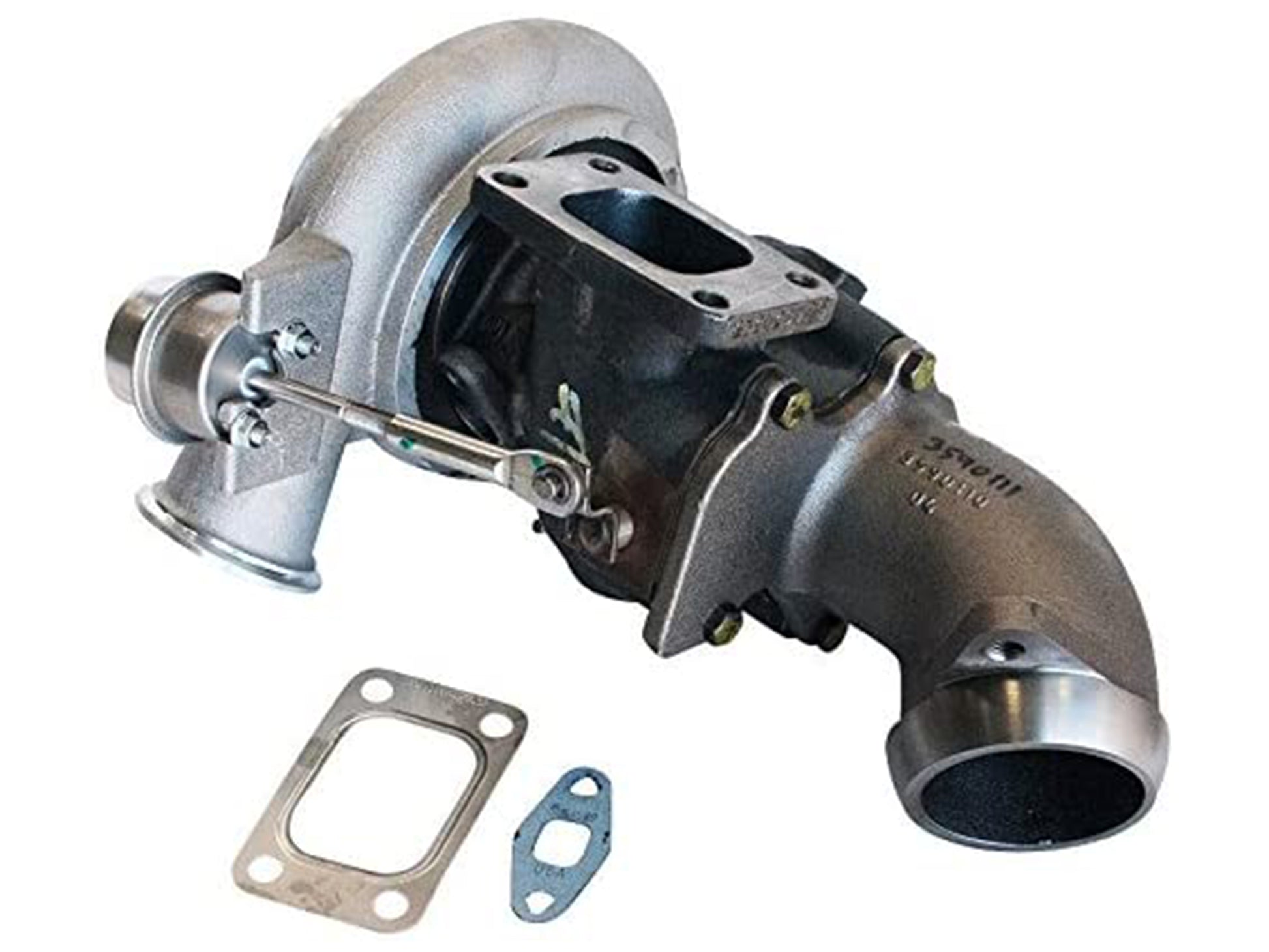

NEW Holset HY35W Turbo Chrysler Dodge Ram Cummins 6BT 6BTA 5.9L 3596393 4036239

BRAND NEW GENUINE HOLSET TURBOCHARGER

This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 4036239
Interchangeable Number: 3592811, 3593907, 3594735, 3594736, 3596183, 3596193, 3596392, 3596393H, 3596393HX, 3800973, 3800973NX, 3800973RX, 4025009, 4025218, 4025257, 4089642, 408964200, 4089642NX, 4089642RX
OEM Number: 3592406, 3592836, 3593909, 3596191, 3596393, 5017787, 5017787AA, 5017787AC, 5017787AD, R5017787AA, R5017787AE
Turbo Model: HY35W, HY35W-E7755AK/K09RZ35
Manufacturer: Holset

Year: 2000-05
Engine: 6BT, 6BTA, ISB
Engine Manufacturer: Cummins
Displacement: 5.9L, 5900 ccm, 6 Cylinders
Fuel: Diesel

Angle α (Compressor Housing): 118°
Angle β (Turbine Housing): 130°
Actuator Kit (Pneumatic): 4030720H
Actuator: 3592428
Adapter (Exhaust): 3590111H
Back Plate: 3530923 (1154351300)
Bearing Housing: 4040124 (4031486)
CHRA: 4027798 (4027798H)
Compressor Cover: 3593138
Compressor Wheel: 3599649 (4040124)(Ind. 53.97 mm, Exd. 76.48 mm, 7+7 Blades, Super Back)
Gasket (Oil Drain): 3519805H
Gasket (Turbine Outlet): 3535001H
Gasket Kit: 3545575H
Heat Shield: 3519302 (3519304)(1152301340)
Repair Kit (Major): 4027801 (4027801H)
Split Ring Seal (Compressor): 3758848H
Turbine Housing: 4030721 (3595070, 3595070H)
Turbine Wheel: 4035271 (Ind. 65.2 mm, Exd. 57.96 mm, 12 Blades)(1154351435)
Turbocharger Kit: 3596393H/3596393HX
Wastegate Settings (Lift Rod): 0 mm
Wastegate Settings (Pressure): 1.800 bar

Application:
2000-02 Dodge Ram Truck (Auto Transmission) with Cummins 6BT Engine
2000-05 Leyland Dump Truck with Cummins 6BTA Engine
2001-02 Dodge Ram 2500, 3500 Pick-Up Truck with Cummins ISB Engine
Chrysler with Cummins 6BTA Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
