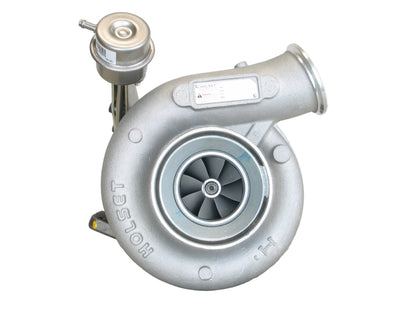

New Holset HX40W Turbo Komatsu Industrial Cummins 6CTAA Engine 3598263 3598715

BRAND NEW GENUINE HOLSET TURBOCHARGER

This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 3598715
Interchangeable Number: 3598715H, 3598263, 02-911170, 02/911170, 02911170, 170-032-1364, 170-032-3886, 1700321364, 1700323886, 2-911170, 2/911170, 2911170, 3598263, 3598715, 3598715H, 3599108, 3795600, 4036628, 4089321, 408932100, 4089321NX, 4089321RX

OEM Number: 3598715, 3599108, 3795600, 4036628, 4089321, 6743-81-8050
Turbo Model: HX40W, HX40W-L8284L/FA17JD8

Year: 2002-
Engine: 4ISBE, 6B, 6CTAA, 8.3CTAA Tier 2, L PHASE
Engine Manufacturer: Cummins
Power: 205 HP

Angle α (Compressor Housing): 324°
Angle β (Turbine Housing): 136°
Actuator: 3593678
Back Plate: 3530923 (1154351300)
Bearing Housing: 3532632 (4027872, 4027869)
CHRA: 4027612 (4027849, 3535324)
Compressor Cover: 3597784
Compressor Wheel: 3599592 (3599591)(3537168)(6743818050)(Ind. 58 mm, Exd. 81.3 mm, 8+8 Blades)

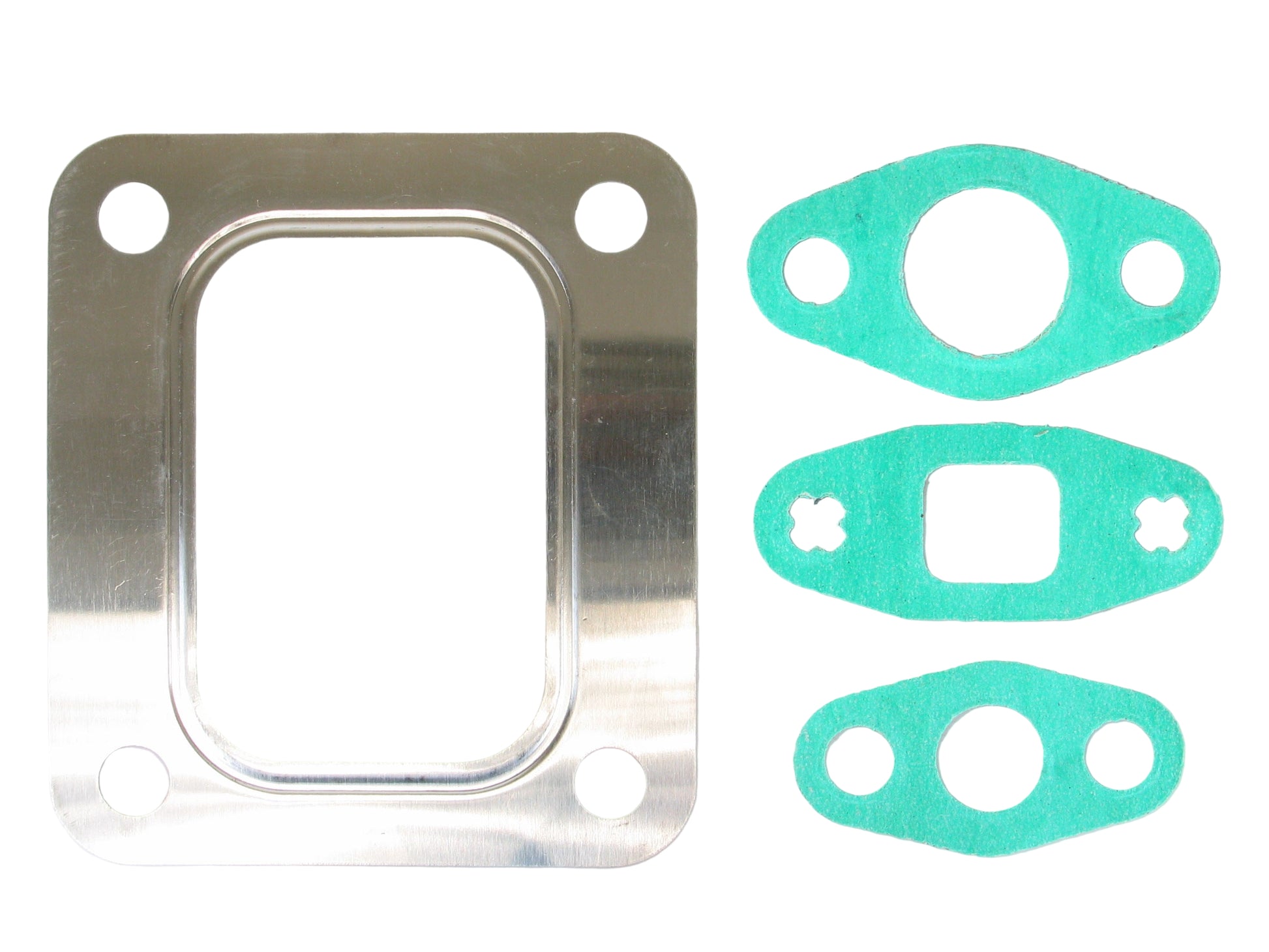

Gasket (Oil Outlet): 210060 (2475013)(409267-0003, 409267-0002, 210060-0000, 51914, 148062, 311585)
Gasket (Turbine Inlet): 407294-0001 (310694)
Heat Shield: 3519302 (194149) (1152301340)
Repair Kit: 3575169 (1153035750)
Turbine Housing: 4030712/4038085
Turbine Wheel: 3522879 (3535359)(Ind. 76 mm, Exd. 64 mm, 12 Blades)(1152301436)
Wastegate Settings (Lift Shaft): 0.38 mm
Wastegate Settings (Pressure): 1.600 bar

Application:
2002- Industrial with Cummins 8.3CTAA Tier 2, 6CTAA Engine
2002- JCB with Cummins 6B Engine
2002- Ottawa Truck with Cummins 6CTAA Engine
Bus with Cummins 4ISBE Engine

2002- Komatsu Construction with Cummins 6CTAA 8.3L Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
