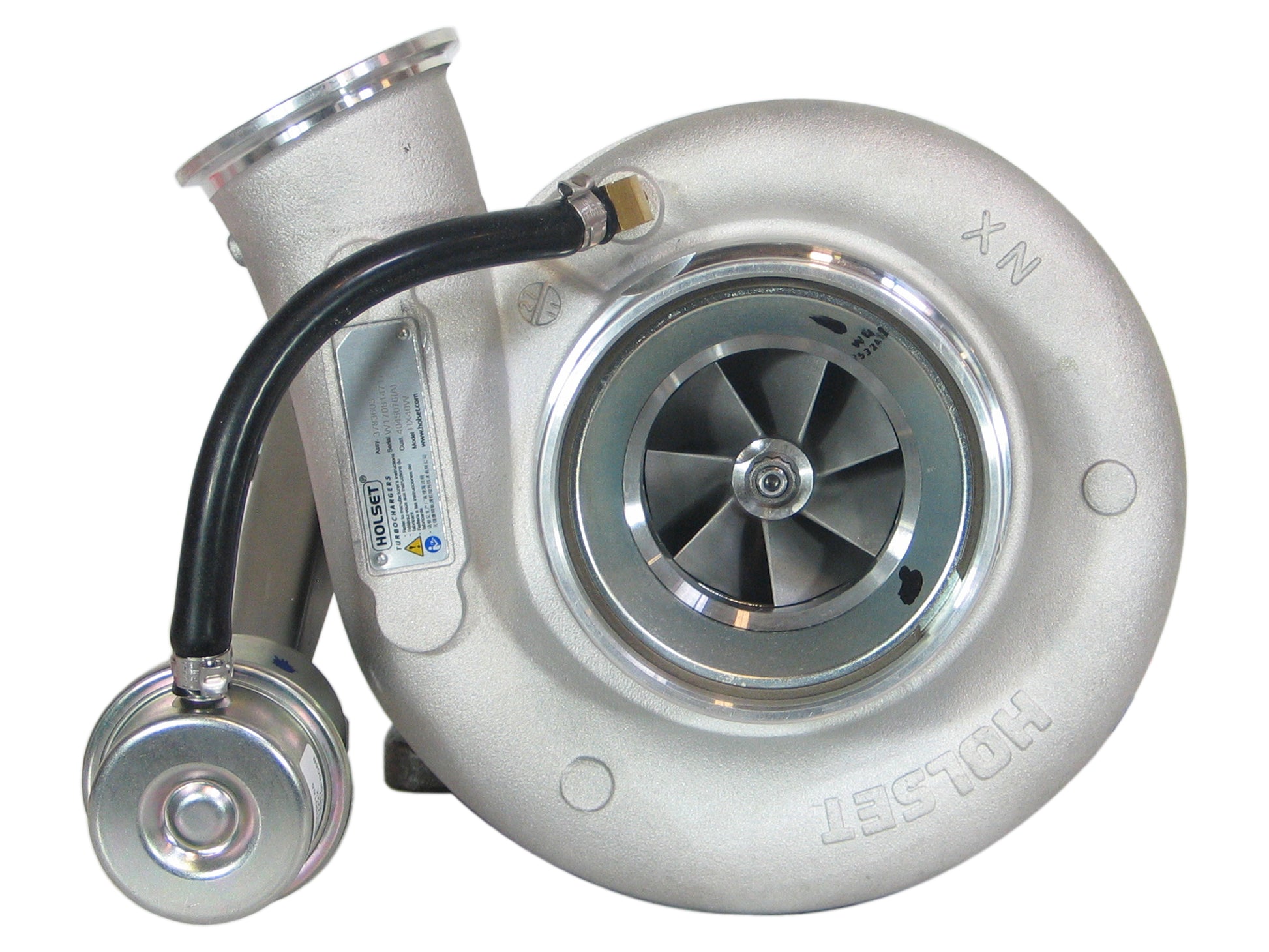

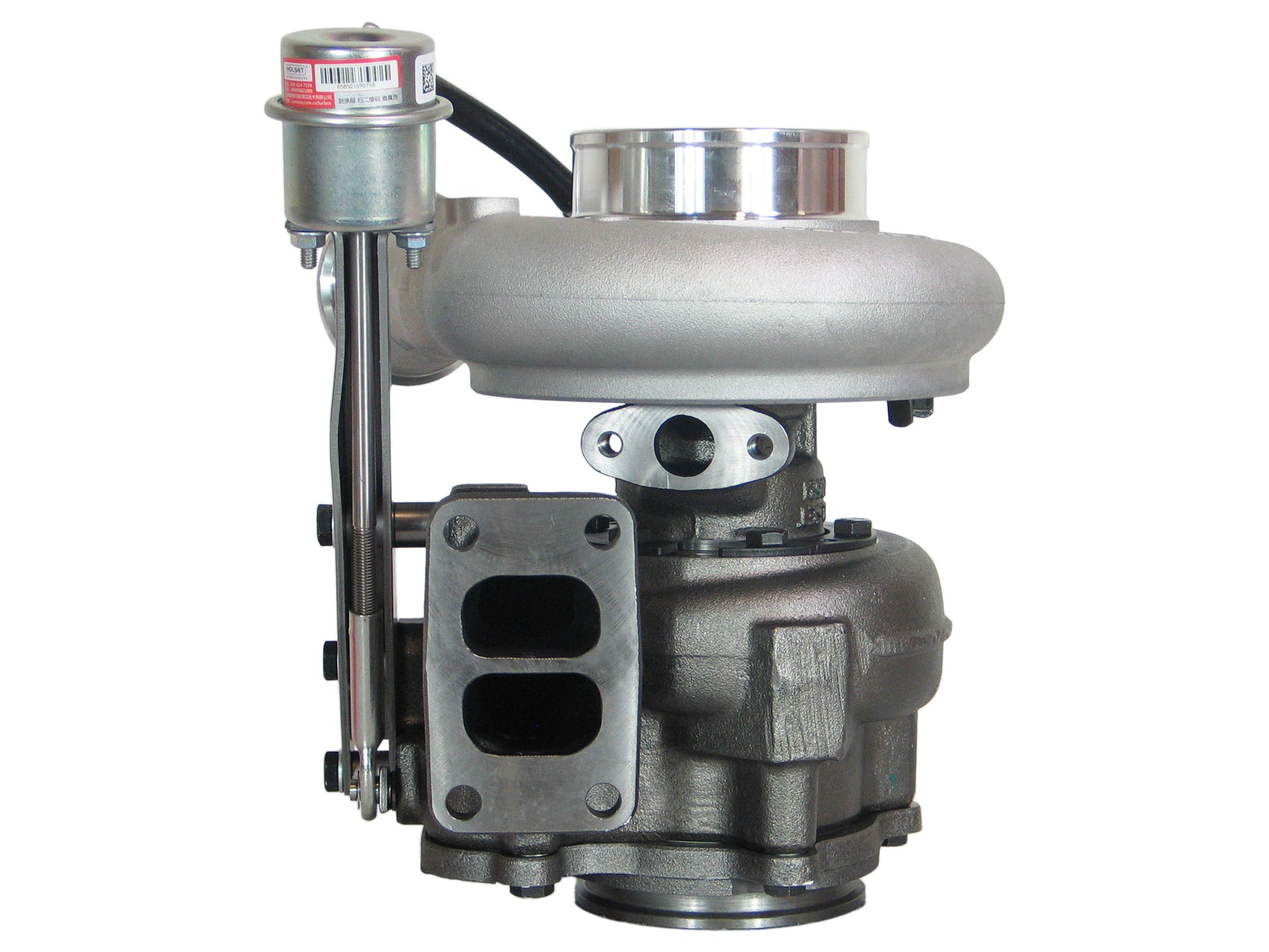

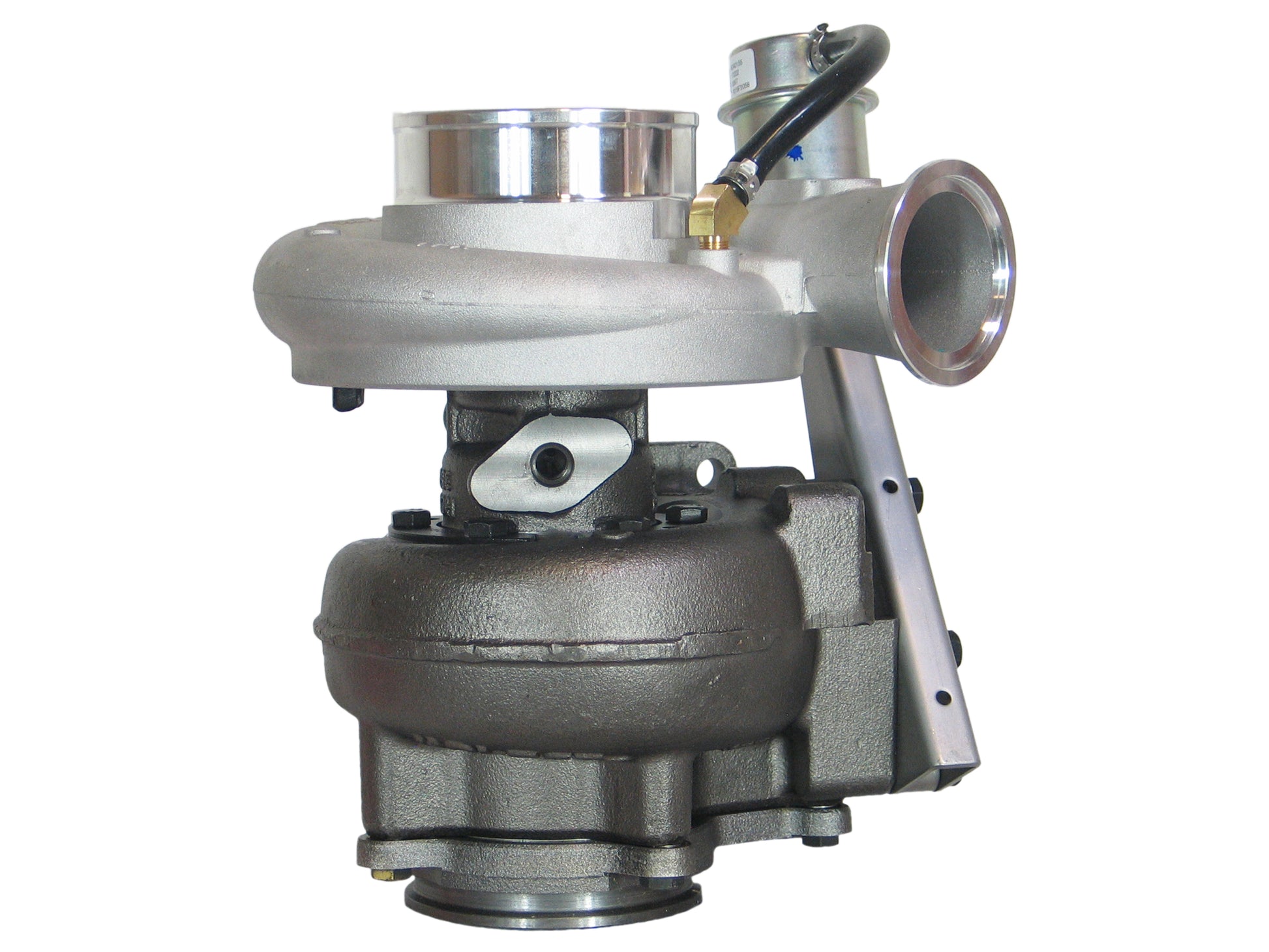

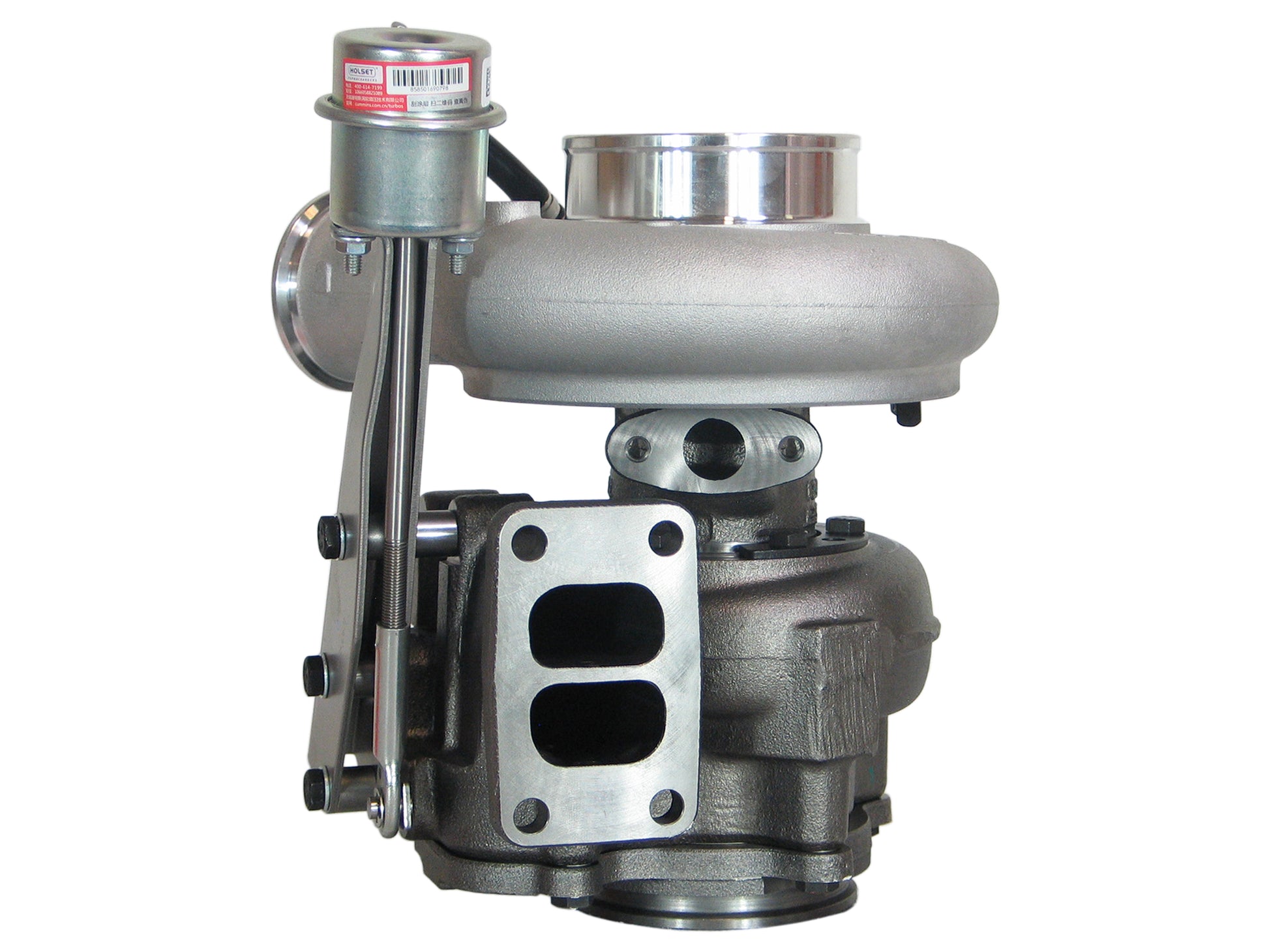

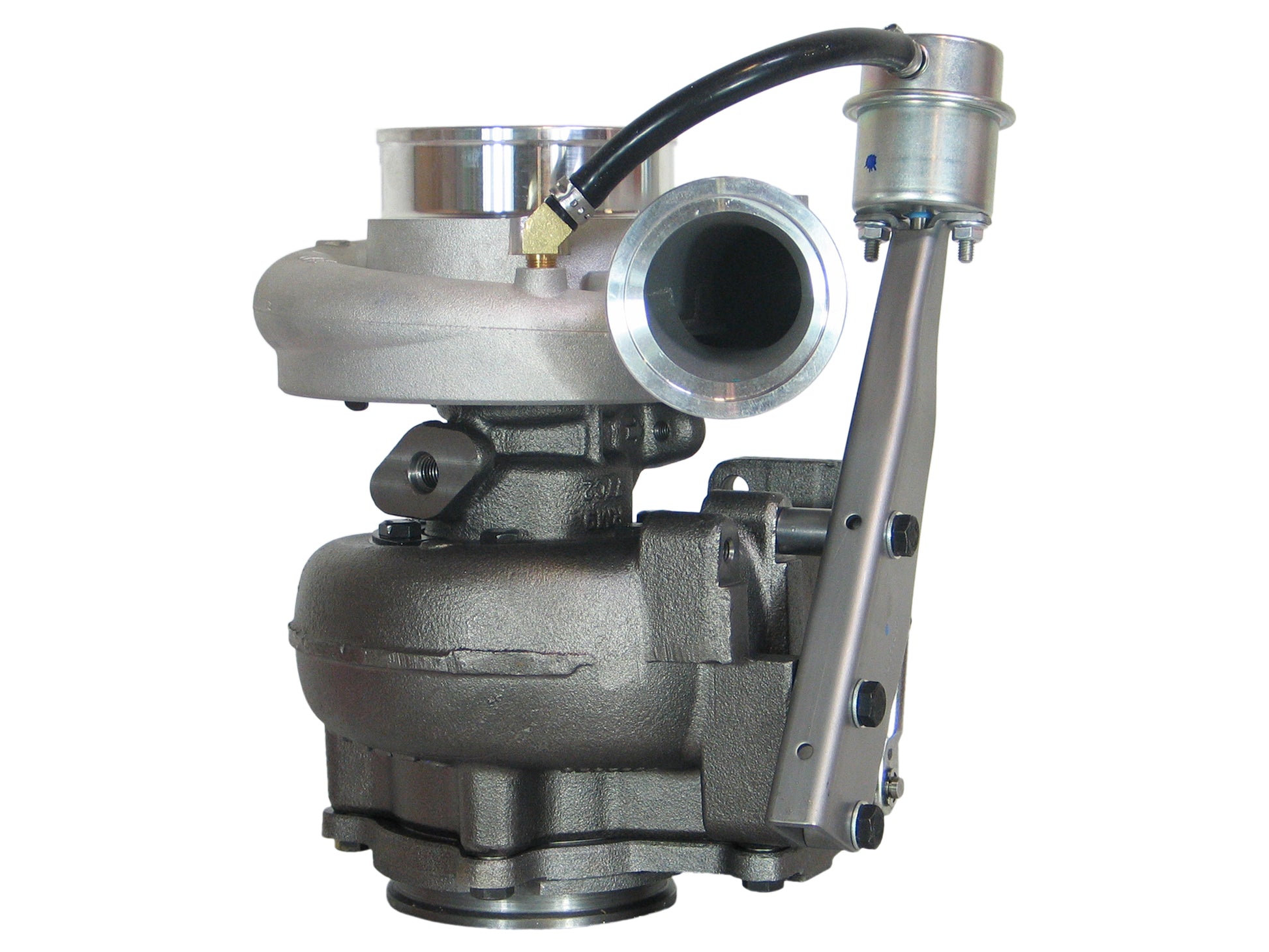

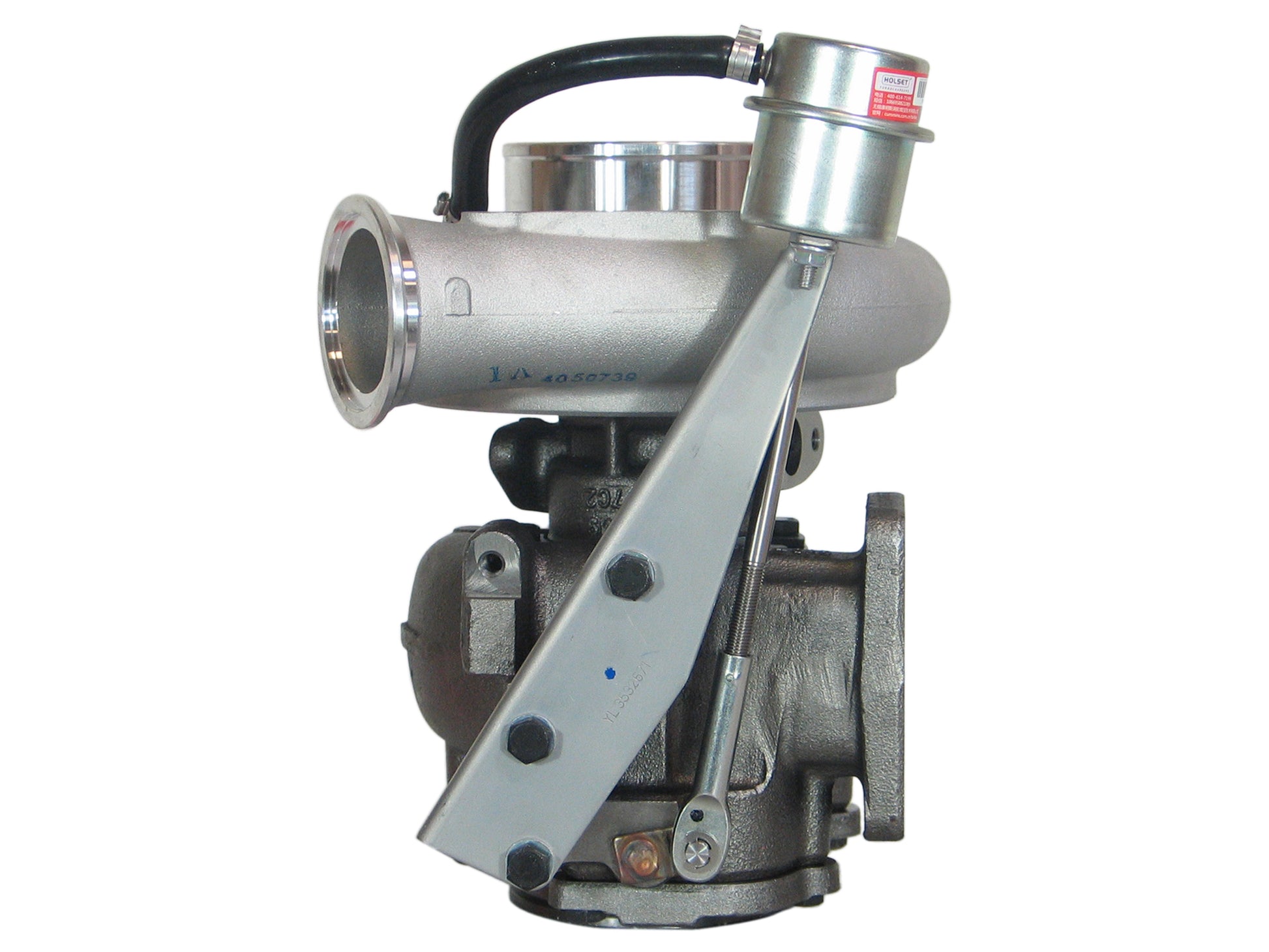

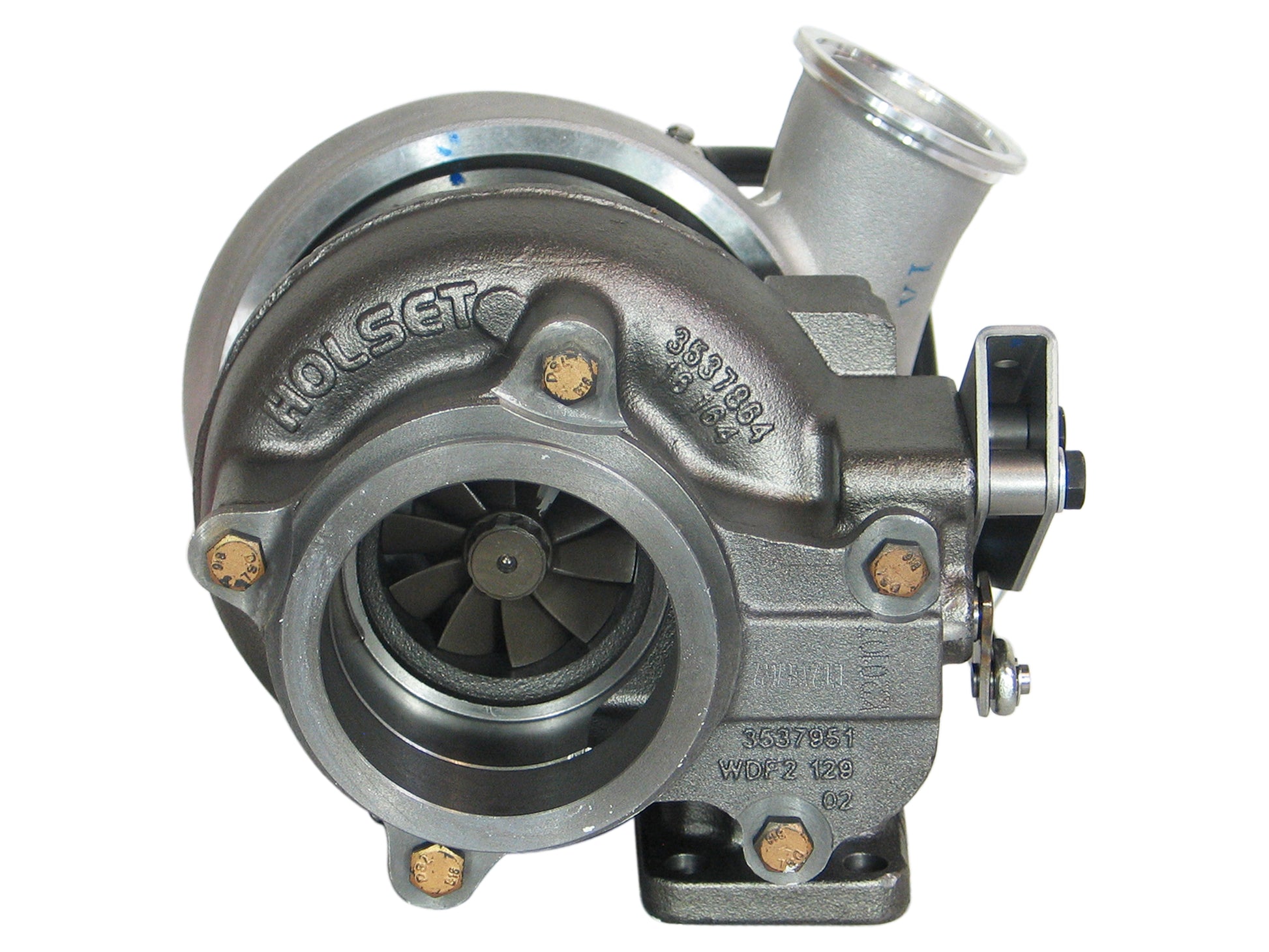

NEW Holset HX40W Turbo Truck Cummins L360 6CTA 8.3L 4045076 3783603

BRAND NEW GENUINE HOLSET TURBOCHARGER

This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

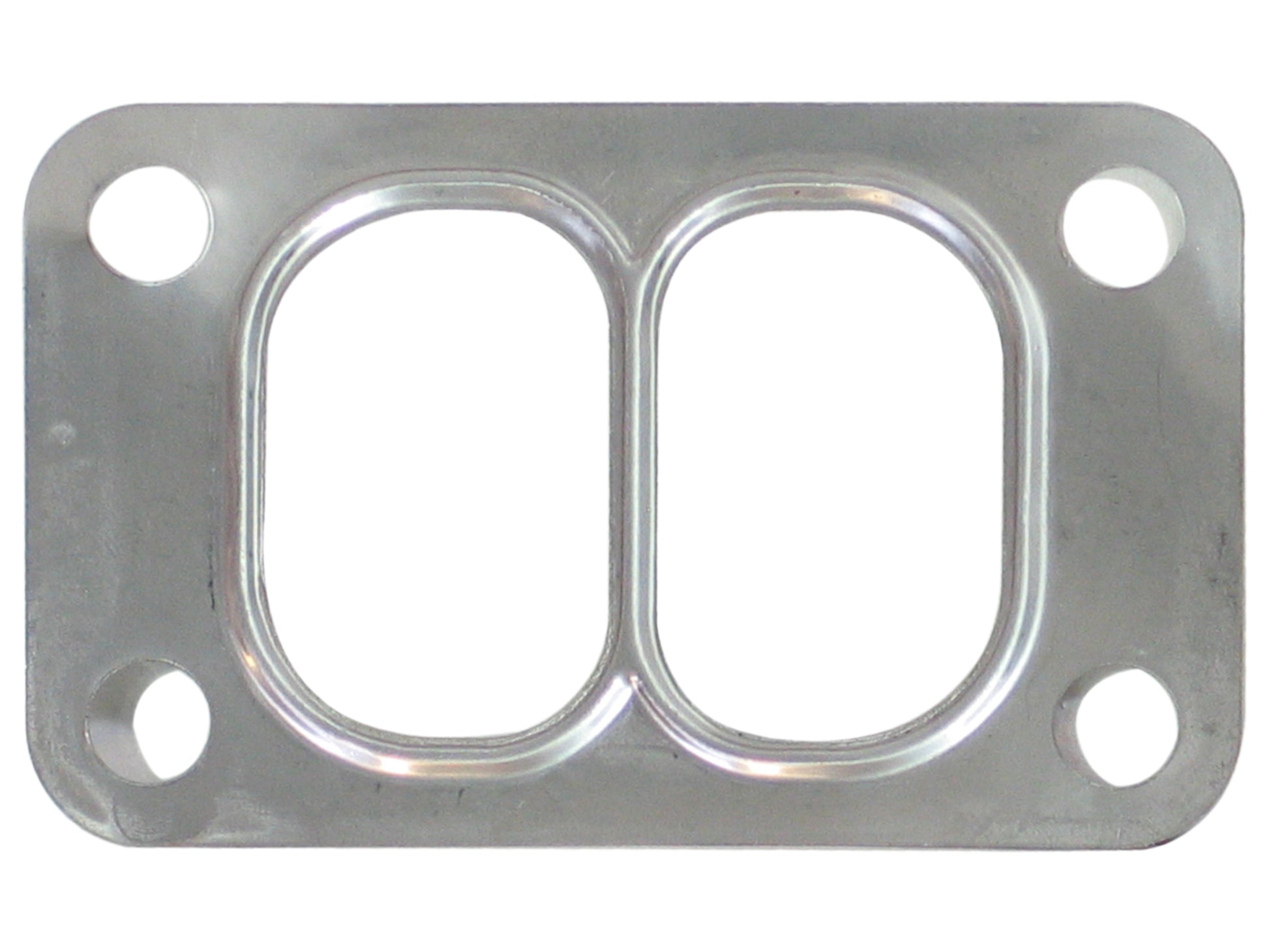

NOTE: This turbocharger package also comes with the gasket.

Fits the following:

Part Number: 3783603
Interchangeable Number: 3538218, 3538232, 3591020, 3596079, 3786508H, 4025180, 402518000, 4040576, 4040577H, 4044169, 4044179, 4044180H, 4044181, 4044183, 4955832
OEM Number: 2881908, 3538219, 3538220, 3538233, 3538240, 3539019, 3539020, 3591045, 3591046, 3591047, 3591050, 3591053, 3591057, 3591059, 3591460, 3591651, 3591732, 3591734, 3593879, 3594473, 3596087, 3596408, 3596713, 3598074, 3599336, 3790716, 3800378, 3800401, 3800404, 4035063, 4036888, 4036979, 4040577, 4044180, 4045076, 4046285, 4089990
Turbo Model: HX40W
Manufacturer: Holset

Engine: L360, 6CTA, 6CTA 8.3
Engine Manufacturer: Cummins, DCEC
Displacement: 8.3L
Fuel: Diesel

Angle α (Compressor Housing): 223/253°
Angle β (Turbine Housing): 17°
Actuator (Pressure): 2.16 bar, 31.33 PSI
Compressor Housing: 4050352H
Compressor Wheel: 3599016H
Coupling Hose: 3537930H
Gasket (Oil Drain): 3519805H
Gasket Kit: 3545575H
Repair Kit (Major): 4027448H/4032051H
Repair Kit (Minor): 4031746H
Retaining Ring: 3533163H
Split Ring Seal (Compressor): 3758848H
Turbine Housing Kit: 3591164H

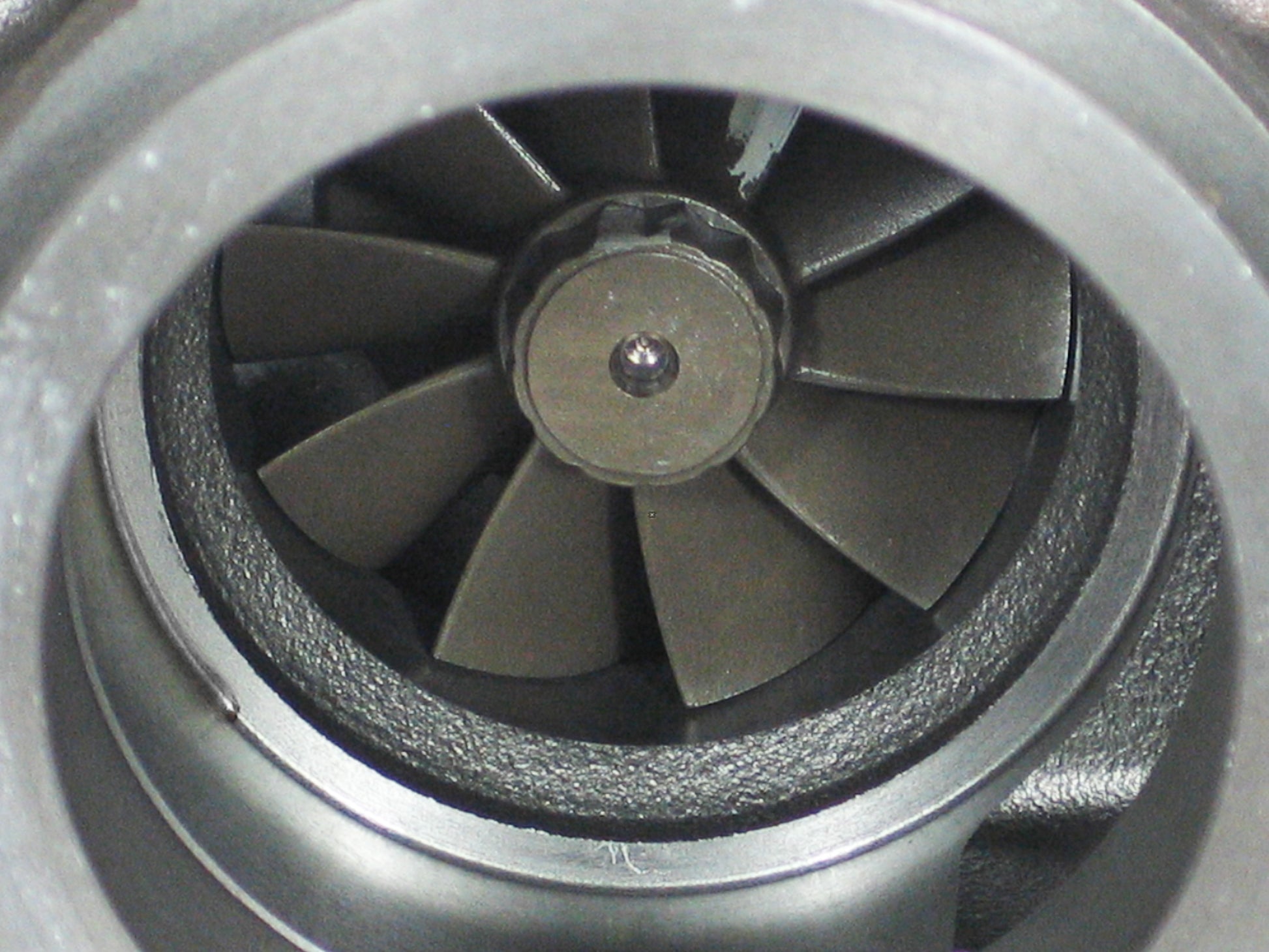

Turbine Wheel: 4050572H

NOTE: 2842226 (4033733H, 2881975, 2842227) can replace this turbo but orientation needs to be adjusted.

Application:
Truck with Cummins L360 Engine
Various with Cummins 6CTA, 6CTA 8.3 Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
