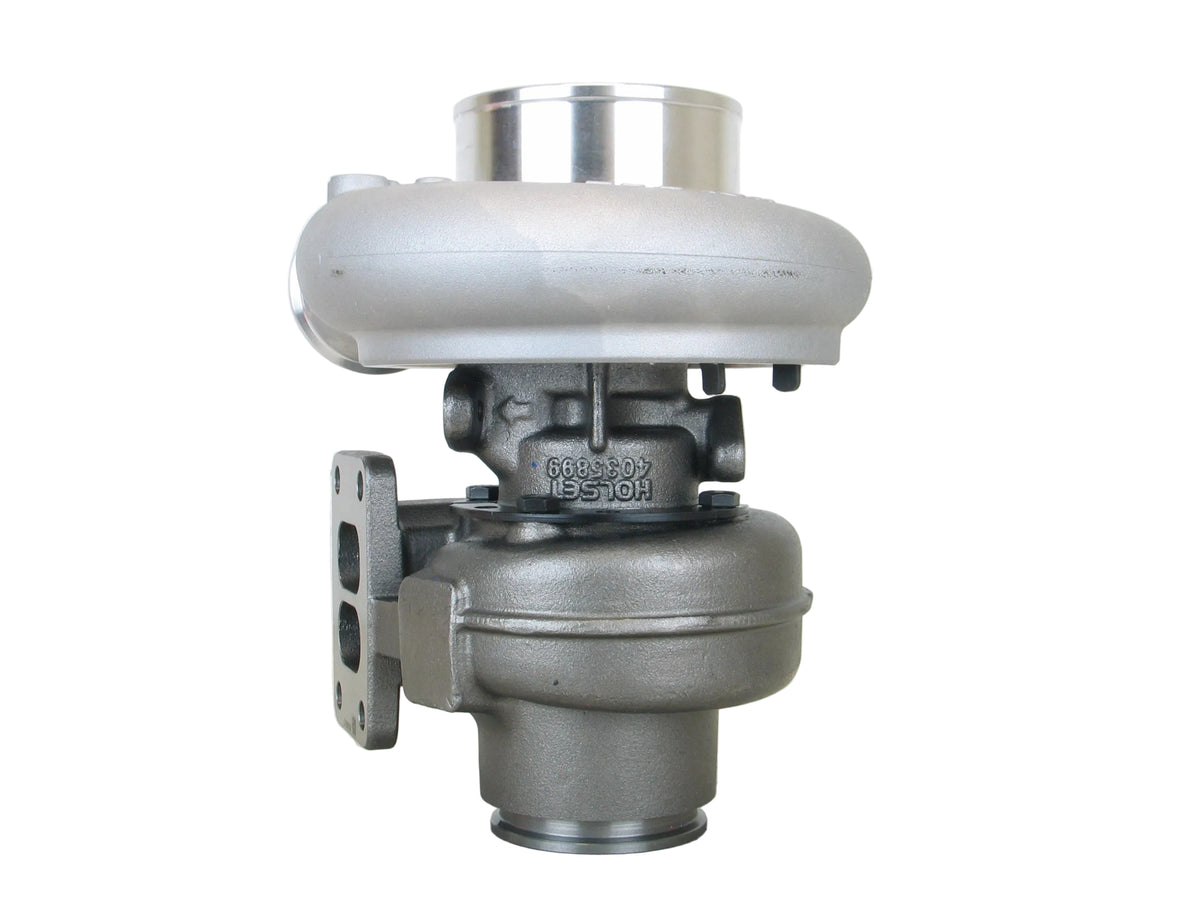

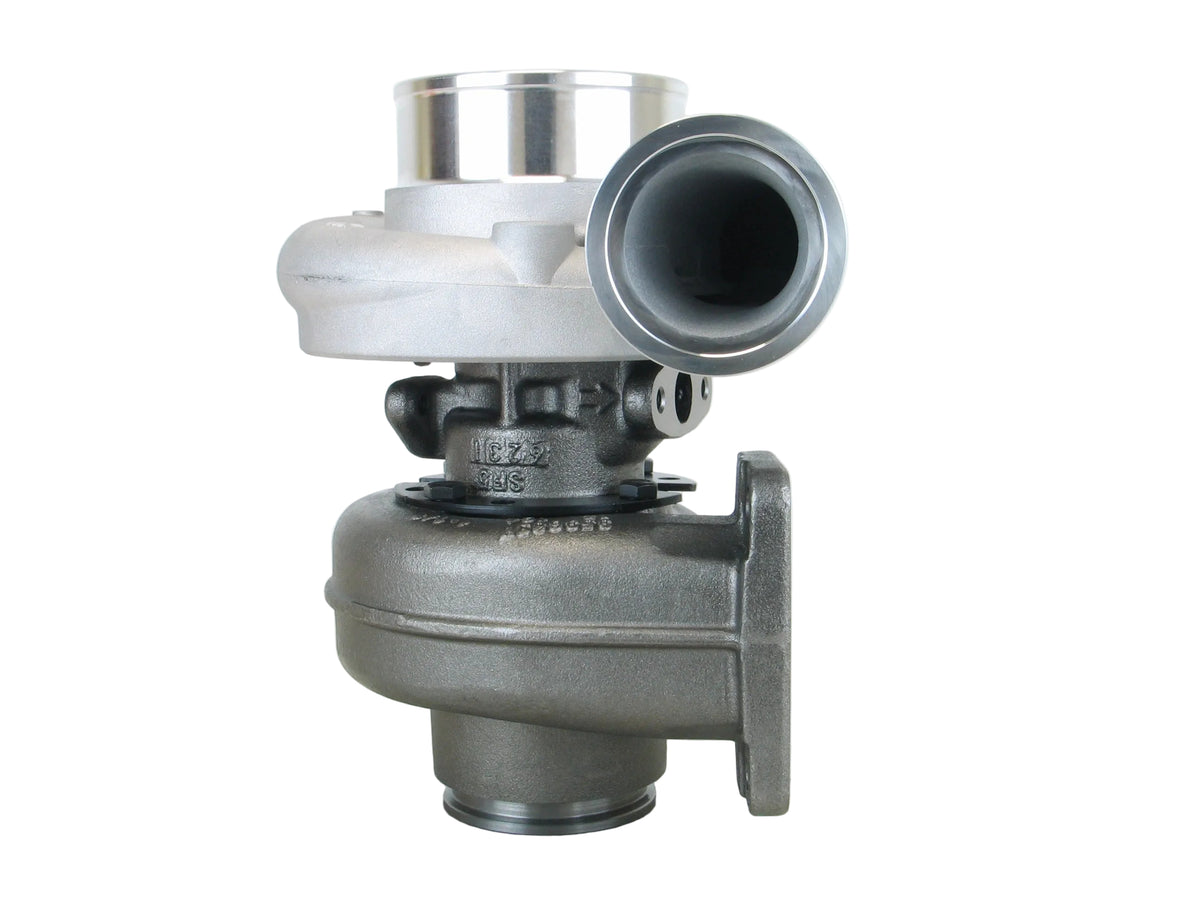

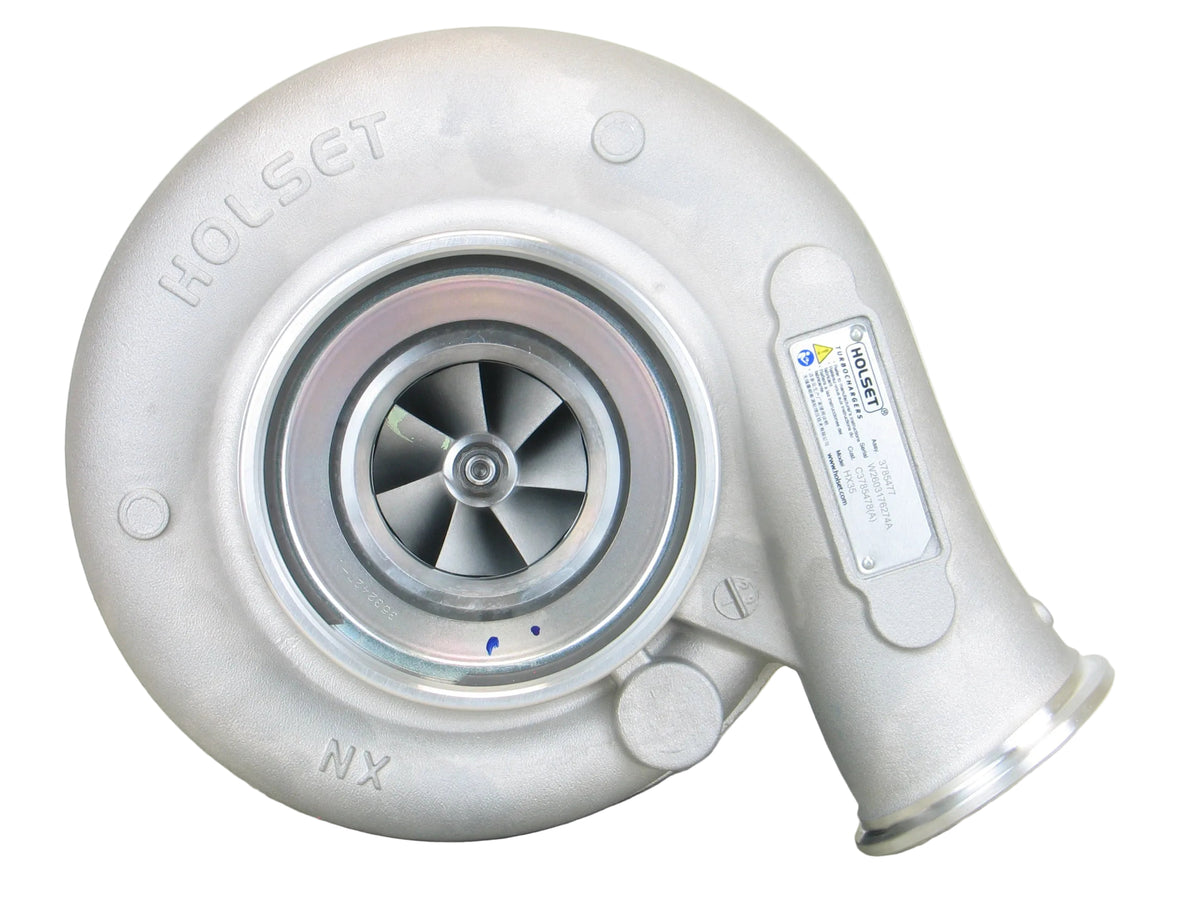

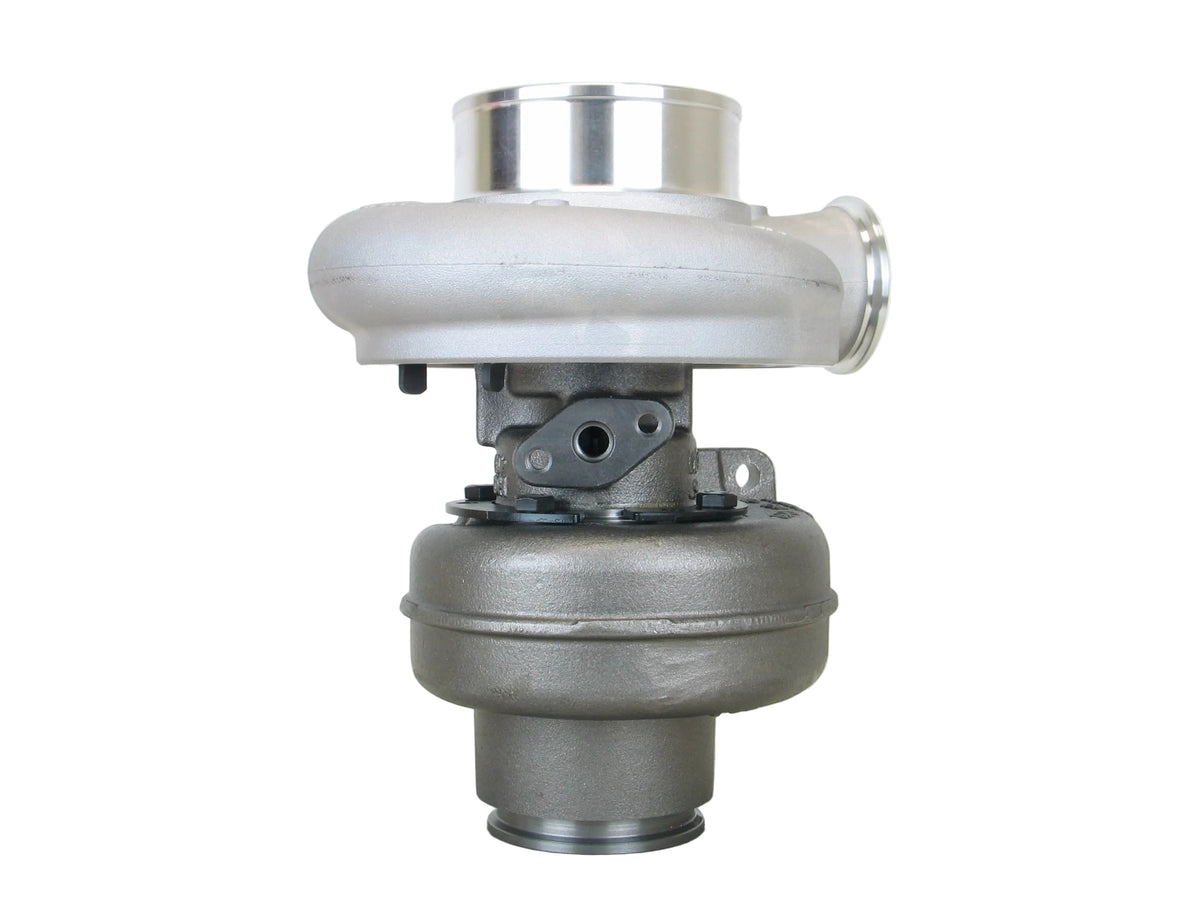

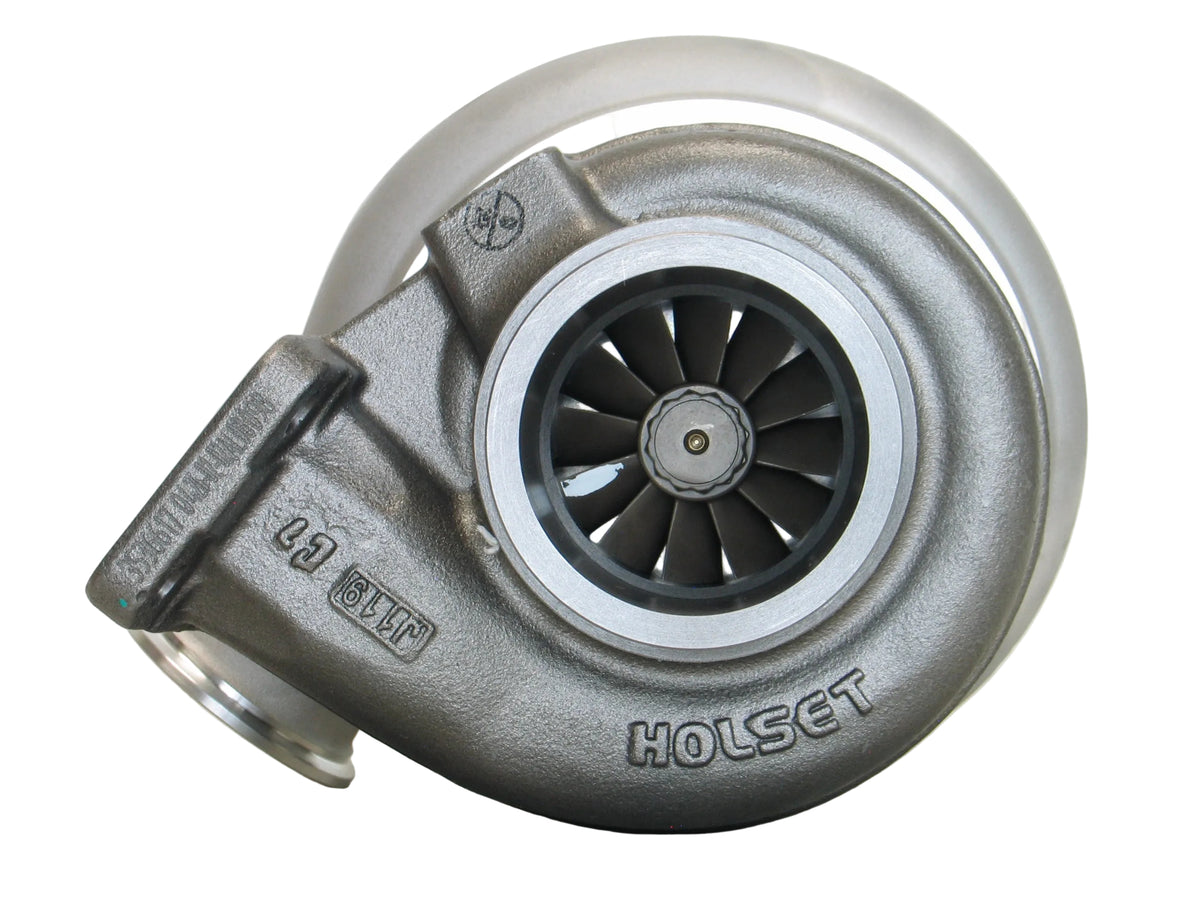

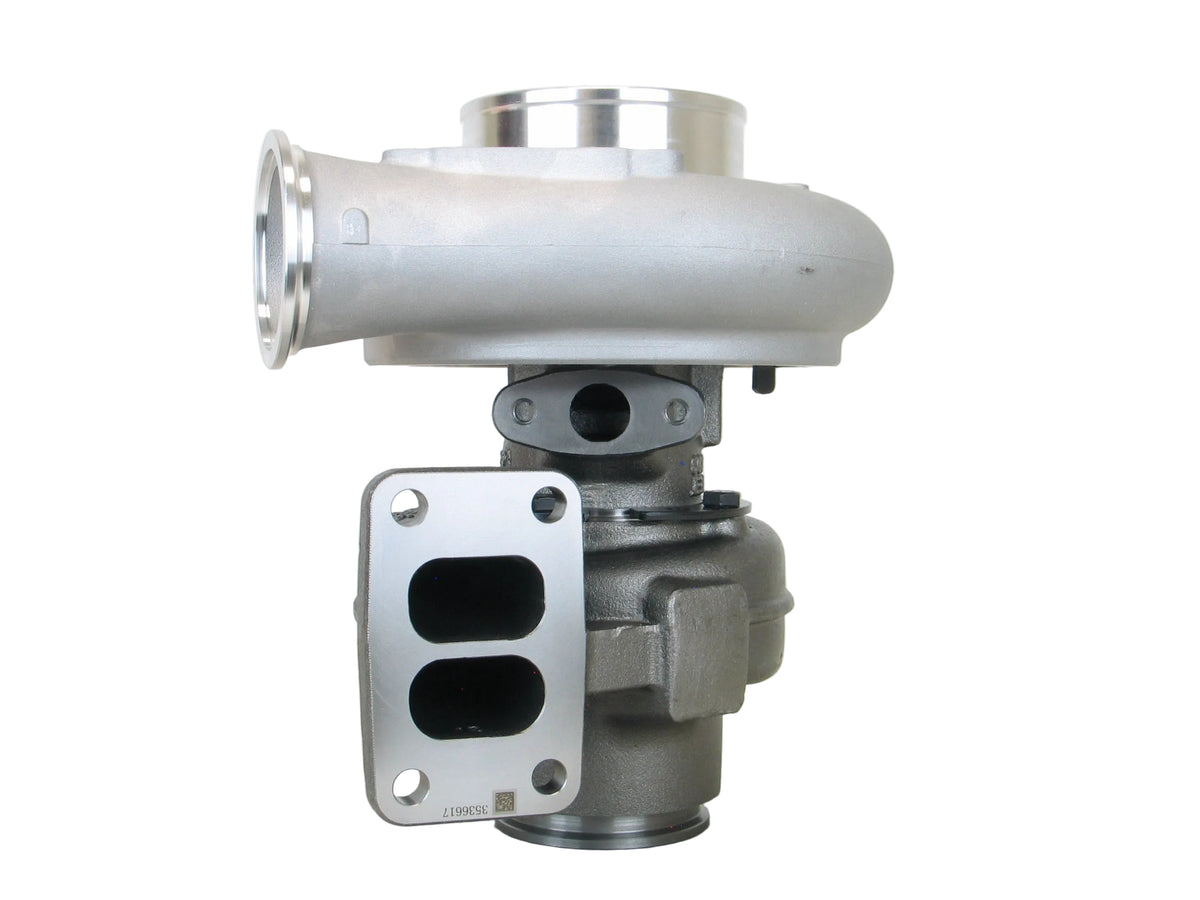

NEW Holset HX35 Turbo Komatsu Wheel Loader Excavator Cummins 6BTAA 5.9L 3785477

BRAND NEW GENUINE HOLSET TURBOCHARGER

This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 3785477
Interchangeable Number: 3595157, 3595158, 3596668, 3598702, 3599109, 3786885H, 4035373, 3788390, 3788391, 3785478, 3787039, 5324179, 5459059, 5496201, 4039243, 4035374, 4038481, 4038480, 3786885, 4036172, 3785477, 4038475, 3786885H
OEM Number: 3786885, 4035374, 4036172, 4038480, 4038481, 4039243, 4087911, 4089711, 5459059, 5496201, 6738-82-8220, 6738828220, 4089711, 6738-81-8031, 6738-81-8091

Turbo Model: HX35, HX35-A77J65GM/A70Q86FE12DD
Manufacturer: Holset

Year: 2001-04
Engine: 6BTA, 6BTAA, S6D102E
Engine Manufacturer: Cummins, KCEC (Komatsu Cummins Engine Co.)
Displacement: 5.9L, 5900 ccm
Fuel: Diesel

Angle α (Compressor Housing): 45/160/235/360°
Angle β (Turbine Housing): 5/20°
Bearing Housing: 3532632/4027869
CHRA: 4027883 (4089711, 4027883H)(1000020186)
Clamp Plate (Turbine): 2839879H
Compressor Wheel: 3599639 (Ind. 50 mm, Exd. 83 mm, 8+8 Blades)
Gasket (Oil Drain): 3519805H
Gasket (Oil Outlet): 210060 (Paper)(311585, 148062)
Gasket (Turbine Inlet): 409039-0000 (Inox Steel)(409039-0001, 210019, 2405022, 312617, 2405022, 7C7431)(1900000006)
Gasket Kit: 3545575H
Heat Shield: 3519304 (3519302)(1152301340)
Repair Kit (Major): 3575169/3575169H (1153035750)
Repair Kit (Minor): 5451883H
Retaining Ring: 3533163H
Seal Plate: 3530923 (1154351300)
Turbine Housing Fitting Kit: 5451885H
Turbine Wheel: 3519336 (Ind. 70 mm, Exd. 59.9 mm, 12 Blades)(1152301435)
Turbocharger Kit: 3786885H

Application:
2001-04 Komatsu GD405, GD555 Grader with Cummins 6BTAA Engine
2001-04 Komatsu Generator with Cummins 6BTAA Engine
2001-04 Komatsu Industrial Ratings with Cummins 6BTAA Engine
2001-04 Komatsu Machine Moving TERRA with Cummins 6BTAA Engine
2001-04 Komatsu PC200, PC200-6 Excavator with Cummins 6BTAA Engine
2001-04 Komatsu WA200-250, WA380 Wheel Loader with Cummins 6BTAA Engine

DCEC KOMATSU INDUSTRIAL With Cummins 6BTA

CUMMINS DCEC  INDUSTRIAL With Cummins 6BTA

CUMMINS  EXCAVATOR With Cummins 6BTA 150 HP

KCEC KOMATSU GD405 GRADER With Cummins 6BTAA

CUMMINS  PC200 EXCAVATOR With Cummins 6BTAA

KOMATSU  With Cummins 6BTAA

KCEC KOMATSU GD555 GRADER With Cummins 6BTAA

KCEC KOMATSU WHEEL LOADER With Cummins WA200-250

CUMMINS  CONSTRUCTION With Cummins 6BTAA

KCEC KOMATSU DCA125ESK GENSET With Cummins 6BTAA

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
