NEW Holset HX52 Turbo Volvo Heavy Duty Truck D12D 12.1L Diesel 3786675 3598945

BRAND NEW GENUINE HOLSET TURBOCHARGER

This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

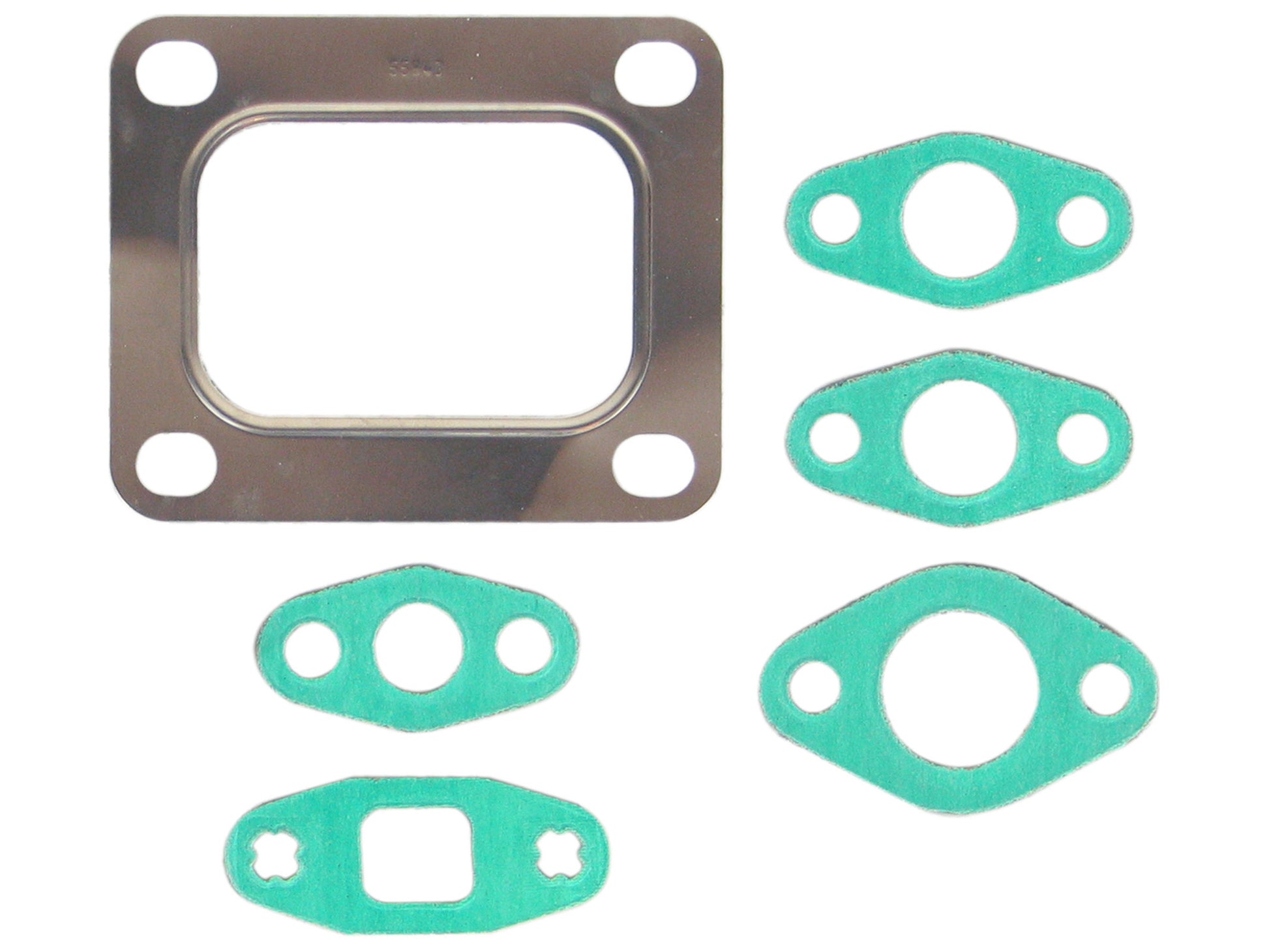

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 3598945
Interchangeable Number: 3598945-D, 3598945D, 3598946-D, 3598946D, 3599965, 3599965-D, 3599965D, 3786675H, 3786676H
OEM Number: 20488010, 20516242, 3598946, 3599997, 3786675, 3786676, 85000192, 85000289
Turbo Model: HX52, HX52-E9871AV/U16QX8
Brand: Holset

Engine: D12D
Engine Manufacturer: Volvo
Displacement: 12.1L, 1200 ccm
Fuel: Diesel

Angle α (Compressor Housing): 215°
Angle β (Turbine Housing): 171°
Back Plate: 33528096 (1153055300, 1800016024)
Bearing Housing: 3590231 (4039258 3598984)(Oil Cooled)(1153055451, 1900011253B)
CHRA: 4027376 (4027376H)
Compressor Housing: 3590244/4038840H
Compressor Wheel: 3593686 (Ind. 67 mm, Exd. 97.68 mm, Trim 6.3, 7+7 Blades, Super Back)(1200016360)
Gasket (Oil Drain): 3519805H
Gasket (Oil Inlet): 210023 (210023-0000, 147837, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)
Gasket (Oil Outlet): 210021 (409037-0000, 210021-0000, 311496, 413671-0000, 3519807)
Gasket Kit: 3545576H
Heat Shield: 3529846 (3533038)(1153055340)
Repair Kit (Major): 3575181 (3575181H)(1153055750, 5000020023)
Split Ring Seal (Compressor): 3758848H
Turbine Housing: 3598950 (3598950H)
Turbine Wheel: 3592602 (Ind. 84.2 mm, Exd. 70 mm, Trim 9.88, 12 Blades)(1153052435, 1100016395)
Turbocharger Kit: 3786675H

Application:
2001- Volvo Heavy Duty Truck with D12D Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
