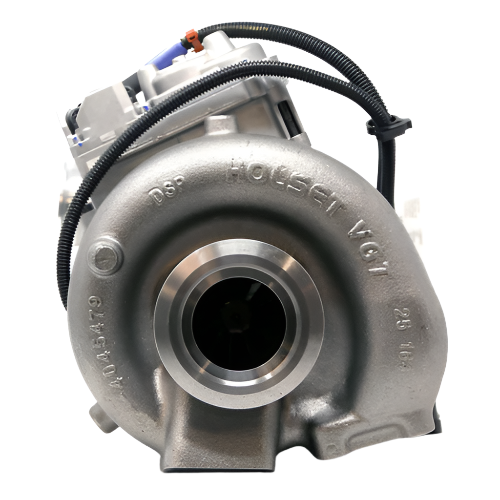

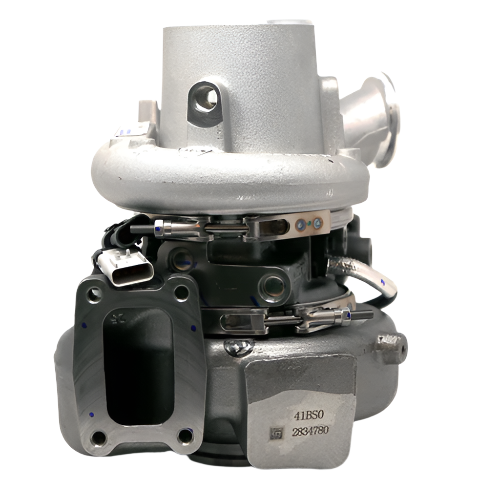

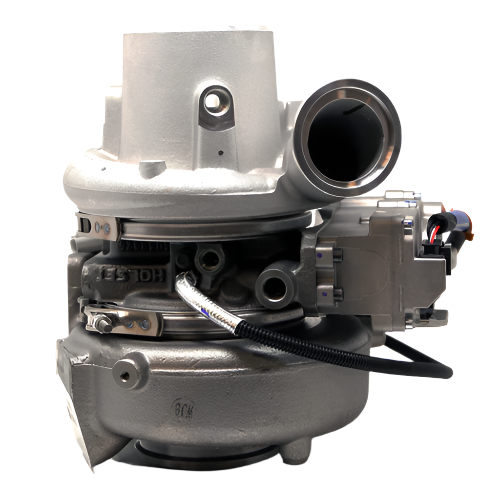

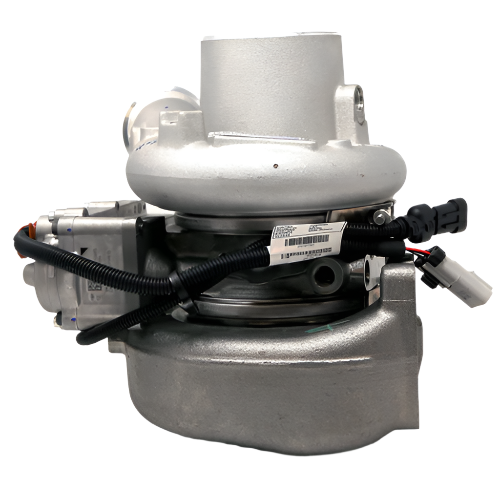

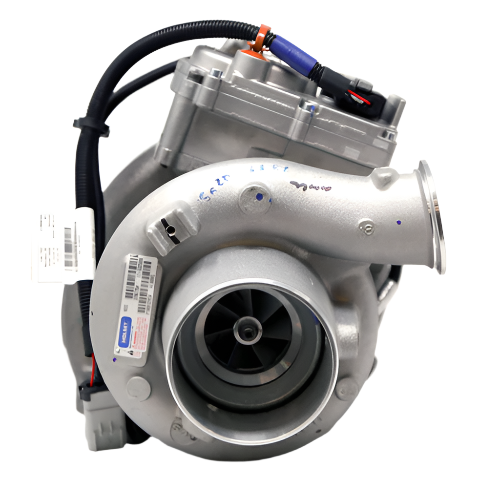

OEM Remanufactured Holset HE300VG Turbo Truck Cummins ISB EPA10 6.7L 3786775HX

OEM REMANUFACTURED HOLSET TURBOCHARGER

This is a OEM REMANUFACTURED HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 3786775HX
Interchangeable Number: 2834869, 2839131, 3771652, 3786775H, 3791766, 3791866, 4352324, 4352324NX, 4352324RX, 4955401, 4955401NX, 4955401RX, 4955780, 5325886, 5608757
OEM Number: 2837248, 2837249, 2837250, 2837251, 2839140, 2839141, 2839150, 2839151, 3771639, 3786775, 3791776, 3791778, 3791779, 3791781, 4044383, 4044389, 4044390, 4046550, 5325896, 5325897, 5325898, 5325899
Turbo Model: HE300VG, HE351Ve
Manufacturer: Holset

Year: 2007-10
Engine: ISB, ISB6.7, ISB EPA10
Engine Manufacturer: Cummins
Displacement: 6.7L, 6700 ccm
Fuel: Diesel

Angle α (Compressor Housing): 189/212/240/270°
Angle β (Turbine Housing): 95/100°
Bearing Housing: (Water Cooled)
Compressor Wheel: 4039432 (Ind. 56 mm, Exd. 86 mm, Trim 5.18, 7+7 Blades, Super Back)

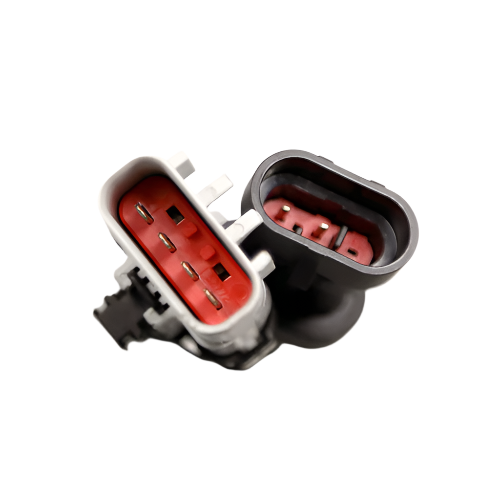

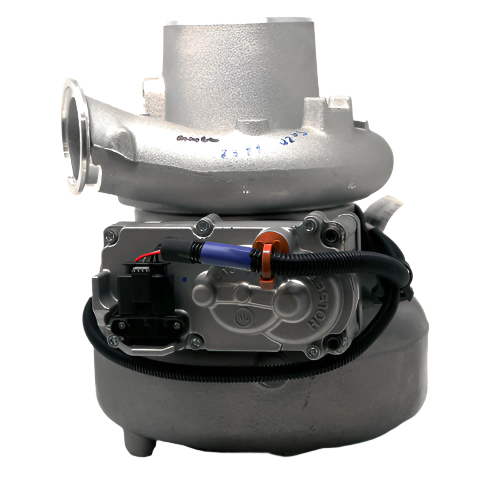

Electronic Actuator: 4032772 (2836004, 2837675, 4034315HX, 4032771, 4032772HX, 4032772NX, 4032772RX, 4032773, 4032773NX, 4032773RX, 4032163, 4032659, 4043827, 4045123, 4046534, 4046535, 4049828)(12 Volts)

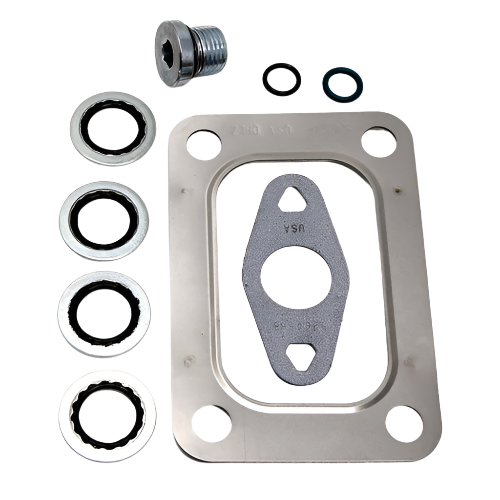

Gasket Kit: 4032553H (403255300)
Repair Kit: (1154351752)
Speed Sensor: 5327846 (2837039, 2839964, 3042610968, 3777147, 4032316, 4044473, 4046015, 4046016, 4327174, 4327186, 4955360, 5462379, 5462383, 5550064)
Turbine Housing A/R: VGT
Turbine Wheel: 4042329 (Ind. 69.72 mm, Exd. 59.96 mm, Trim 8.25, 12 Blades)

Application:
2007-10 Heavy-Duty Truck with Cummins ISB EPA10 Engine
Freightliner Truck with Cummins ISB Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
