NEW Holset HX35 Turbo Iveco Agricultural Tractor NEF 6 CYL 4033401 3598718

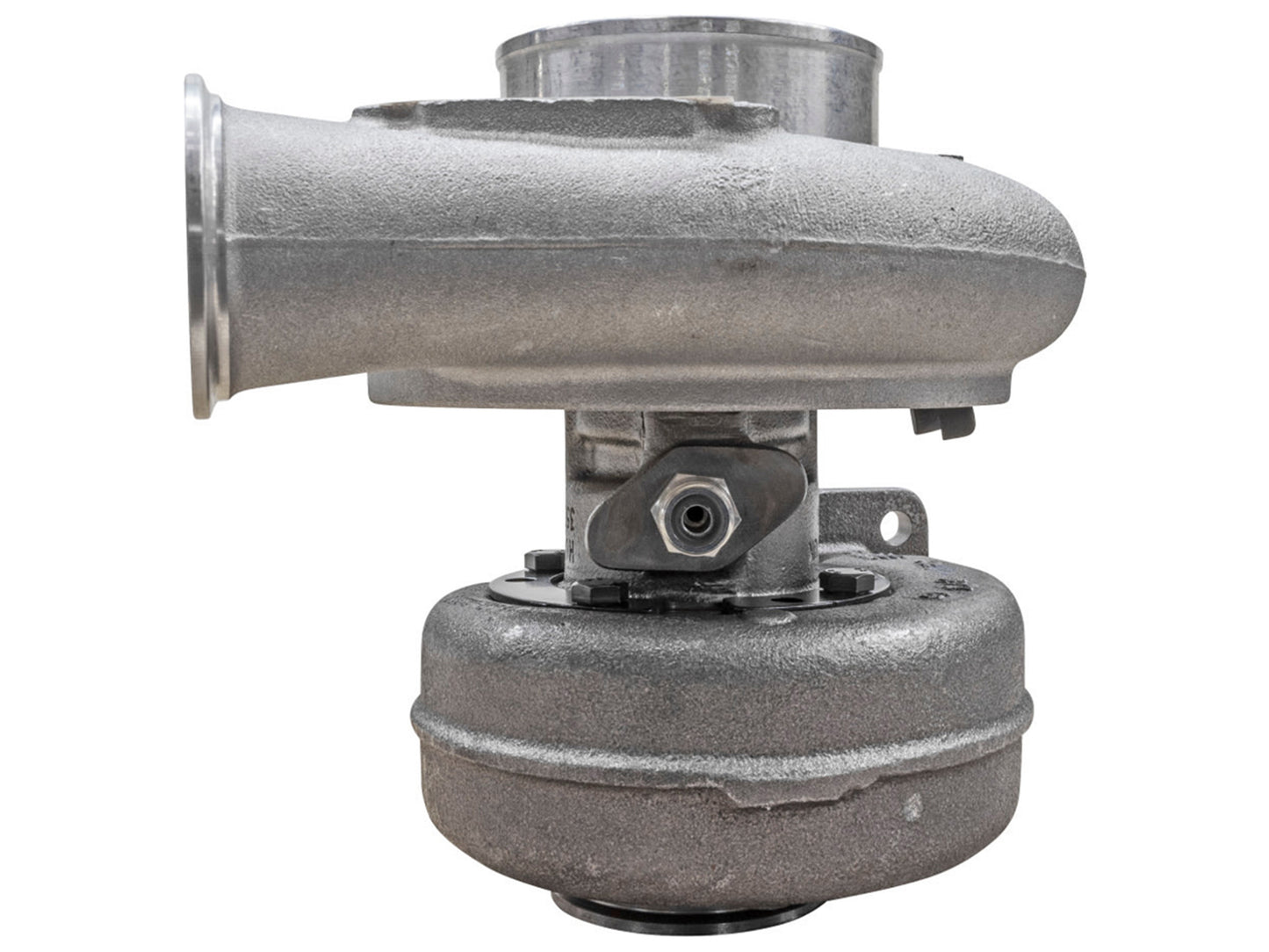

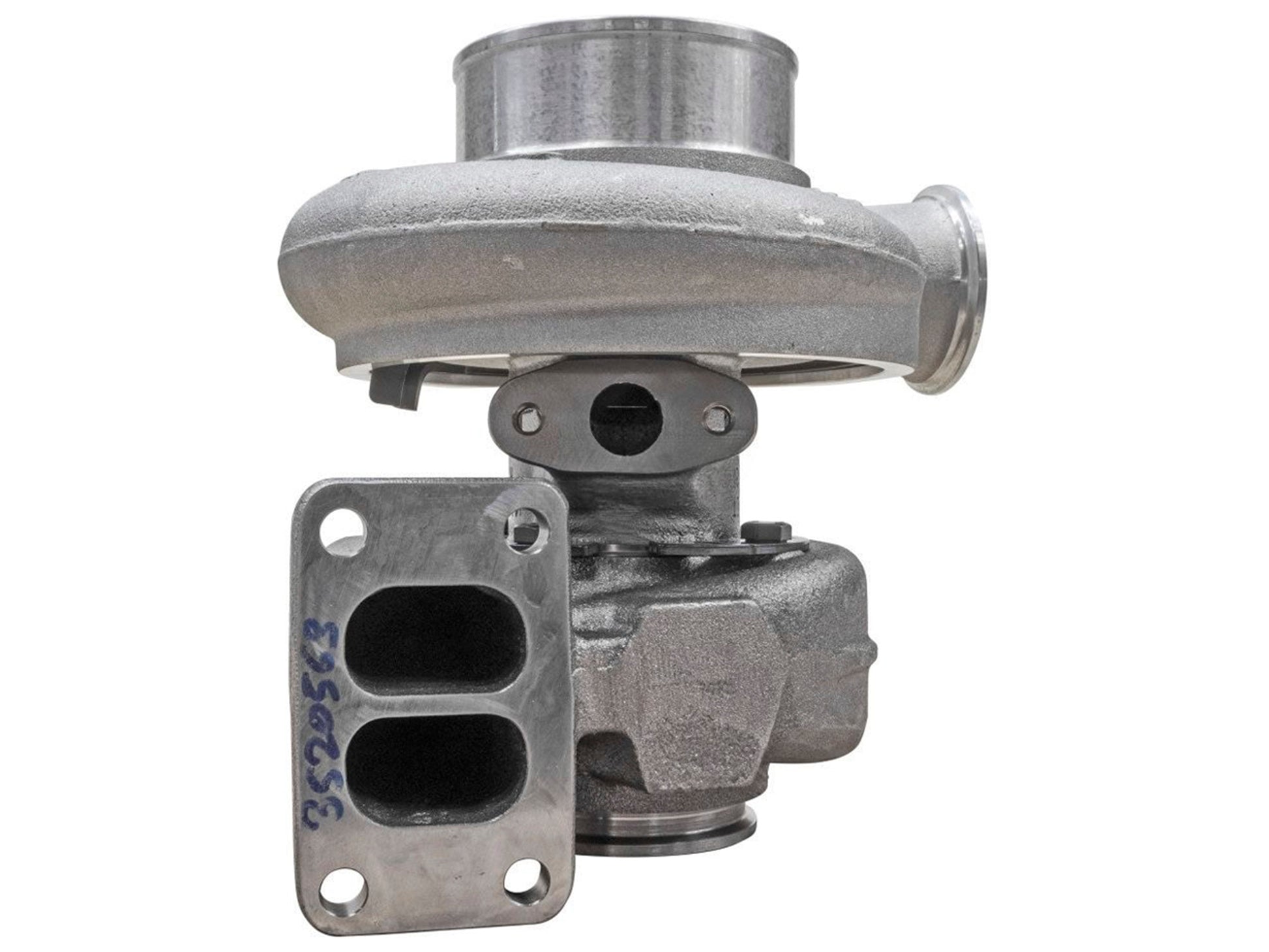

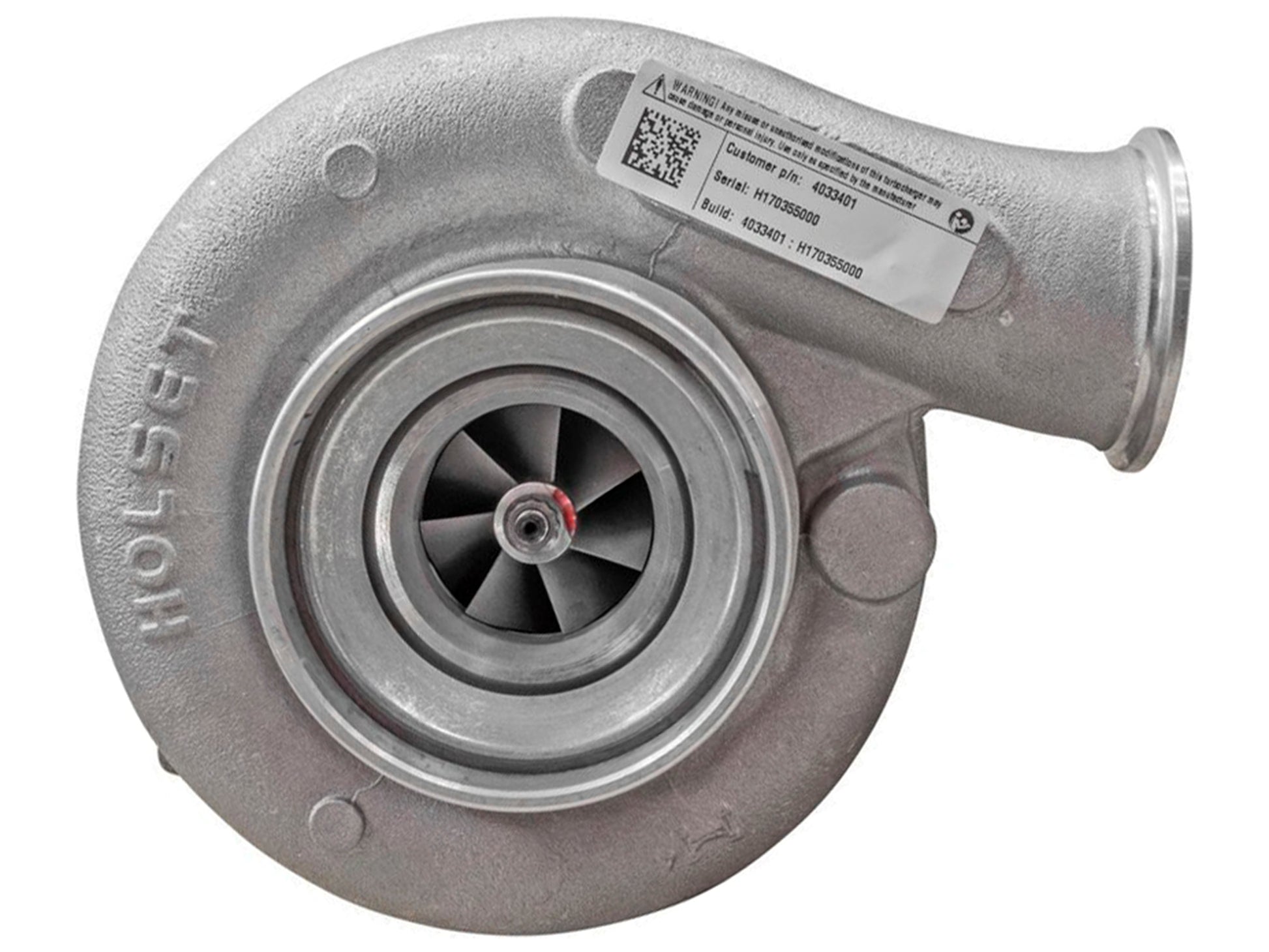

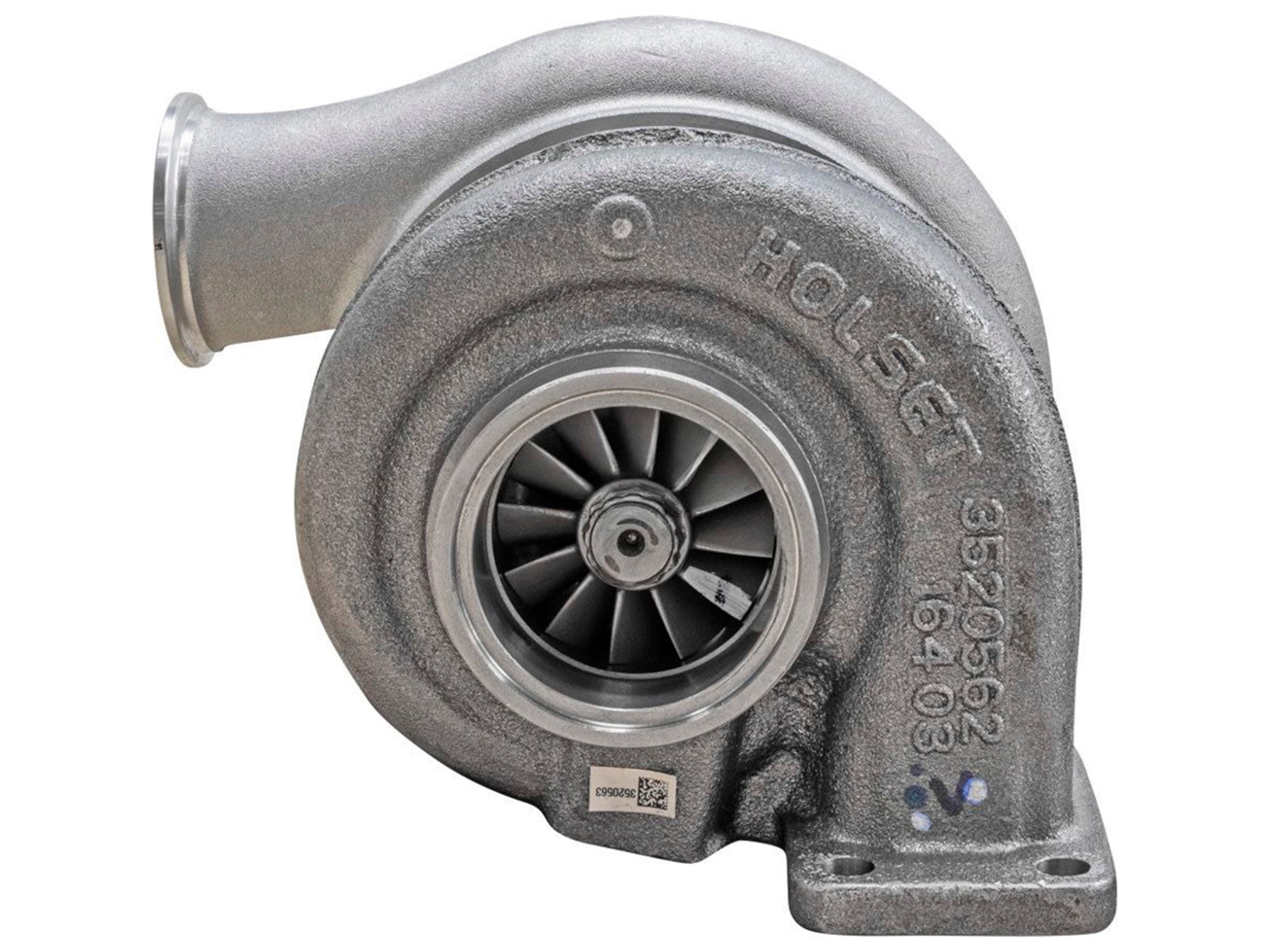

BRAND NEW GENUINE HOLSET TURBOCHARGER

This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

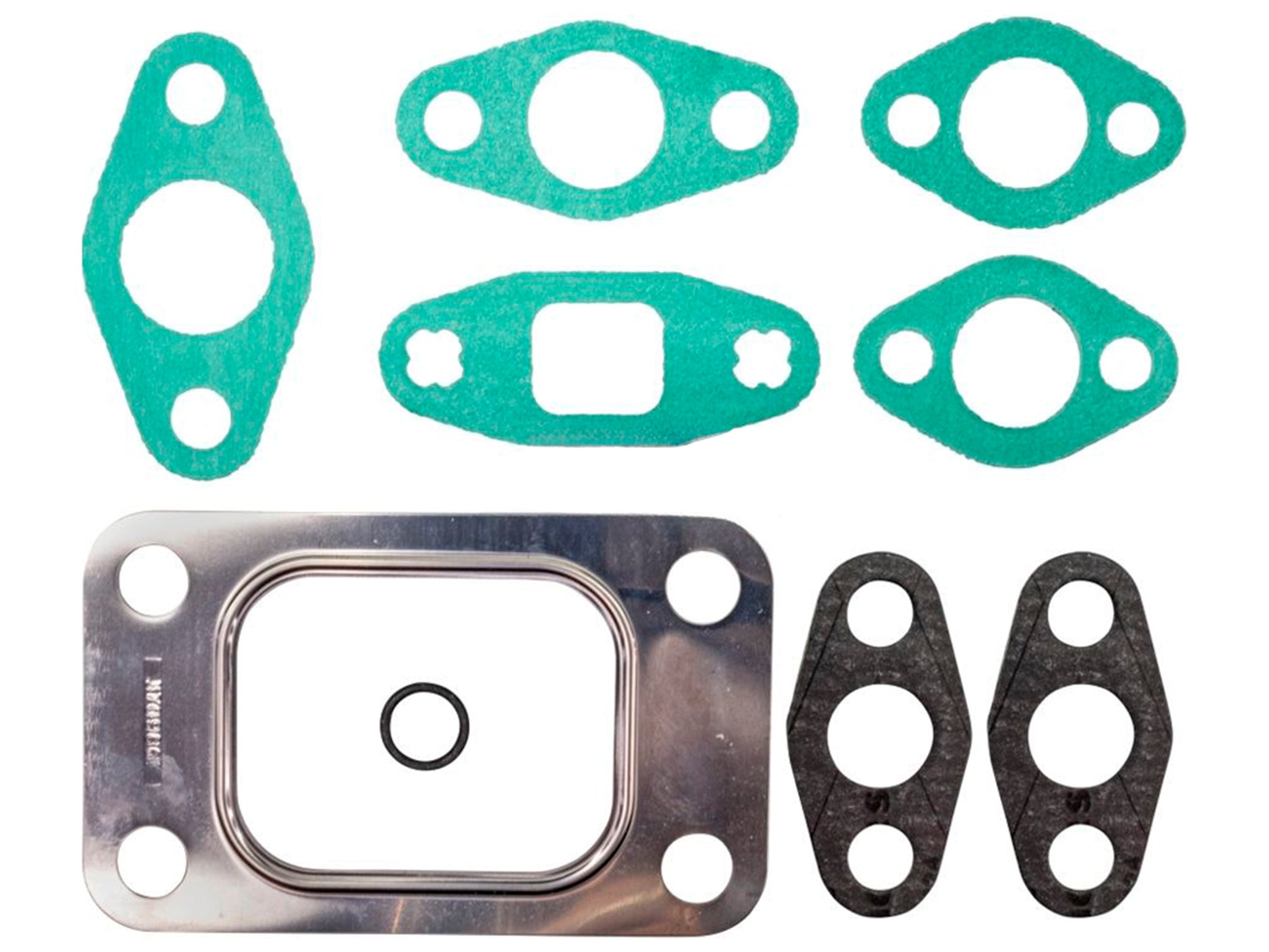

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 3598718
Interchangeable Number: 2853542, 2853542R, 2854829, 2854829EX, 2854829R, 2855124, 3779709, 3779710, 4033068H, 4033068HX, 4033401H, 4033401HX, 4036158, 4040296
OEM Number: 3598800, 4033068, 4033401, 4035811, 4036159, 4036161, 4040906, 4041780, 4042255, 4042256, 4044102, 4044816, 504043936, 504047816, 504047816R, 504081272, 504081272R, 504082710, 504113859, 504129464, 504147422, 504151319, 504216822, 504219918, 87803115, 87803115R
Turbo Model: HX35
Brand: Holset

Engine: NEF 6 CYL, APH, OEM
Engine Manufacturer: Iveco
Displacement: 6 Cylinders
Power: 85 HP

Angle α (Compressor Housing): 155/251/305/345°
Angle β (Turbine Housing): 15/360°
Back Plate: 3530923 (3530923H)(1154351300)
Bearing Housing: 4032218 (4027443, 4032032)(Oil Cooled)
CHRA: 4032033 (4027825, 4027825H)
Compressor Wheel: 3599651 (3532312, 359965100)(Ind. 50 mm, Exd. 78 mm, Trim 9.82, 7+7 Blades, Super Back)
Gasket Cover Plate: 3535001 (5 Bolt Gasket)
Gasket Kit: 3545575 (1900100057)
Heat Shield: 3519302 (351930200)(1152301340)
Repair Kit: 3575169 (1153035435)
Turbine Wheel: 3595832 (3519336, 351933600)(Ind. 70 mm, Exd. 60 mm, Trim 10.9, 12 Blades)(1152301435)

Application:
2002-09 CNH Industrial with NEF 6 CYL Engine
2002-09 Case Agricultural Tractor with NEF 6 CYL Engine
2002-09 Iveco Agricultural Tractor with NEF 6 CYL Engine
2002-09 New Holland Agricultural Tractor with NEF 6 CYL Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
