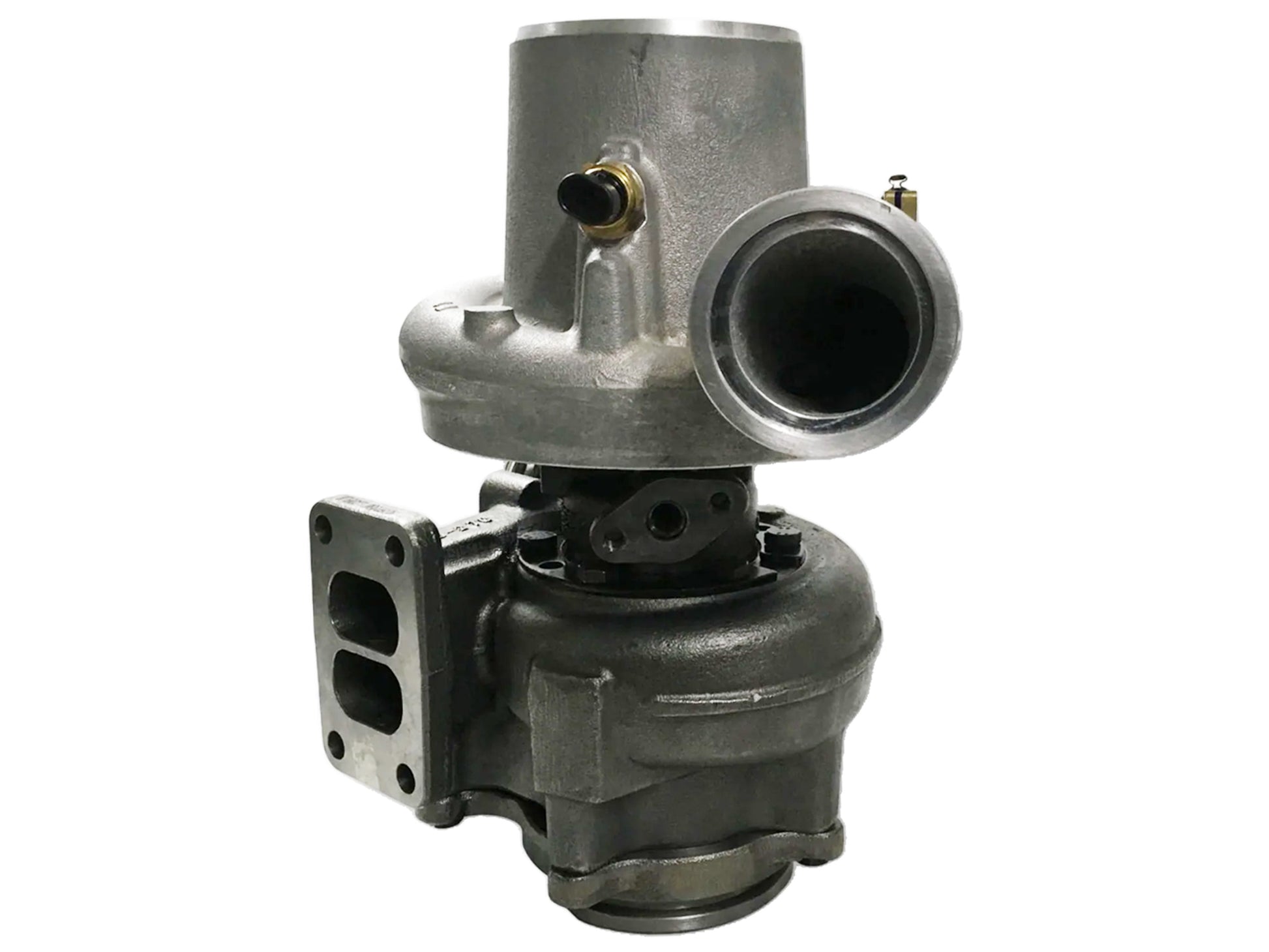

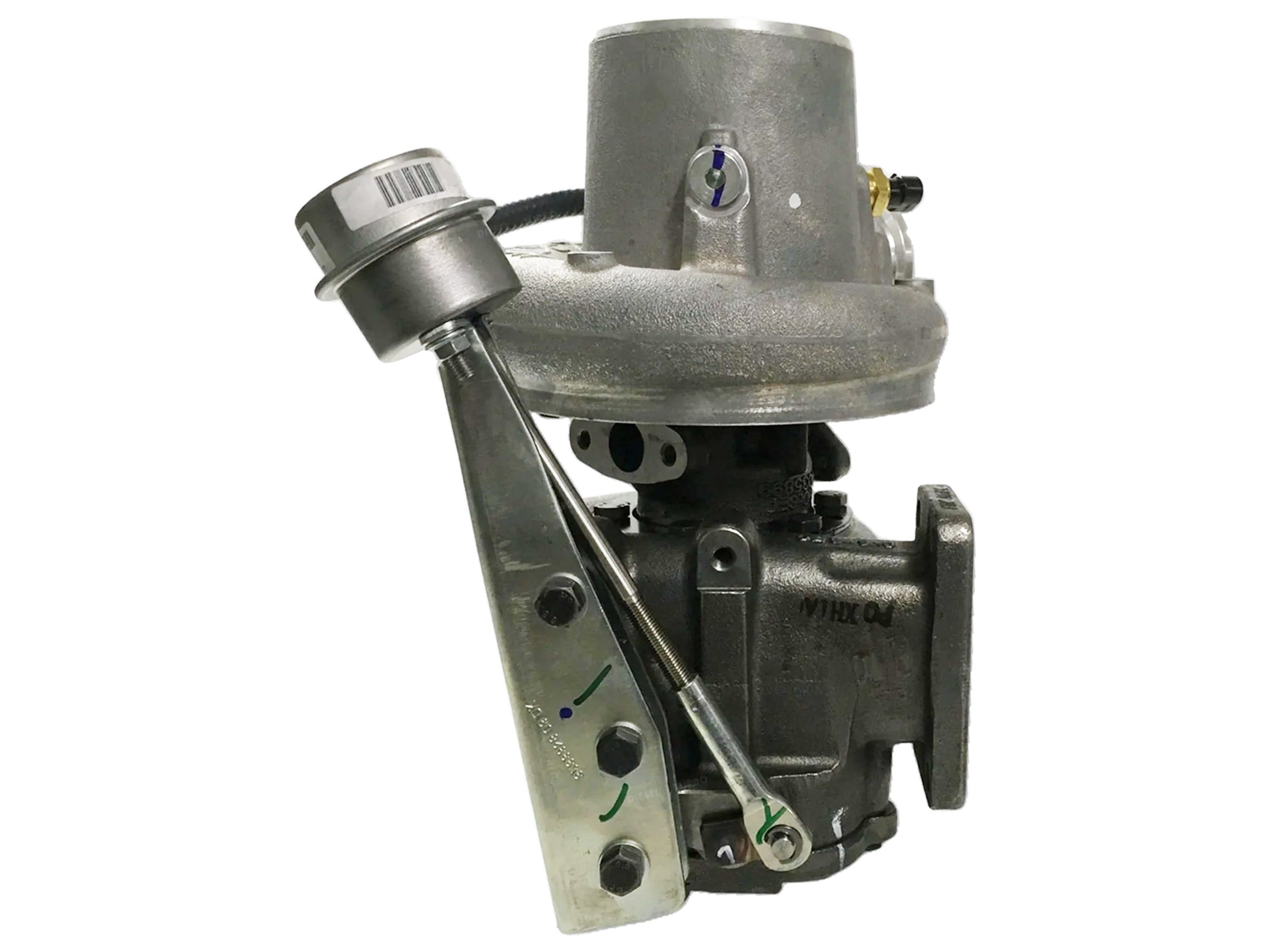

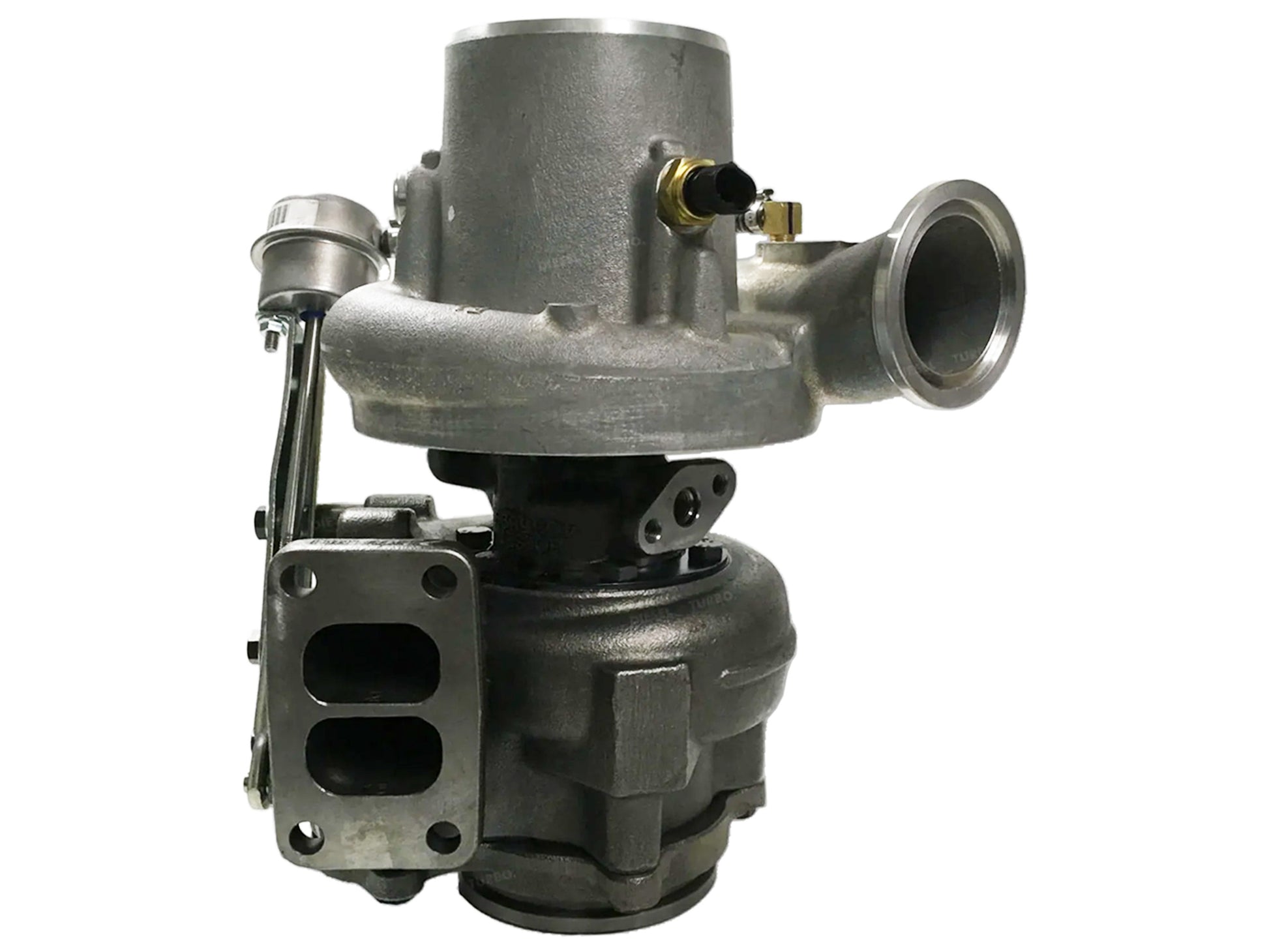

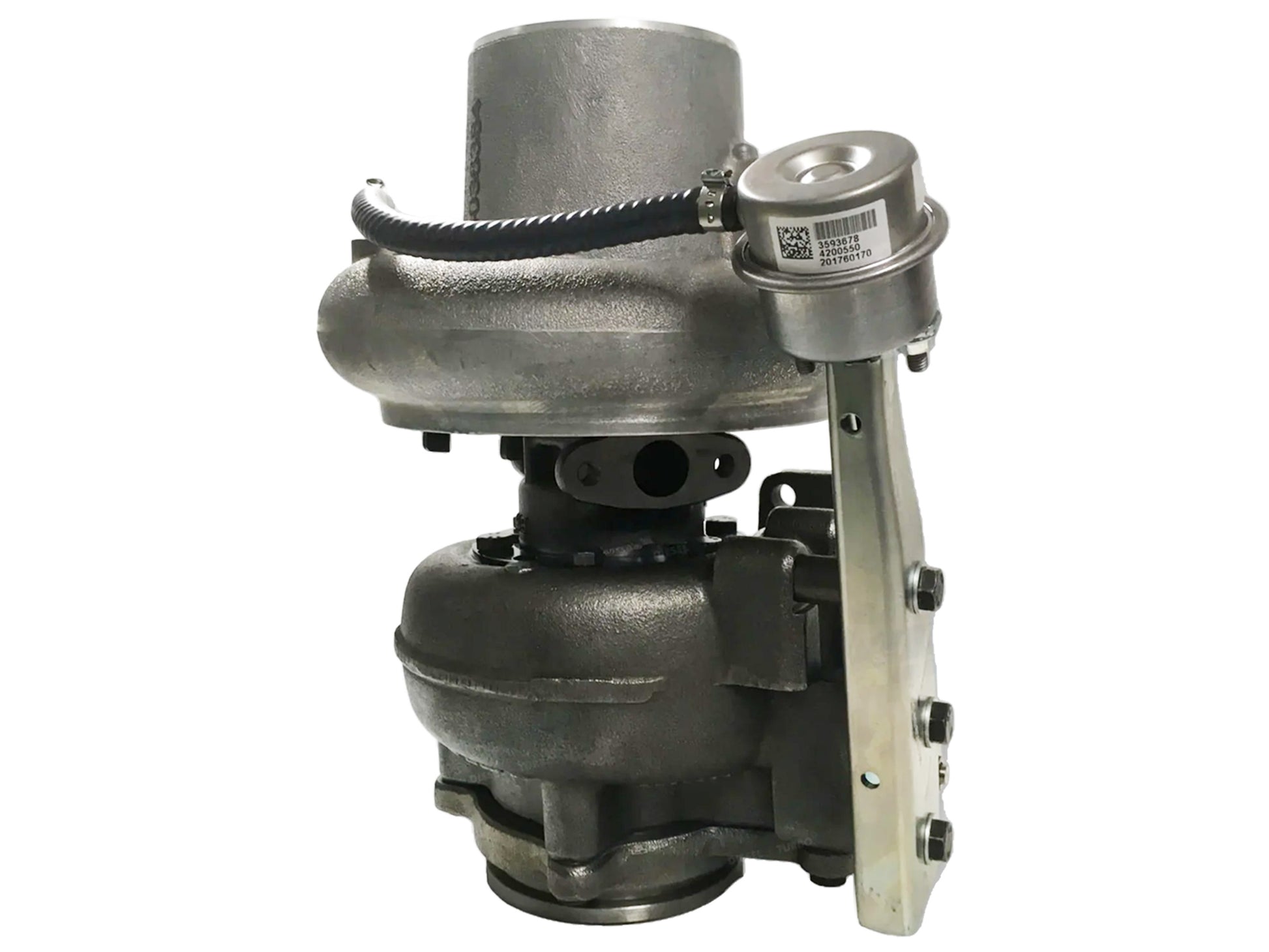

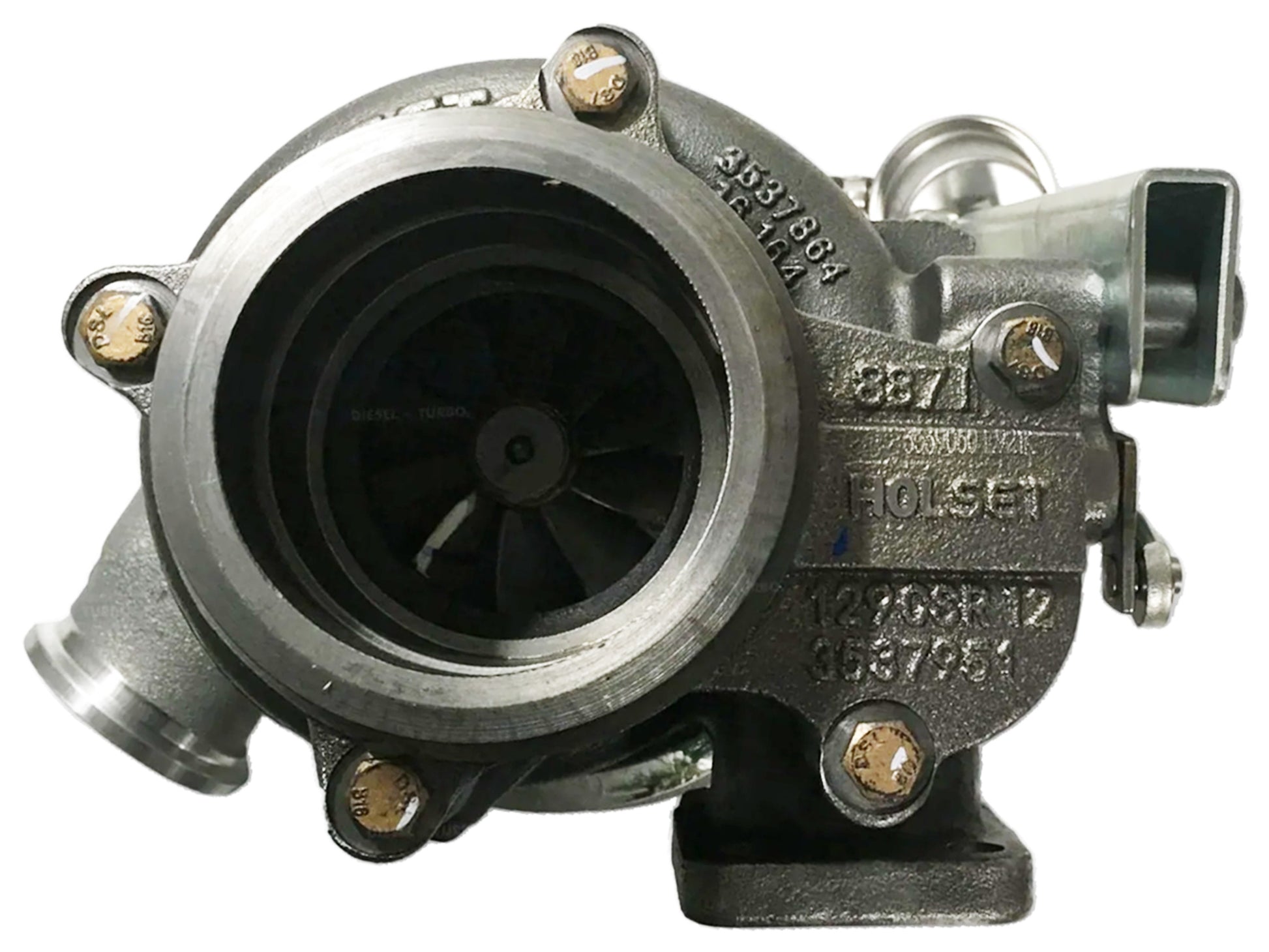

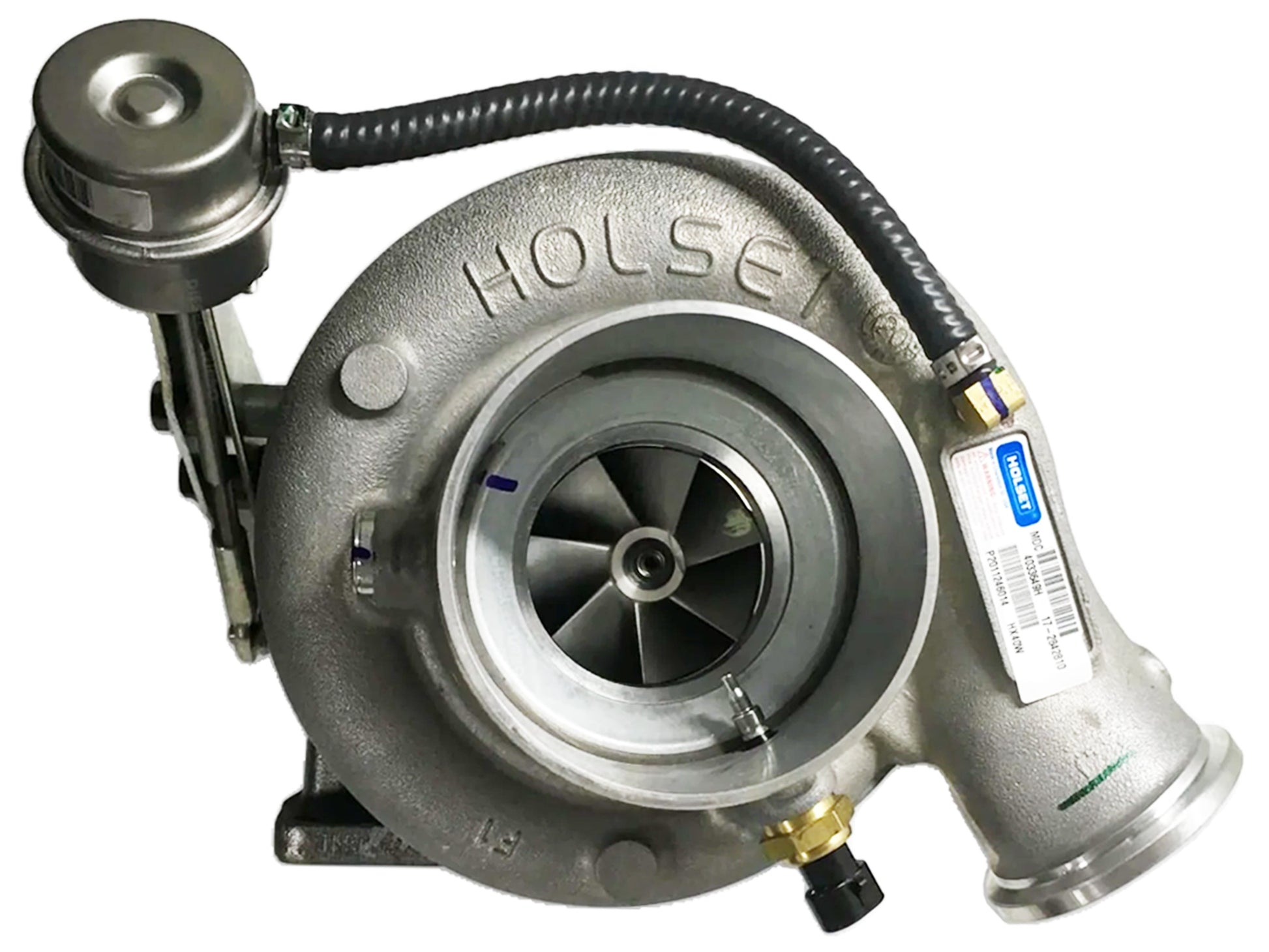

NEW OEM Holset HX40W Turbo Truck Class 3-8 Cummins ISC 8.3L 4033649 2842810SKU: 4033649H
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 2842810
Interchangeable Number: 2881887, 4033649H, 4039915, 4046099
OEM Number: 4033649, 4039916, 4039917, 4089930, 4089930NX, 4089930RX
Turbo Model: HX40W
Engine: ISC, ISC CM850
Engine Manufacturer: Cummins
Displacement: 8.3L, 8300 ccm
Angle α (Compressor Housing): 252°
Angle β (Turbine Housing): 133°
Actuator: 3593678 (3598471)
Bearing Housing: 4038197 (3537112, 3593878)(Oil Cooled)
CHRA: 4031321 (4031321H, 4032234, 4032695, 4043363)
Compressor Cover: 4035405
Compressor Wheel: 4035879 (3599016, 4035879, 4043377)(Ind. 59.99 mm, Exd. 86.05 mm, Trim 5.86, 7+7 Blades, Super Back)(1154351400)
Gasket (Oil Inlet): 409039-0000 (409039-0001, 210022-0000, 210019, 312617, 2405022, 7C7431)(1900000006)(Inox Steel)
Gasket (Oil Outlet): 210060 (2475013, 409267-0003, 409267-0002, 210060-0000, 51914, 148062, 311585)(Paper)
Gasket Kit: 3545575 (1900100057)
Heat Shield: 3519302 (3519304)(1152301340)
Repair Kit: 4027448 (3575169)(1153035750, 1153035751)(Minor)
Seal Plate: 3596448 (3530923)
Turbine Housing (With Wastegate): 3539085
Turbine Housing: 4031328
Turbine Wheel: 3596226 (4050572)(Ind. 64 mm, Exd. 76 mm, Trim 10.16, 10 Blades)
2004-09 Truck (Class 3-8) with Cummins ISC Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
