NEW OEM Holset HX40W Turbo Truck Transit Bus Cummins Pegasus ISC 4033650 4046058

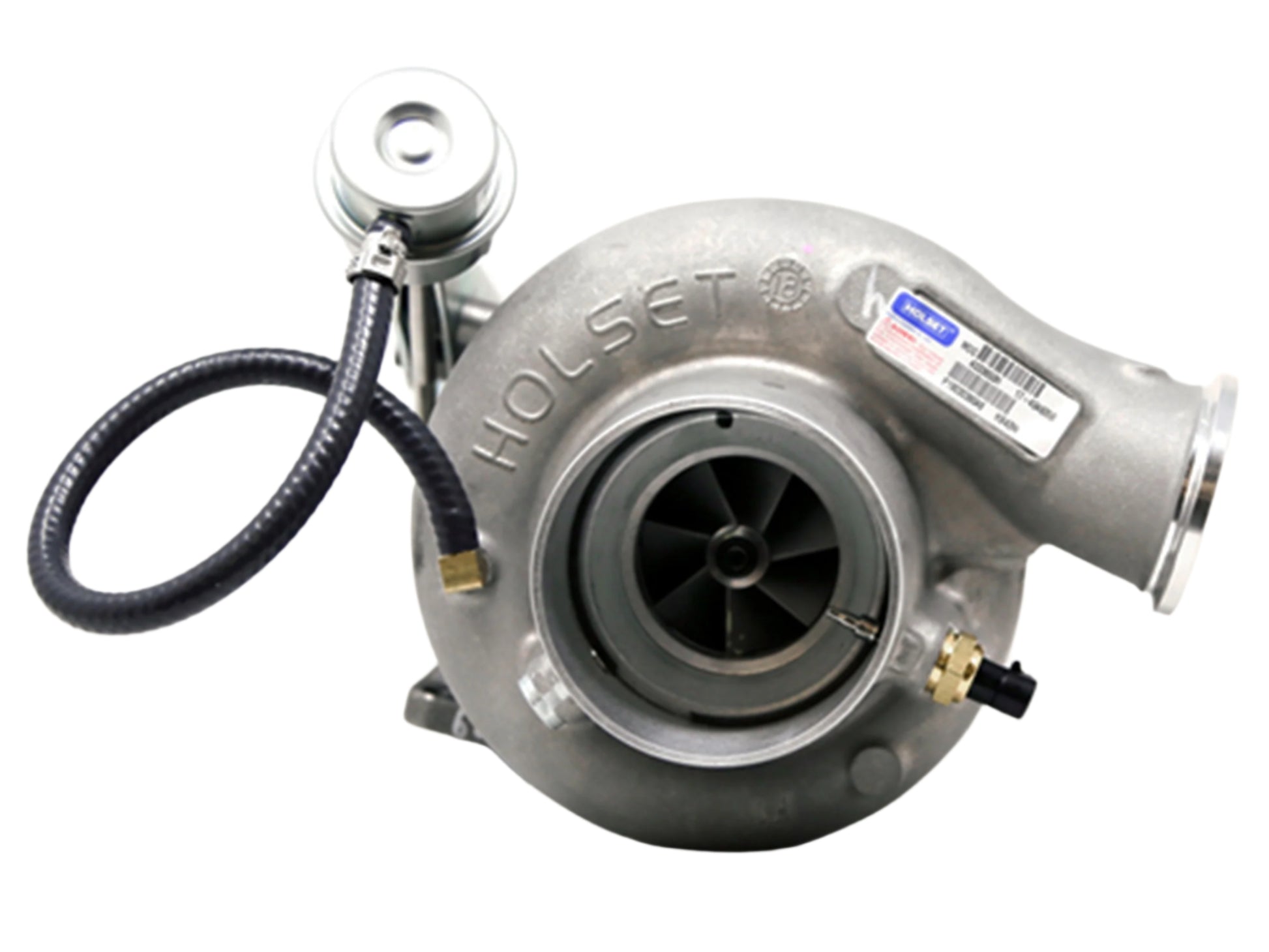

BRAND NEW GENUINE HOLSET TURBOCHARGER

This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

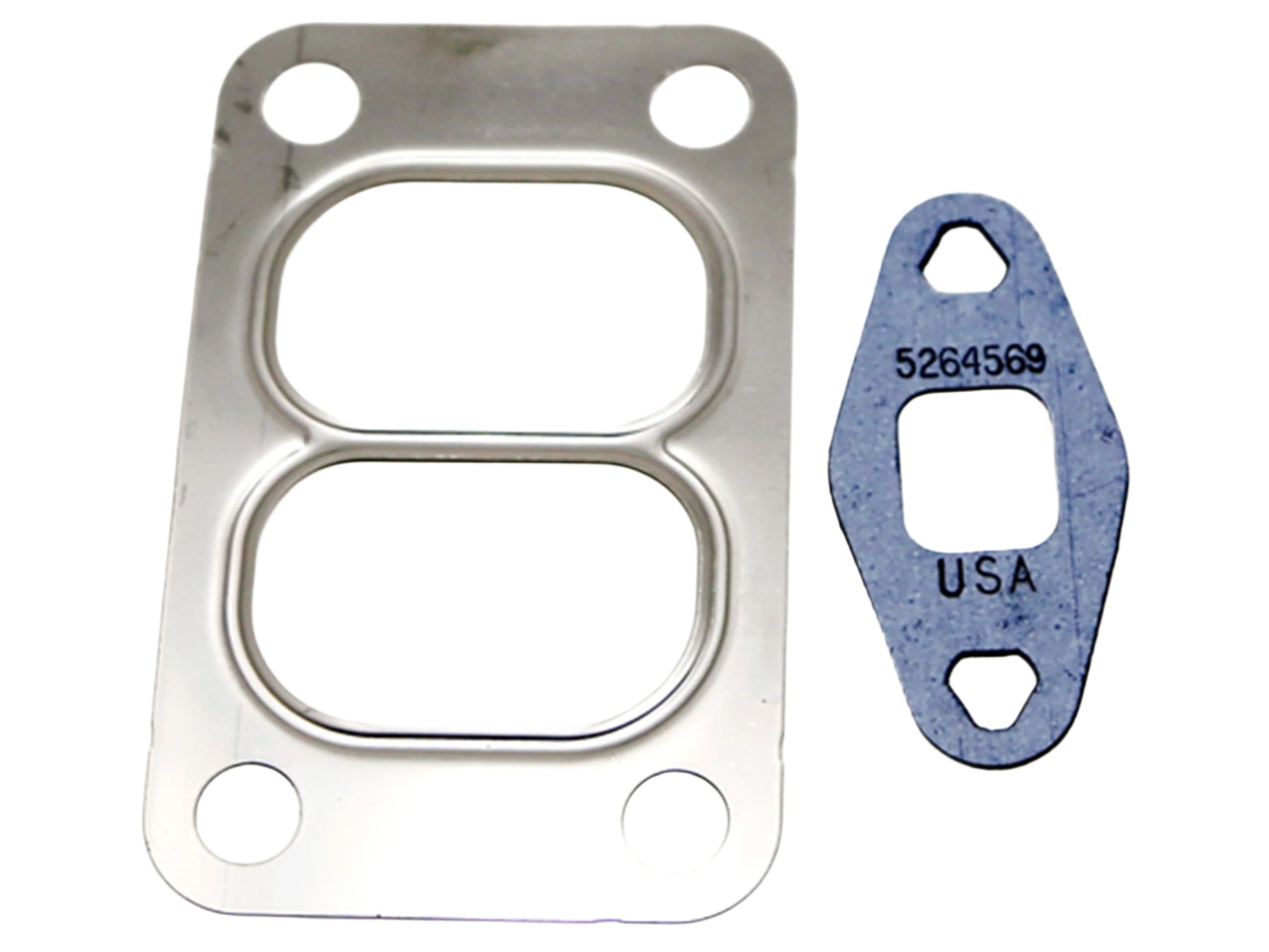

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 4046058
Interchangeable Number: 4033650, 4033650H, 4039905, 170-032-0042, 170-032-0995, 170-032-2873, 1700320042, 1700320995, 1700322873, 2080130R, 4033650, 4033650H, 4033650HX, 4039905, 4039906, 4039907, 4039908, 4039909, 4039910, 4046058, 4089927, 408992700, 408992700HX, 4089927HX, 4089927NX, 4089927RX, OTR2080130R, 4033657, 4036430, 4038708, 4037721, 4036657, 4036429, 4089825
OEM Number: 3802769, 4039906, 4039907, 4039908, 4039909, 4039910, 4089927, 408992700HX, 4089927HX, 4089927NX, 4089927RX
Turbo Model: HX40W
Manufacturer: Holset

Year: 2004-
Engine: Pegasus ISC
Engine Manufacturer: Cummins
Fuel: Diesel

Angle α (Compressor Housing): 275/176/195/212°
Angle β (Turbine Housing): 157/133/60°
Actuator: 4031329
Bearing Housing: 4038197 (3537112, 3593878)(Oil Cooled)
CHRA: 4031321 (4031321H, 4032234, 4032695, 4043363)
Compressor Wheel: 4035879 (3599016, 4035879, 4043377)(Ind. 59.99 mm, Exd. 86.05 mm, Trim 5.86, 7+7 Blades, Super Back)(1154351400)
Gasket (Oil Inlet): 409039-0000 (409039-0001, 210022-0000, 210019, 312617, 2405022, 7C7431)(1900000006)(Inox Steel)
Gasket (Oil Outlet): 210060 (2475013, 409267-0003, 409267-0002, 210060-0000, 51914, 148062, 311585)(Paper)
Gasket Kit: 3545575 (1900100057)
Heat Shield: 3519302 (3519304)(1152301340)
Repair Kit: 4027448 (3575169)(1153035750, 1153035751)(Minor)
Seal Plate: 3596448 (3530923)
Turbine Wheel: 3596226 (4050572)(Ind. 64 mm, Exd. 76 mm, Trim 10.16, 10 Blades)

Application:
2004- Truck, Transit Bus with Cummins Pegasus ISC Engine

2004- Gillig Coach/Transit Bus with Cummins ISC 8.3L Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
