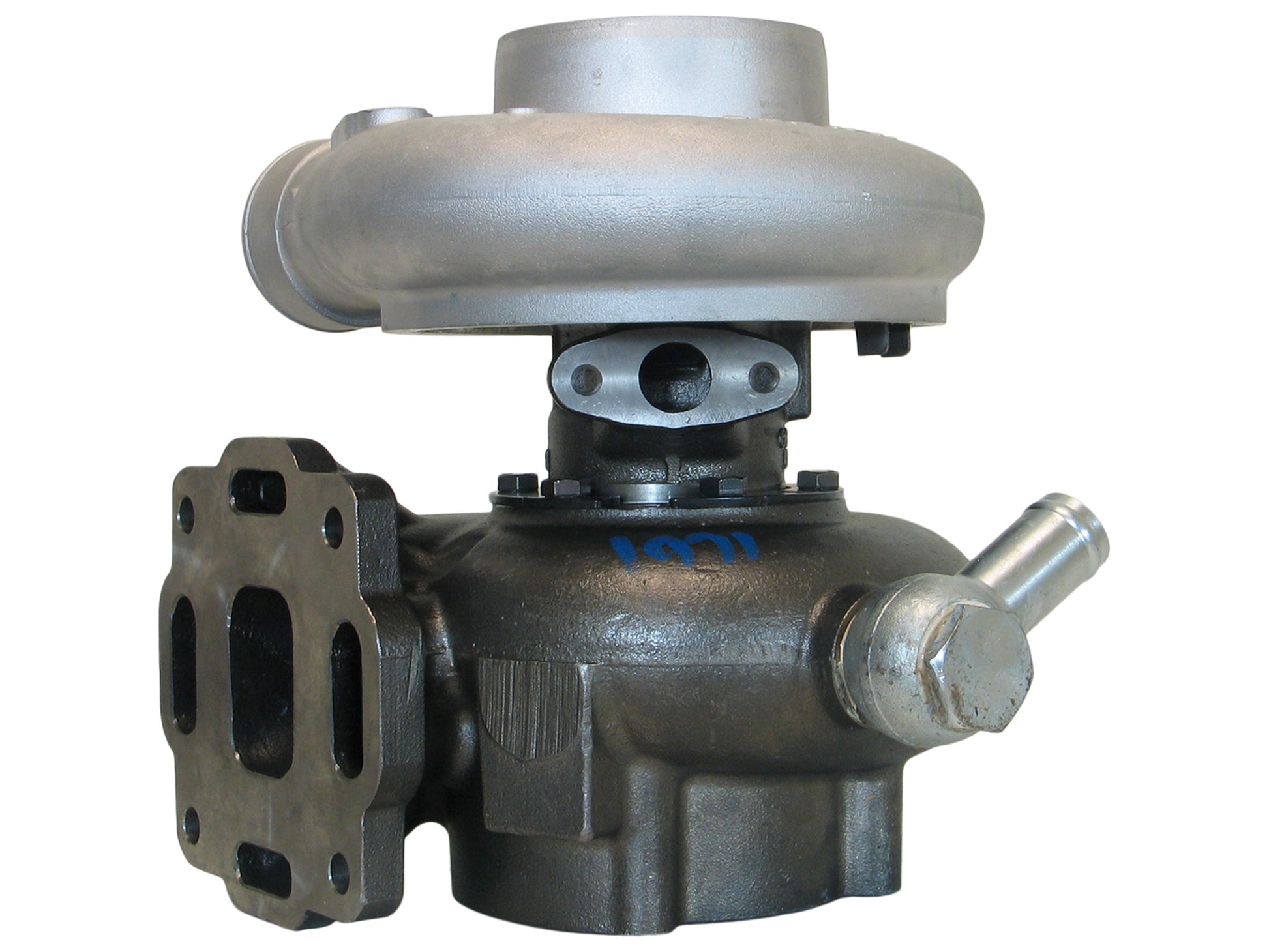

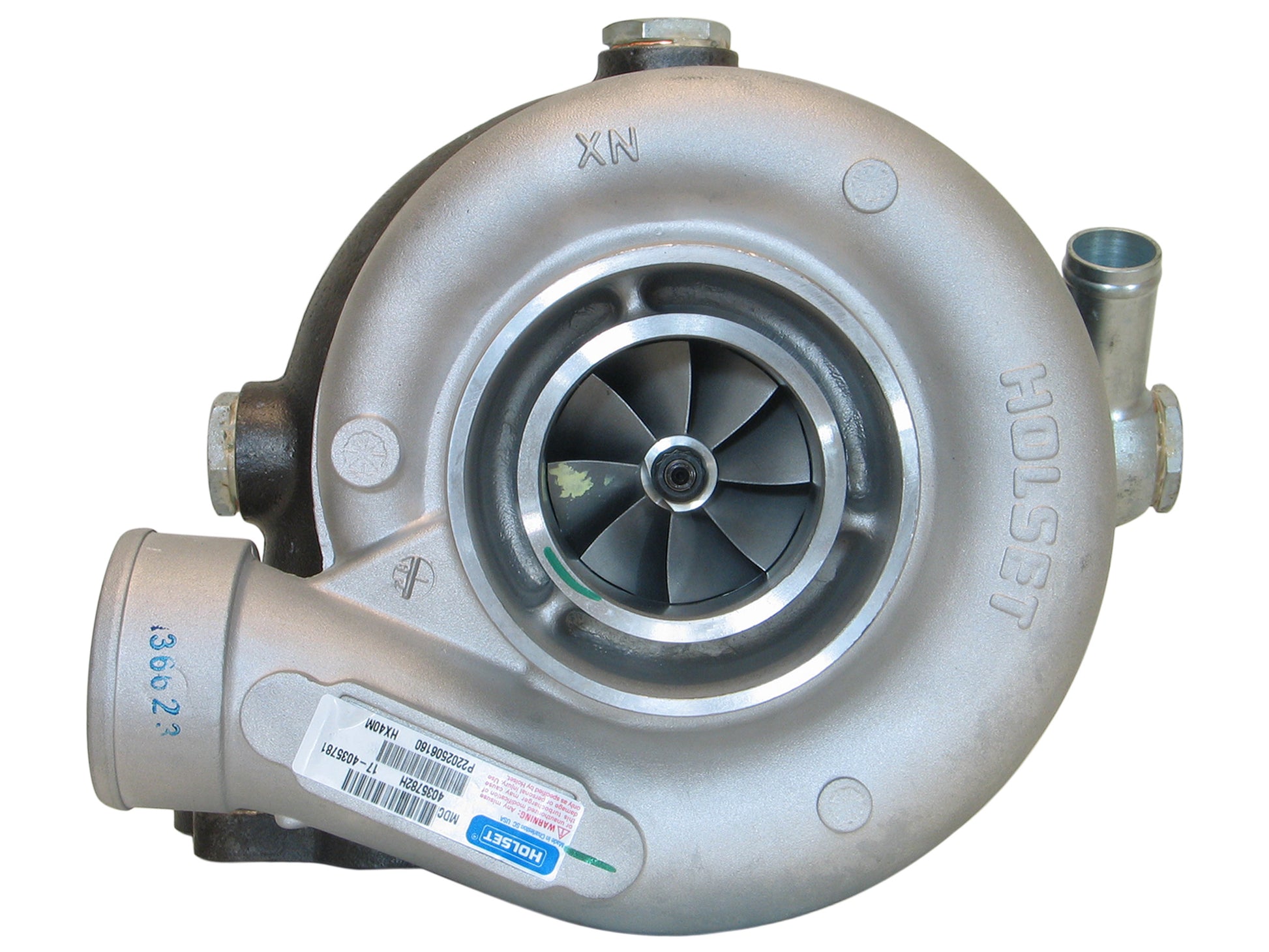

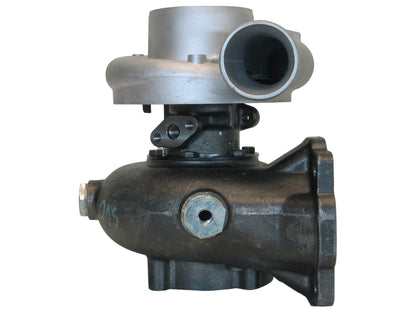

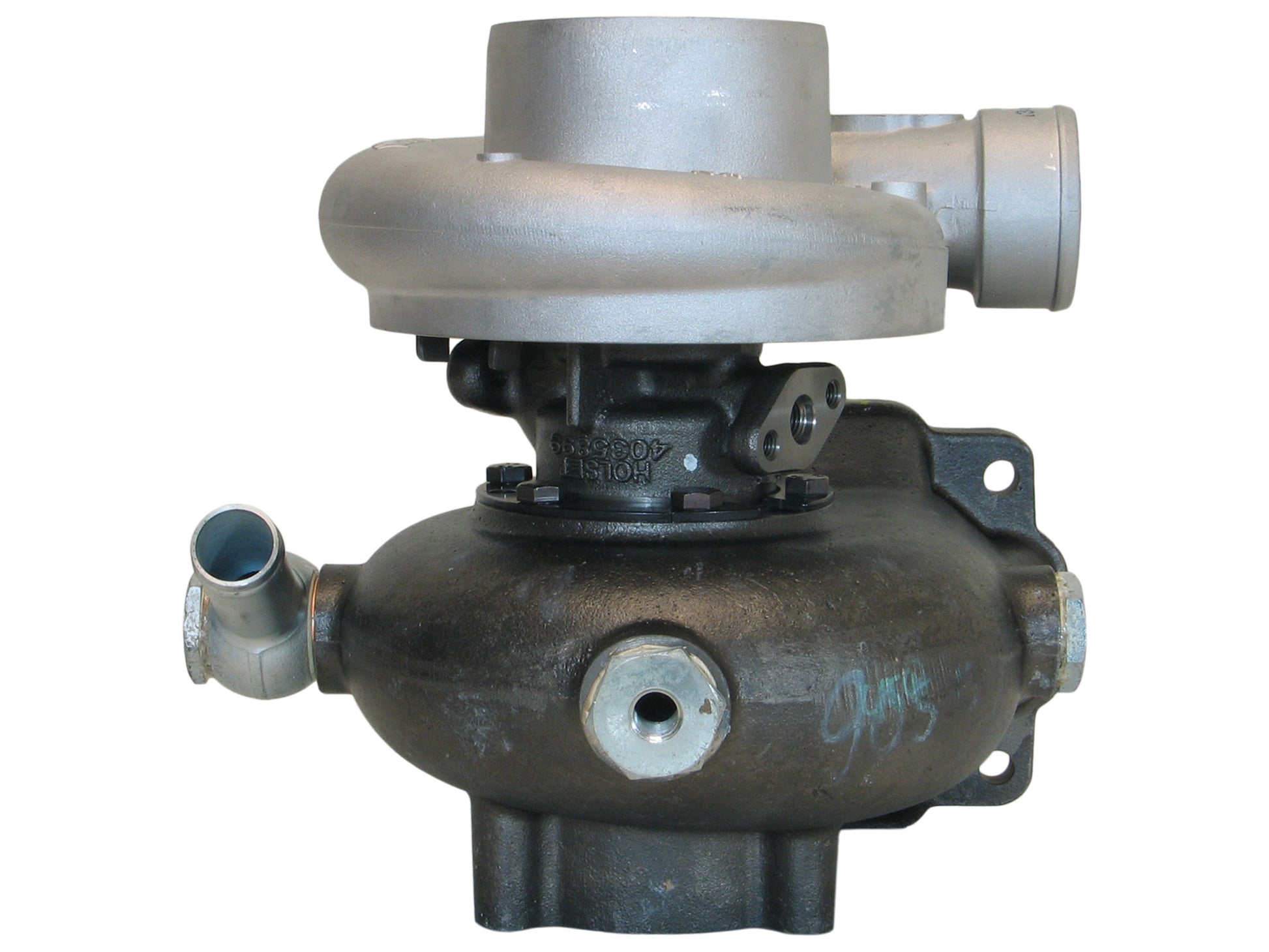

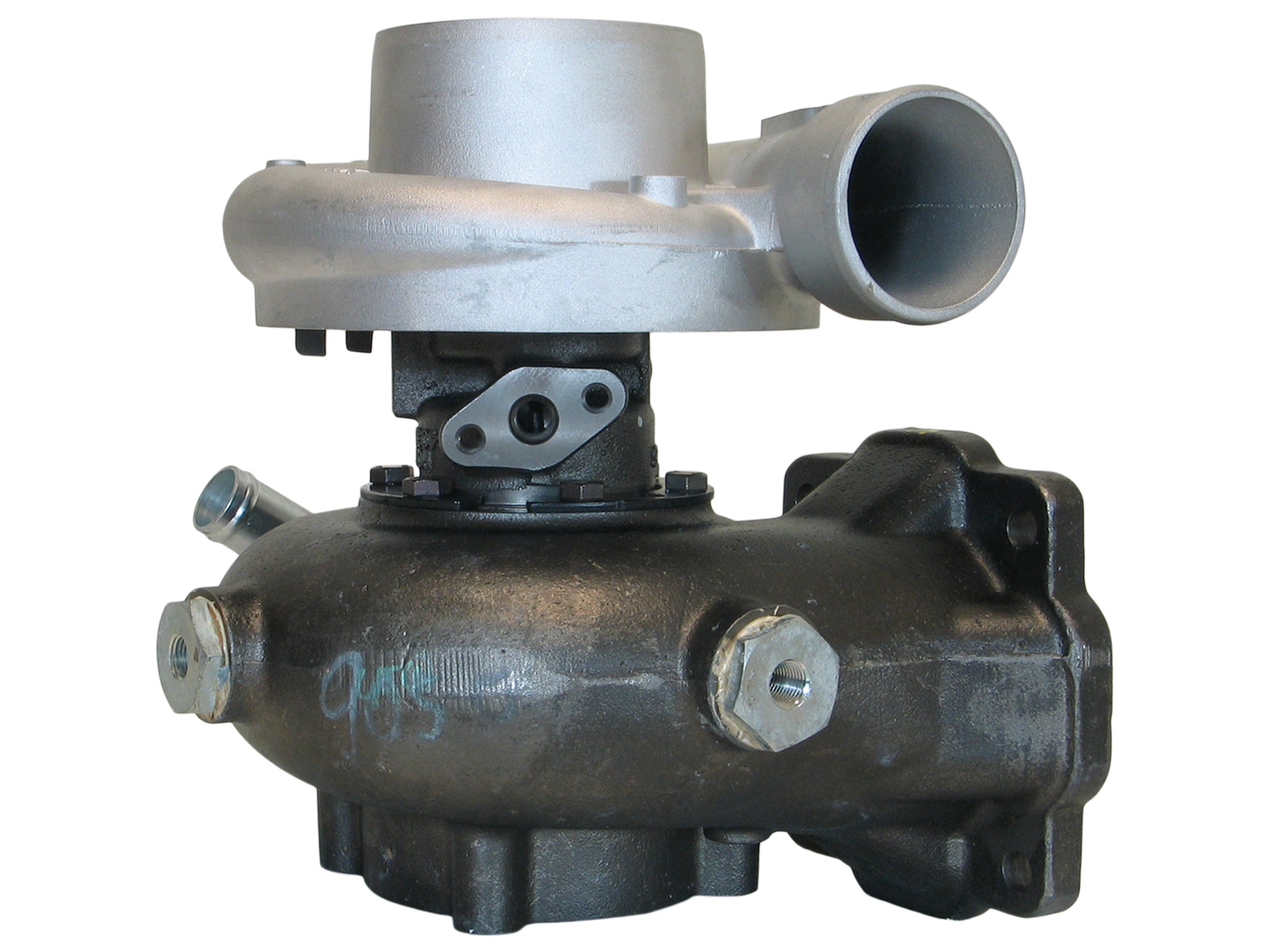

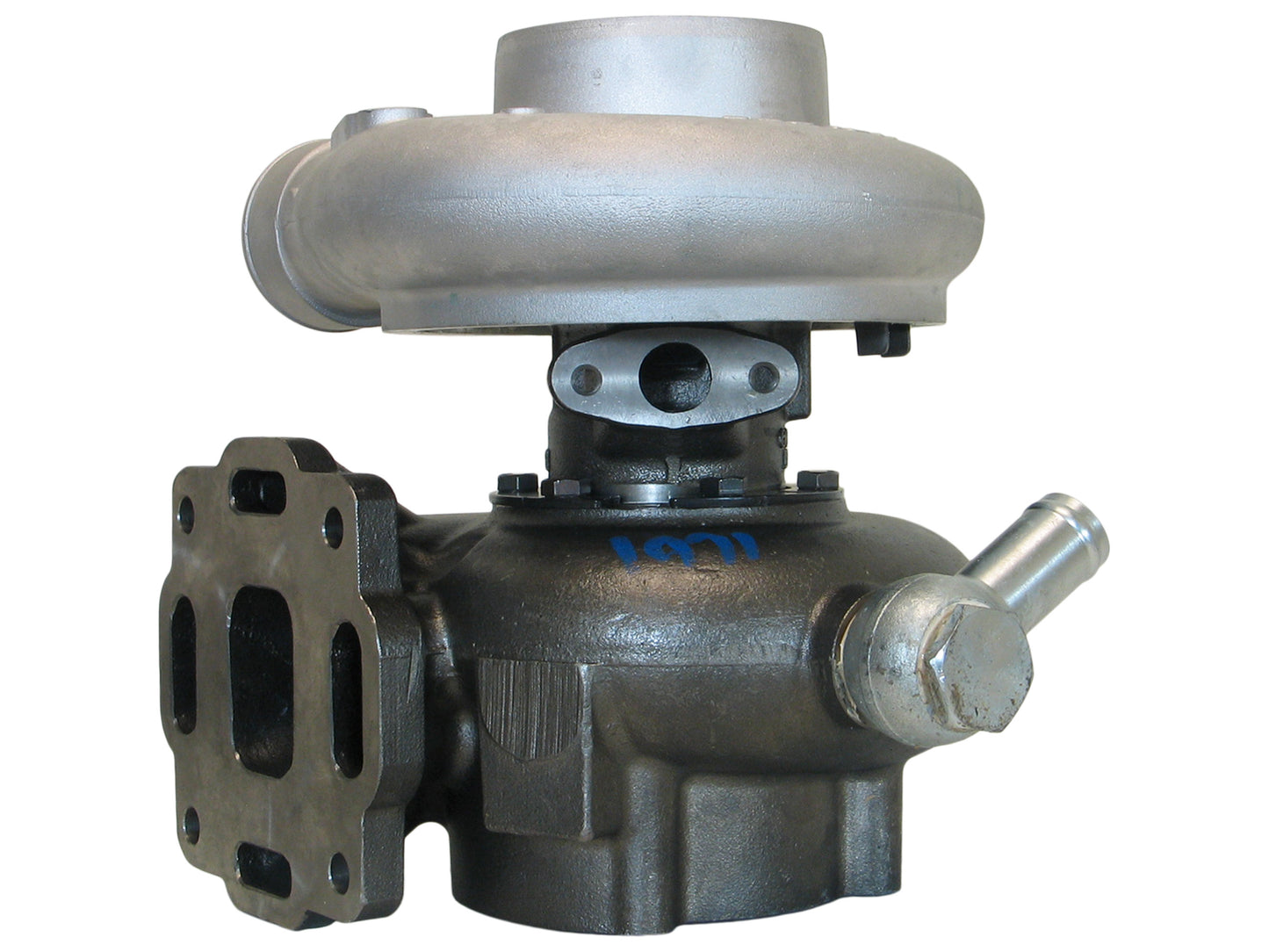

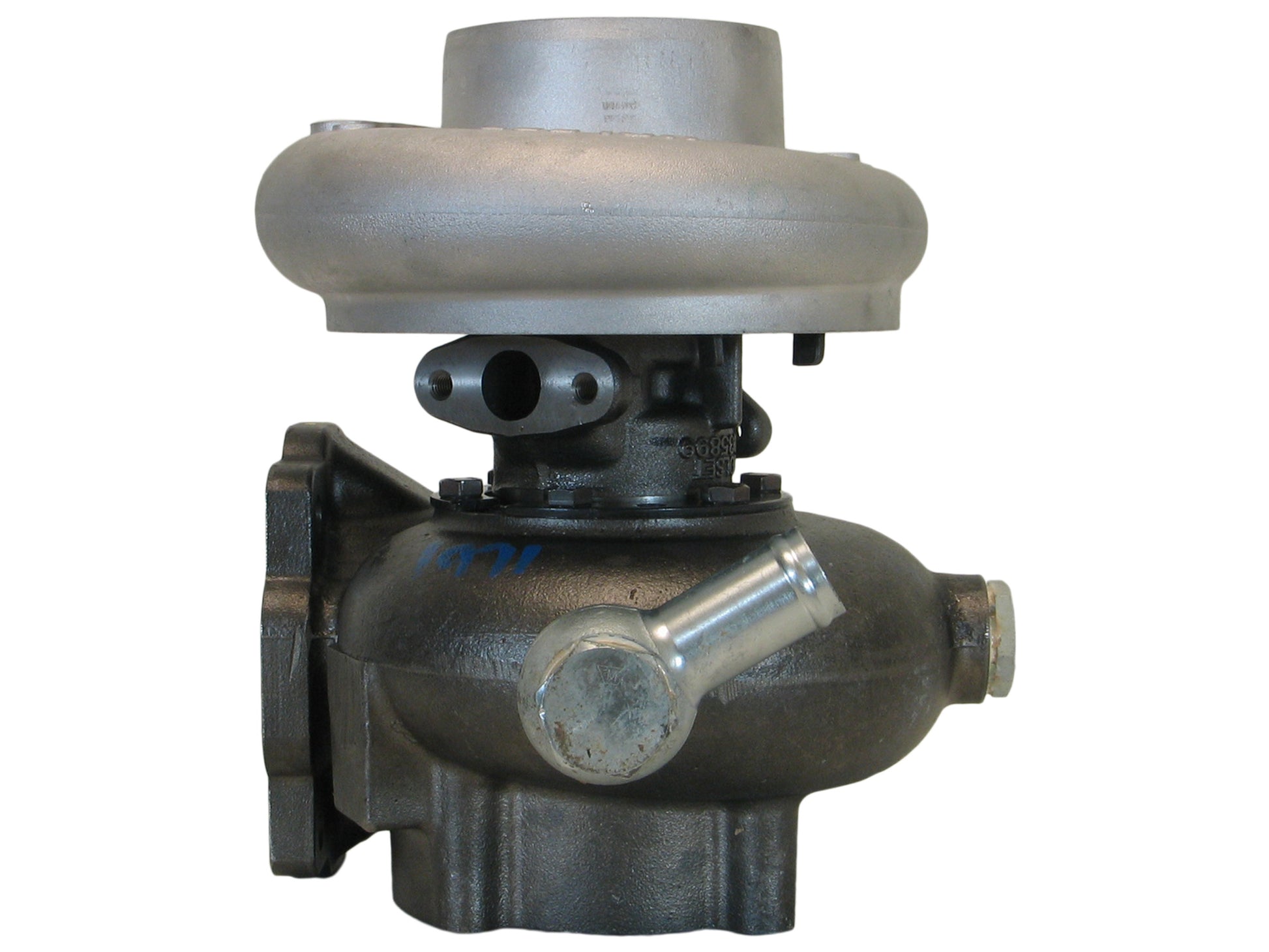

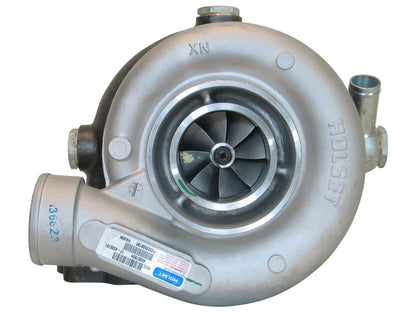

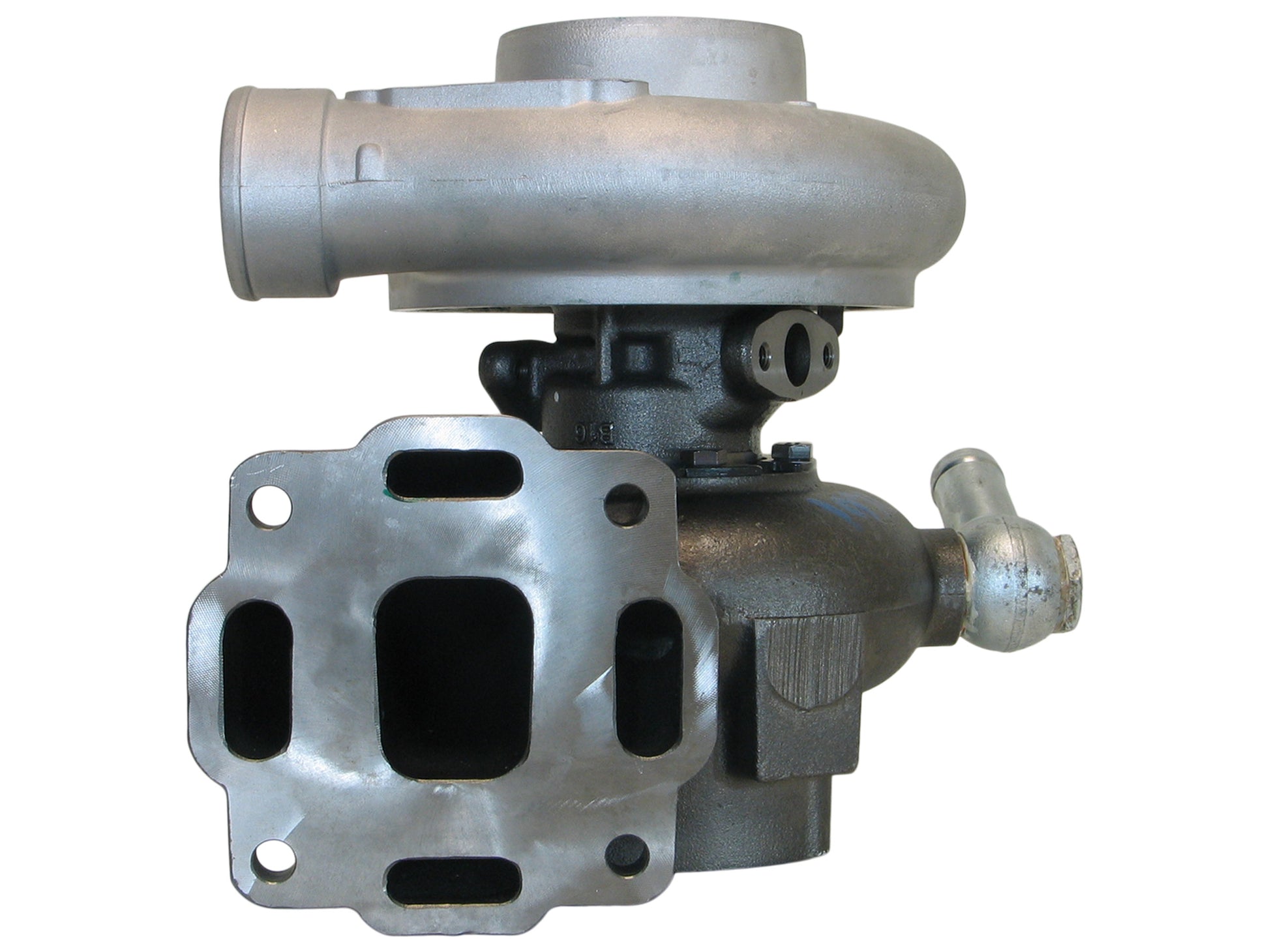

NEW OEM Holset HX40 Turbo Marine Cummins QSB 5.9L Diesel 4089816 4035782 4035781SKU: 4035781
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 4035781
Interchangeable Number: 4035781H, 4035782H
OEM Number: 4035782, 4038244, 4089816, 408981600
Turbo Model: HX40-L8294T/J13S3, HX40M
Engine: 6B, QSB
Engine Manufacturer: Cummins
Displacement: 5.9L, 5900 ccm
Power: 355/380 HP
Angle α (Compressor Housing): 241°
Angle ß (Turbine Housing): 284/301°
Back Plate: 3530923 (3530923H, 353092300)(1154351300)
Bearing Housing: 3532632 (3599943, 4027754, 4035136, 3532631)(84.50 mm)(Oil Cooled)
CHRA: 4027283 (4027283H)
Compressor Cover: 3536623
Compressor Wheel: 3599591 (3525358, 3537151)(Ind. 60.93, Exd. 81.22, 8+8 Blades, Super Back)

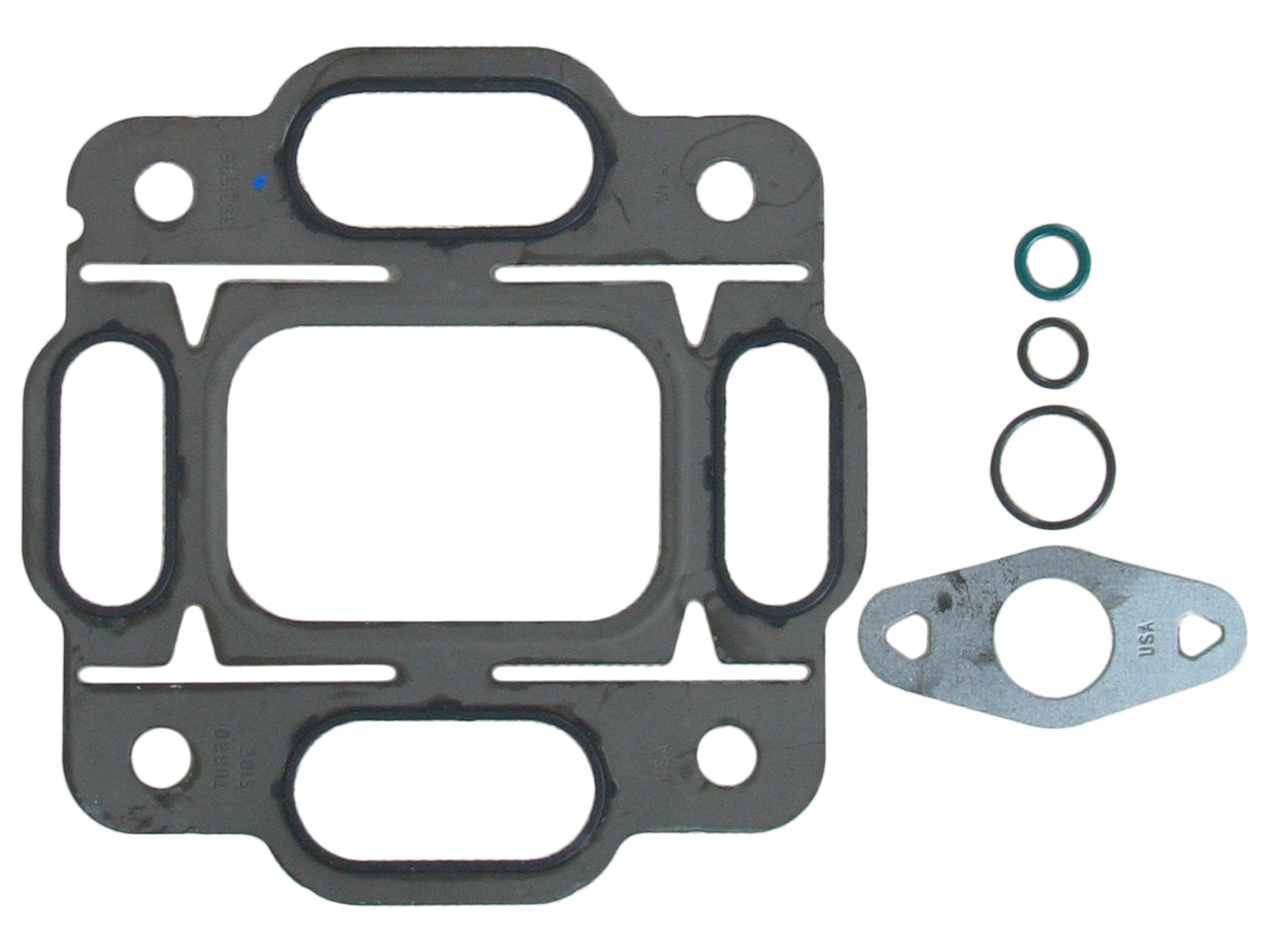

Gasket (Oil Inlet): 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Gasket (Turbine Inlet): 210849 (8027510)(Stainless Steel)
Gasket (Turbine Outlet): 210850 (Inox Steel)
Heat Shield: 3519302 (3519302H, 351930200)(1152301340)
Repair Kit: 3575169 (1153035750)

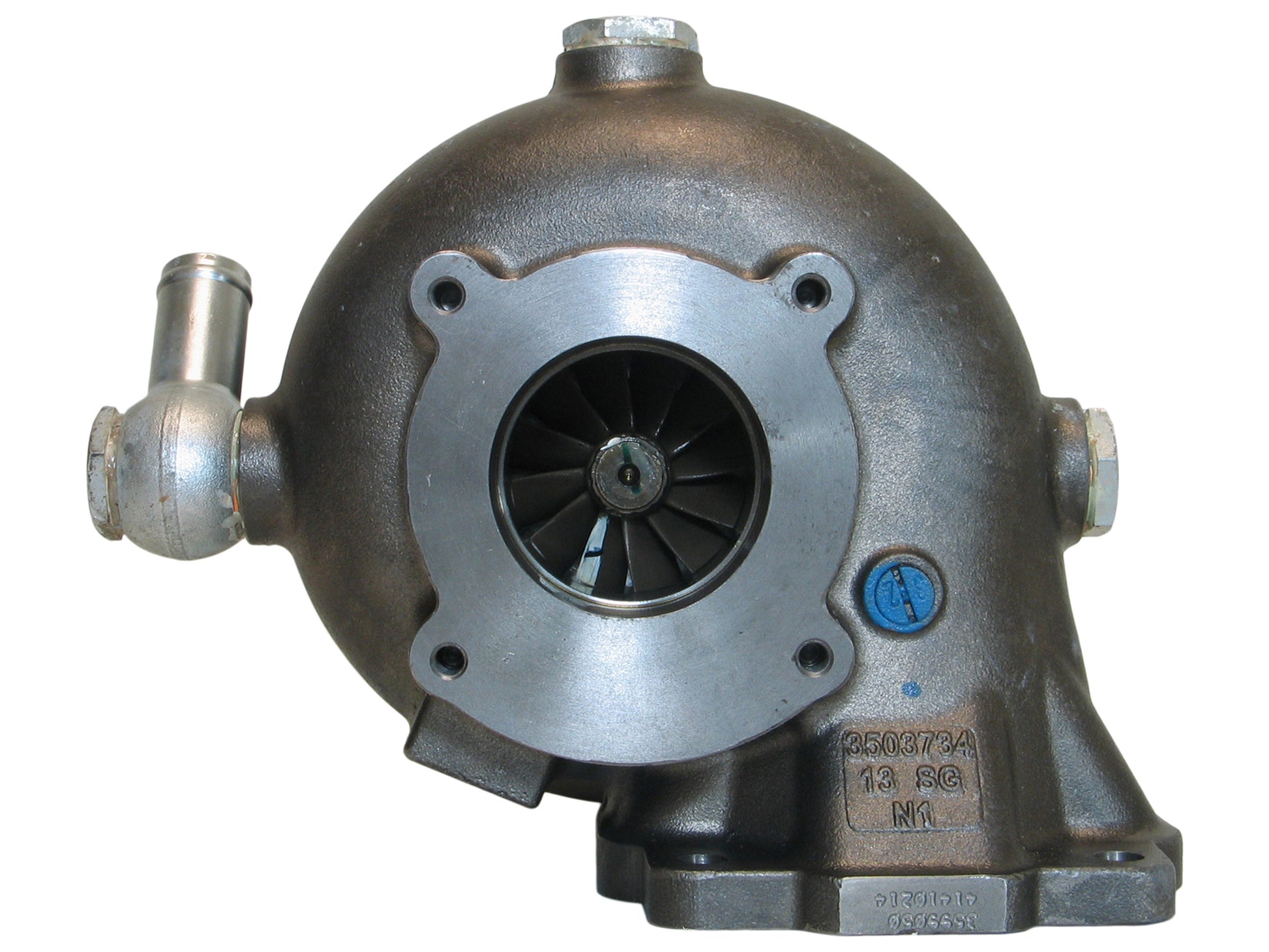

Turbine Housing (Water Cooled): 4035833 (3599050)

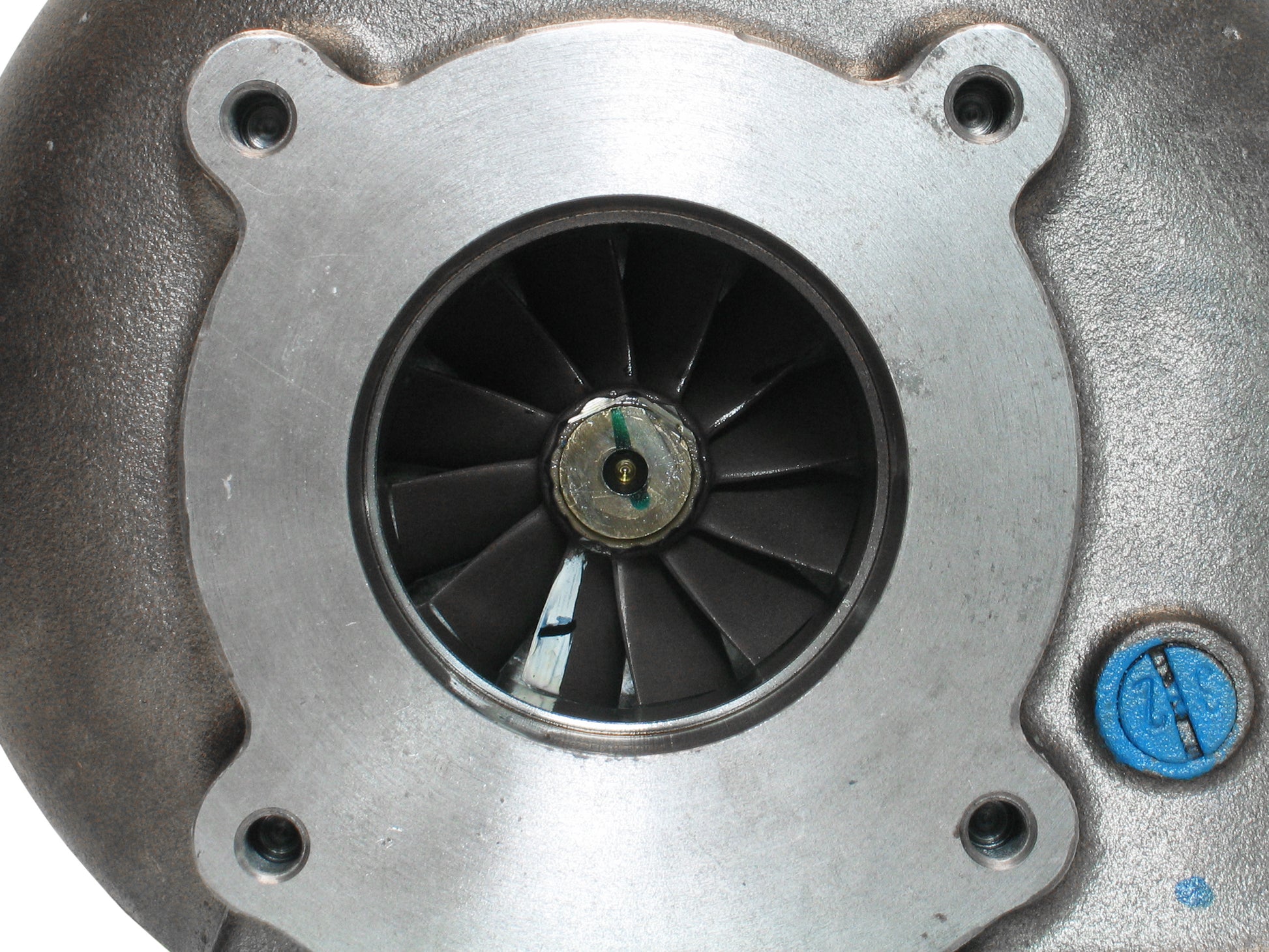

Turbine Wheel: 3536624 (3525687)(Ind. 75.92 mm, Exd. 61.59 mm, Trim 10.96, 12 Blades, Super Back)
2003- Marine with Cummins QSB Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
