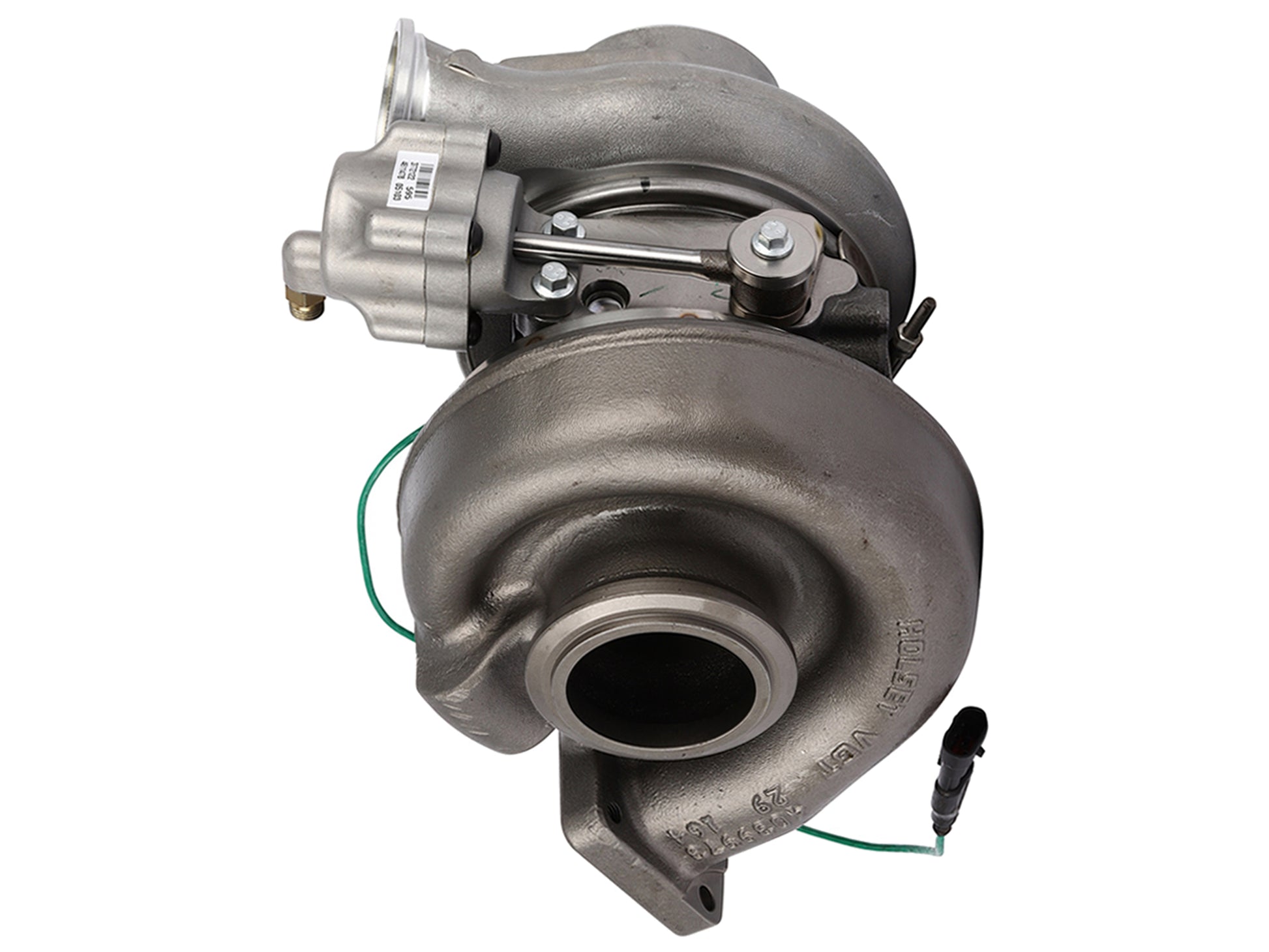

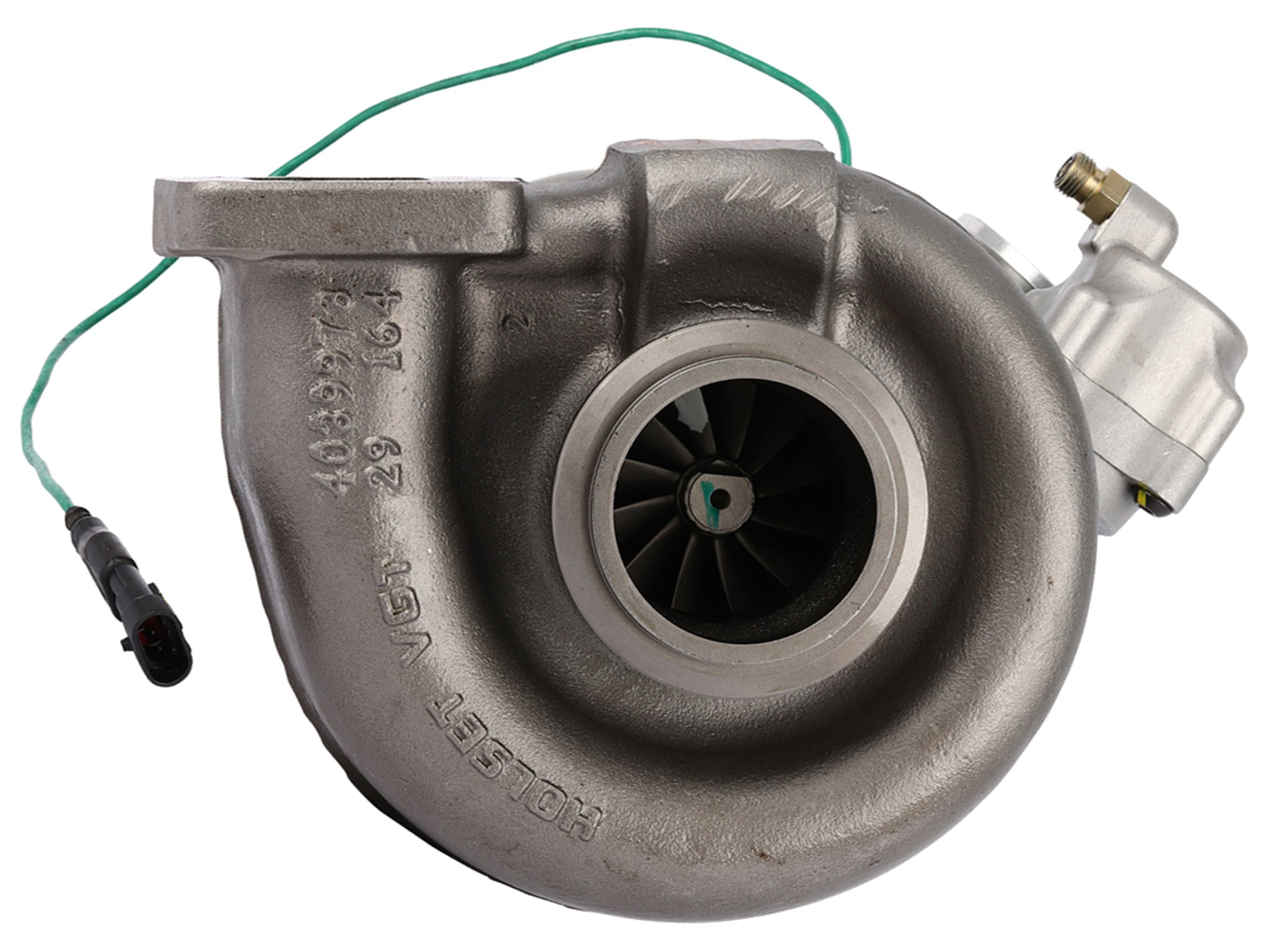

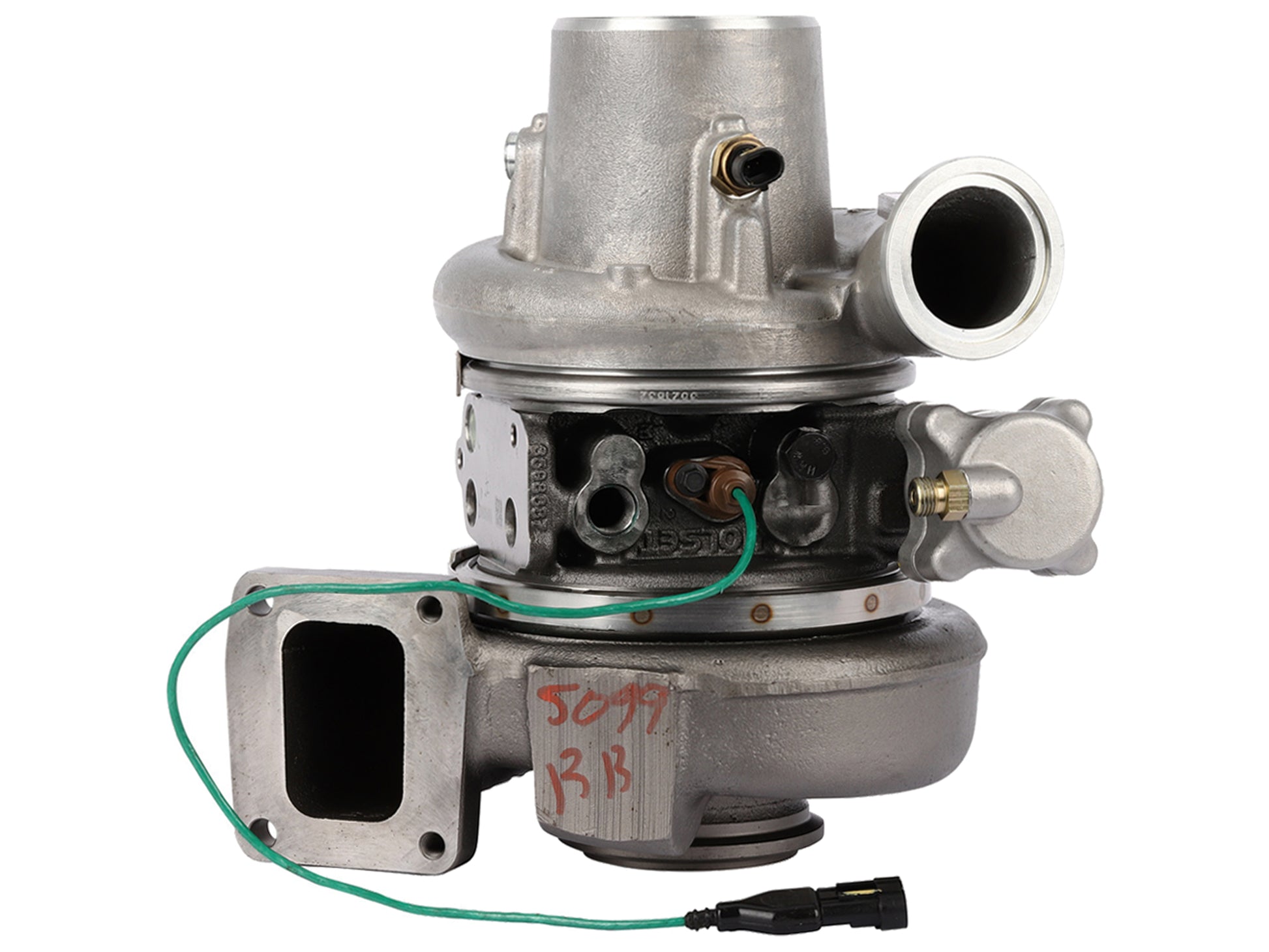

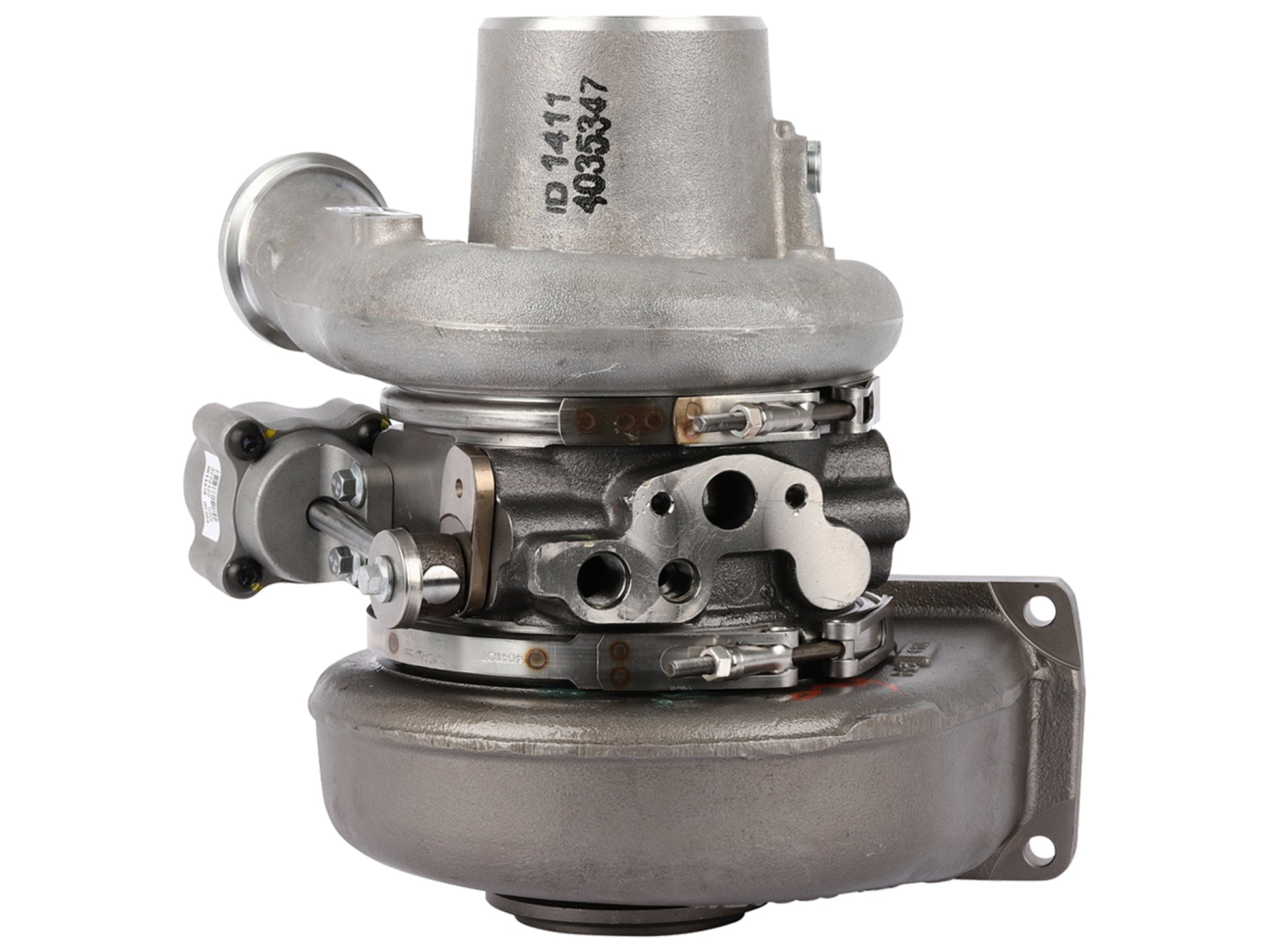

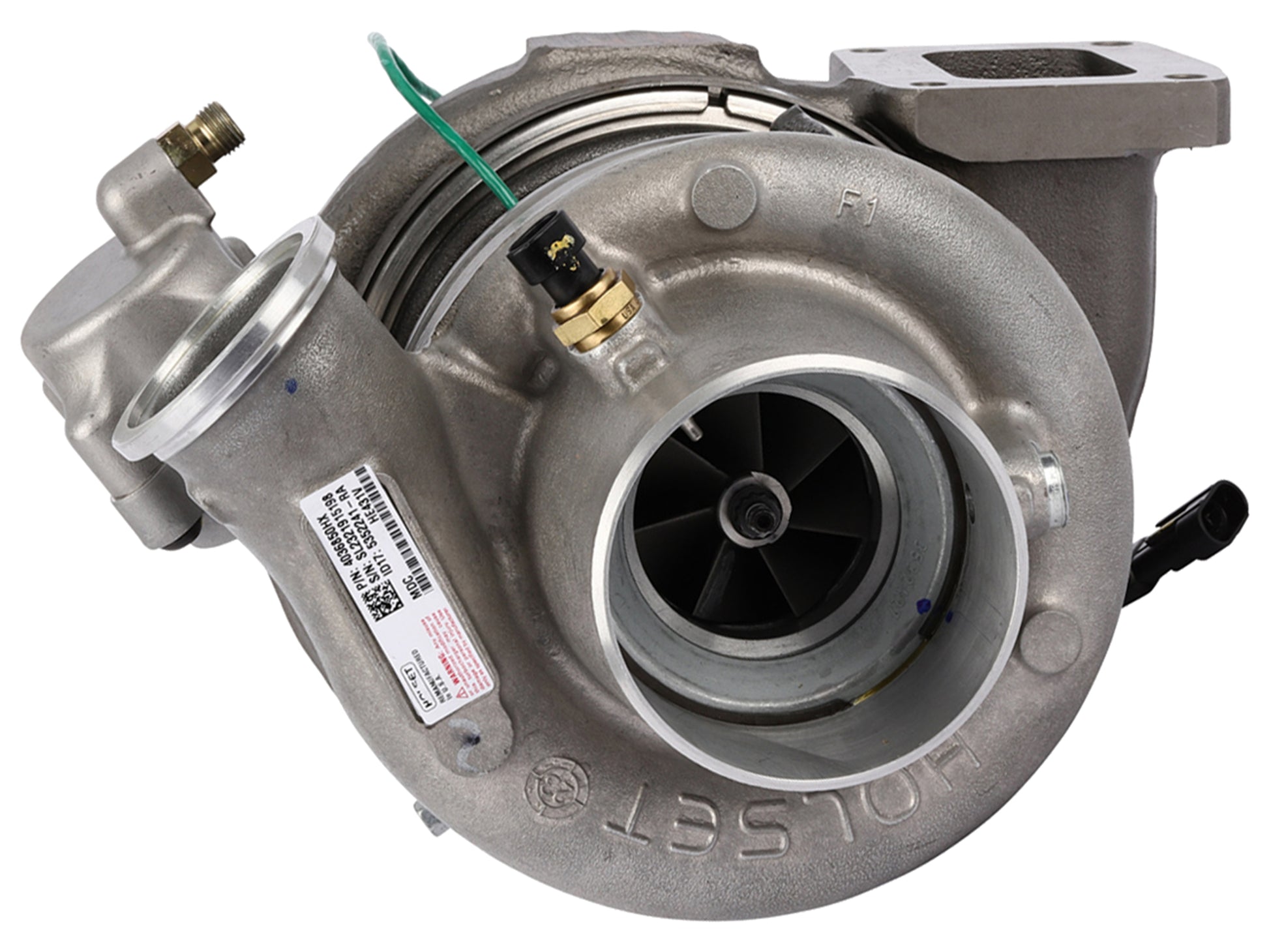

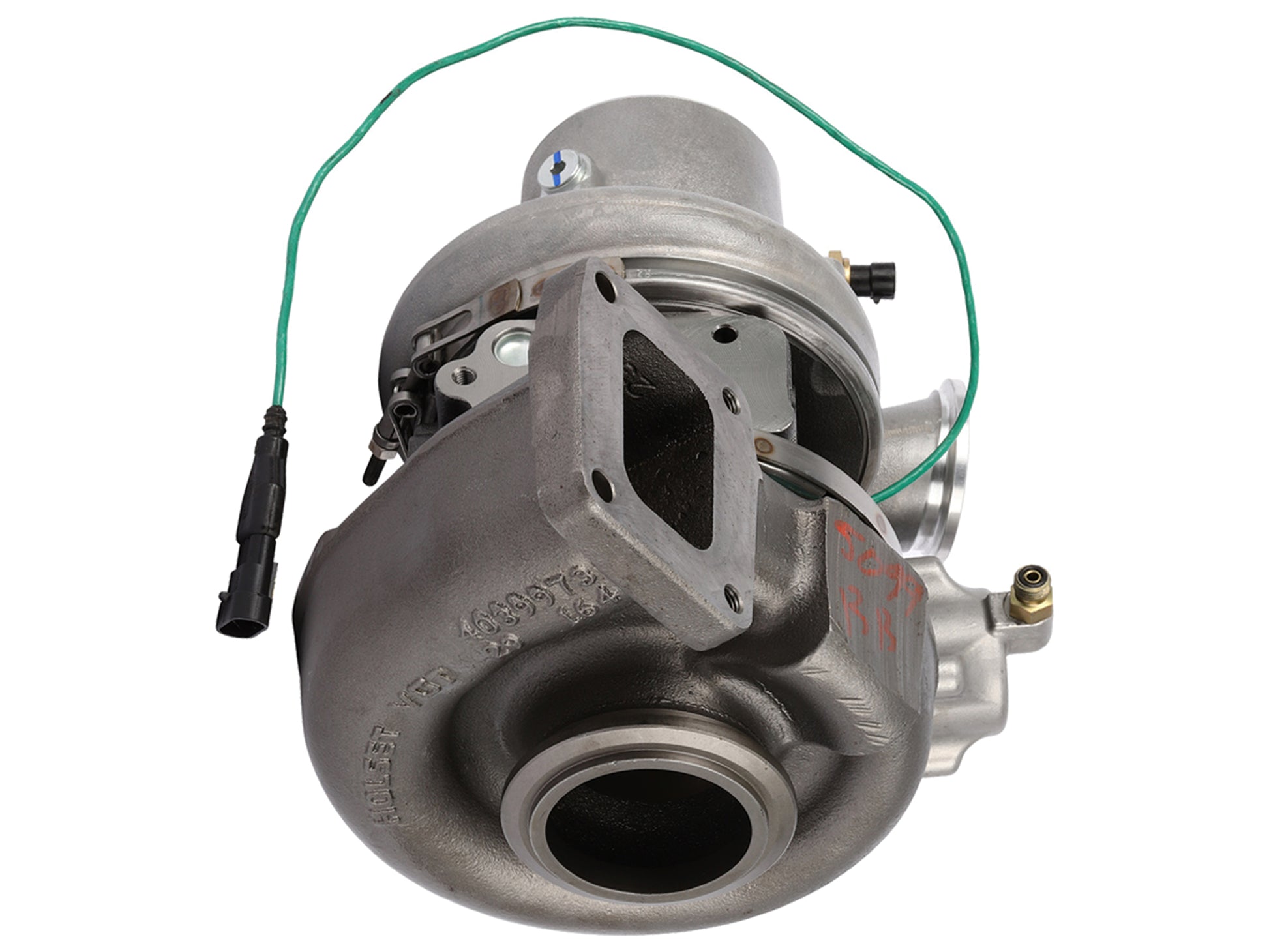

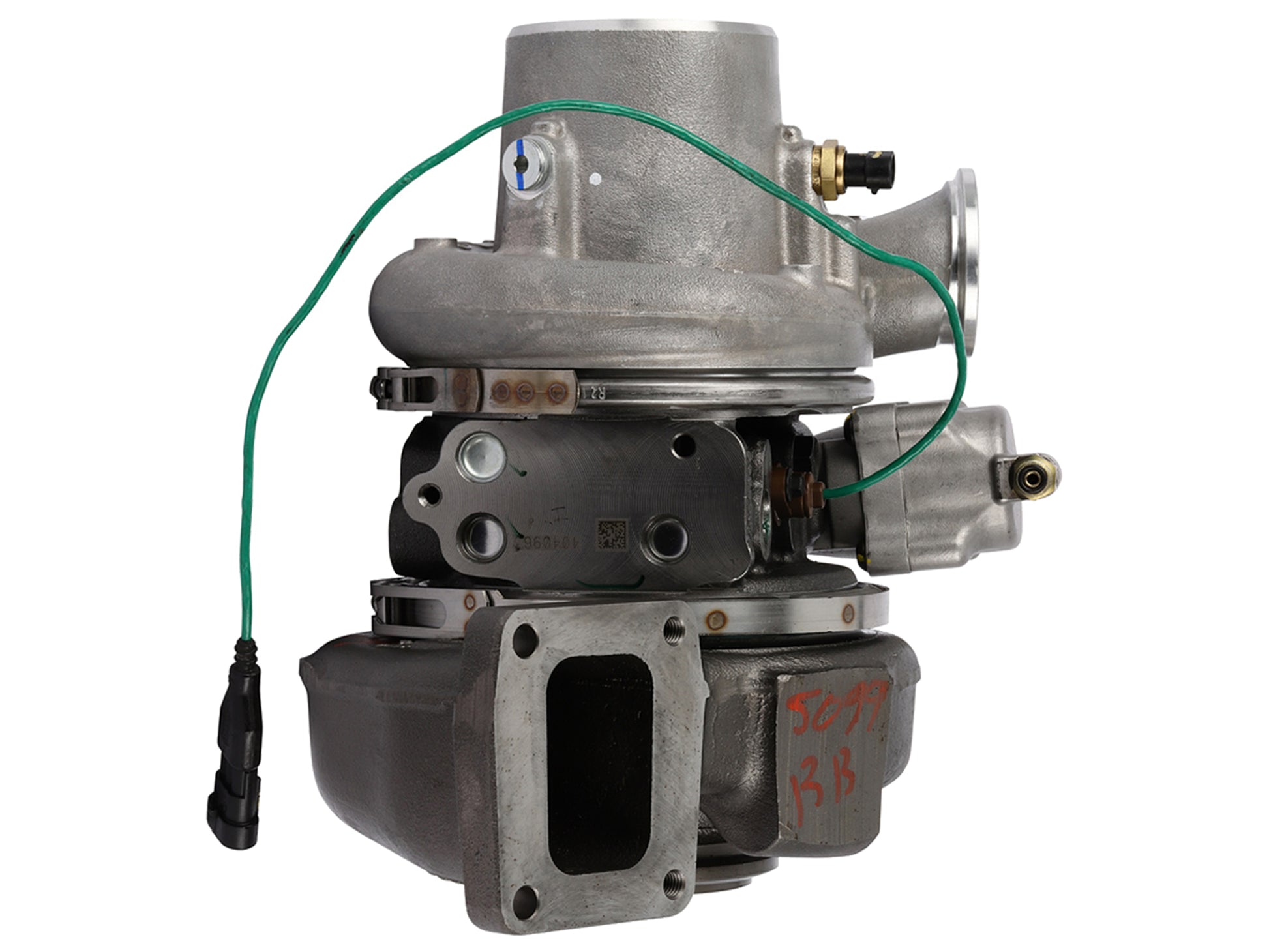

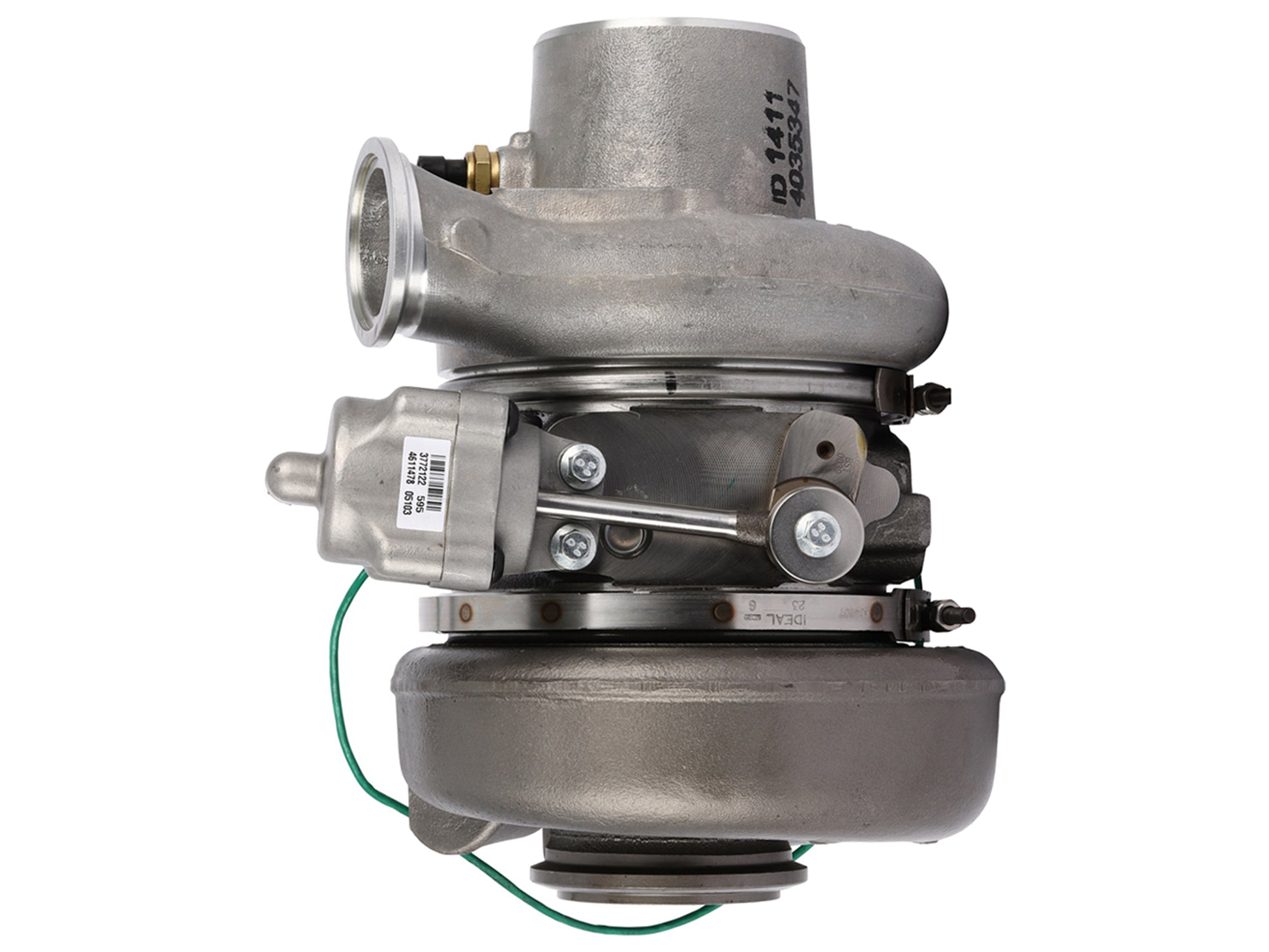

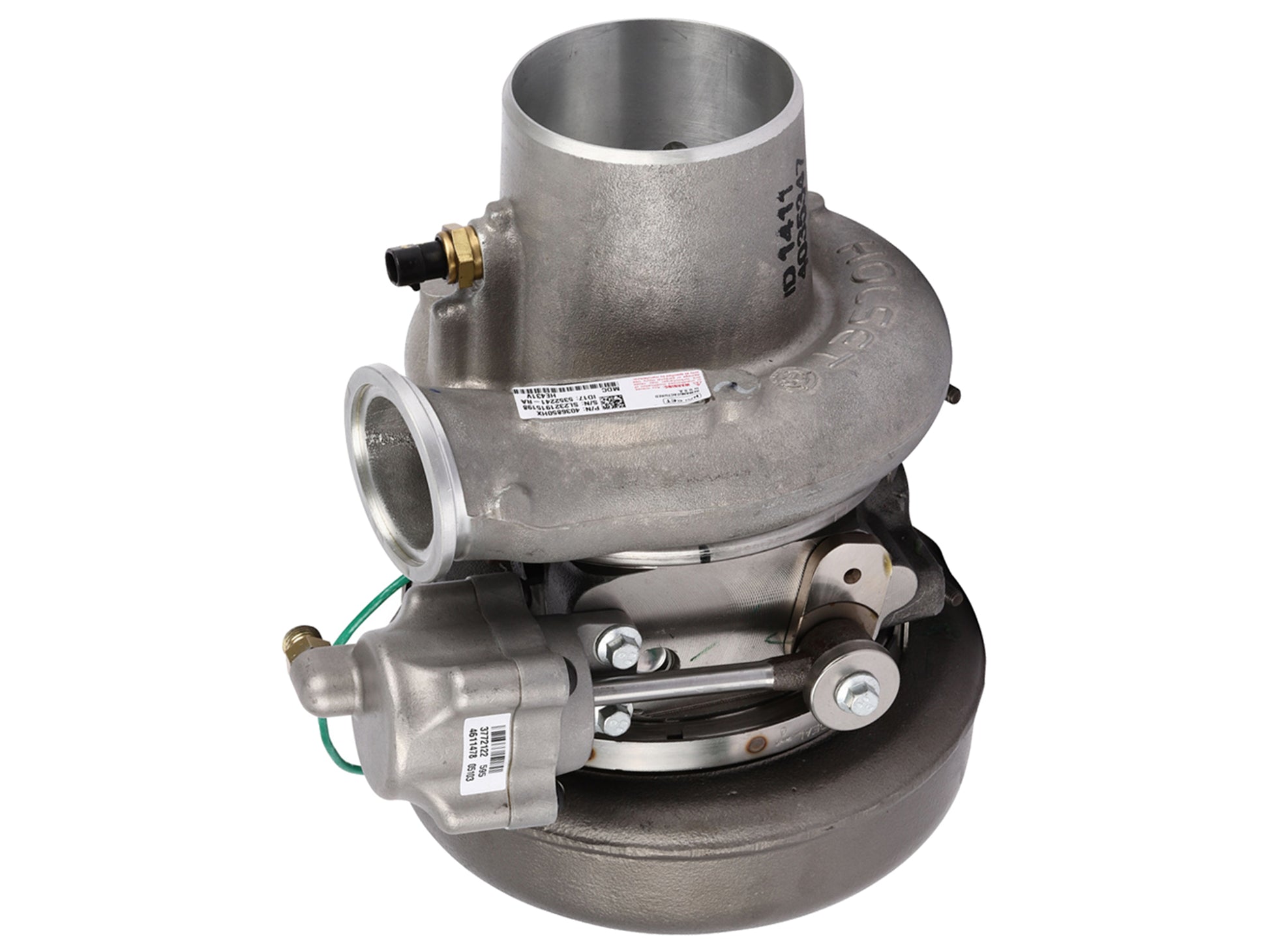

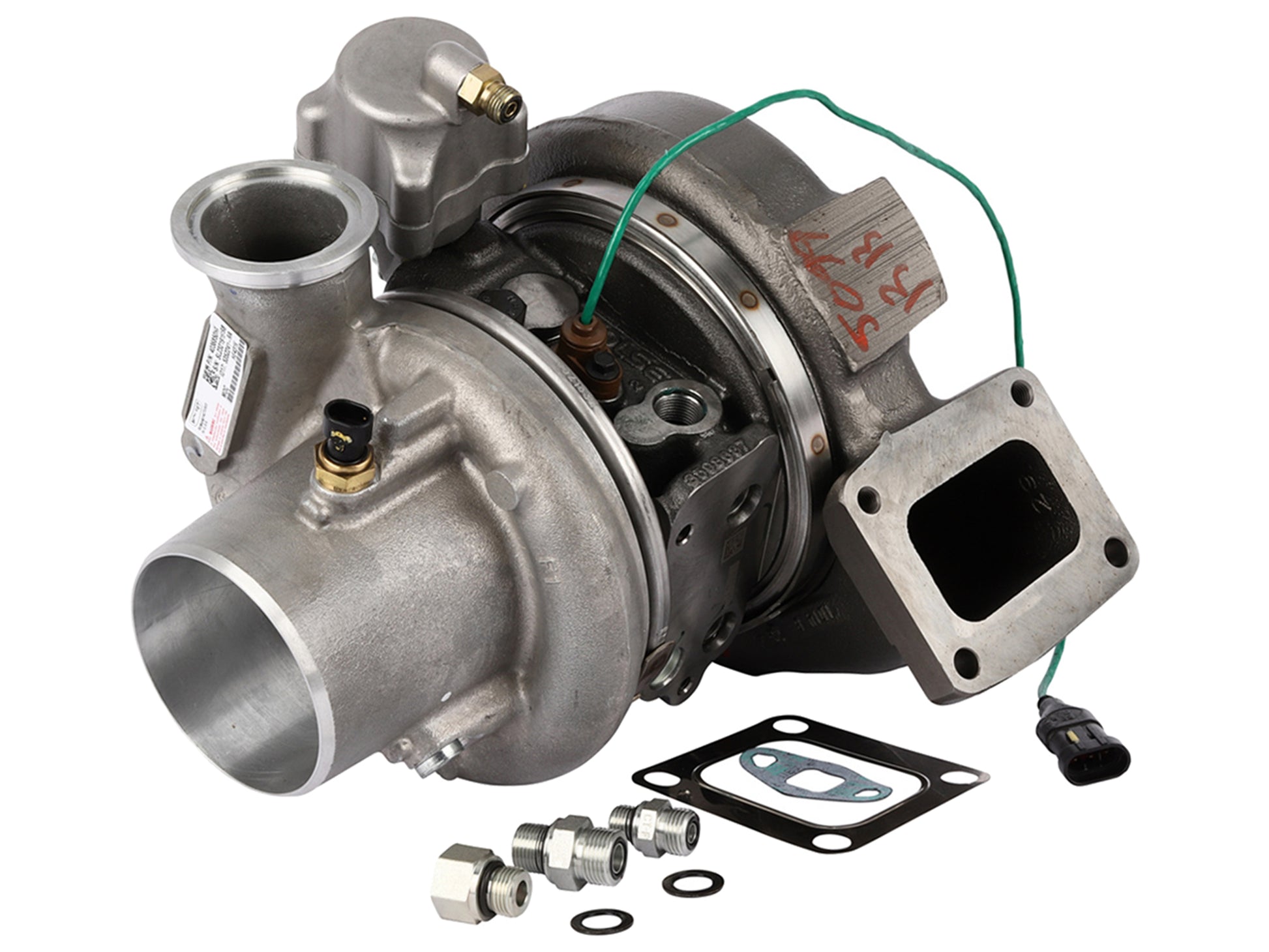

OEM Remanufactured Holset HE431V Turbo Truck Cummins ISL Diesel Engine 4036850HX
SKU: 4036850HXThis is a OEM REMANUFACTURED HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
NOTE: There is a core charge of $500 which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase and will be fully refunded once your old re-build able core is received.
Cores must be returned within 60 days of the purchase date. Please allow up to 3 business days for us to process your refund.
Fits the following:
Part Number: 4036850HX
Interchangeable Number: 3778554, 3781162, 3781176, 4036847, 4036849H, 403685000, 403685000H, 4036850H, 4036850HX, 4036852H, 4036852HX, 4039121, 4039123H, 403912400, 403912400H, 403912400HX, 4039124H, 4039124HX, 4039124RX, 4039126H, 404023400, 404023400H, 404023400HX, 4040234H, 4040234HX, 4041085, 4041098, 4044529, 4044530, 4045928, 4045933, 4047415H, 4047415HX, 4089637, 408963700, 408963700H, 408963700HX, 4089637H, 4089637HX, 4089637NX, 4089637RX, 4090052, 409005200, 409005200H, 409005200HX, 4090052H, 4090052HX, 4090052NX, 4090052RX, 4090065, 4090066, 4090068, 4955852, 4955852RX, 5352241, 5352911
OEM Number: 4036849, 4036850, 4036851, 4036852, 4039123, 4039124, 4039125, 4039126, 4040234, 4047415
Turbo Model: HE400VG, HE431V, HE431VTi
Manufacturer: Holset
Year: 2003-
Engine: 6C, ISB, ISL, ISLE, ISM, ISX, L PHASE
Engine Manufacturer: Cummins
Fuel: Diesel
Angle α (Compressor Housing): 140/260/270/300°
Angle β (Turbine Housing): 50/131/144/170°
Actuator Kit (Pneumatic): 4042573H
Bearing Housing: (Water Cooled)
C Ring Seal: 3770675H
Compressor Wheel: (Ind. 58.46 mm, Exd. 84.88 mm, 7+7 Blades, Super Back)
Repair Kit: 4032240 (Inc. VGT Seals)(1154040751)
Speed Sensor Kit: 4032068H
Split Ring Seal (Compressor): 3758848H
Thrust Bearing: 3592966H
Turbine Housing A/R: VGT
Turbine Housing: 3598154
Turbine Wheel: (Ind. 66.95 mm, Exd. 75.83 mm, 12 Blades)
Turbocharger Kit: 4036850H/4036850HX
Application:
2003- Various with Cummins ISL Engine
Freightliner Truck with Cummins ISL Engine
Monaco Monarch Coach with Cummins ISL Engine
Volvo Truck with Cummins ISL Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
