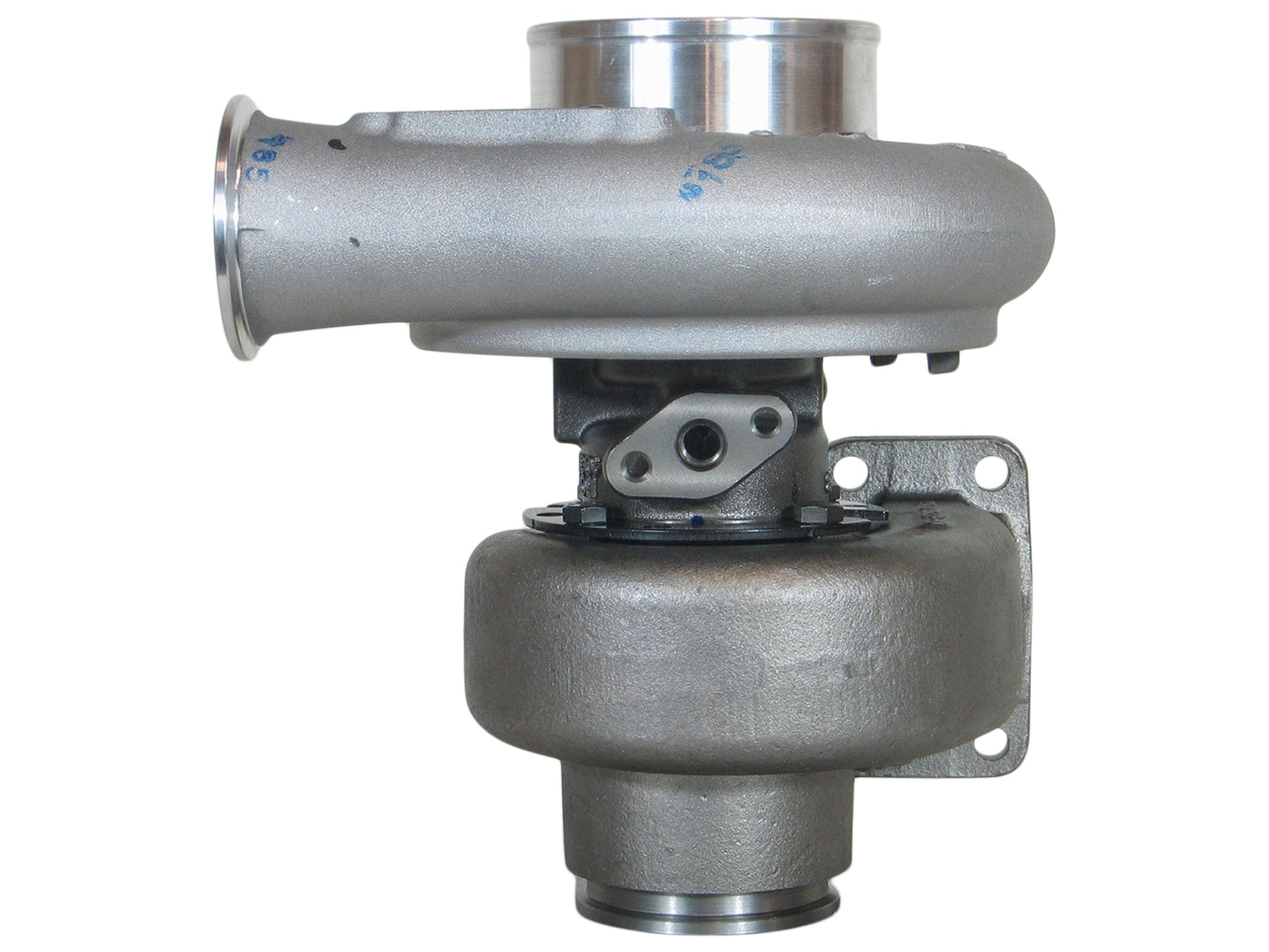

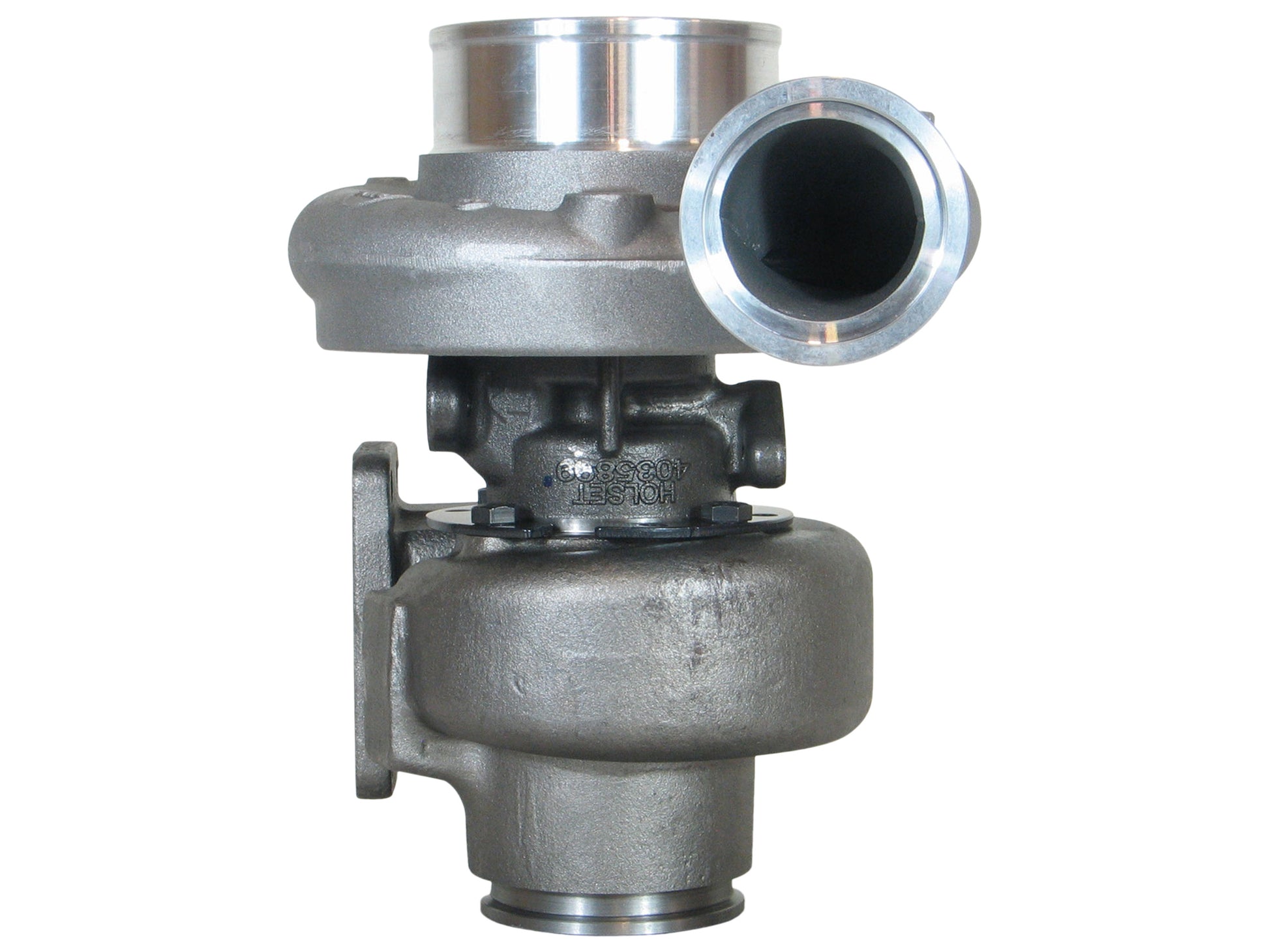

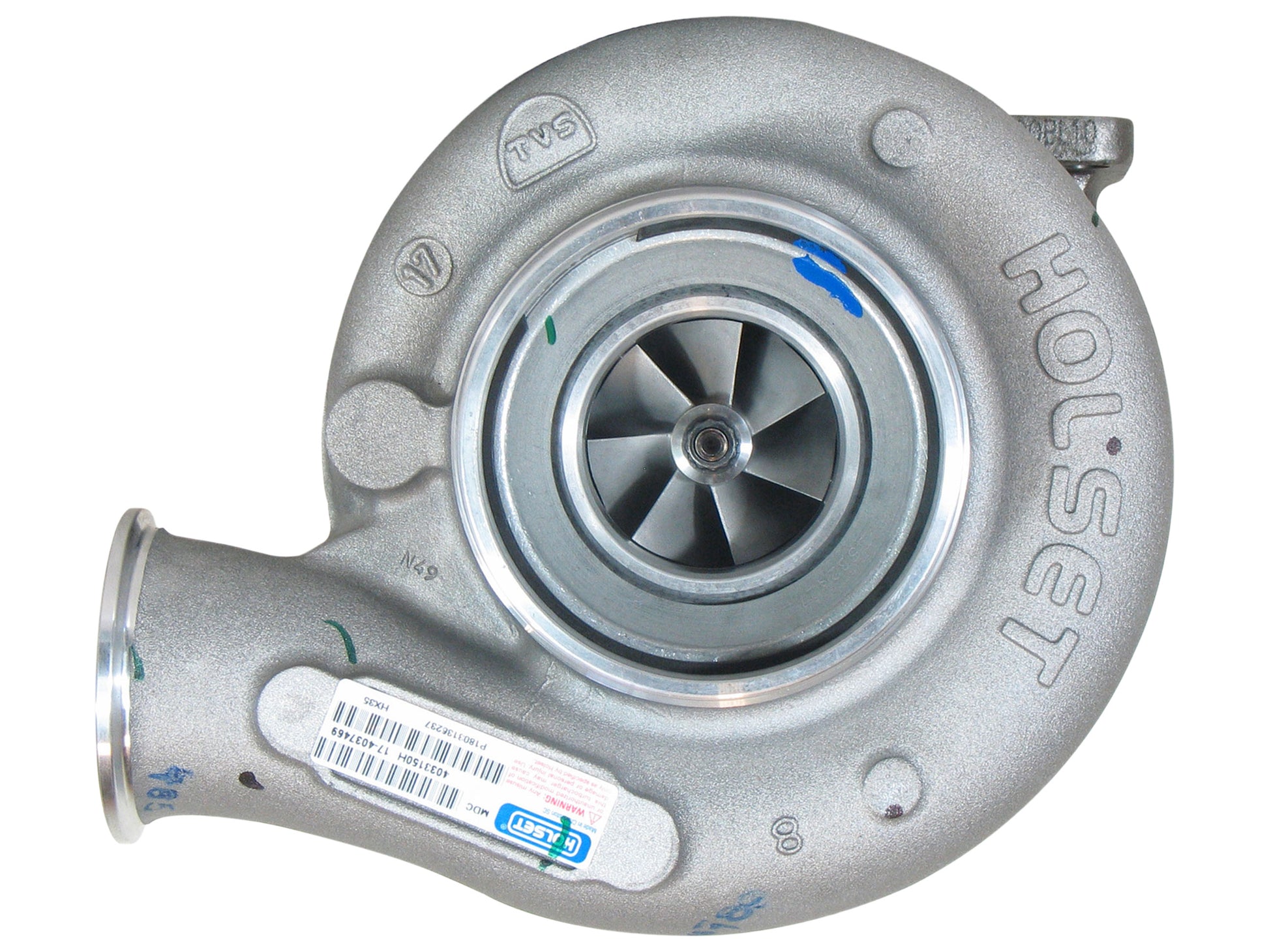

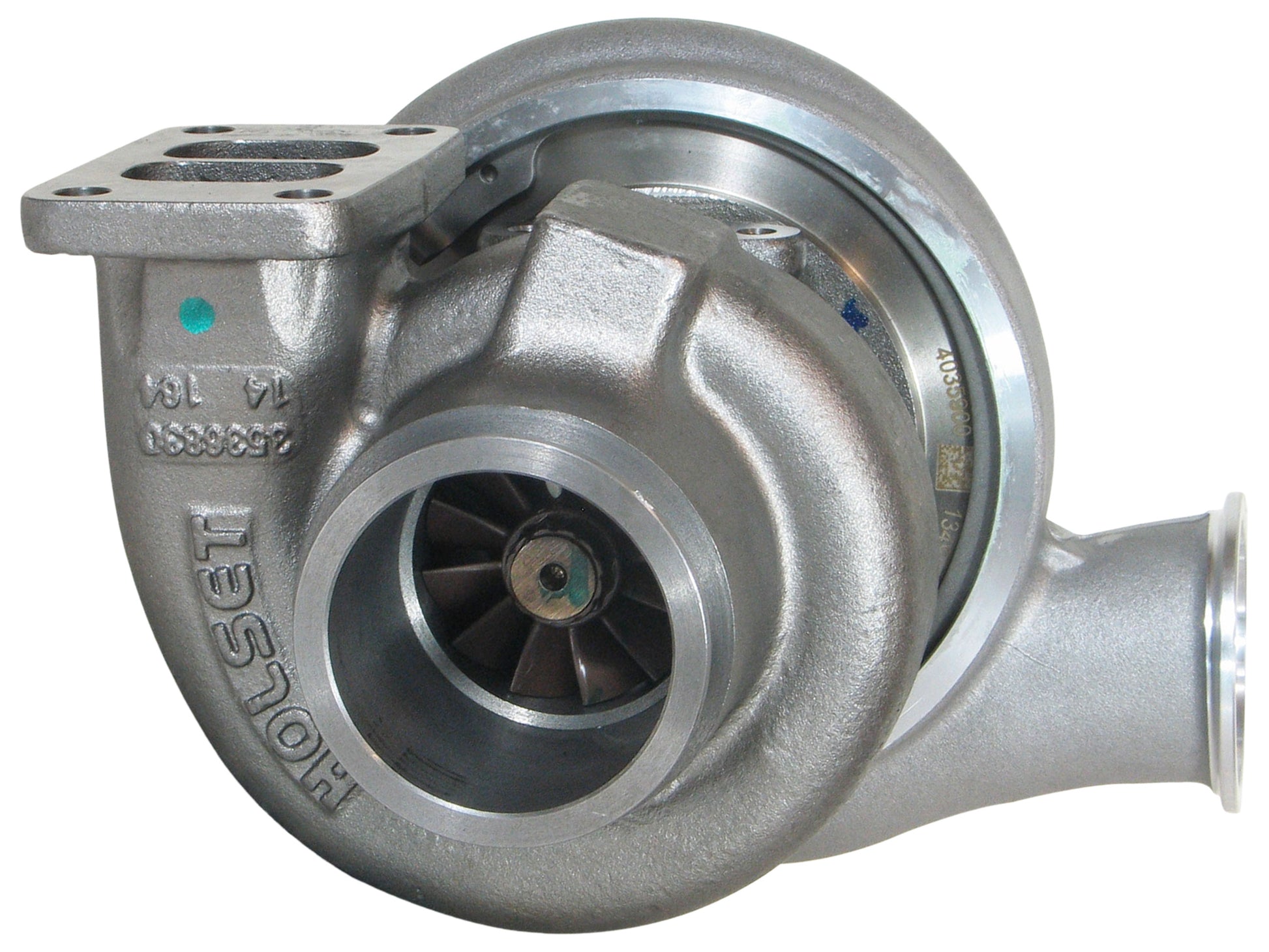

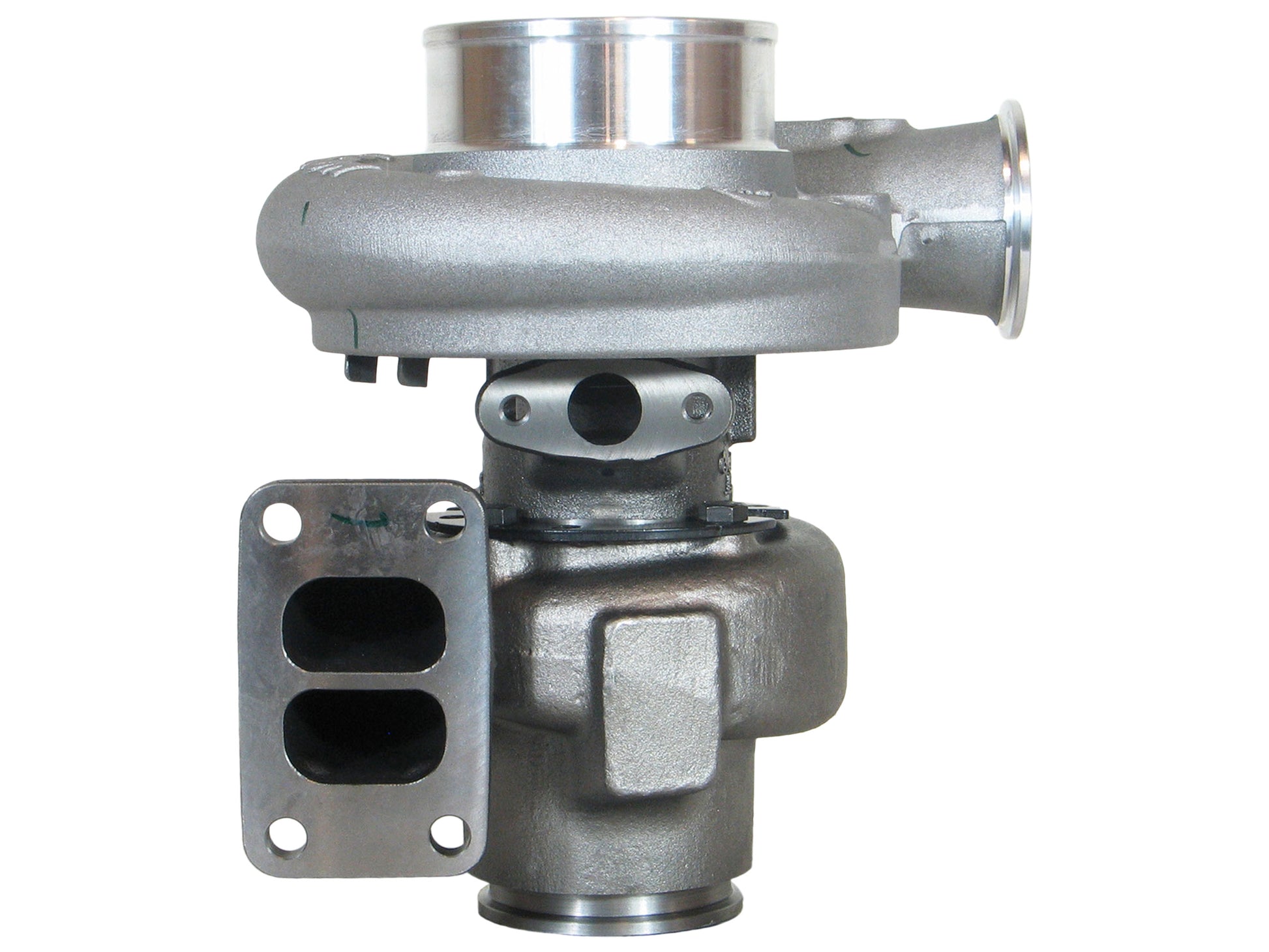

NEW OEM Holset HX35 Turbo Komatsu PC200-8 Excavator Cummins QSB 4955155 4037469

BRAND NEW GENUINE HOLSET TURBOCHARGER

This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

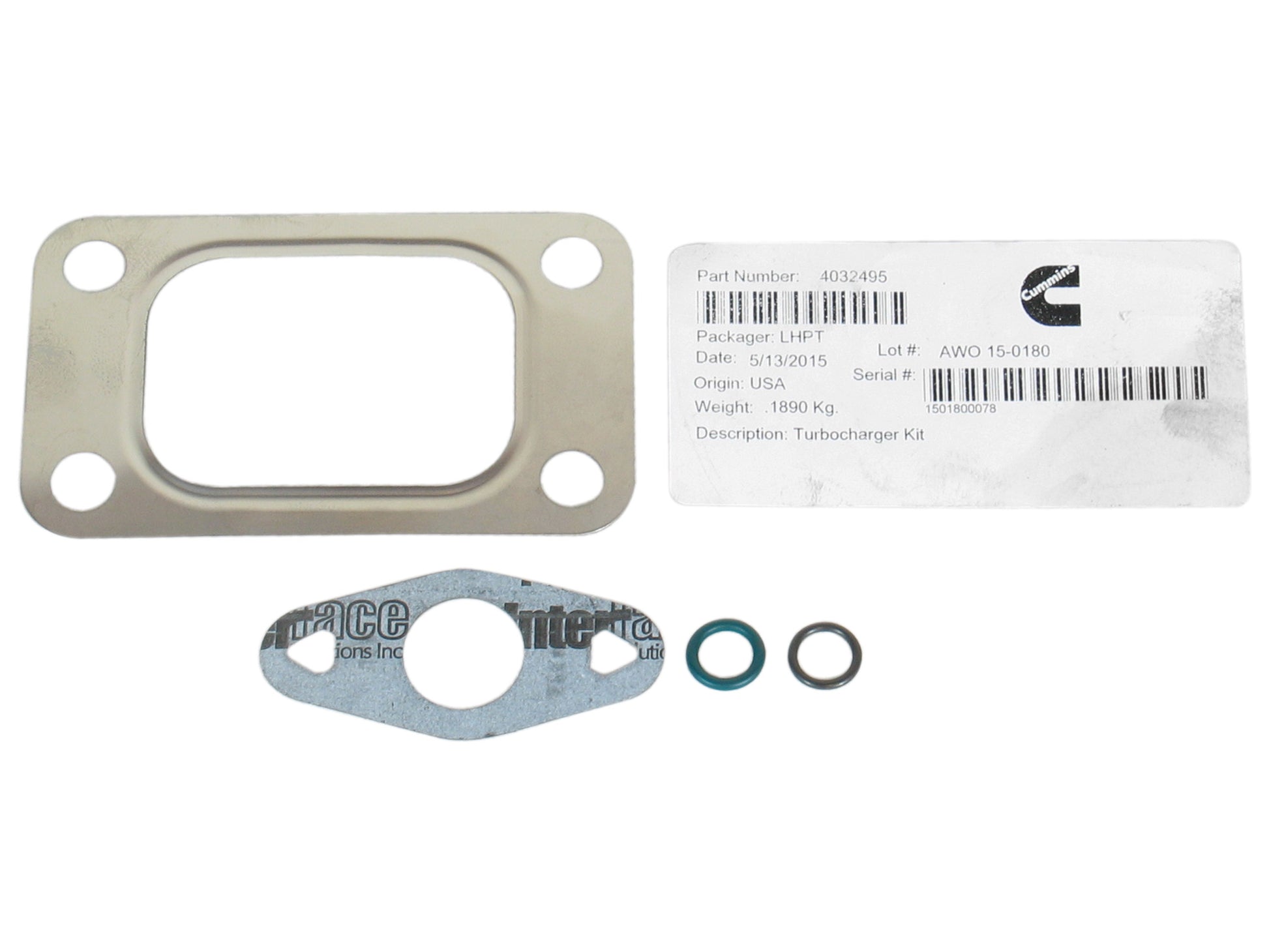

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 4037469
Interchangeable Number: 2835695, 3537461, 3537463H, 403315000H, 4033150H, 4037470, 4038210, 4038288, 4045785, 4046281, 5359324, 884617-0001, 884617-5001, 884617-5001S, 884617-5001Y
OEM Number: 3537462, 3537463, 4955155, 5452777, 6754-81-8090, 6754818090, 6754-81-8190, 6754818190, 6754-82-8010, 6754828010, 6754-82-8020, 6754828020
Turbo Model: HX35, HX35-A77J70GM/A70Q86FE14DD
Manufacturer: Holset

Year: 2004-
Engine: QSB, QSB Tier 3, SAA6D107E-1
Engine Manufacturer: Cummins
Displacement: 6.7L, 6700 ccm
Fuel: Diesel
Power: 155 HP

Angle α (Compressor Housing): 160/185/195/228/240/340/356.5°
Angle β (Turbine Housing): 20/165/360°
Back Plate: 3530923 (1154351300)
Bearing Housing: 4027882 (4027882H)
CHRA: 4030868 (4030868H)
Clamp Plate (Turbine): 2839879H
Compressor Housing: 4040185H
Compressor Wheel: 3599649
Gasket (Turbine Outlet): 3535001 (3922789)(Inox Steel)
Gasket Kit: 4032496/4032495H
Heat Shield: 3519302 (1152301340)
Repair Kit (Major): 3575169 (3575169H)(1153035750)/4027448H
Repair Kit (Minor): 5451883H/4031746H
Retaining Ring: 3533163H
Split Ring Seal (Compressor): 3758848H
Turbine Housing Fitting Kit: 5451885H
Turbine Wheel: 3519336 (Ind. 70 mm, Exd. 59.9 mm, 12 Blades)(1152301435)
Turbocharger Kit: 4033150H

Application:
2004- Komatsu PC200-8 Earth Moving, Excavator with SAA6D107E-1 Engine
2004- Truck with Cummins QSB Tier 3 Engine
Case CX210, CX210LR, CX240, CX240LR, CX290, C-Series Crawler Excavator
Komatsu Industrial with Cummins QSB Engine
SDLG LG6210, 622 Excavator with Cummins QSB Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
