Holset
NEW Holset HX55W Turbo Industrial Cummins QSM 2/3 11.0L Diesel 4037626 4037625
NEW Holset HX55W Turbo Industrial Cummins QSM 2/3 11.0L Diesel 4037626 4037625
SKU:4037626
Regular price
$2,845.00
Regular price
$0.00
Sale price
$2,845.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Orders ship Monday-Friday, usually within 24 hours of purchase.
International shipping subject to VAT and/or other import tax calculated during checkout.

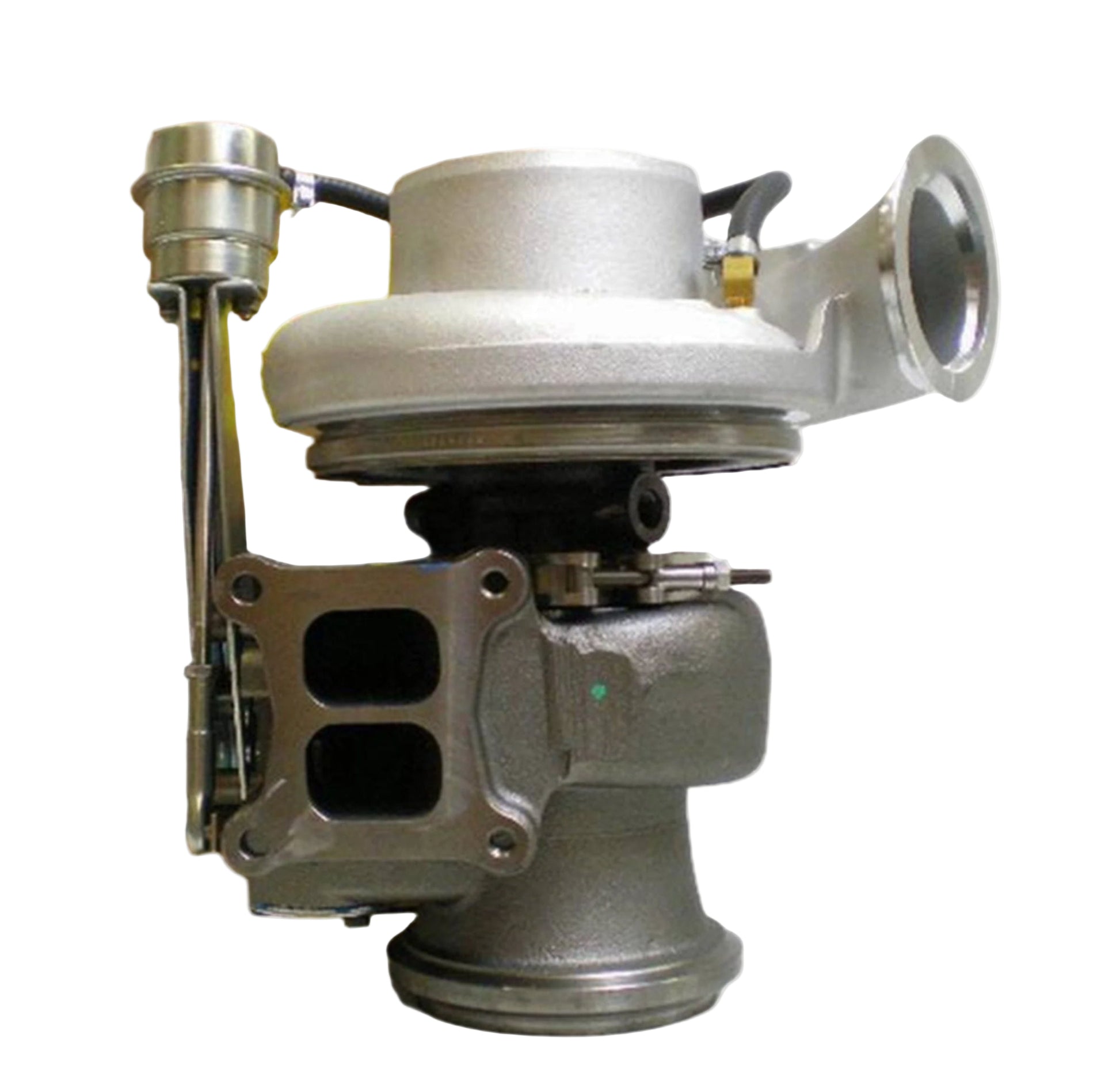

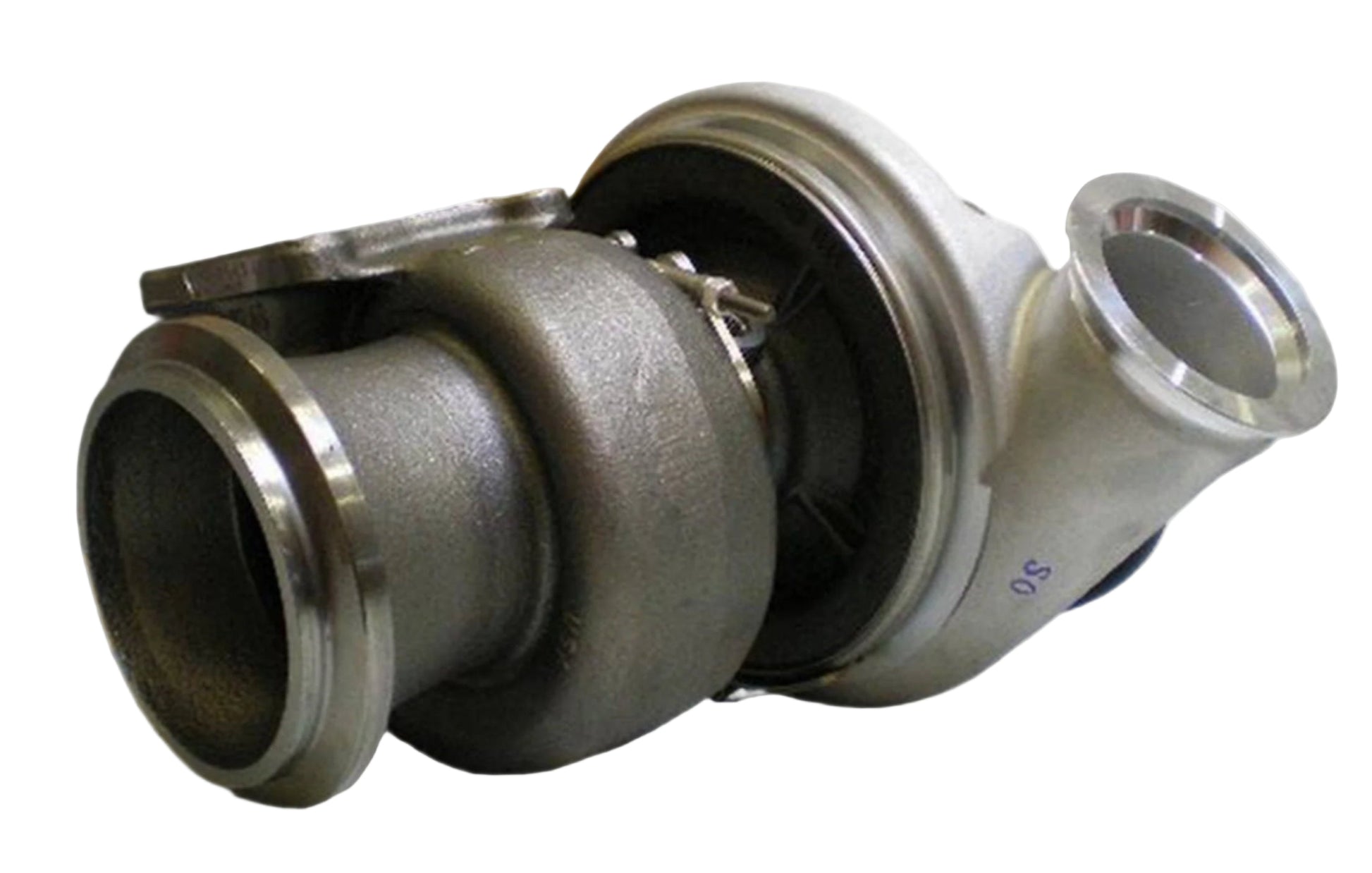

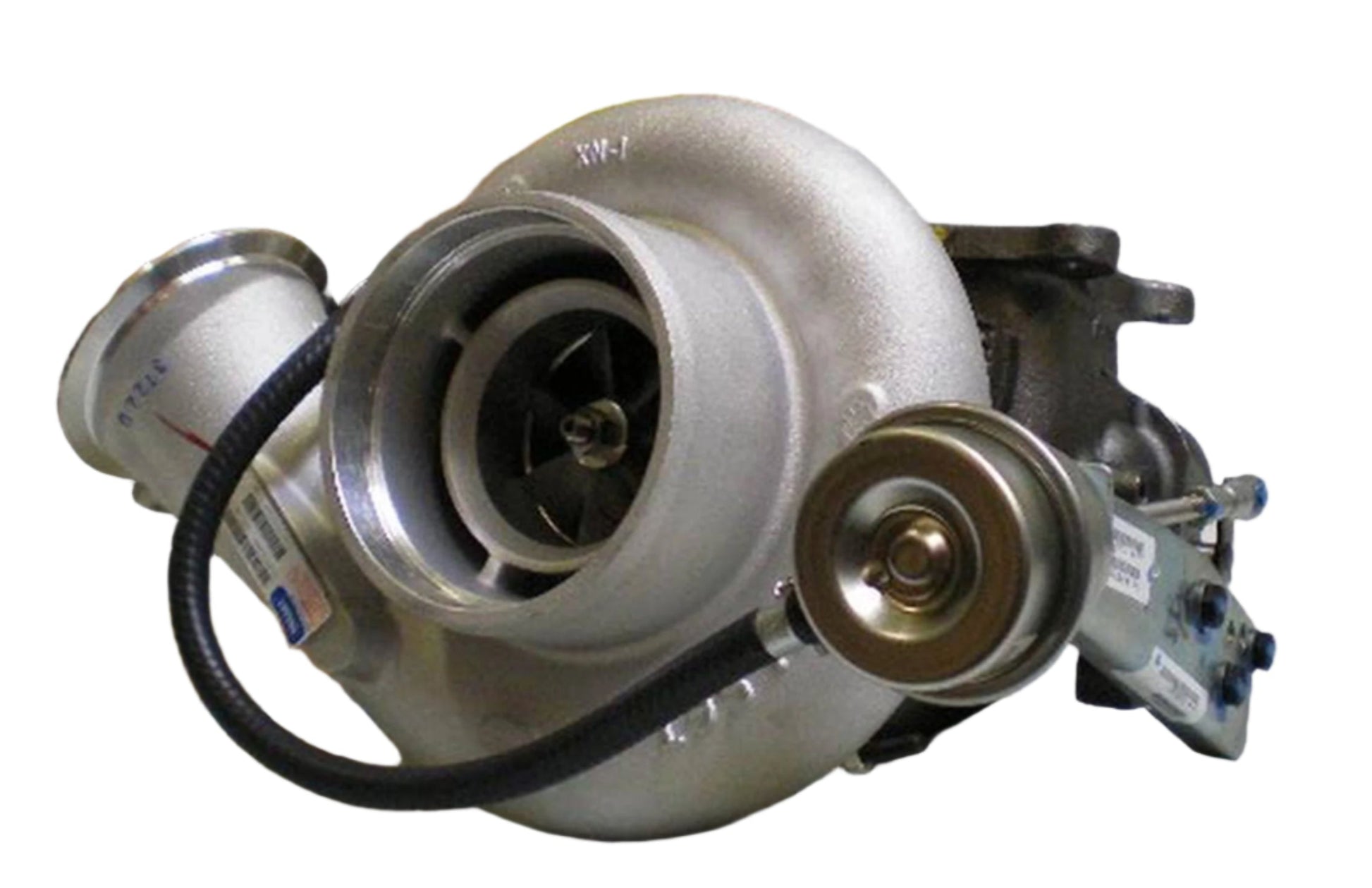

BRAND NEW GENUINE HOLSET TURBOCHARGER
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 4037625
Interchangeable Number: 3792807, 3792809H, 4035893H, 4036915, 4037626H, 4039067, 4043707, 4089885, 4089885H, 435229800, 435229800HX, 4352298H, 4352298NX, 4352298RX, 4955714, 4955714NX, 4955714RX
OEM Number: 3792809, 4035893, 4037626, 4039068, 4043708, 4089858, 4352298
Turbo Model: HX55W, HX55W-C98K72RU/C86L90PH19J-W2
Manufacturer: Holset
Year: 2004-
Engine: M11, M11 Tier 3, QSM 2/3, QSM 2/3 Tier 3, QSM11
Engine Manufacturer: Cummins
Displacement: 11.0L, 6 Cylinders in-line
Emission Standard: Tier 3
Fuel: Diesel
Angle α (Compressor Housing): 264/268°
Angle β (Turbine Housing): 130/275.5°
Actuator Kit (Pneumatic): 4030835 (4030835H, 4037622, 4037623)
Back Plate: 3528096 (1153055300)
Bearing Housing: 3535575 (353557500, 3535704)(Oil Cooled)
Bracket Kit: 4030841H
CHRA: 4032690 (4032690H, 3768413)
Compressor Cover: 4036914 (4036914H)
Compressor Wheel: 4035887 (3596135)(4036317) (Ind. 71 mm, Exd. 99.01 mm, Trim 51, 6+6 Blade)
Coupling Hose: 3537930H
Gasket (Oil Inlet): 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)
Gasket (Oil Outlet): 210060 (311585, 148062, 409267-0003, 409267-0002, 210060-0000, 51914)(Paper)
Gasket (Turbine Inlet): 409039-0000 (409039-0001, 210019, 2405022, 210847)(1900000006)(Inox Steel)$13.52
Gasket (Turbine Outlet): 210245 (Inox Steel)
Gasket Kit: 4032517
Heat Shield: 3529846 (3533038)(1153055340)
Repair Kit: 3580762 (3580762H, 3575181, 3533038)(1153055750)
Turbine Housing Kit: 3592781H
Turbine Housing: 3592774
Turbine Wheel: 3535983 (Ind. 85.8 mm, Exd. 76.95 mm, 12 Blades) (1153055436)
Turbocharger Kit: 4037626H
Application:
2004- Industrial with Cummins QSM 2/3 Engine
Hyster RS45-31CH ReachStacker Container Handler
Non-Road Vehicles with Cummins QSM11 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 4037625
Interchangeable Number: 3792807, 3792809H, 4035893H, 4036915, 4037626H, 4039067, 4043707, 4089885, 4089885H, 435229800, 435229800HX, 4352298H, 4352298NX, 4352298RX, 4955714, 4955714NX, 4955714RX
OEM Number: 3792809, 4035893, 4037626, 4039068, 4043708, 4089858, 4352298
Turbo Model: HX55W, HX55W-C98K72RU/C86L90PH19J-W2
Manufacturer: Holset
Year: 2004-
Engine: M11, M11 Tier 3, QSM 2/3, QSM 2/3 Tier 3, QSM11
Engine Manufacturer: Cummins
Displacement: 11.0L, 6 Cylinders in-line
Emission Standard: Tier 3
Fuel: Diesel
Angle α (Compressor Housing): 264/268°
Angle β (Turbine Housing): 130/275.5°
Actuator Kit (Pneumatic): 4030835 (4030835H, 4037622, 4037623)
Back Plate: 3528096 (1153055300)
Bearing Housing: 3535575 (353557500, 3535704)(Oil Cooled)
Bracket Kit: 4030841H
CHRA: 4032690 (4032690H, 3768413)
Compressor Cover: 4036914 (4036914H)
Compressor Wheel: 4035887 (3596135)(4036317) (Ind. 71 mm, Exd. 99.01 mm, Trim 51, 6+6 Blade)
Coupling Hose: 3537930H
Gasket (Oil Inlet): 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)
Gasket (Oil Outlet): 210060 (311585, 148062, 409267-0003, 409267-0002, 210060-0000, 51914)(Paper)
Gasket (Turbine Inlet): 409039-0000 (409039-0001, 210019, 2405022, 210847)(1900000006)(Inox Steel)$13.52
Gasket (Turbine Outlet): 210245 (Inox Steel)
Gasket Kit: 4032517
Heat Shield: 3529846 (3533038)(1153055340)
Repair Kit: 3580762 (3580762H, 3575181, 3533038)(1153055750)
Turbine Housing Kit: 3592781H
Turbine Housing: 3592774
Turbine Wheel: 3535983 (Ind. 85.8 mm, Exd. 76.95 mm, 12 Blades) (1153055436)
Turbocharger Kit: 4037626H
Application:
2004- Industrial with Cummins QSM 2/3 Engine
Hyster RS45-31CH ReachStacker Container Handler
Non-Road Vehicles with Cummins QSM11 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
