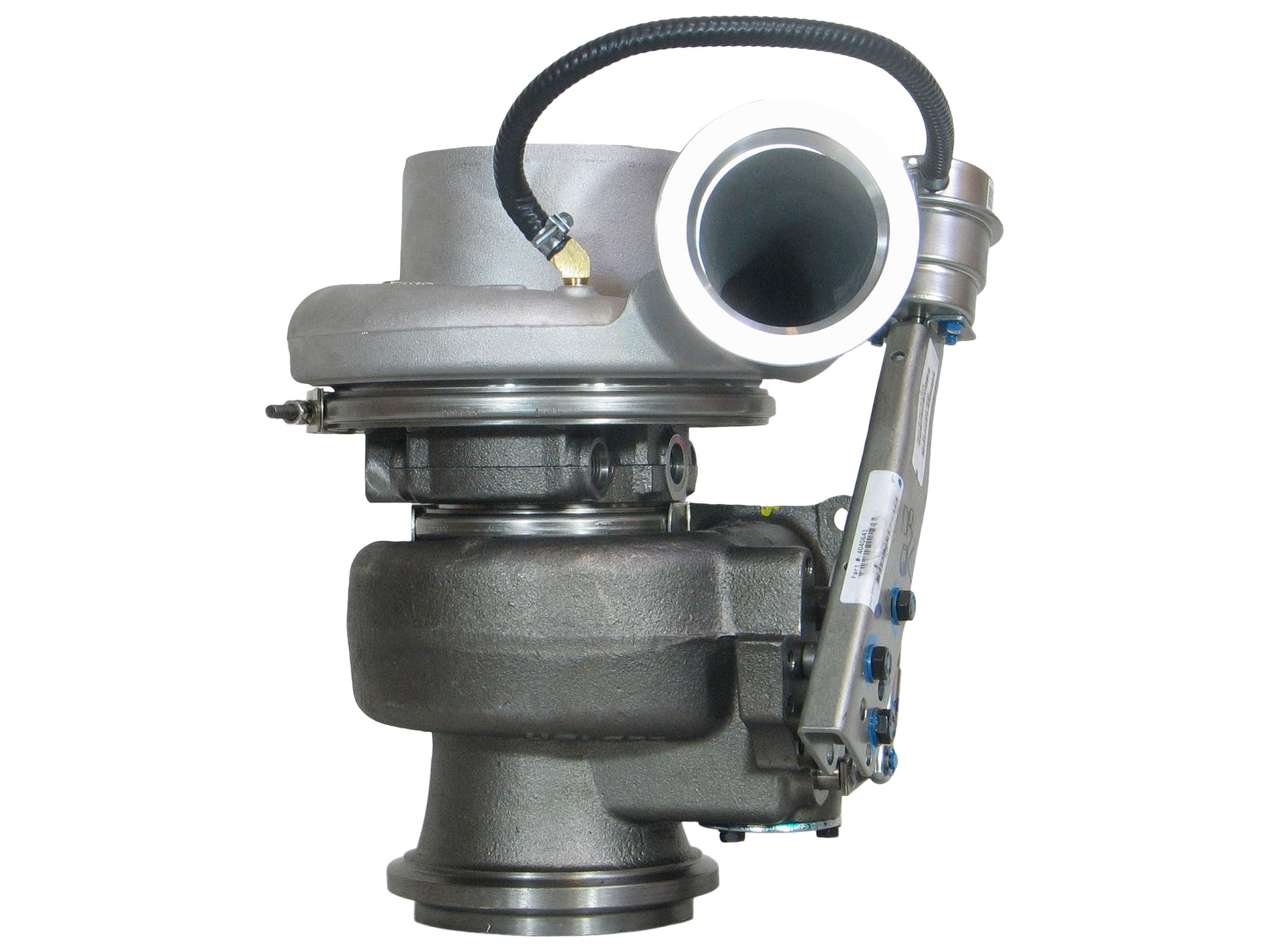

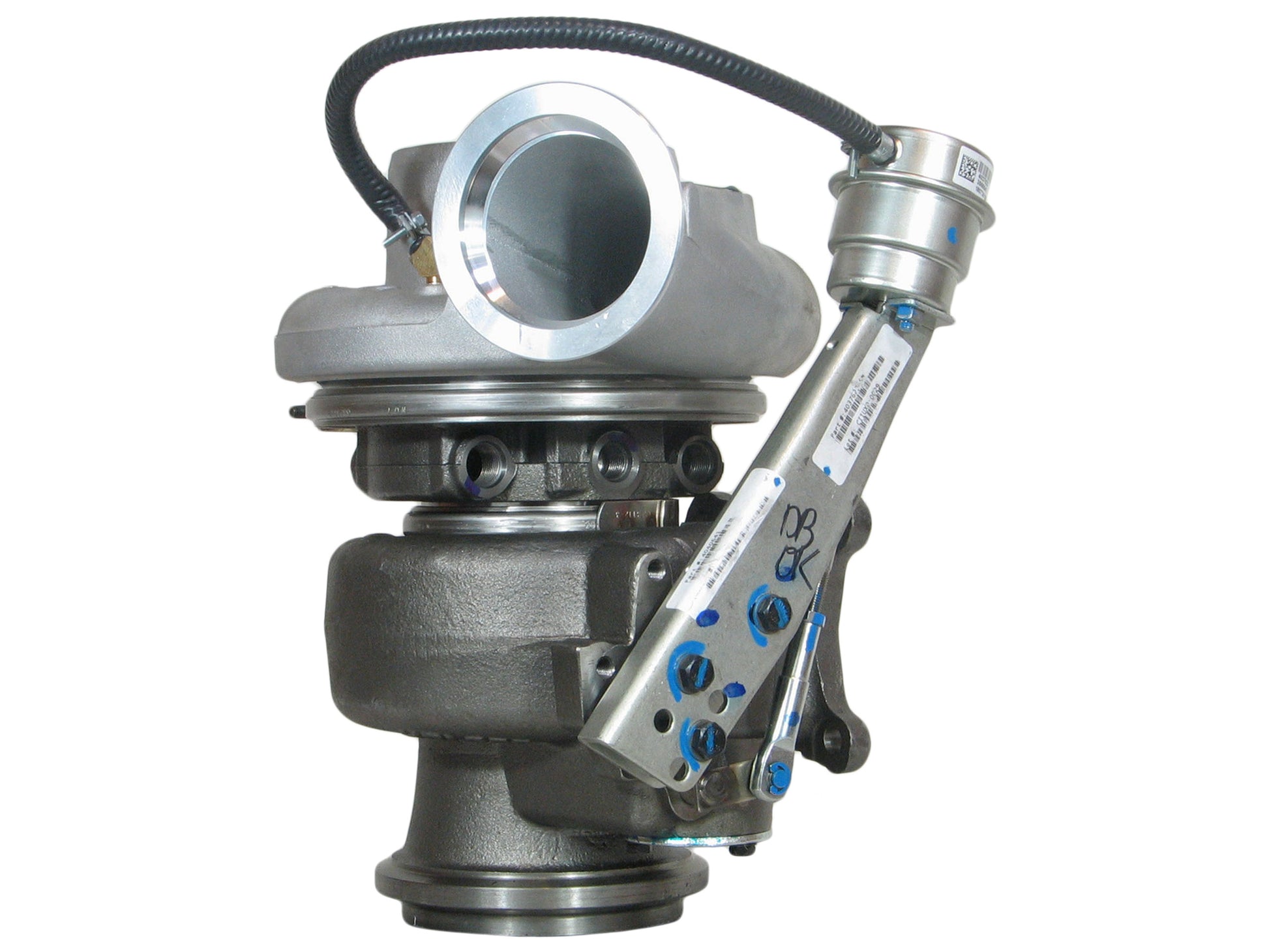

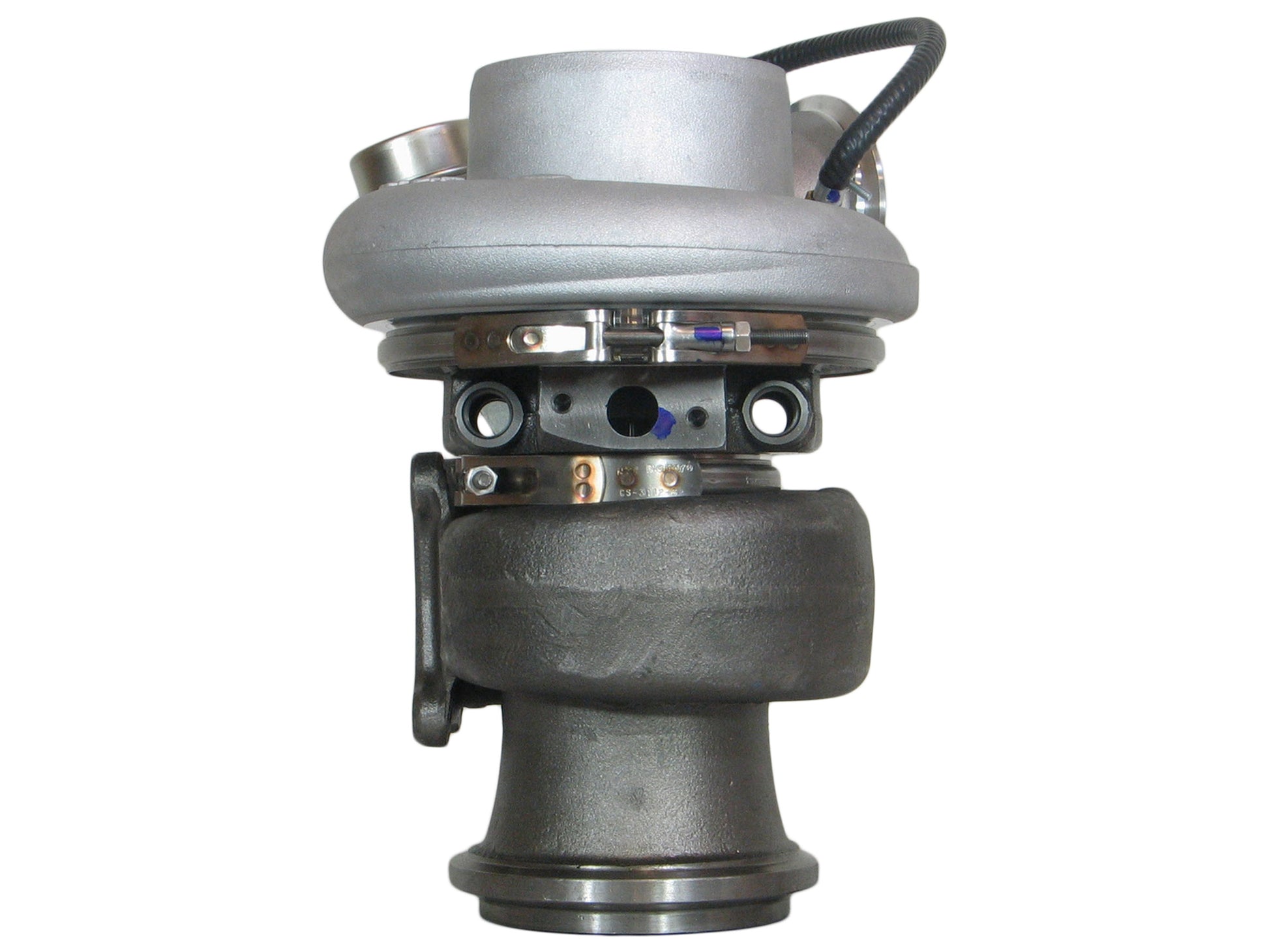

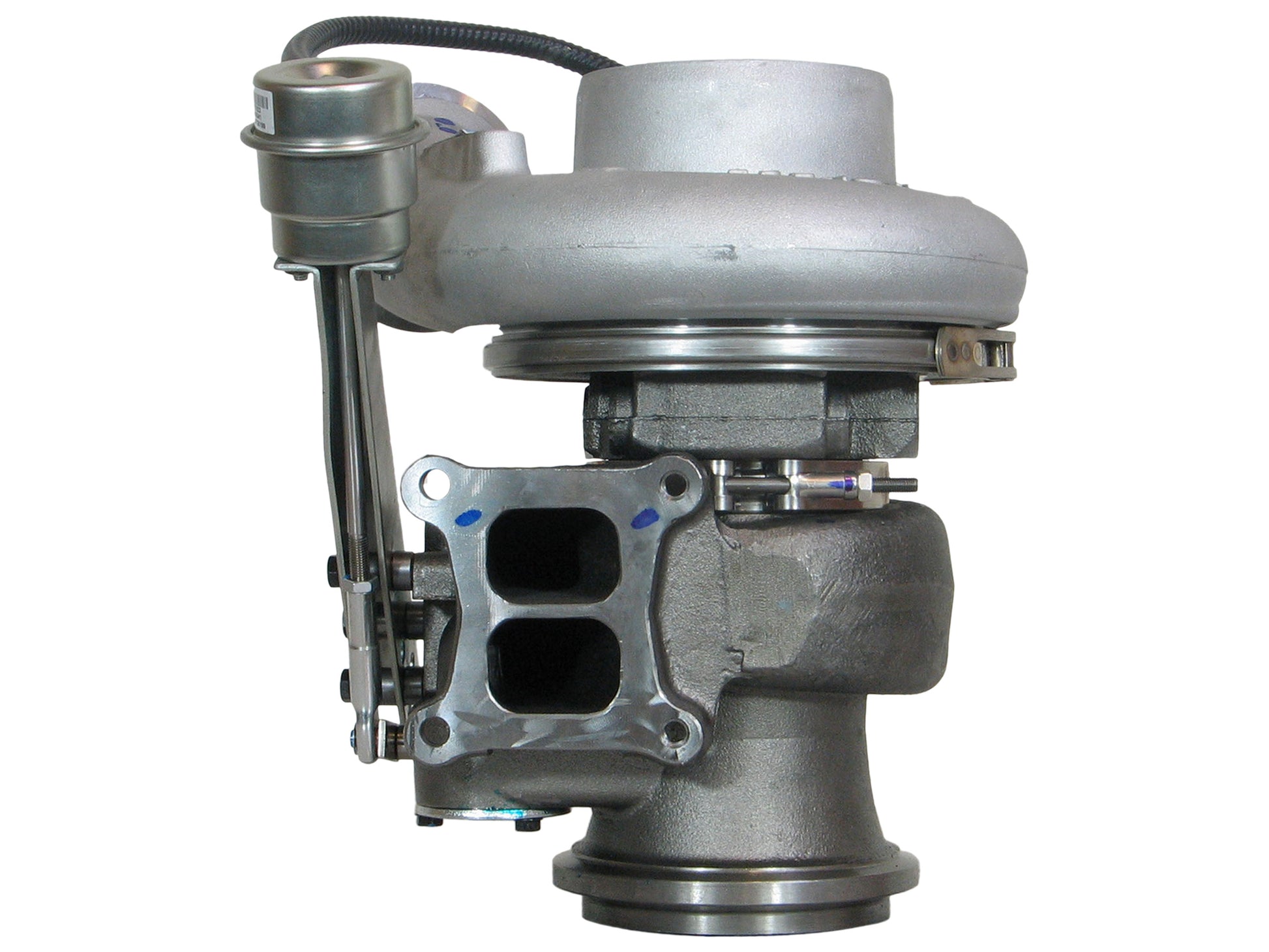

NEW OEM Holset HX55W Turbo Truck Front End Loader Cummins QSM 4089863 4037635SKU: 4037636
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

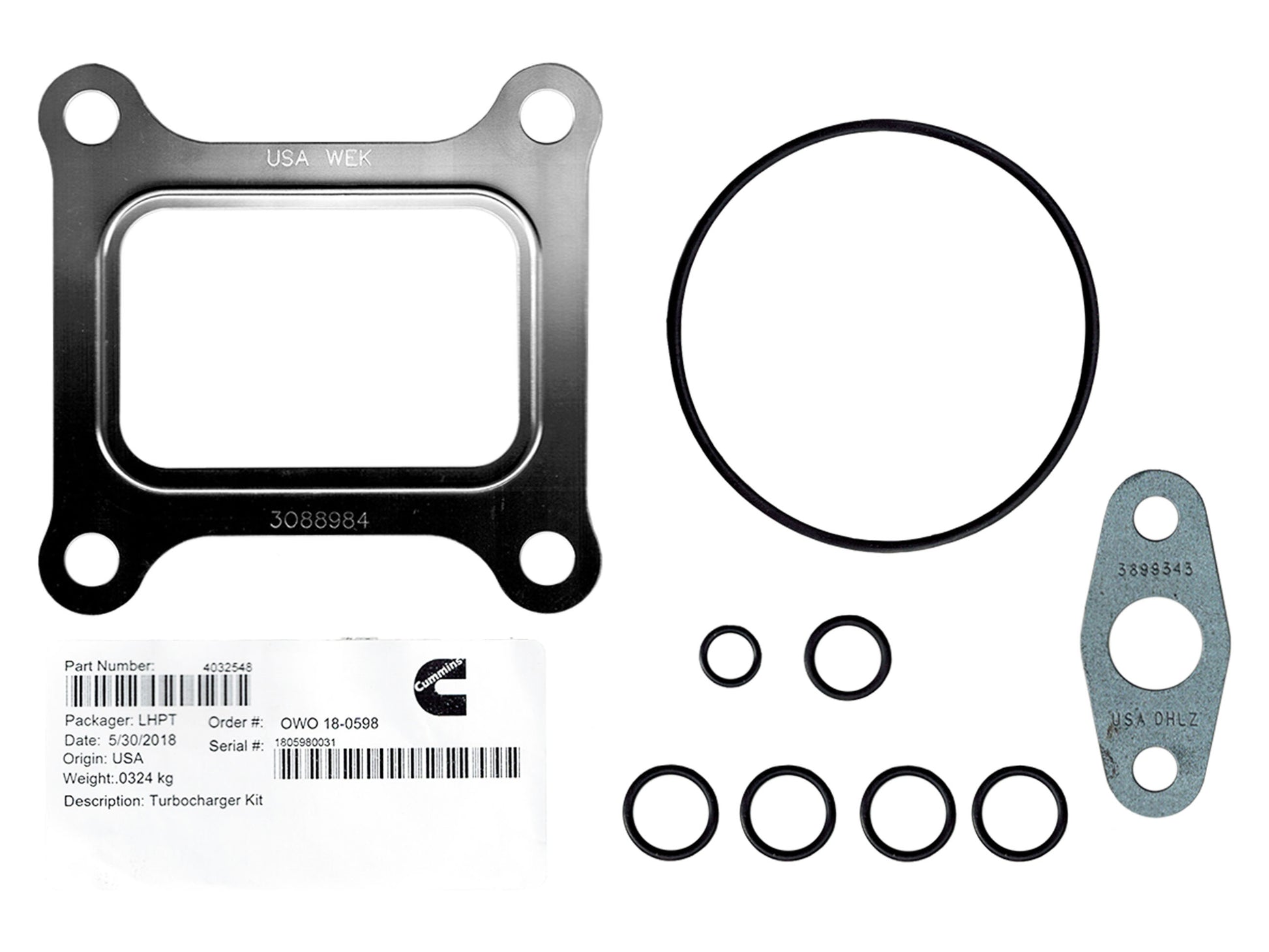

NOTE: This turbocharger package also comes with the gaskets.
Fits the following:
Part Number: 4037635
Interchangeable Number: 4037631, 4037636, 4037636H
OEM Number: 4089863
Turbo Model: HX55W
Engine: QSM, QSM4 Tier 3, QSM11-C
Engine Manufacturer: Cummins
Angle α (Compressor Housing): 330°
Angle ß (Turbine Housing): 270°

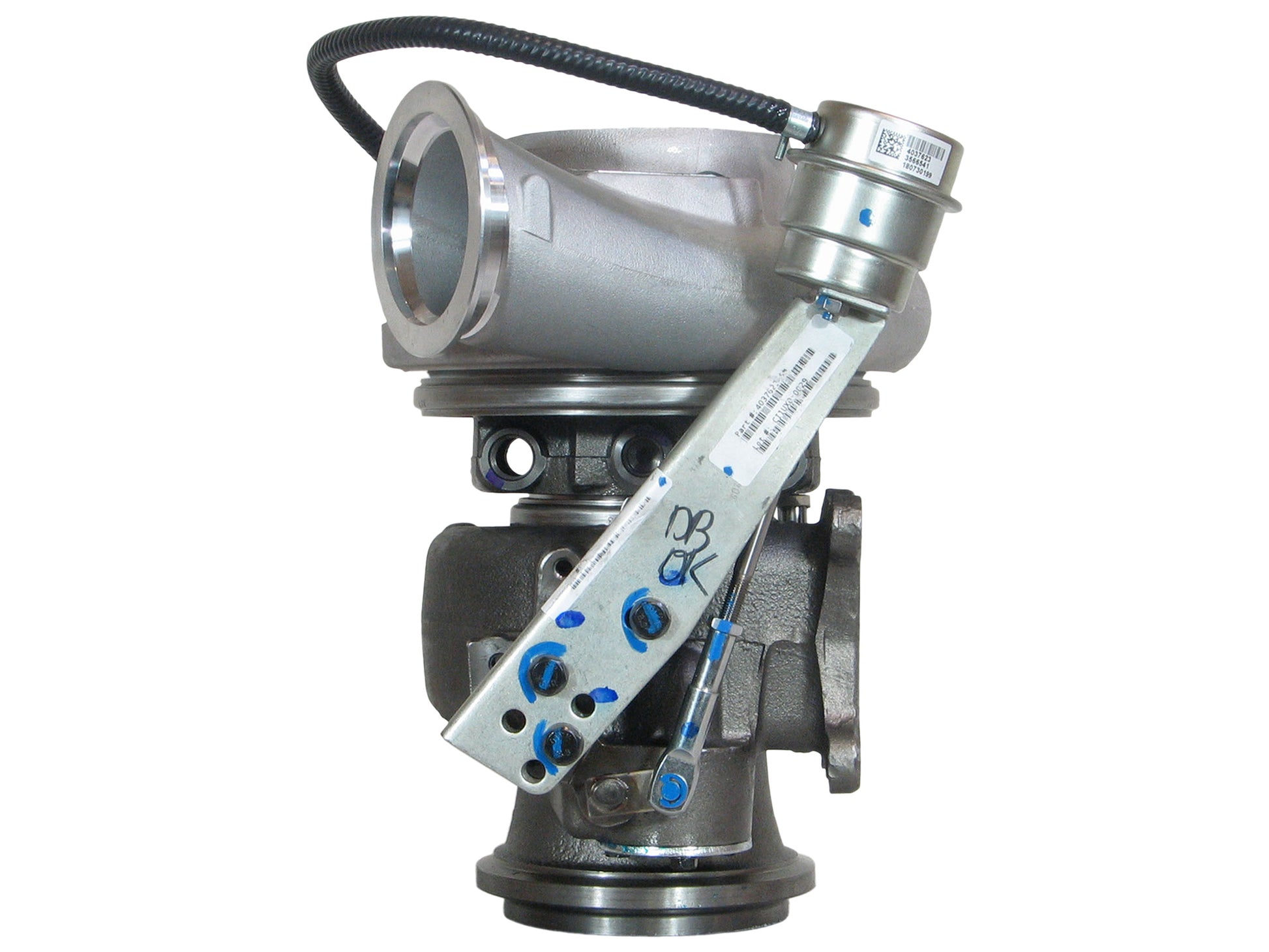

Actuator (Cover Plate): 3527651
Back Plate: 3528096 (352809600)(1153055300)
Bearing Housing: 3593343
CHRA: 4032308 (4032834)
Compressor Cover: 4036914

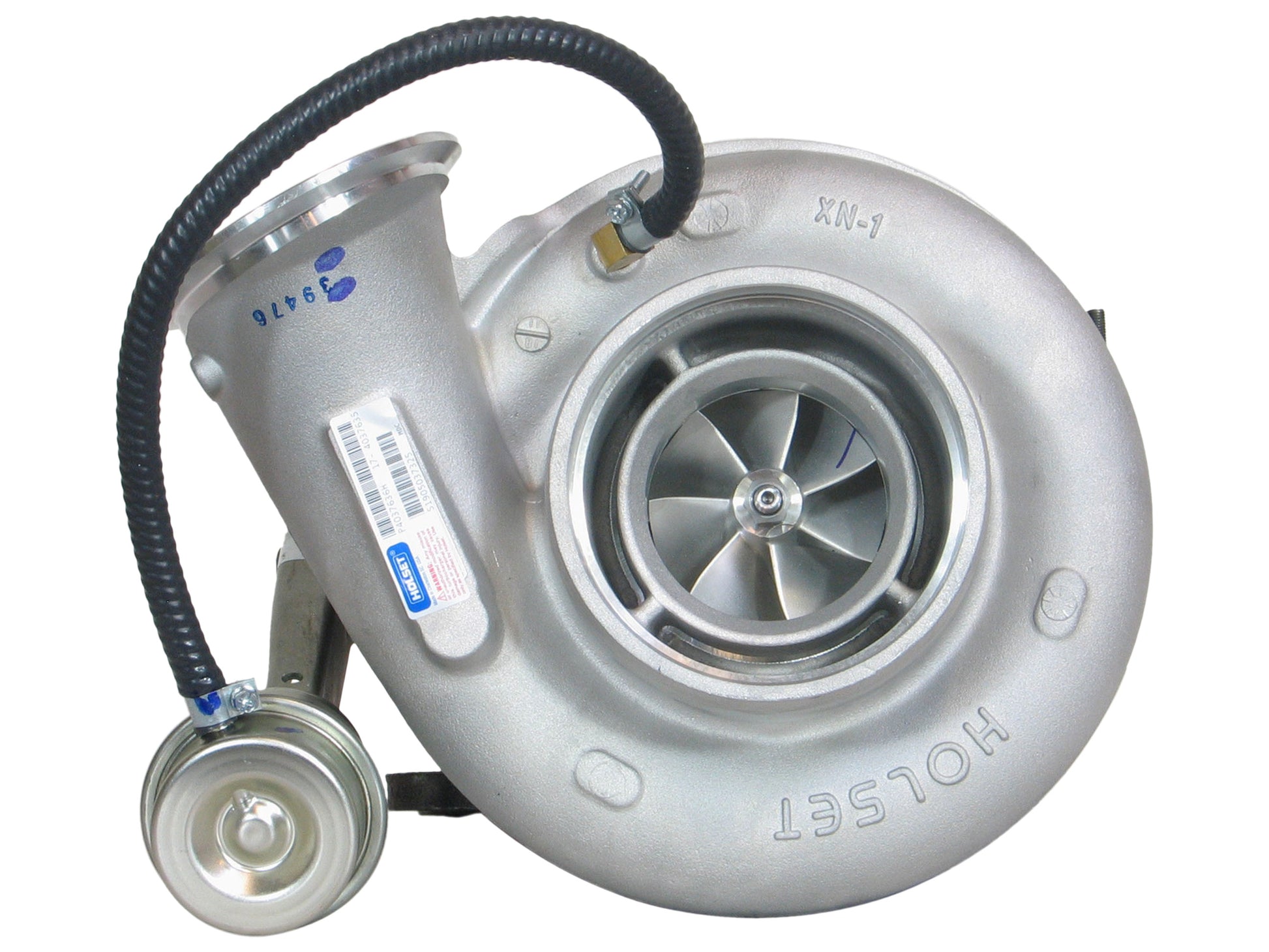

Compressor Wheel: 4035887 (4036317) (Ind. 71 mm, Exd. 99.01 mm, Trim 51, 7+7 Blades)
Gasket (Oil Outlet): 210060 (311585, 148062)
Gasket (Turbine Inlet): 210847 Inox Steel
Gasket Kit: 3800279
Heat Shield: 3533038 (3529846, 353303800, 352984600)(1153055340)
Repair Kit: 3580762 (3575181, 358076200, 357518100)(1153055750)
Turbine Housing: 3592774

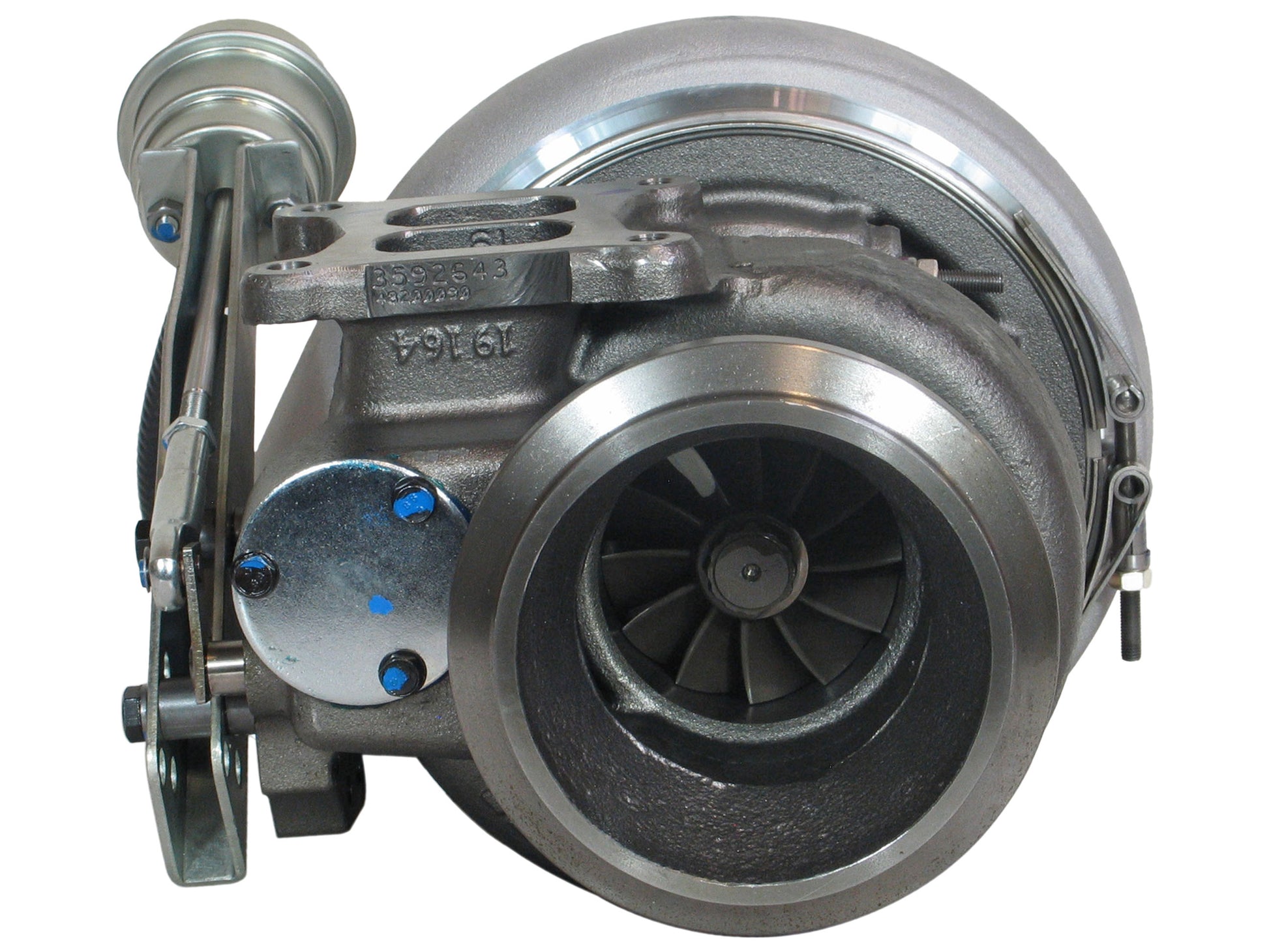

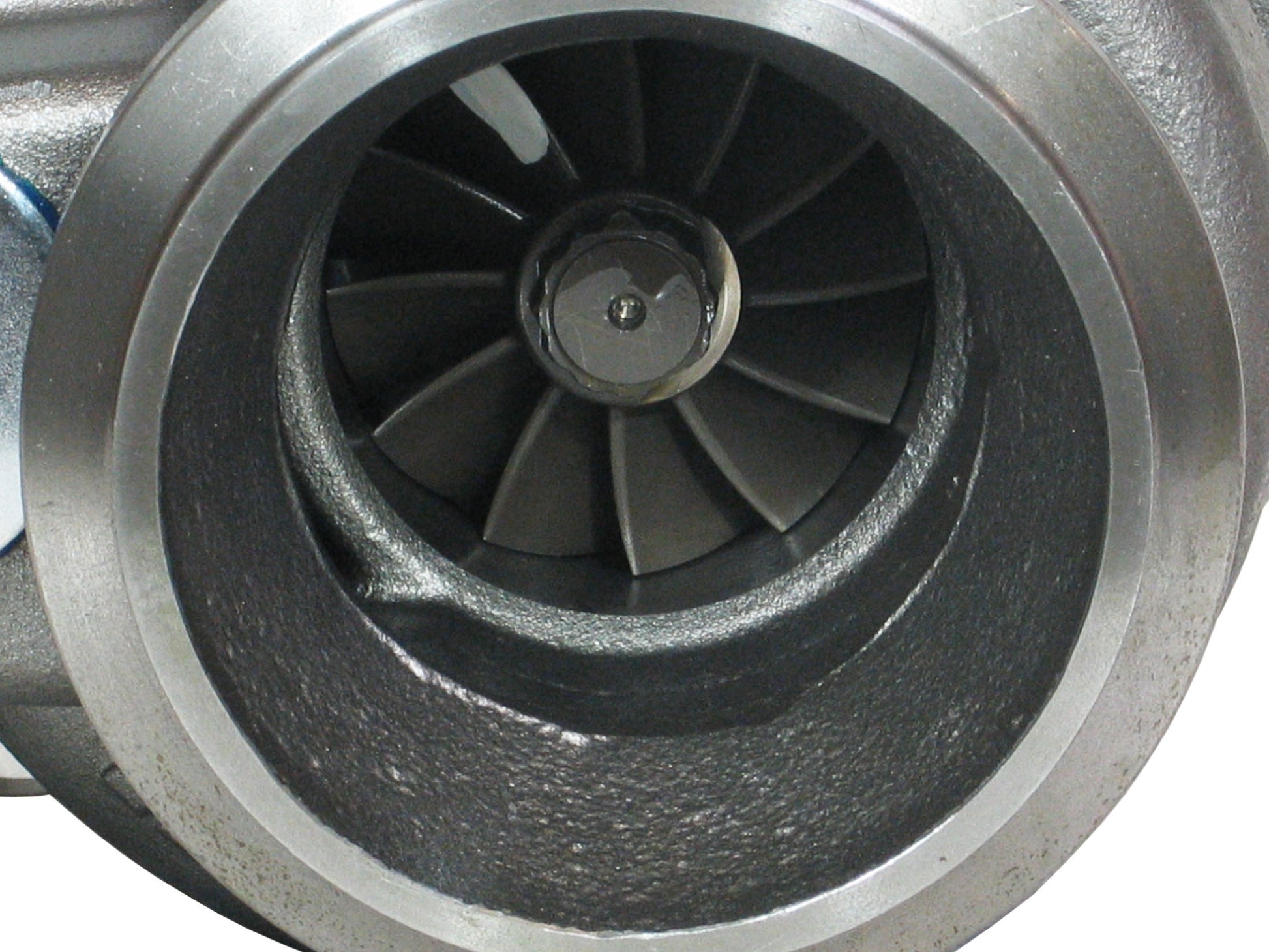

Turbine Wheel: 3535983 (353598300)(Ind. 85.8 mm, Exd. 76.95 mm, 12 Blades)(1153055436)
2005- Front End Loader with Cummins QSM, QSM4 Tier 3 Engine
2005- Hyundai HL780-9 Wheel Loader with Cummins QSM11-C Engine
2005- Truck with Cummins QSM, QSM4 Tier 3 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
