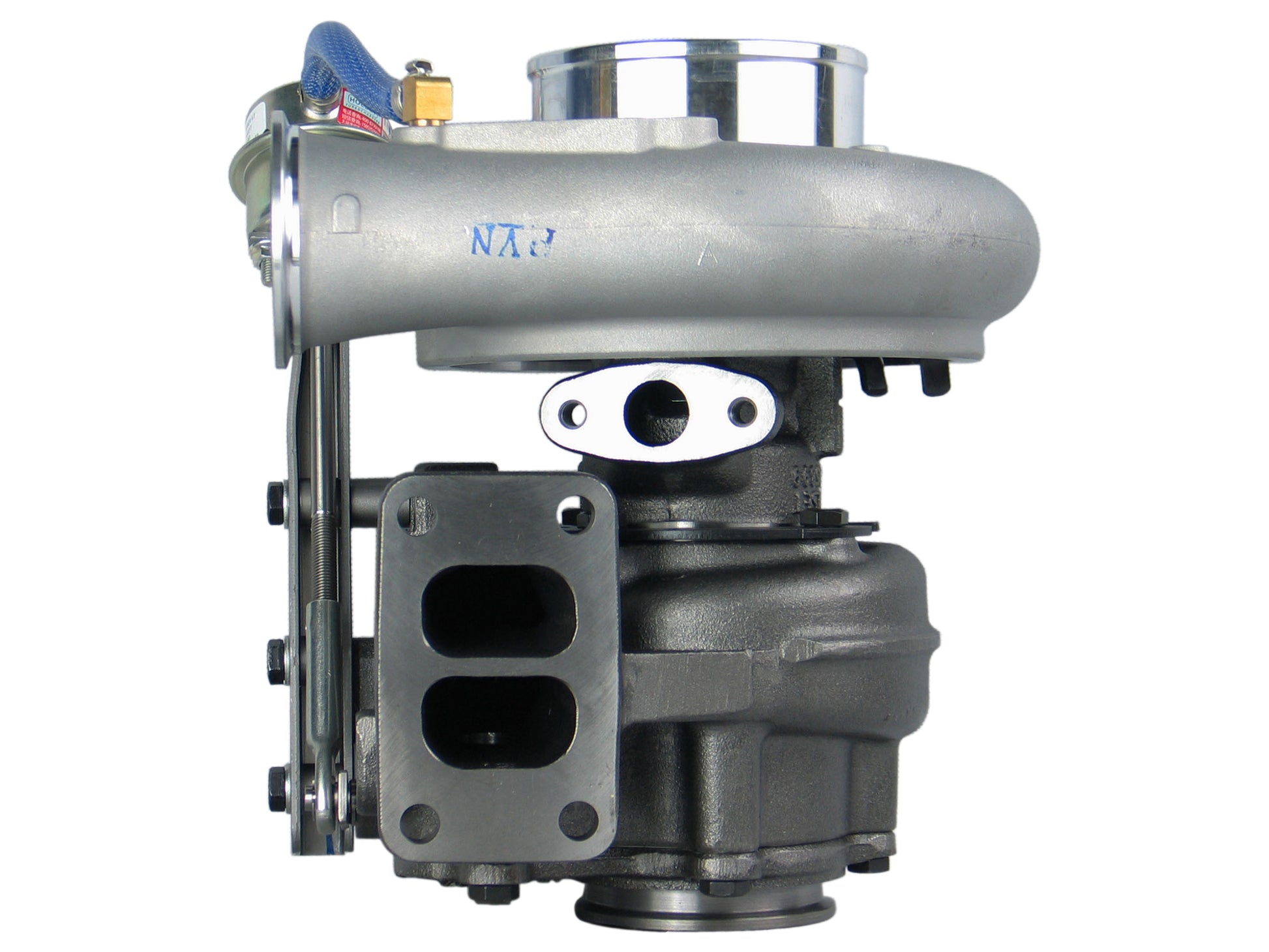

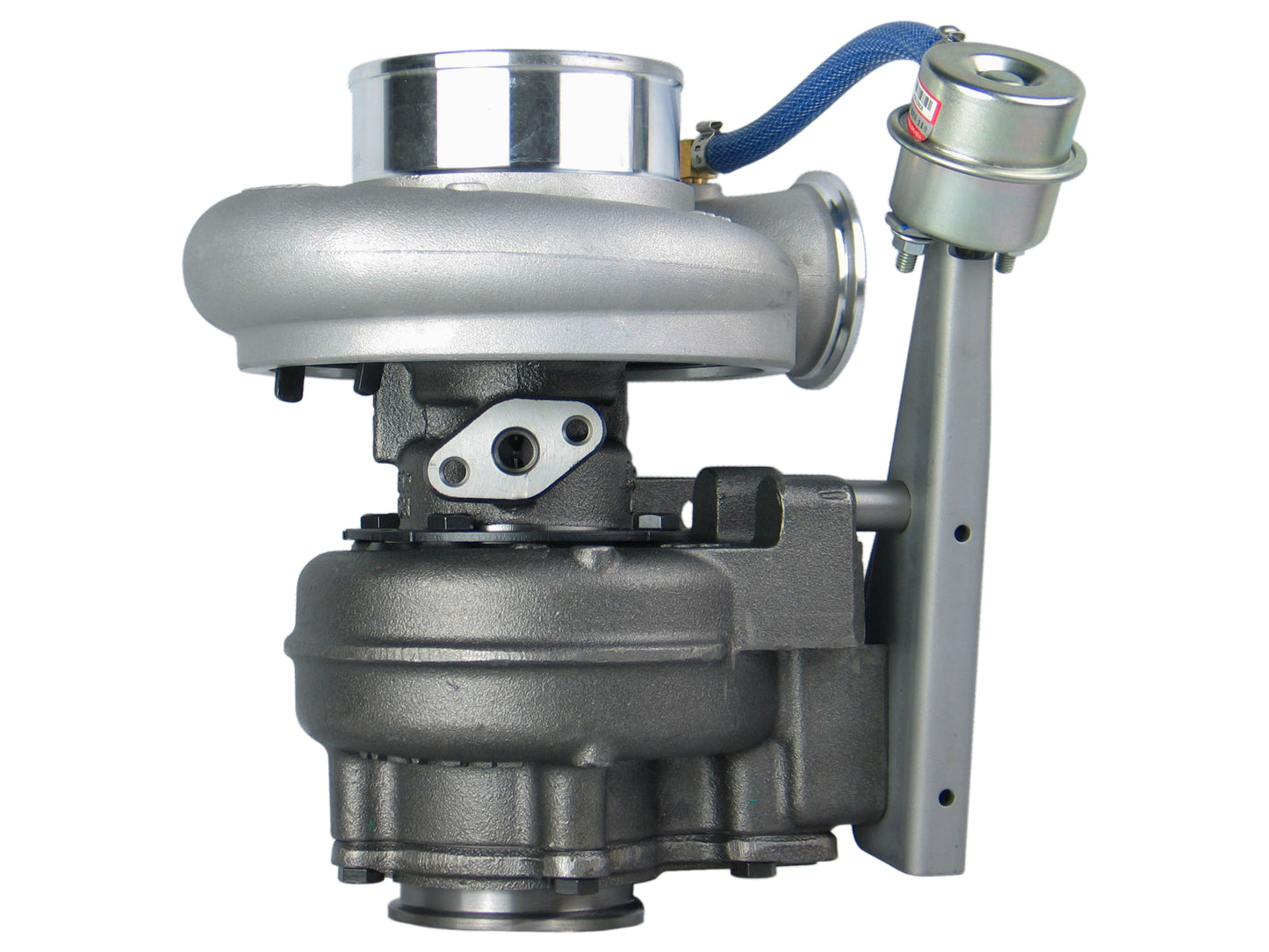

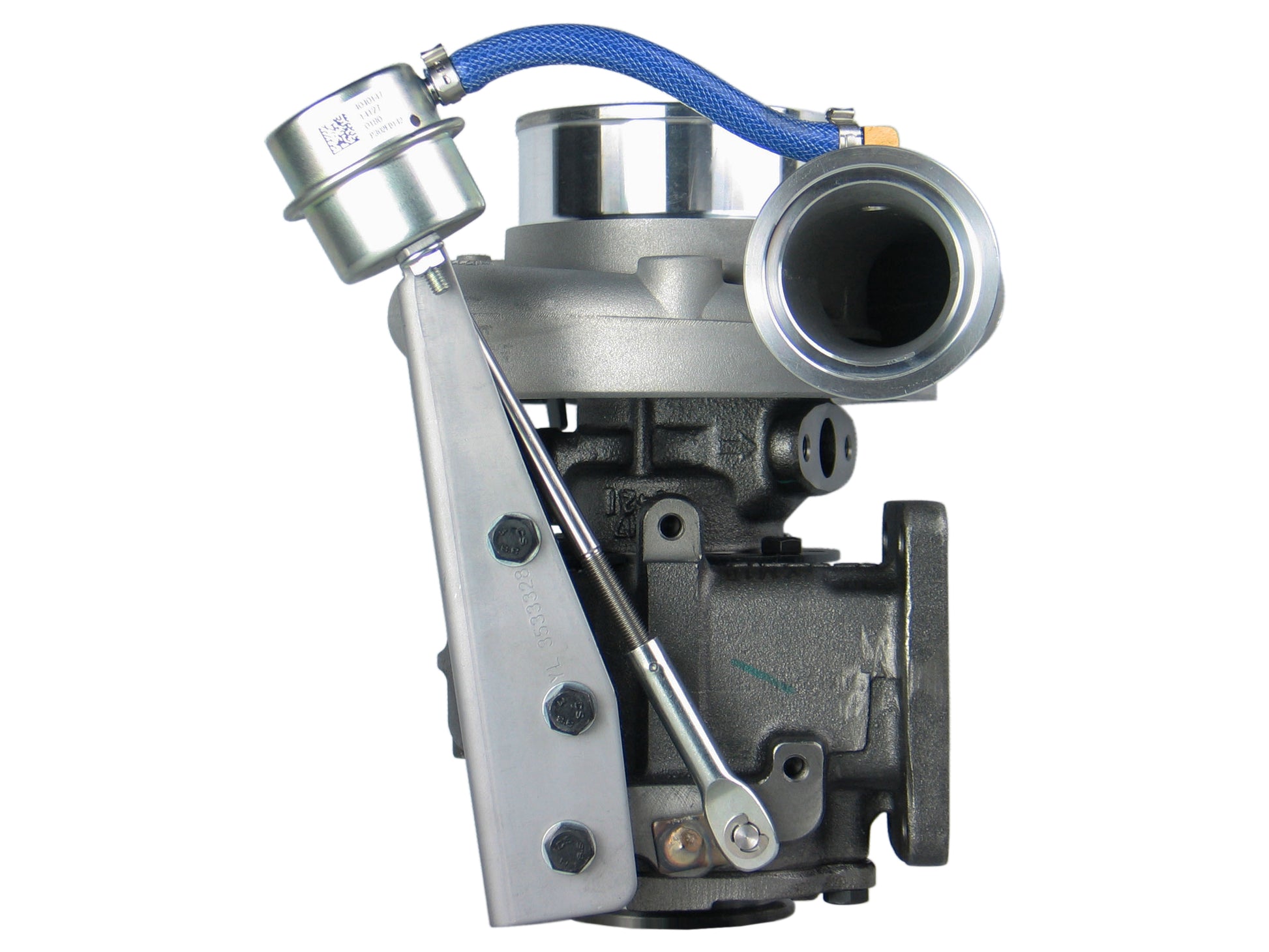

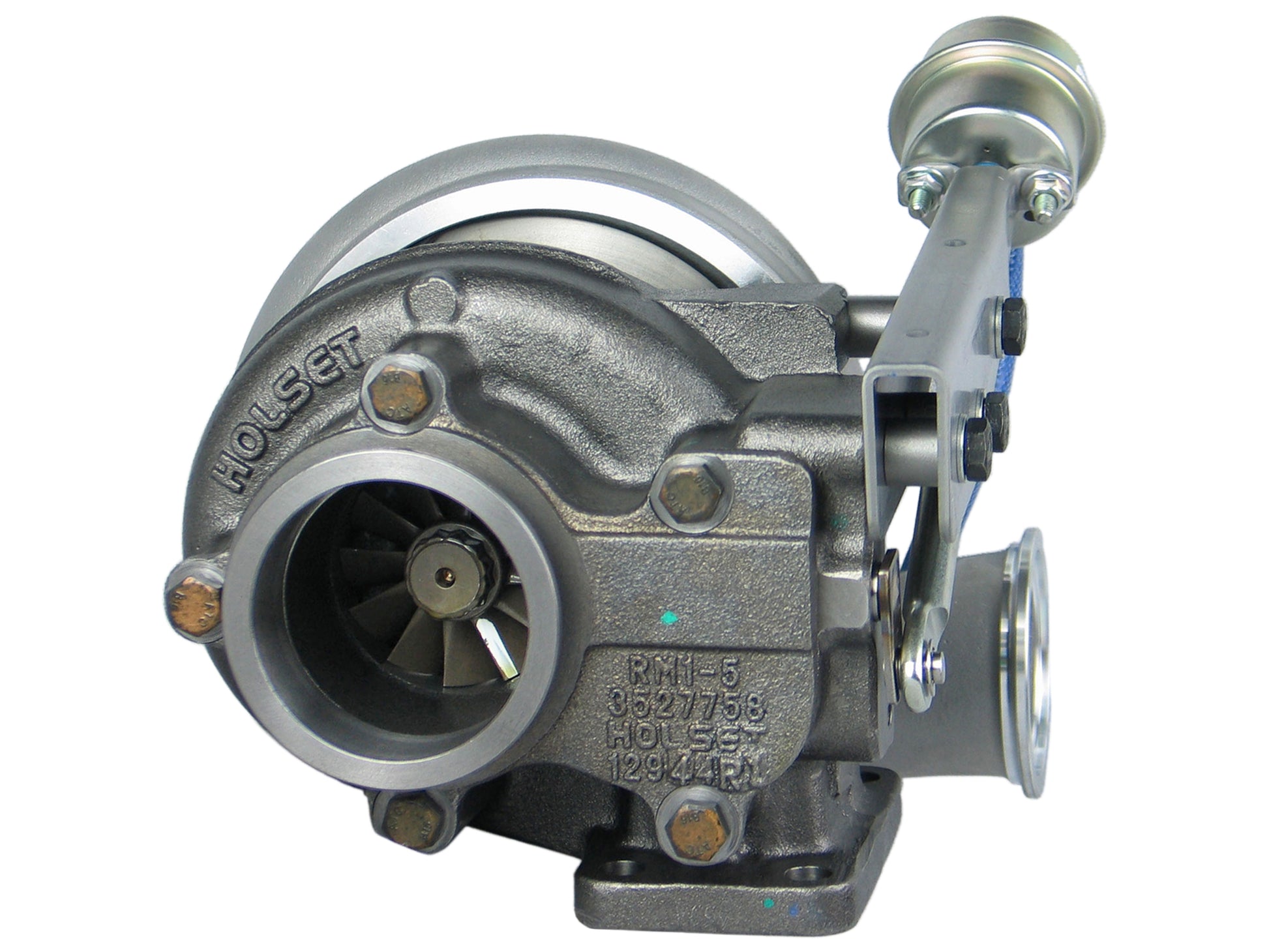

NEW OEM Holset HX35W Turbo Komatsu KCEC PC220 Cummins 6B 6BTAA 6BTA5.9 4038471SKU: 4038471
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 4038471
Interchangeable Number: 3595159, 3598036, 4035375, 4035376, 4035376H, 5328623
OEM Number: 4089136, 4089746, 6738-81-8192, 6738818192
Turbo Model: HX35W, HX35W-E7735L/E12PB11
Engine: 6B, 6BTAA, 6BTA5.9-C169, SAA6D102E-2
Engine Manufacturer: Cummins, KCEC
Displacement: 5.9L, 5900 ccm
Angle α (Compressor Housing): 160°
Angle ß (Turbine Housing): 20°
Bearing Housing: 3532632/4027869
Compressor Wheel: 3599639 (Ind. 50 mm, Exd. 83 mm, 8+8 Blades)
Gasket (Oil Outlet): 210060 (311585, 148062)(Paper)
Gasket (Turbine Inlet): 409039-0000 (Inox Steel)(409039-0001, 210019, 2405022)(1900000006)
Heat Shield: 3519304 (3519302)(1152301340)
Repair Kit: 3575169 (1153035750)
Seal Plate: 3530923 (1154351300)
Turbine Wheel: 3519336 (Ind. 70 mm, Exd. 59.9 mm, 12 Blades)(1152301435)
NOTE: Interchangeable with 5328623 but with compressor housing angle rotated.
2001-04 Komatsu PC220 Excavator with KCEC 6B, 6BTAA Engine
2001-04 Komatsu PC220, PC270 Excavator with Cummins 6BTA5.9-C169, SAA6D102E-2 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
