Angle α (Compressor Housing): 270°
Angle β (Turbine Housing): 90°
Back Plate: 3528096 (1153055300, 1800016024)
Bearing Housing: 4039054 (3529849)(Oil Cooled)
CHRA: 4031409 (4031409H)
Compressor Wheel: 3593686 (Ind. 67 mm, Exd. 97.68 mm, Trim 6.3, 7+7 Blades, Deep Super Back)(1153055401, 1200016360)
Heat Shield: 3533038 (3529846)(1153055340, 2030016003)

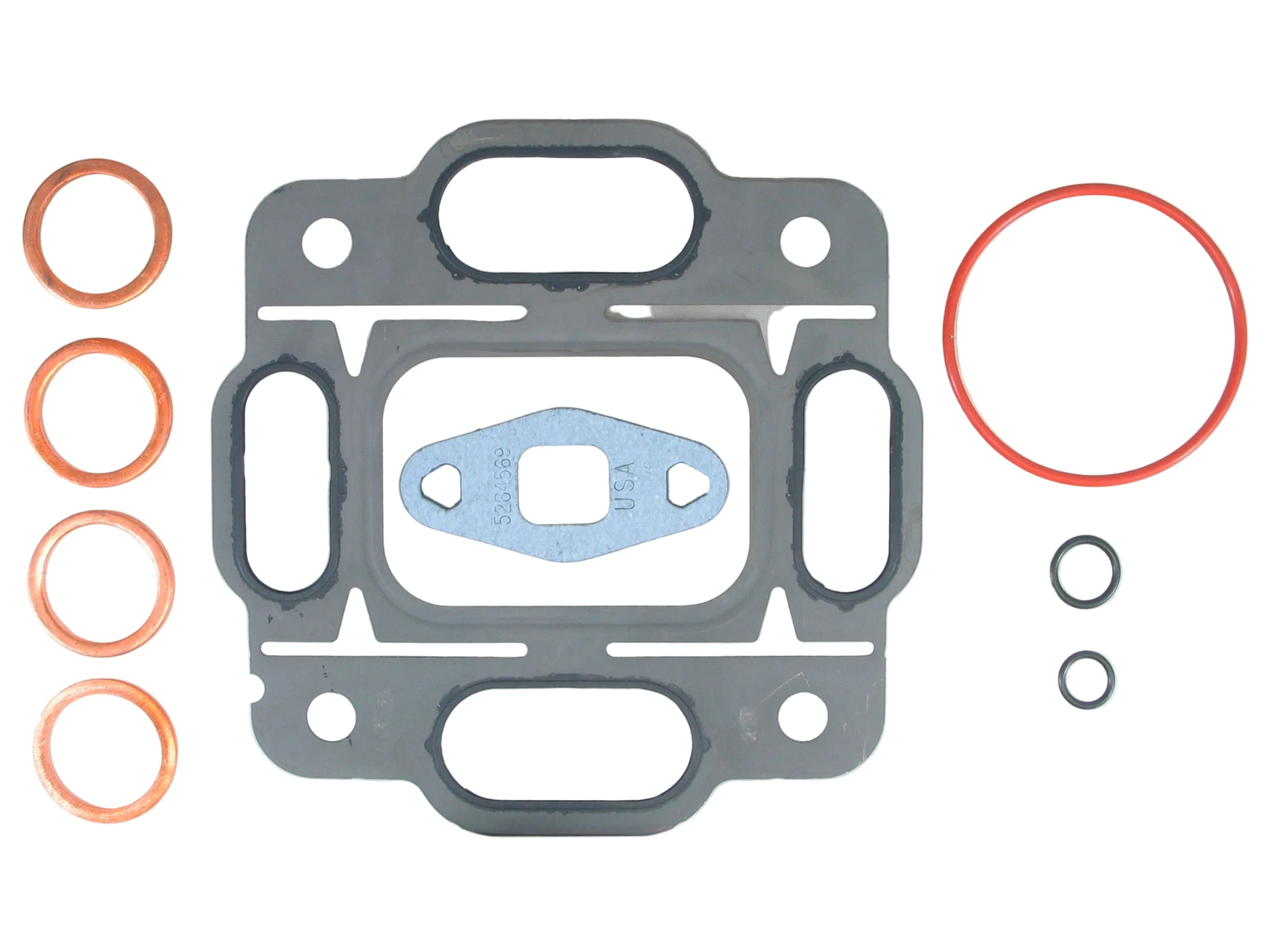

Repair Kit: 3580762 (3575181)(358076200, 357518100)(1153055750, 5000020023)

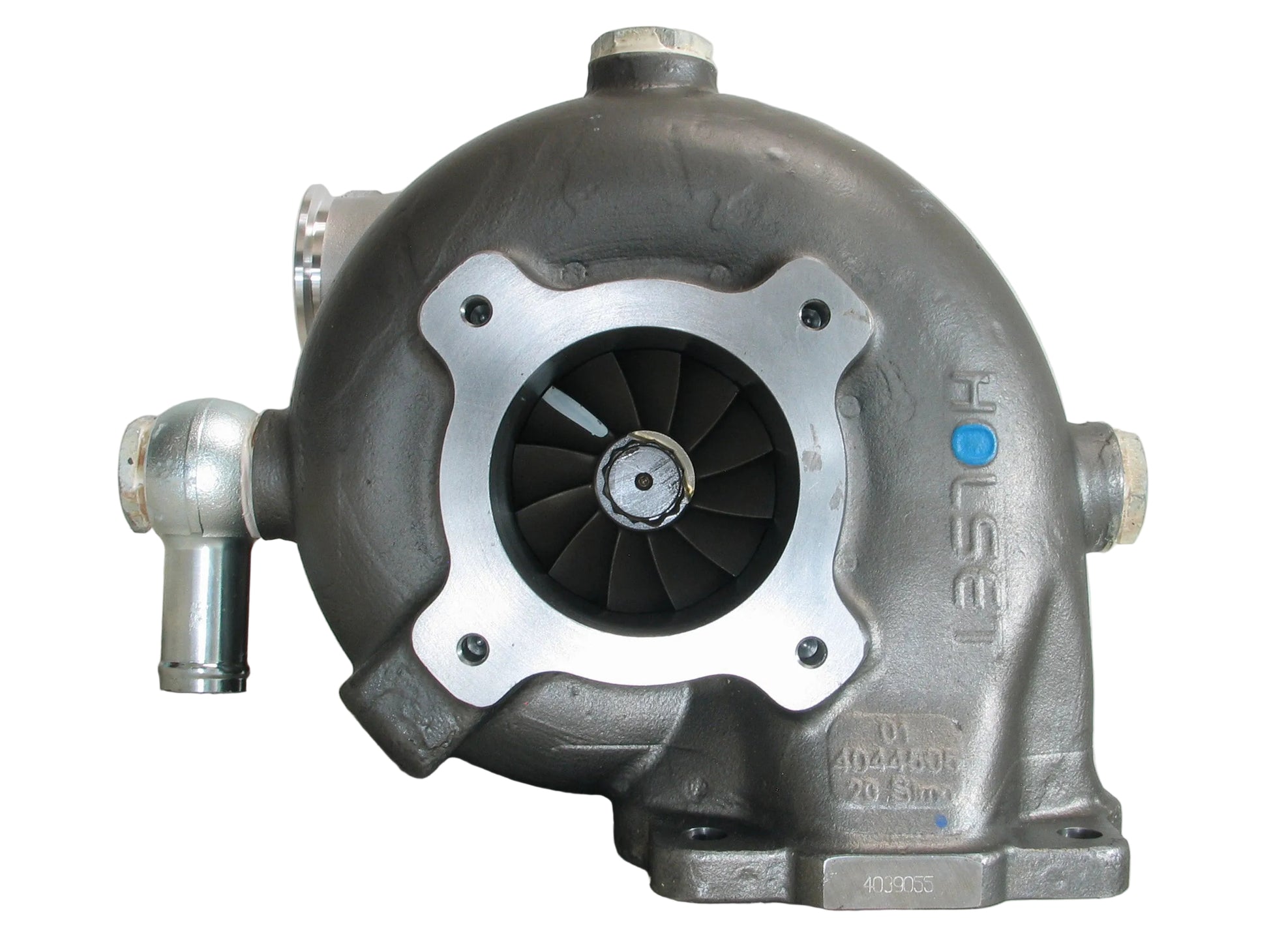

Turbine Housing (Water Cooled): 4044505
Turbine Wheel: 3535983 (Ind. 86 mm, Exd. 76.98 mm, Trim 12.85, 12 Blades)(1153055436, 1100016122B)
Application:
2005- Mercruiser Marine with Cummins M11 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
