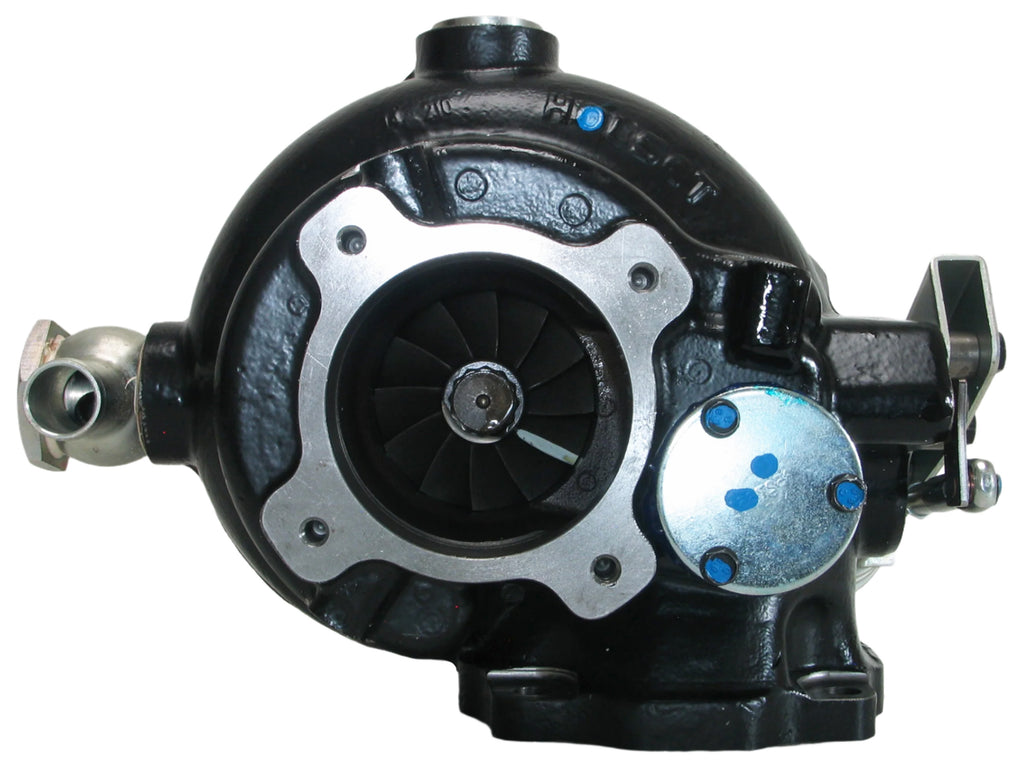

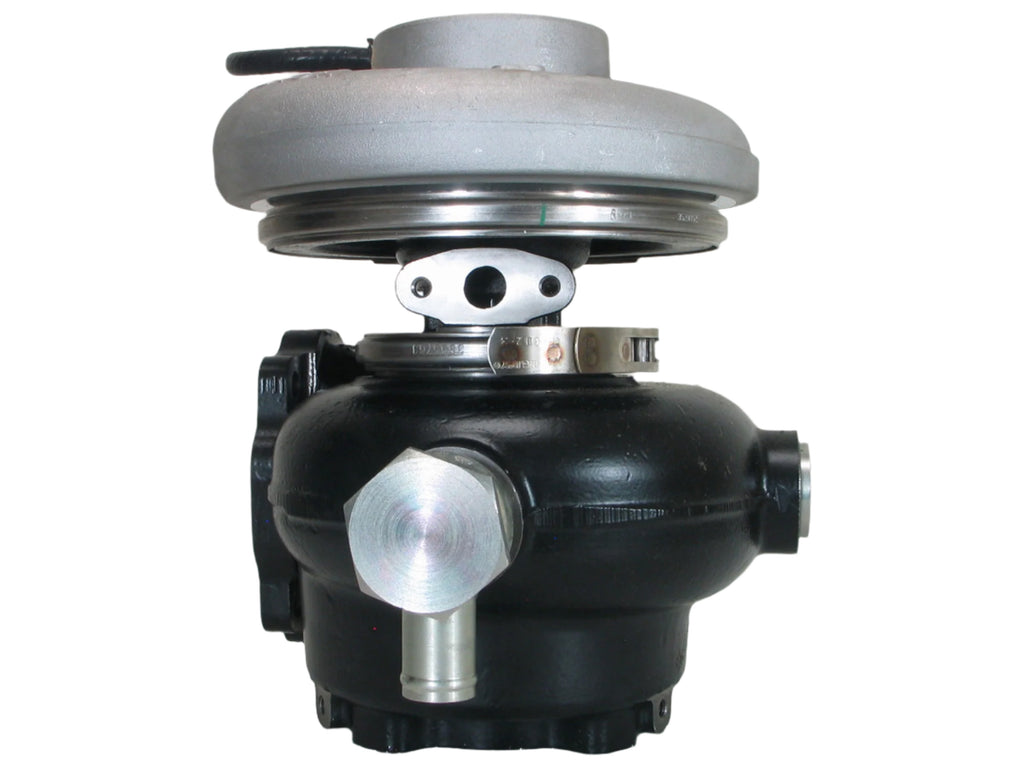

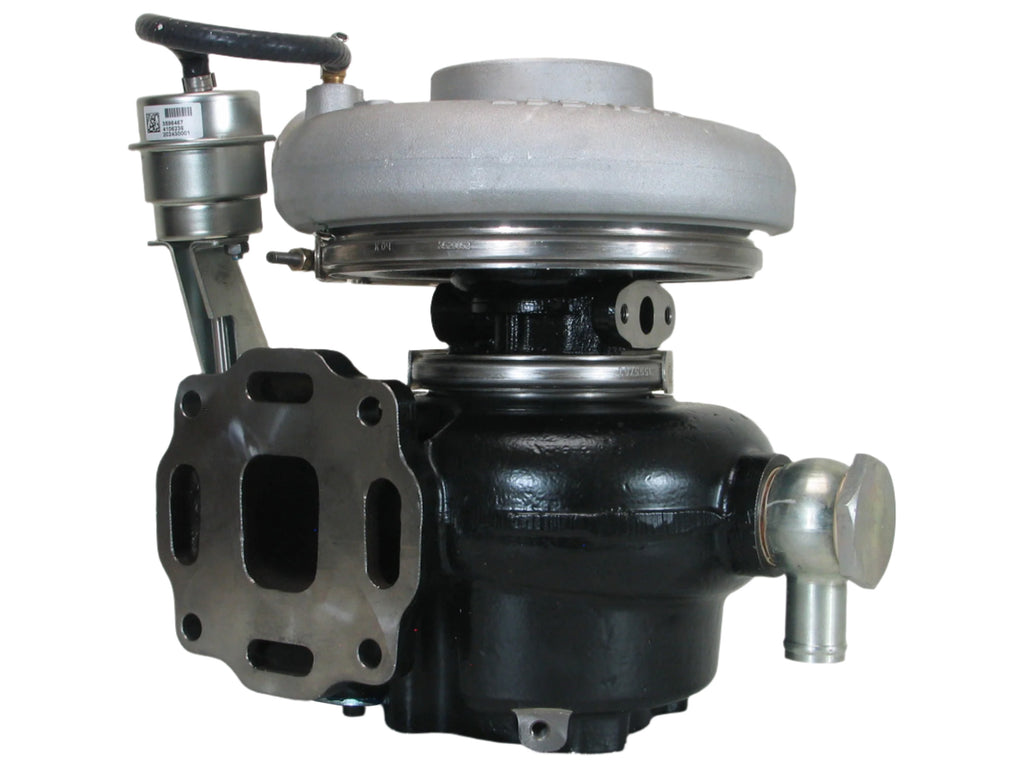

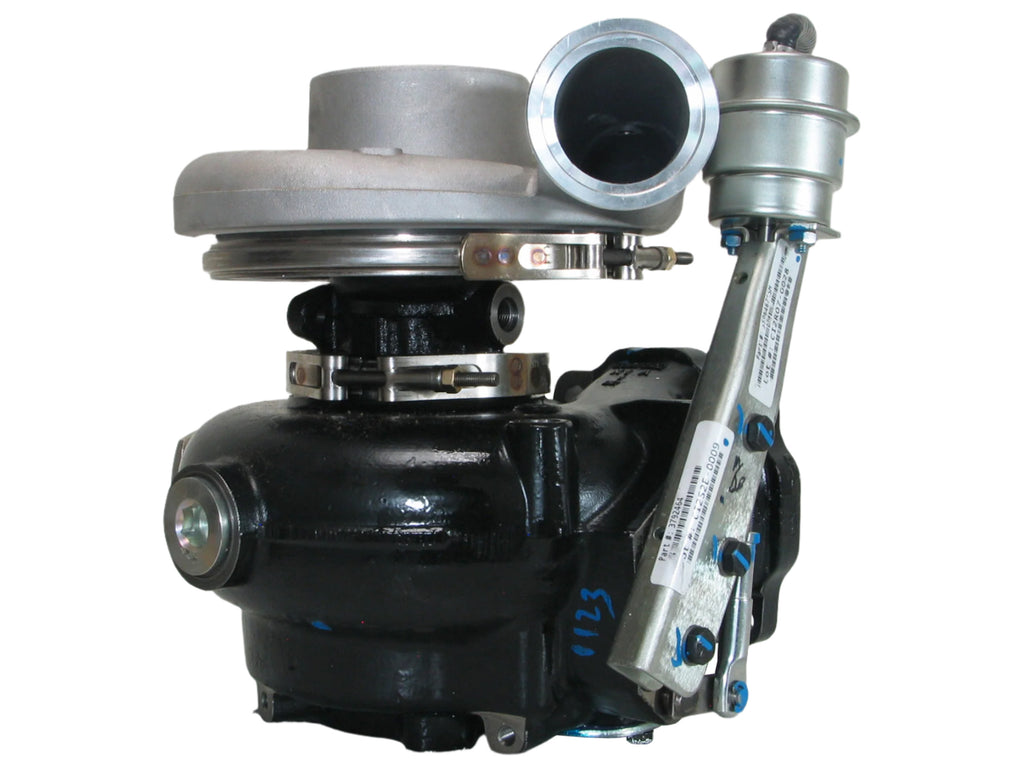

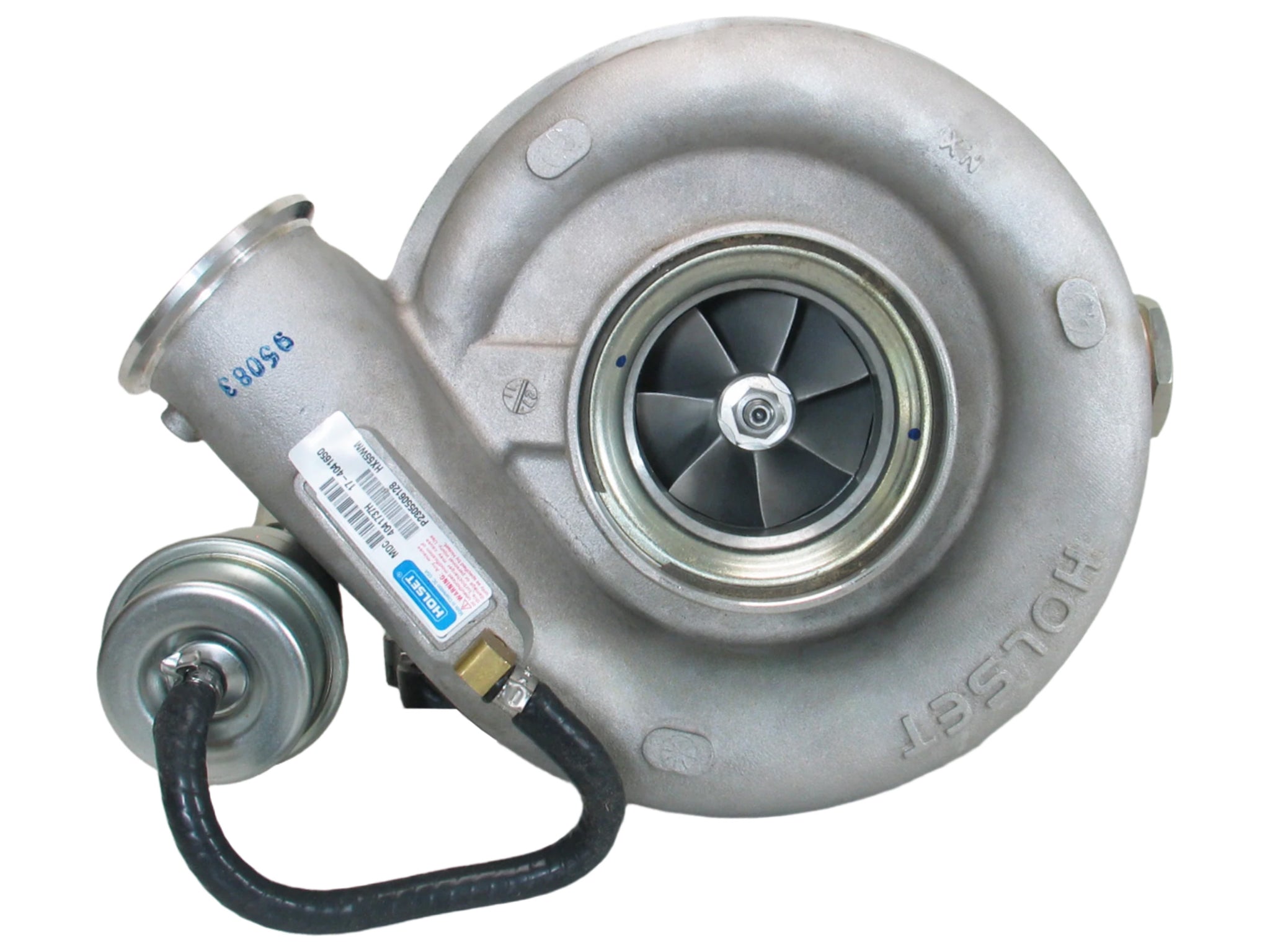

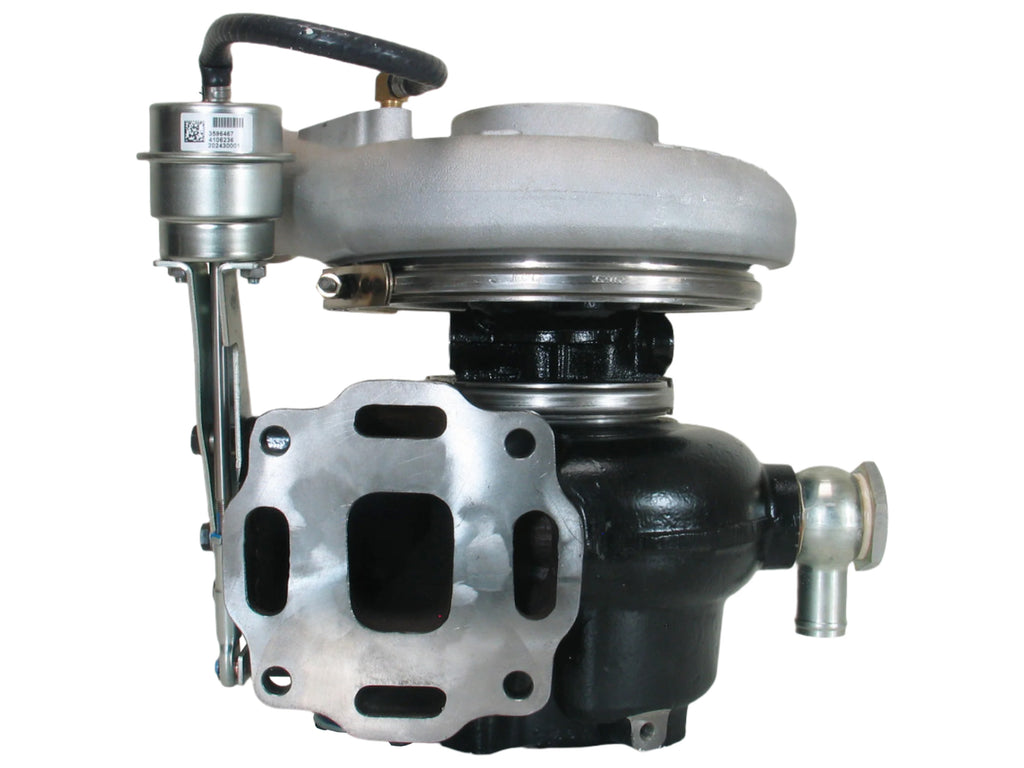

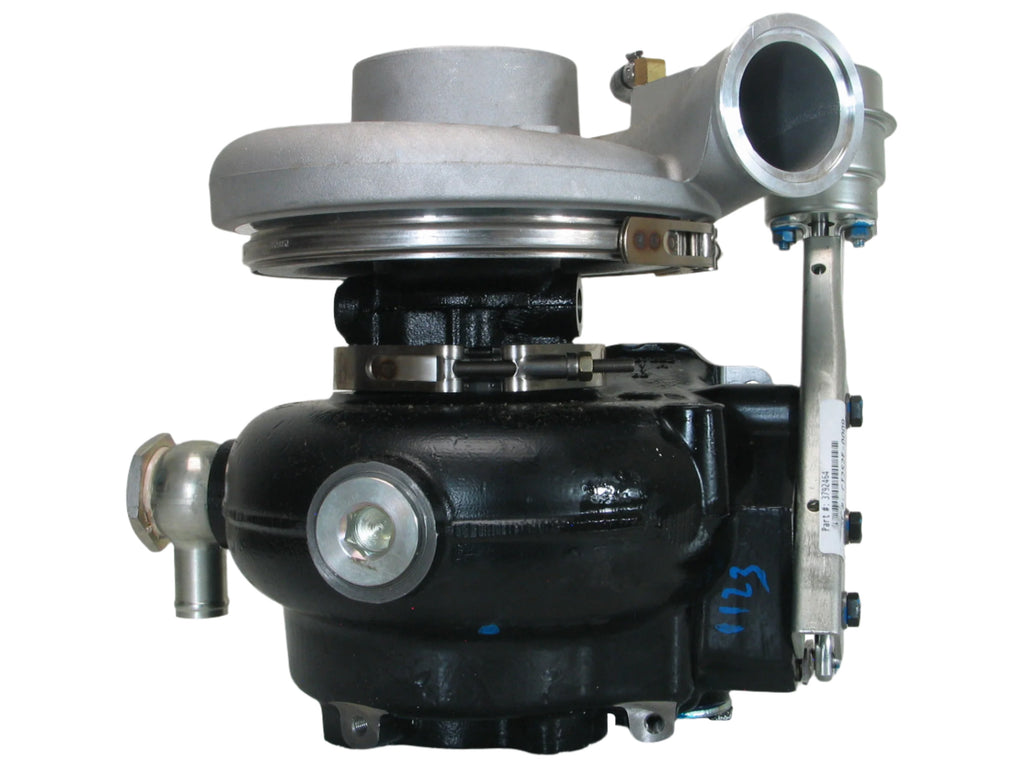

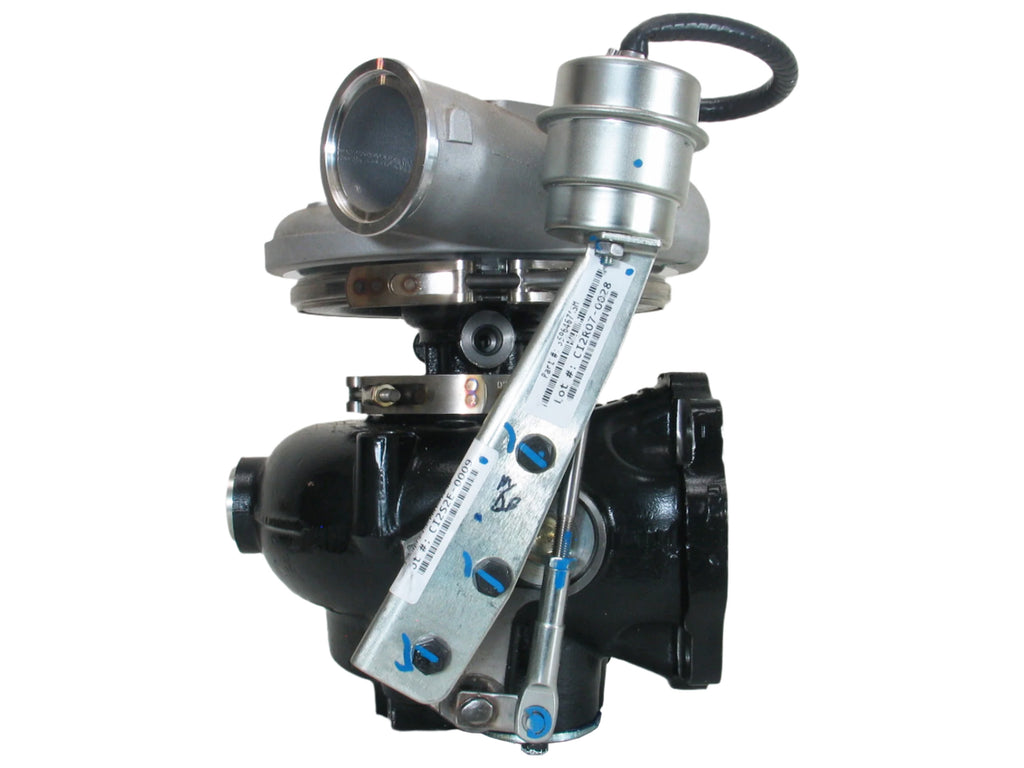

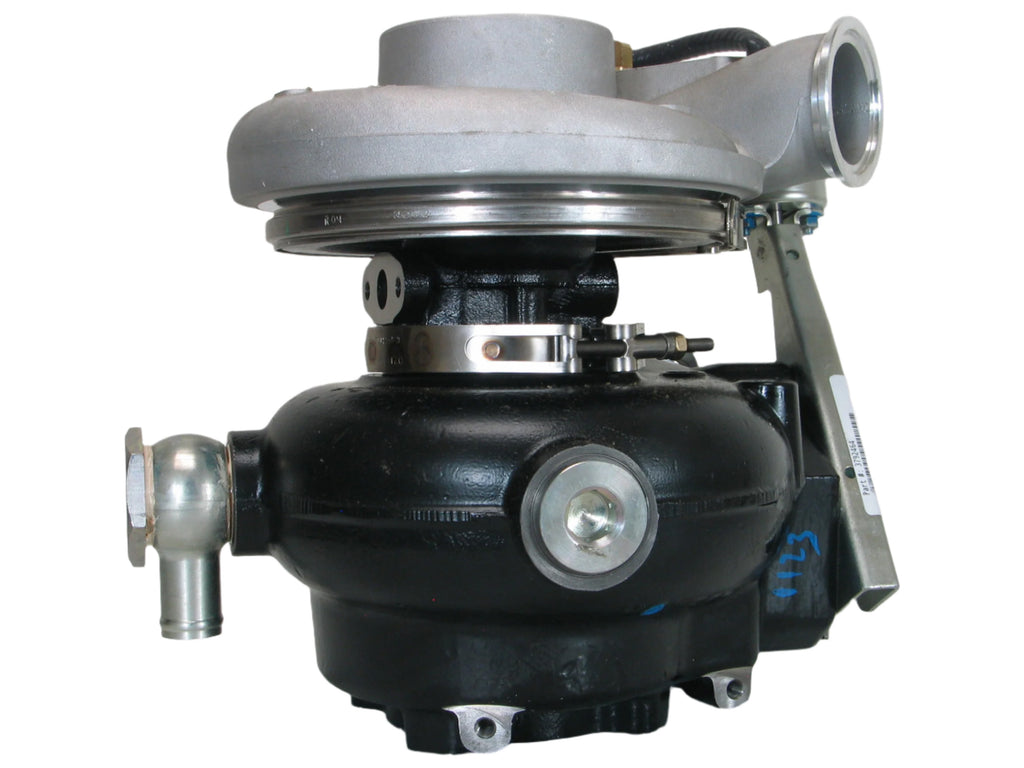

NEW OEM Holset HX55WM Turbo Phoenix Marine Cummins QSC 3595086 4041737 4041650SKU: 4041650
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 4041650
Interchangeable Number: 3595086, 4041737H
OEM Number: 3595087, 4025388, 4041737, 4955231, 495523100, 4955231NX, 4955231RX
Serial Number: 070220465
Turbo Model: HX55WM, HX55WM-B98K68RM/C86L90PJ14S-W, HX55W
Engine Manufacturer: Cummins
Power: 450 HP
Angle α (Compressor Housing): 320°
Angle ß (Turbine Housing): 265°
Actuator Kit (Without Bracket): 4030229 (403022900)
Back Plate: 3528096 (352809600)(1153055300)
Bearing Housing: 3596505 (Oil Cooled)
CHRA: 4031410 (4031410H, 403141000)
Compressor Cover: 3595080
Compressor Wheel: 3593686 (359368600)(In. 67 mm, Exd. 97.68 mm, Trim 46, 7+7 Blades, Super Back)

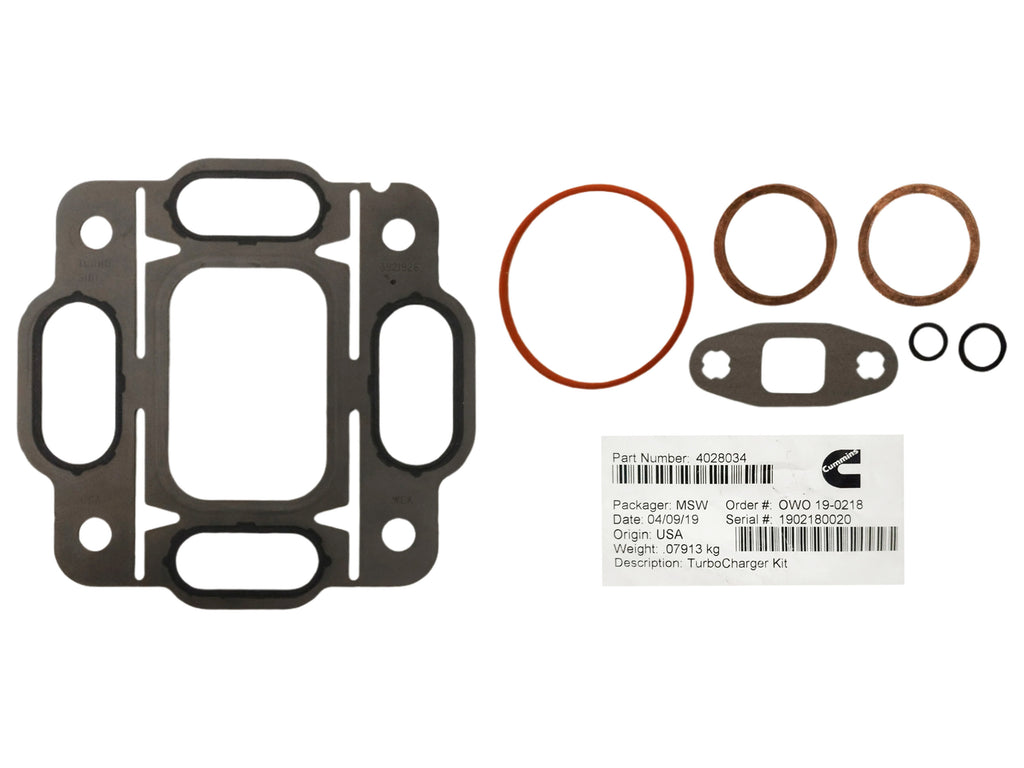

Gasket Kit: 4032527
Heat Shield: 3533038 (353303800, 3529846, 352984600)(1153055340)
Repair Kit: 3580762 (3575181)(1153055750)
Turbine Housing (Water Cooled)(Wastegate): 4041717
Turbine Housing (Water Cooled): 4041632
Turbine Wheel: 3535983 (353598300)(In. 85.8 mm, Exd. 76.95 mm, 12 Blades)
2000-06 Phoenix Marine with Cummins QSC Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
