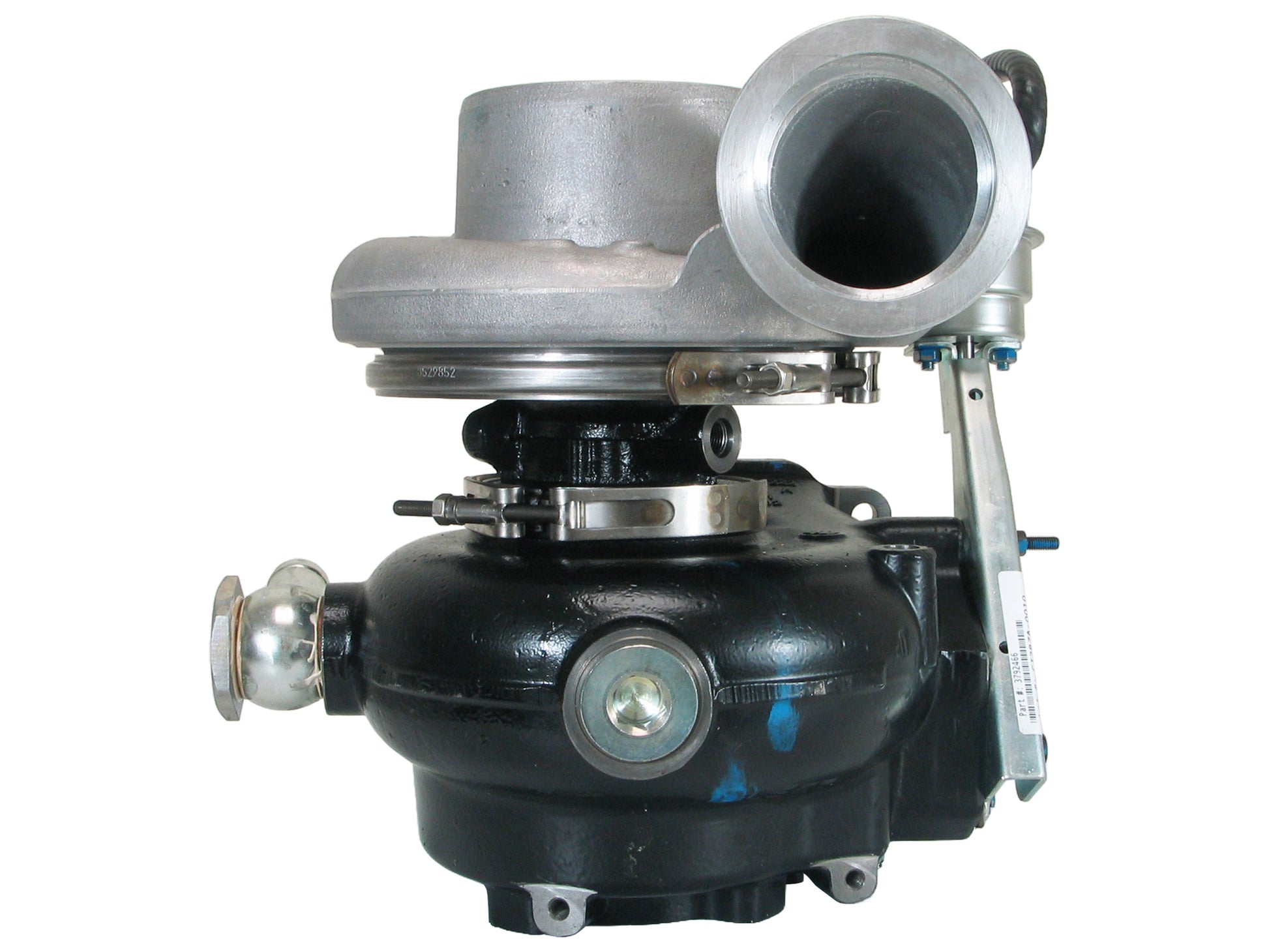

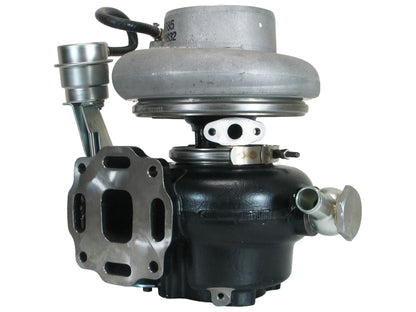

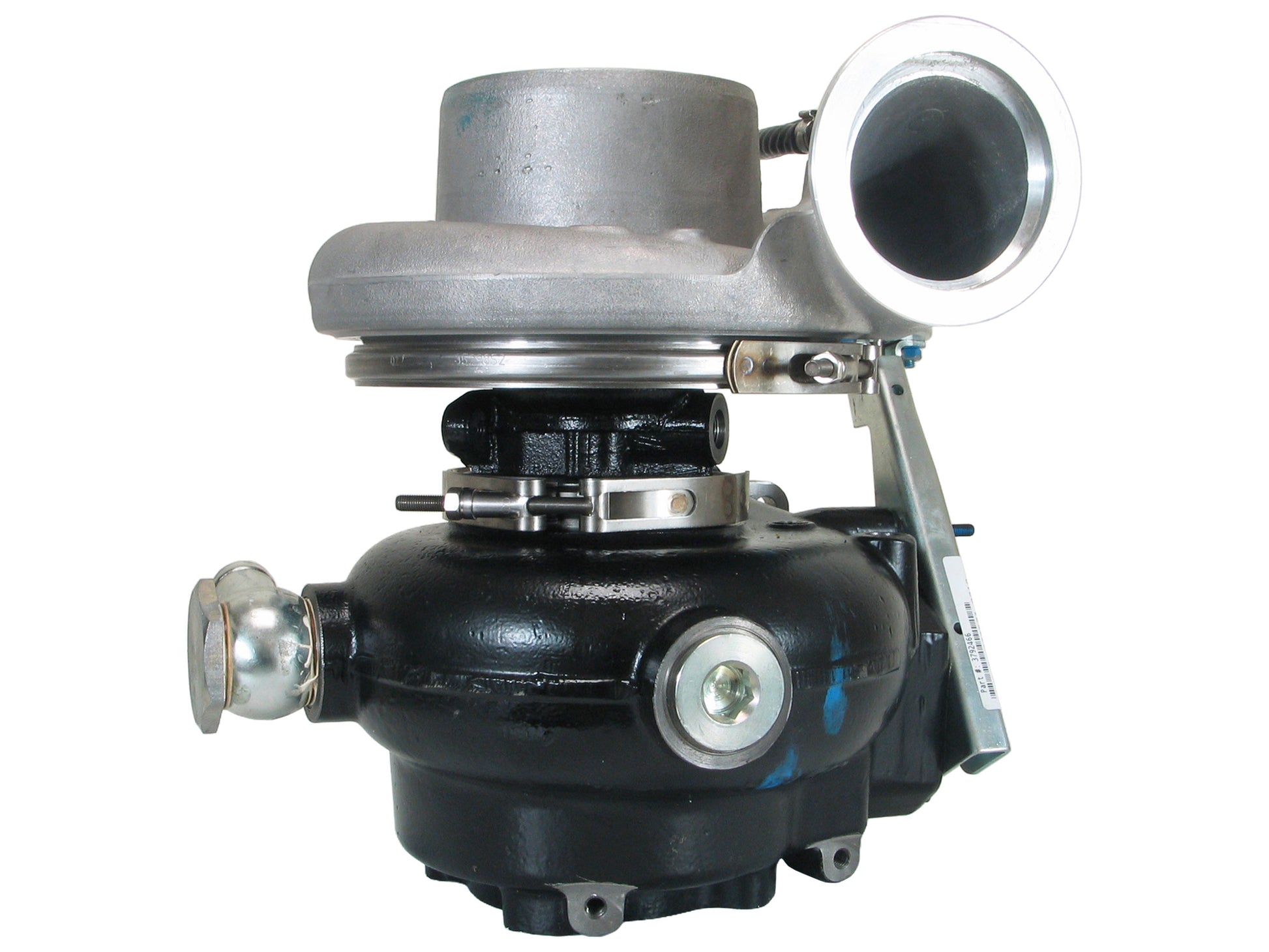

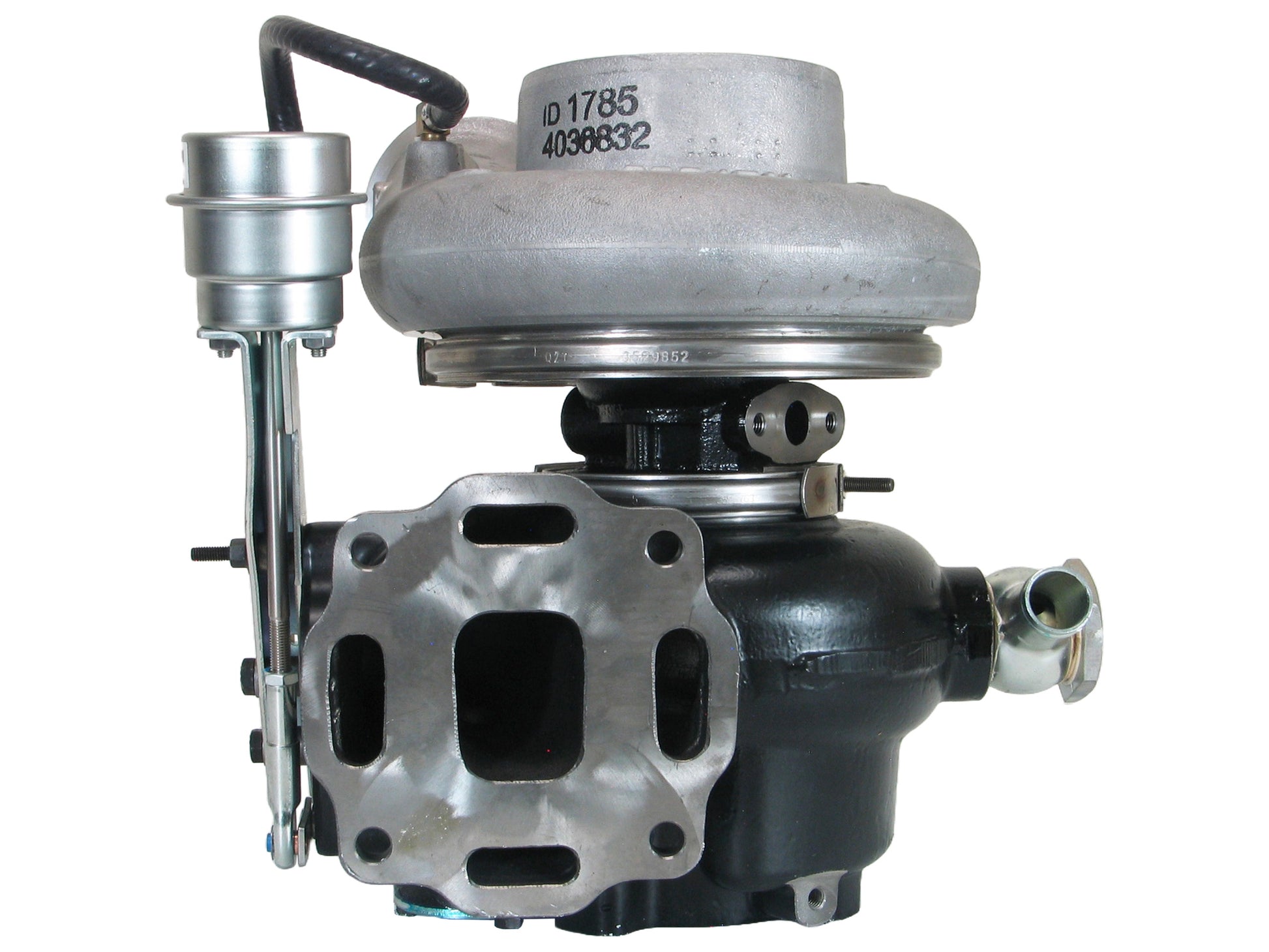

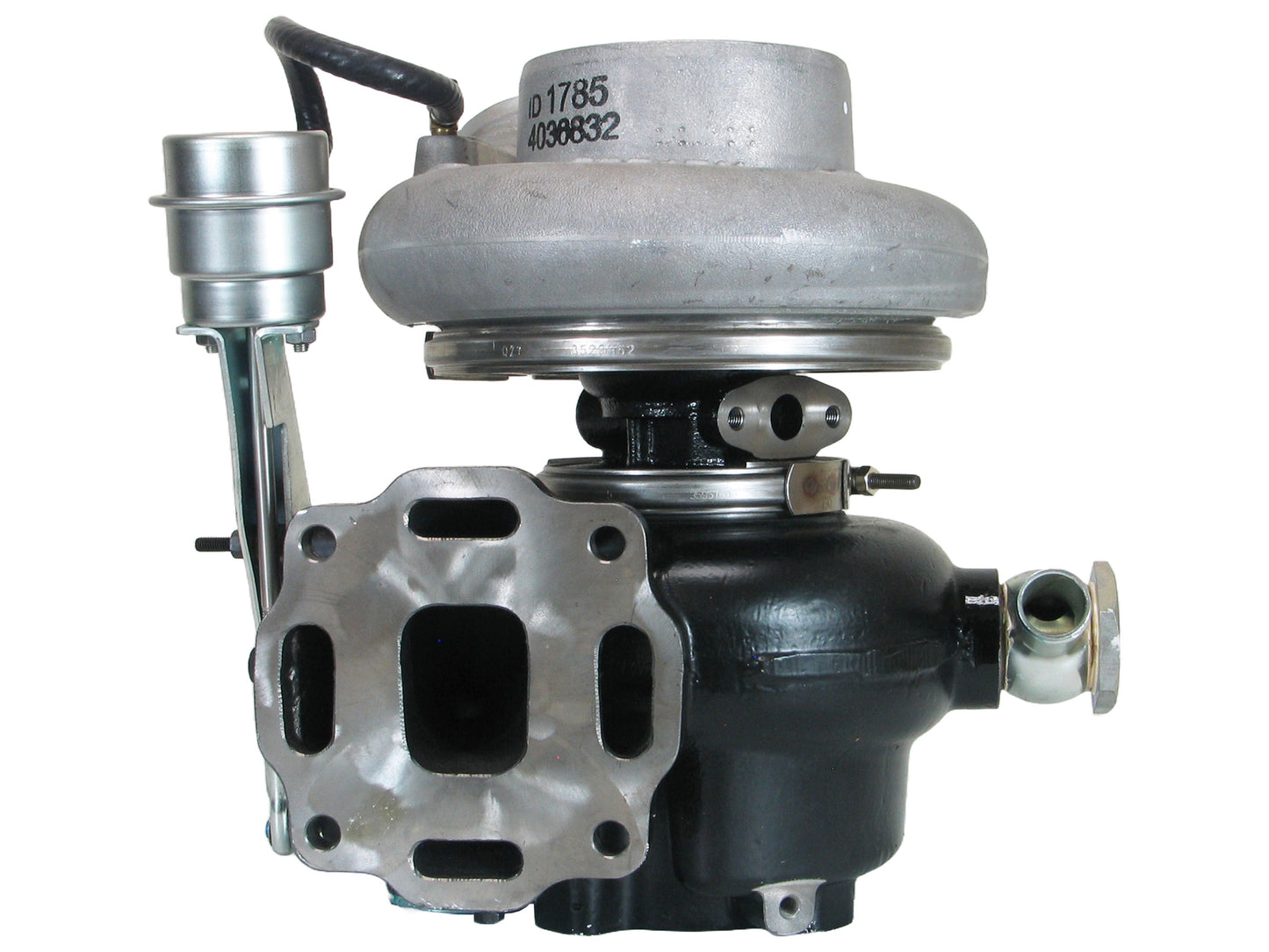

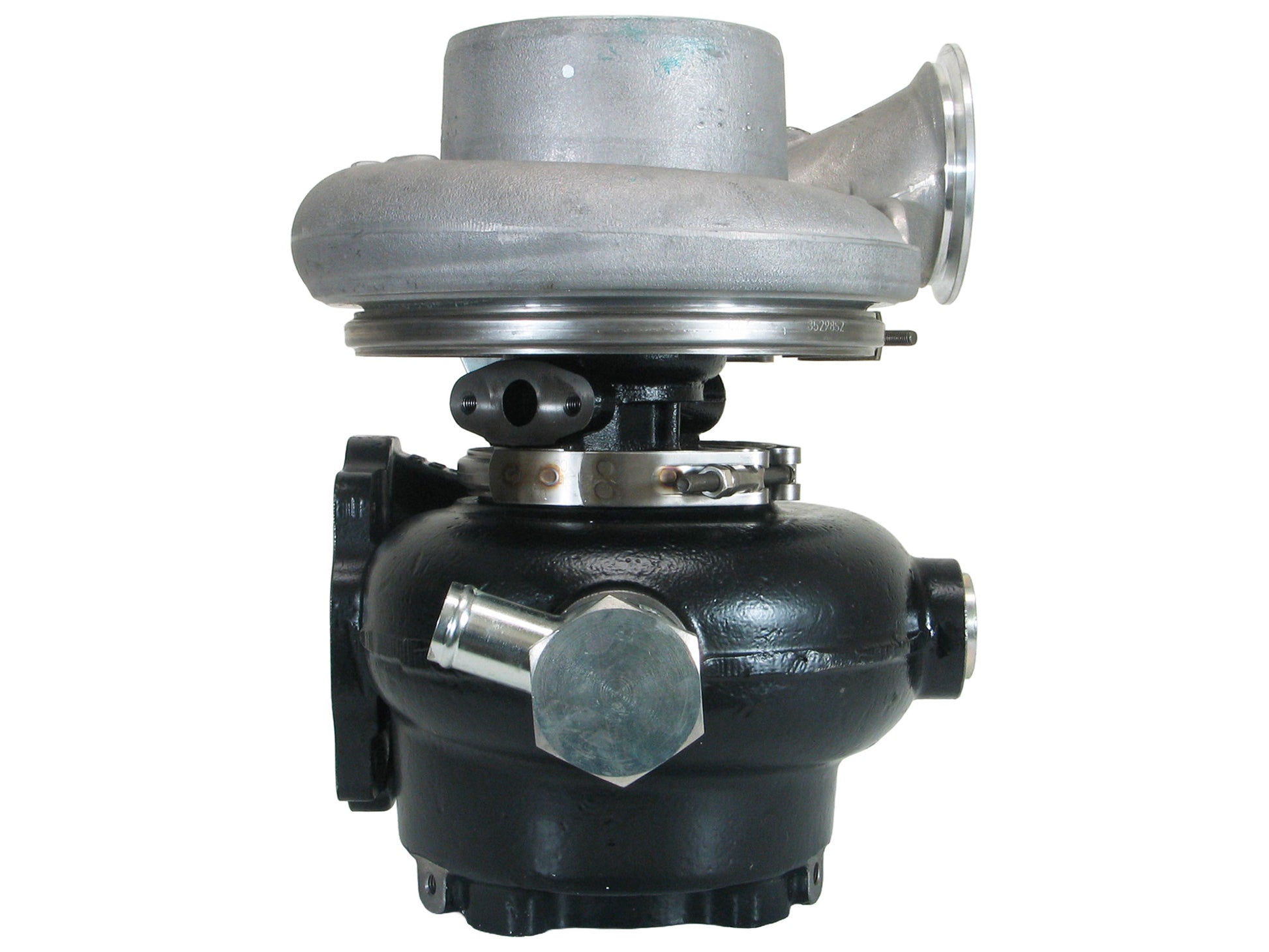

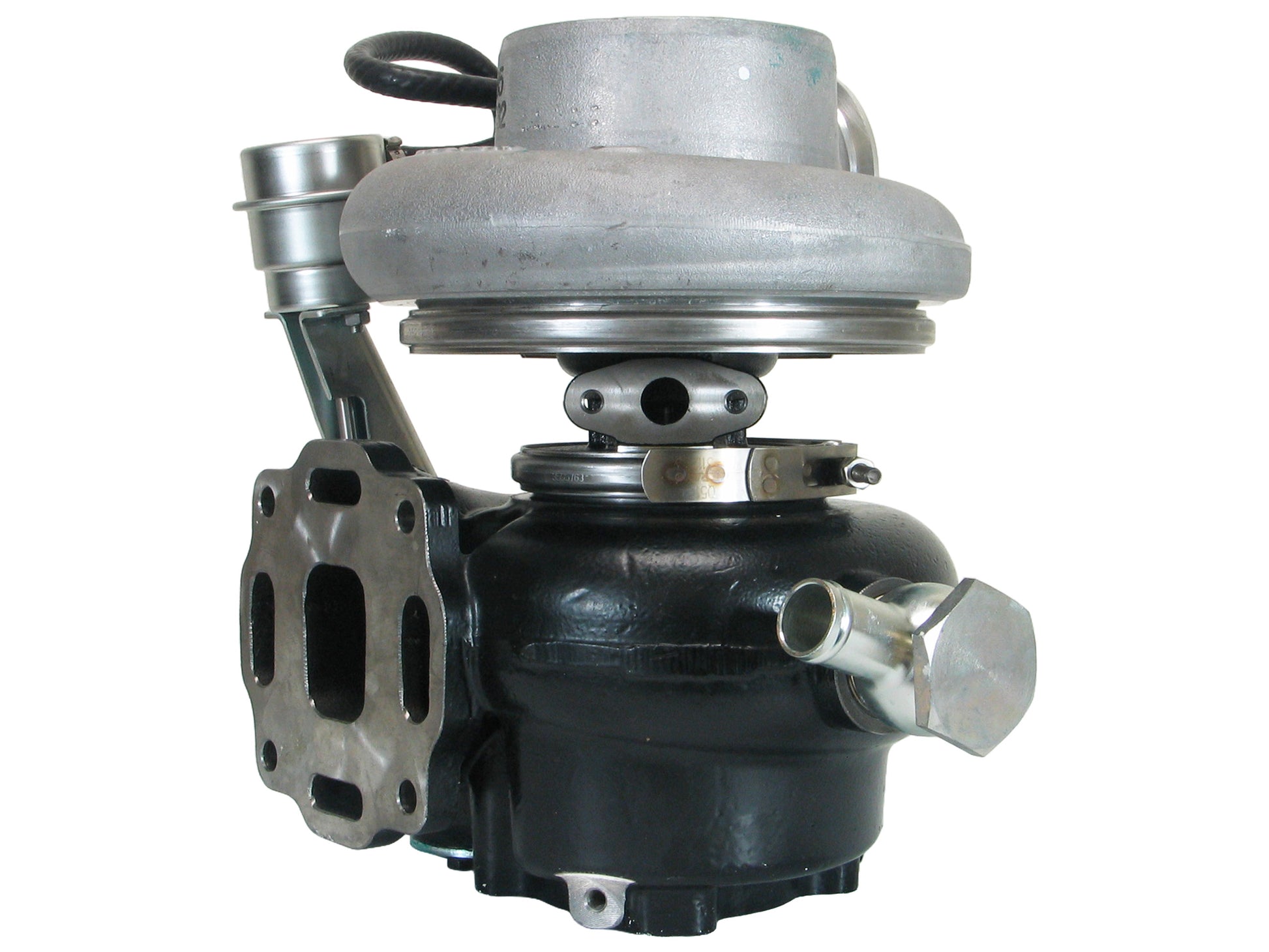

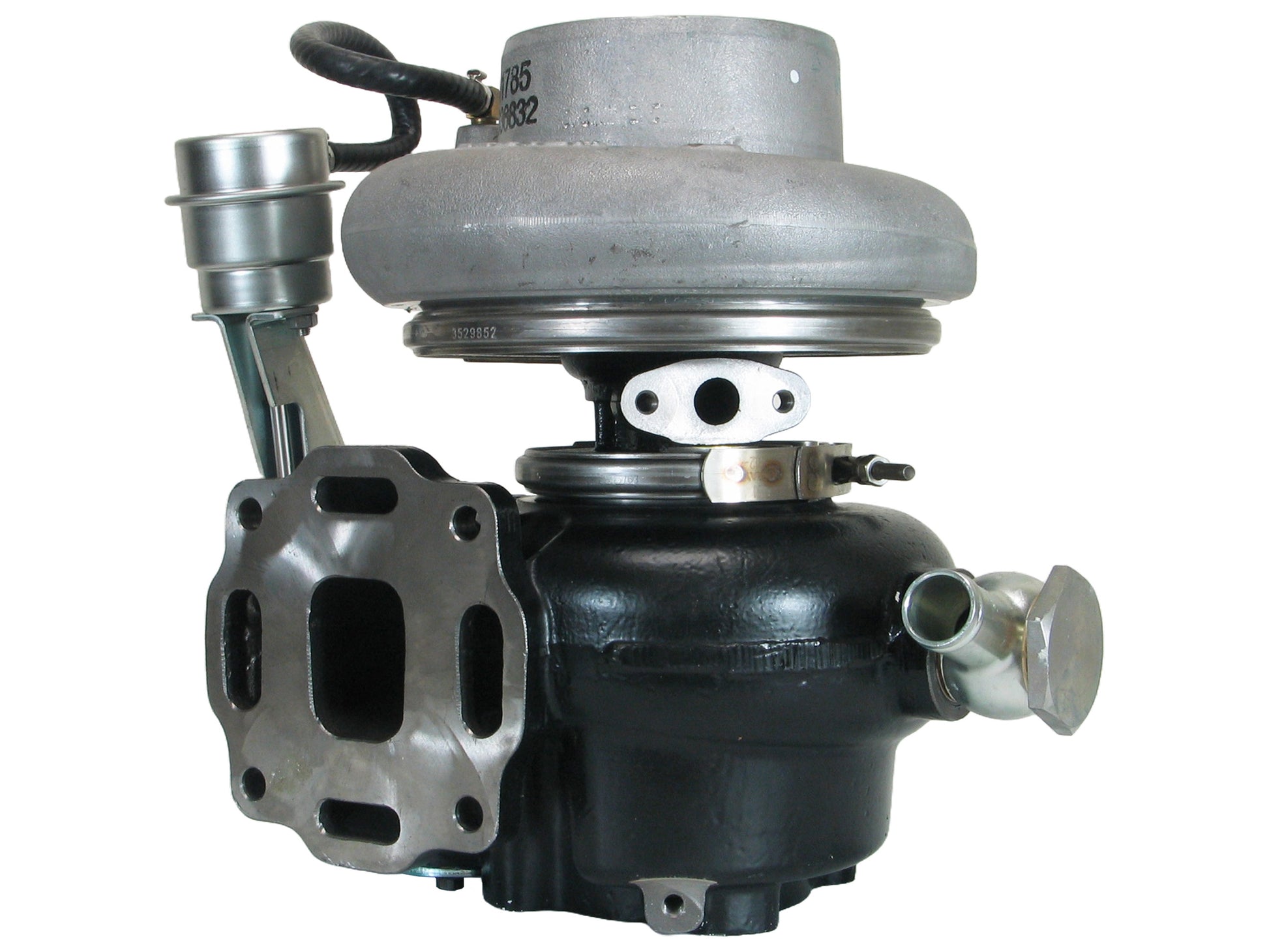

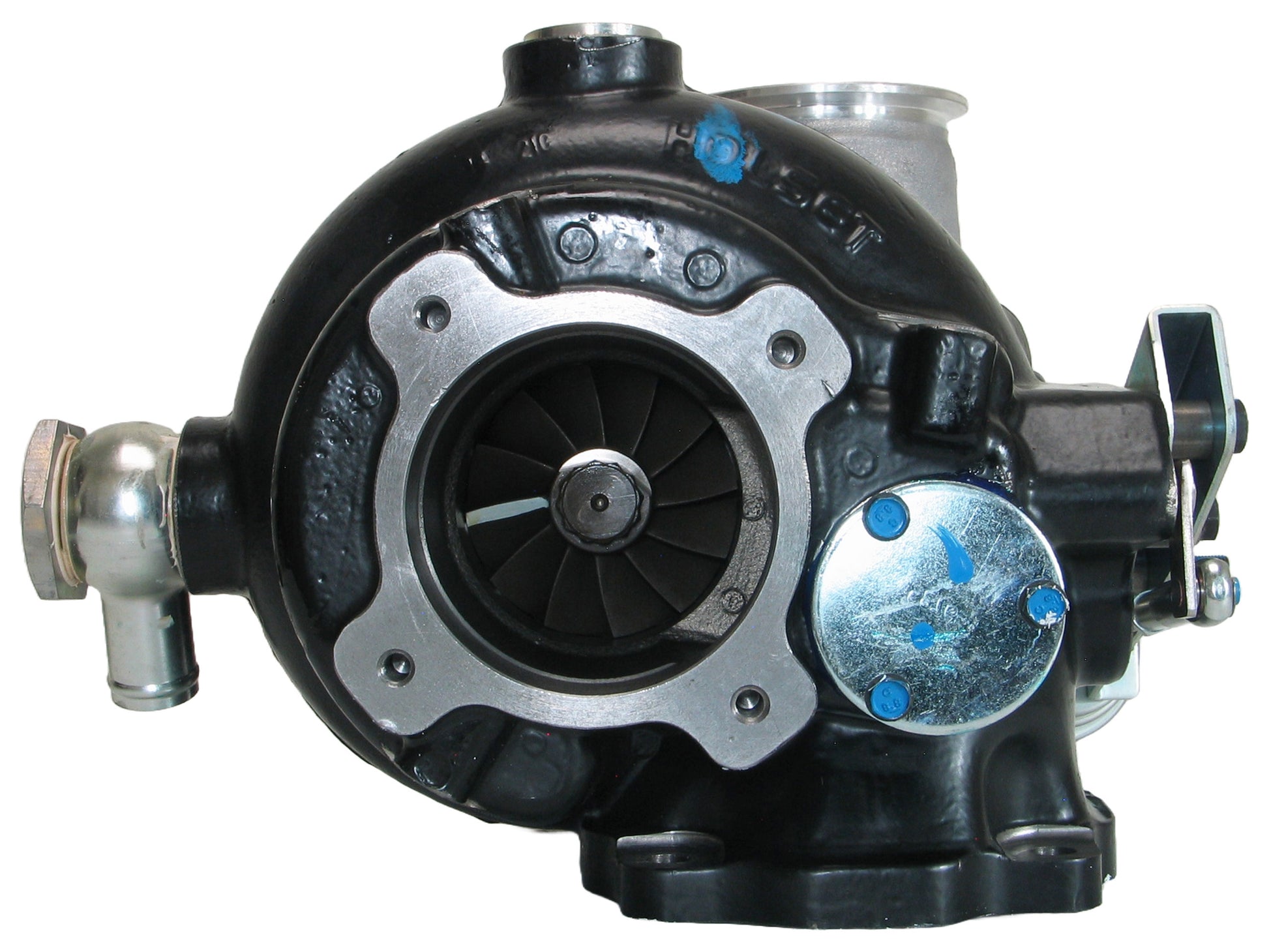

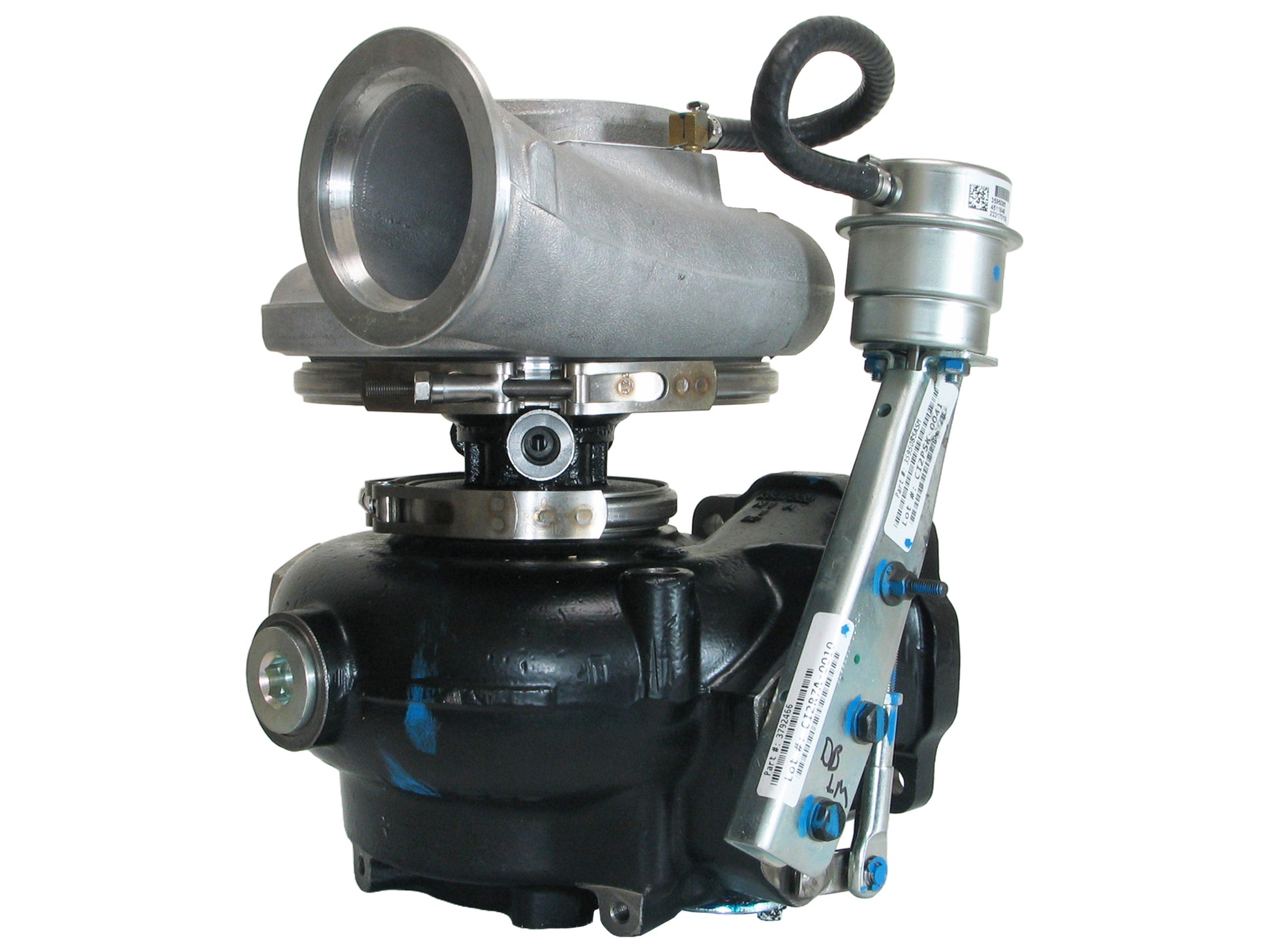

NEW OEM Holset HX55WM Turbo Marine Cummins Pegasus C Series 8.9L Engine 4041656SKU: 4041656
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 4041656
Interchangeable Number: 3598908, 4037489, 4041739H
OEM Number: 4041739, 4089942, 4955232
National Stock Number: 2950-01-565-8973, 2950015658973
Turbo Model: HX55WM, HX55WM-C98K72RU/C86L90PJ14S-W
Engine: Pegasus, C Series
Engine Manufacturer: Cummins
Displacement: 8.9L, 8900 ccm
Angle α (Compressor Housing): 320°
Angle ß (Turbine Housing): 310°

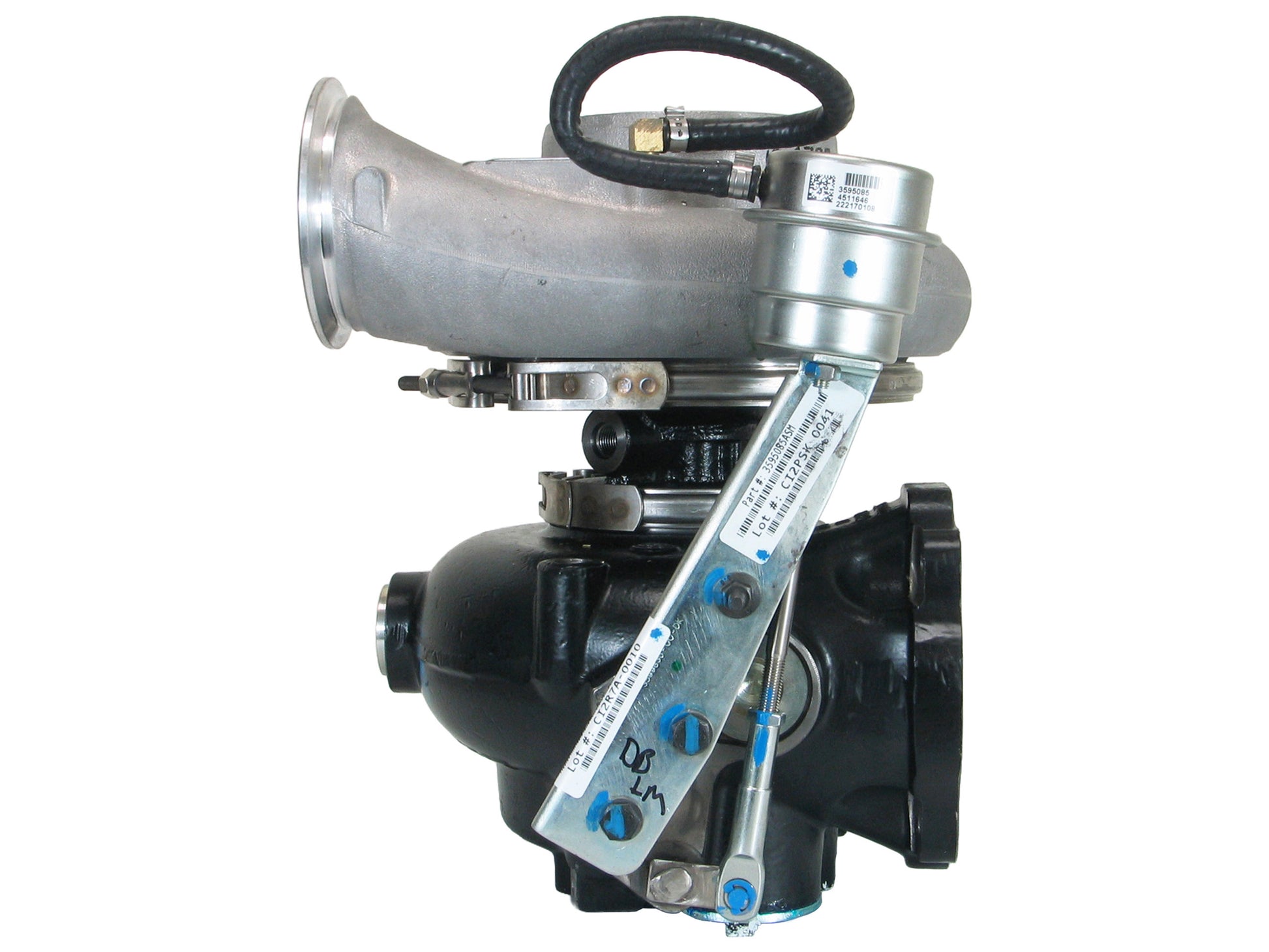

Actuator: 4031412 (3595025, 3595085)
Back Plate: 3528096 (352809600)(1153055300)
Bearing Housing: 4027817 (3535575)
CHRA: 4031411 (403141100)
Compressor Cover: 4036634

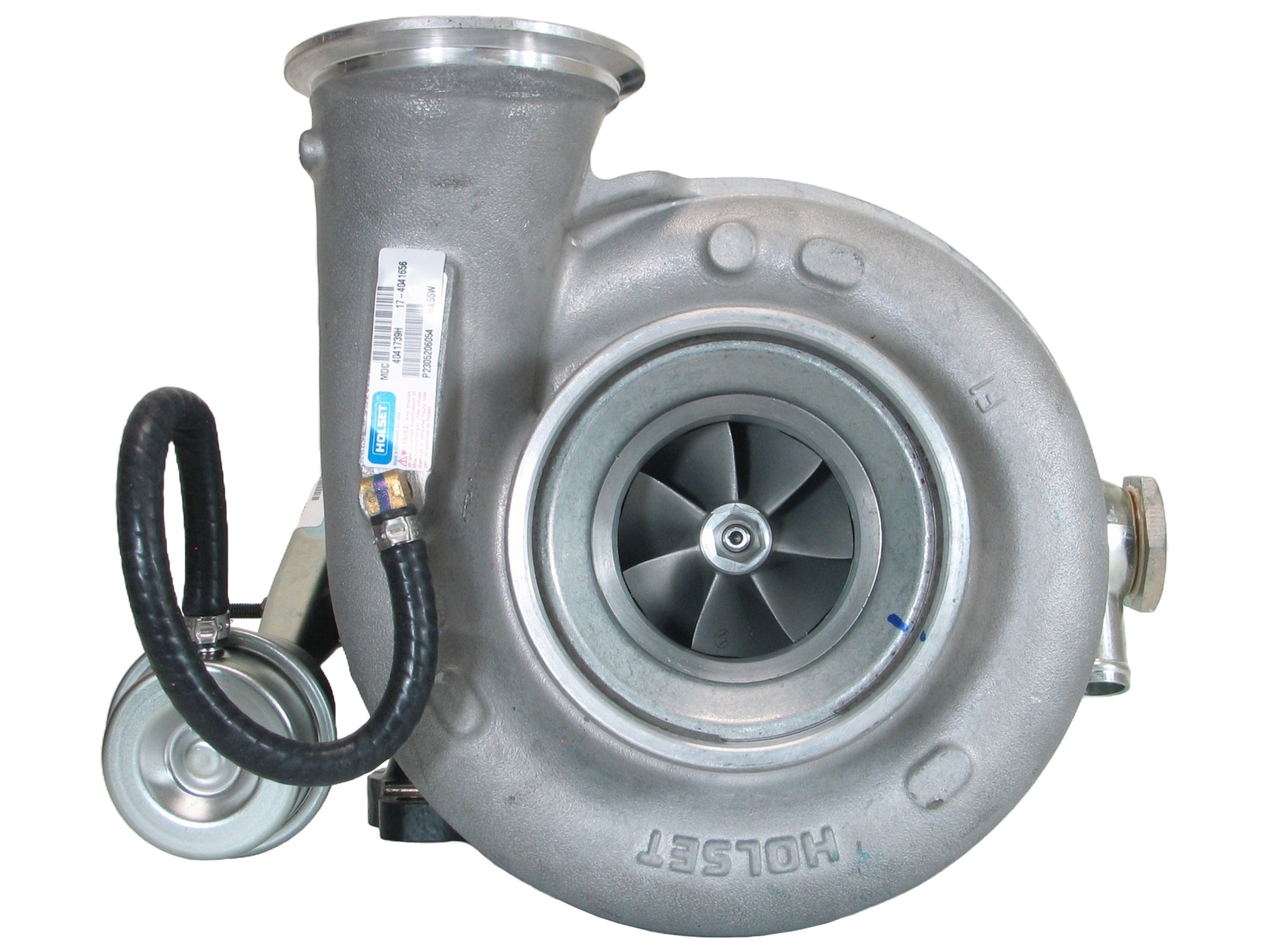

Compressor Wheel: 4035887 (4036317, 4035887H)(Ind. 71 mm, Exd. 99.01 mm, Trim 51, 7+7 Blades, Billet)

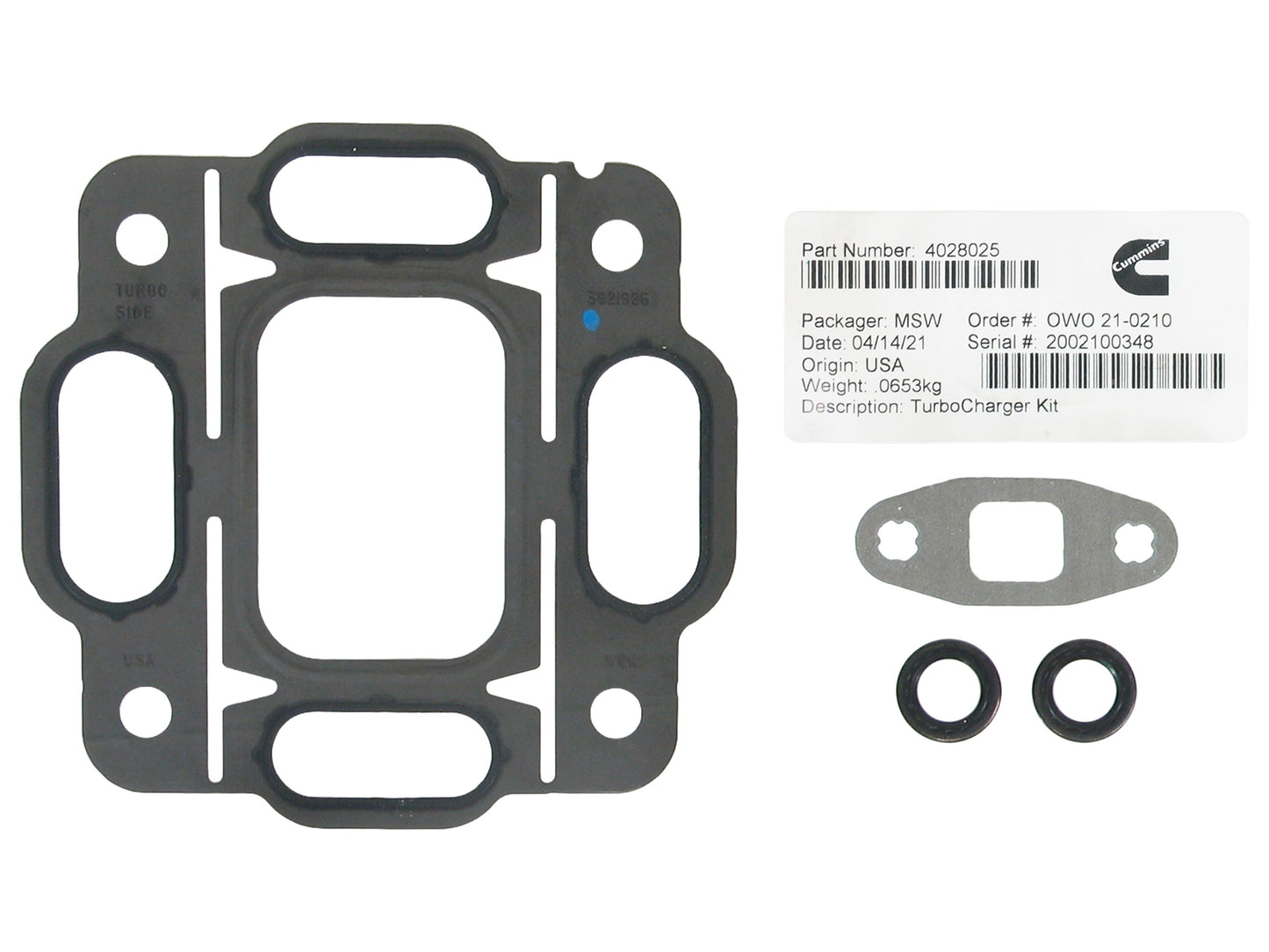

Gasket Kit: 3800279 (380027900)
Heat Shield: 3529846 (3533038)(353303800, 352984600)(1153055340)
Repair Kit: 3580762 (3575181)(358076200, 357518100)(1153055750)
Turbine Housing (Water Cooled): 35396073

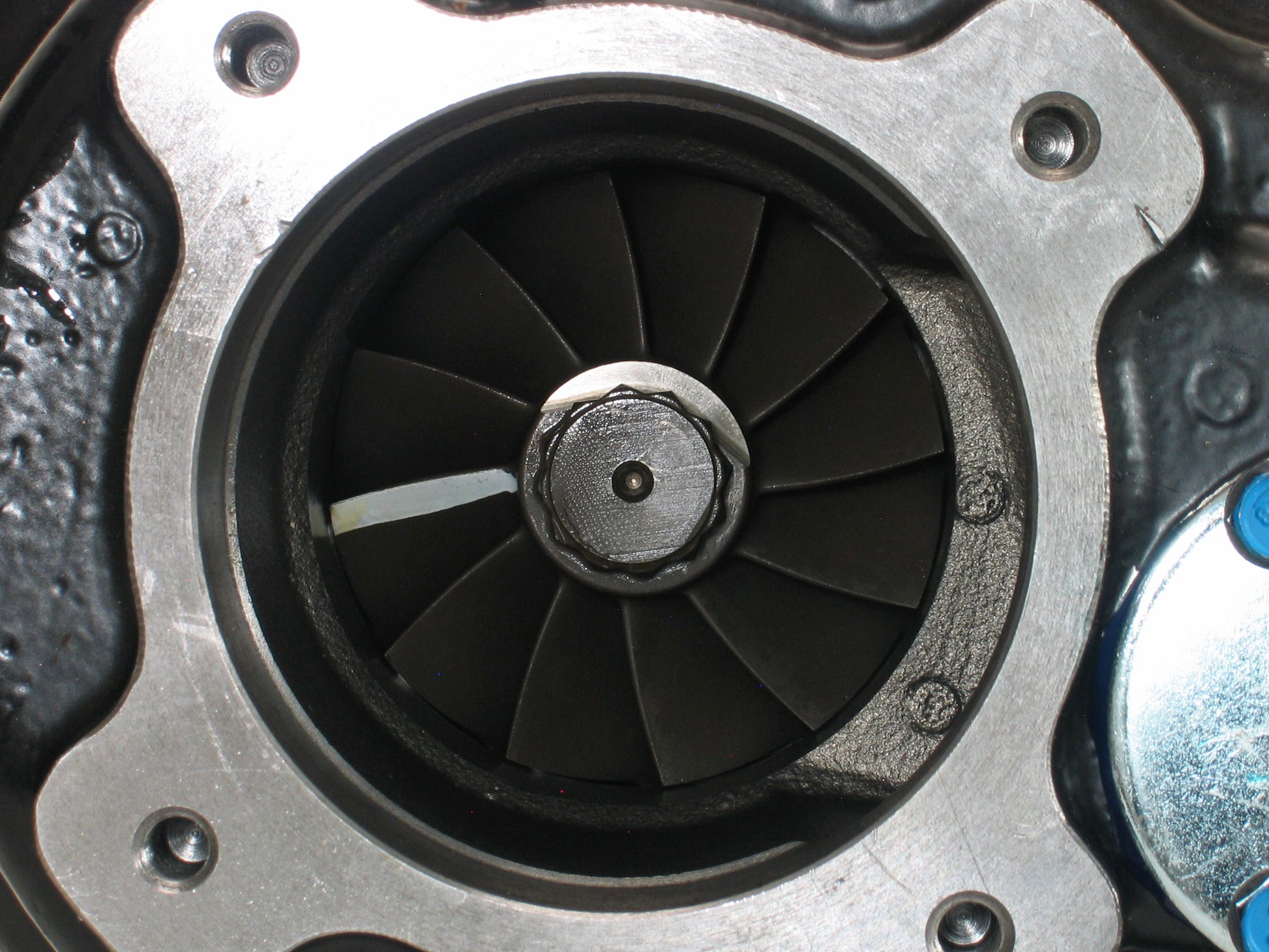

Turbine Wheel: 3535983 (353598300)(Ind. 85.8 mm, Exd. 76.95 mm, 12 Blades)(1153055436)
2002-06 Marine with Cummins Pegasus, C Series Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
