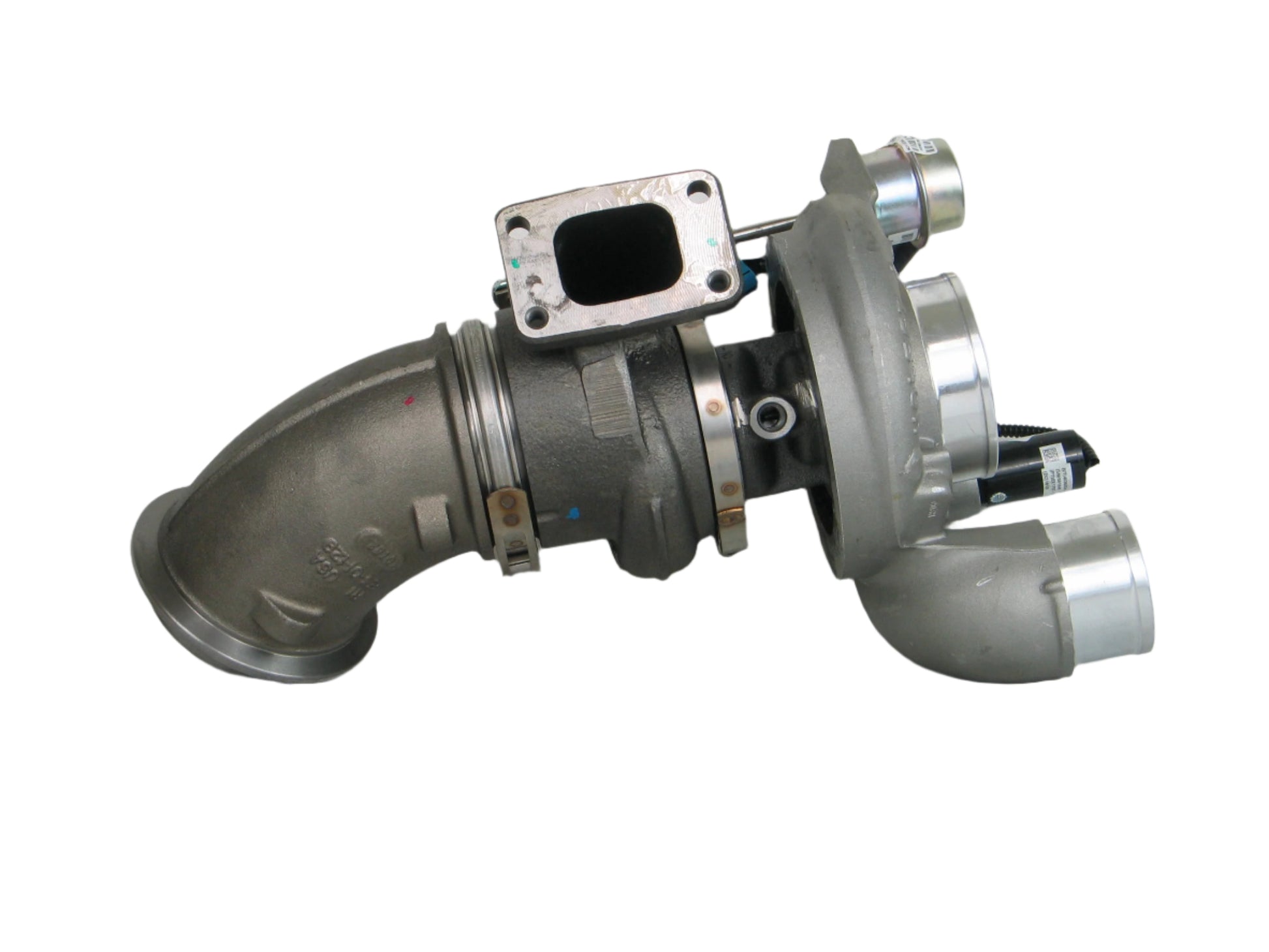

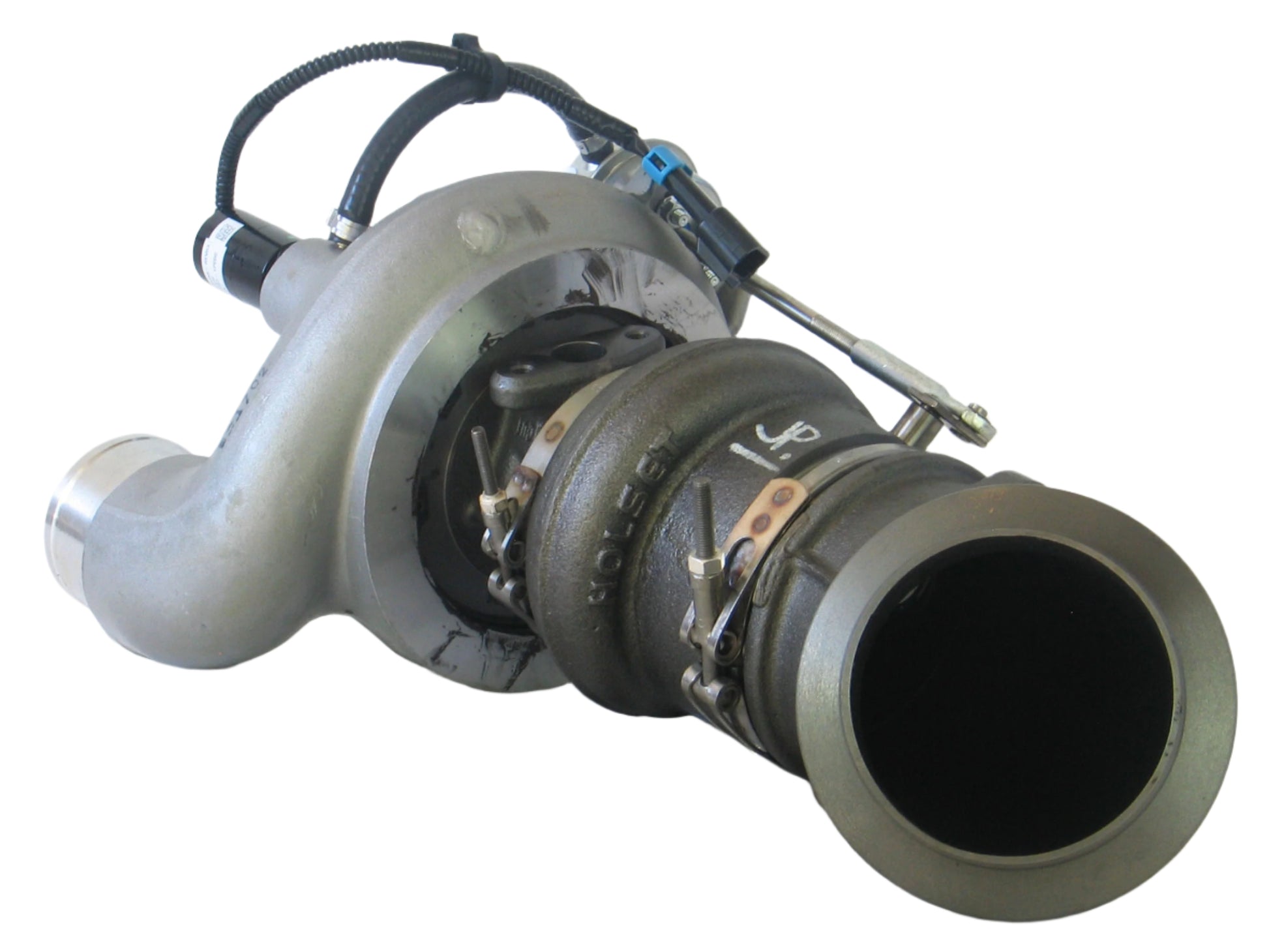

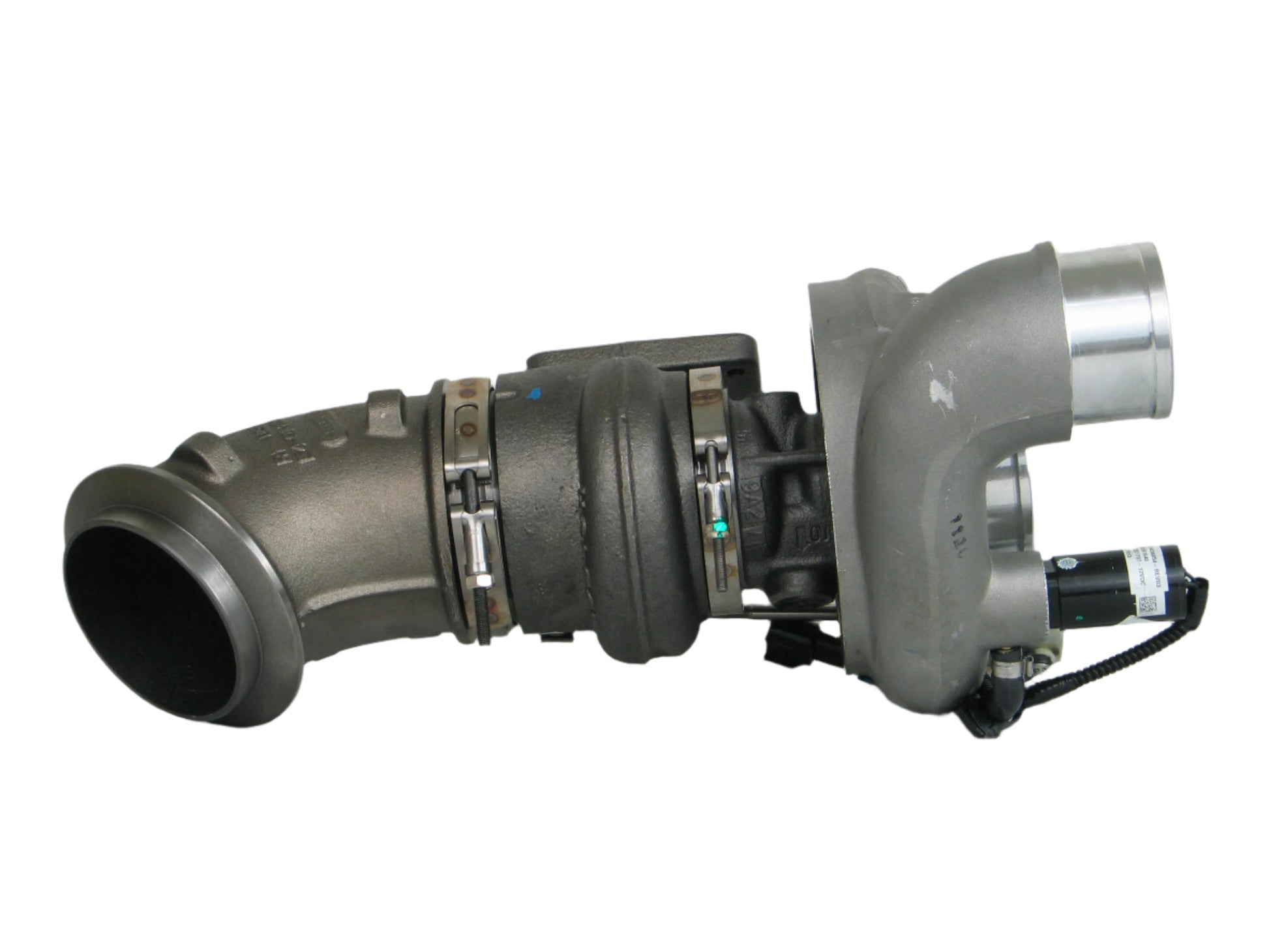

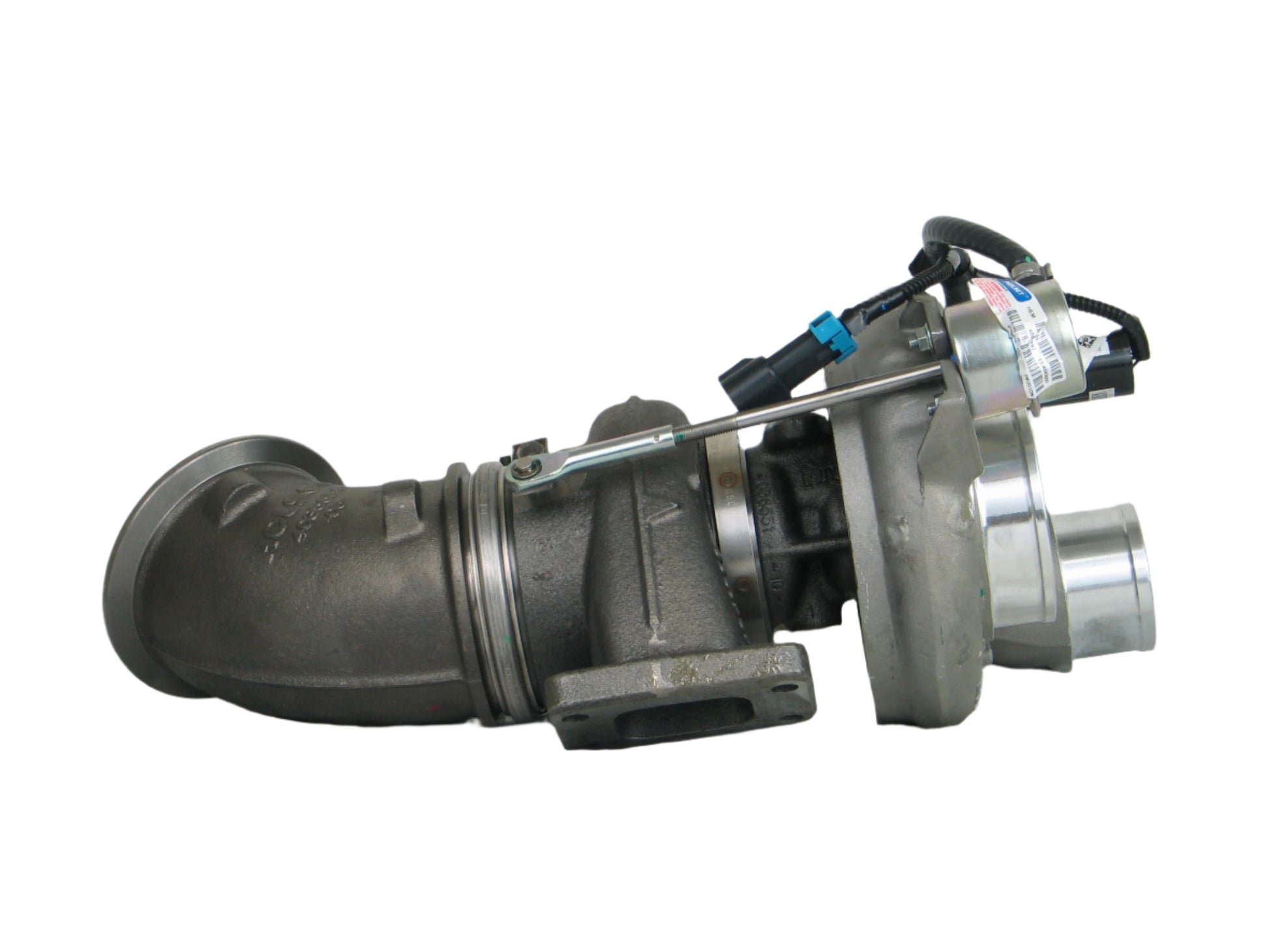

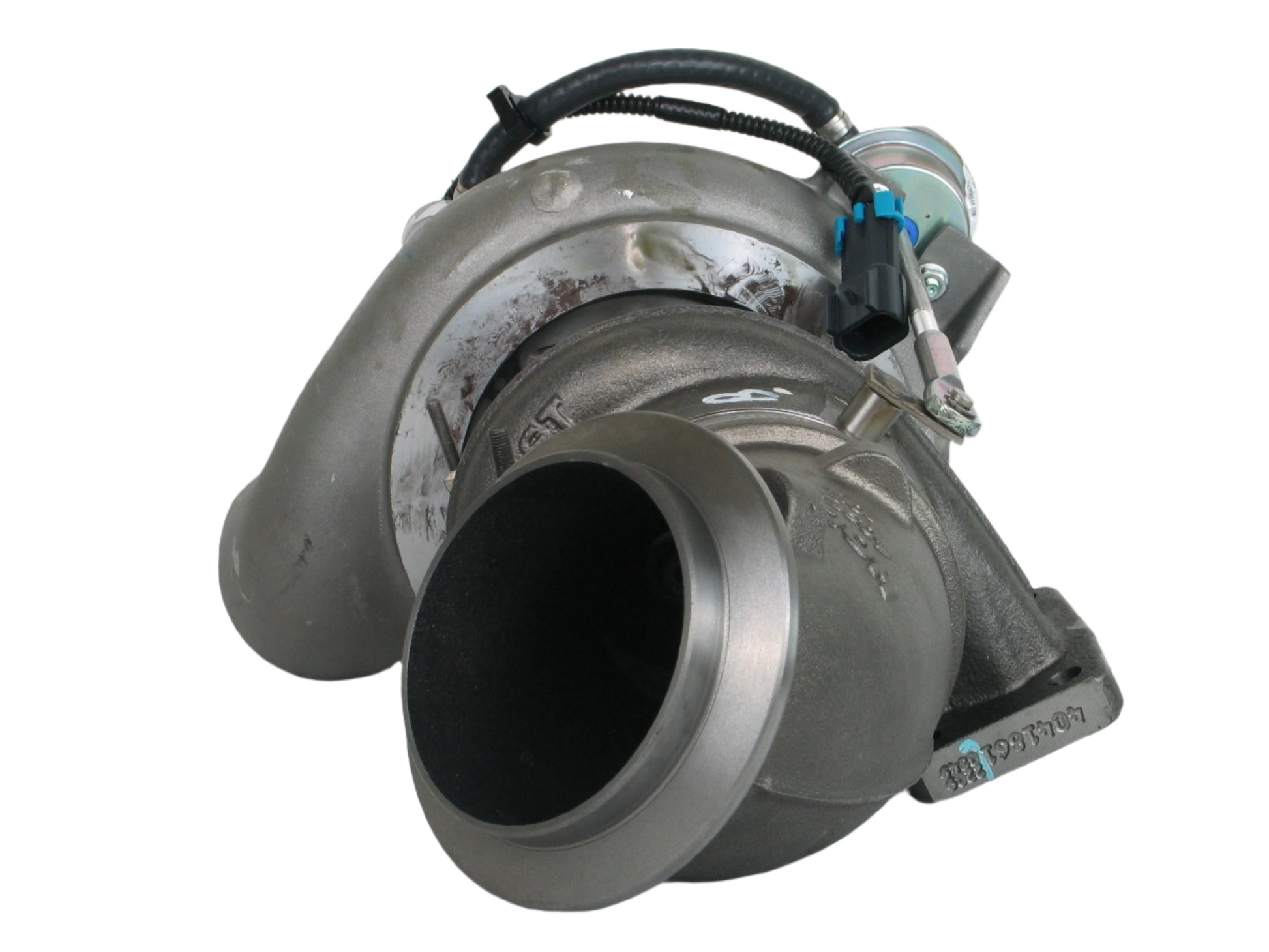

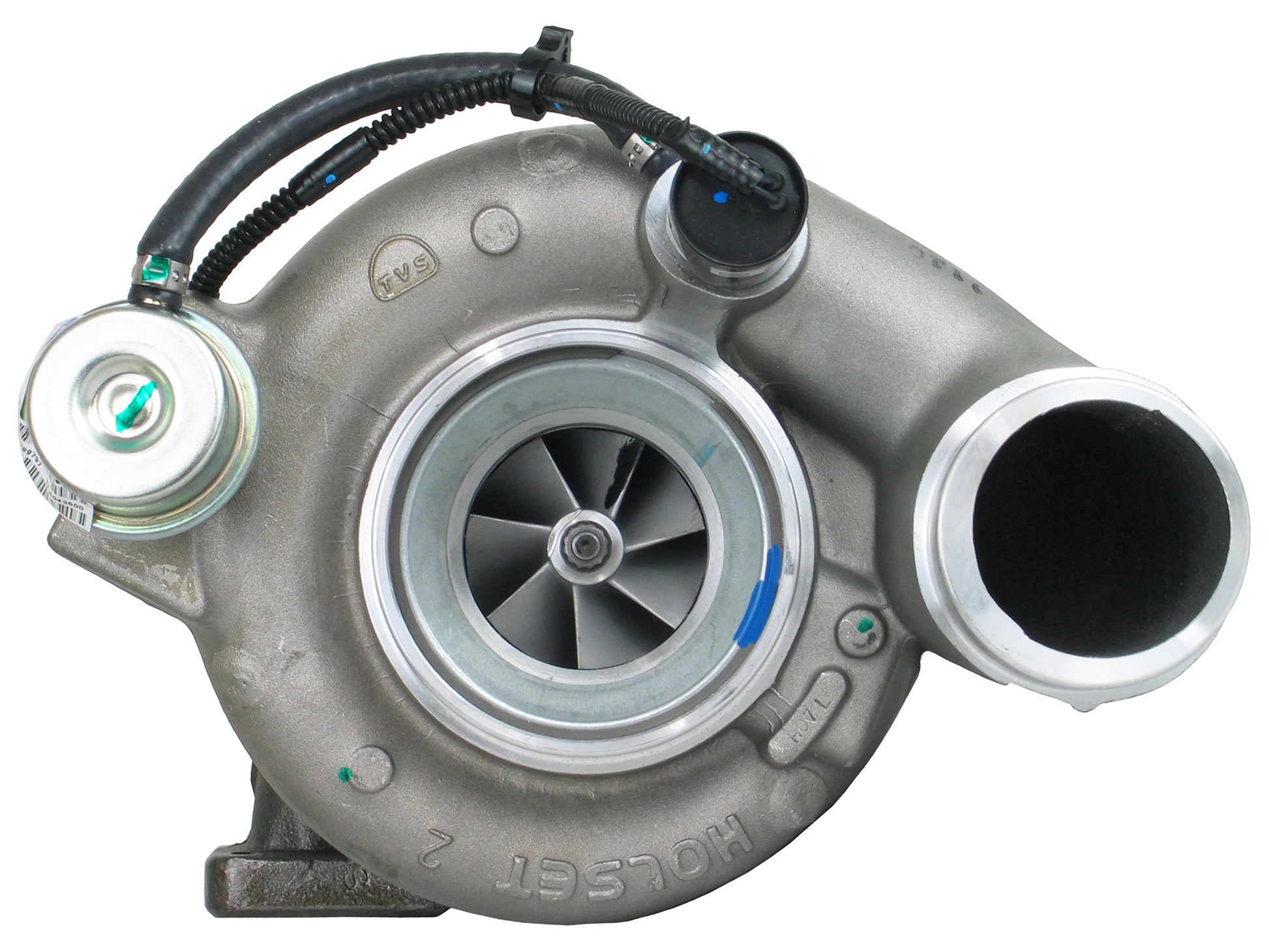

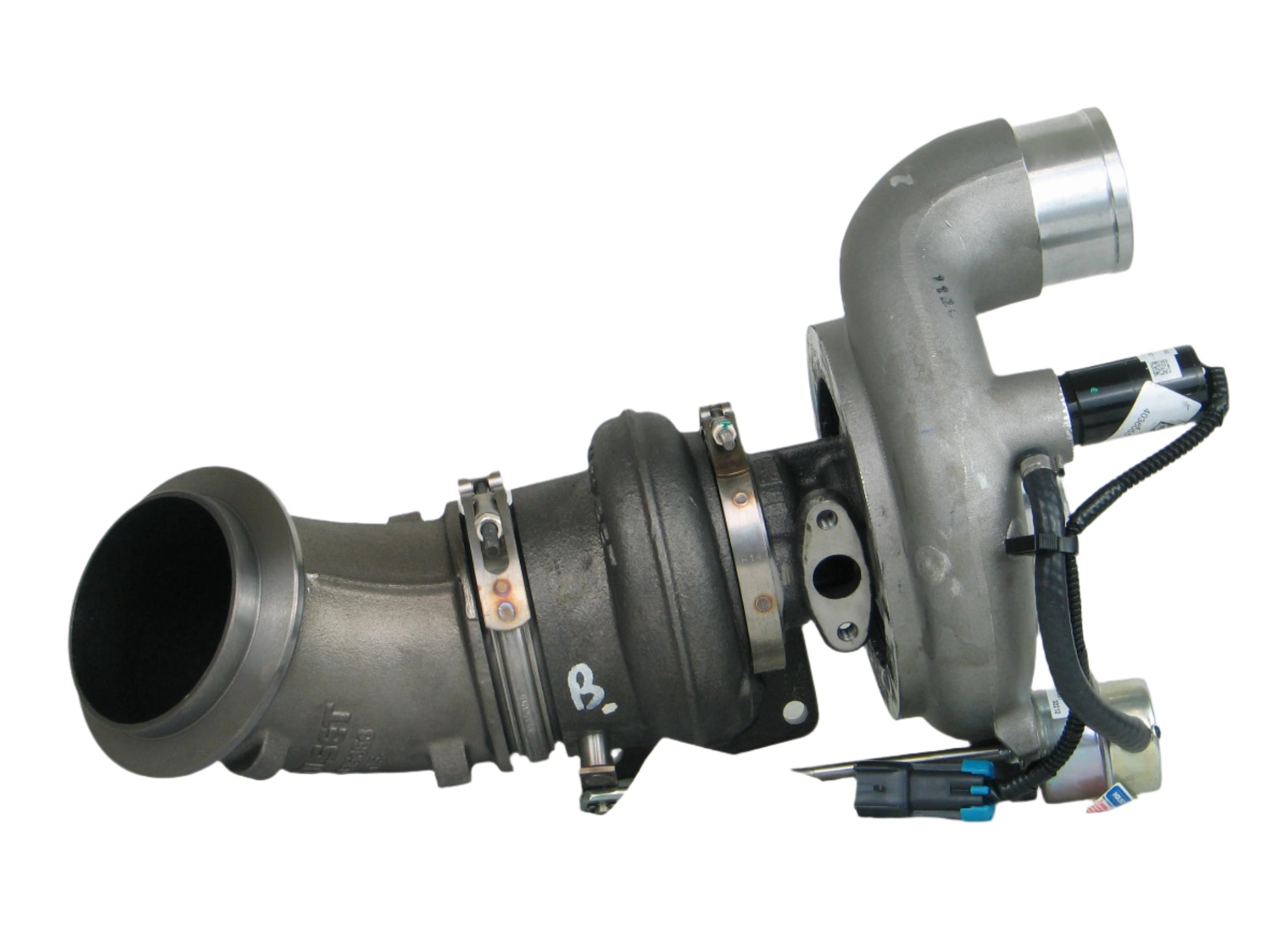

NEW OEM Holset HY35W HE351CW Turbo Dodge Ram 3500 Cummins 5.9L Engine 4043600

BRAND NEW GENUINE HOLSET TURBOCHARGER

This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

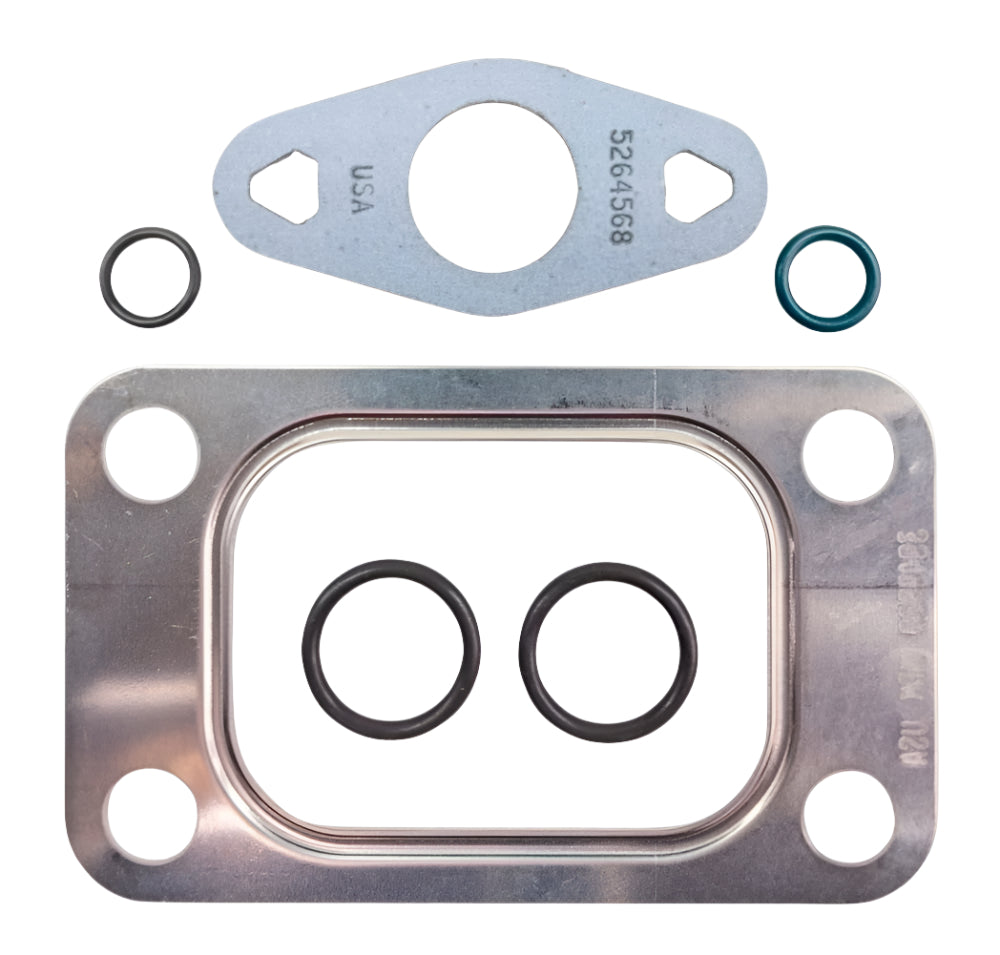

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 4043600
Interchangeable Number: 4036835, 403683600HX, 4036836H, 4036836HX, 4037001, 4037002, 4089673, 4089673NX, 4089673RX, 4089797, 408979700, 4089797NX, 4089797RX
OEM Number: 4036836, 5143256AA, R5143256AA
Turbo Model: HY35W, HE351CW
Manufacturer: Holset

Year: 2003-07
Engine: 6BT, ISB, ISB5.9, ISB6
Engine Manufacturer: Cummins
Displacement: 5.9L, 6000 ccm
Fuel: Diesel
Power: 239 kW/325 HP

Angle α (Compressor Housing): 225°
Angle β (Turbine Housing): 165°
Actuator: 3599891 (2061016282)
Back Plate: 3530923 (1154351300, 18000160091)
Bearing Housing: 4038233 (Oil Cooled)(1154351450, 900011237B)
CHRA: 4032347
Compressor Cover: 4036782
Compressor Wheel: 4035879 (4035879, 4043377)(Ind. 59.99 mm, Exd. 86.05 mm, 7+7 Blades, Super Back)(1154351400, 1200016234)
Flange: T3
Heat Shield: 3519302 (1152301340, 2030016031)
Repair Kit: 4031484 (1154351751, 5000020029)
Turbine Housing: 4042138
Turbine Wheel: 4035271 (Ind. 65.2 mm, Exd. 57.96 mm, 12 Blades)(1154351435, 1100-016-079)

Application:
2003-04 Dodge Ram with Cummins 6BT Engine
2003-07 Dodge Ram 3500 Series 2WD Dually, 24 Valve Intercooled Turbo; 6 Speed Standard with Cummins ISB Engine
2004.5-07 Dodge, Pick-up Truck with 5.9L Cummins Engine
Chrysler with Cummins ISB Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
