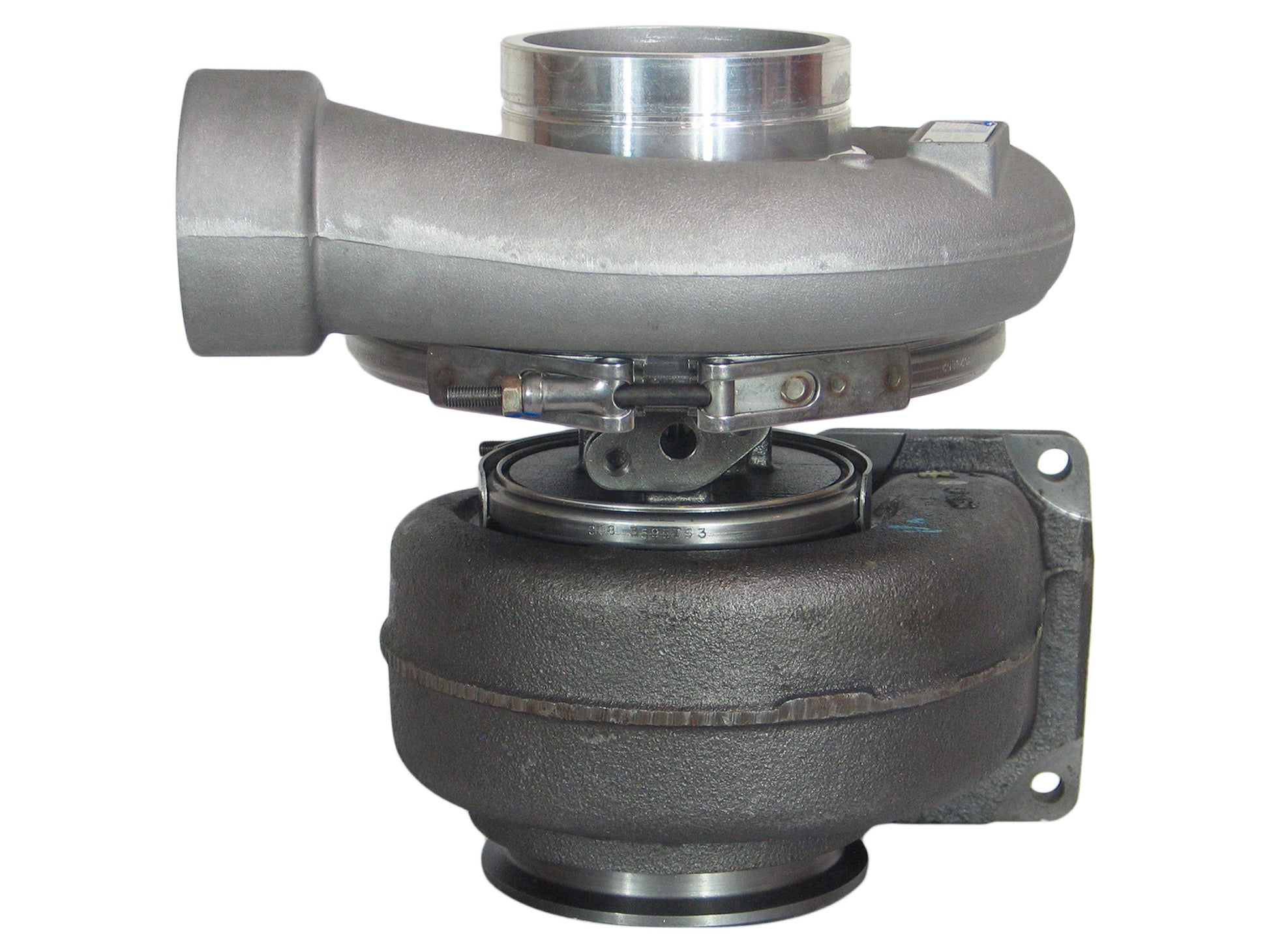

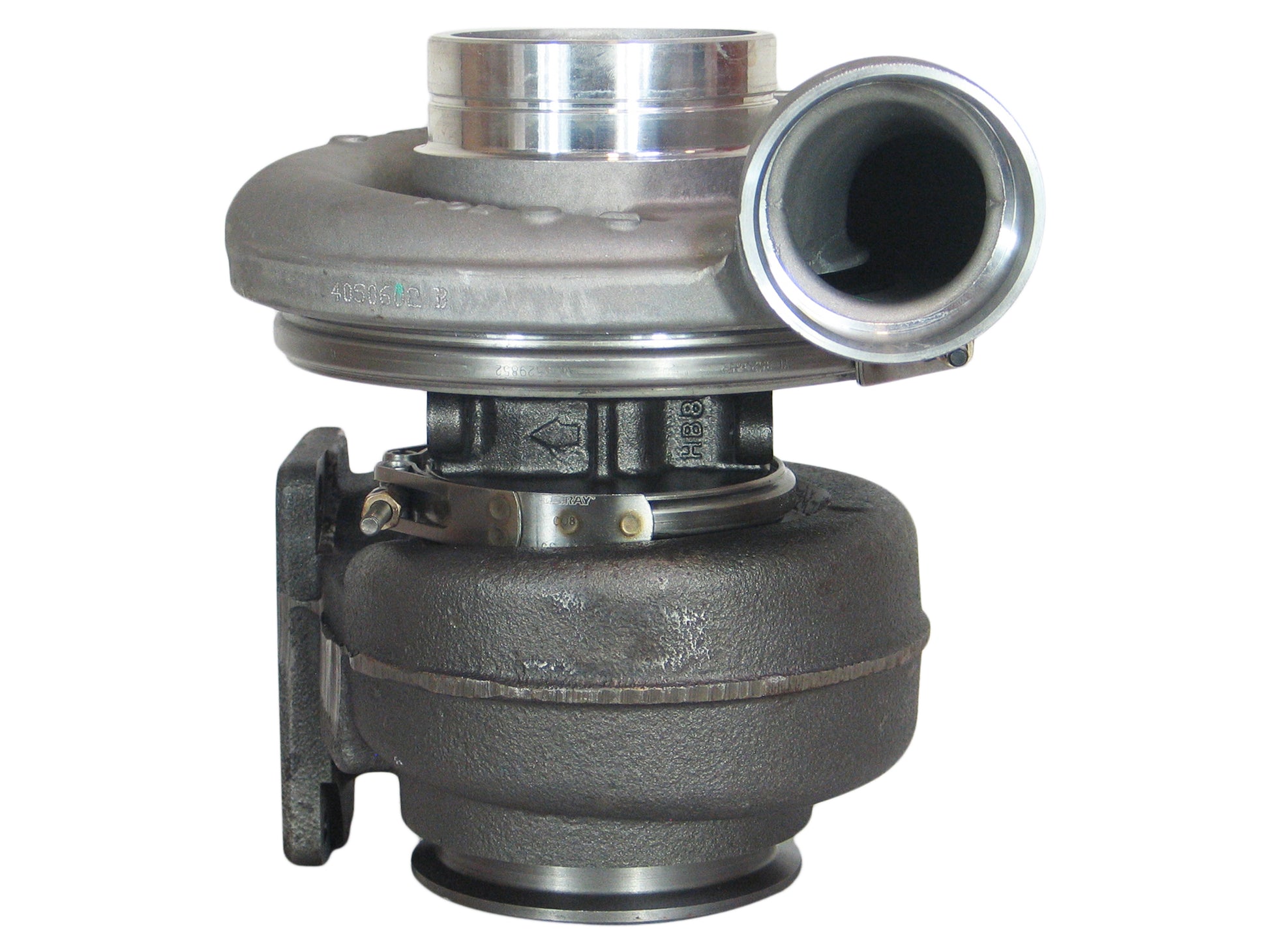

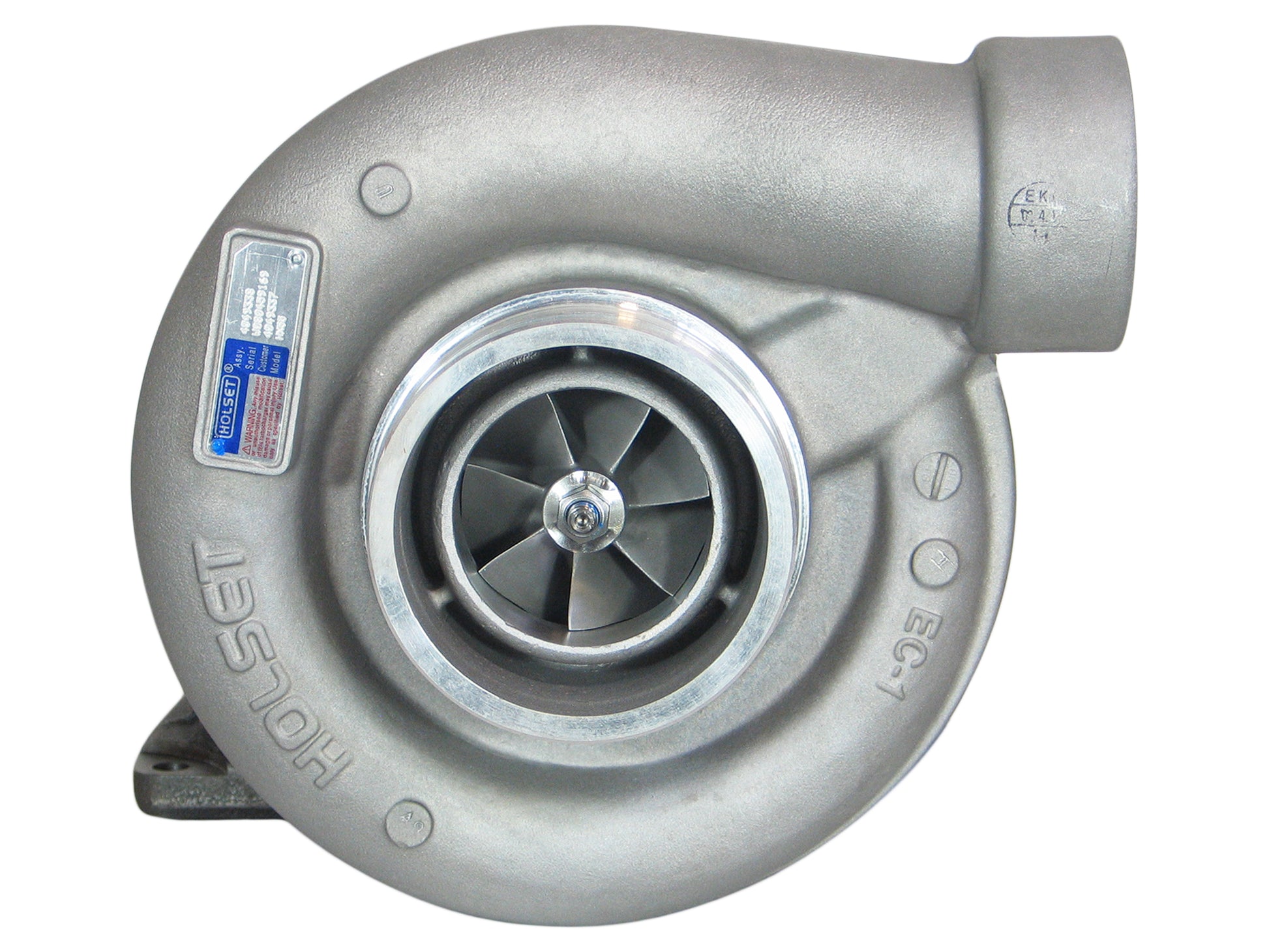

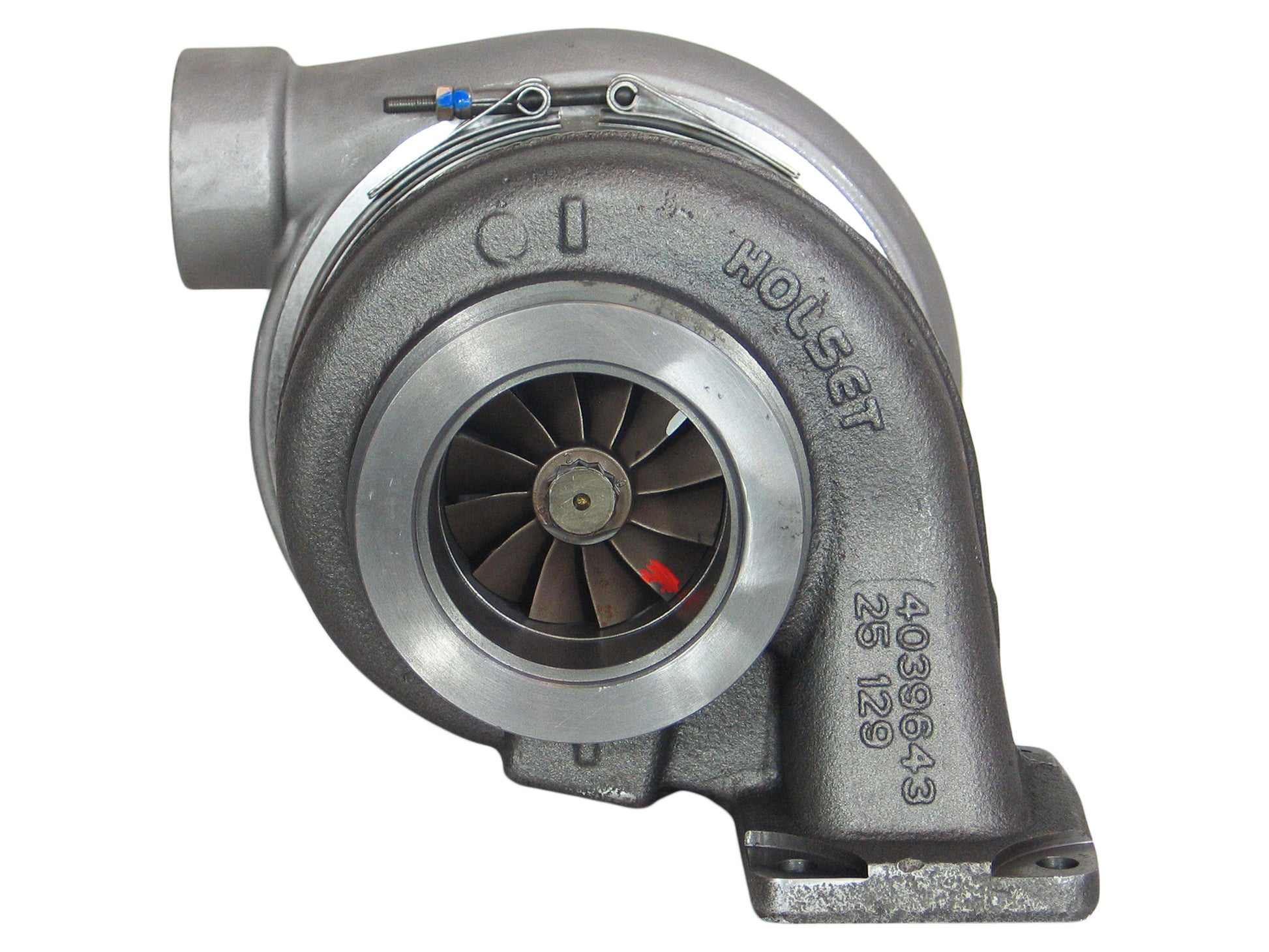

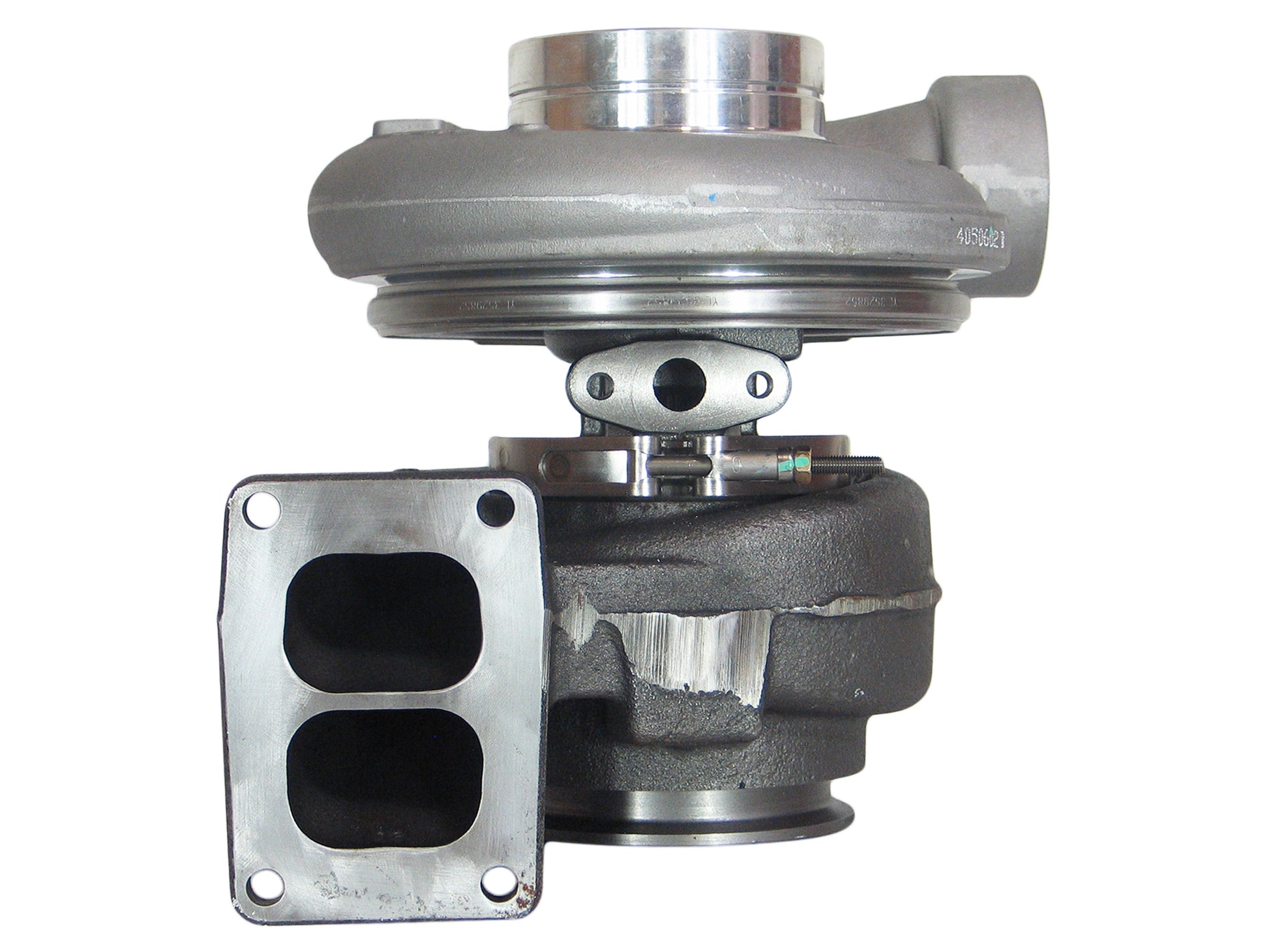

NEW OEM Holset HX55 Turbo Volvo Truck FH12 FL12 FM12 D12C 11.96L Engine 4049337SKU: 4049337
This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

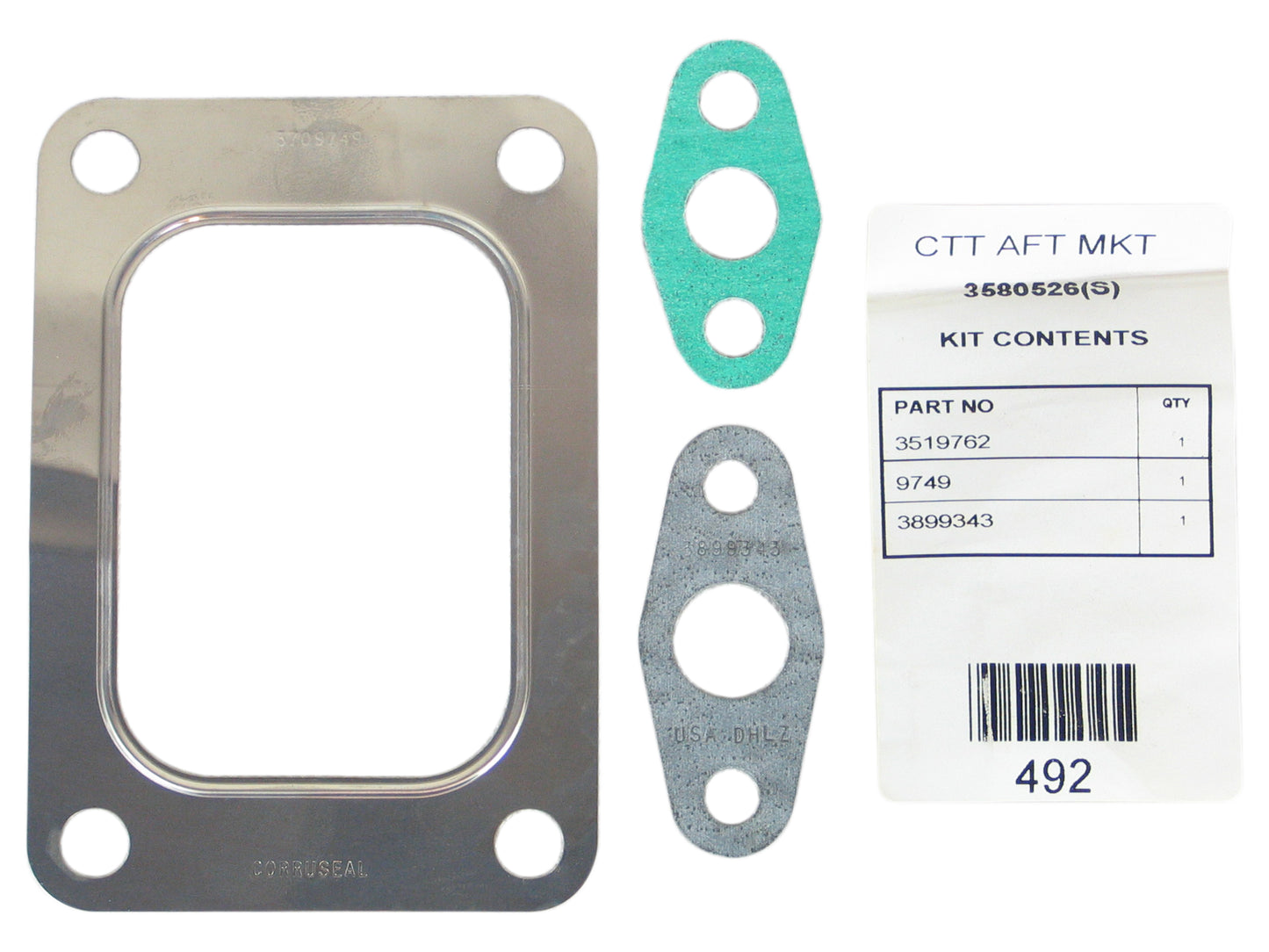

NOTE: This turbocharger package also comes with the gaskets.
Fits the following:
Part Number: 4049337
Interchangeable Number: 3533544, 3537840, 3537840-D, 3538716, 3538716-D, 3575237, 3591077-D, 4037181, 4037181-D, 4049337H, 4049337HX, 4049338, 452101-0001, 452101-5001, 452101-5001S, 452101-0002, 452101-5002, 452101-5002S, 452164-0001, 452164-5001, 452164-5001S, 712922-0001, 712922-5001, 712922-5001S, 712922-0008, 712922-5008, 712922-5008S
OEM Number: 1677725, 3165219, 425720, 8112637, 8112921, 8113407, 8148873, 8148987
Turbo Model: HX55-E9861E/T25VB15A, HX55
Engine: D12A, D12A Euro 3, D12C, D12C Euro 3
Engine Manufacturer: Volvo
Displacement: 11.95L, 11950 ccm, 6 Cylinders
Power: 385-425 HP
Angle α (Compressor Housing): 270°
Angle β (Turbine Housing): 180°
Back Plate: 3528096 (1153055300)
Bearing Housing: 3590231/4039258
CHRA: 4027027 (1153055902)
Compressor Cover: 4050602
Compressor Wheel: 4041666 (Ind. 65 mm, Exd. 99 mm, 7+7 Blades)
Gasket (Oil Inlet): 147837 (210023)
Gasket (Oil Outlet): 210060 (2475013)
Gasket (Turbine Inlet): 409038-0000 (132040, 52231083002)
Heat Shield: 3529846/3533038 (1153055340)
Repair Kit: 3580762/3575181 (1153055750)
Turbine Housing: 4039644
Turbine Wheel: 3533543/4038182 (Ind. 86 mm, Exd. 80 mm, 12 Blades)(1153055435)
1993-95 Volvo FH12, FL12, FM12 Truck with D12C Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
