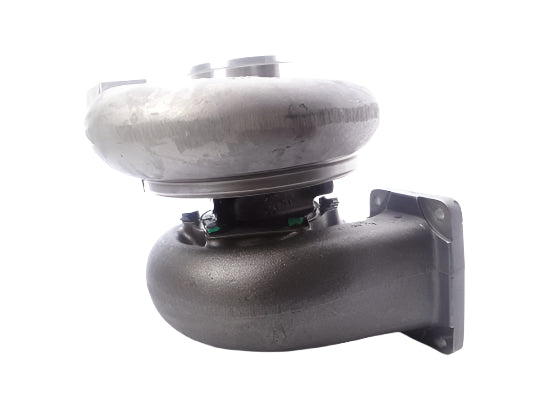

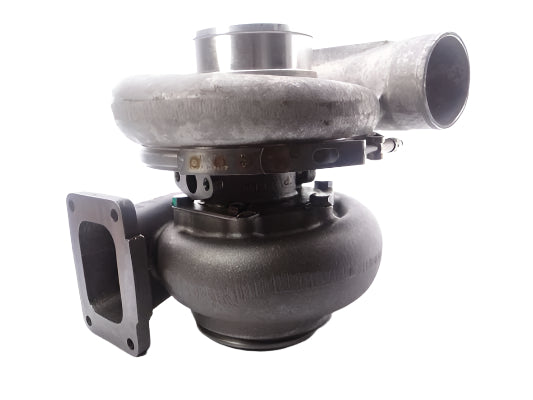

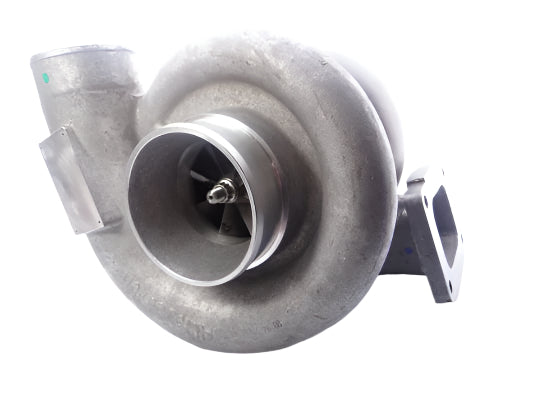

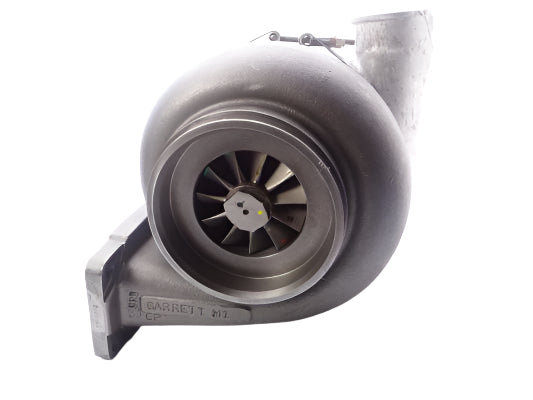

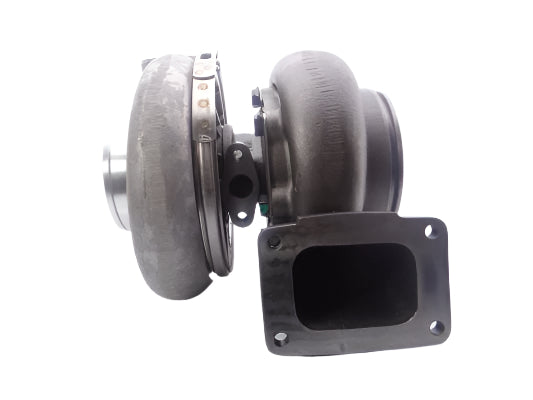

NEW OEM Garrett TH08A64 Turbo Boat Marine Detroit Diesel 8V71TI 9.3L 408140-5001

BRAND NEW GENUINE GARRETT TURBOCHARGER

This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 408140-5001
Interchangeable Number: 408140-0001, 408140-5001S
OEM Number: 05143110, 500339, 500423, 5143110, R5143110
Turbo Model: TH08A64
Manufacturer: Honeywell-Garrett

Year: 1968-
Engine: 8V71TI
Engine Manufacturer: MTU, Detroit Diesel
Displacement: 9.3L, 9308 ccm, V8 Cylinders
Fuel: Diesel

Angle α (Compressor Housing): 350°
Angle β (Turbine Housing): 345°
Back Plate: 406795-0058 (5199298, 681478C1, 331640679558)
Bearing Housing: 407527-0005 (Oil Cooled)
CHRA: 407524-0002 (407524-5002S, 5199305)
Compressor Cover: 407676-0033 (5199294)
Compressor Wheel: 408994-0004 (5199295, 681477C2)
Gasket (Oil Inlet): 129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900)(1900000035)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Gasket (Turbine Inlet): 409038-0001 (409038-0000, 132040, 202873, 205396, 9749, 1S4295, 3500683, 210017-0000, 210835-0000, 7M7273)(1900000003)
Heat Shield: 407657-0000 (5199302, 619463C1)(407657-0004, 441092-0001, 444839-0001, 409794-0001)
Repair Kit: 468111-0000
Stud Kit: 400465-0525
Turbine Housing A/R: 0.96
Turbine Housing: 406826-0022 (5199293)
Turbine Wheel: 406787-0009 (5199304, 33164067879)(Ind. 112 mm, Exd. 79 mm, 11 Blades)
Turbo Technology: Free Floating

Application:
1968- Boat, Marine with Detroit Diesel 8V71TI Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
