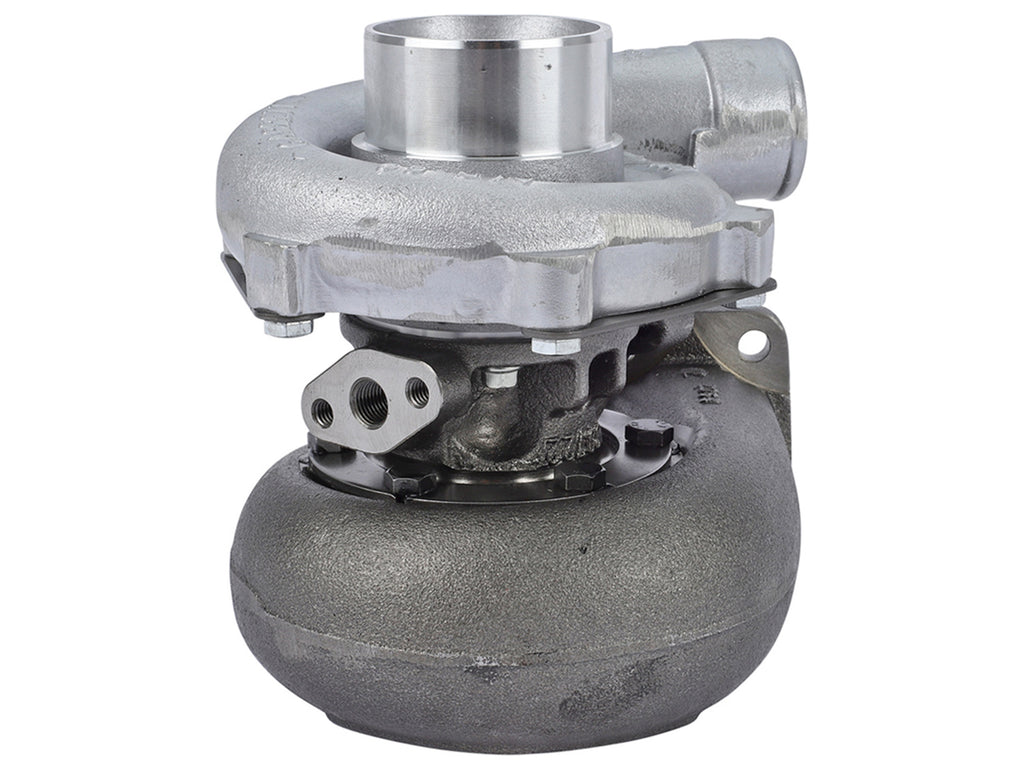

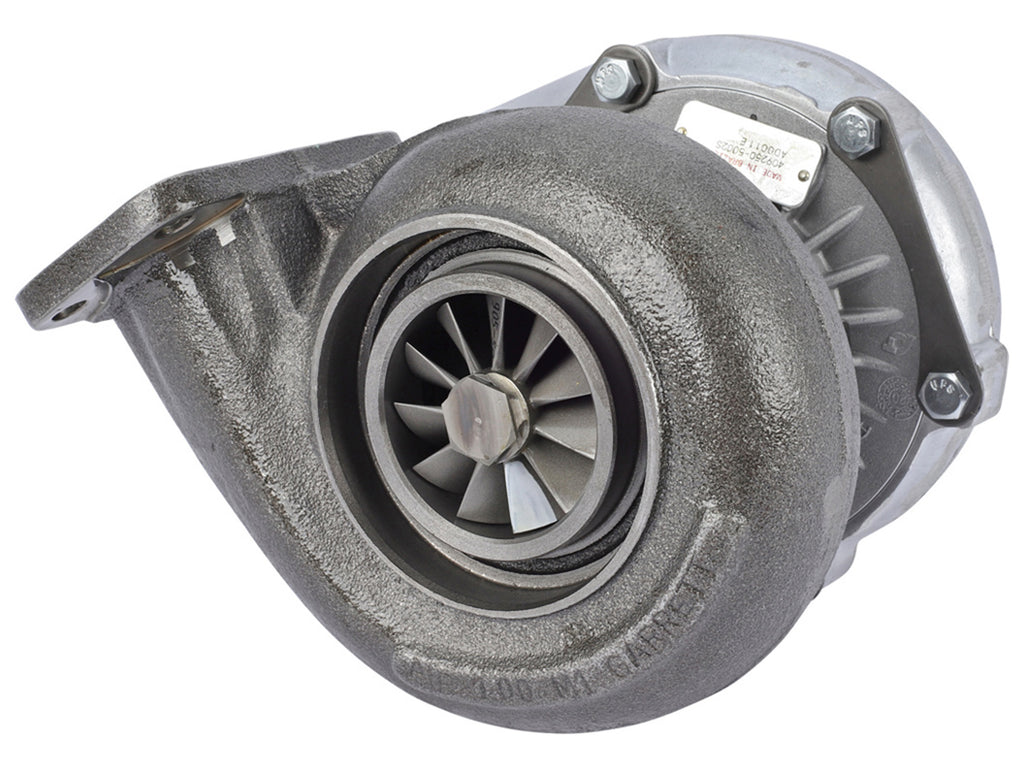

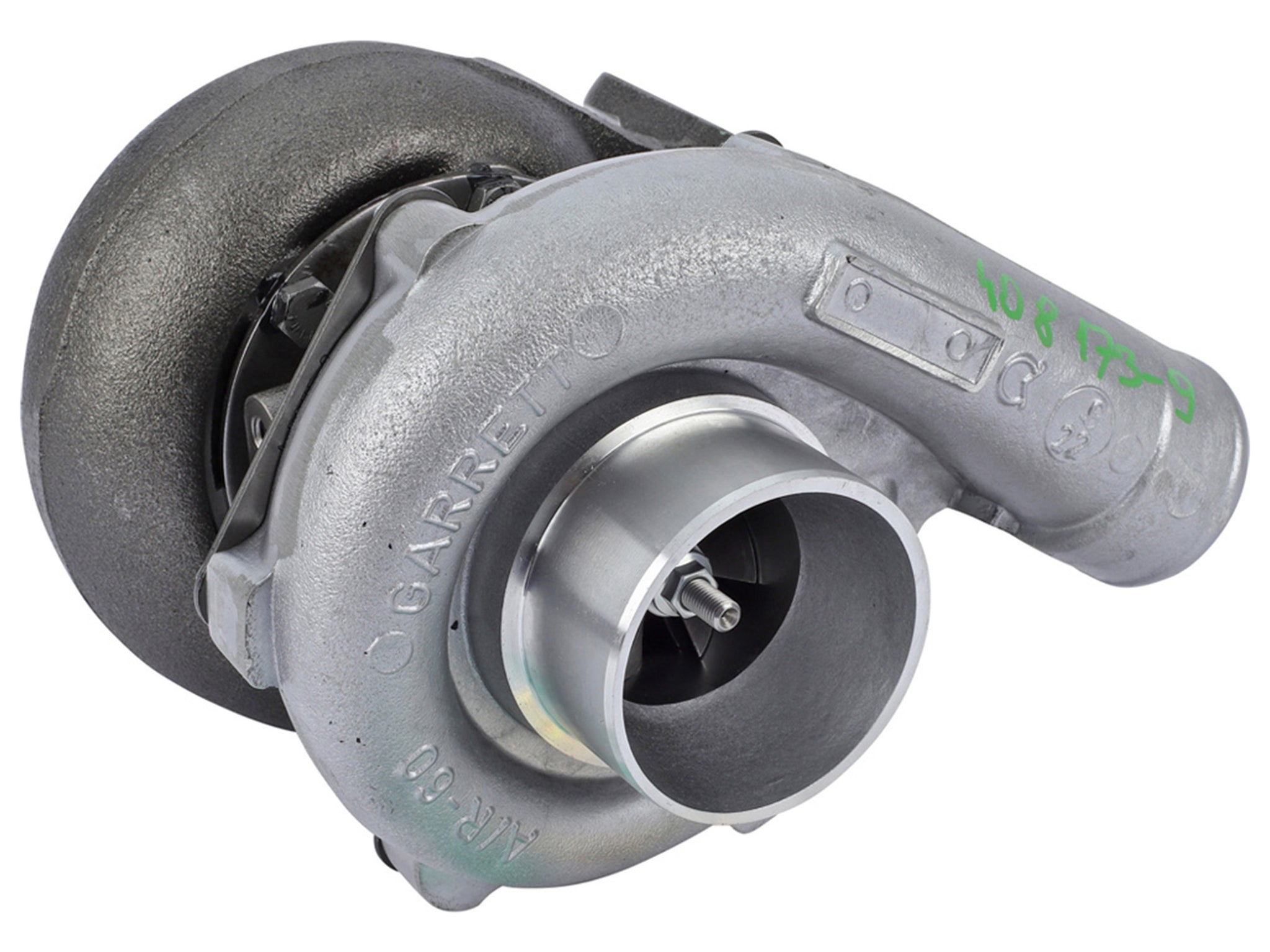

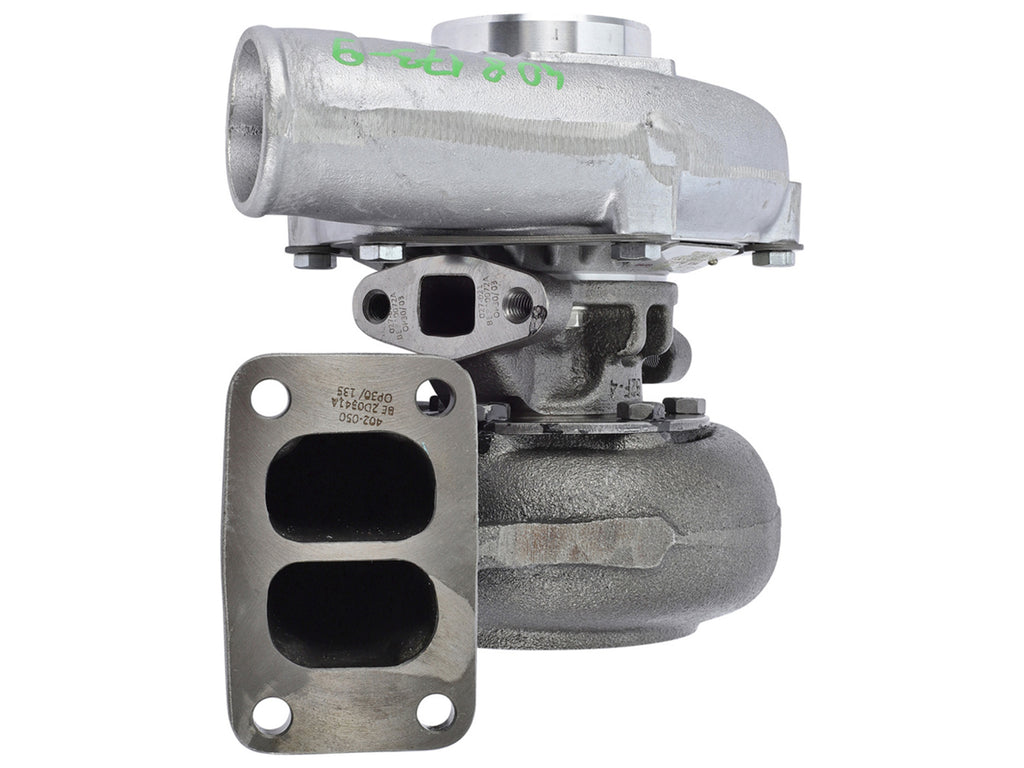

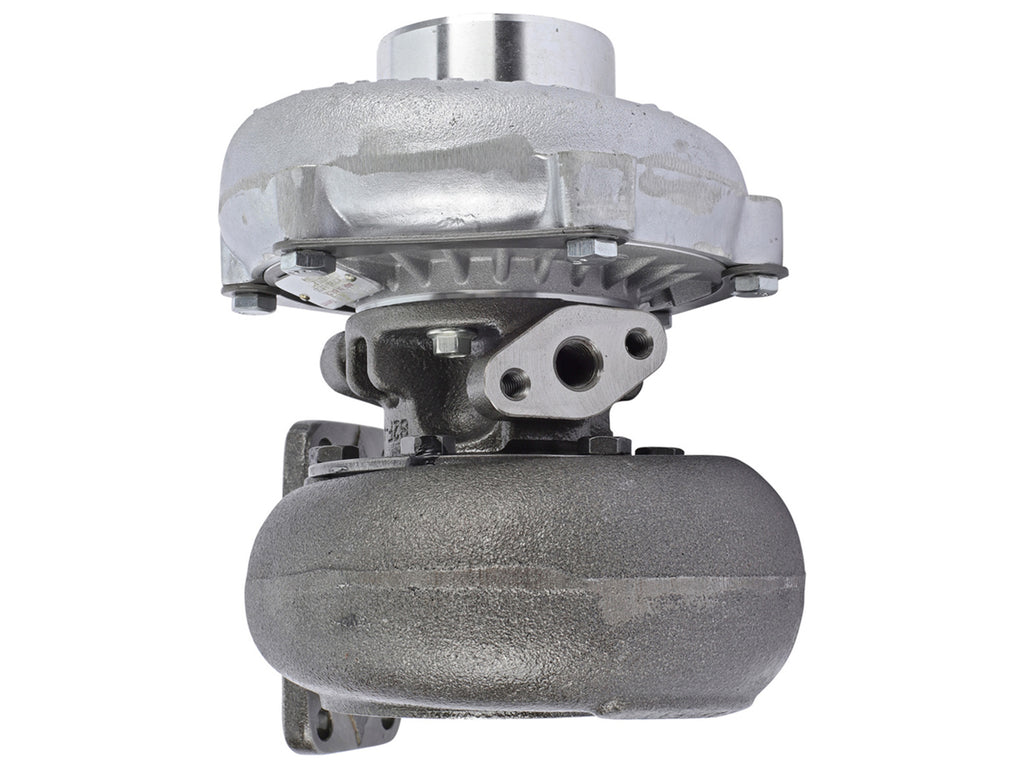

NEW Garrett T04B15 Turbo John Deere Agricultural Tractor 6406T 6.6L 409250-5002

BRAND NEW GENUINE GARRETT TURBOCHARGER

This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

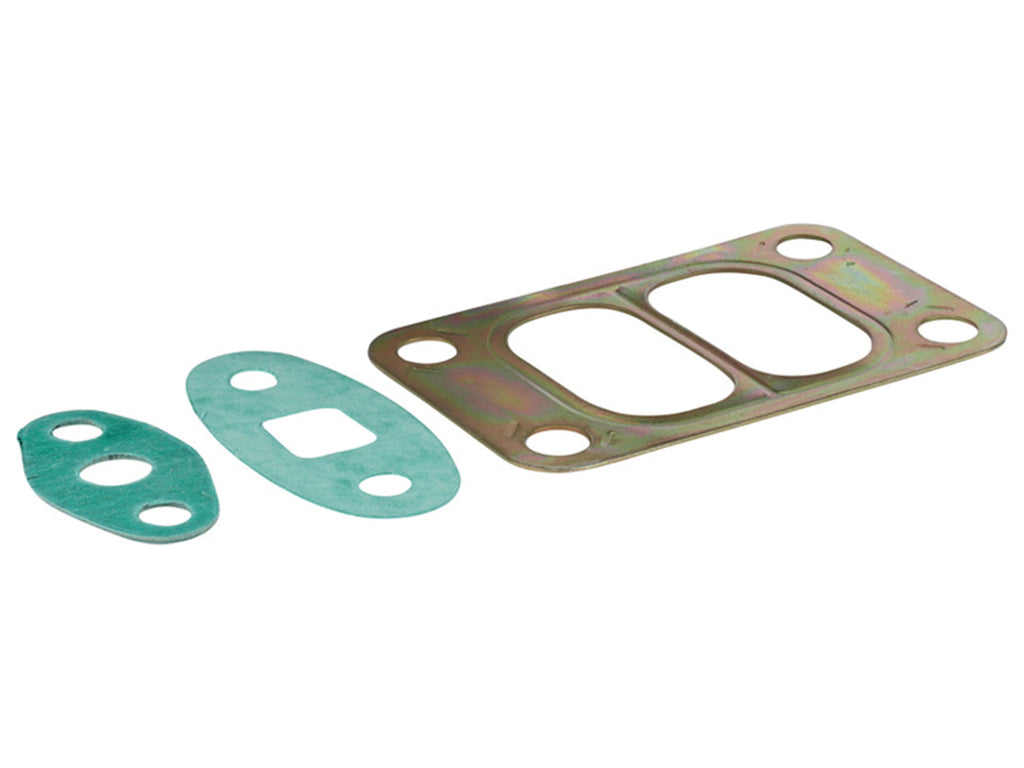

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 409250-5002
Interchangeable Number: 409250-0002, 409250-5002S, 155653, 157253, 157441, 313098, 407630-0001, 407630-5001, 407630-5001S, 407630-0002, 407630-5002, 407630-5002S, 407630-0003, 407630-5003, 407630-5003S, 408730-0001, 408730-5001, 408730-5001S, 408730-0002, 408730-5002, 408730-5002S, 408730-0003, 408730-5003, 408730-5003S, 409250-0001, 409250-5001, 409250-5001S
OEM Number: AR51427, AR54931, AR63779, AR70987, AR70989
Serial Number: MHR0121 10-00
Turbo Model: T04B15
Manufacturer: Honeywell-Garrett

Engine: 6404T, 6406T
Displacement: 6.6L, 6600 ccm, 6 Cylinders
Emission Standard: Tier 3
Fuel: Diesel

Angle α (Compressor Housing): 192°
Angle β (Turbine Housing): 318.5°
Back Plate: 408045-0051 (AR54934, A44836, 4060945, 25703, 79025703, D7NN6N764A, 1047276M91, 303172112)(311708, 310010, 4N6863, 408045-0006, 408045-0034, 408045-0035, 408206-0002, 104244-0000)(1100040360)
Bearing Housing: 430027-0051 (2P**35)(186880, 186882, 407285-0018, 430027-0031, 430027-0035)
CHRA: 408105-0261 (408105-5261S, 408105-0023, AR63780)
Compressor Cover: 408173-0009 (AR55026)
Compressor Wheel: 409179-0019 (AR55025)(Ind. 47.62 mm, Exd. 69.98 mm, 8+8 Blades, Flat Back)
Gasket (Oil Inlet): 210023 (147837, 215234, 409036-0000, 210023-0000, 55739)(1900000037)
Gasket (Oil Outlet): 210021 (148062, 409037-0000, 210021-0000, 311496, 413671-0000, 3519807)(1900000027)
Gasket (Turbine Inlet): 409039-0000 (210022-0000)
Gasket Kit: 410302-0000 (104095-0000, 215068)
Heat Shield: 409299-0001 (409299-0000)
Repair Kit: 468100-0000 (3524796, 168984, 310063, 2W0716, 6N7236, 79025721, 188006-0000, 188401-0000)(1100040750)
Turbine Housing A/R: 1.00
Turbine Housing: 407402-0050 (AR48712)
Turbine Wheel: 446905-0001 (20302)(407276-0005, 410188-0002, 410188-0005, 410188-0014, 451309-0002)(Ind. 74.29 mm, Exd. 58.29 mm, 11 Blades)(1100040435)
Turbo Technology: Free Floating

Application:
John Deere 4320, 4430, 4520, 4620, Row-Crop Tractor with 6406T Engine
John Deere 5200, 5400 Forage Harvester with 6406T Engine
John Deere 644, 644A Mid-Size Wheel Loader with 6406T Engine
John Deere 6602 Combine with 6406T Engine
John Deere 690, 690A, 690B Excavator with 6406T Engine
John Deere 7020, 7700 Combine with 6406T Engine
John Deere Agricultural with 6404T Engine
John Deere Bagger with 6406T Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
