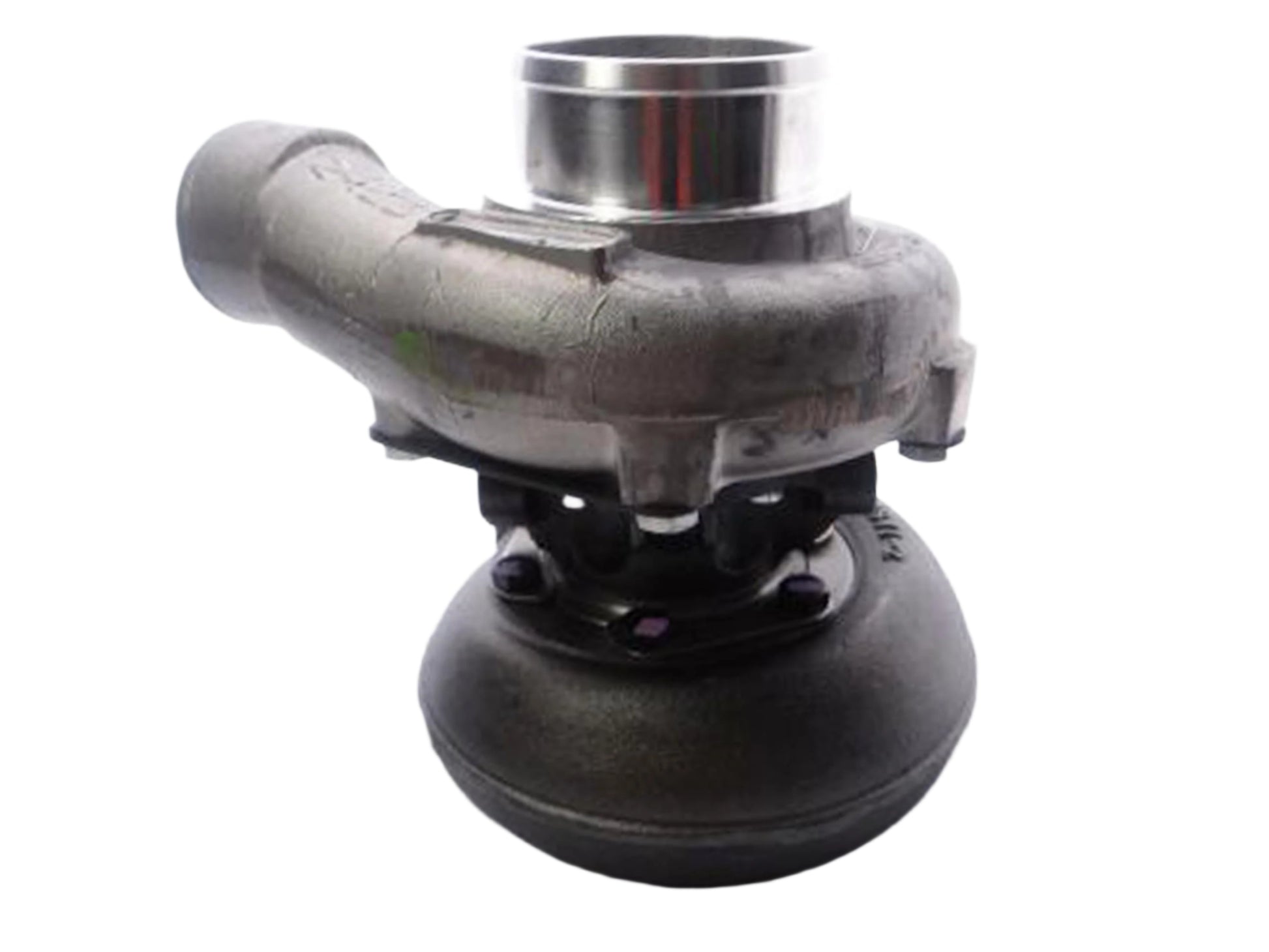

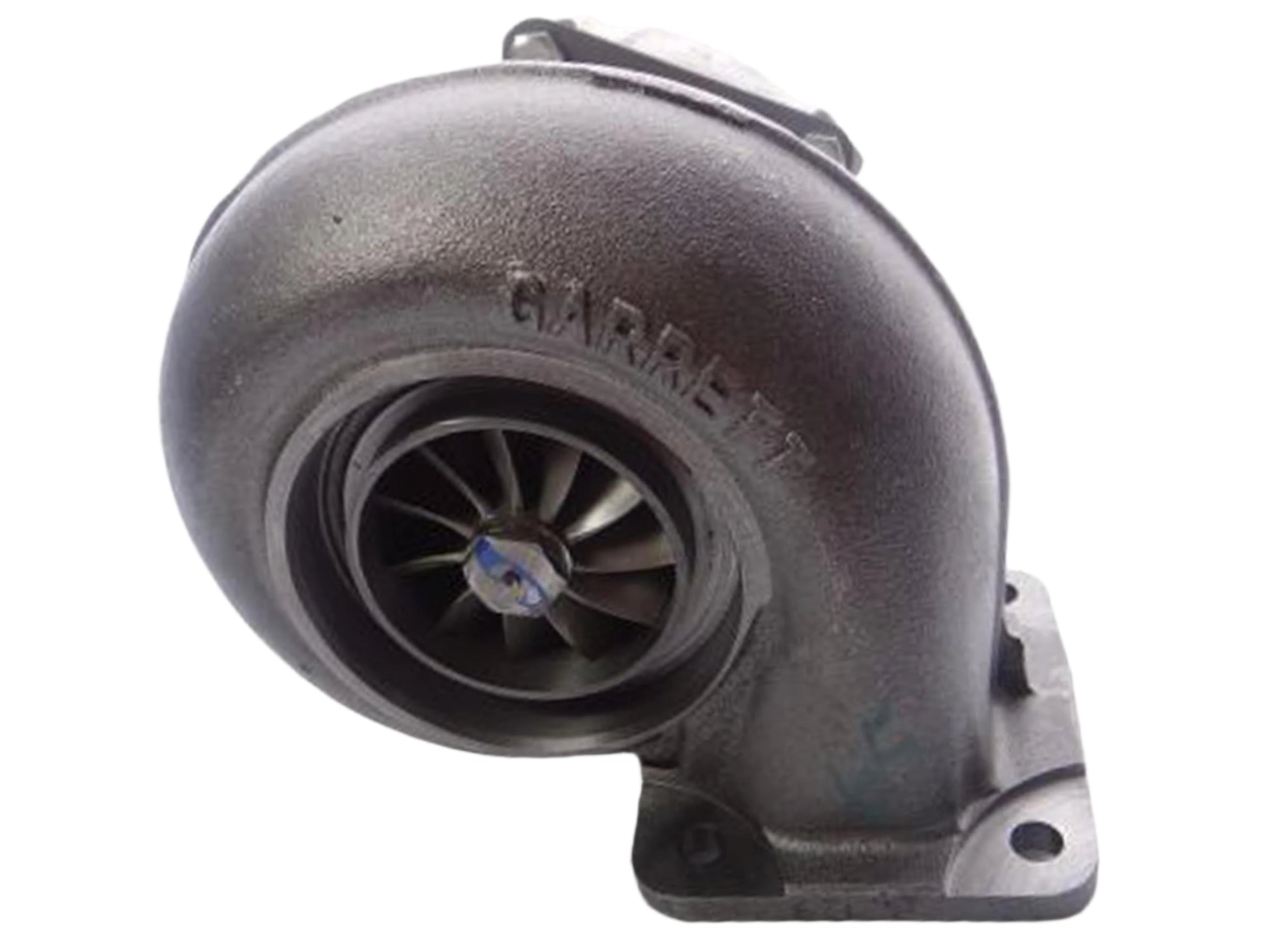

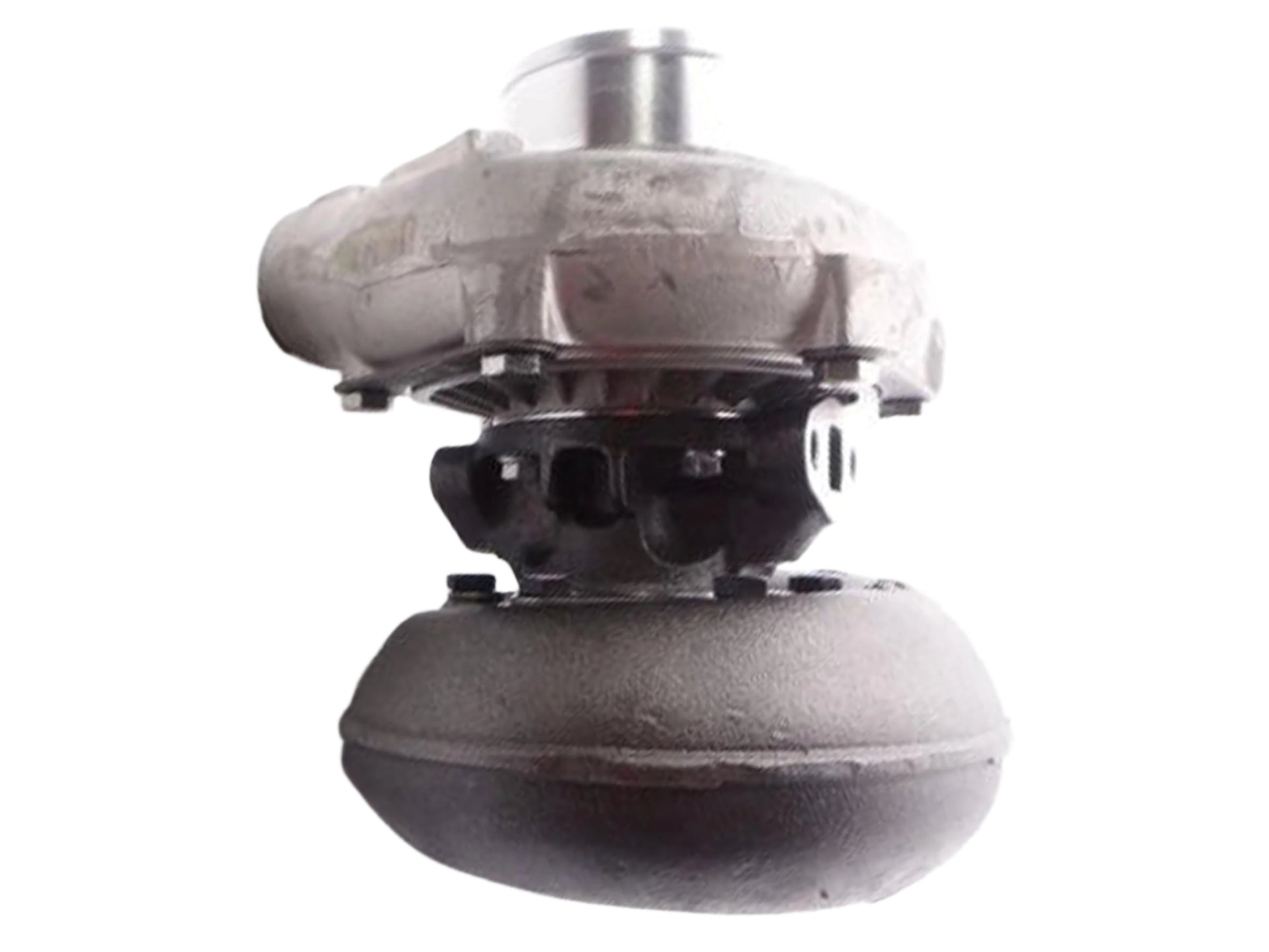

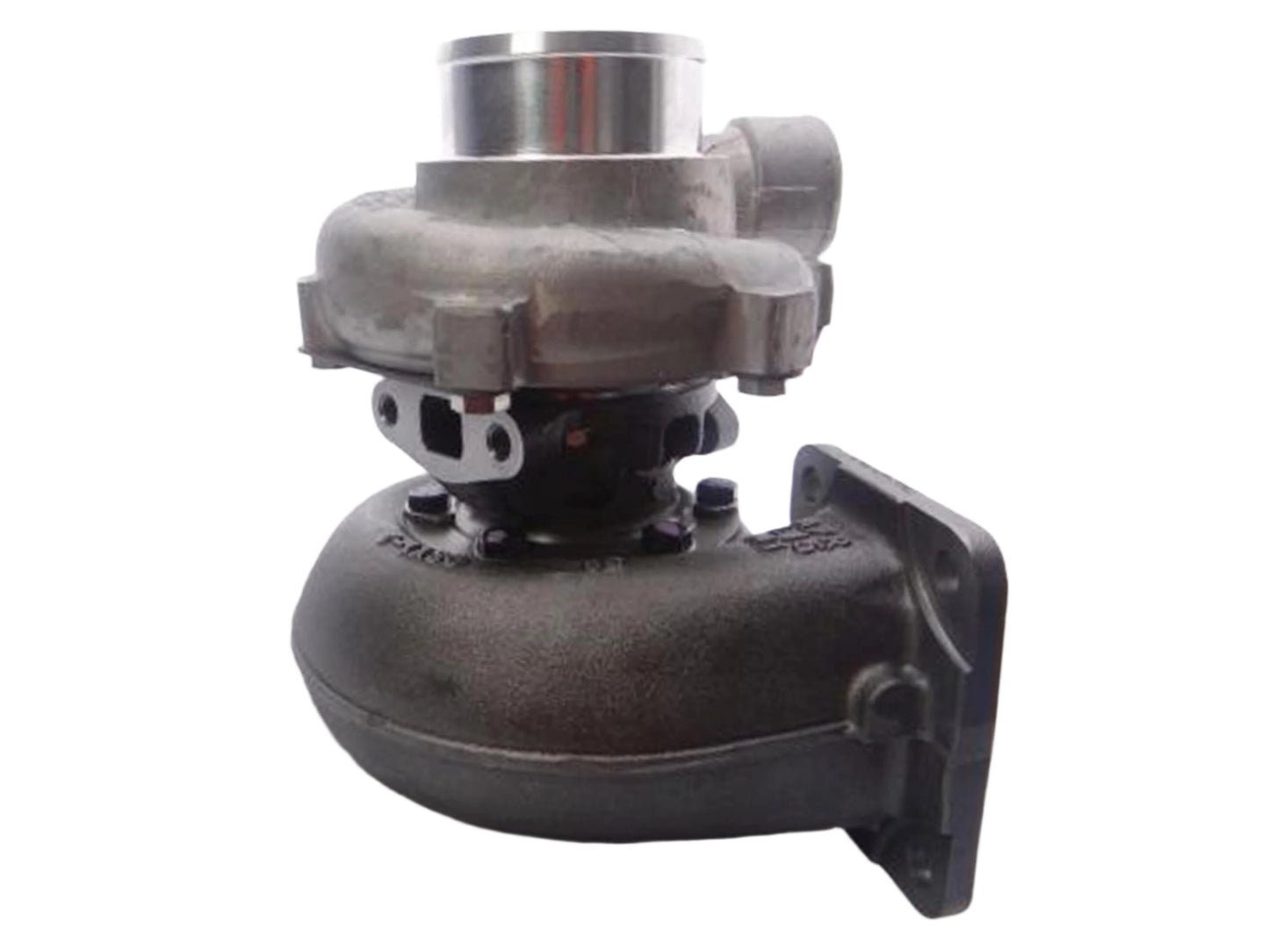

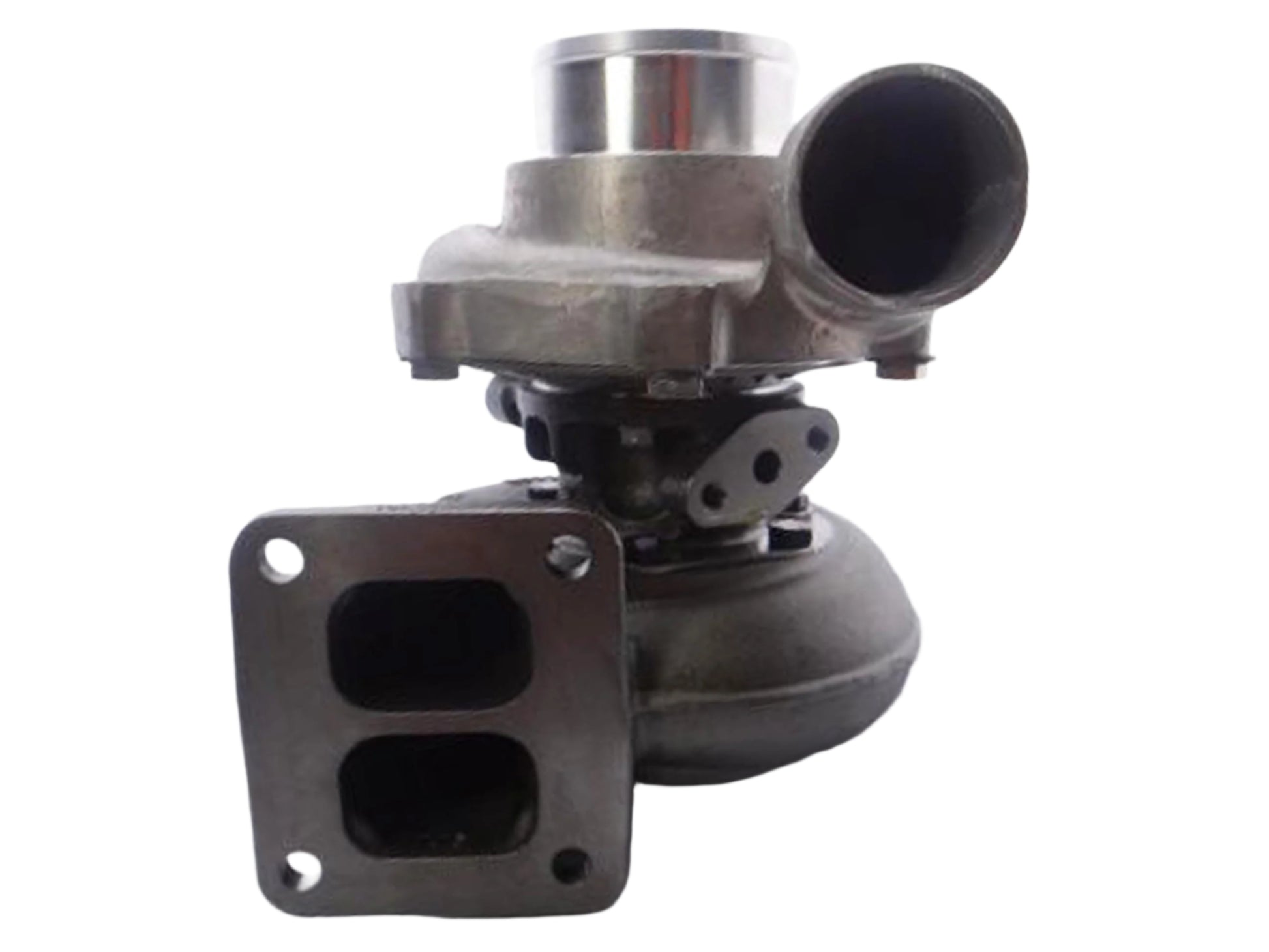

NEW Garrett T04B25 Turbo IH Truck Agricultural DT466 DT466A DT466B 409770-5019SKU: 409770-5019
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 409770-5019
Interchangeable Number: 409770-0019, 409770-5019S, 409770-0005, 409770-5005, 409770-5005S, 409770-0006, 409770-5006, 409770-5006S, 409770-0007, 409770-5007, 409770-5007S, 409770-0008, 409770-5008, 409770-5008S, 409770-0009, 409770-5009, 409770-5009S, 409770-0011, 409770-5011, 409770-5011S, 409770-0013, 409770-5013, 409770-5013S, 409770-0014, 409770-5014, 409770-5014S, 409770-0015, 409770-5015, 409770-5015S, 409770-0016, 409770-5016, 409770-5016S, 409770-0017, 409770-5017, 409770-5017S, 409770-0020, 409770-5020, 409770-5020S, 409770-0021, 409770-5021, 409770-5021S, 409770-0022, 409770-5022, 409770-5022S, 409770-0023, 409770-5023, 409770-5023S, 409770-0024, 409770-5024, 409770-5024S, 313102, 313102R
OEM Number: 1806077C91, 1806078C2, 1806078C91, 1806078C92, 1806079C91, 1806079C92, 1806080C91, 1806080C92, 1806081C91, 1823573C92, 3218953R91, 684569C91, 684598C91, 684663C91, 684663C92, 684698C91, 684937C91, 691020C91, 691059C91, 735030C91, 735270C91, 749269C91, 749282C91, 991523C91, A184781
Turbo Model: T04B25
Engine: DT466, DT466A, DT466B, DT466C, DTI466A, DTI466B
Displacement: 7.6L, 7600 ccm, 6 Cylinders
Power: 180/190/210/281/286 HP
Angle α (Compressor Housing): 265°
Angle ß (Turbine Housing): 210°
Back Plate: 408045-0034 (630614C91)(4N6863, 310010, 311708, 104244-0000, 408045-0051, 408045-0006, 408206-0002)(1100040360)
Bearing Housing: 430027-0051 (186880, 186882, 407285-0018, 430027-0031, 430027-0035)(Oil Cooled)
CHRA: 408105-0156 (408105-0215, 408105-5156S)(684356C92, 991530C91, 684357C91)
Compressor Cover: 408274-0224 (684366C1)
Compressor Wheel: 409179-0024 (684364C1)(Ind. 54 mm, Exd. 69.95 mm, 8+8 Blades, Flat Back with Ext. Hub)
Gasket (Oil Inlet): 210023 (409026-0001, 409036-0000, 409266-0001, 3519762, 3500681, 3709737, 3755739, 420641, 210023-0000, 55739, 147837)(1900000037)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 210021-0000, 413671-0000, 409037-0000)(1900000027)
Gasket (Turbine Inlet): 409123-0002 (310694, 407294-0001)(Inox Steel)
Heat Shield: 409299-0001 (409299-0000)
Repair Kit: 468100-0000 (3524796, 168984, 2W0716, 6N7236, 310063, 188401-0000, 188006-0000)(1100040750)
Turbine Housing A/R: 1.15
Turbine Housing: 432183-0002 (630675C1)
Turbine Wheel: 446905-0005 (407276-0006, 407276-0019, 410188-0003, 410188-0006, 410188-0037, 446905-0002, 446905-0007, 446905-0010, 451309-0003, 451309-0004)(Ind. 73.99 mm, Exd. 64.61 mm, 11 Blades)(1100016090)
1976- International Loadstar, Cargostar, 5050 ProStar, S Series, 8500 MT Truck with Navistar DT466, DT466B Engine
1976-86 IH with Navistar DT466A (466 CID 16D- 180 HP) Engine
1982- Agricultural, Industrial with Navistar DT466A, DT466B Engine
IH 3588 Dresser, 4386 Agricultural Tractor, 1480 Combine with Navistar DT466B Engine
International Agricultural, Industrial with Navistar DTI466B Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
