NEW OEM Garrett GT4288N Turbo Volvo L150C Wheel Loader TD102 10.0L 452174-5003

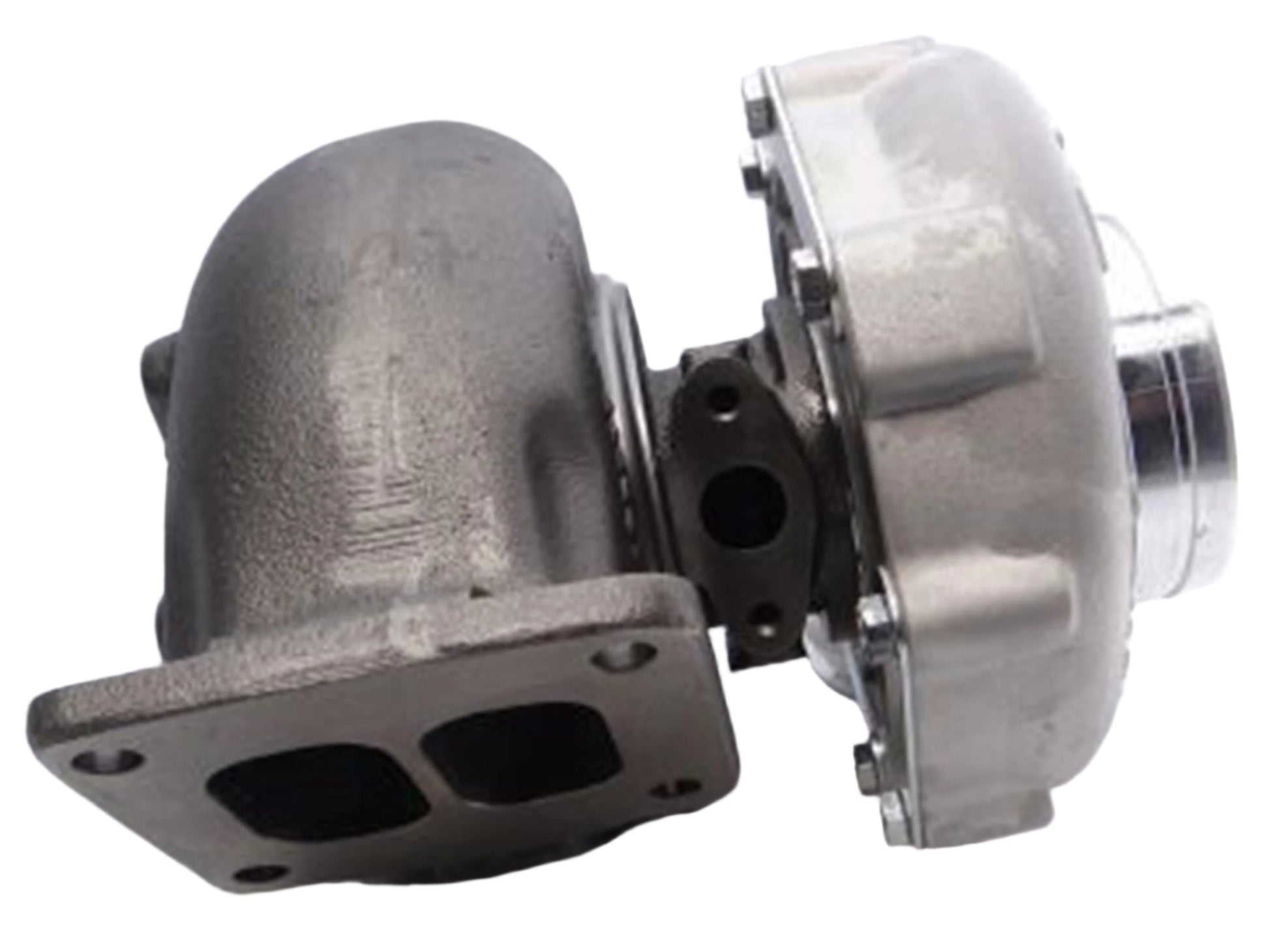

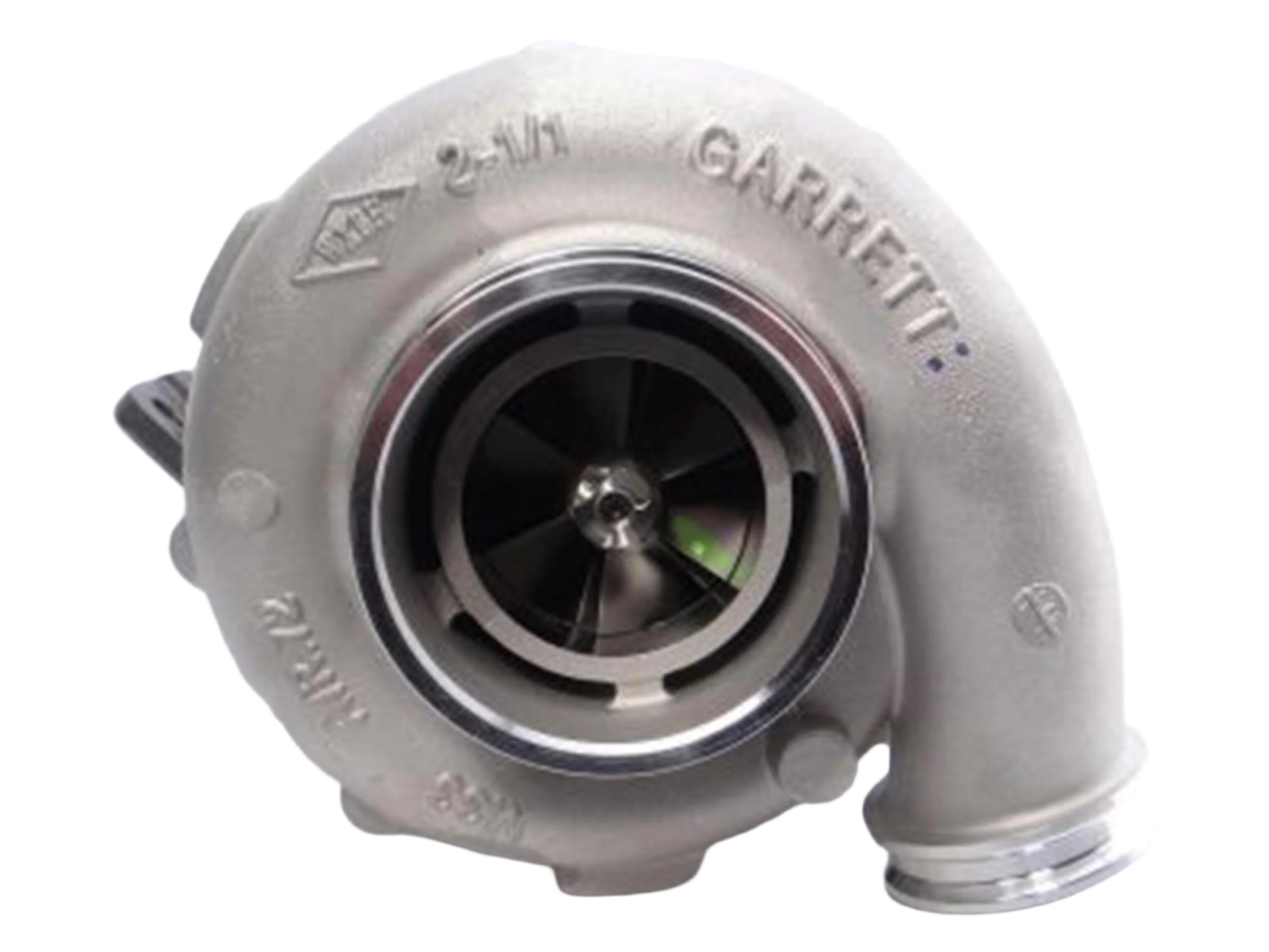

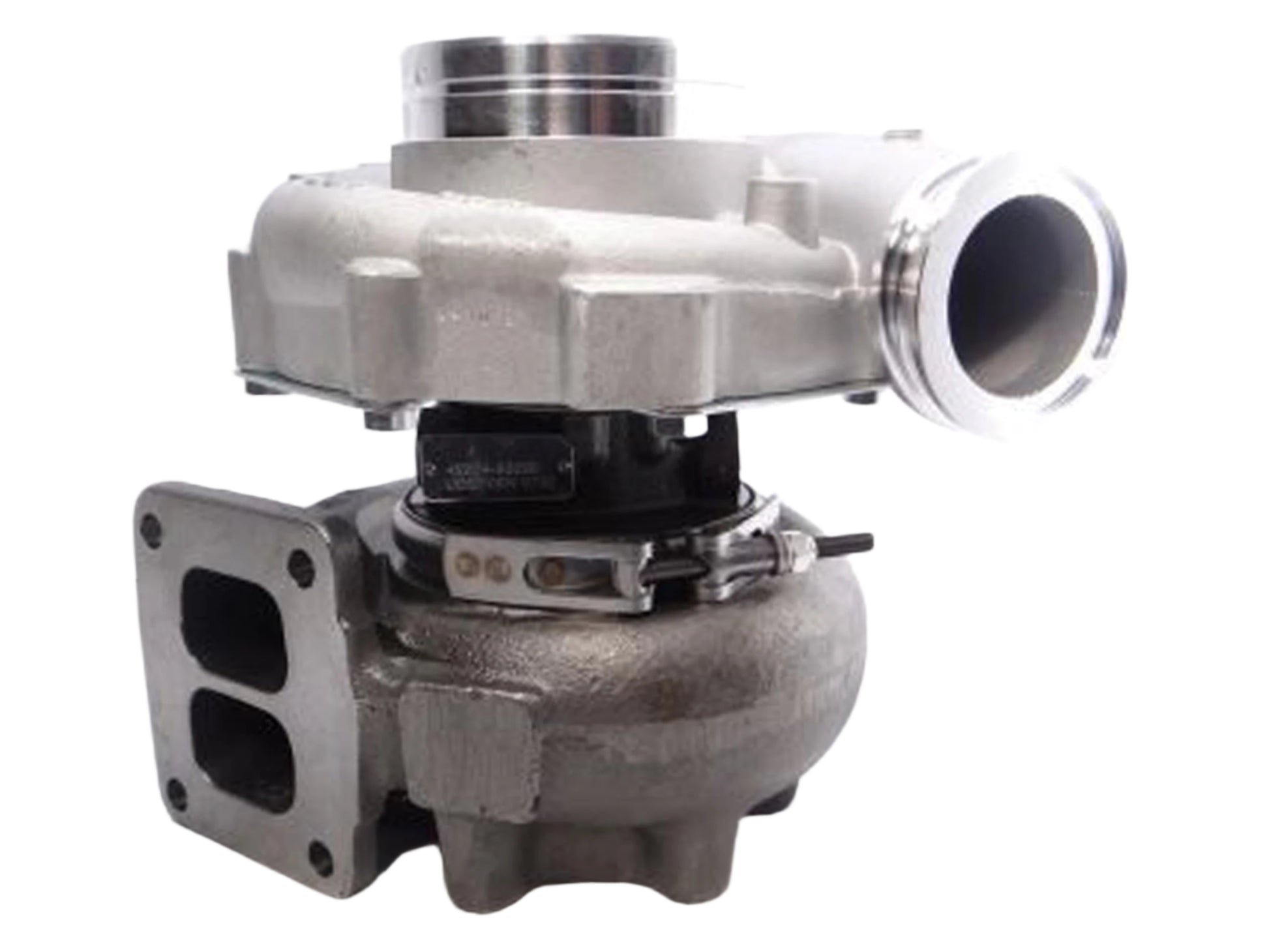

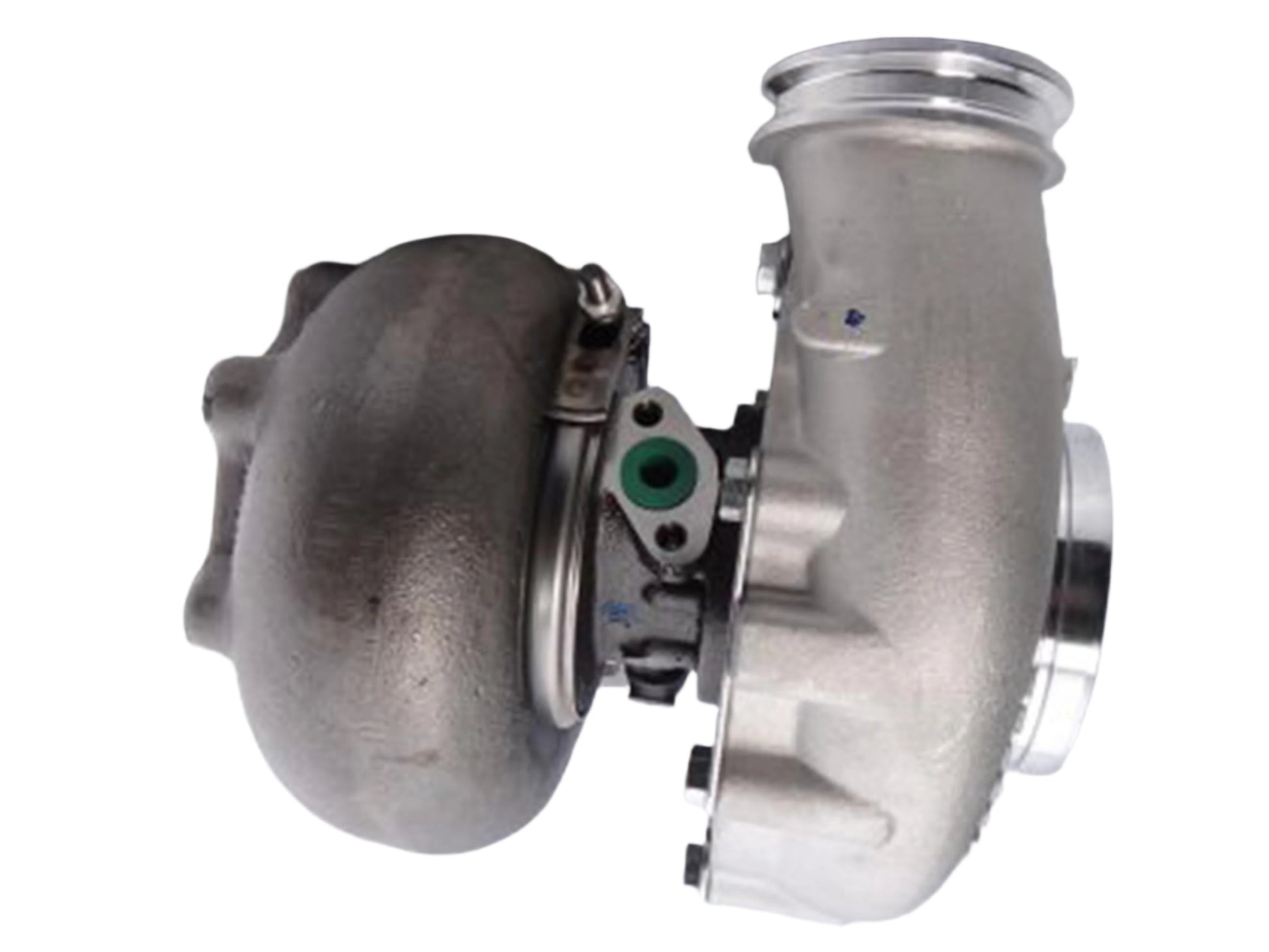

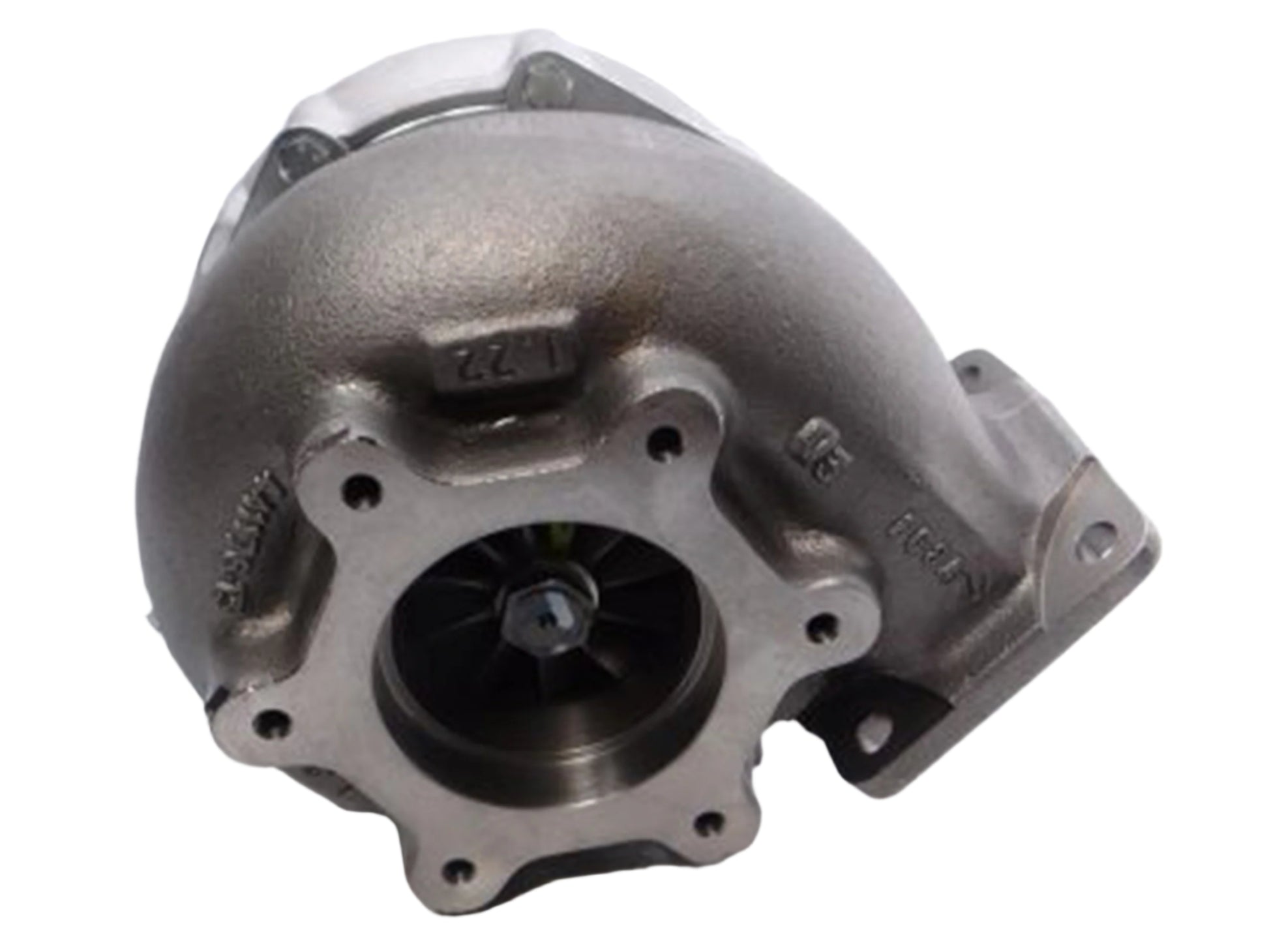

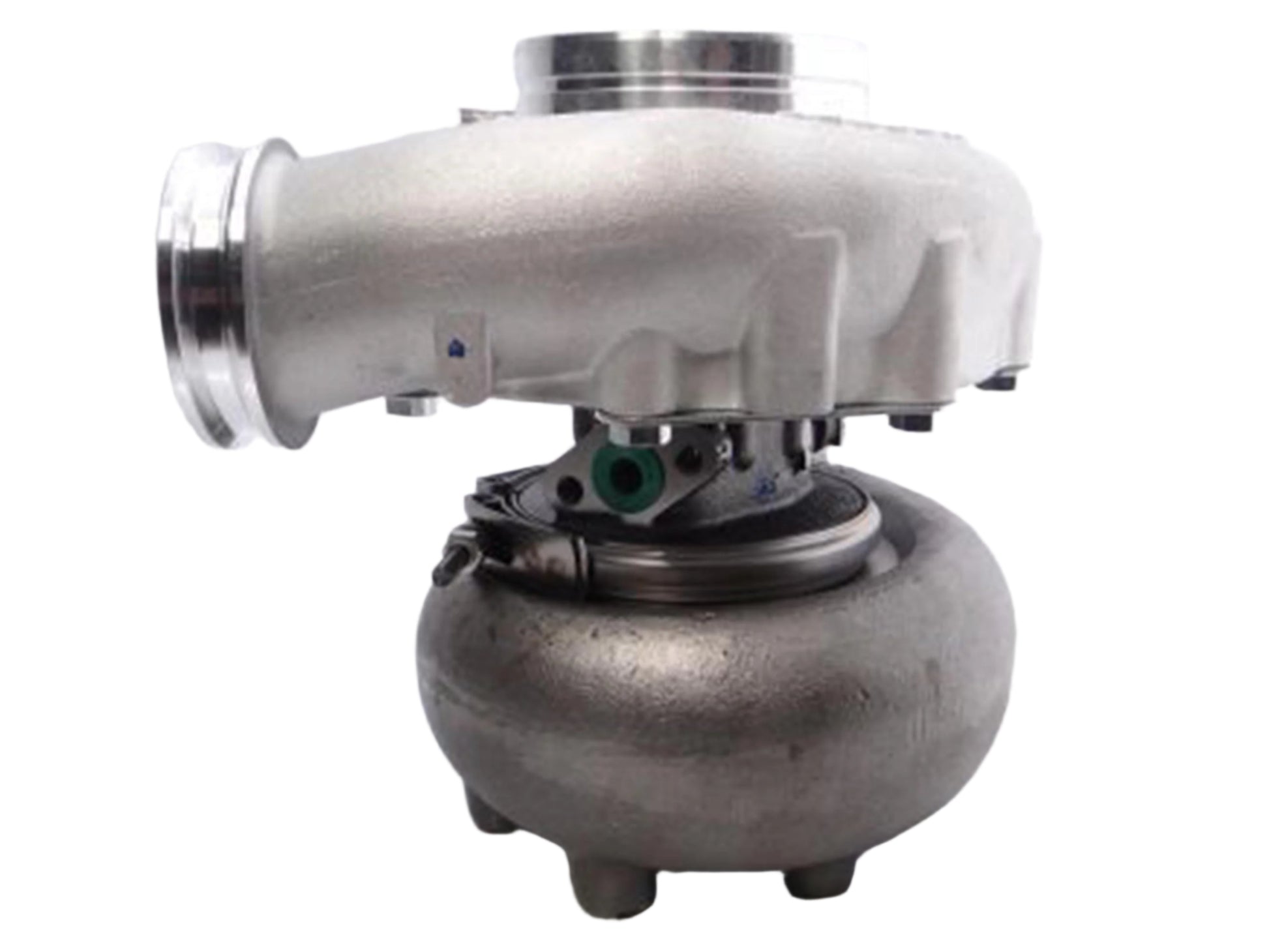

BRAND NEW GENUINE GARRETT TURBOCHARGER

This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 452174-5003
Interchangeable Number: 452174-0003, 452174-5003S, 4031414, 4033713H, 452174-0001, 452174-5001S, 452174-5001, 452174-0004, 452174-5004S, 452174-5004, 452174-0005, 452174-5005S, 452174-5005, 452174-0007, 452174-5007S, 452174-5007
OEM Number: 11033937, 4033713, 8128168, 8194432, 8194549
Turbo Model: GT4288N
Manufacturer: Honeywell-Garrett

Year: 1995-
Engine: D10A, TD102, TD103
Engine Manufacturer: Volvo
Displacement: 10.0L, 10000 ccm, 6 Cylinders
Fuel: Diesel
Power: 249 HP

Back Plate: 434256-0002 (449014-0005)(104190001, 1300016132)
Bearing Housing: 410310-0004 (410310-0001)(Oil Cooled)(103130001, 1900011222)
CHRA: 434251-0014 (434251-5014S)(100420001)(1000010454)
Compressor Cover: 434356-0030
Compressor Wheel: 434354-0006 (434354-0008)(Ind. 63.45 mm, Exd. 87 mm, Trim 9.8, 6+6 Blades, Super Back)(102400003, 1200016131)
Gasket (Oil Inlet): 210019 (409266-0003, 3819900, 9737, 1S6595, 201049, 129119)(1900000035)
Gasket (Oil Outlet): 210060 (311585, 148062, 2475013)(Paper)
Gasket (Turbine Inlet): 409123-0002 (310694)(Inox Steel)
Gasket (Turbine Outlet): 210221 (Stainless Steel)
Gasket Kit: 215109
Gasket Kit: 215109 (2090505021)
Heat Shield: 410366-0003 (410366-0004, 410366-0007)(106450003, 2030016005)
Repair Kit: 709153-0001 (1102042750, 5000010095, 109450002)
Stud Kit: 216014
Turbine Housing A/R: 1.22
Turbine Housing: 441183-0065
Turbine Wheel: 436259-0001 (Ind. 82 mm, Exd. 68.1 mm, Trim 69, 11 Blades)(101100001, 1100016435)
Turbo Technology: Free Floating

Application:
1995- Volvo Construction with TD102 Engine
1995- Volvo Earth Moving with TD102 Engine
1995- Volvo L150C Wheel Loader with TD102 Engine
Volvo FL10 Truck with D10A Engine
Volvo Wheel Loader with D10A Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
