OEM Remanufactured TV7101 Turbo Marine Detroit Diesel 8V92TI 12.6L 465030-9007

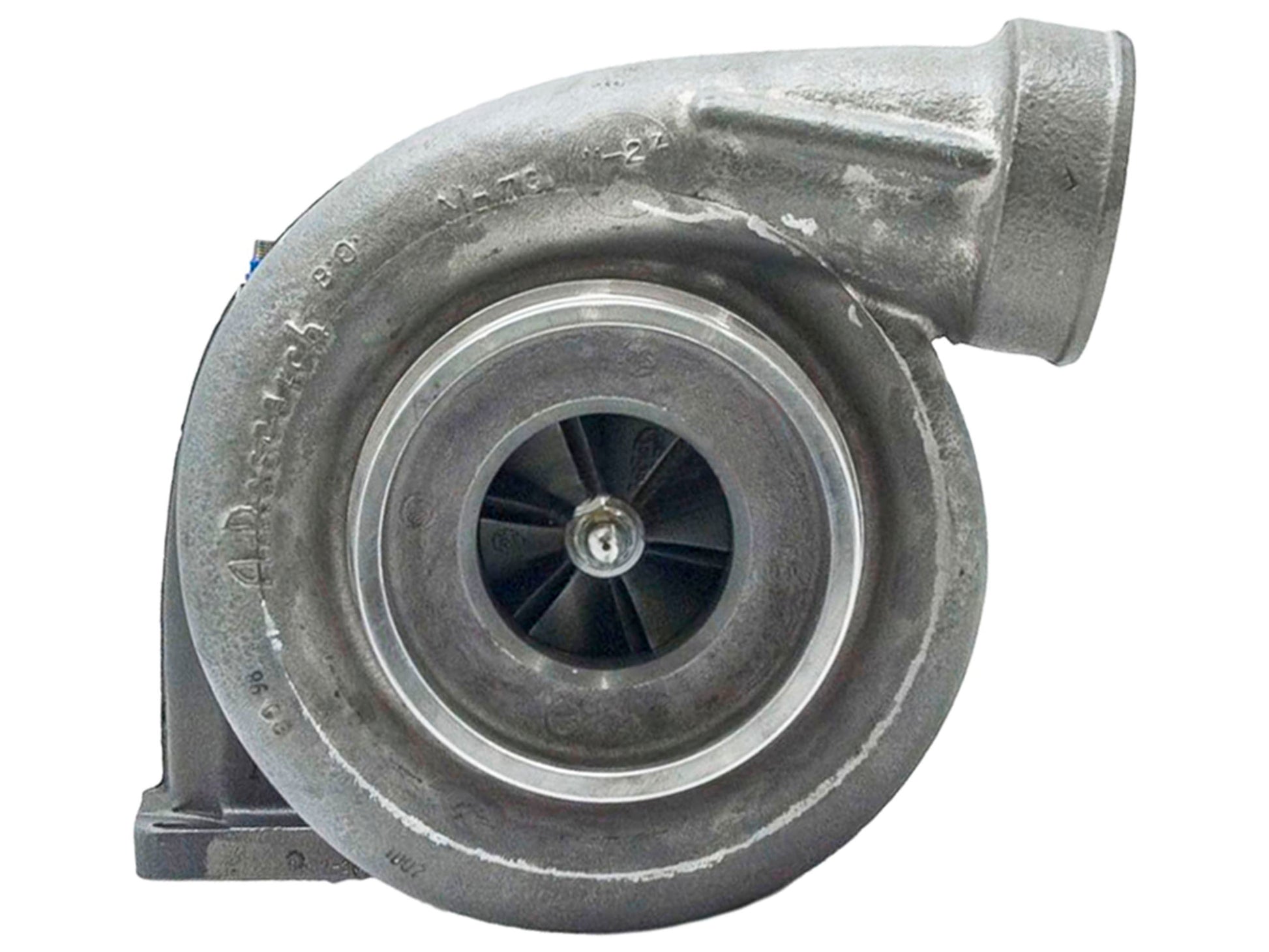

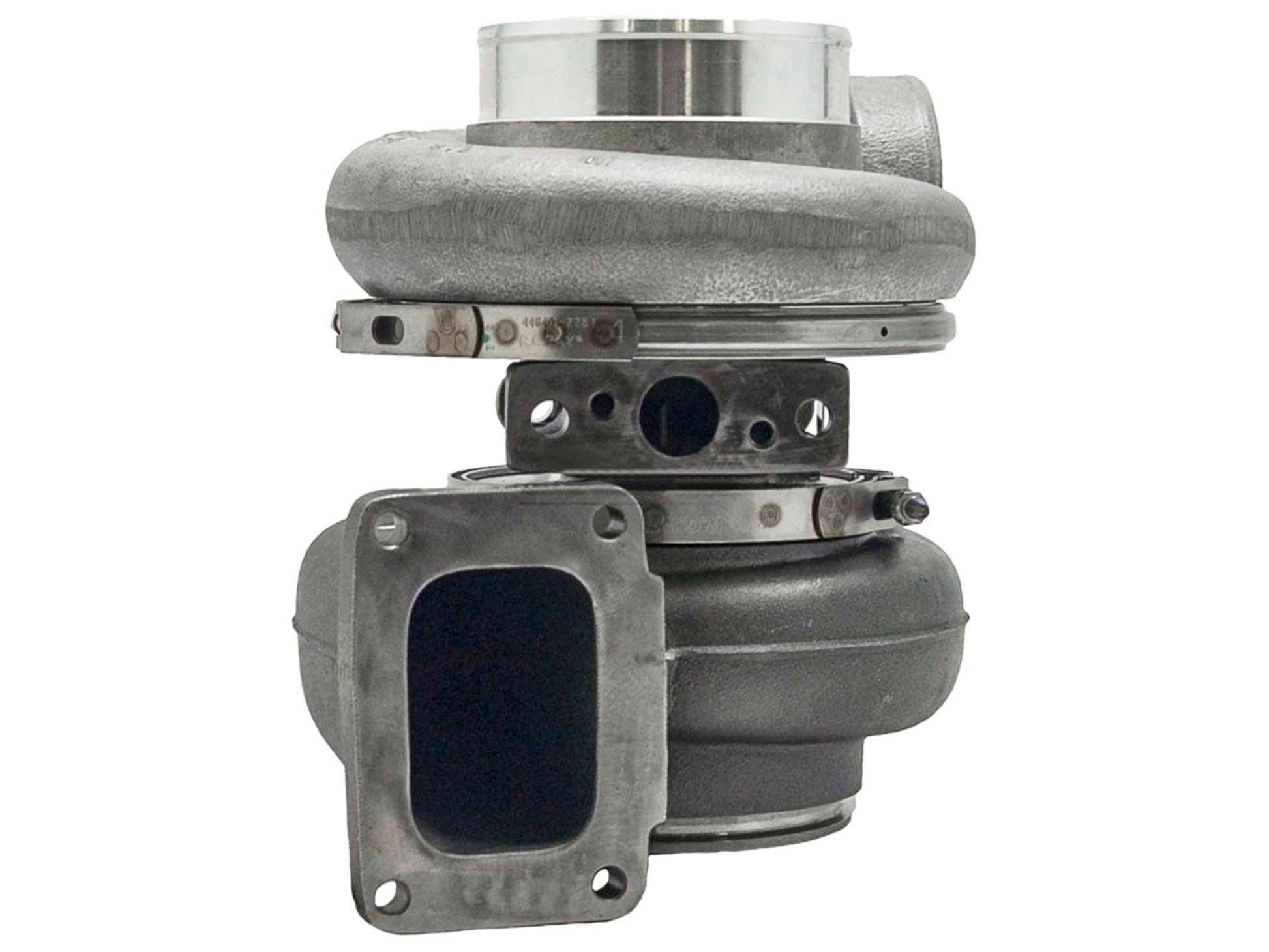

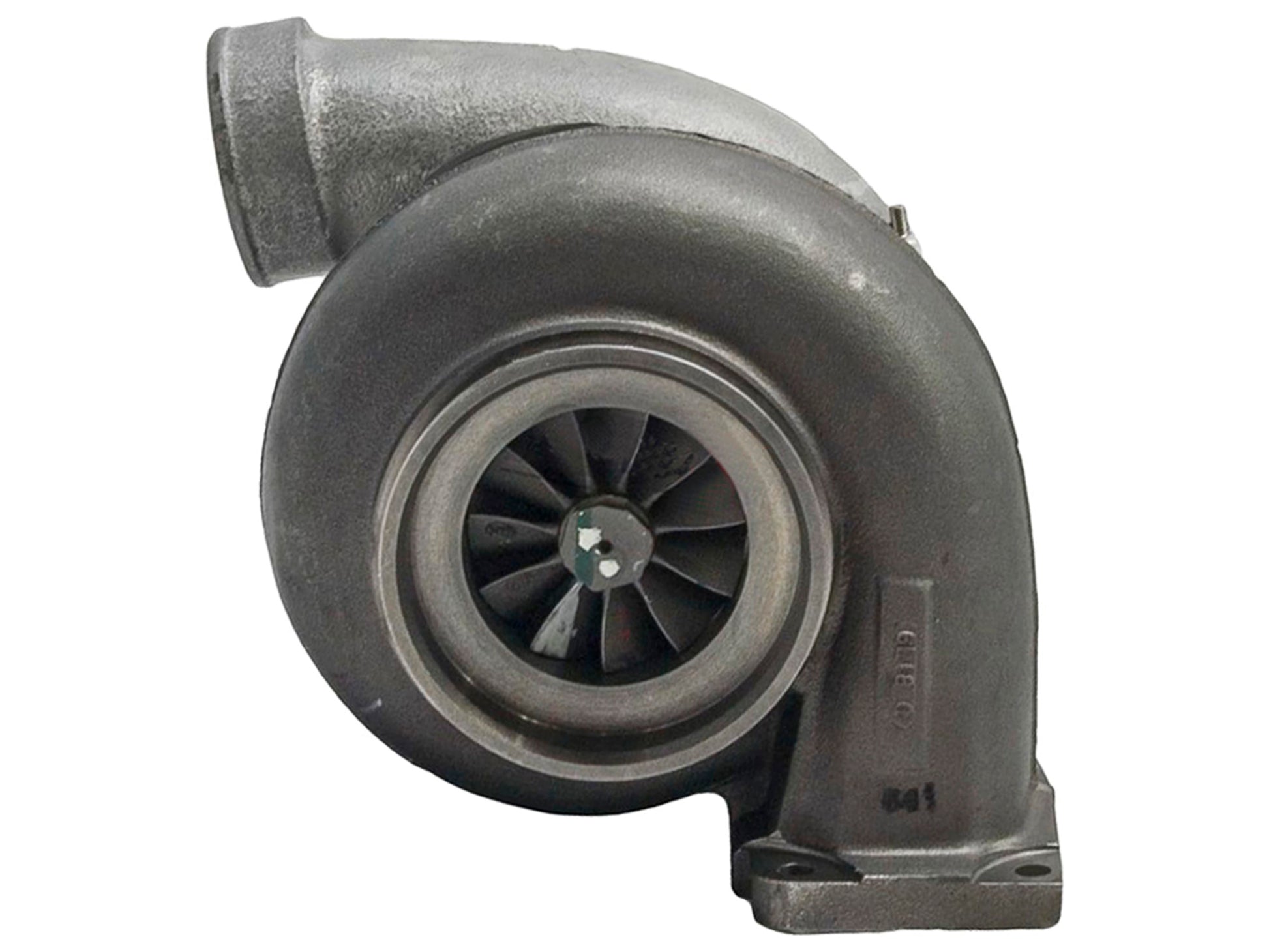

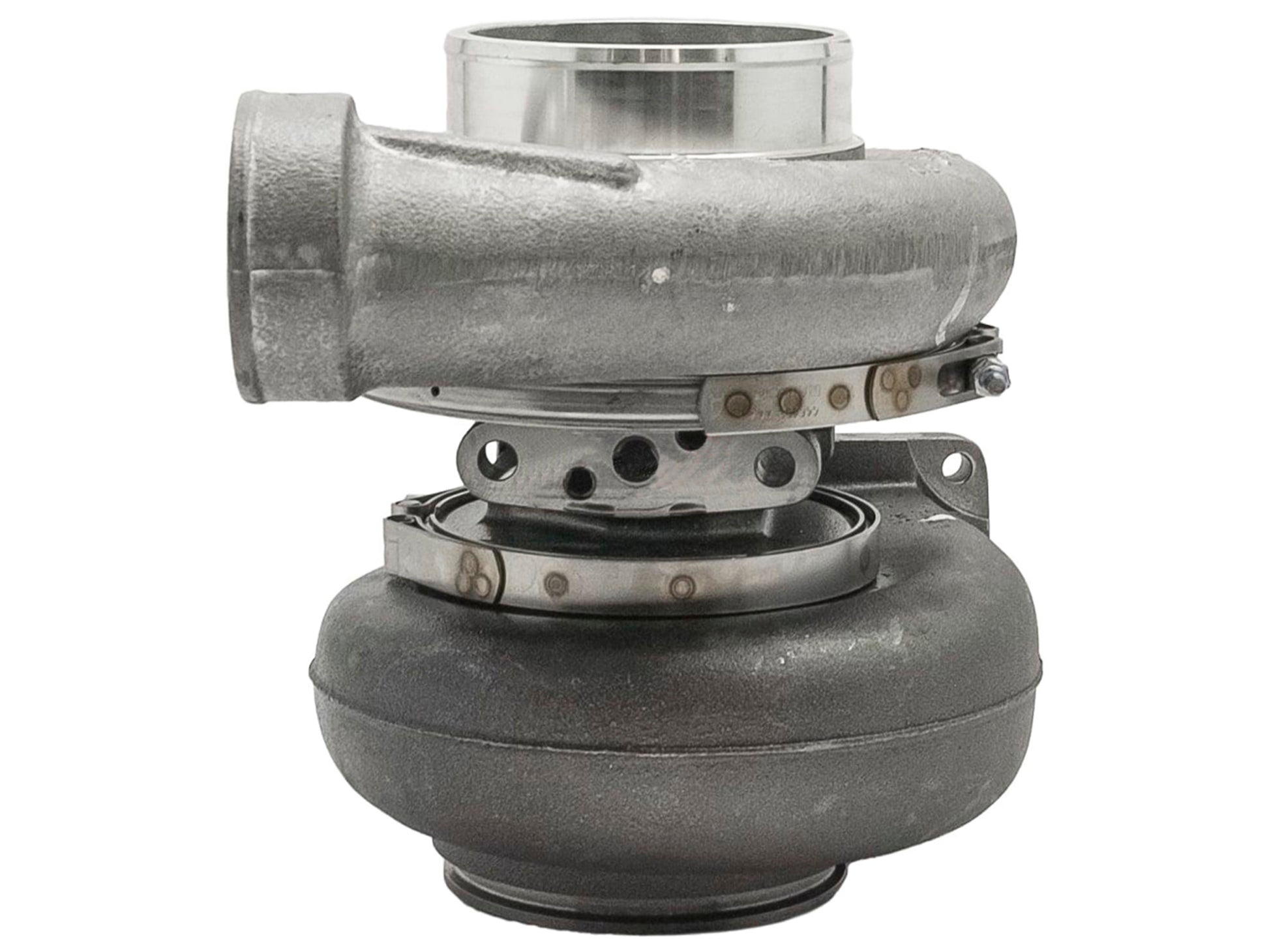

OEM REMANUFACTURED GARRETT TURBOCHARGER

This is a OEM REMANUFACTURED GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

NOTE: There is a core charge of $115 which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase and will be fully refunded once your old re-build able core is received.

Cores must be returned within 60 days of the purchase date. Please allow up to 3 business days for us to process your refund.

Fits the following:

Part Number: 465030-9007
Interchangeable Number: 465030-0007, 465030-5007, 465030-5007S, 465030-0001, 465030-5001, 465030-5001
OEM Number: 08926192, 5101509, 8926192, R8926192
Turbo Model: TV7101
Manufacturer: Honeywell-Garrett

Year: 1990-
Engine: 8V92TI
Engine Manufacturer: Detroit Diesel
Displacement: 12.6L, 12062 ccm, V8 Cylinders
Fuel: Diesel

Angle α (Compressor Housing): 350°
Angle β (Turbine Housing): 345°
Back Plate: 408487-0001 (8923985)
Bearing Housing: 408495-0024 (5149153, 40849524)(170025-0000)(Oil Cooled)(1101671450)
CHRA: 408774-0021 (408774-5021S, 23501535)
Compressor Cover: 408748-0012 (8920994)
Compressor Wheel: 410351-0001 (8920993)(Ind. 66.6 mm, Exd. 94 mm, Trim O, 6+6 Blades)
Gasket (Oil Outlet): 210018 (148062, 129120, 210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025)
Gasket (Turbine Inlet): 409038-0001 (132040, 7M7273)
Gasket (Turbine Inlet): 409039-0000 (2475017, 2485001, 409039-0001, 210019, 312617, 2405022, 7C7431)(1900000006)(Inox Steel)
Gasket Kit: 215120
Heat Shield: 407967-0000 (5149173)(444838-0001, 410113-0001, R68525, 3316407967)(1101670340)
Repair Kit: 468211-0000 (468103-0000, 3545836, 188002-0000)
Turbine Housing A/R: 1.23
Turbine Housing: 408532-0034 (5149174)
Turbine Wheel: 408492-0003 (5149155, AR89301)(Ind. 96.2 mm, Exd. 84 mm, 11 Blades)

Application:
1990- Marine with Detroit Diesel 8V92TI Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
