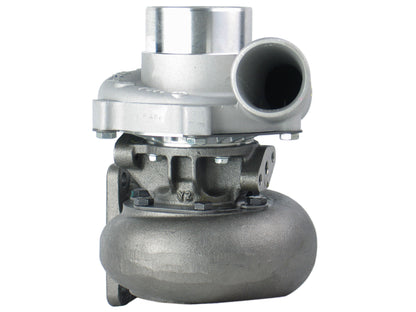

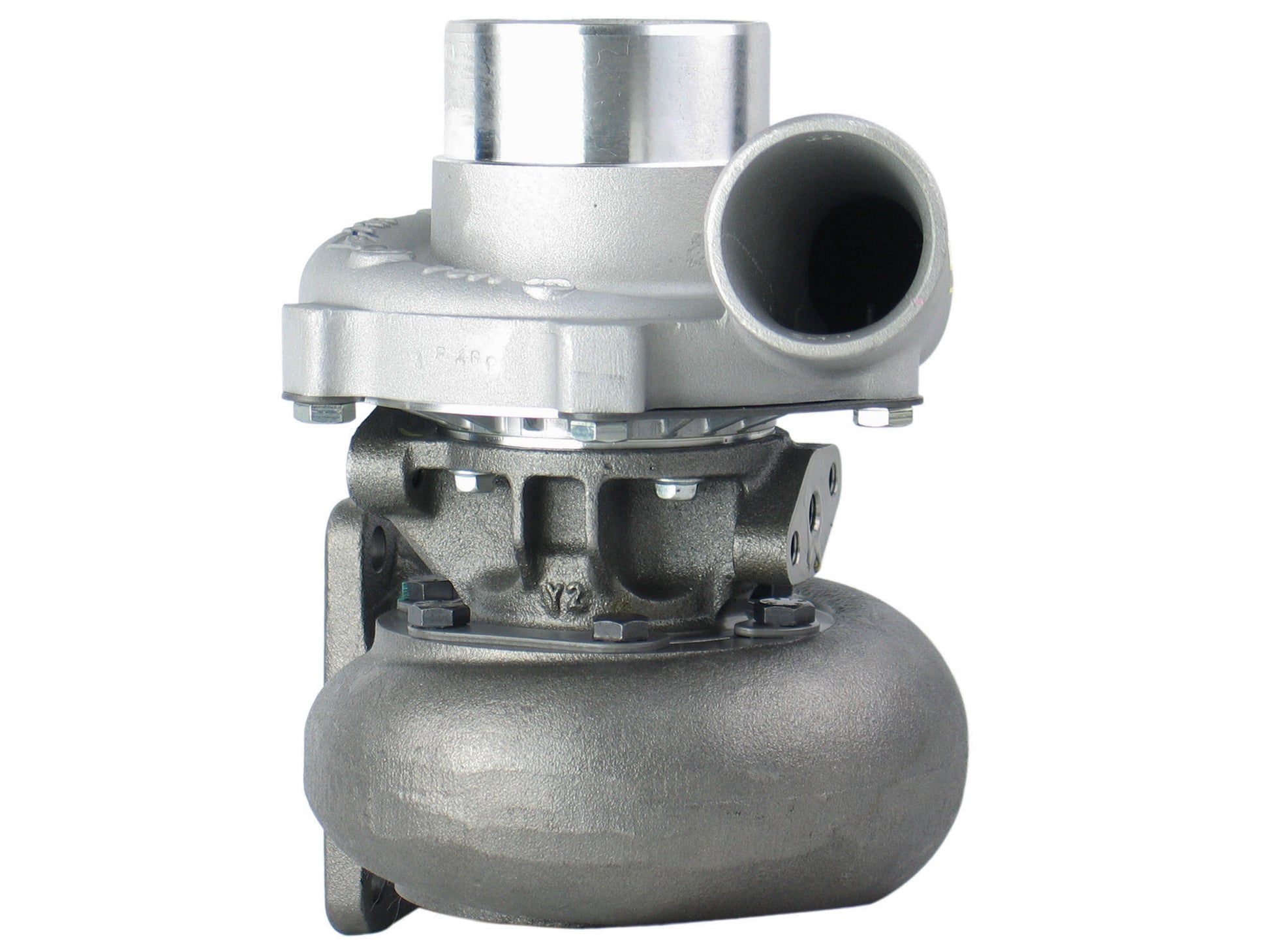

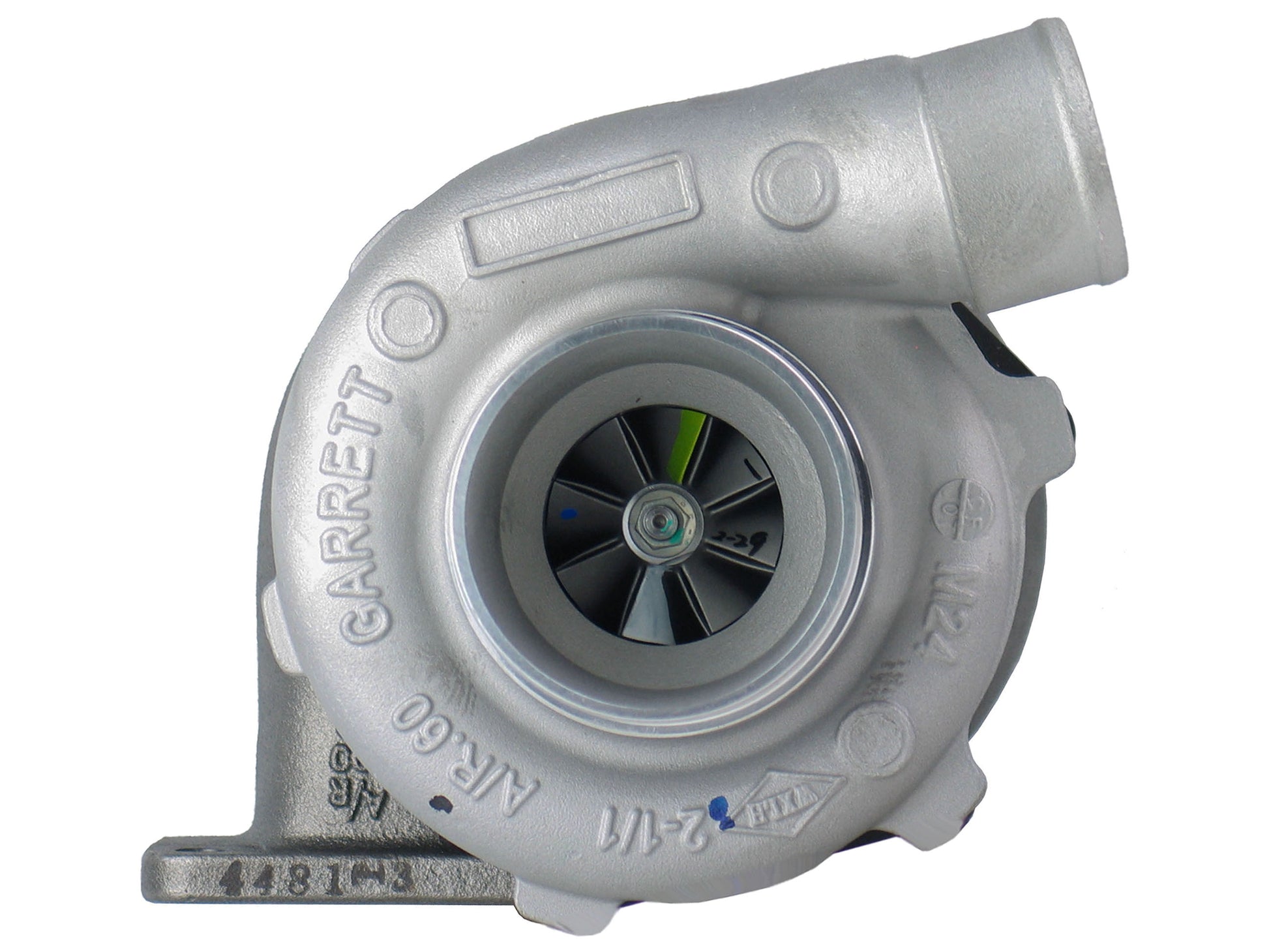

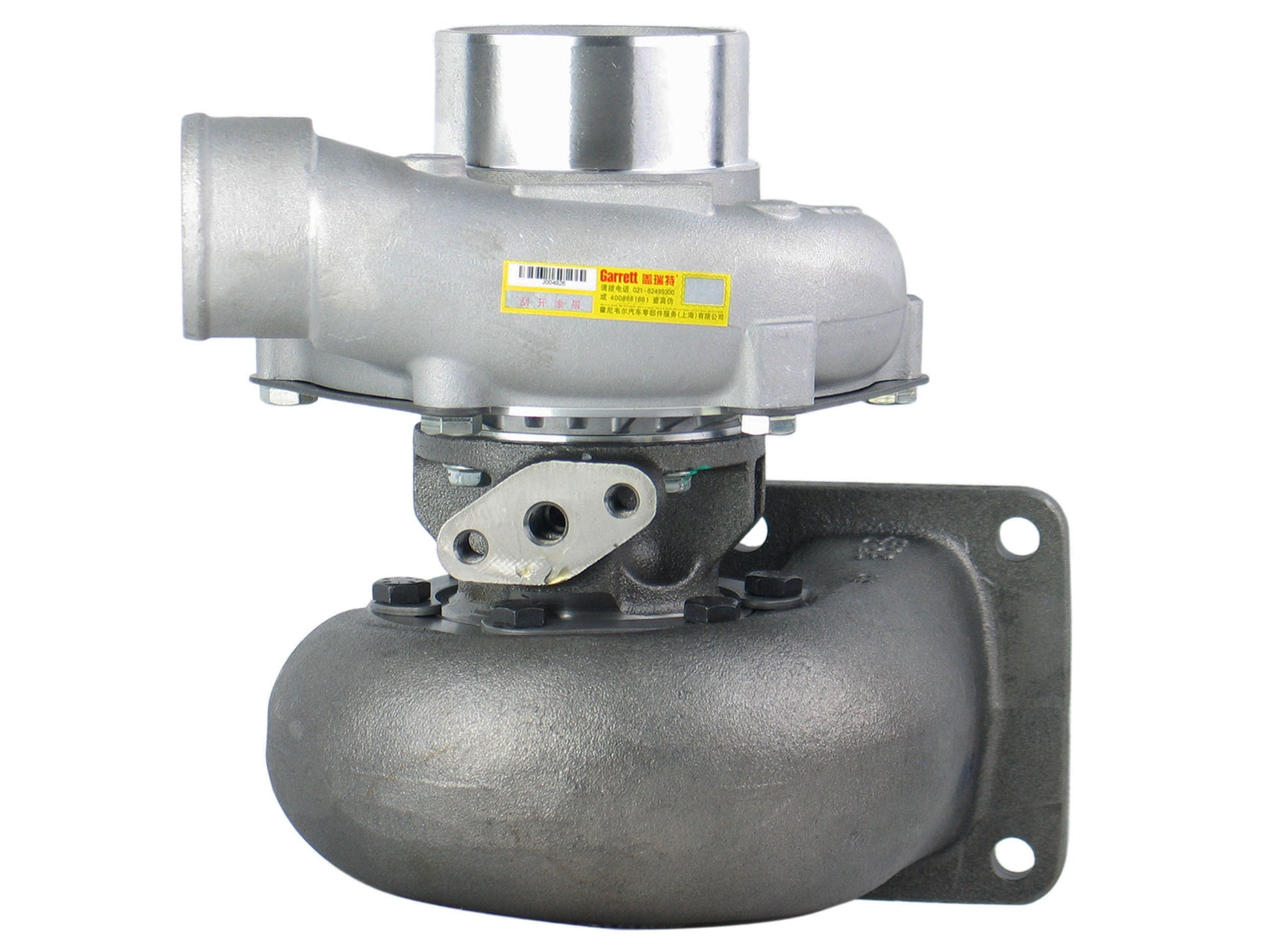

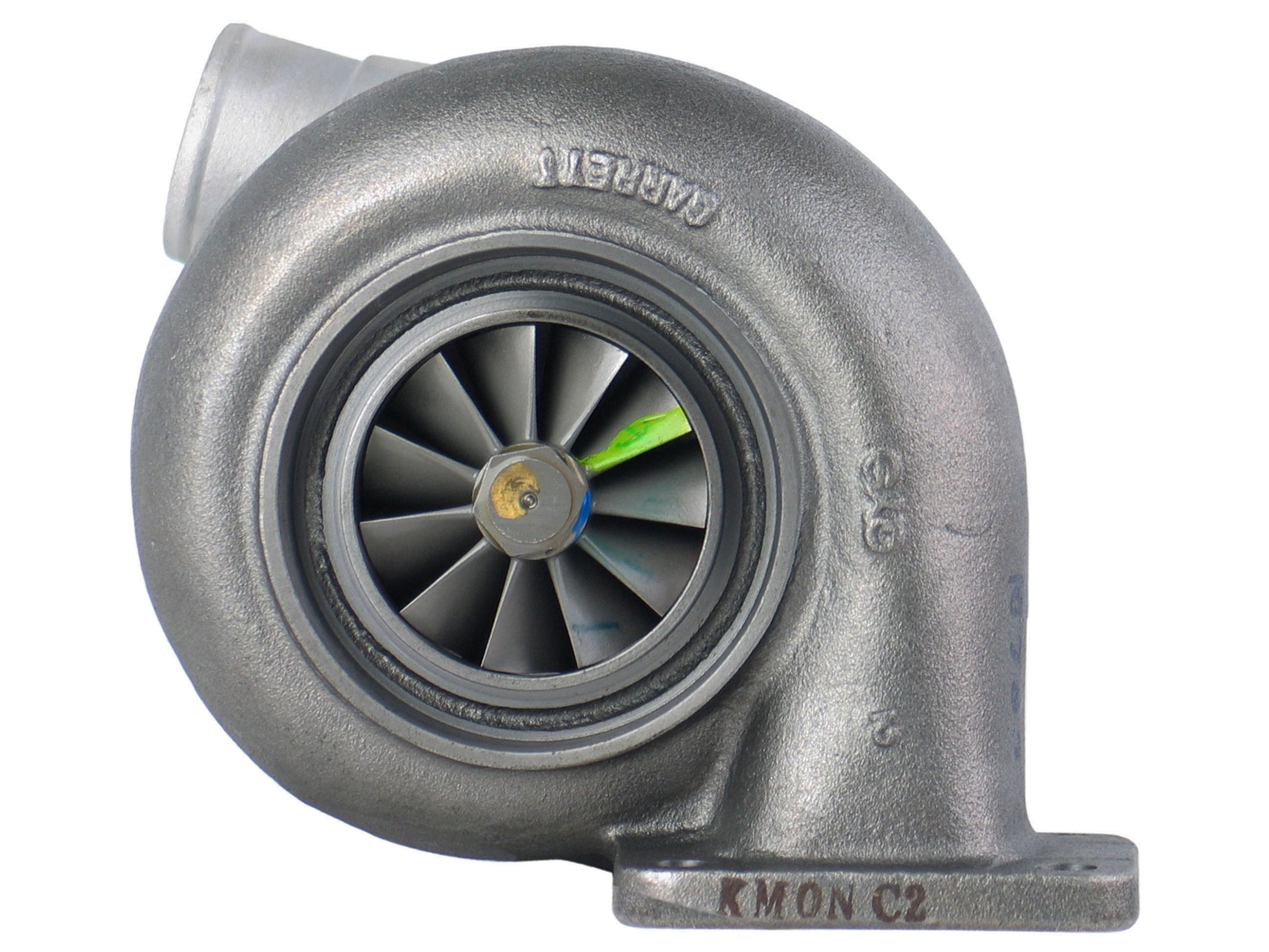

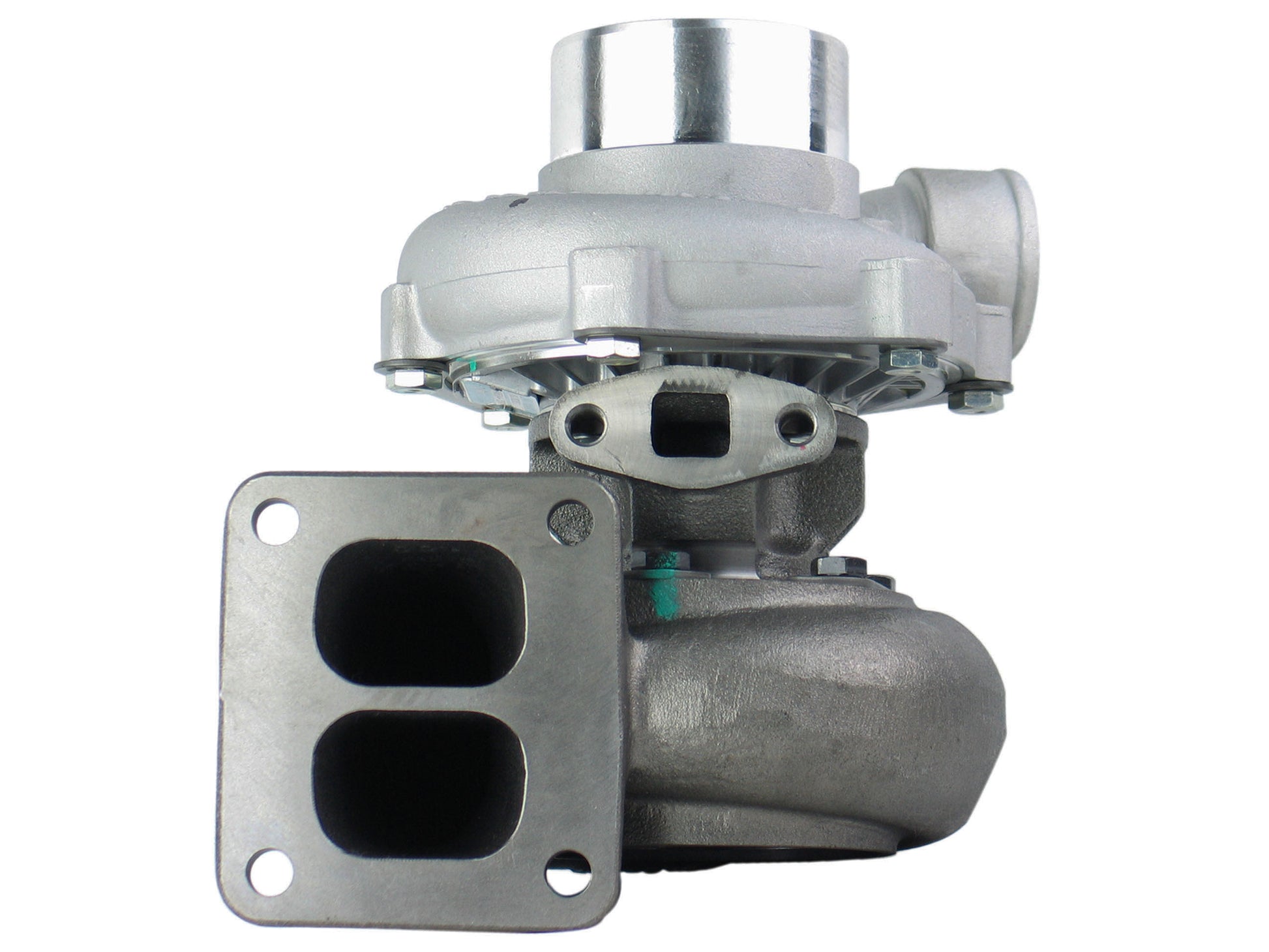

NEW OEM Garrett T04B59 Turbo Komatsu Marine PC200 WA300 LW200 S6D105 465044-5261SKU: 465044-5261
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 465044-5261S
Interchangeable Number: 465044-0261, 465044-5261, 465044-0037, 465044-5037, 465044-5037S, 465044-0047, 465044-5047, 465044-5047S, 465044-0061, 465044-5061, 465044-5061S, 465044-0062, 465044-5062, 465044-5062S, 465044-0161, 465044-5161, 465044-5161S, 465044-0262, 465044-5262, 465044-5262S
OEM Number: 6137828600, 6137828200, 6137-82-8600, 6137-82-8200
Turbo Model: T04B59
Engine: S6D105B, S6D105, S6D105-1, SA6D105, S6D105B1-A
Displacement: 6.5L, 6500 ccm, 6 Cylinders
Power: 125 kW/168 HP
Angle α (Compressor Housing): 15°
Angle β (Turbine Housing): 0°
Back Plate: 408045-0035
Bearing Housing: 430027-0058 (ME044066, 318137)
CHRA: 447450-0088 (447450-5088S)
Compressor Cover: 408274-0034 (318135)
Compressor Wheel: 409179-0029 (318134) (Ind. 45.85 mm, Exd. 70 mm, Trim 43, 8+8 Blades)
Gasket (Oil Inlet): 210023 (210023-0000, 147837, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Gasket (Turbine Inlet): 407294-0001 (312617, 303031063)
Heat Shield: 409299-0001 (409299-0000) (311943, 7N0012, 3524773B)
Repair Kit: 468100-0000
Turbine Housing A/R: 1.00
Turbine Housing: 410401-0036 (318161)
Turbine Wheel: 451309-0003 (407276-0006, 407276-0019, 410188-0006, 410188-0037, 446905-0002, 446905-0005, 446905-0007, 446905-0010)(1100040436)(Ind. 63.75 mm, Exd. 73 mm, Trim 76, 11 Blades)
Komatsu EC170ZS with SA6D105 Engine
Komatsu Earth Moving
Komatsu Generator with S6D10 Engine
Komatsu LW200 Crane with S6D105 Engine
Komatsu LW200, GD500, GD505R Offway with S6D105-1 Engine
Komatsu Marine with S6D105 Engine
Komatsu PC200 Power Shovel with S6D105B Engine
Komatsu PC200-3 Offway with S6D105 Engine
Komatsu PC220 Power Shovel with S6D105B, S6D105 Engine
Komatsu PC220-1, PC220-2
Komatsu PC220-3 Offway with S6D105B1-A Engine
Komatsu WA300, WA250 Offway, WA300-1 with S6D105 Engine
Komatsu Wheel Loader with S6D105 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
