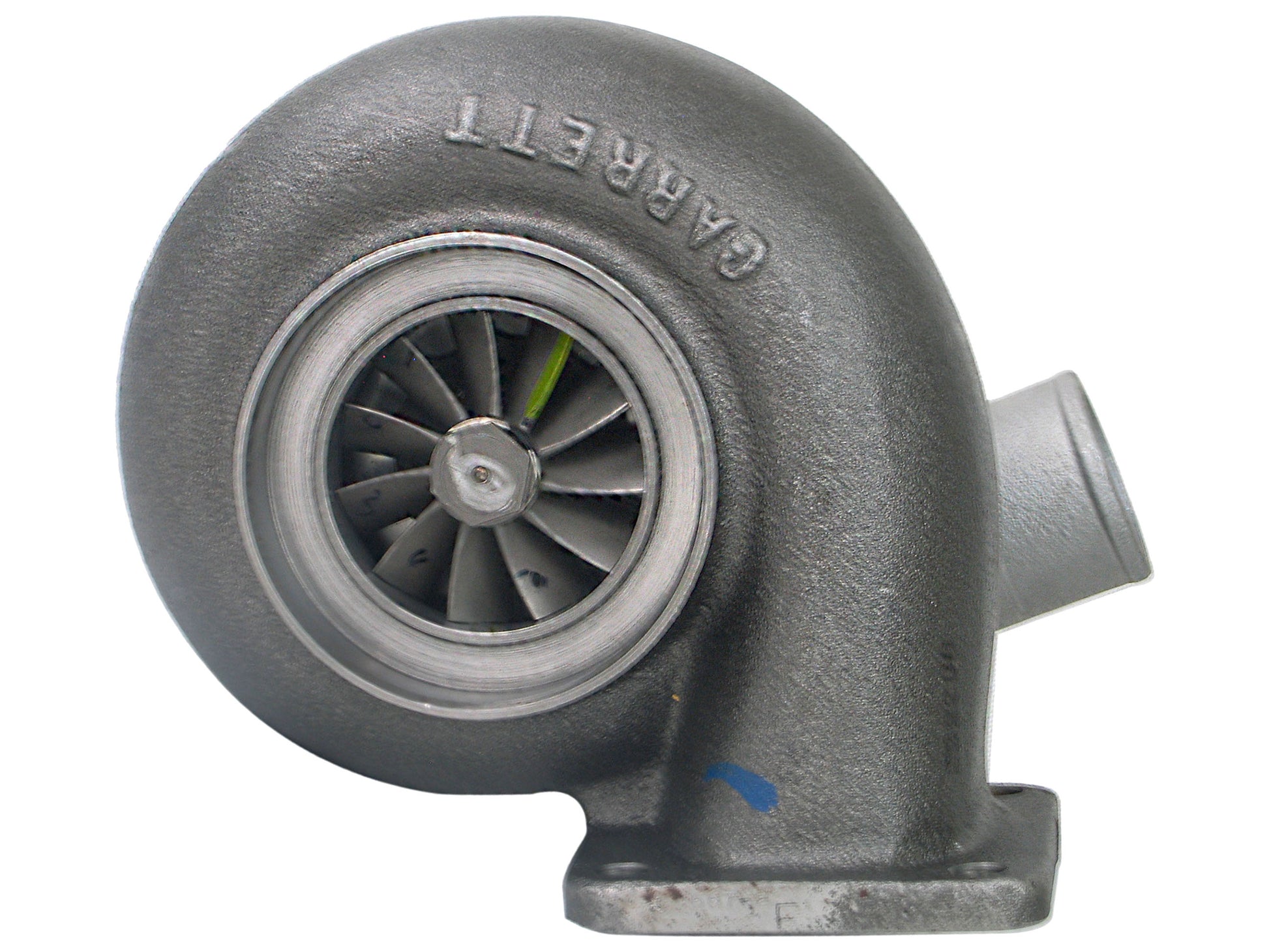

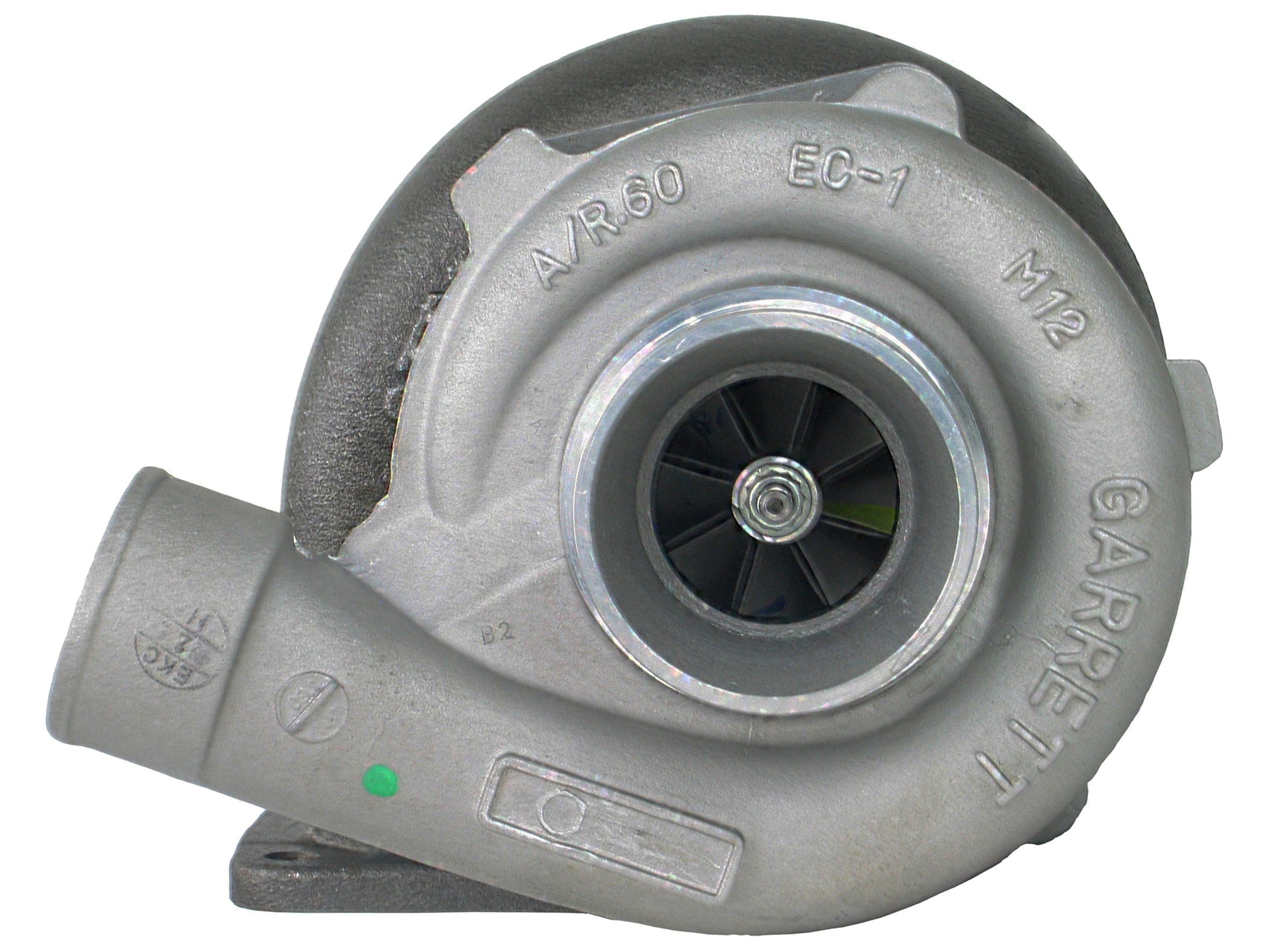

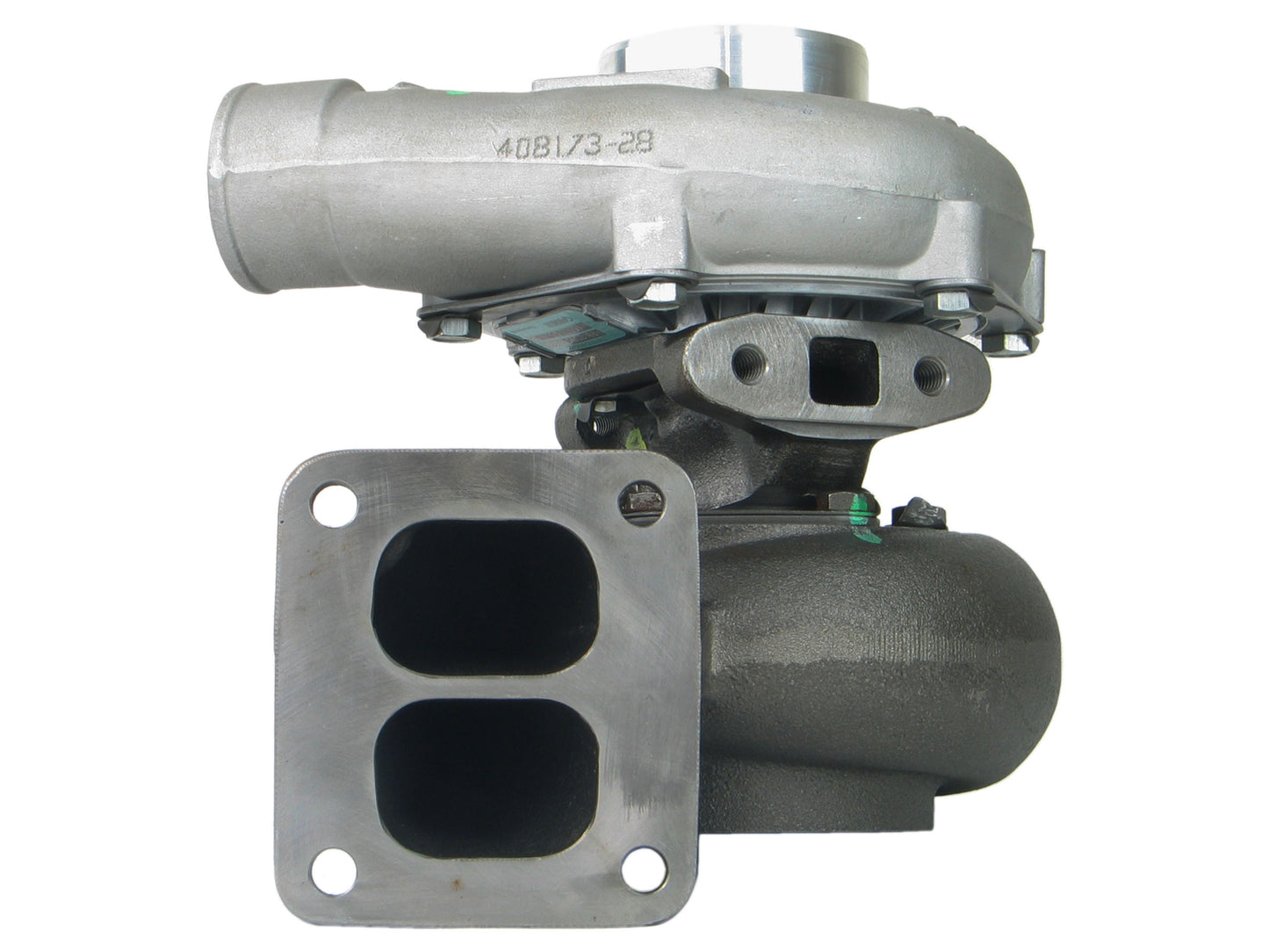

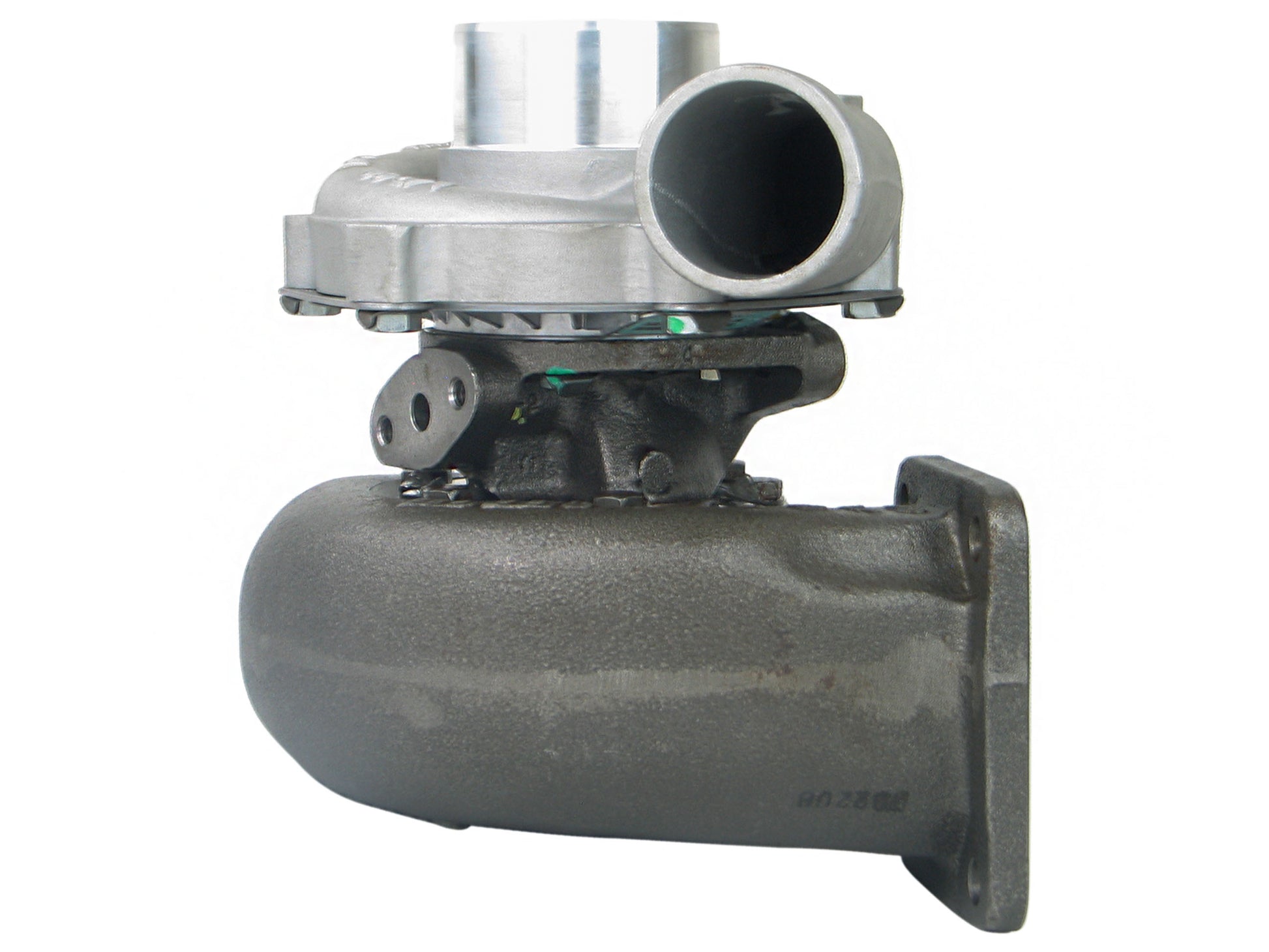

NEW OEM Garrett T04B65 Turbo Caterpillar 926E 953 Earth Moving 3204 465088-5001SKU: 465088-5001
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 465088-5001S
Interchangeable Number: 465088-0001, 465088-5001, 465088-0002, 465088-5002, 465088-5002S, 465088-0003, 465088-5003, 465088-5003S
OEM Number: 0R-5824, 0R5824, 6N-8477, 6N8477, 6N-8566, 6N8566
Turbo Model: T04B65
Engine: 3204, 3204 DIT T296953 TL
Displacement: 5.2L, 5200 ccm, 4 Cylinders
Prefix for 215: 14Z, 61Z
Prefix for 215B: 2XC, 4JC
Prefix for 3204: 2TB, 3PC
Prefix for 508: 2HD, 9NC
Prefix for 916: 2XB, 5KC, 9WB
Prefix for 926: 4NB, 7TC, 8NB, 94Z
Prefix for 926E: 4NB, 7TC, 8NB, 94Z, 33Z, 45Z
Prefix for 936: 33Z, 45Z
Prefix for 953: 05Z, 20Z, 44Z, 76Y, 77Y, 78Y
Prefix for D3B: 2PC
Prefix for D3C: 7JF
Prefix for D4H: 2AC, 3AC, 8PB, 8ZF, 9DB
Prefix for D5C: 3MK, 6PJ
Prefix for E180: 1RF
Prefix for G916: 5GD
Prefix for G926: 1SD, 3TD
Prefix for IT18: 7ZB, 9NB
Prefix for IT18B: 1DF, 1DF, 2NJ, 4ZD
Prefix for IT28: 2KC, 8JB
Prefix for IT28B: 1HF, 1JK, 5SD, 5SD
Prefix: 1EG, 1NG, 1PG, 9BD, 9CD, 9DD, 9ED, 9FD, 9GD, 9HD, 9JD, 9KD, 9LD, 9MD, 9ND, 9PD, 9RD, 9WD, 9XD, 9YD, 9ZD
Angle α (Compressor Housing): 200°
Angle ß (Turbine Housing): 65°
Back Plate: 408045-0051 (311708, 408045-0034, 408045-0035)(197340)
Bearing Housing: 430027-0051 (186880, 186882, 430027-0031)(2P**35)
CHRA: 408077-0104 (408105-0089, 408105-0383, 408077-5102, 408077-5104S, 8N4780, 0R5563)
Compressor Cover: 408173-0028 (8N4783)
Compressor Wheel: 409179-0028 (8N4781)(Ind. 43.63 mm, Exd. 69.9 mm, 8+8 Blades, Flat Back)
Gasket (Oil Inlet): 210023
Gasket (Oil Outlet): 210021
Gasket (Turbine Inlet): 407294-0001
Heat Shield: 409299-0001 (409299-0000)
Repair Kit: 468100-0000
Turbine Housing A/R: 1.32
Turbine Housing: 408667-0023 (8N4782)
Turbine Wheel: 451309-0003 (407276-0006, 407276-0019, 410188-0003, 410188-0006, 410188-0037, 446905-0002, 446905-0005, 446905-0007, 446905-0010, 451309-0004)(1555236)(Ind. 74 mm, Exd. 64.61 mm, 11 Blades)
Caterpillar 926E, 953 Earth Moving with 3204 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
