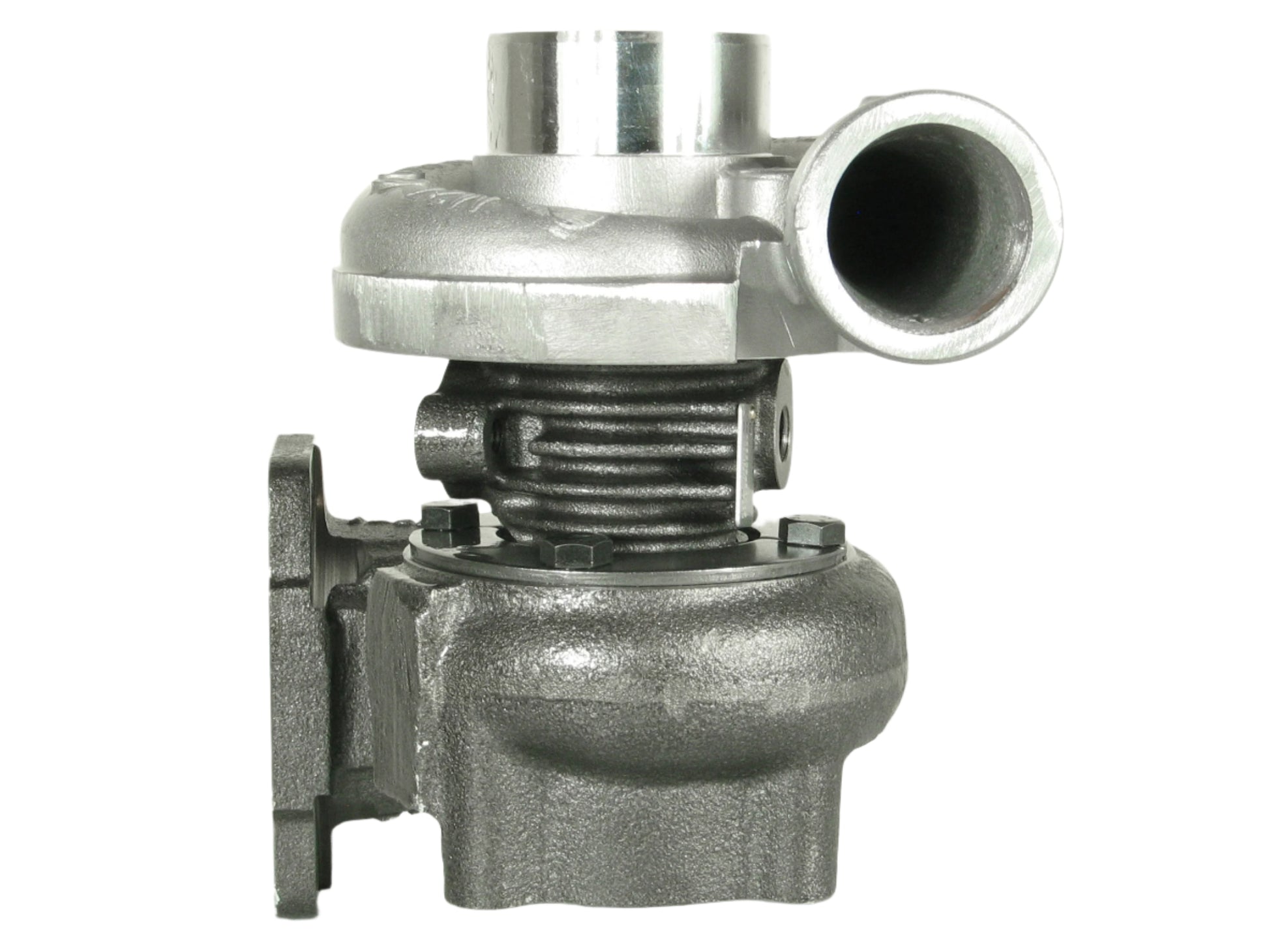

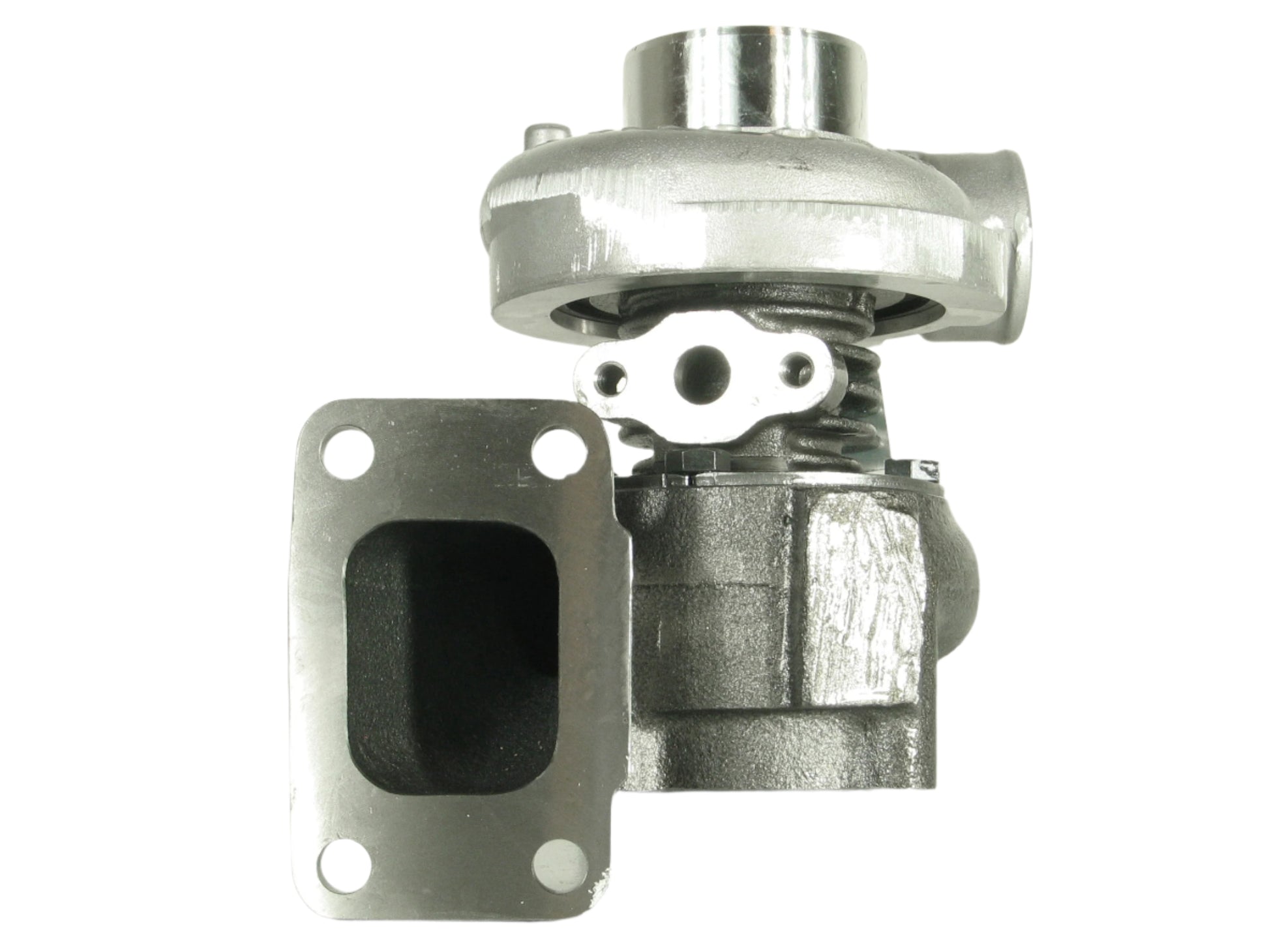

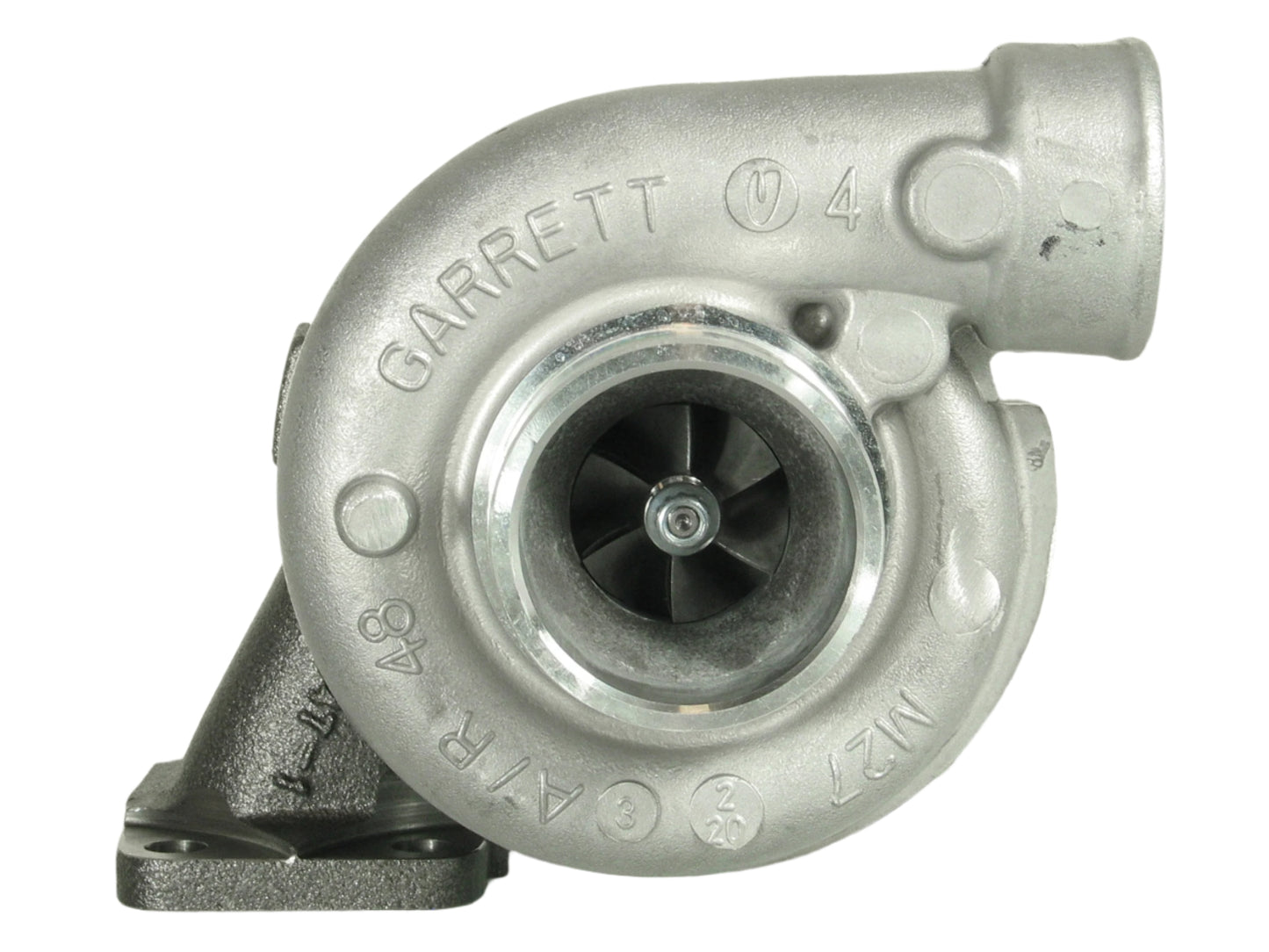

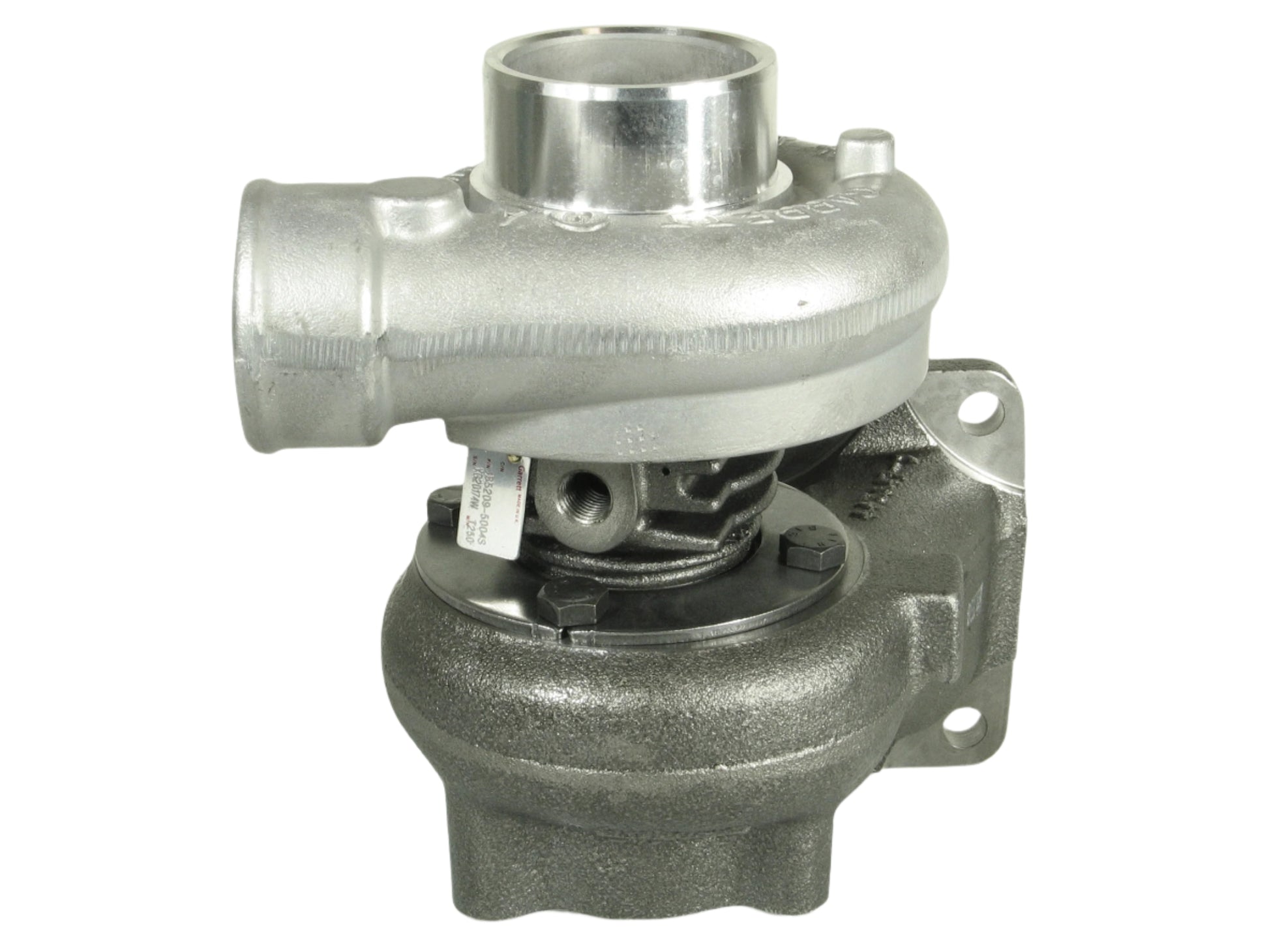

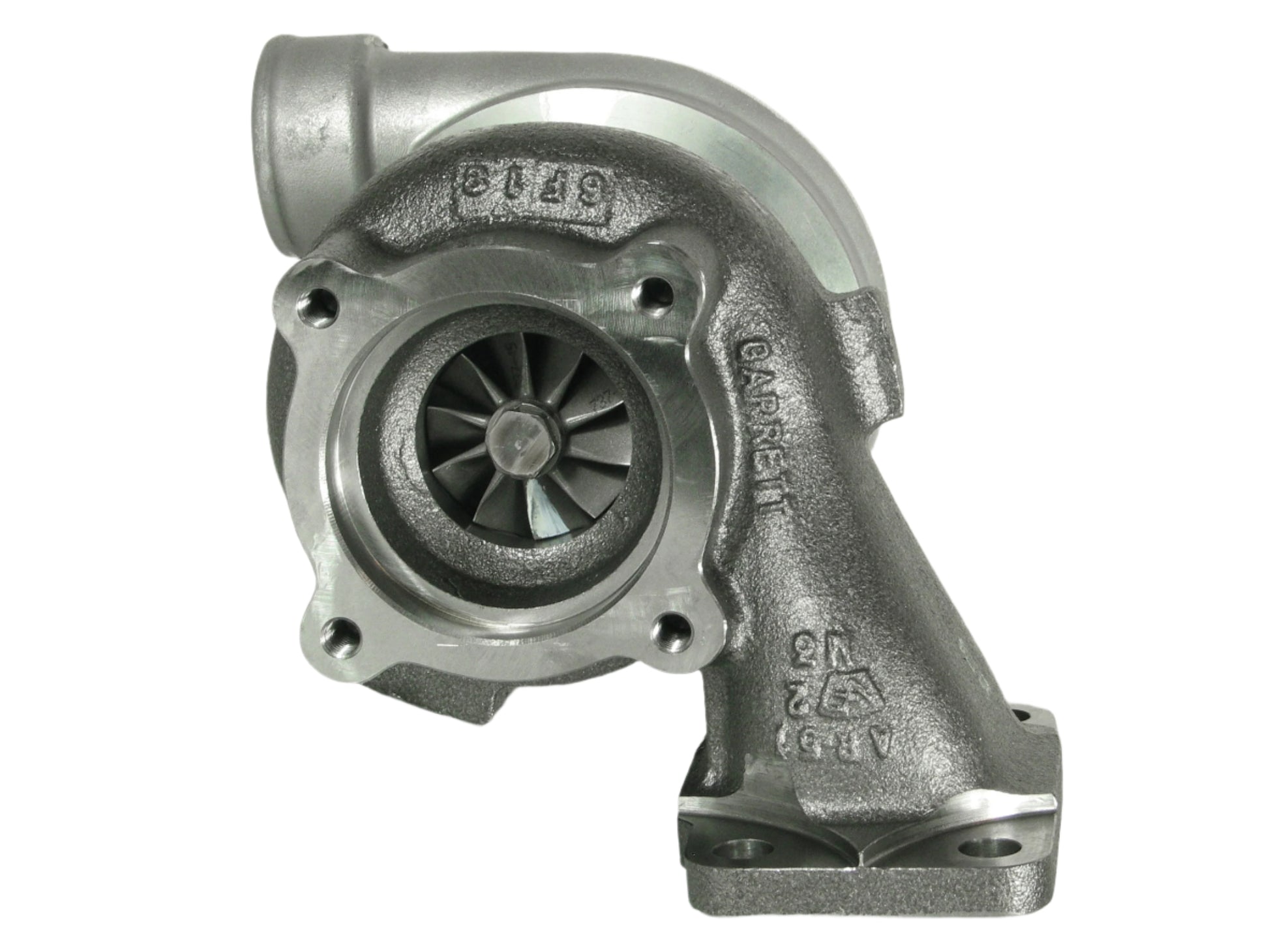

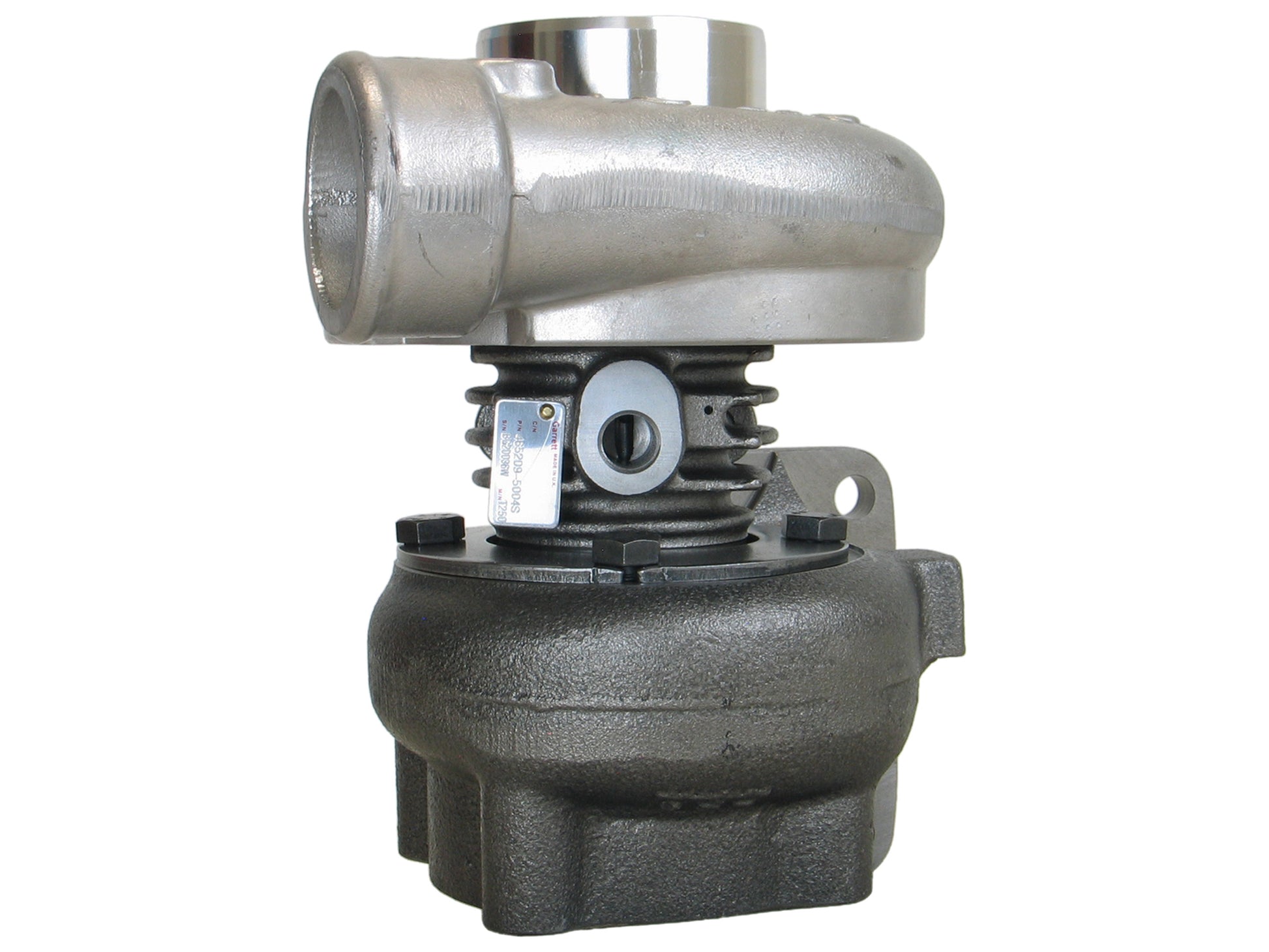

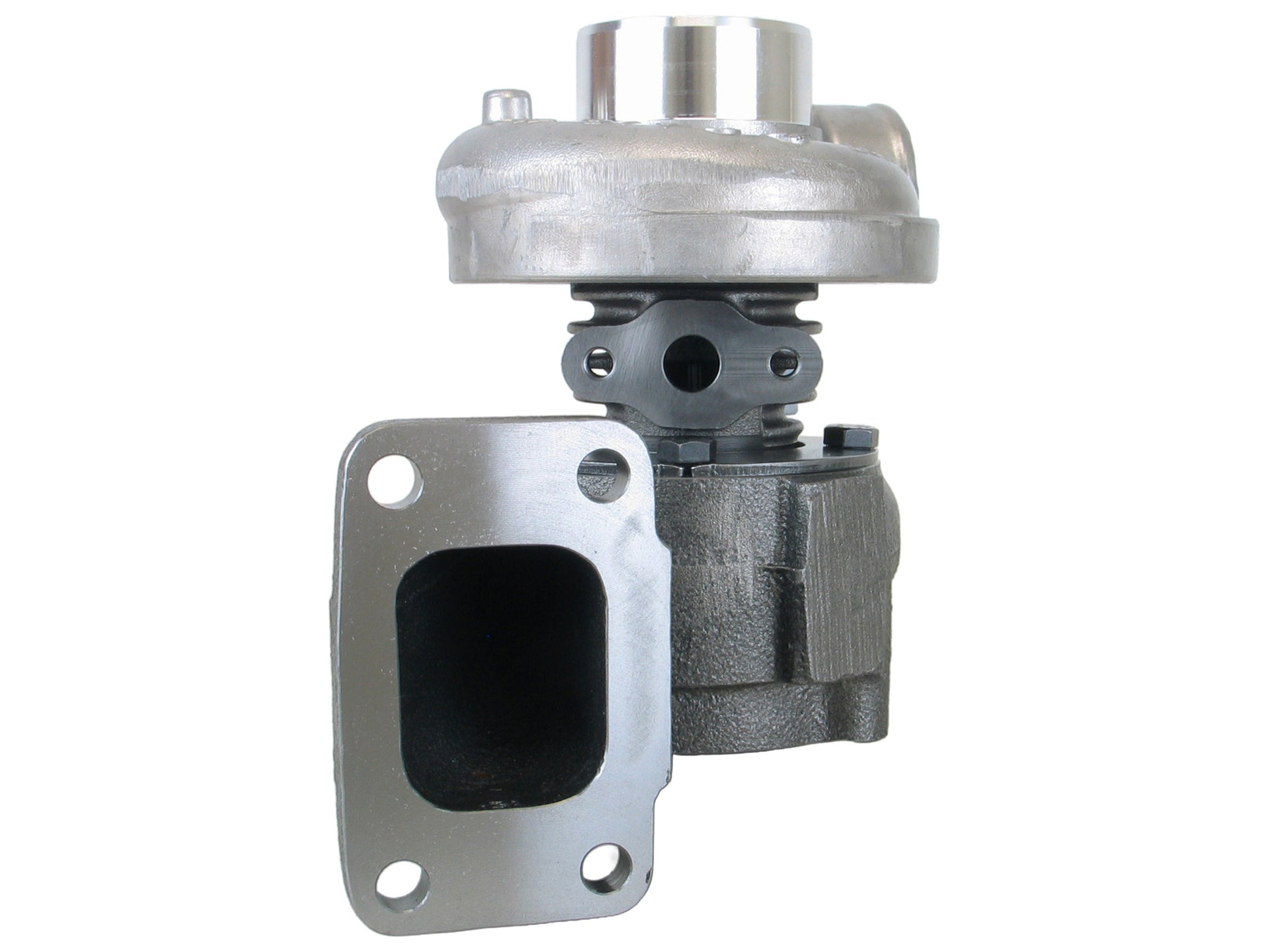

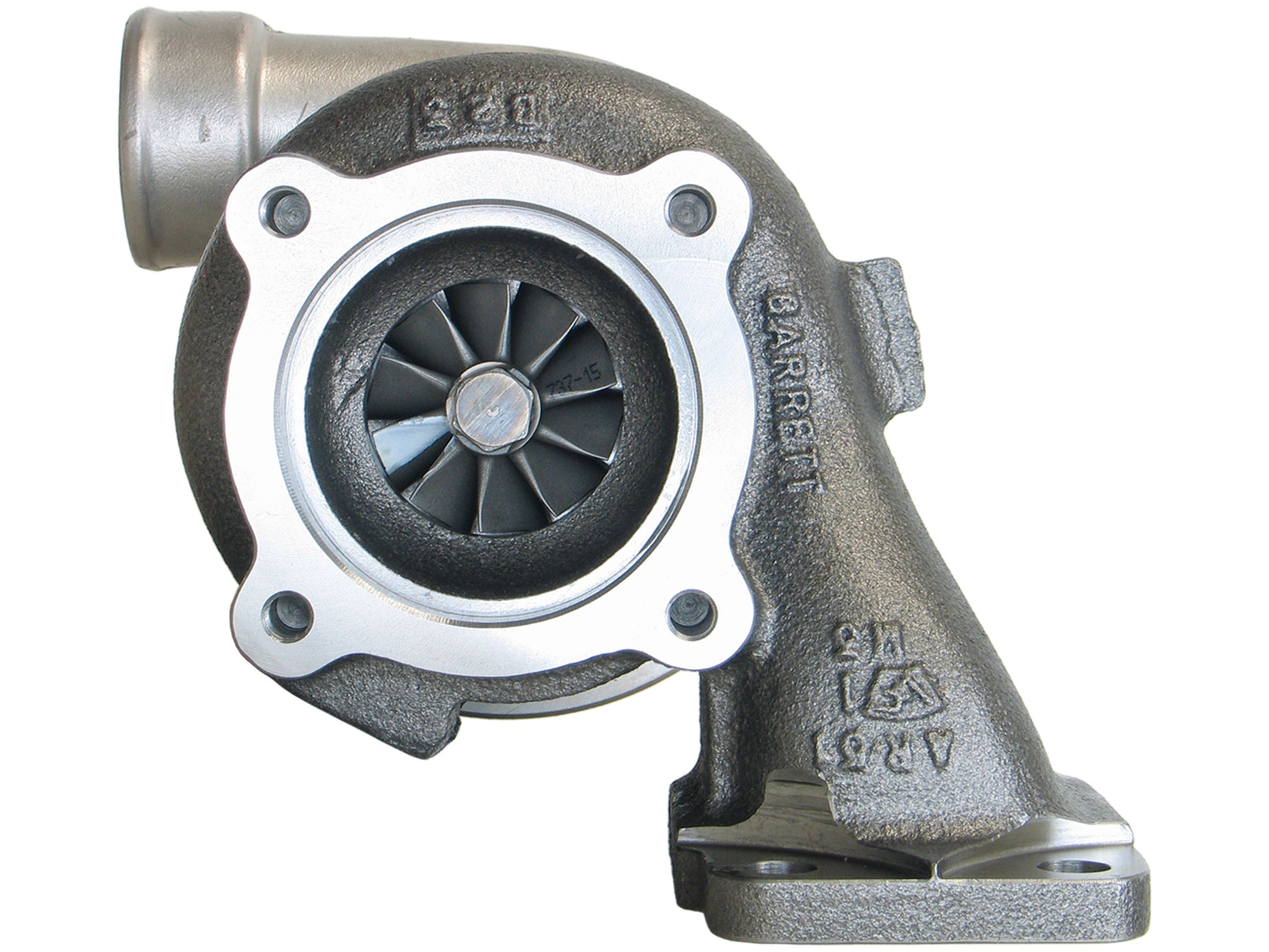

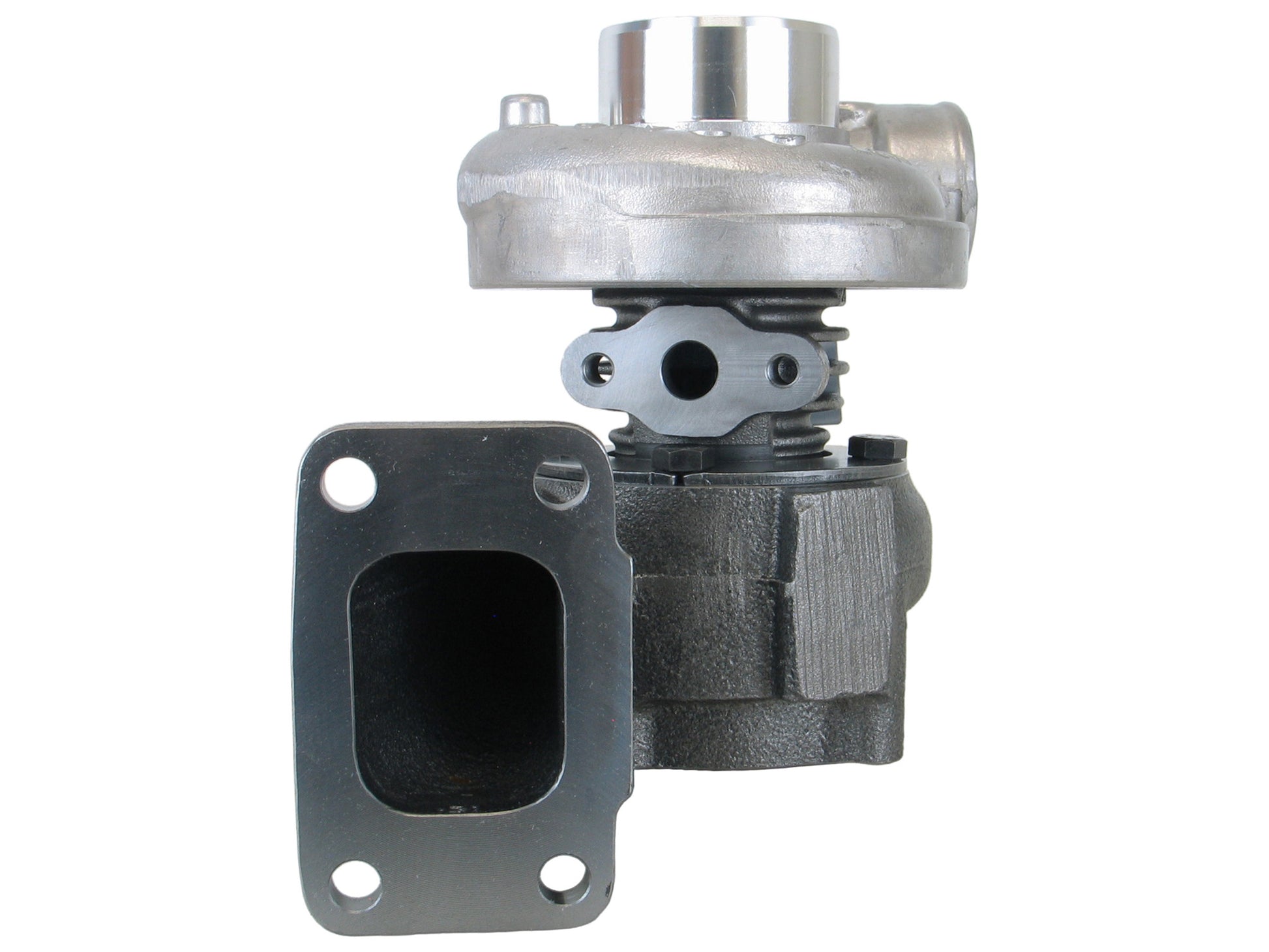

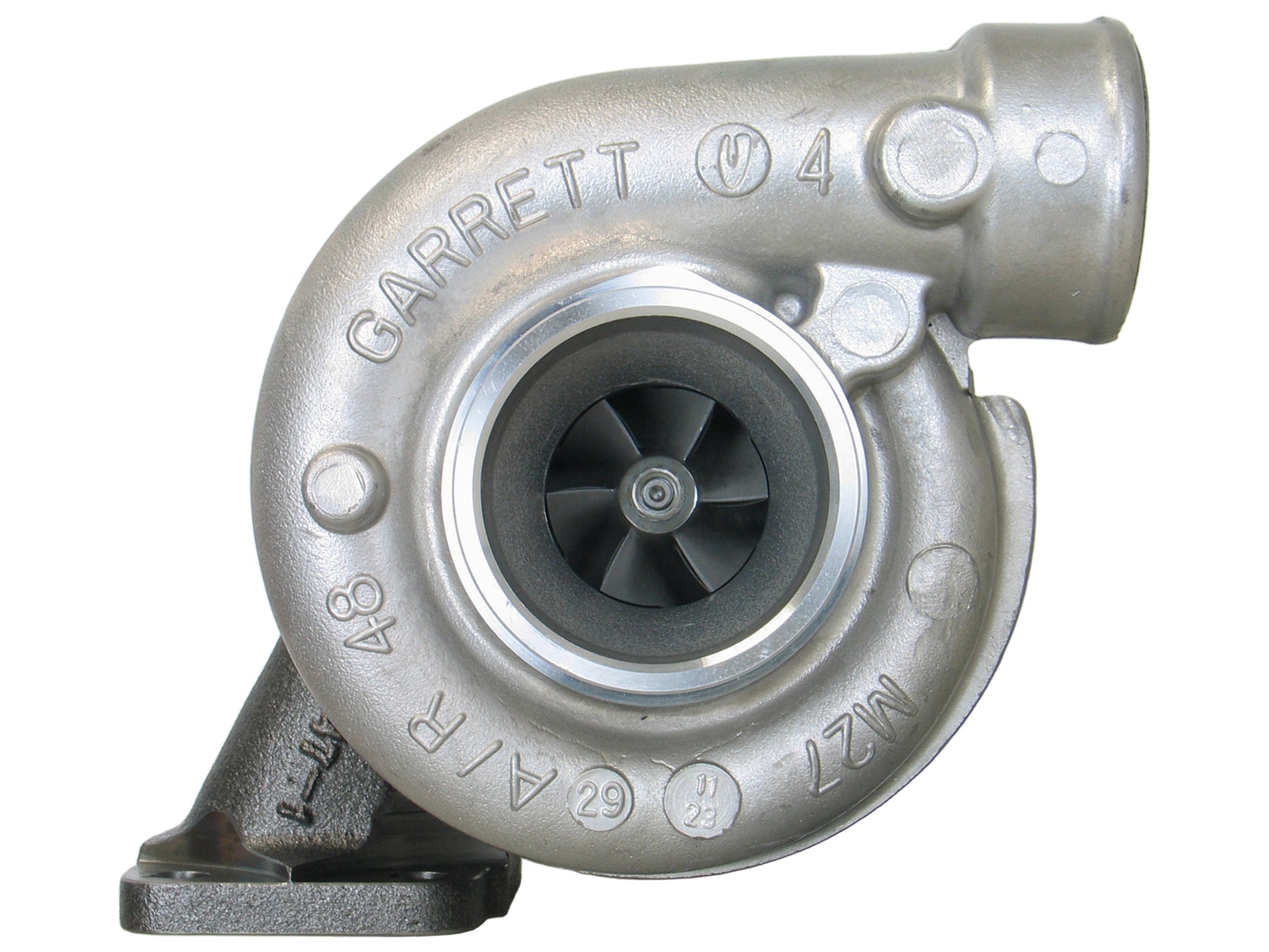

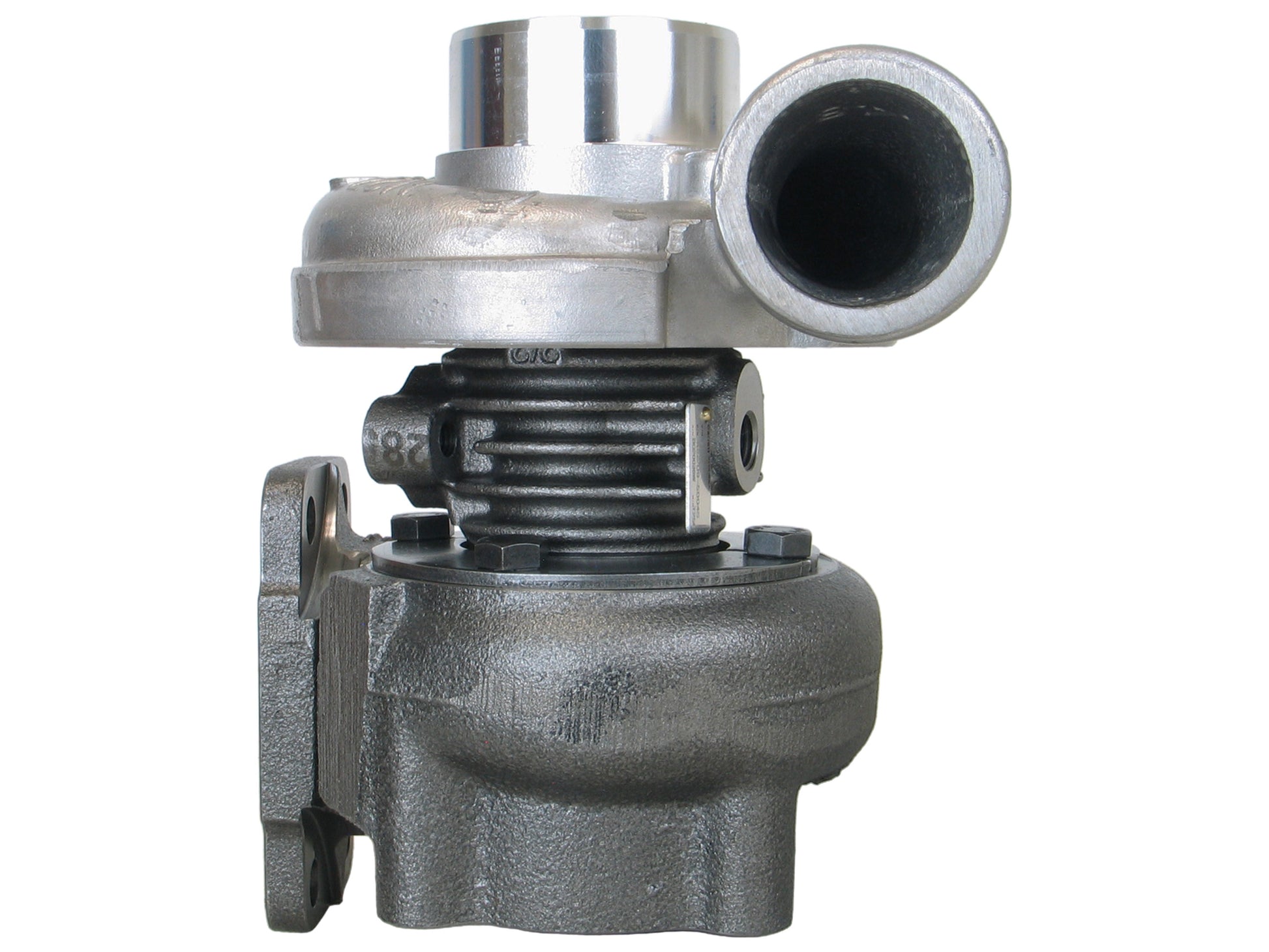

NEW Garrett T250 Turbo New Holland Agricultural Tractor 4630T 3.2L 465209-5004SKU: 465209-5004
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 465209-5004
Interchangeable Number: 465209-0004, 465209-5004S
OEM Number: 87801413
Turbo Model: T250-05
Serial Number: J00395A
Engine: FNH, 4630T CNH, 4630T
Engine Manufacturer: New Holland
Displacement: 3.2L, 3200 ccm, 3 Cylinders
Power: 81 HP
Speed: 2200 RPM
Angle α (Compressor Housing): 0°
Angle ß (Turbine Housing): 341°
Back Plate: 430735-000 (430612-0003) (1100025300)
Bearing Housing: 435349-0022 (Oil Cooled)
CHRA: 443853-0036 (443853-5036S)
Compressor Cover: 434288-0019
Compressor Wheel: 446335-0015 (Ind. 34.41 mm, Exd. 52 mm, 6+6 Blades, Super Back)
Gasket (Oil Outlet): 413709-0001 (Paper)
Gasket (Turbine Inlet): 409039-0001 (210190, 210190-0000, 312617, 132044)(Stainless Steel, Single Port)
Gasket (Turbine Outlet): 210225 (Stainless Steel)
Heat Shield: 443594-0001 (1100025341)
Repair Kit: 709143-0001 (1100025761)
Turbine Housing A/R: 0.51
Turbine Housing: 434259-0001(87800061)
Turbine Wheel: 435406-0003 (Ind. 53 mm, Exd. 41.7 mm, Trim 62, 10 Blades)
2005- New Holland Agricultural Tractor Series 30, 3200 with FNH, 4630T Engine
Case, New Holland Agricultural, Industrial with 4630T Engine
Ford Agricultural Skid loader LS865, LX885, L865
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
