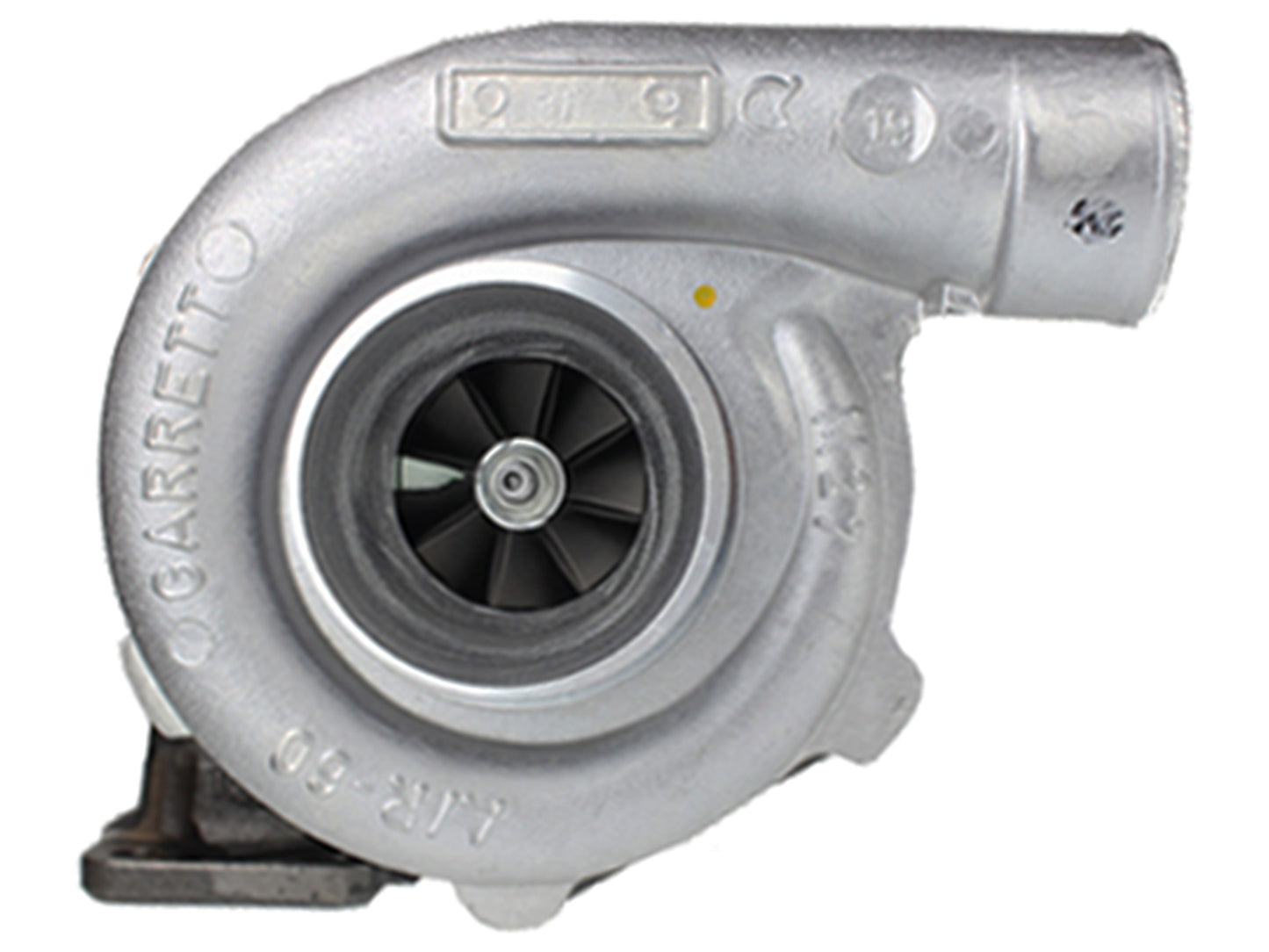

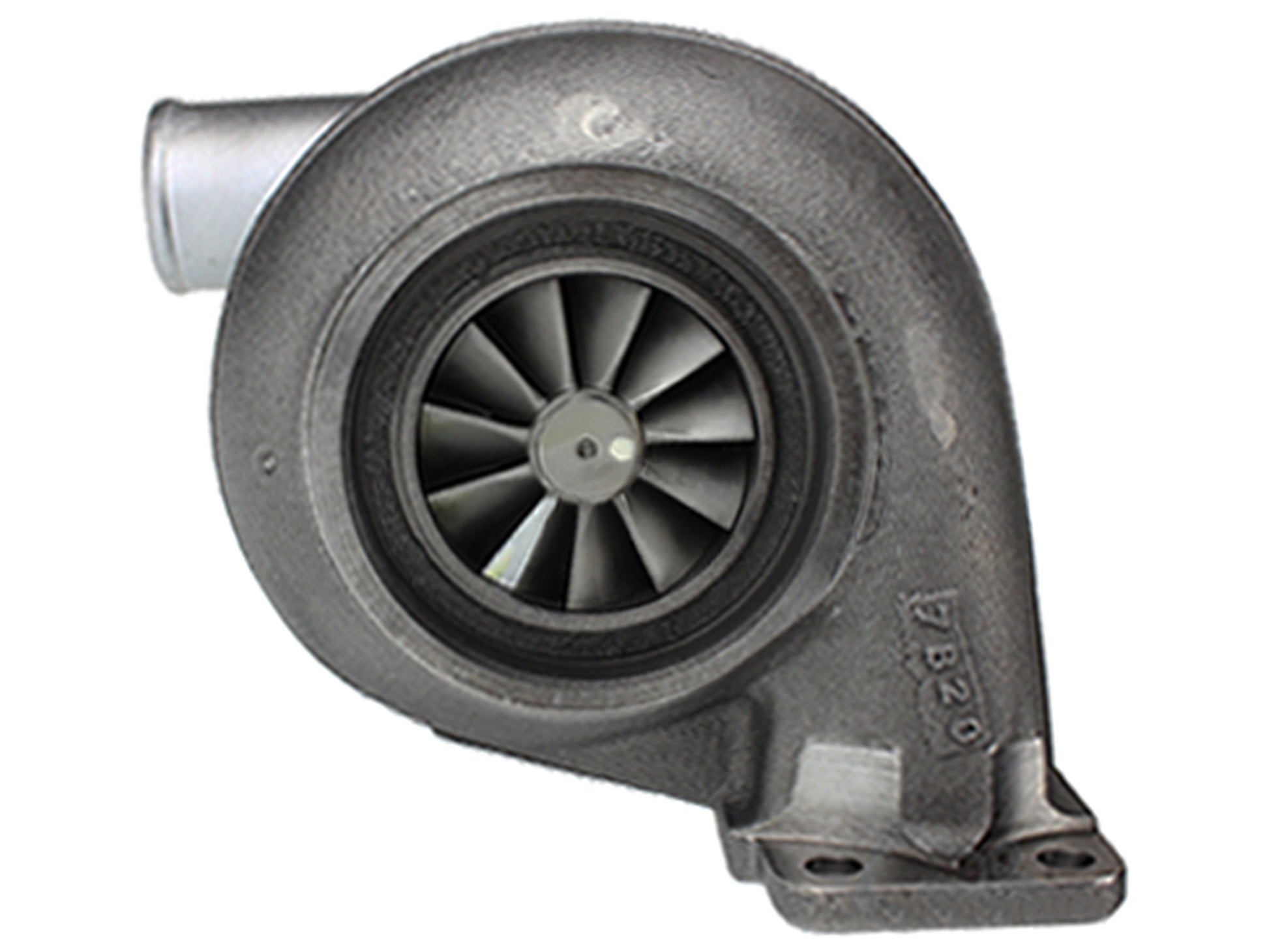

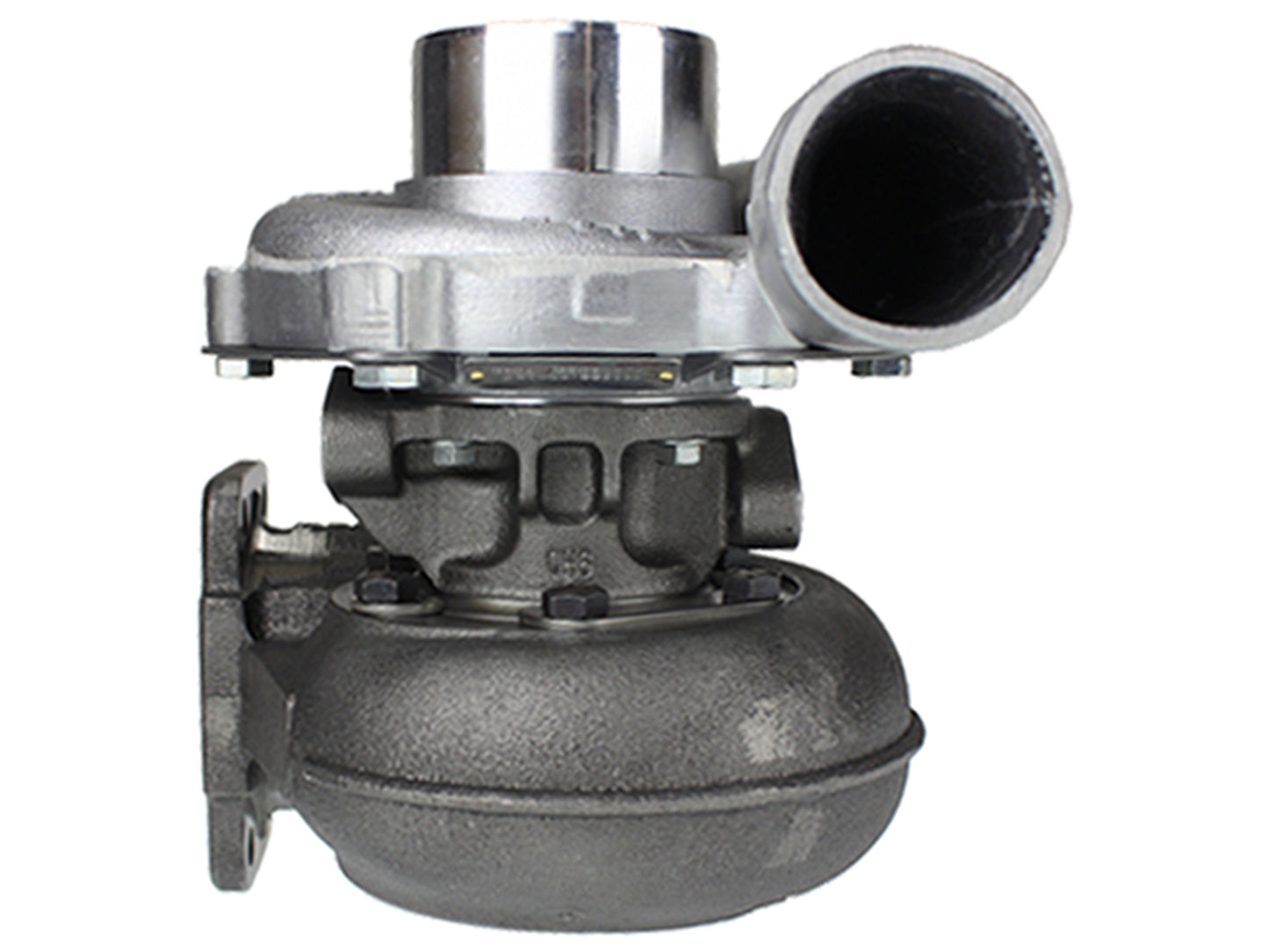

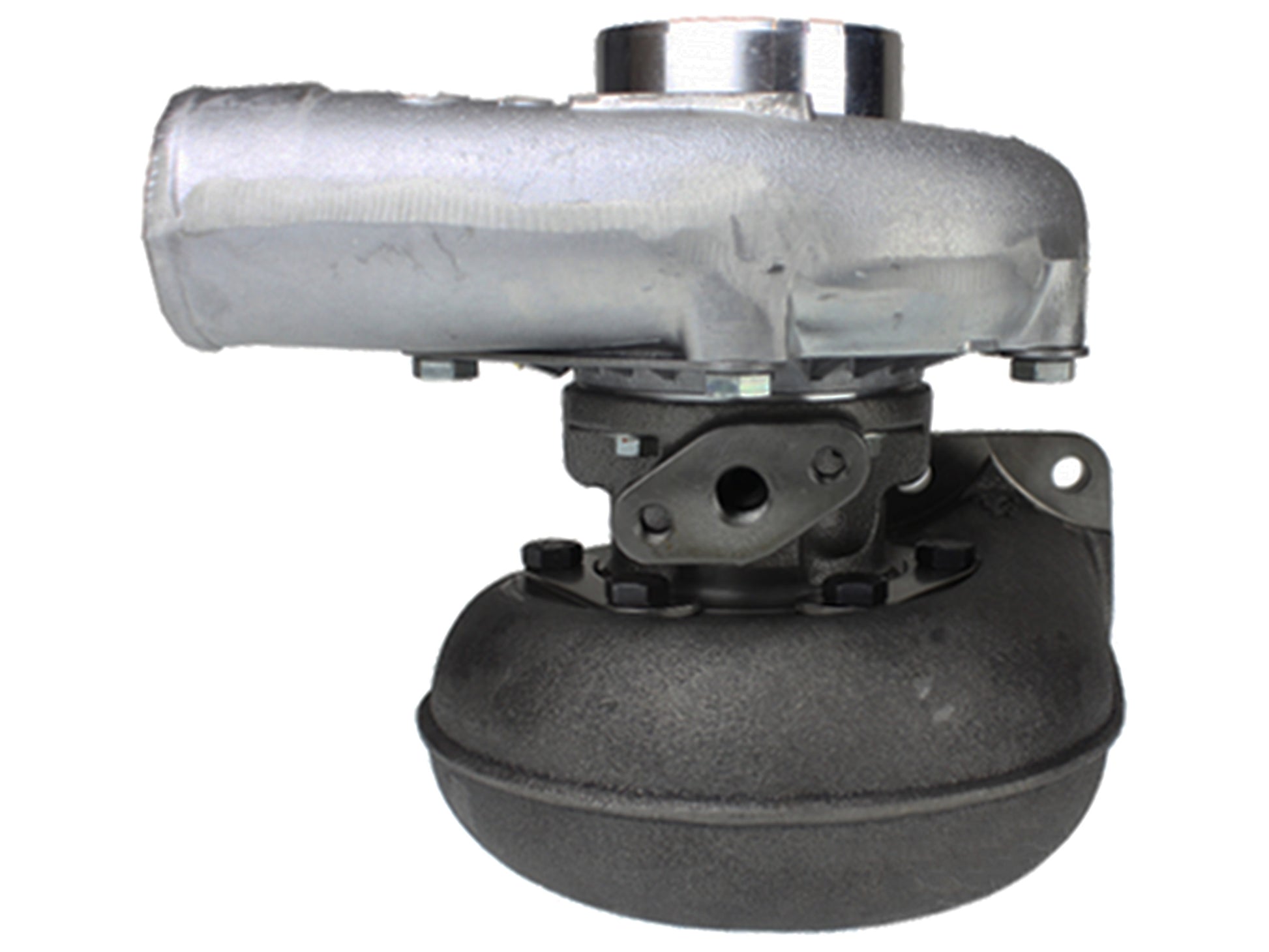

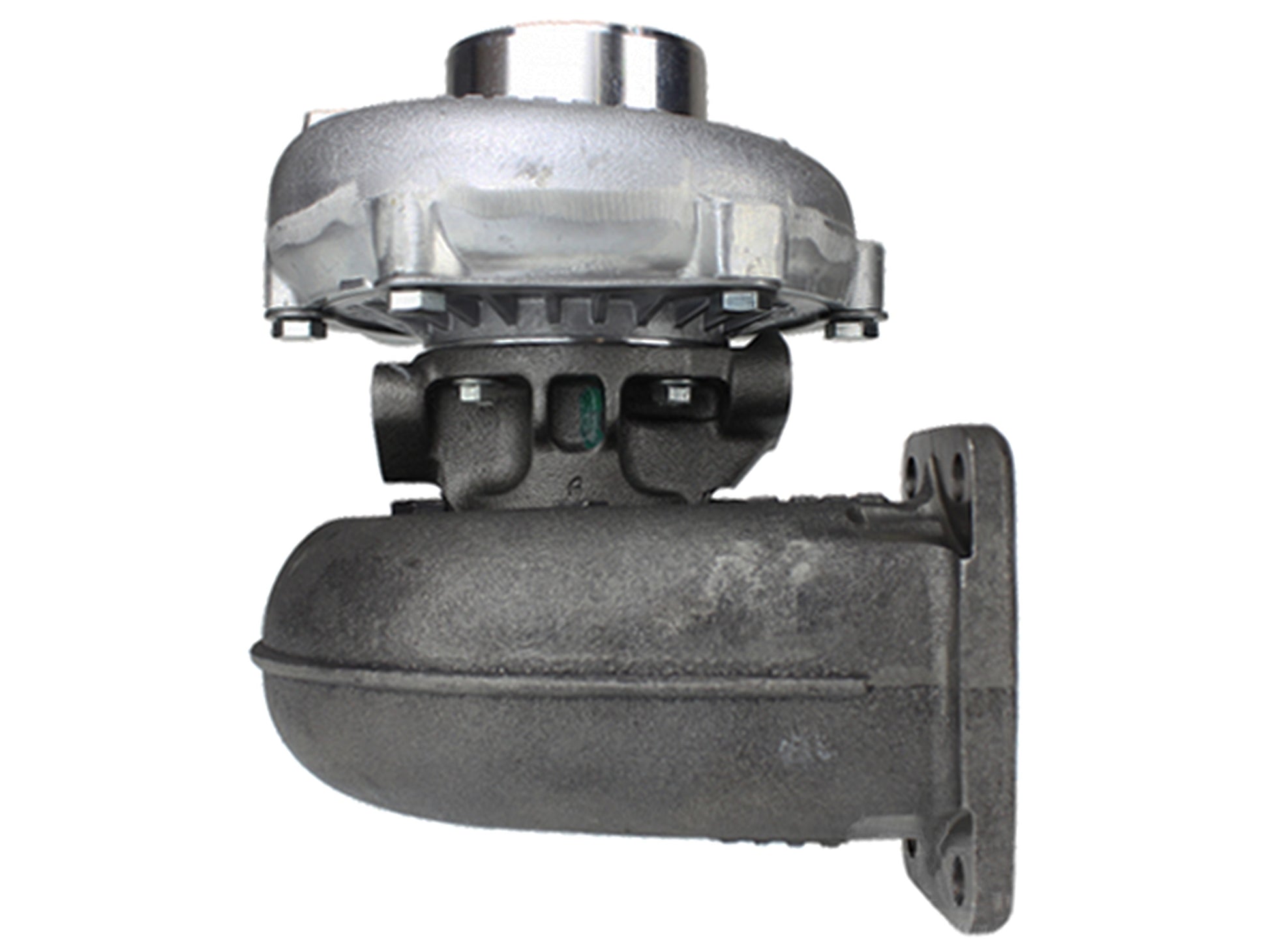

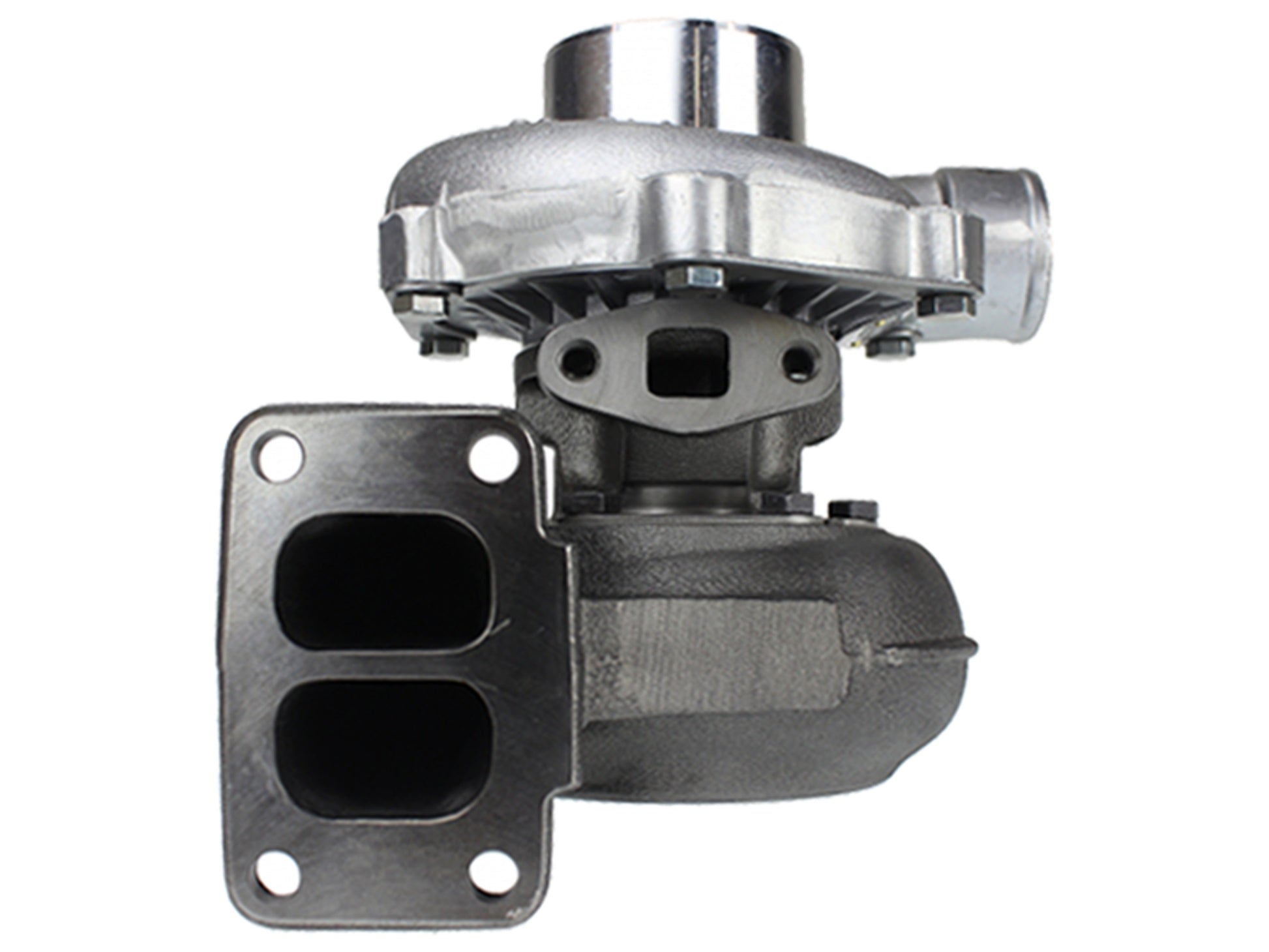

NEW Garrett T04B94 Turbo IH Agricultural Tractor Navistar DT358 5.9L 465288-5003SKU: 465288-5003
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 465288-5003
Interchangeable Number: 465288-0003, 465288-5003S, 409770-0005, 409770-5005, 409770-5005S, 409770-0006, 409770-5006, 409770-5006S, 409770-0007, 409770-5007, 409770-5007S, 409770-0008, 409770-5008, 409770-5008S, 409770-0009, 409770-5009, 409770-5009S, 409770-0011, 409770-5011, 409770-5011S, 409770-0013, 409770-5013, 409770-5013S, 409770-0014, 409770-5014, 409770-5014S, 409770-0015, 409770-5015, 409770-5015S, 409770-0016, 409770-5016, 409770-5016S, 409770-0017, 409770-5017, 409770-5017S, 409770-0019, 409770-5019, 409770-5019S, 409770-0020, 409770-5020, 409770-5020S, 409770-0021, 409770-5021, 409770-5021S, 409770-0022, 409770-5022, 409770-5022S, 409770-0023, 409770-5023, 409770-5023S, 409770-0024, 409770-5024, 409770-5024S, 193876, 313102, 313102R
OEM Number: 3218953R91, 684698C91, 749282C91, 1806077C91, 1806078C2, 1806078C91, 1806079C91, 1806079C92, 1806080C91, 1806080C92, 1806081C91, 684569C91, 684598C91, 684663C91, 684663C92, 684698C91, 684937C91, 691020C91, 691059C91, 735030C91, 735270C91, 749269C91, 991523C91, A184781
Turbo Model: T04B94
Engine Manufacturer: Navistar
Angle α (Compressor Housing): 360°
Angle β (Turbine Housing): 0°
Back Plate: 408045-0034 (630614C91)(4N6863, 310010, 311708, 104244-0000, 408045-0051, 408045-0006, 408206-0002)(1100040360)
Bearing Housing: 430027-0051 (186880, 186882, 407285-0018, 430027-0031, 430027-0035)(Oil Cooled)
CHRA: 408105-0156 (408105-0215, 408105-5156S)(684356C92, 991530C91, 684357C91)
Compressor Cover: 408173-0028 (8N4783)
Compressor Wheel: 409179-0024 (684364C1)(Ind. 54 mm, Exd. 69.95 mm, 8+8 Blades, Flat Back With Ext. Hub)
Gasket (Oil Inlet): 210023 (409026-0001, 409036-0000, 409266-0001, 3519762, 3500681, 3709737, 3755739, 420641, 210023-0000, 55739, 147837)(1900000037)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 210021-0000, 413671-0000, 409037-0000)(1900000027)
Gasket (Turbine Inlet): 409123-0002 (310694, 407294-0001)(Inox Steel)
Heat Shield: 409299-0001 (409299-0000)
Repair Kit: 468100-0000 (3524796, 168984, 2W0716, 6N7236, 310063, 188401-0000, 188006-0000)(1100040750)
Turbine Housing A/R: 0.84
Turbine Housing: 407402-0033
Turbine Wheel: 446905-0005 (407276-0006, 407276-0019, 410188-0003, 410188-0006, 410188-0037, 446905-0002, 446905-0007, 446905-0010, 451309-0003, 451309-0004)(Ind. 73.99 mm, Exd. 64.61 mm, 11 Blades)(1100016090)
IH Tractor with Navistar DT358 Engine
International Agricultural with Navistar DT358 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
