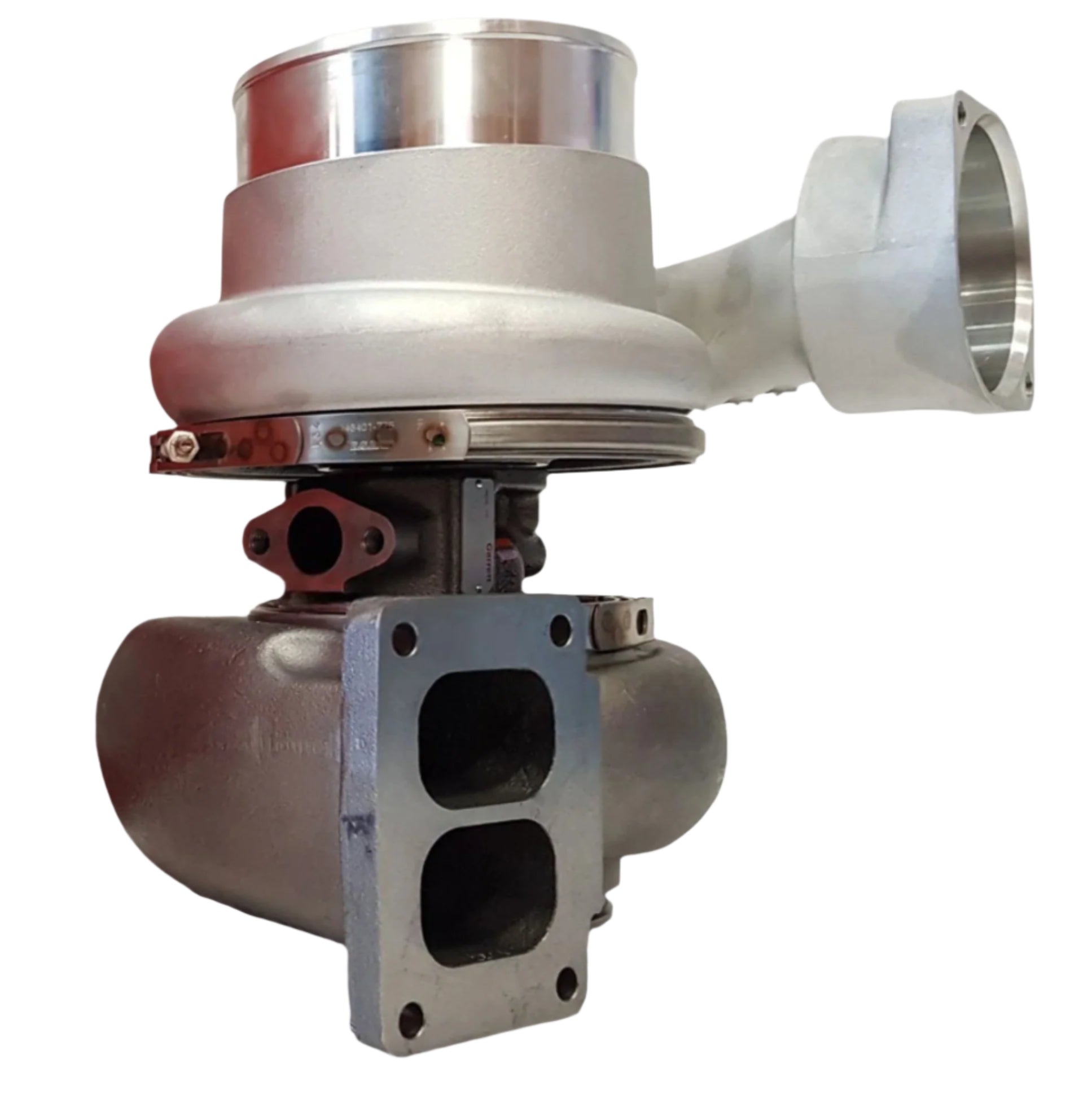

NEW OEM Garrett TV8112 Turbo CAT Industrial 3406 DITA 14.6L Engine 465332-5001SKU: 465332-5001
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 465332-5001
Interchangeable Number: 465332-0001, 465332-5001S, 465332-0002, 465332-5002, 465332-5002S, 465332-0003, 465332-5003, 465332-5003S, 465332-0004, 465332-5004, 465332-5004S, 465332-0005, 465332-5005, 465332-5005S, 465332-0008, 465332-5008, 465332-5008S
OEM Number: 0R-5370, 0R5370, 1N-4070, 1N4070, 4W-0208, 4W0208, 4W-208, 4W208, 6N-9624, 6N9624, 6N-9625, 6N9625, 9N-2702, 9N2702, 9N-2703, 9N2703
Turbo Model: TV8112
Engine: 3406 DITAJWAC, 3406-Truck DITA
Displacement: 14.6L, 14600 ccm
Prefix: 65B, 90U, 92U, 85X, 86X, 87X, 13B, 2EB, 2XD, 63X, 42X
Angle α (Compressor Housing): 274°
Angle β (Turbine Housing): 278°
Back Plate: 408487-0013 (6N7962)(180043-0000)(1101680360)
Bearing Housing: 408495-0028 (408495-0009, 408495-0010)(9N2035)(Oil Cooled)(1101672450)
CHRA: 408742-0011 (408742-5011S, 408742-0036, 408742-0080, 0R5926, 0R7105, 134-3668, 1343668, 1N4356, 9N3676, 180024-0000)(1101081707)
Compressor Cover: 447209-0021
Compressor Wheel: 409132-0004 (134-3668, 9N3674)(444827-0018, 444827-0004, 180019-0000)(Ind. 72.59 mm, Exd. 107.95 mm, 6+6 Blades, Super Back)(1101081403)
Gasket (Oil Inlet): 210019 (409266-0003, 3819900, 9737, 1S6595, 201049, 129119)(1900000035)
Gasket (Oil Outlet): 210018 (409267-0002, 1S4810, 3519763, 3500682, 3709738, 9738, 9988, 201048, 129120)(1900000025)
Gasket (Turbine Inlet): 409038-0000 (132040, 1S4295, 202873, 205396, 9749, 3500683, 210017-0000)(1900000003)
Heat Shield: 407657-0004 (9N2037, 9N3701)(409794-0000, 409794-0001, 180021-0000, 180121-0000)(1101680340)
Repair Kit: 468211-0000 (3545836, 188002-0000)
Turbine Housing A/R: 1.37

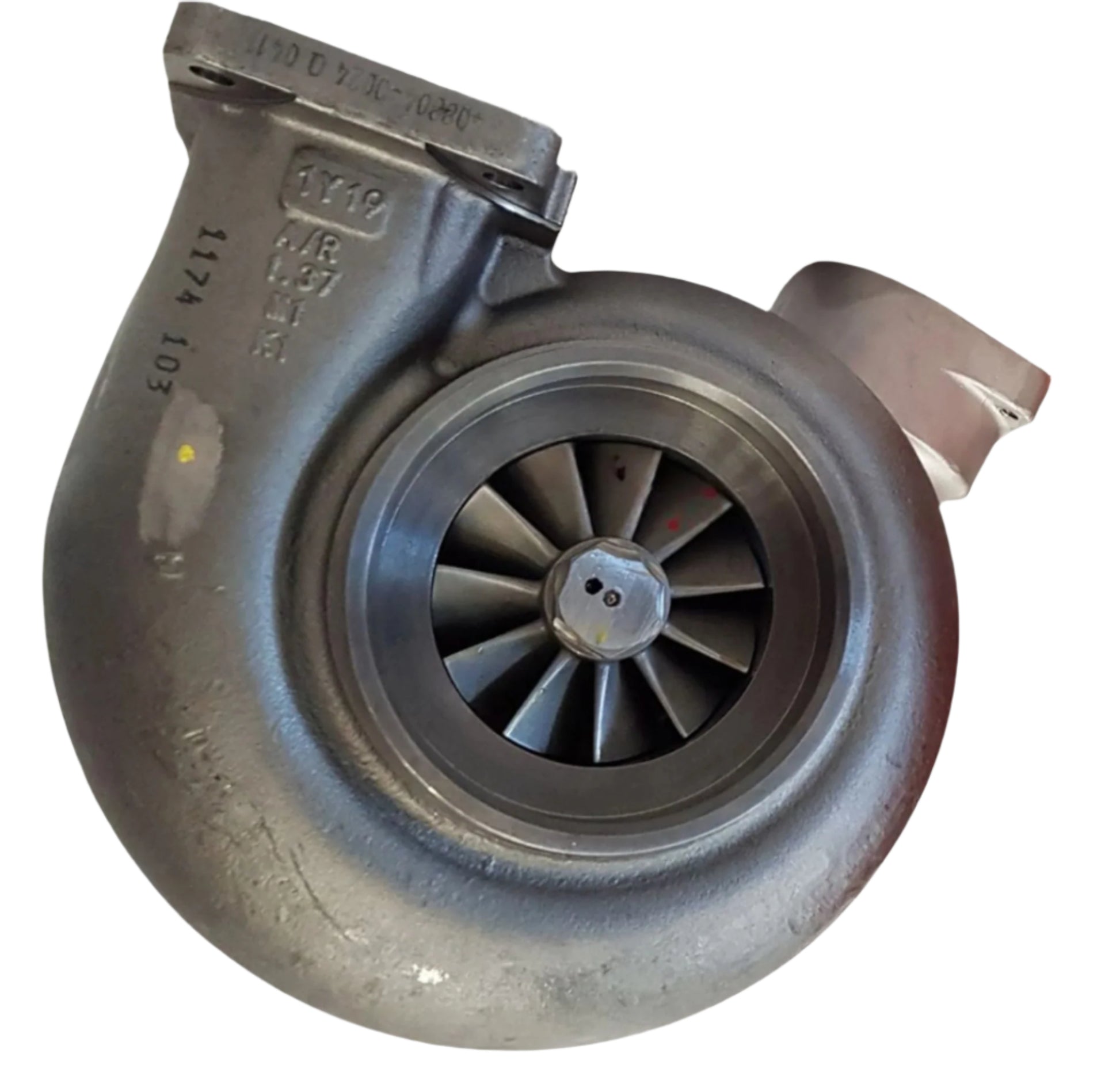

Turbine Housing: 408804-0024 (9N2639)
Turbine Wheel: 408492-0022 (408492-0012, 408492-0018, 408492-0016, 408492-0023)(0R5393, 6N4606)(Ind. 111.4 mm, Exd. 87.73 mm, 11 Blades)(1101081436)
Caterpillar Industrial, Construction Equipment with 3406 DITA Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
