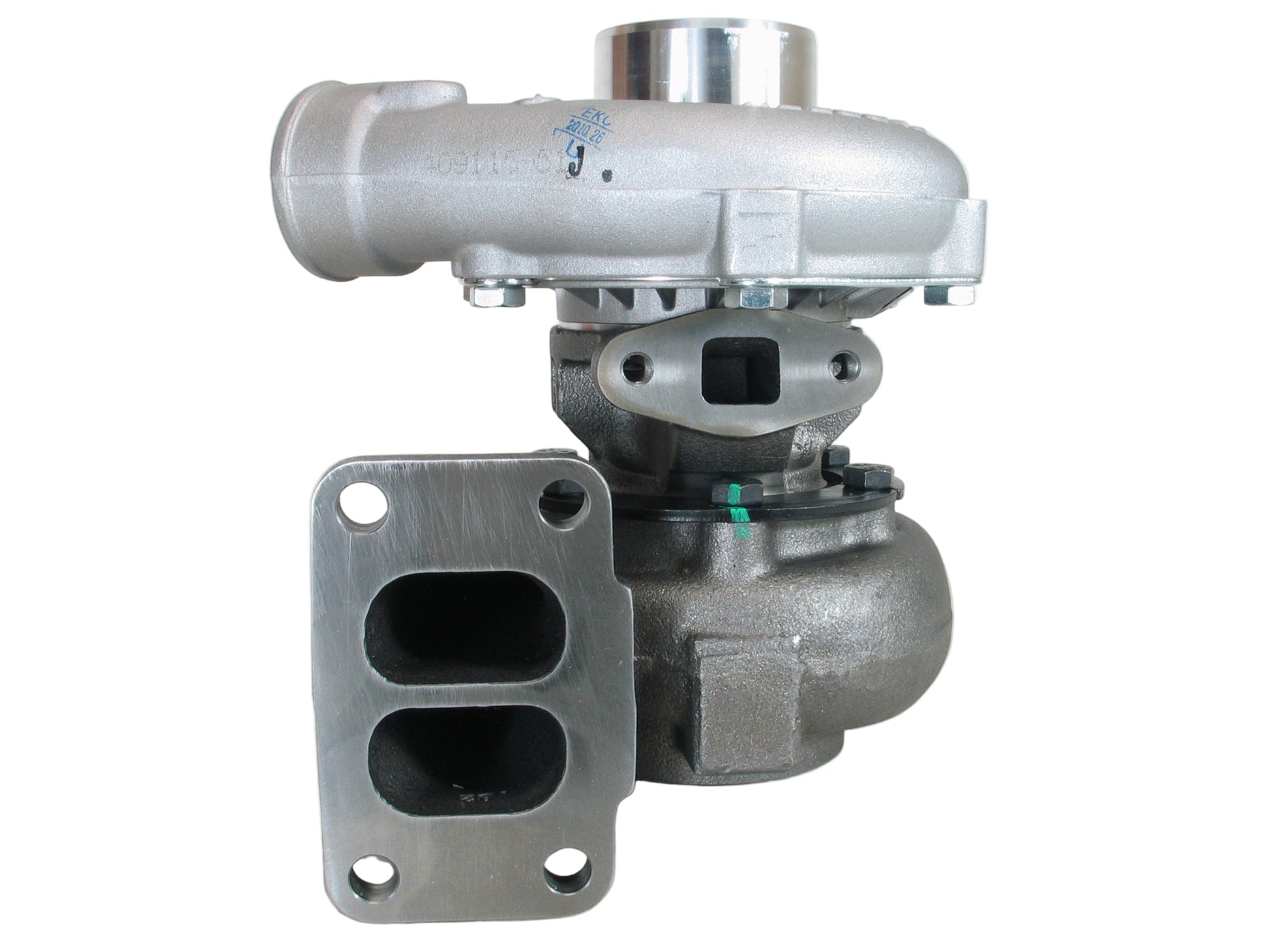

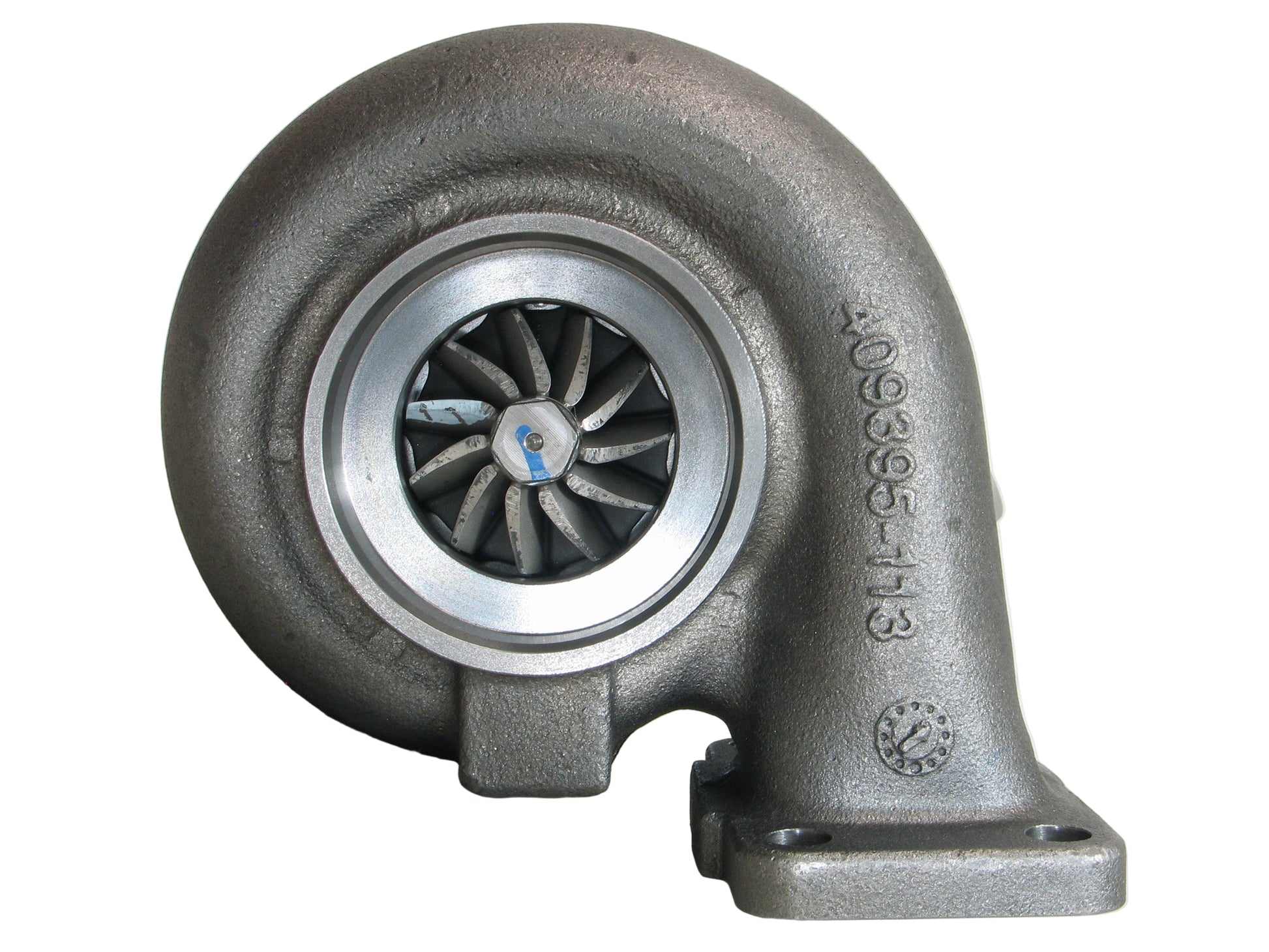

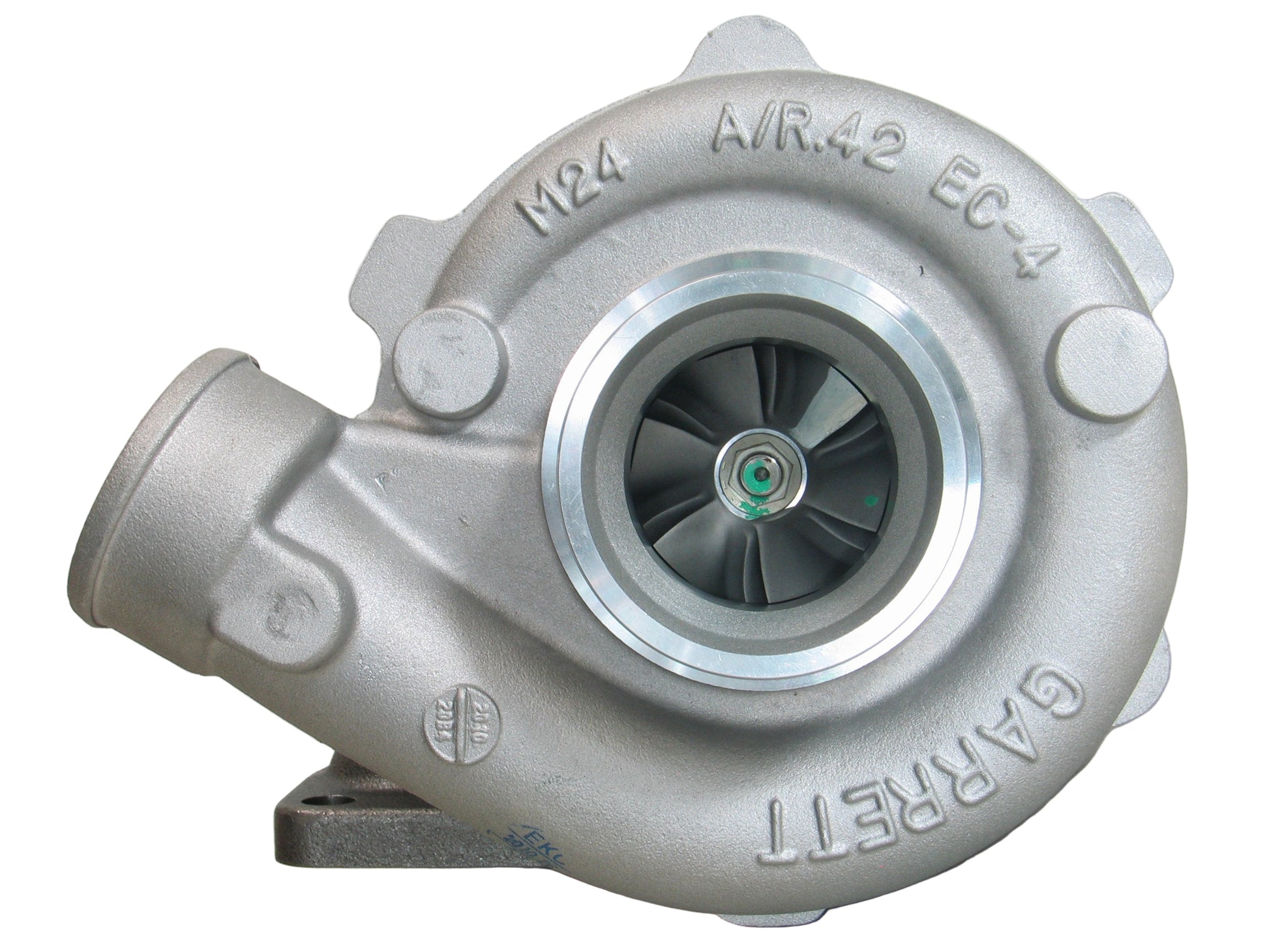

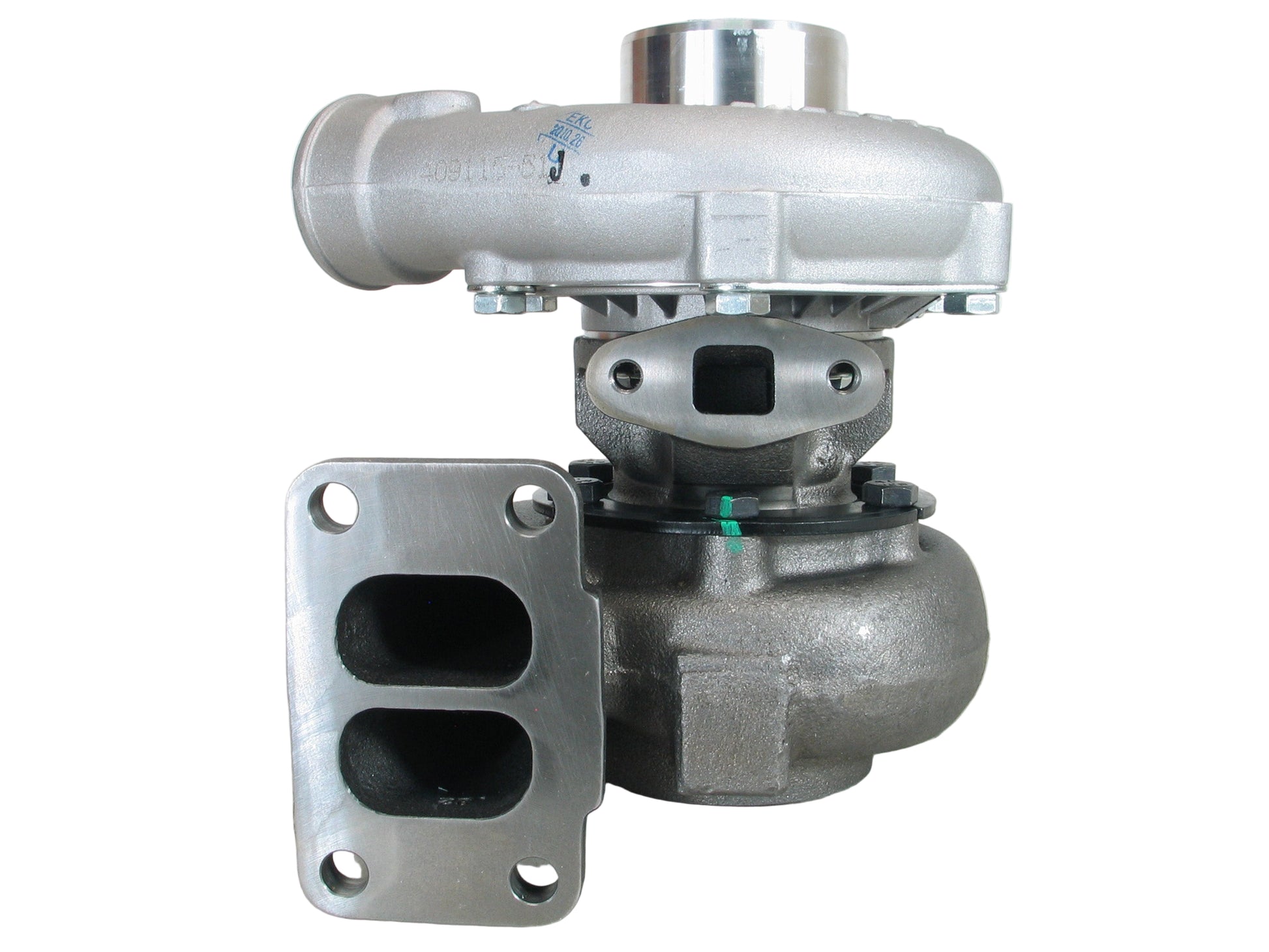

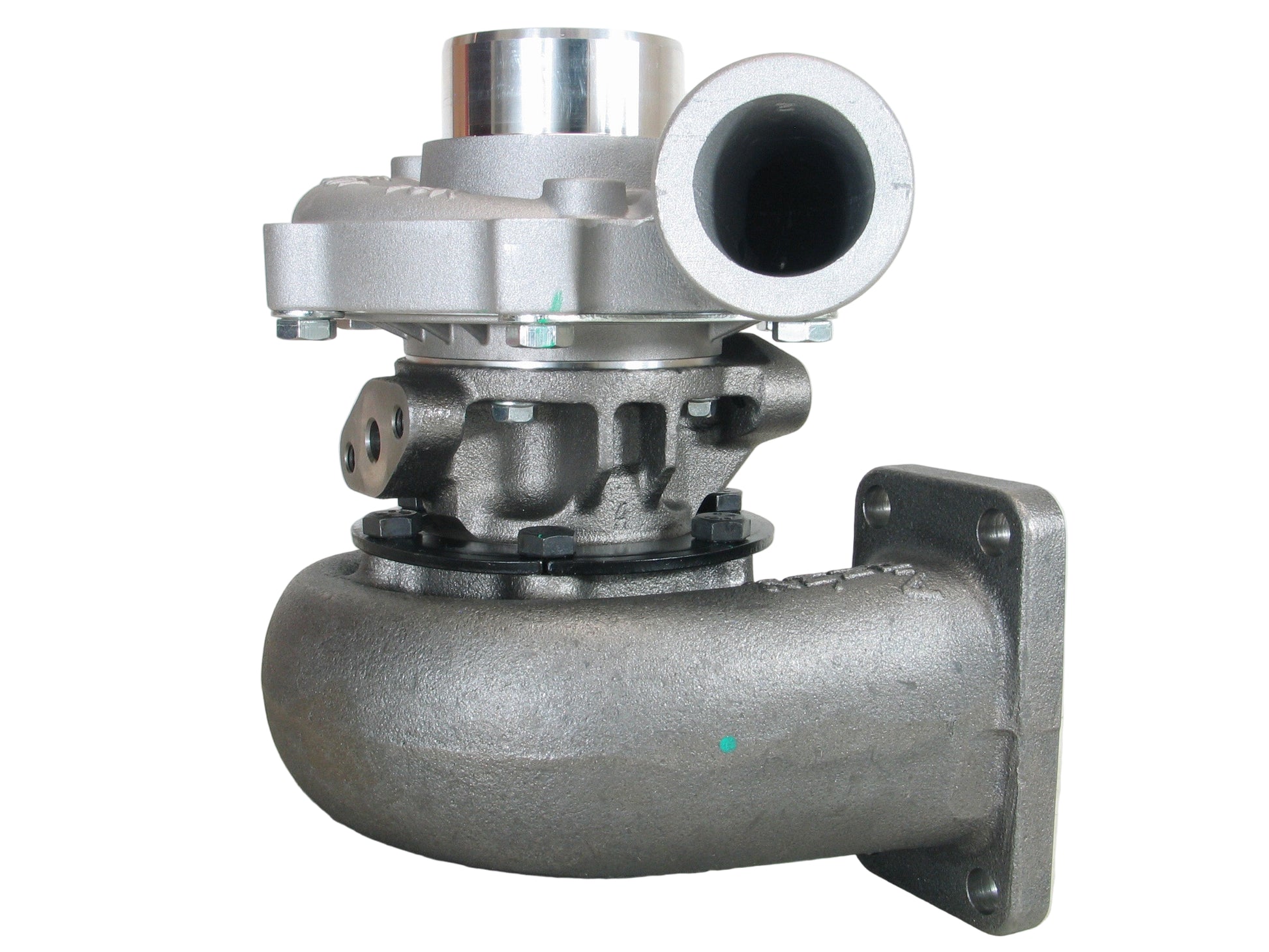

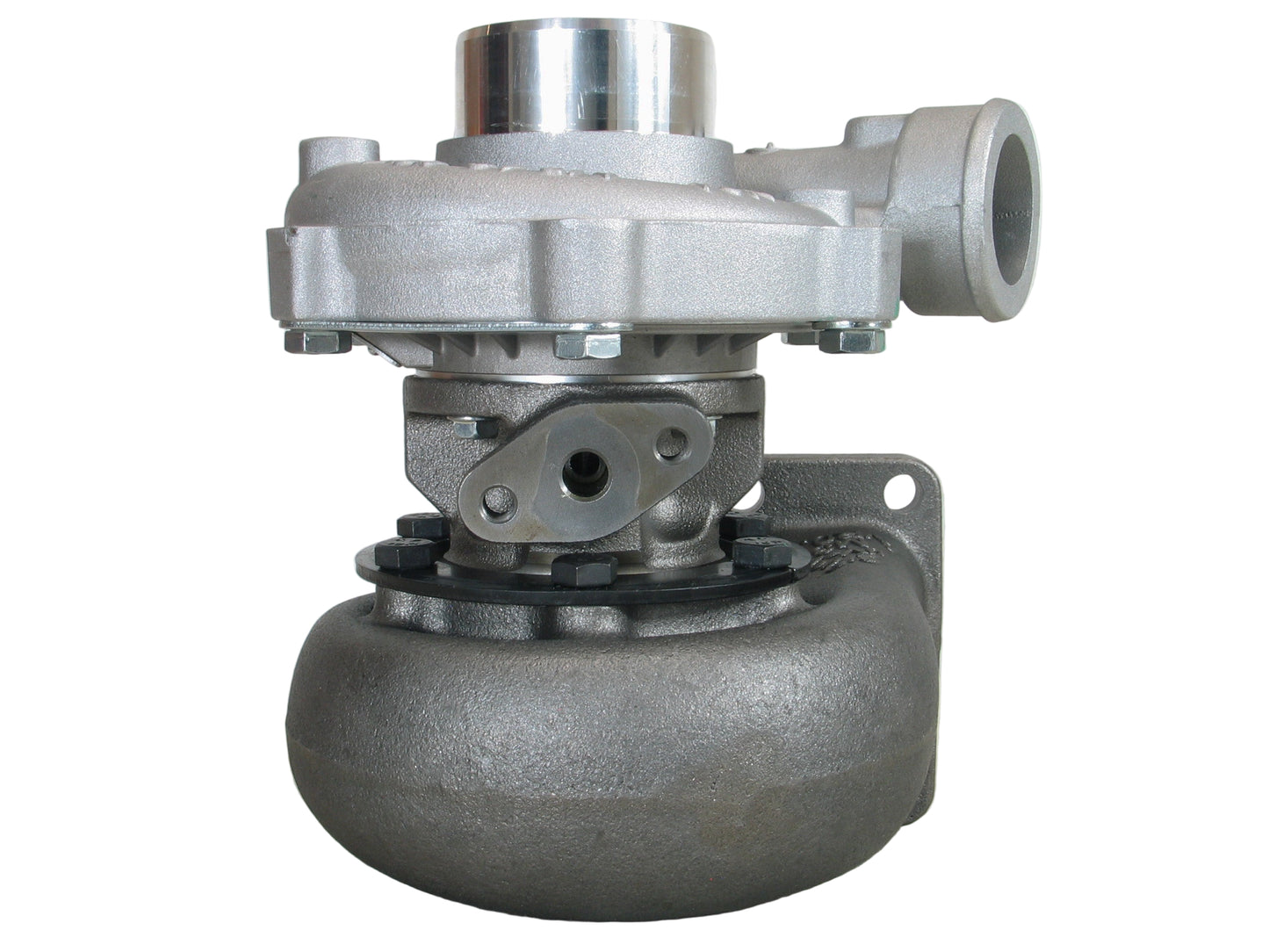

NEW OEM Garrett TA3103 Turbo Komatsu WA150 PC150-3 D31-18 S6D95L 465636-5207SSKU: 465636-5207
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 465636-5207S
Interchangeable Number: 465636-0207, 465636-5207, 465636-0203, 465636-5203, 465636-5203S, 465636-0208, 465636-5208, 465636-5208S, 465636-0211, 465636-5211, 465636-5211S, 465636-0213, 465636-5213, 465636-5213S
OEM Number: 6206-81-8120, 6206818120, 6207-81-8110, 6207818110, 6207-81-8130, 6207818130, 6207-81-8150, 6207818150
Turbo Model: TA3103
Displacement: 4884 ccm, 6 Cylinders
Angle α (Compressor Housing): 0°
Angle ß (Turbine Housing): 0°
Back Plate: 409629-0004
Bearing Housing: 430027-0025 (312379, 407285-0027, 407285-0038, 430027-0022, 430027-0048)
CHRA: 409172-0101 (409172-0033, 409172-0097)
Compressor Cover: 409115-0051
Compressor Wheel: 409096-0011 (103017-0000, 409096-0004)(Ind. 37.72 mm, Exd. 60.09 mm, 6+6 Blades, Super Back)
Gasket (Oil Inlet): 210023 (409036-0000, 210023-0000, 55739, 147837)(Paper)
Gasket (Oil Outlet): 210021 (409037-0000, 210021-0000, 311496, 413671-0000, 3519807)(Paper)
Gasket (Turbine Inlet): 210225 (Stainless Steel)
Gasket (Turbine Inlet): 409039-0000 (210022-0000)(Stainless Steel)
Heat Shield: 409627-0000
Repair Kit: 468139-0000
Turbine Housing A/R: 0.82
Turbine Housing: 409395-0064
Turbine Wheel: 451310-0006 (451310-0003)(Ind. 65 mm, Exd. 49.09 mm, 11 Blades)
Komatsu WA150 Offway, PC150-3, D31-18 Earth Moving with S6D95L Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
Any questions or concerns, please feel free to email or call us.
