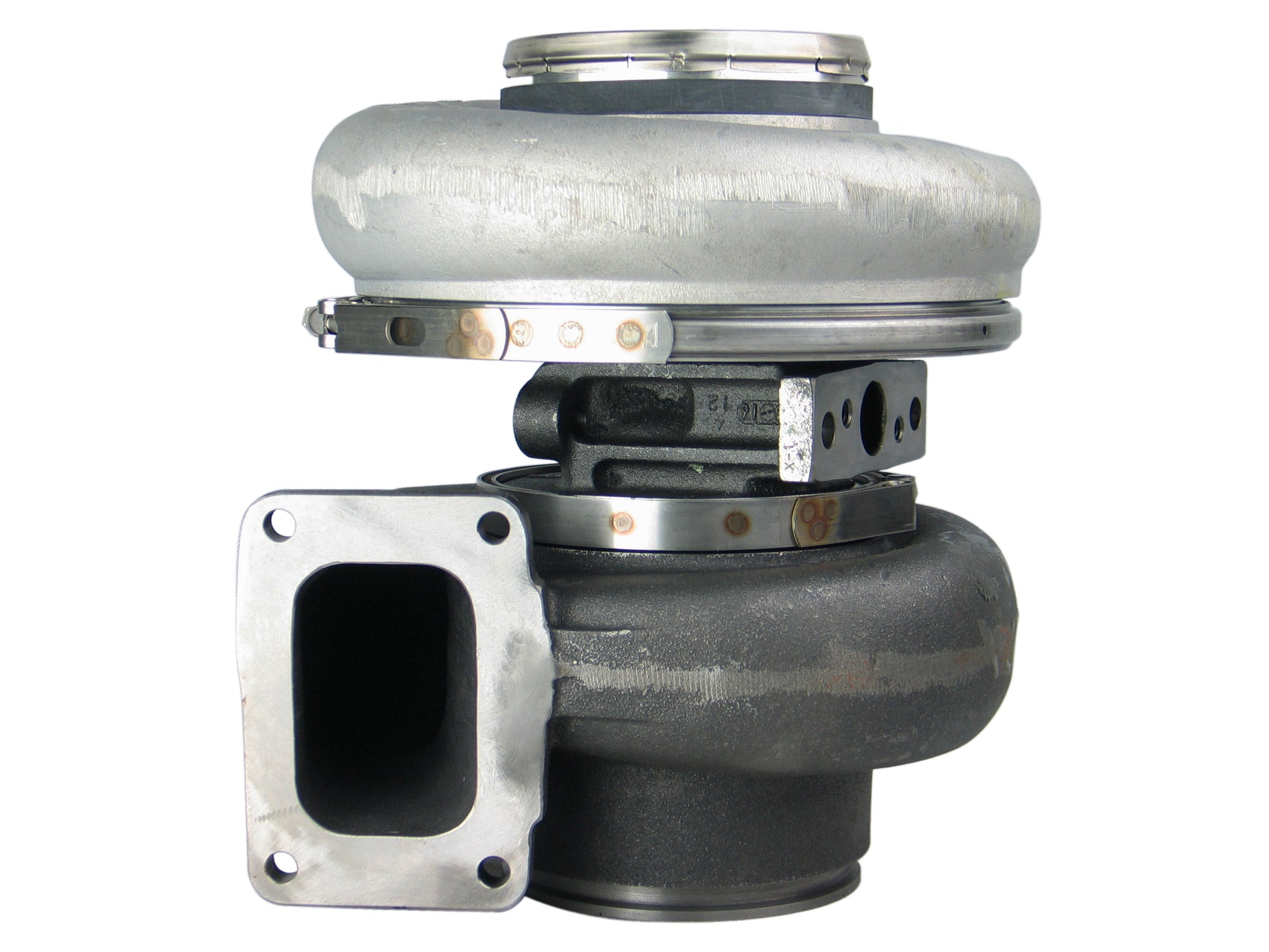

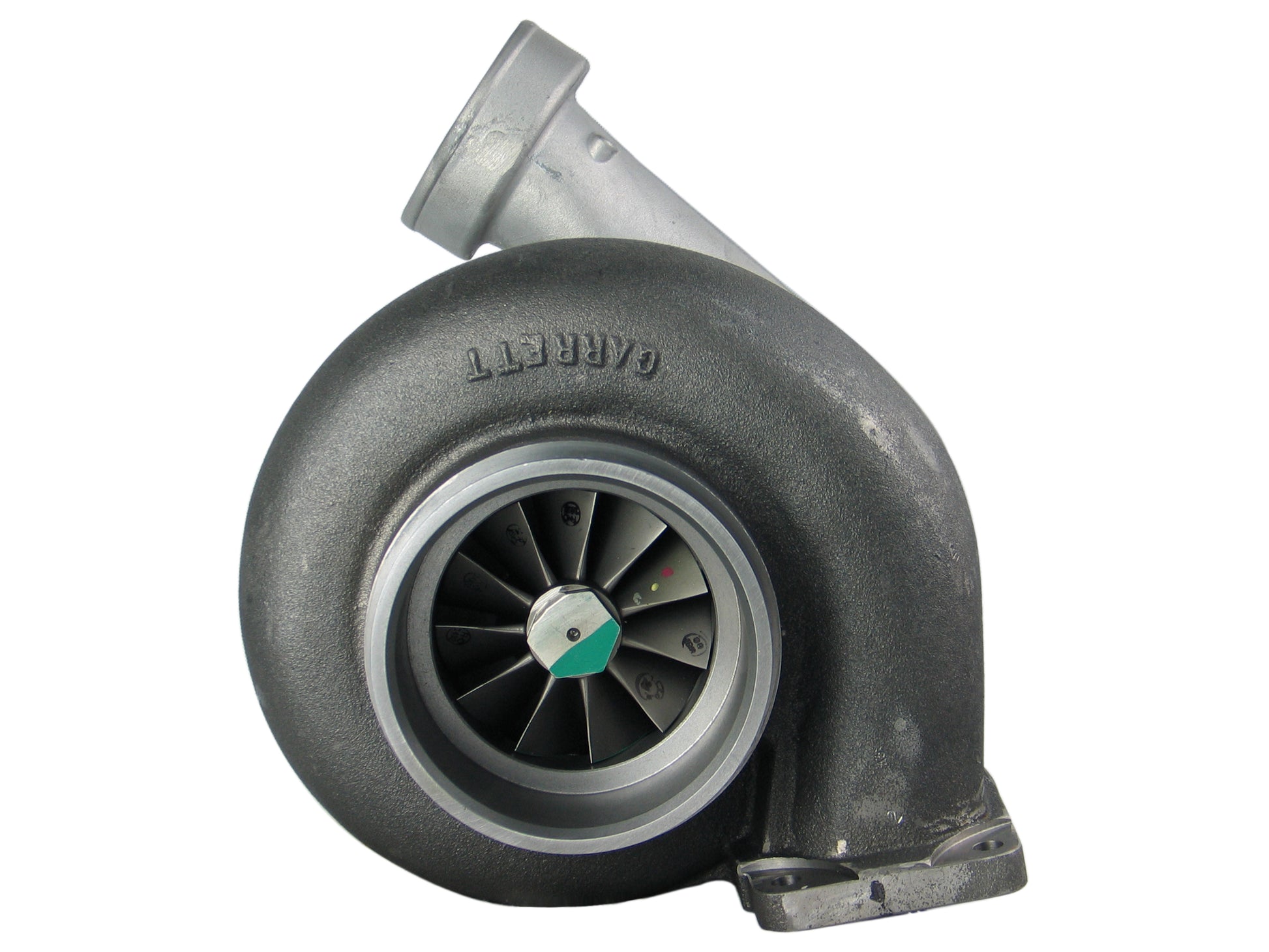

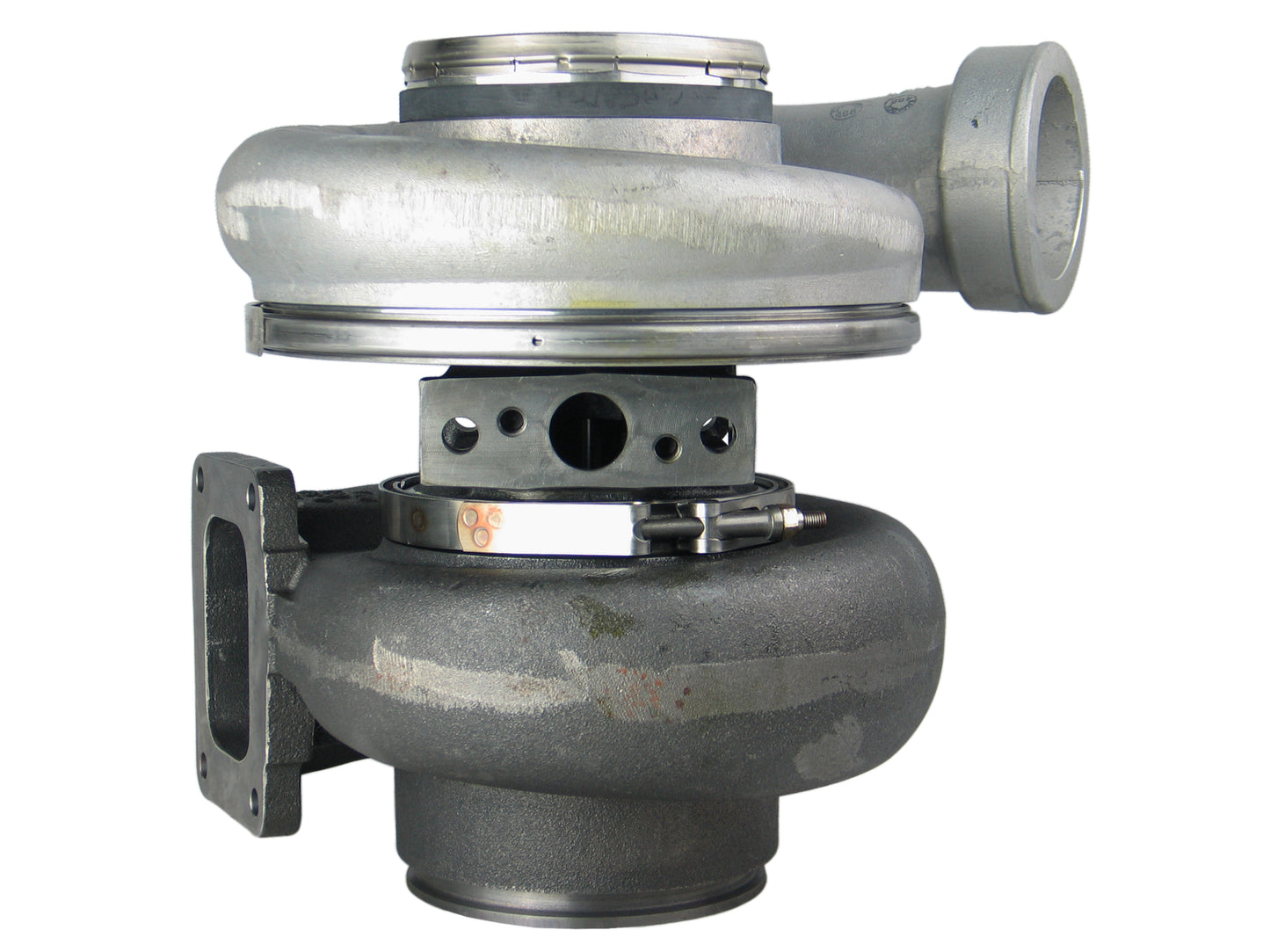

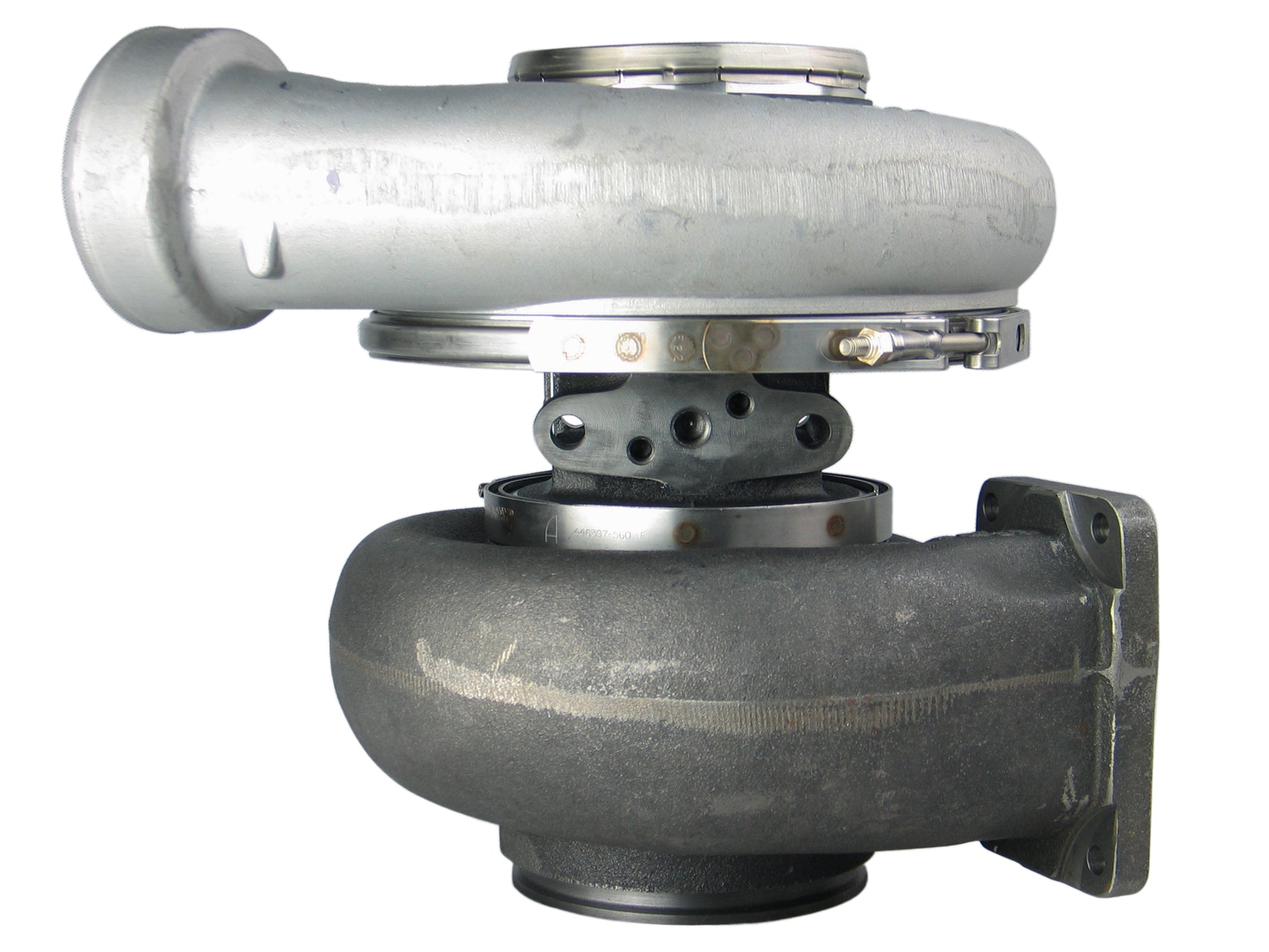

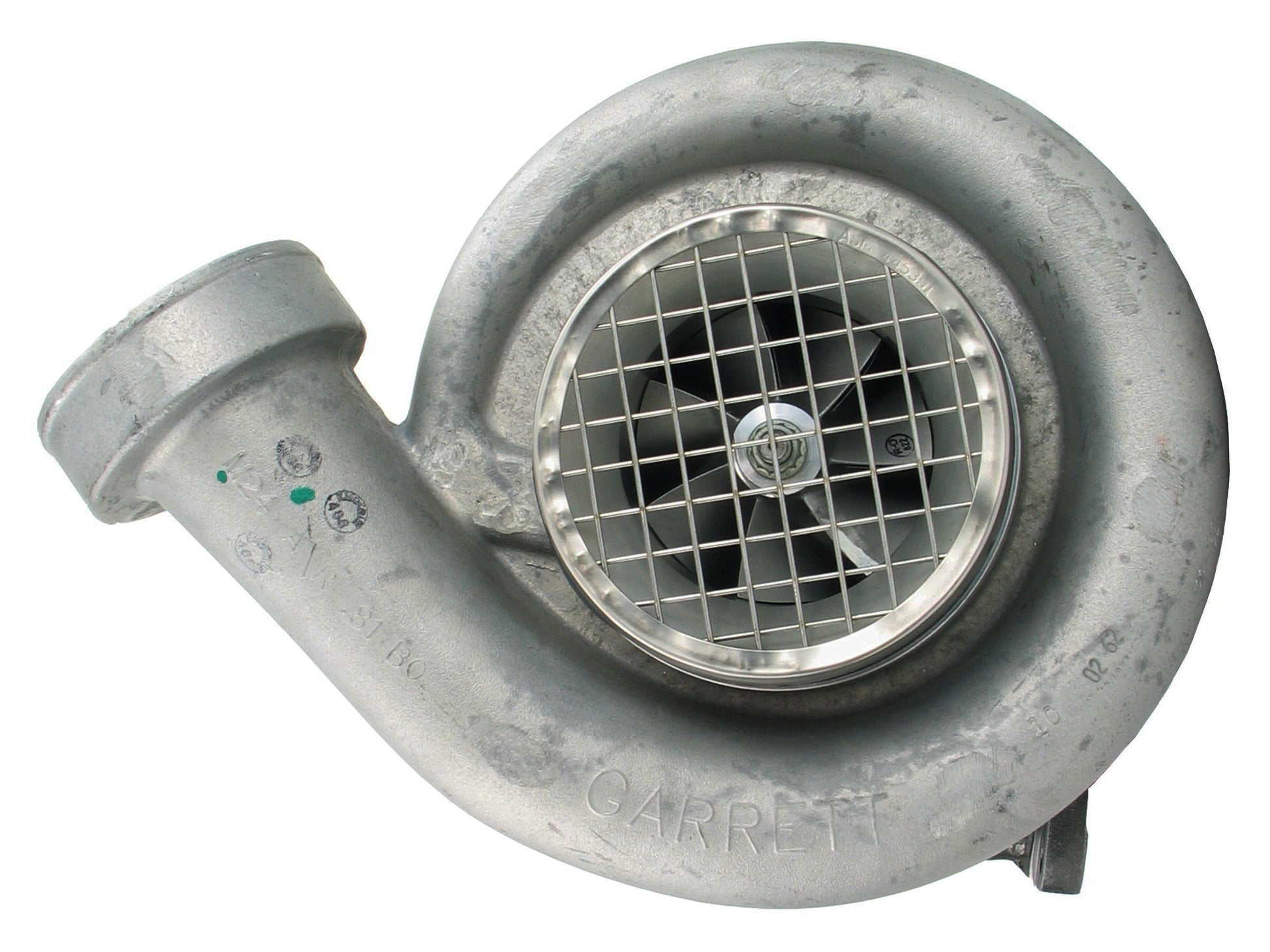

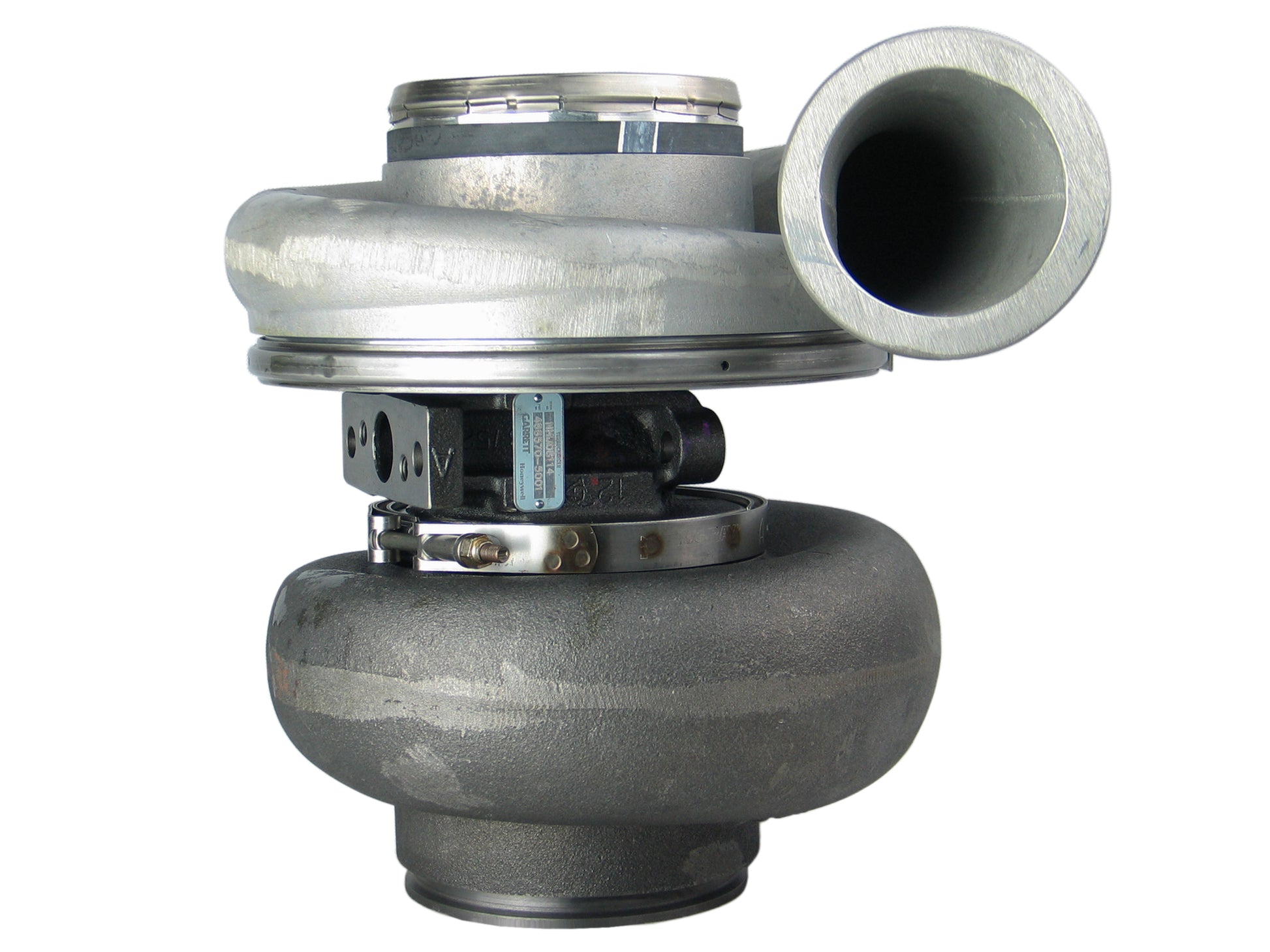

NEW OEM Garrett TV8511 Turbo Truck Detroit Diesel 8V92TAB Engine 466570-5001SKU: 466570-5001
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 466570-5001S
Interchangeable Number: 466570-0001, 466570-5001, 466570-0002, 466570-5002, 466570-5002S
OEM Number: 08927027, 8927027
Turbo Model: TV8511
Engine Manufacturer: Detroit Diesel
Displacement: 12.9L, 12061 ccm, V8 Cylinders
Power: 475 HP
Angle α (Compressor Housing): 67°
Angle ß (Turbine Housing): 42°
Back Plate: 442732-0001 (8928658)
Bearing Housing: 442028-0001 (8925742)
CHRA: 442032-0014 (442032-5014S, 23501290)
Compressor Cover: 442825-0002 (23501530)
Compressor Wheel: 441831-0001 (23501536)(Ind. 85.38 mm, Exd. 117.6 mm, Trim 56/55, 7+7 Blades, Super Back)
Gasket (Oil Inlet): 210023 (147837, 147837, 55739, 3519762, 3500681, 3709737, 3755739, 409026-0001, 409036-0000, 409266-0001)(1900000037)
Gasket (Oil Outlet): 210021(148062, 311496, 3519807, 409037-0000, 413671-0000)(1900000027)
Gasket (Turbine Inlet): 407294-0001 (310694, 312617)
Repair Kit: 468267-0000 (1101678752)
Turbine Housing A/R: 1.39
Turbine Housing: 443109-0003 (23501533)
Turbine Wheel: 442029-0017 (442029-0014, 183011-0000)(23501293, 8925762, 08925762)(Ind. 95.91 mm, Exd. 107.25 mm, 11 Blades)(1101083435)
Truck, Industrial with Detroit Diesel 8V92TAB Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
