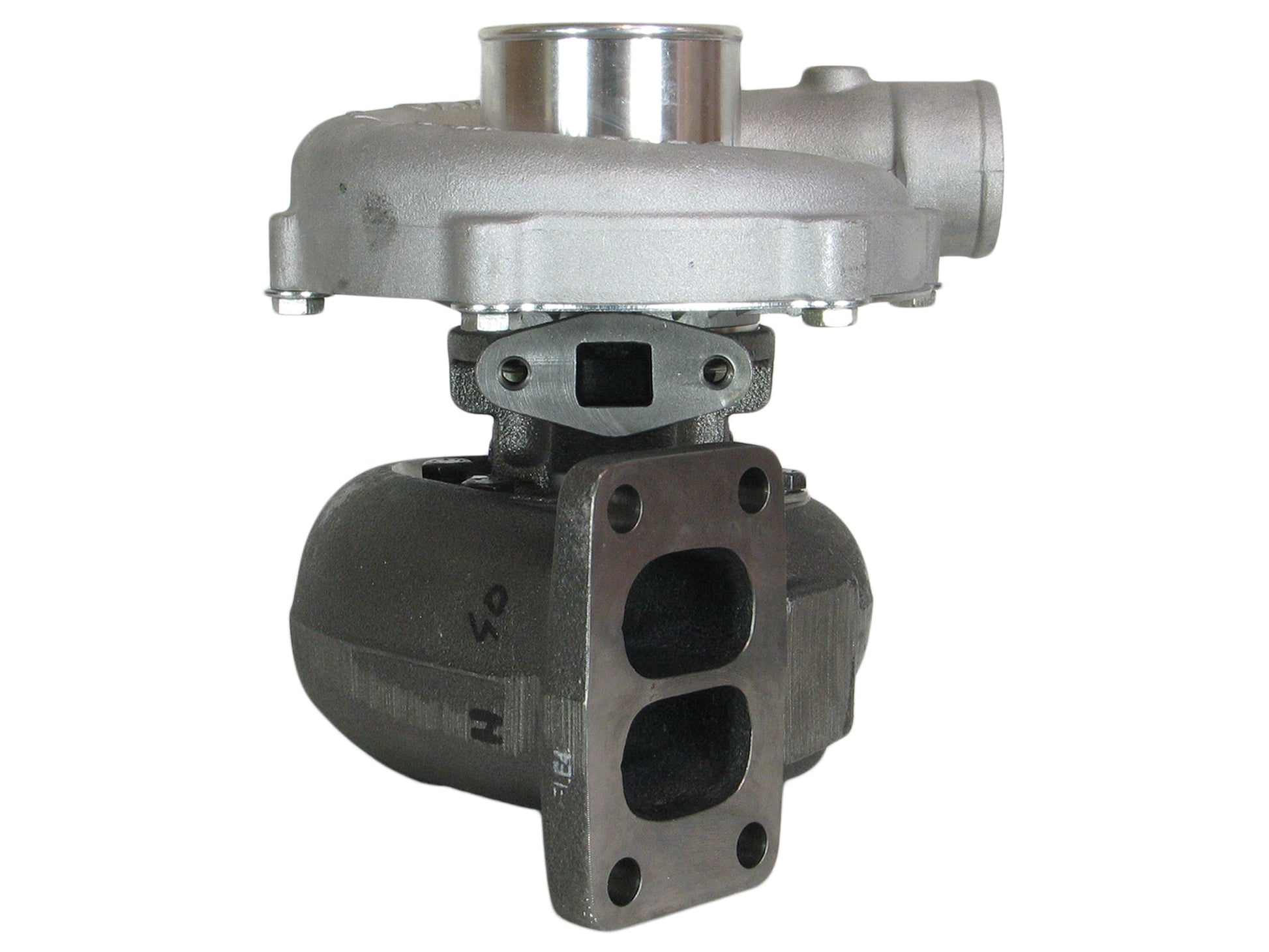

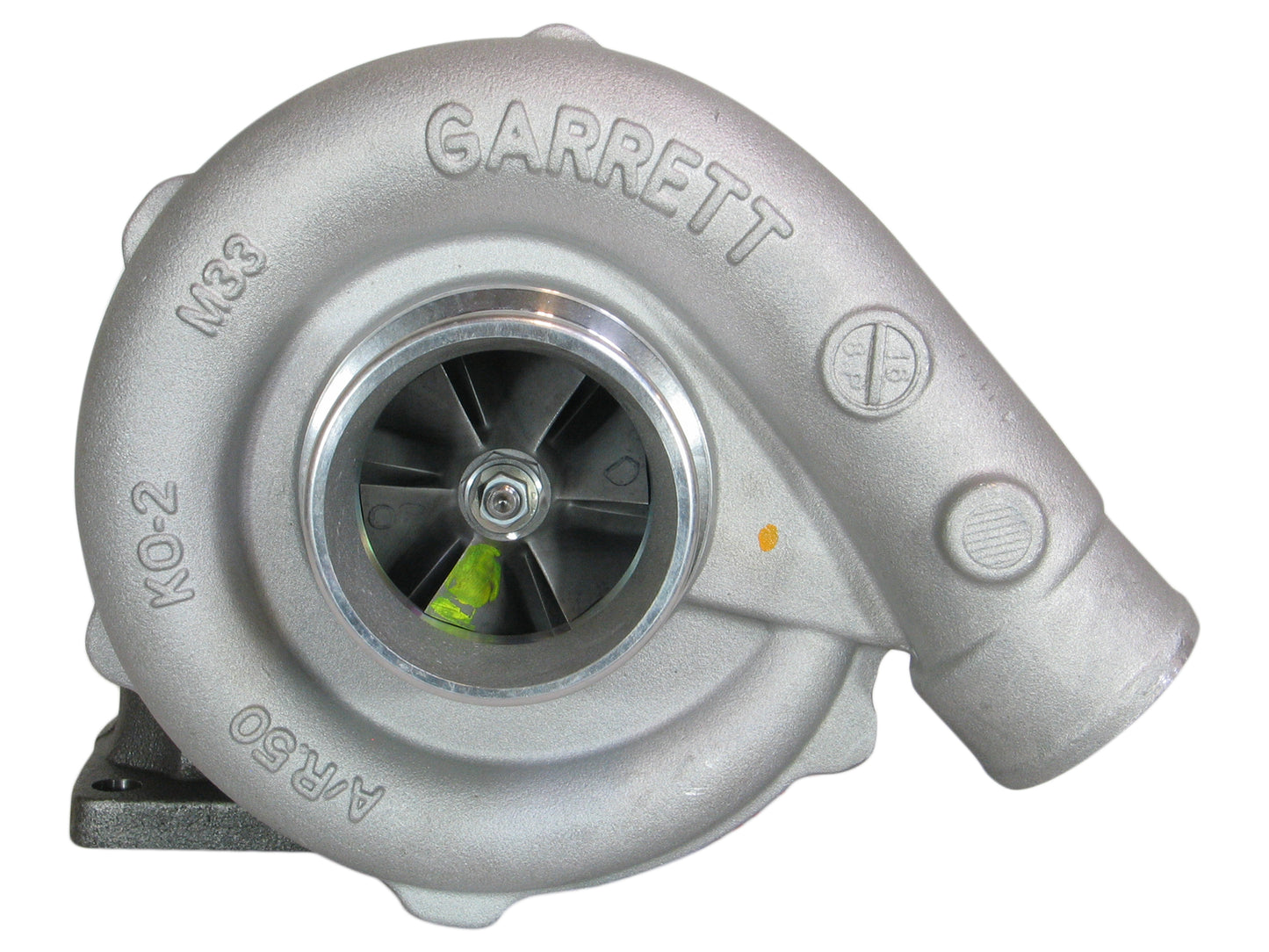

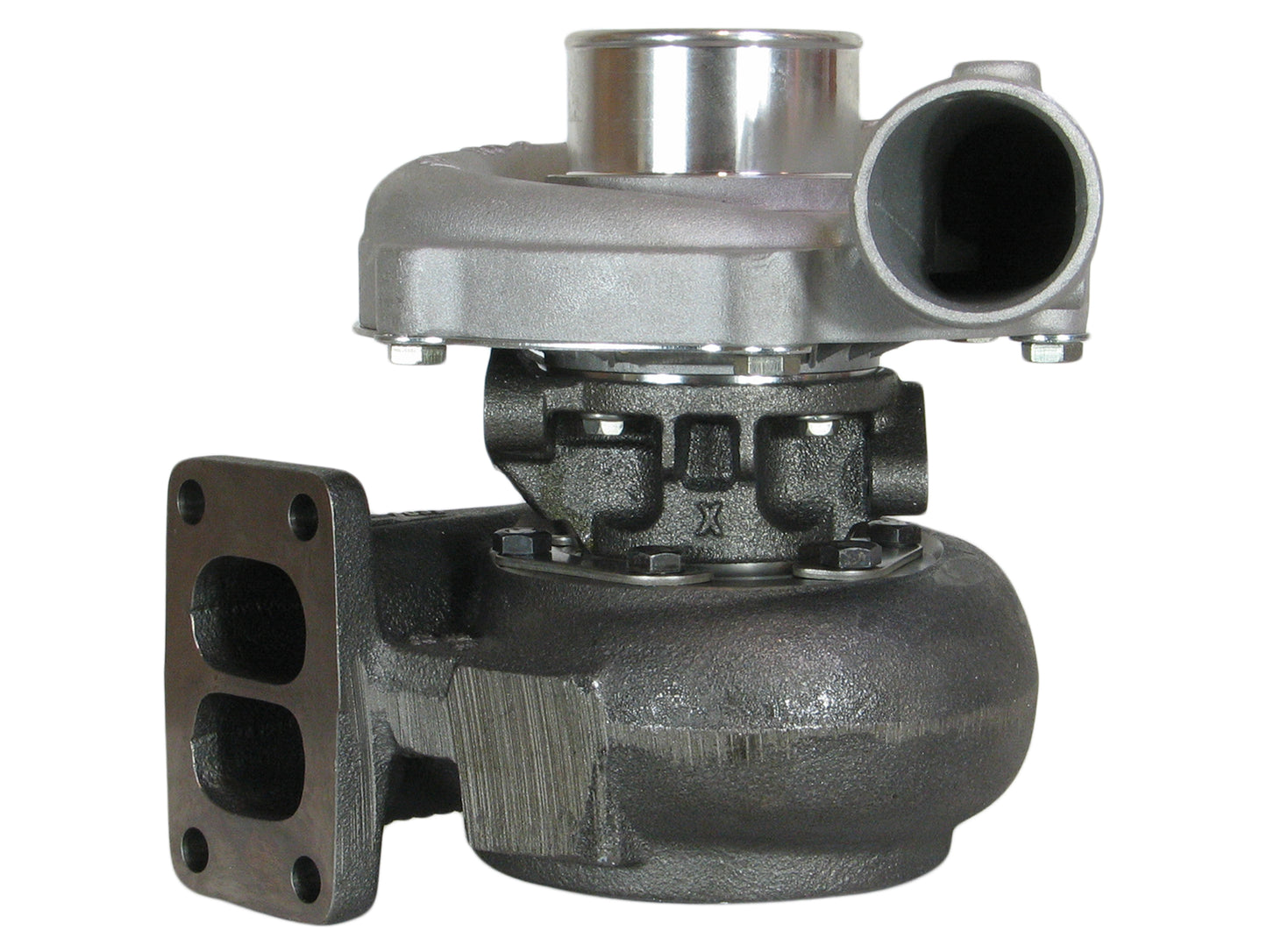

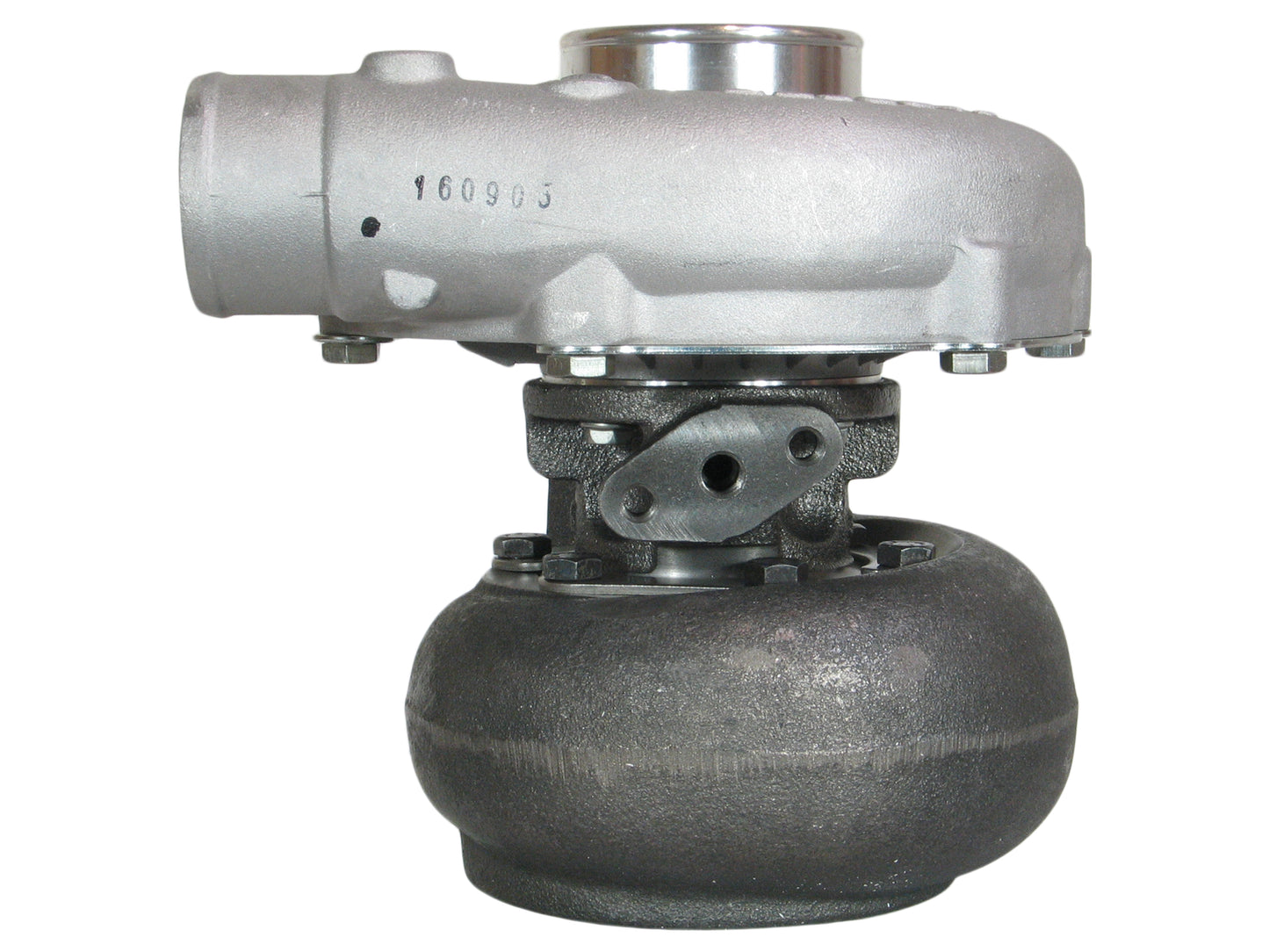

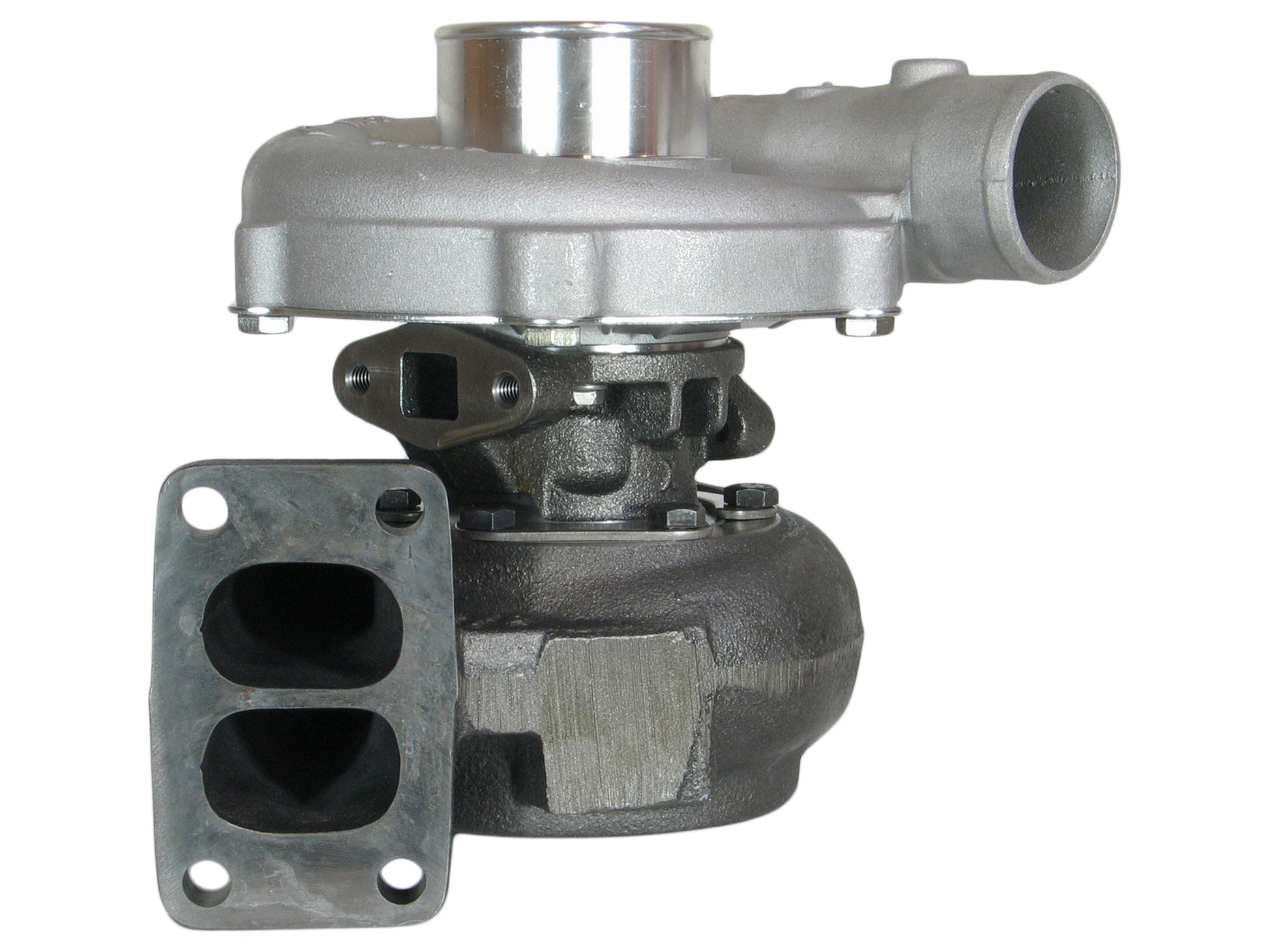

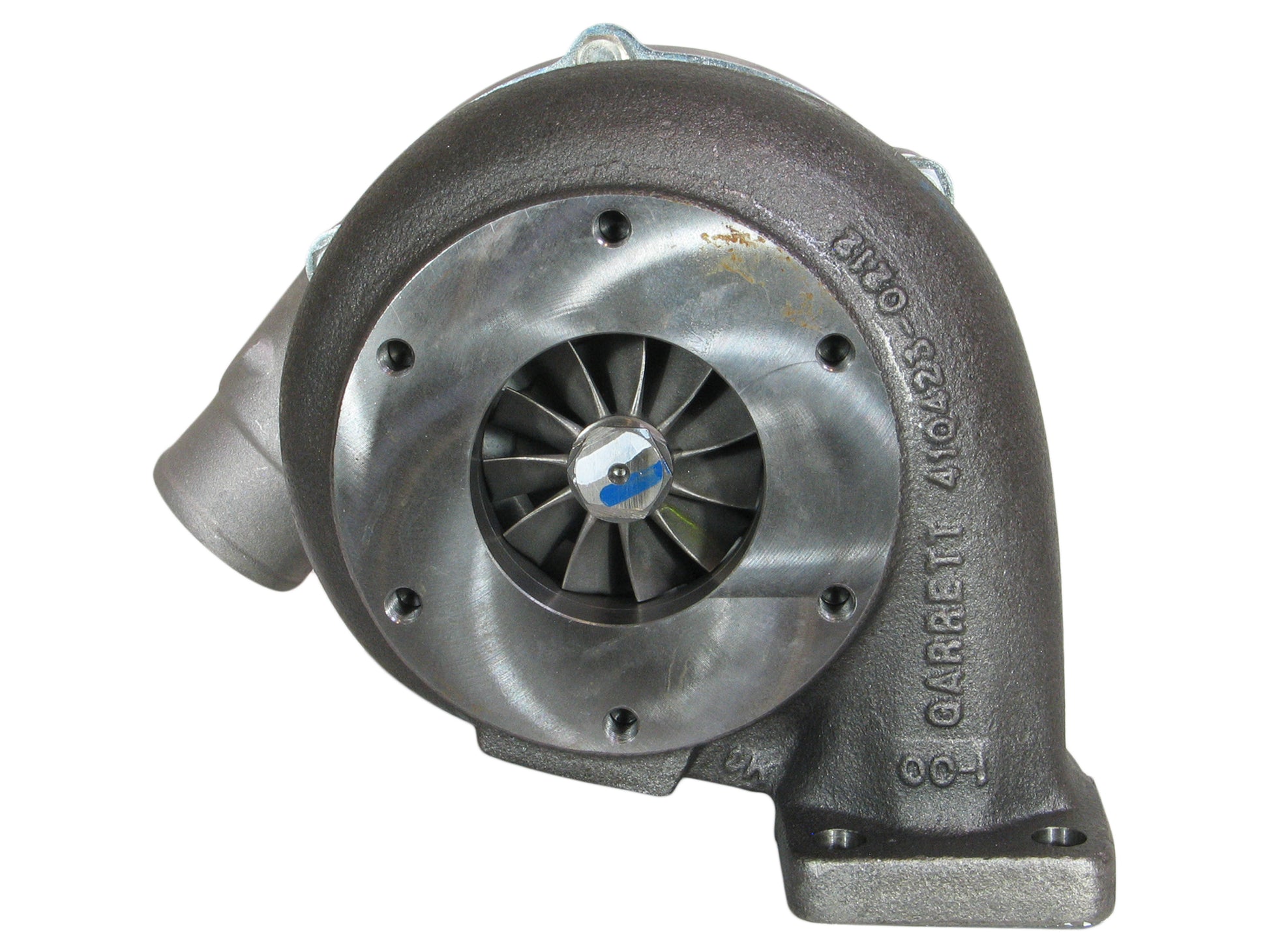

NEW OEM Garrett T04E10 Turbo Volvo Construction Equipment TD73K 6.7L 466742-5012SKU: 466742-5012
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 466742-5012
Interchangeable Number: 466742-0012, 466742-5012S, 466742-0011, 466742-5011, 466742-5011S
OEM Number: 11033542, 11033834, 9011033834
Turbo Model: T04E10
Engine: TD73K, TD73KCE
Displacement: 6.7L, 6700 ccm, 6 Cylinders
Angle α (Compressor Housing): 315°
Angle ß (Turbine Housing): 315°
Back Plate: 408045-0031 (408045-0030, 408045-0038, 408045-0039, 408045-0061, 408045-0019) (ME078204)
Bearing Housing: 430027-0025 (312379, 407285-0027, 407285-0038, 430027-0022, 430027-0025, 430027-0048, 186879, 186881)(Oil Cooled)(1100030450)
CHRA: 447450-0104 (447450-5104S)
Compressor Cover: 443219-0097
Compressor Wheel: 446618-0024 (446618-0027)(Ind. 55.55 mm, Exd. 82 mm, Trim 46, 6+6 Blades)
Gasket (Oil Inlet): 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Gasket (turbine outlet): 409196-0001 (210226)(Stainless Steel)
Heat Shield: 409299-0001 (409299-0000)(311943, 7N0012, 3524773B)
Repair Kit: 468265-0000 (468265-0000UK, 3545831)(1100040760)
Turbine Housing A/R: 1
Turbine Housing: 441458-0042
Turbine Wheel: 446905-0004 (407276-0006, 407276-0019, 410188-0003, 410188-0006, 410188-0037, 446905-0002, 446905-0005, 446905-0007, 446905-0010, 451309-0003, 451309-0004)(Ind. 57.65 mm, Exd. 73 mm, Trim 62, 11 Blades)(1100040437)
1994- Volvo A25C Articulated Hauler, L120B Wheel Loader, Earth Moving with TD73K Engine
Volvo Construction Equipment with TD73KCE Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
