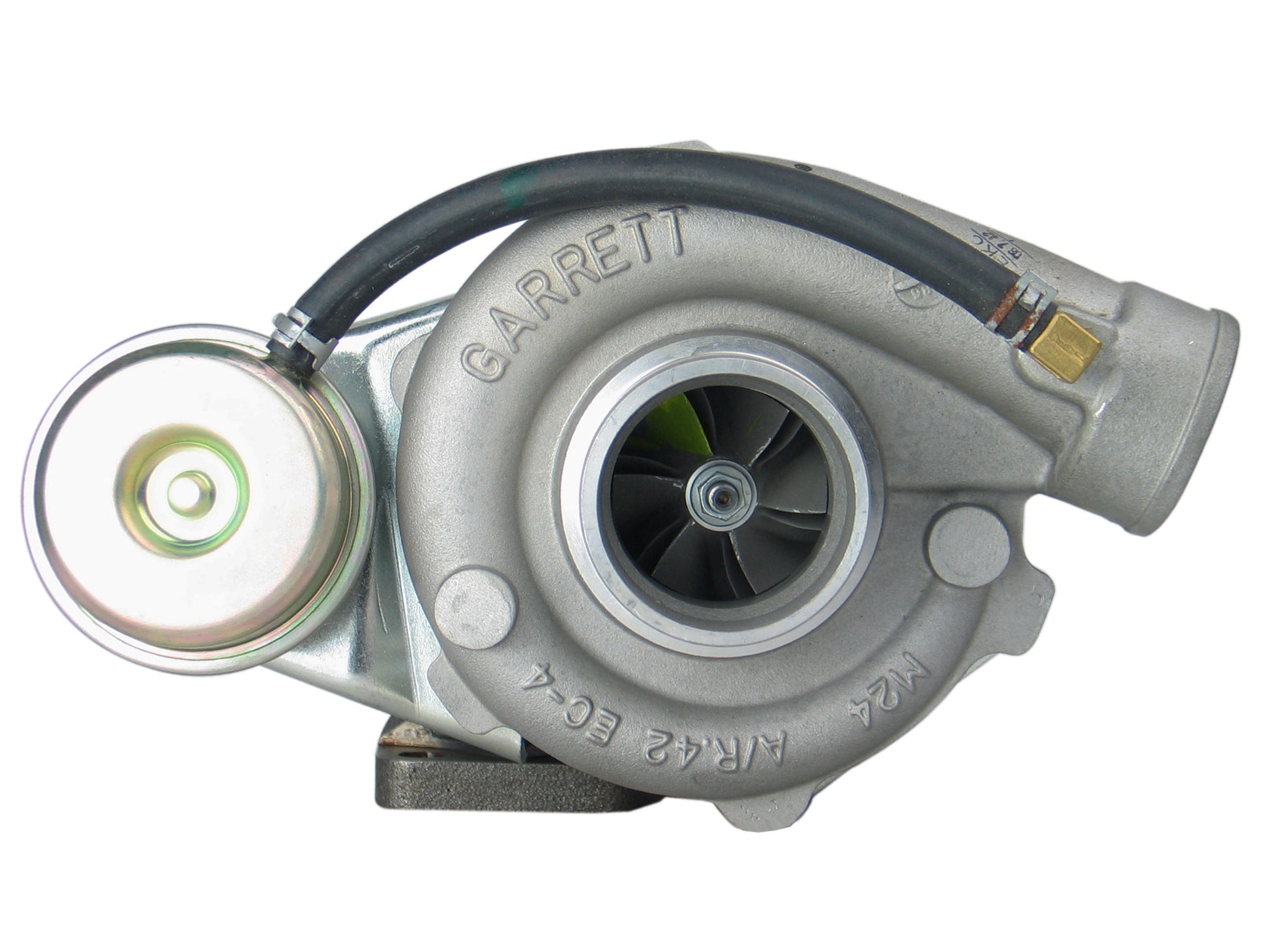

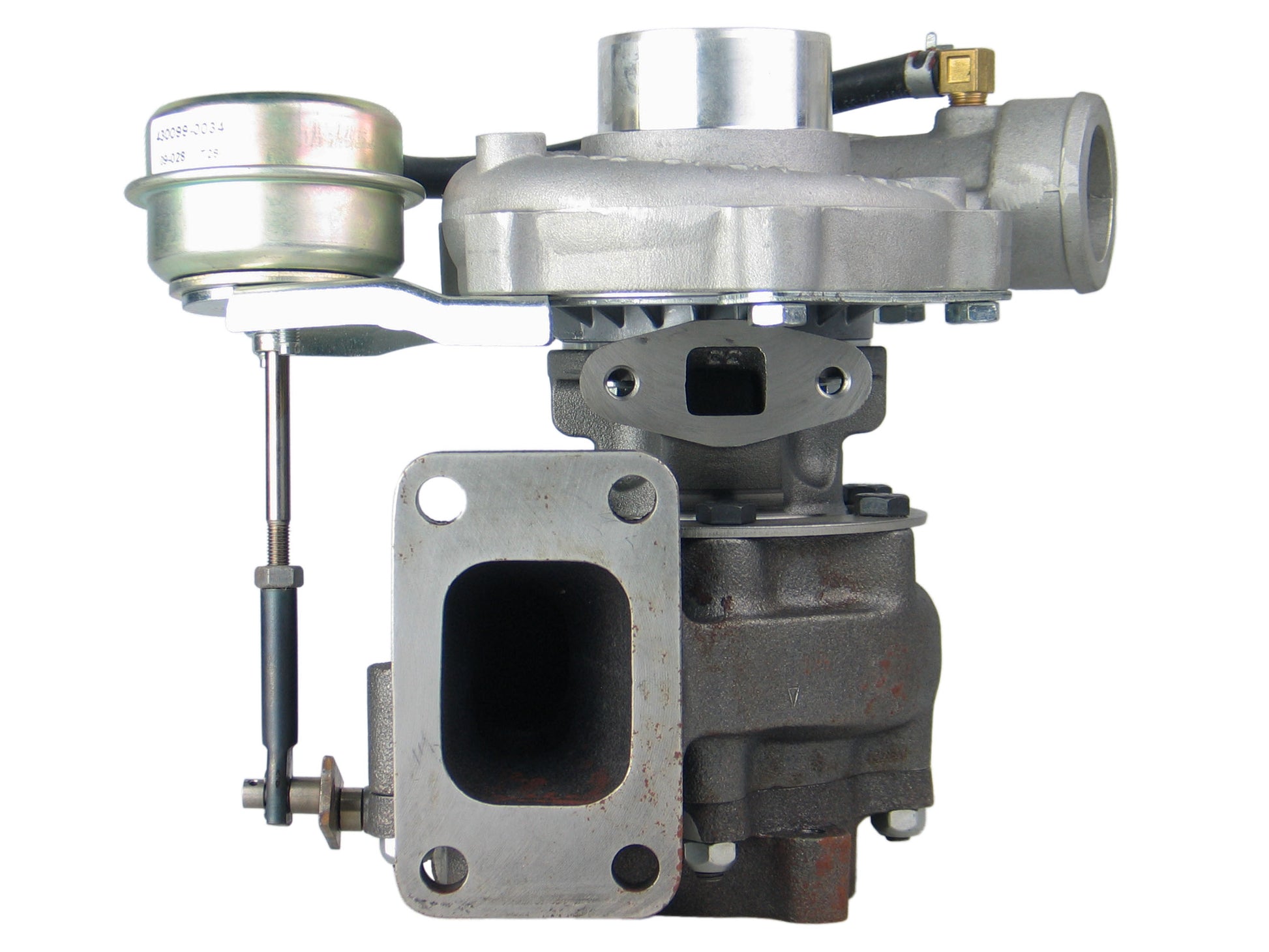

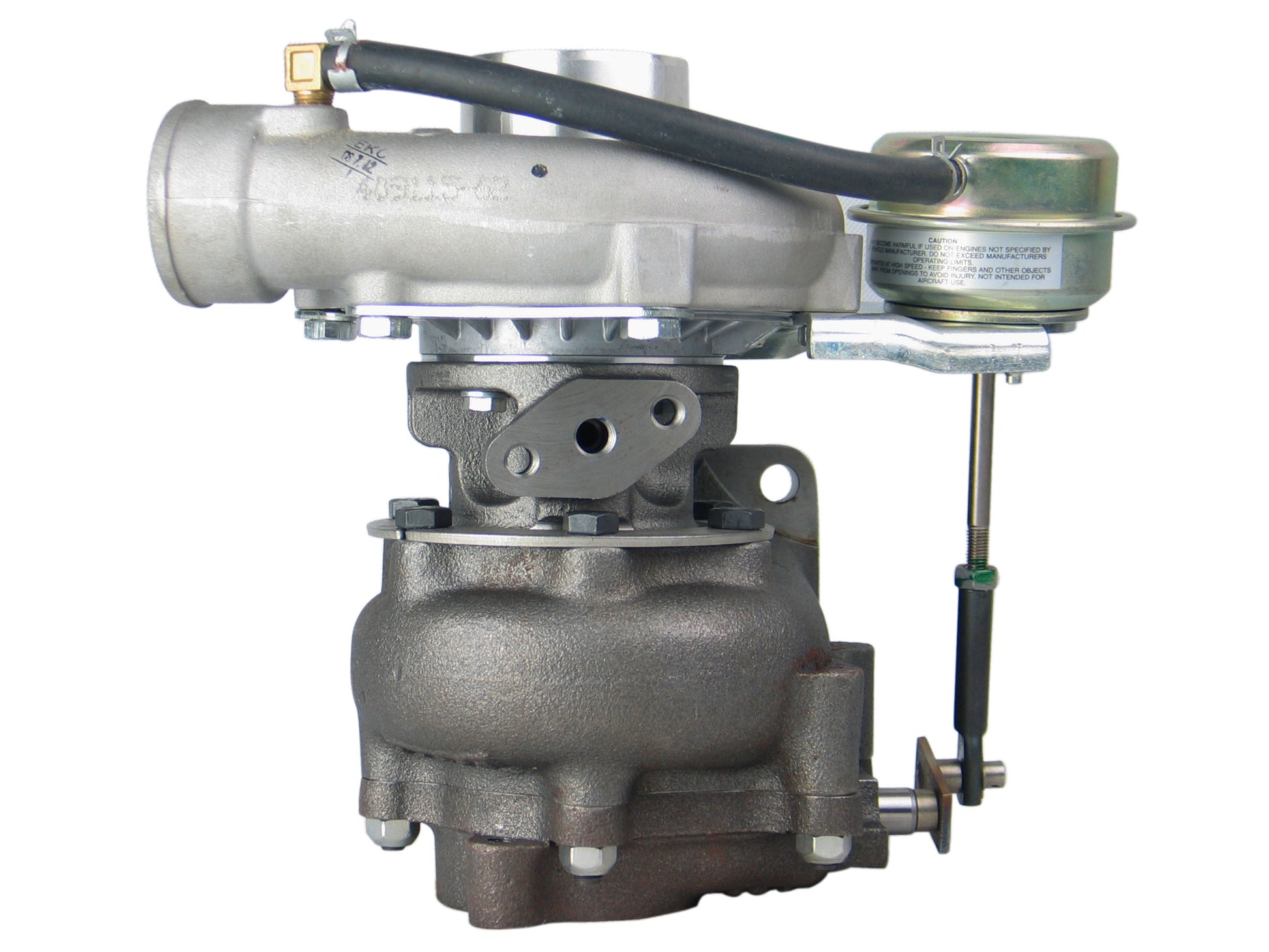

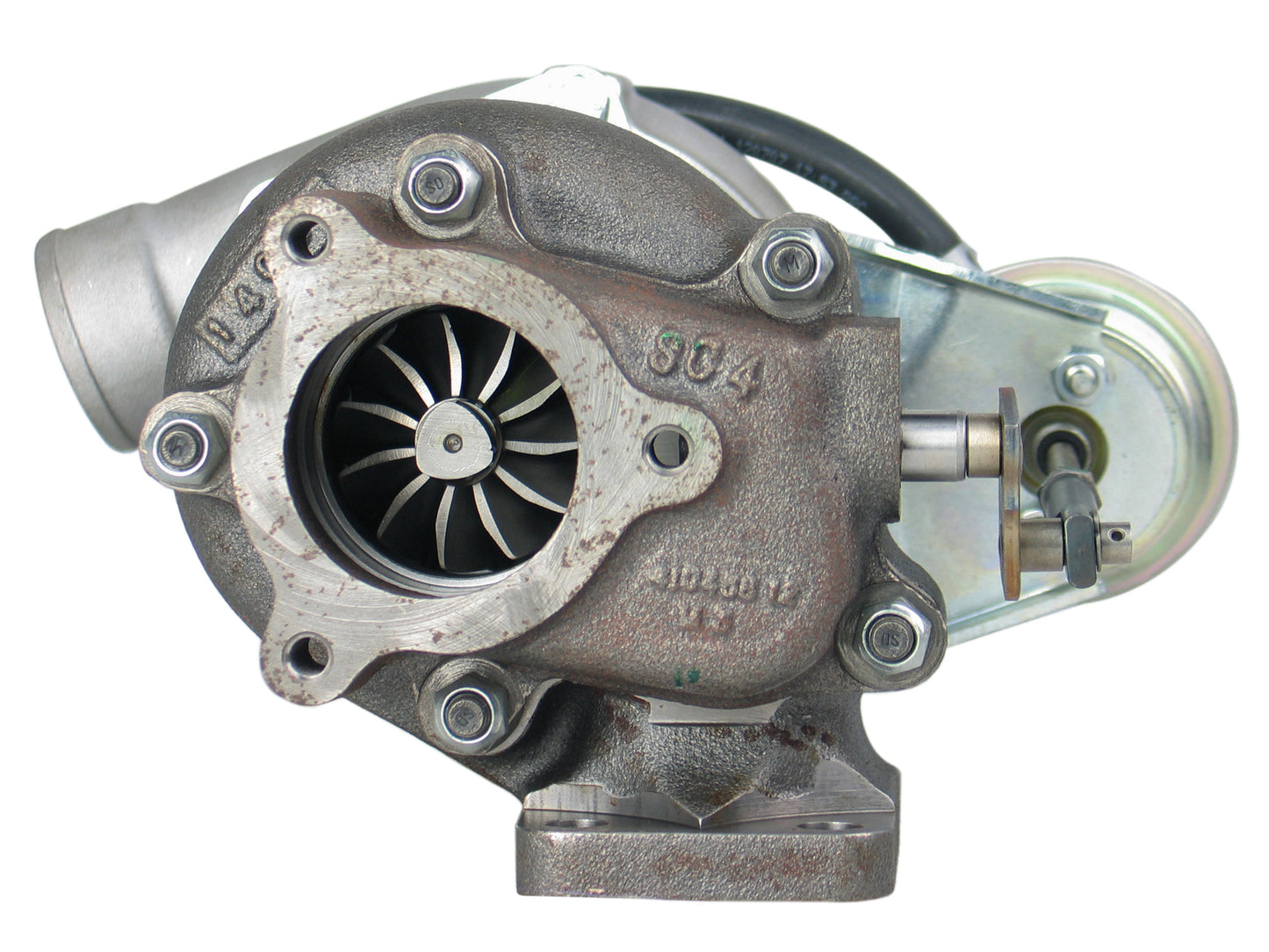

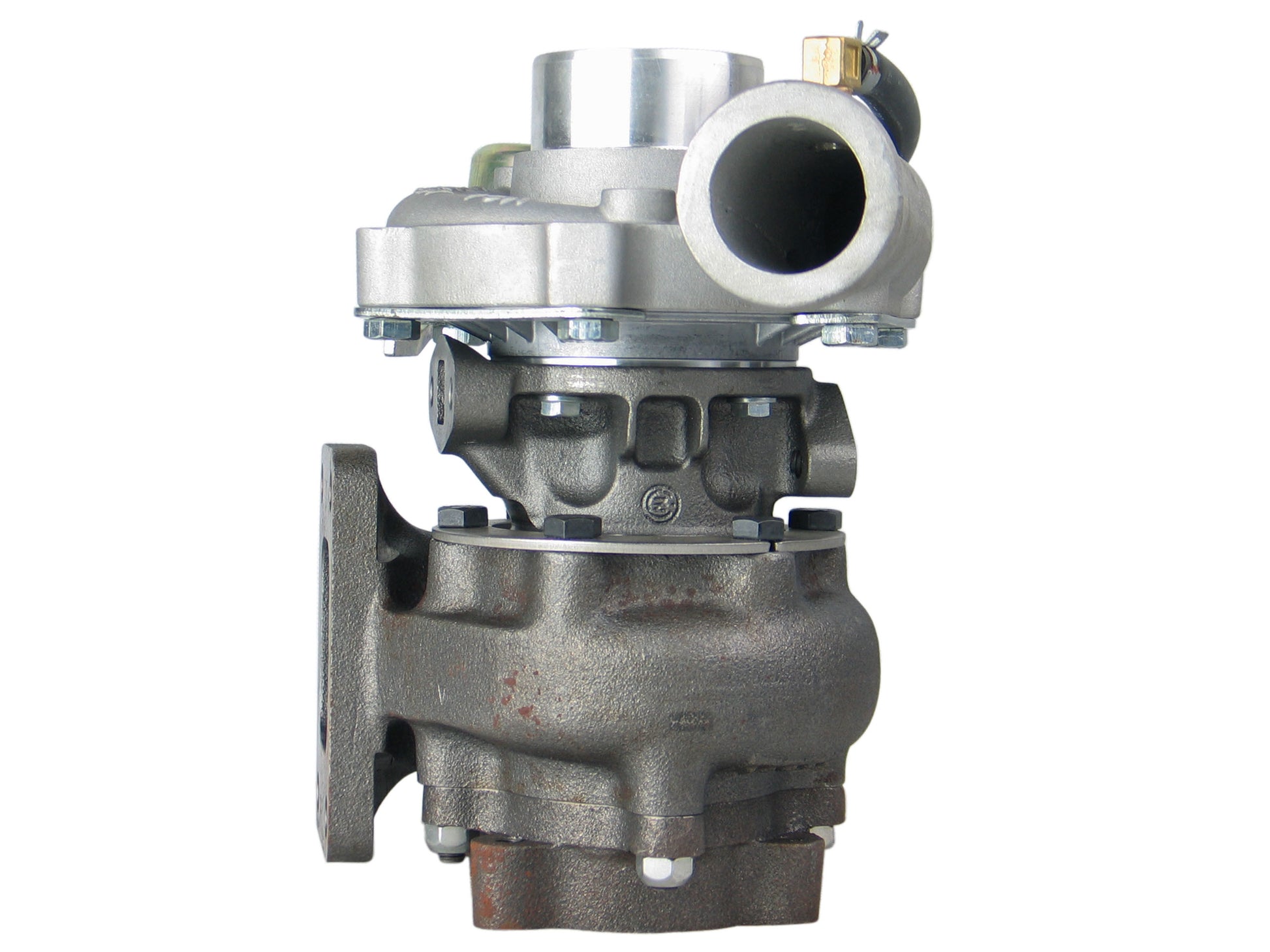

NEW OEM Garrett TB0350 Turbo Volvo Construction Marine TD71GW Engine 466800-5005SKU: 466800-5005
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 466800-5005
Interchangeable Number: 466800-0005, 466800-5005S, 466800-0001, 466800-5001, 466800-5001S, 466800-0002, 466800-5002, 466800-5002S, 466800-0003, 466800-5003, 466800-5003S
OEM Number: 864463, 847877/864463
Turbo Model: TB0350
Engine: TD61, TD61GW
Engine Manufacturer: Volvo
Displacement: 5.48/5.5L, 5480 ccm, 6 Cylinders
Power: 177 HP
Speed: 2500 RPM
Angle α (Compressor Housing): 340°
Angle β (Turbine Housing): 0°
Back Plate: 409629-0001/409629-0003 (1100030300)
Bearing Housing: 430027-0025/430027-0022 (186879, 186881, 430027-0048)(1100030450)(Oil Cooled)
CHRA: 409853-0089 (409853-5089S)
Compressor Cover: 409589-0135
Compressor Wheel: 409096-0013 (103015-0000)(Ind. 60 mm, Exd. 46.5 mm, Trim 60, 6 Blades)(1100030400)
Gasket (Turbine Inlet): 409039-0000 (Inox Steel)(409039-0001, 210019, 2405022)(1900000006)
Gasket (Turbine Outlet): 210275 (Stainless Steel)
Gasket (Oil Inlet): 210021 (210023-0000, 147837, 210023, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)(Paper)
Gasket (Oil Inlet): 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)(Paper)
Heat Shield: 409639-0000
Repair Kit: 707897-0001 (1100030750)(Dynamic)
Turbine Housing A/R: 0.48
Turbine Housing: 430410-0012
Turbine Wheel: 451311-0014/451311-0003 (1100030435) (Ind. 59 mm, Exd. 48.35 mm, Trim 67, 11 Blades)
Wastegate Settings (Lift Rod): 1.00 mm
Wastegate Settings (Pressure): 1.05-1.12 bar
1987- Volvo Construction, Excavator, Earth Moving with TD61GW Engine
1987- Volvo Penta Marine with TD61GW Engine
1987- Volvo Penta Truck (Forklift) with TD61, TD61GW Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
