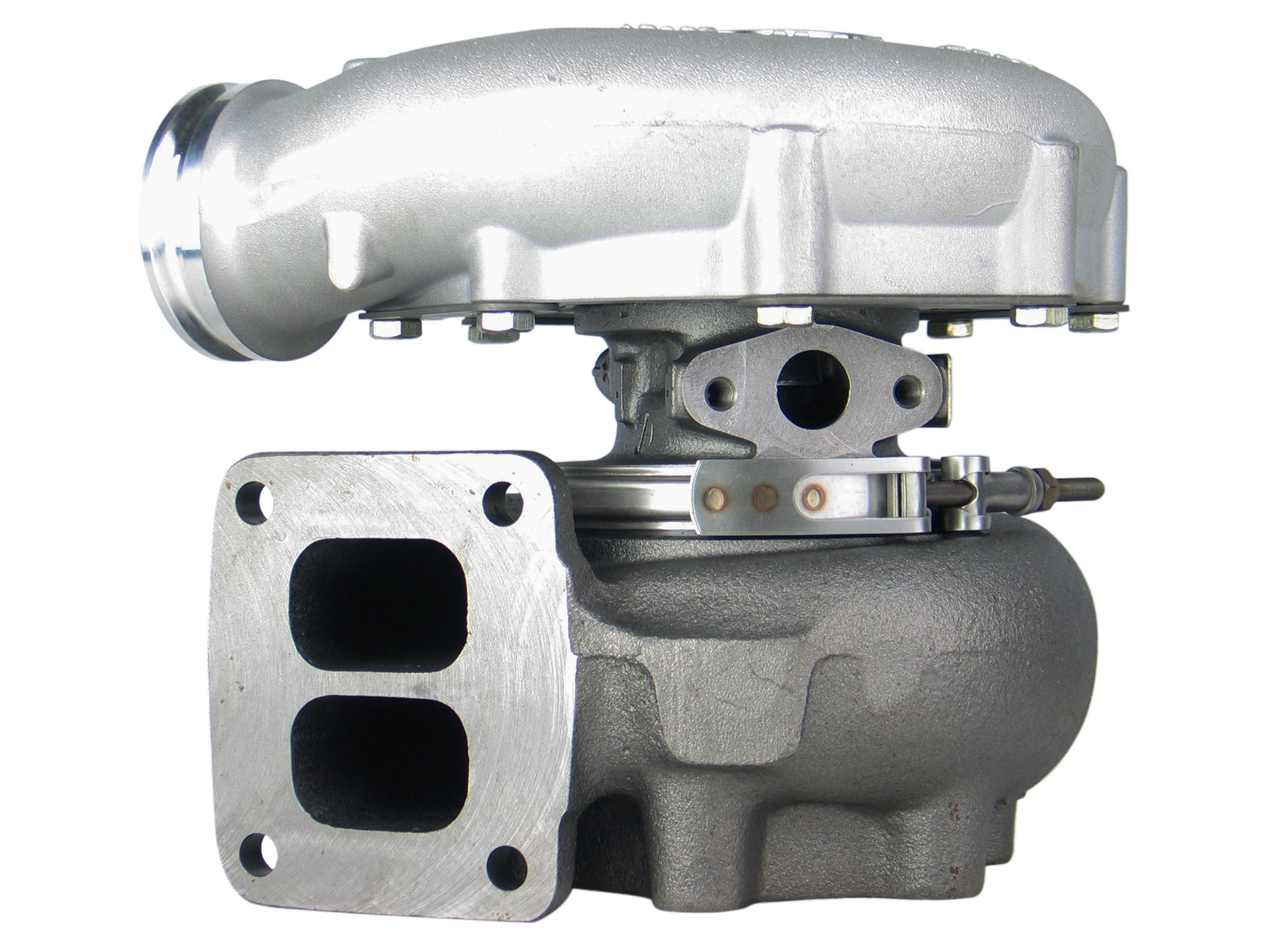

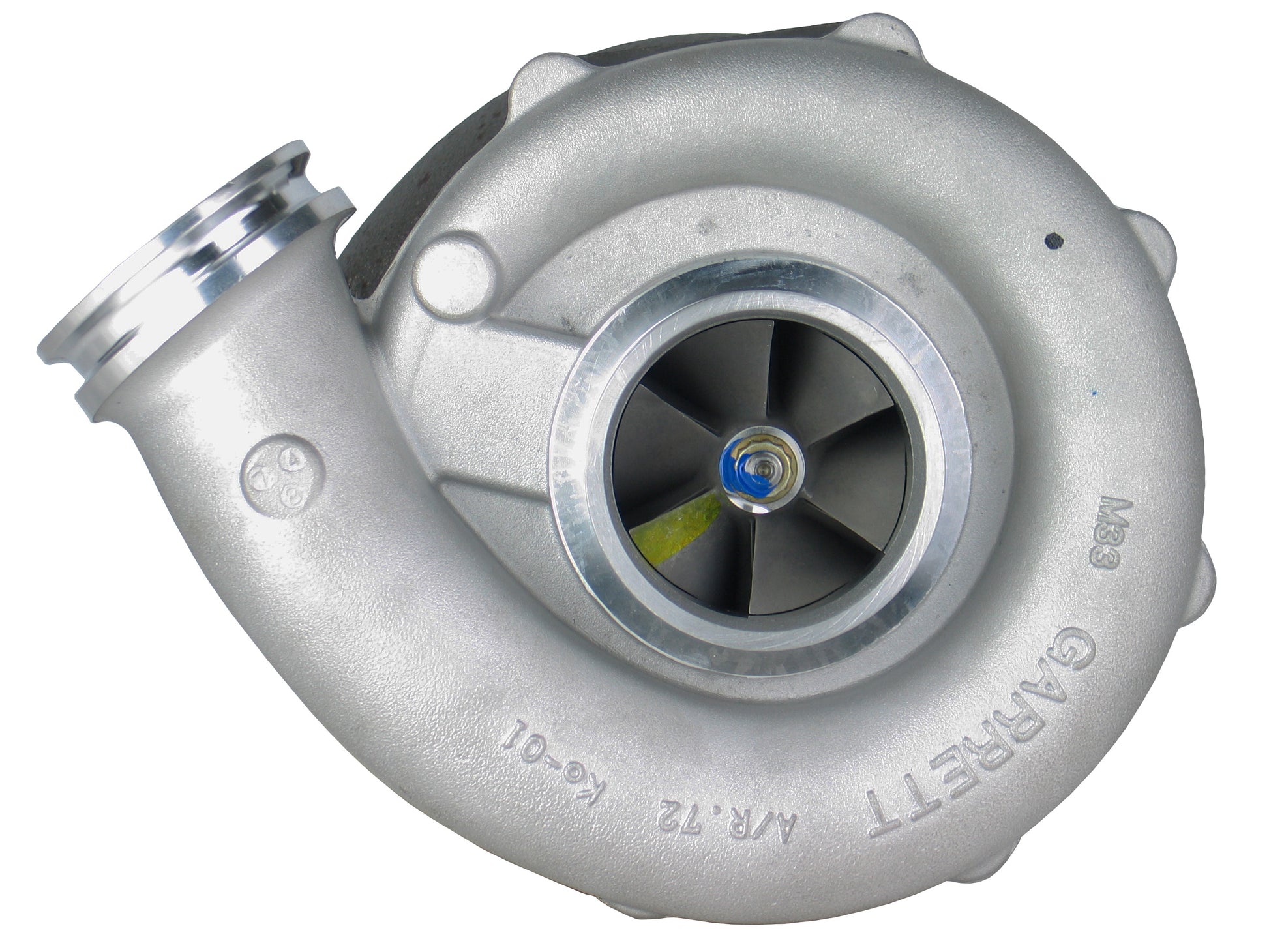

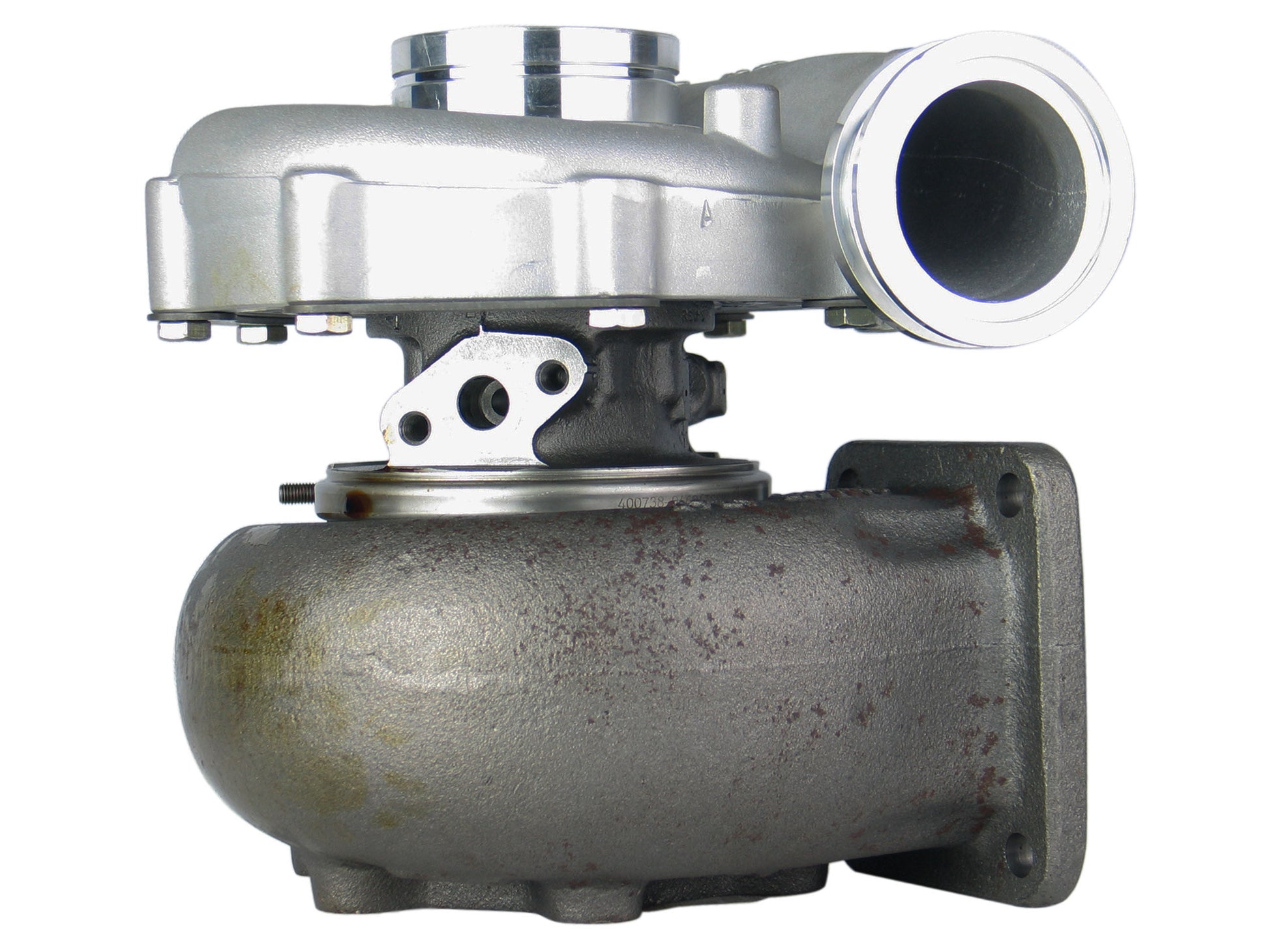

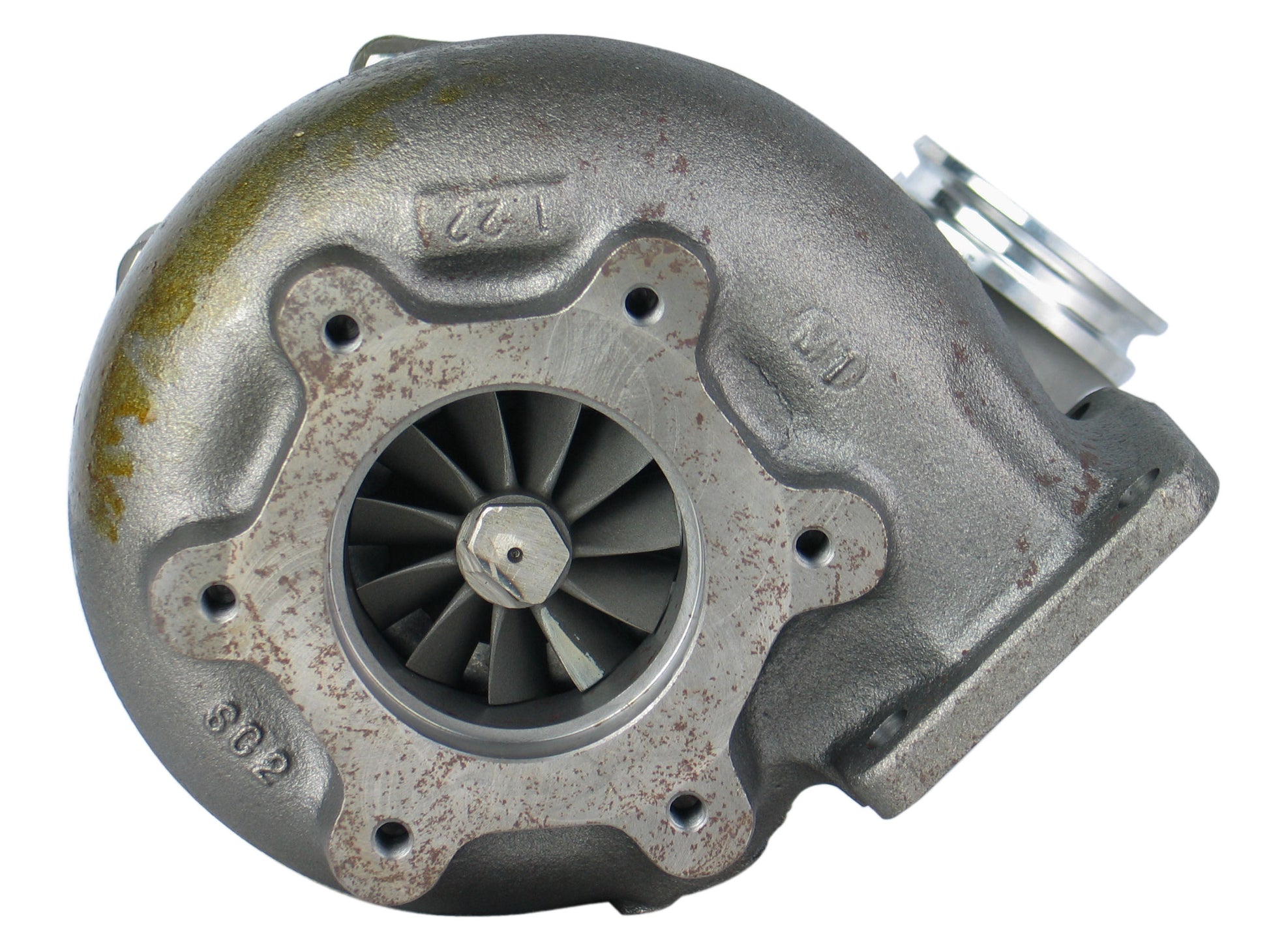

NEW OEM Garrett TA4513 Turbo Volvo Truck F10 FL10 NL10 TD101F Engine 466818-5003SKU: 466818-5003
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 466818-5003S
Interchangeable Number: 466818-0003, 466818-5003, 466818-0009, 466818-5009, 466818-5009S, 466818-0005, 466818-5005, 466818-5005S, 466818-0007, 466818-5007, 466818-5007S, 169193, 312682 (S400), 4027373 (H2D)
OEM Number: 422856, 422935, 422938
Turbo Model: TA4513
Engine: D10A310, TD101F, TD101KC, TD102F, TD102FH, TD102FL, TD102FS, TD103E, TD103ES, THD101KC
Power: 284/295/310/313/318/320 HP
Speed: 1900/2050/2100 RPM
Angle α (Compressor Housing): 170°
Angle ß (Turbine Housing): 40°
Back Plate: 442752-0001
Bearing Housing: 410310-0001
Compressor Cover: 443214-0007
Compressor Wheel: 441793-0015
Gasket (Oil Inlet): 210019 (129119)
Gasket (Oil Outlet): 210060
Gasket (Turbine Inlet): 210221
Gasket (Turbine Inlet): 409123-0002 (310694)
Heat Shield: 410366-0003
Repair Kit: 468132-0000
Turbine Housing A/R: 1.22
Turbine Housing: 441041-0013
Turbine Wheel: 441064-0002
1985- Volvo Penta with TD101F, TD102F, TD102FS, TD103E, TD101KC, THD101KC Engine
1985- Volvo Truck F10, FL10, N10, NL10, C10M with TD101F, TD102F, TD102FS, TD103E, TD101KC, THD101KC Engine
1985-96 Volvo FL10 285 Truck with TD102FH Engine
1985-98 Volvo FL10 310 Truck with D10A310 Engine
1989-95 Volvo NL10 310 Truck with TD102F Engine
1992-95 Volvo NL10 320 Truck with TD102FL Engine
1992-96 Volvo FL10 320 Truck with TD103ES Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
