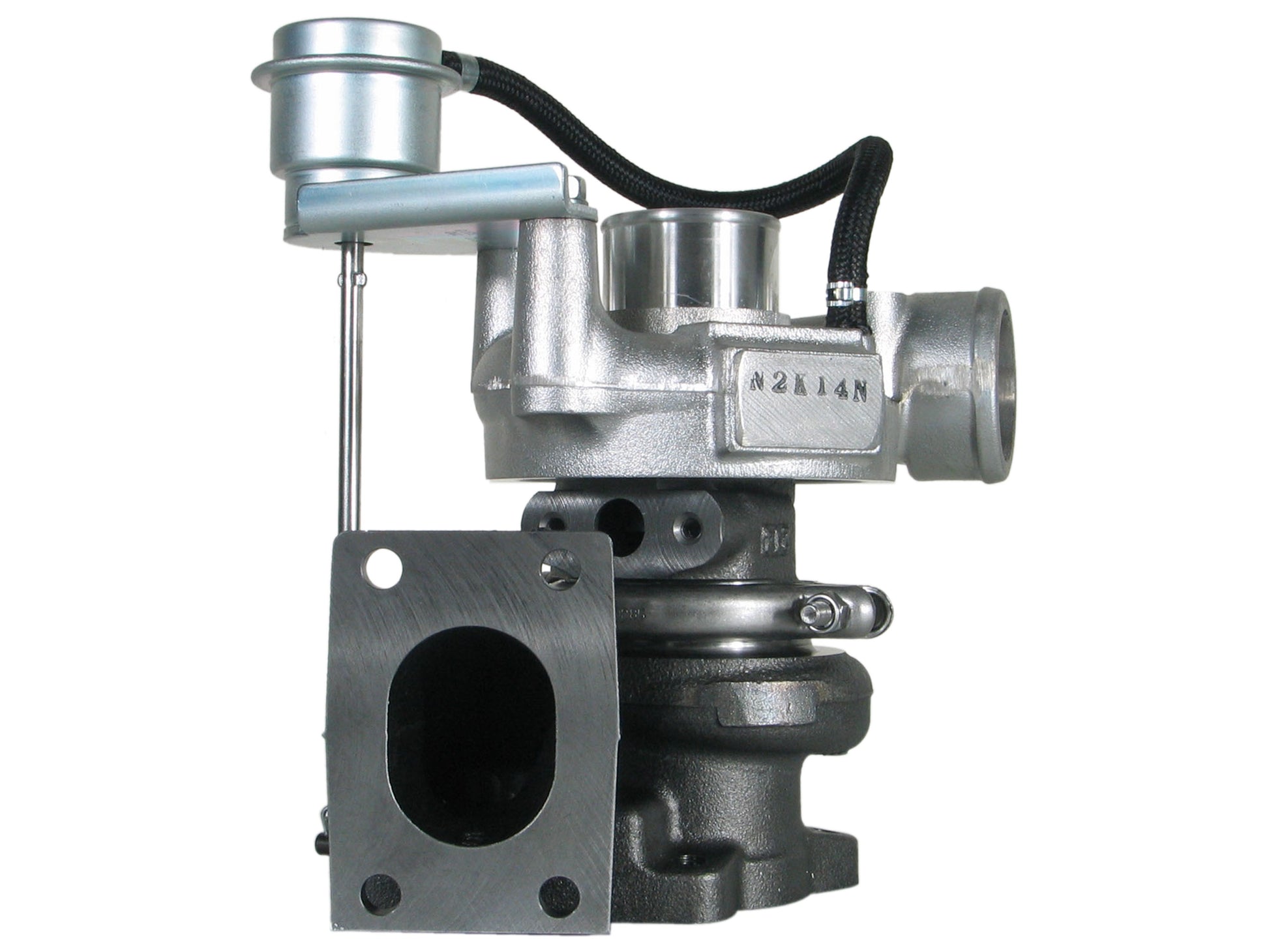

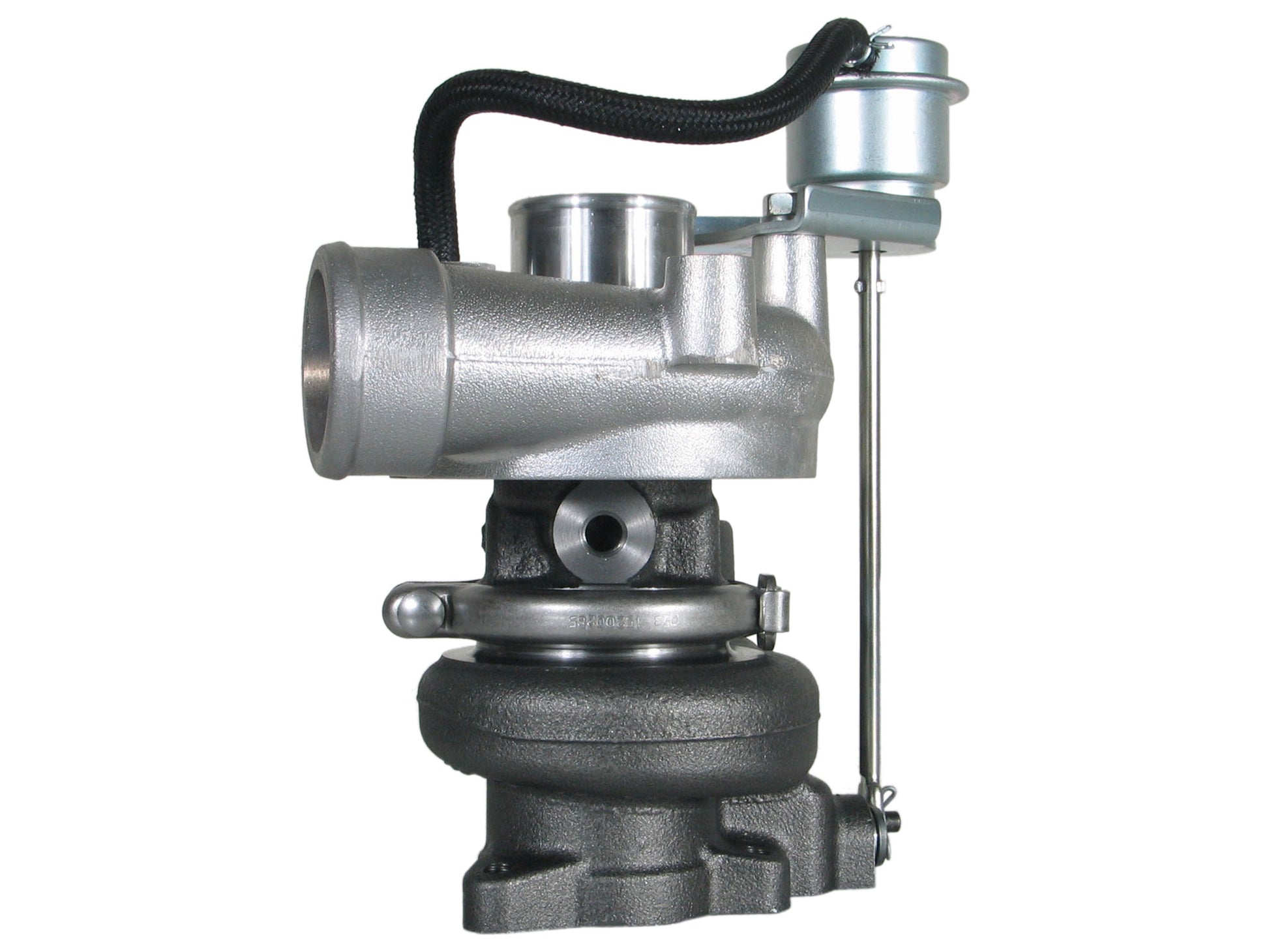

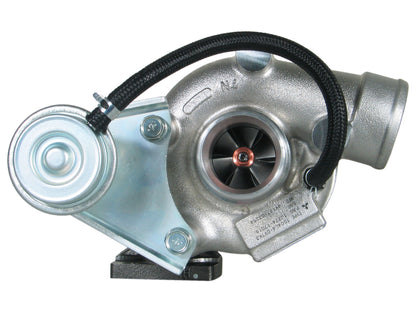

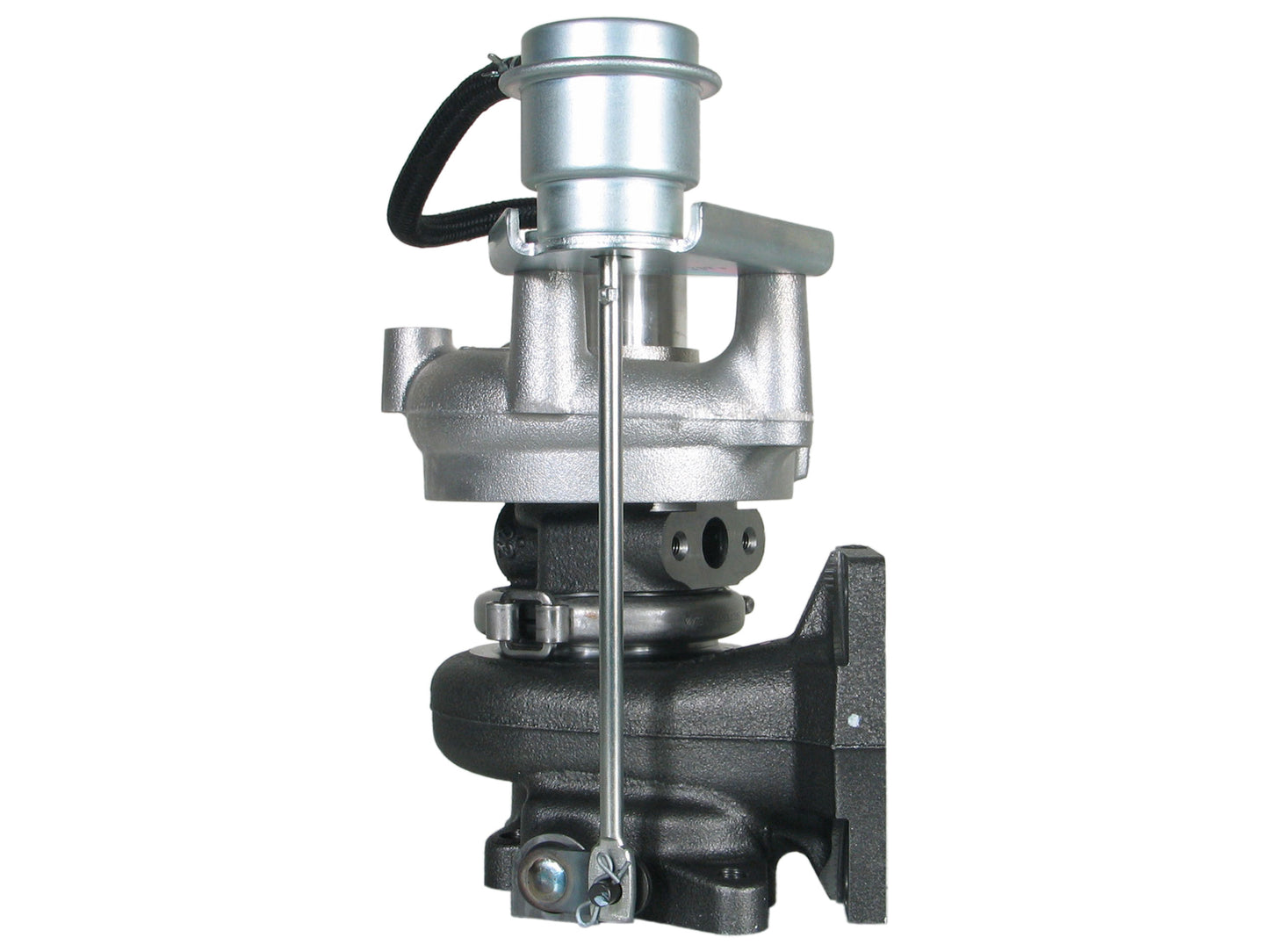

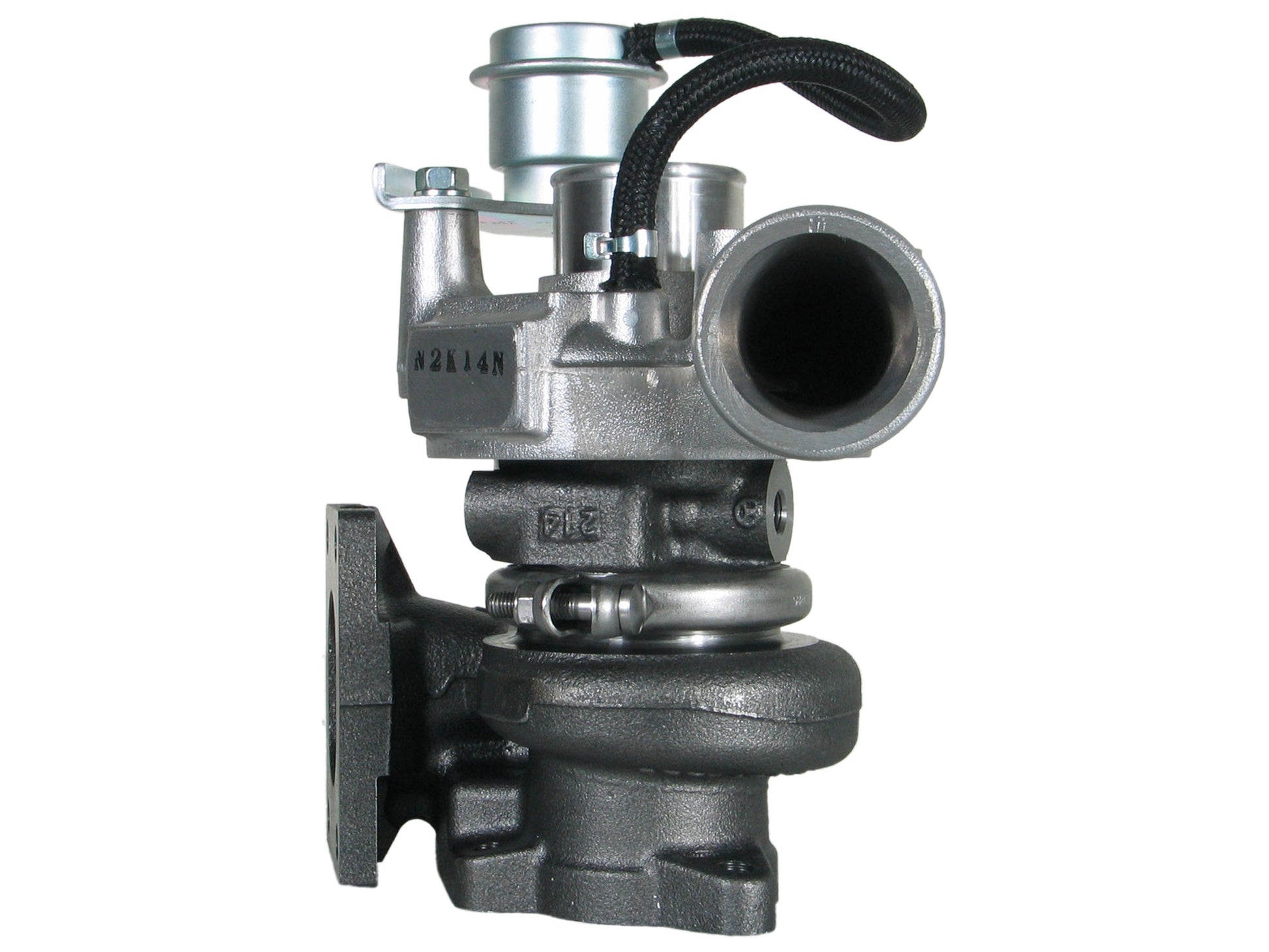

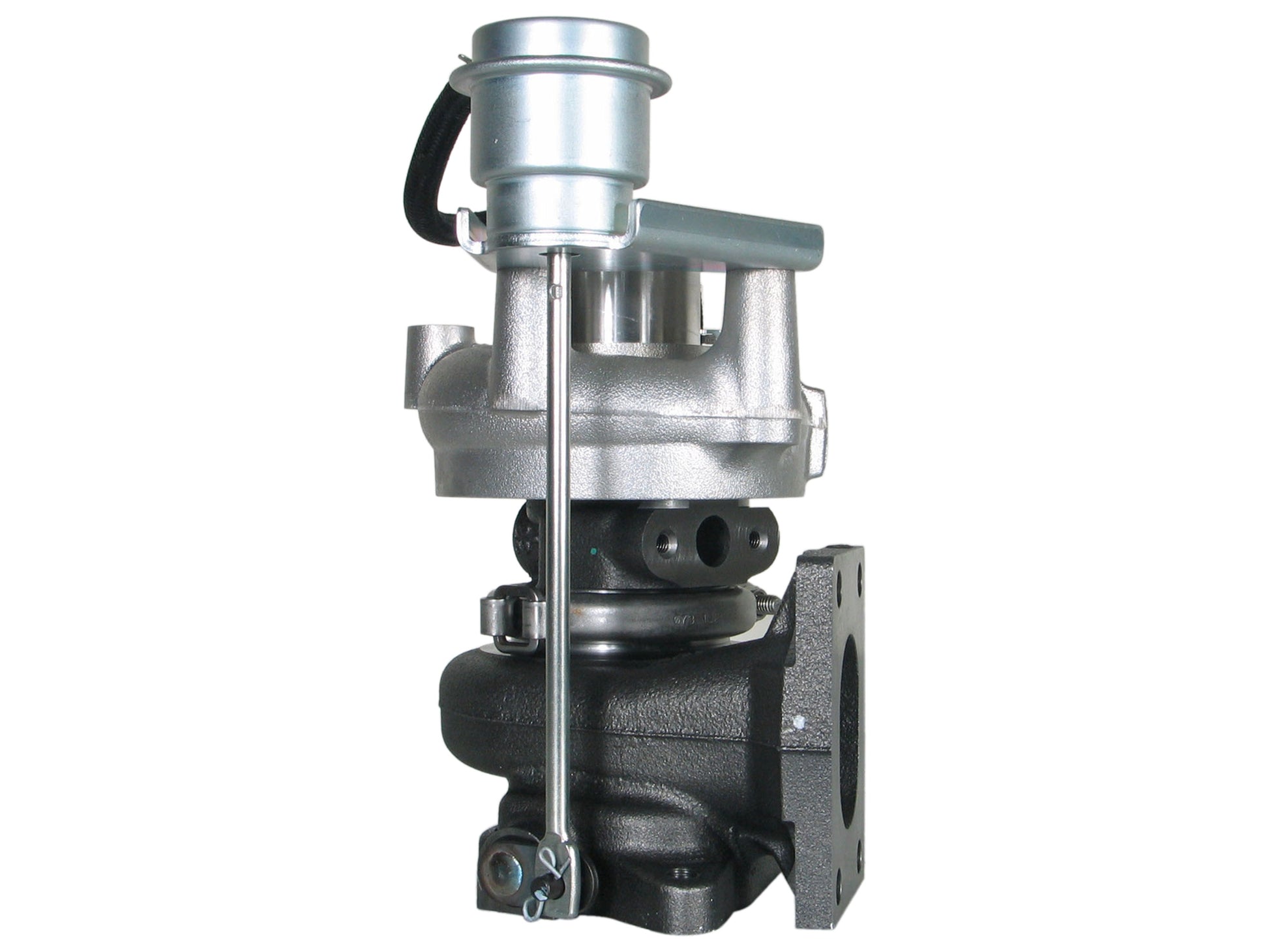

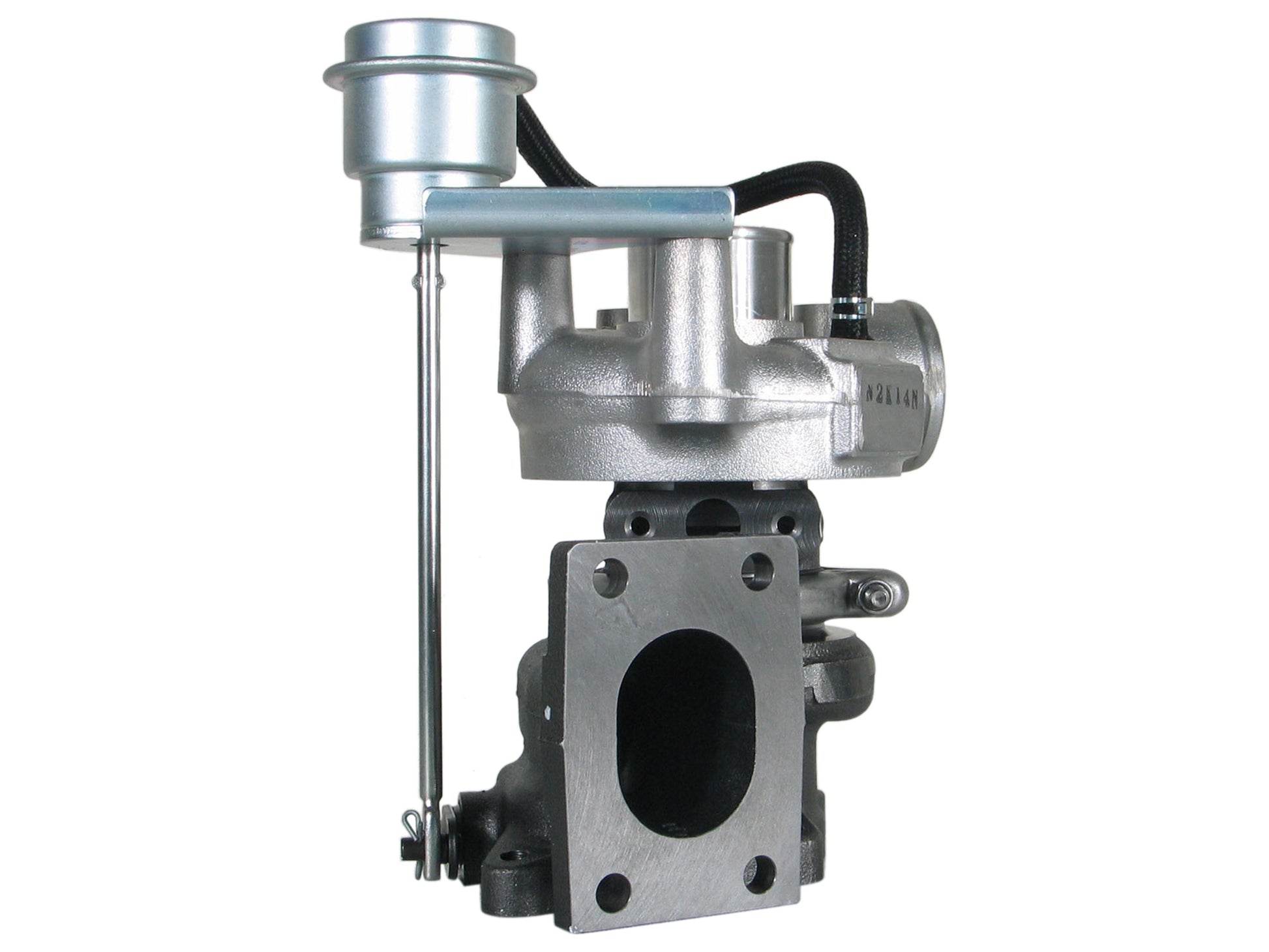

NEW OEM Mitsubishi TD04L4 Turbo Kubota Loader V3307-DI-TE3-Q 3.3L 49177-03254SKU: 49177-03254
This is a BRAND NEW GENUINE MITSUBISHI TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 49177-03254
Interchangeable Number: 4917703254, 49177-03250, 4917703250, 49177-03251, 4917703251, 49177-03252, 4917703252, 49177-03253, 4917703253
OEM Number: 1J774-17010, 1J77417010, 1J774-17012, 1J77417012, 1J774-17013, 1J77417013, 1J774-17014, 1J77417014, 1J774-17015, 1J77417015
Turbo Model: TD04L4, TD04L4-09TK3-5.0
Manufacturer: Mitsubishi Heavy Industries - MHI
Engine: V3307-DI-TE3-Q, V3307-CR-TE4-CTL-Q, V3307-DI-T-E3B, Stage3B (Tier 4)
Displacement: 3.3L, 3300 ccm, 4 Cylinders Inline
Actuator Pressure (P1): 94.7 +/- 2.7 kPa, 710 +/- 20 mmHg, 13.74 +/- 0.396 PSI
Actuator Pressure (P2): 161.3 kPa, 1210 mmHg, 23.39 PSI
Back Plate: 49135-00044 (Super Back)(1401635300)
Bearing Housing: 49177-20110/49177-25100 (Oil Cooled)
Compressor Housing: 49377-58160/49377-58130
Compressor Wheel: (Ind. 49 mm, Exd. 34.75 mm, 6+6 Blades, Super Back)
Heat Shield: 49170-19100 (1401404340)
Repair Kit: 49177-80000/49177-80410 (1401404755)
Turbine Housing: 49377-13660/49377-13630
Turbine Wheel: (Ind. 47.21 mm, Exd. 41.22 mm, 11 Blades)
Kubota Industrial with V3307-CR-TE4-CTL-Q Engine
Kubota SVL75-2 Track Loader, Industrial Tractor, Various with V3307-DI-TE3-Q Engine

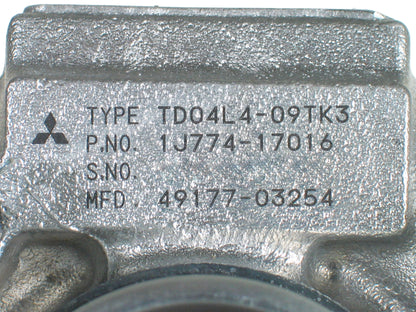

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
