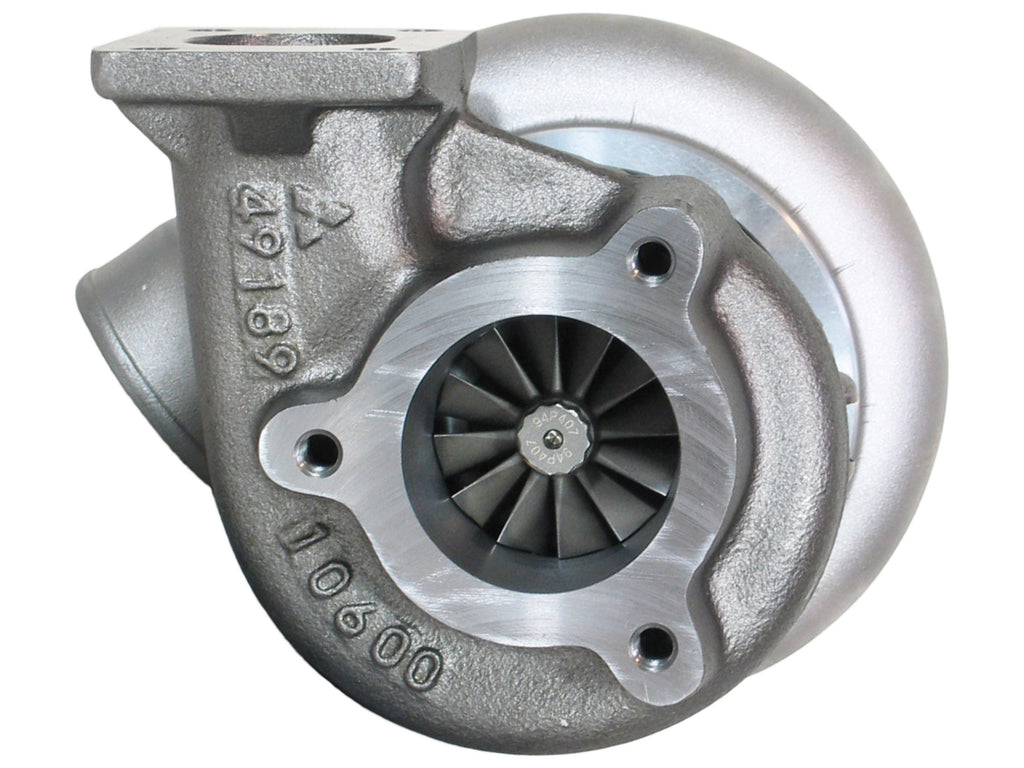

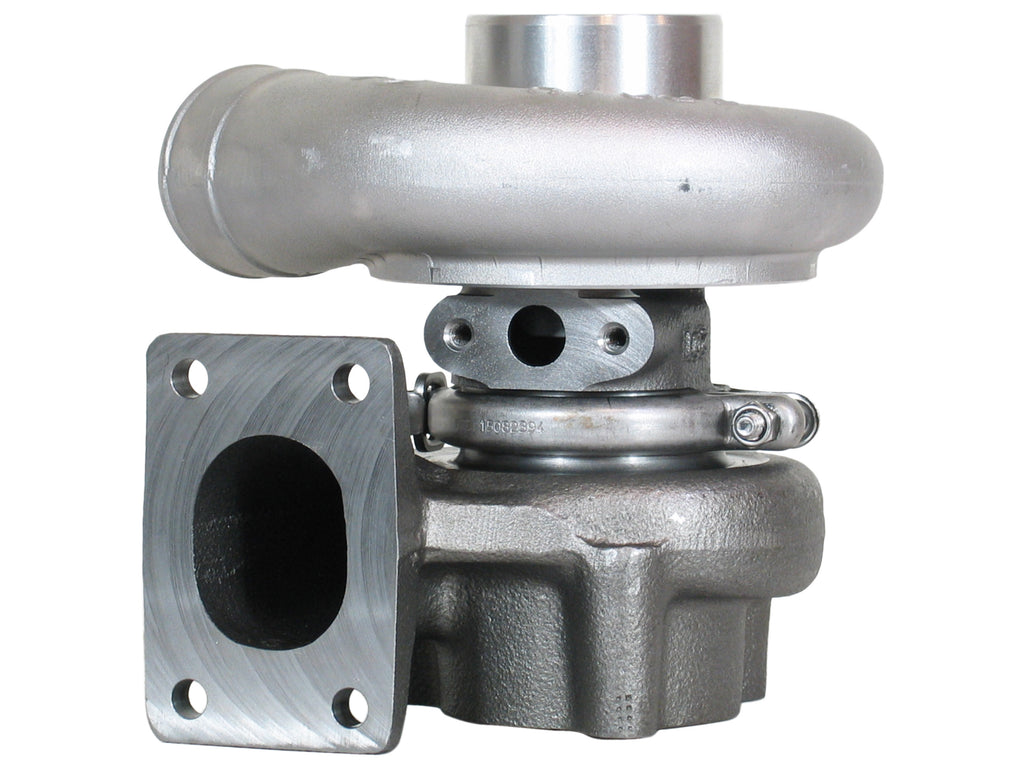

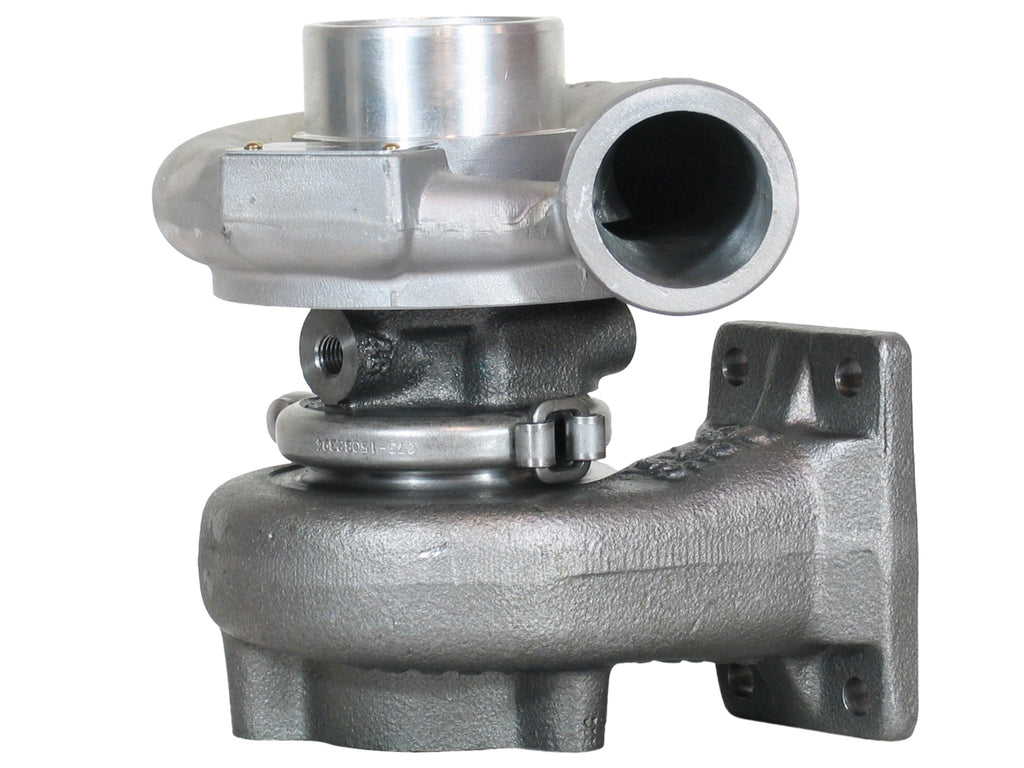

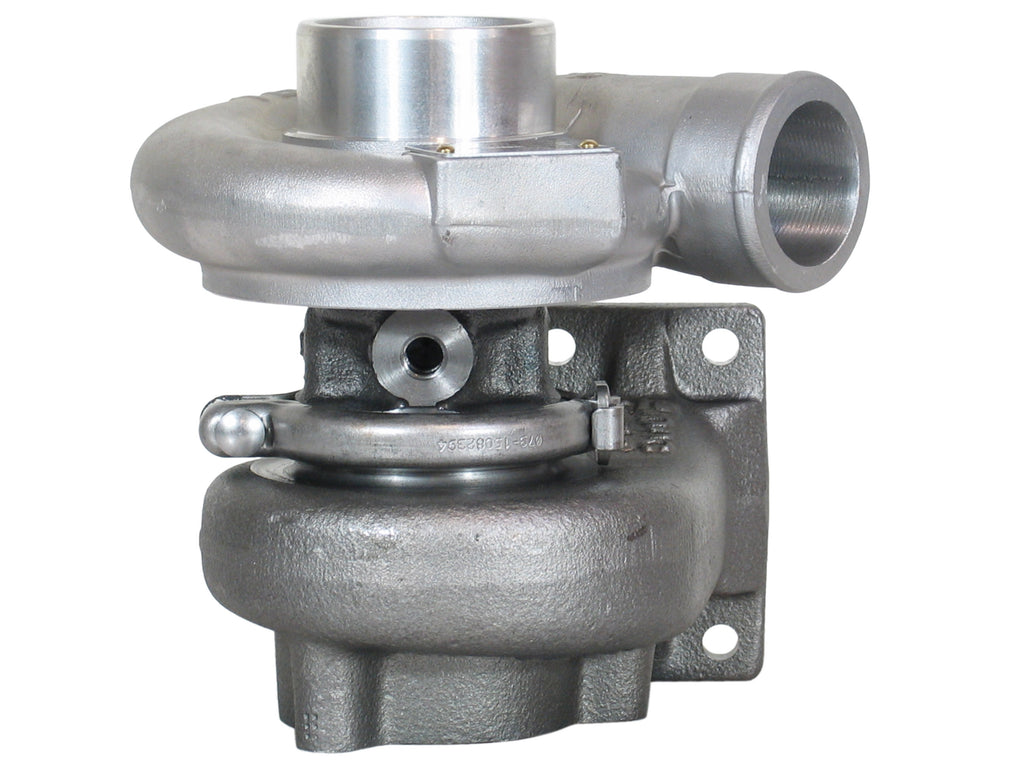

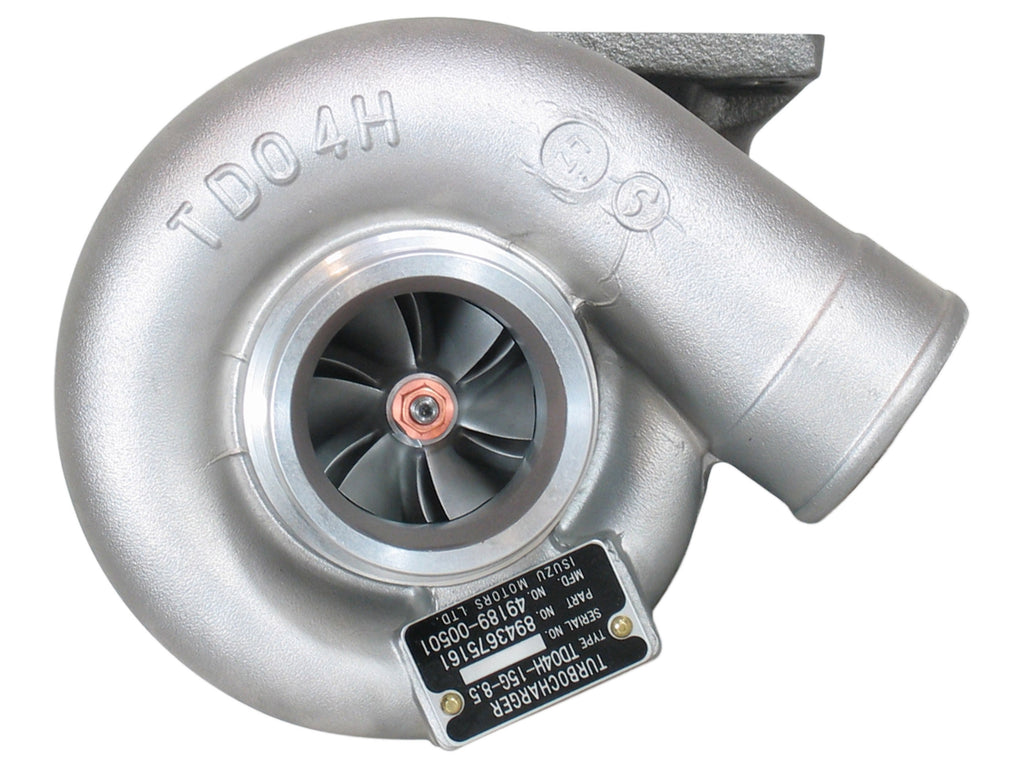

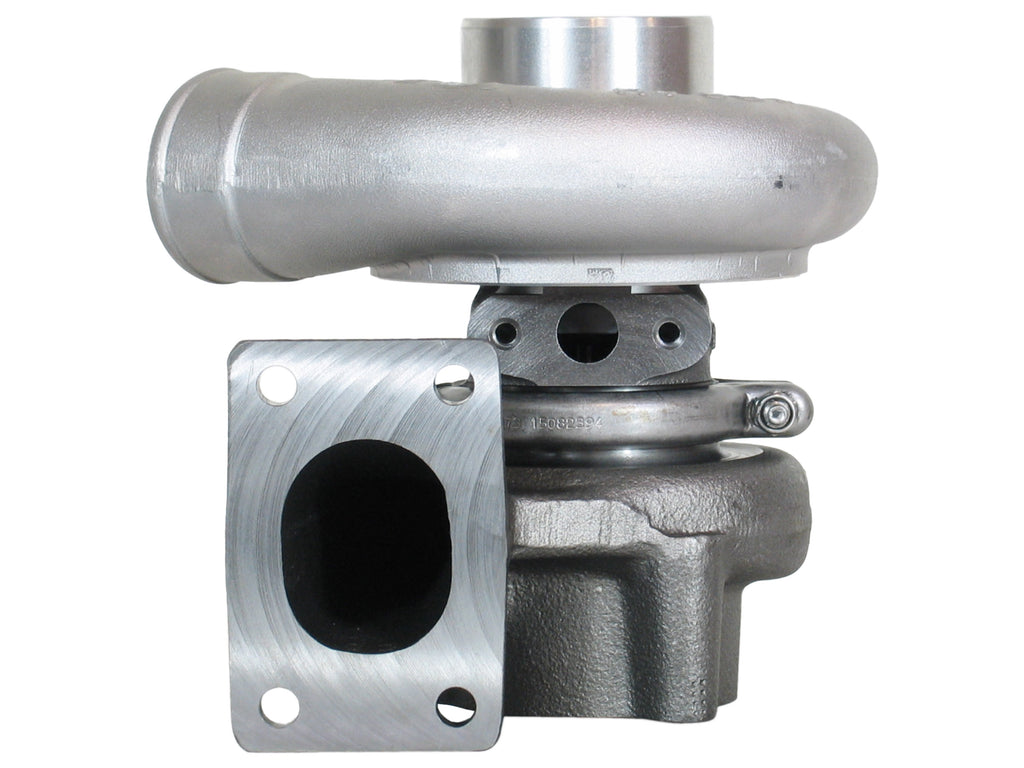

NEW OEM MHI TD04HL Turbo Isuzu Hitachi EX120 Kobelco SK120 4BD1T 49189-00501SKU: 49189-00501
This is a BRAND NEW GENUINE MITSUBISHI TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 49189-00501
Previous Version: 4918900501
OE Number: 4918900501, 8943675161, 8943675161A, 8-94367-516-1
Description: Earth Moving ISUZU, Sk120-3, SK120, Hitachi EX120, Kobelco Sk120-3
Applications: ISUZU, Hitachi, Kobelco Earth Moving EX120-2/3 with 4BD1-T Engine
Turbo Model: TDO4HL-15G/8.5
Engine: SK120-5, 4BD1T, 4BD1
Displacement: 4.3L, 4300 ccm
Engine Manufacturer: ISUZU
Bearing Housing: 49189-26400 (49189-20110)(Oil Cooled)(503050001)
Turbine Wheel: 49189-30100 (Ind. 52. mm, Exd. 45.6 mm, 12 Blades)(1401404438, 501050002)
Comp. Wheel: 49189-40300 (Ind. 43.4 mm, Exd. 56. mm, Trm 60, 6+6 blades)(1401404415)
Back plate: 49135-00044 (49135-15405, 49173-22500)(F/Back)(1401404300)
Heat Shield: 49183-19300 (1401404340, 506040003)
Repair Kit: 49189-84000 (49177-80400)(1401404752, 509040002)
Turbine Housing: 49189-15610
Compressor Cover: 49189-55710
Turbine Housing AR: 8.5
Gasket (oil outlet): 210317 (5I7689)(Paper)(1900000042)
Gasket (turbine inlet): 5I7933
Gasket (compressor outlet): 2344818
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
