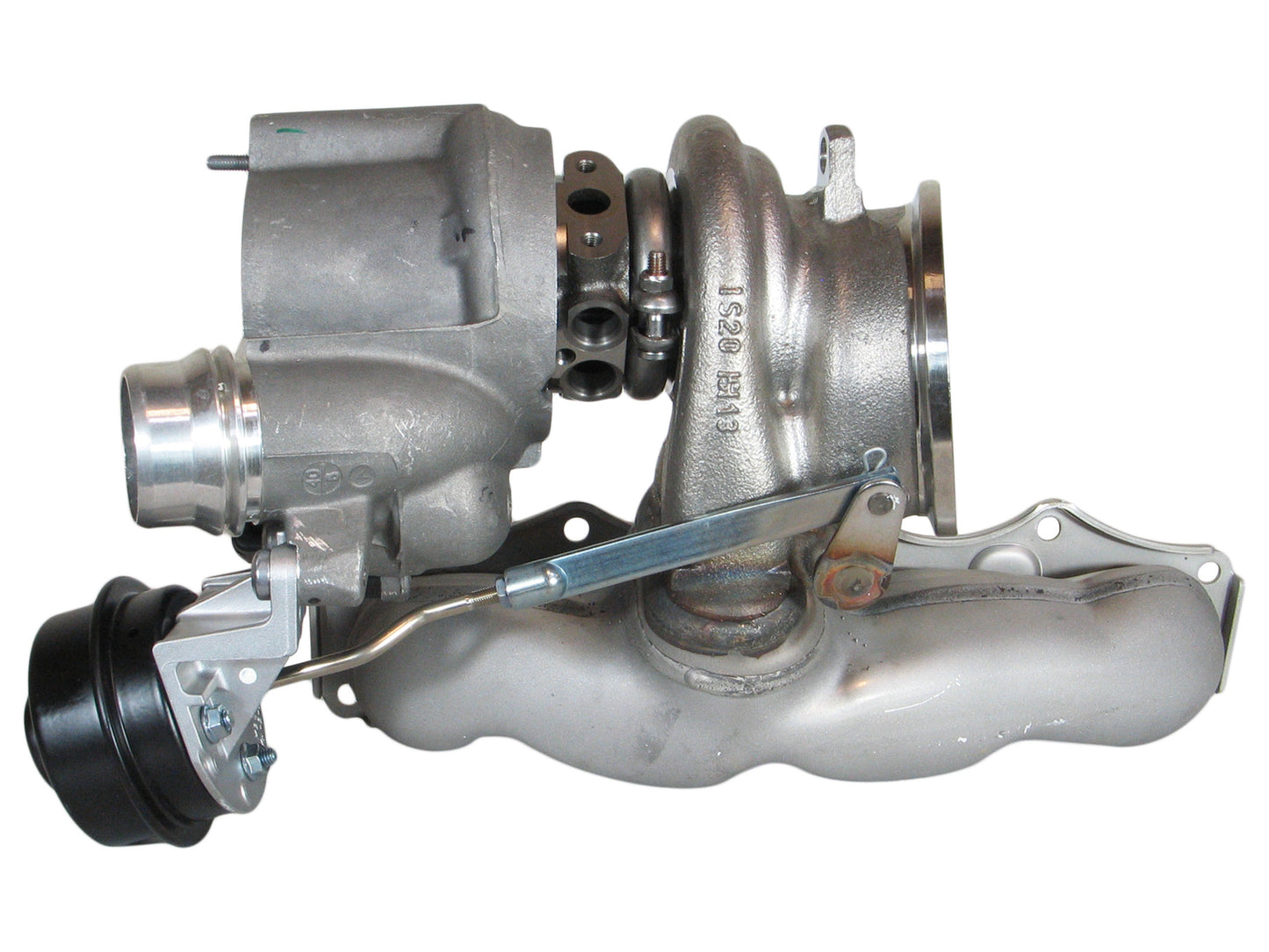

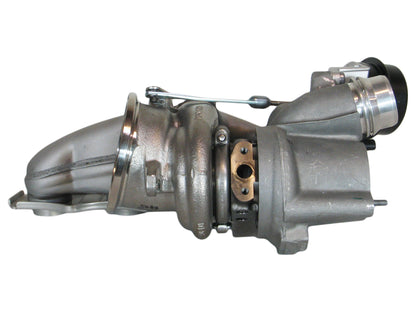

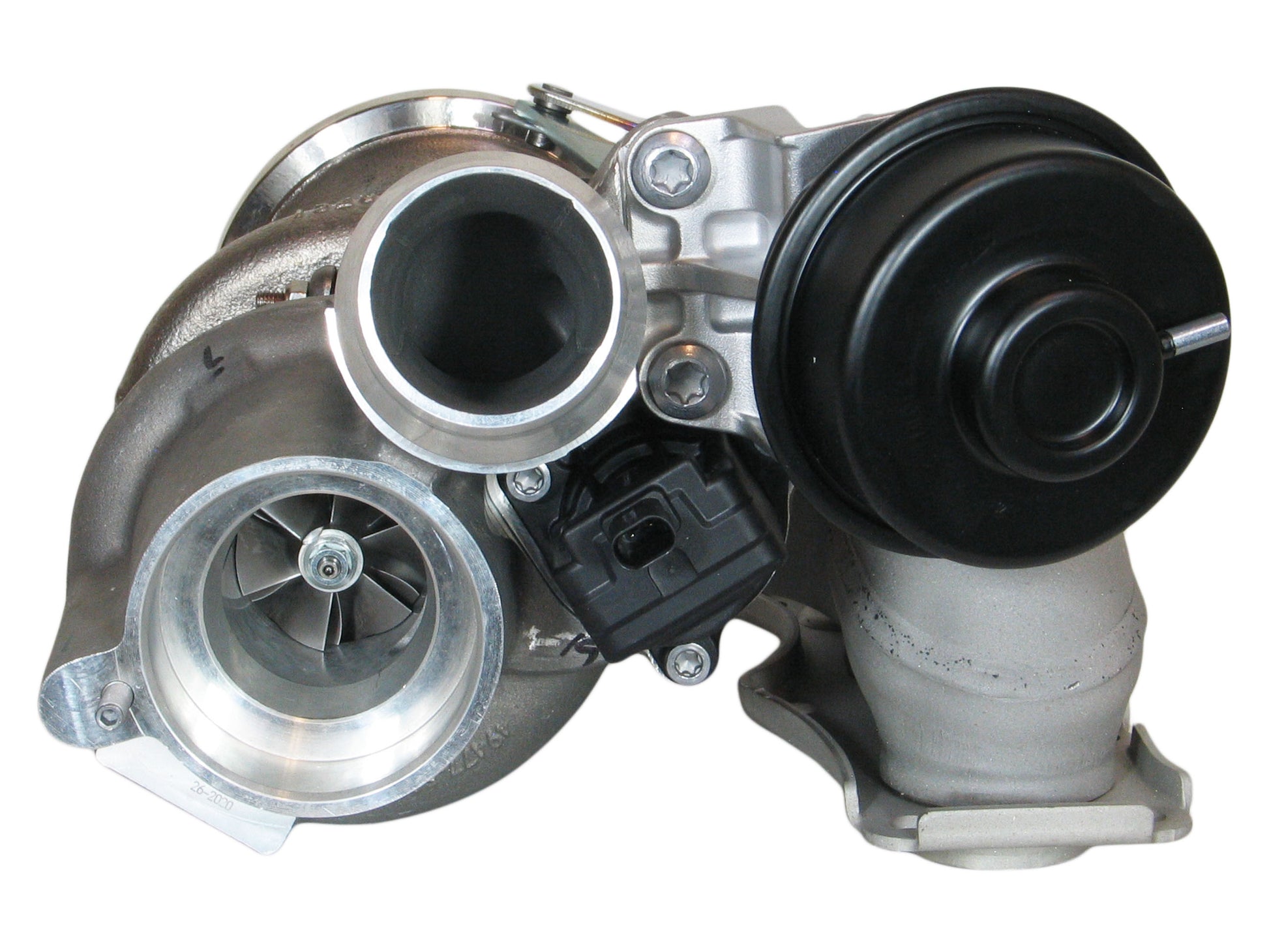

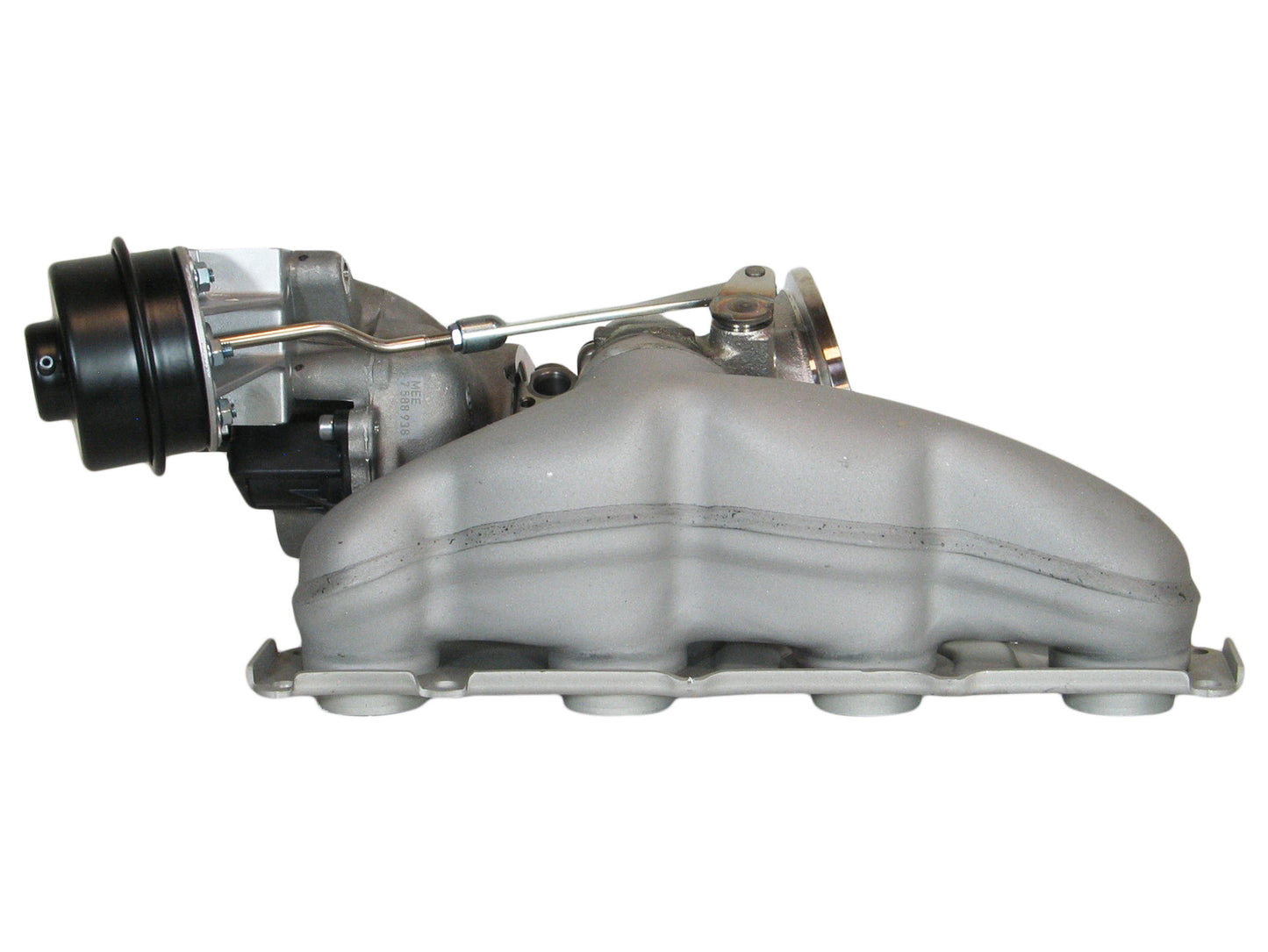

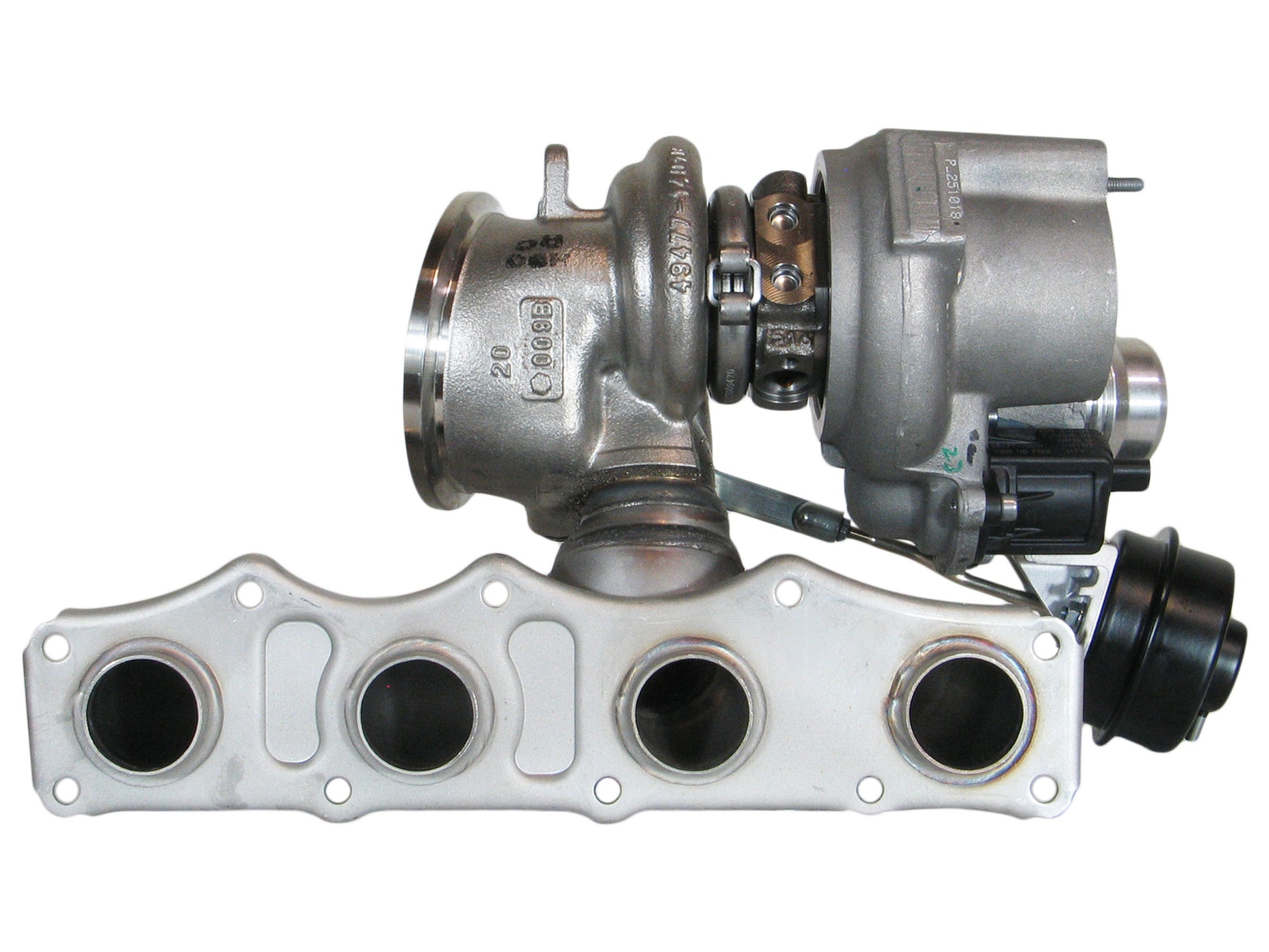

NEW Mitsubishi TD04LR6 Turbo BMW X1 X3 Z4 320i 328i 520i 528i N20B20 49477-02016

BRAND NEW GENUINE MITSUBISHI TURBOCHARGER

This is a BRAND NEW GENUINE MITSUBISHI TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 49477-02016
Interchangeable Number: 4947702016, 49477-02000, 4947702000, 49477-02001, 4947702001, 49477-02002, 4947702002, 49477-02003, 4947702003, 49477-02004, 4947702004, 49477-02005, 4947702005, 49477-02006, 4947702006, 49477-02007, 4947702007, 49477-02008, 4947702008, 49477-02009, 4947702009, 49477-02015, 4947702015, 49477-02059, 4947702059, 49U77-02016, 49U7702016
OEM Number: 11657635803, 7588 938 Ai12, 7588938Ai12, 7588 938 Ai17, 7588938Ai17
Turbo Model: TD04LR6, TD04LR6-04HR*15TK31-6.0T
Manufacturer: Mitsubishi Heavy Industries - MHI

Year: 2011-15
Engine: N20B20A, N20B20B Euro 5
Displacement: 2.0L
Fuel: Gas
Power: 180 kW

Actuator Pressure (P1): -17.7 +/- 1.3 kPa, (P0) -132.8 +/- 10 mmHg, -2.57 +/- 0.19 PSI
Actuator Pressure (P2): -0.76~-6.76 kPa, (P17) -5.7~50.7 mmHg, -0.11~-0.98 PSI

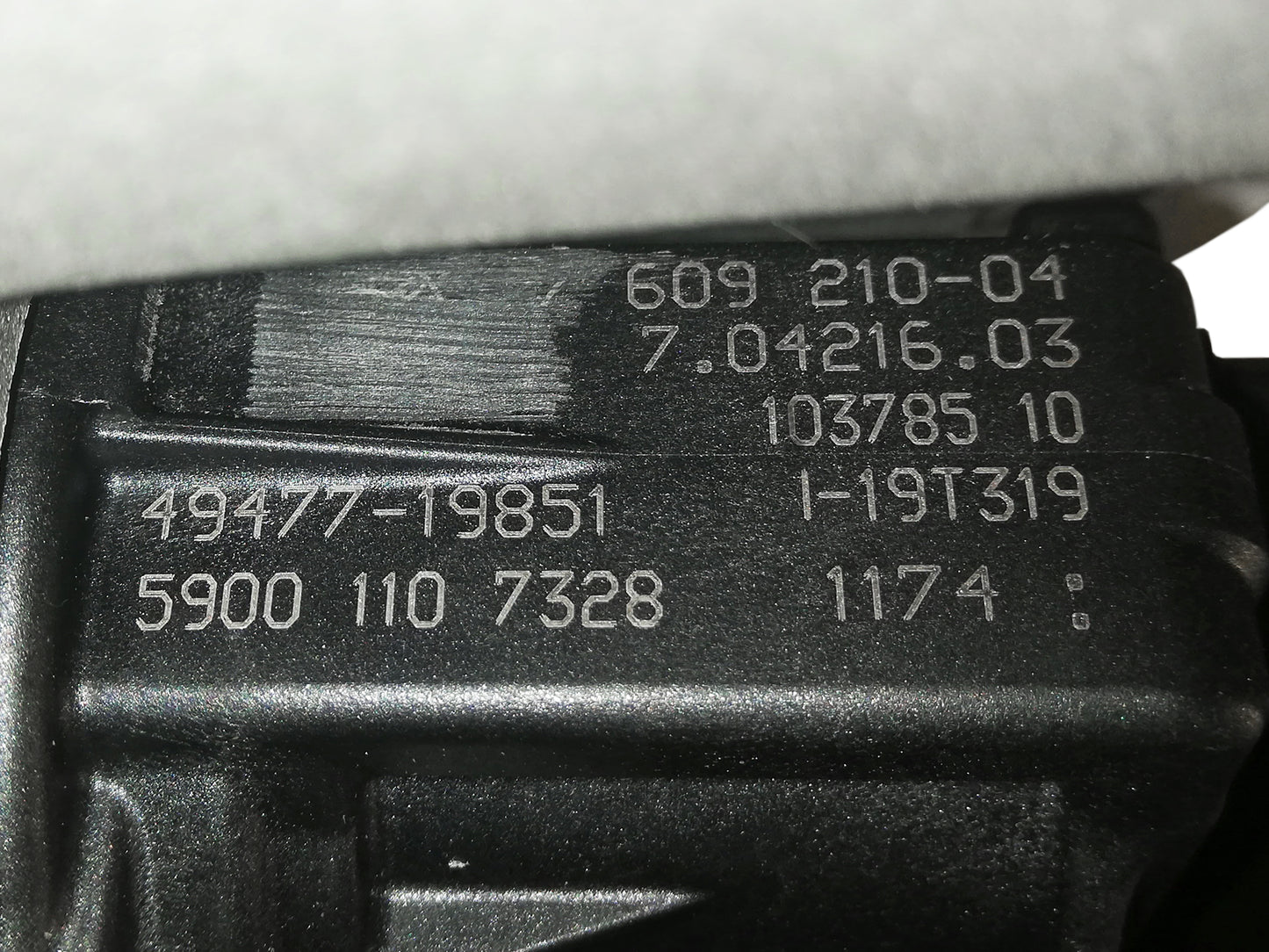

Actuator: 49477-19812
Bearing Housing: 49477-2031B
CHRA: 49477-09025
Compressor Housing: 49477-5558A
Cooling: Water
Repair Kit: 49177-80110
Turbine Housing: 49477-15756/49477-15721

NOTE: Wastegated.

Application:
2011-04 BMW X1 xDrive 28i (E84) with N20B20 Engine
2011-08 BMW X3 xDrive 28i (F25) with N20B20 Engine
2011-09 BMW 520i (F10, F18) with N20B20 Engine
2011-09 BMW 520i Touring (F11) with N20B20 Engine
2011-09 BMW 528i (F10, F18) with N20B20 Engine
2011-09 BMW 528i Touring (F11) with N20B20 Engine
2011-09 BMW 528i xDrive (F10, F18) with N20B20 Engine
2011-09 BMW 528i xDrive Touring (F11) with N20B20 Engine
2011-09 BMW X1 sDrive 20i (E84) with N20B20 Engine
2011-09 BMW X1 xDrive 20i (E84) with N20B20 Engine
2011-09 BMW X3 xDrive 20i (F25) with N20B20 Engine
2011-09 BMW Z4 sDrive 20i (E89) with N20B20 Engine
2011-09 BMW Z4 sDrive 28i (E89) with N20B20 Engine
2011-10 BMW 328i (F30, F35, F80) with N20B20 Engine
2011-10 BMW 328i xDrive (F30, F35, F80) with N20B20 Engine
2011-11 BMW 320i xDrive (F30, F35, F80) with N20B20 Engine
2011-15 BMW X1 (E84), X3, etc. with N20B20A, N20B20B Euro 5 Engine
2012-02 BMW 320i (F30, F35, F80) with N20B20 Engine
2012-06 BMW 328i Touring (F31) with N20B20 Engine

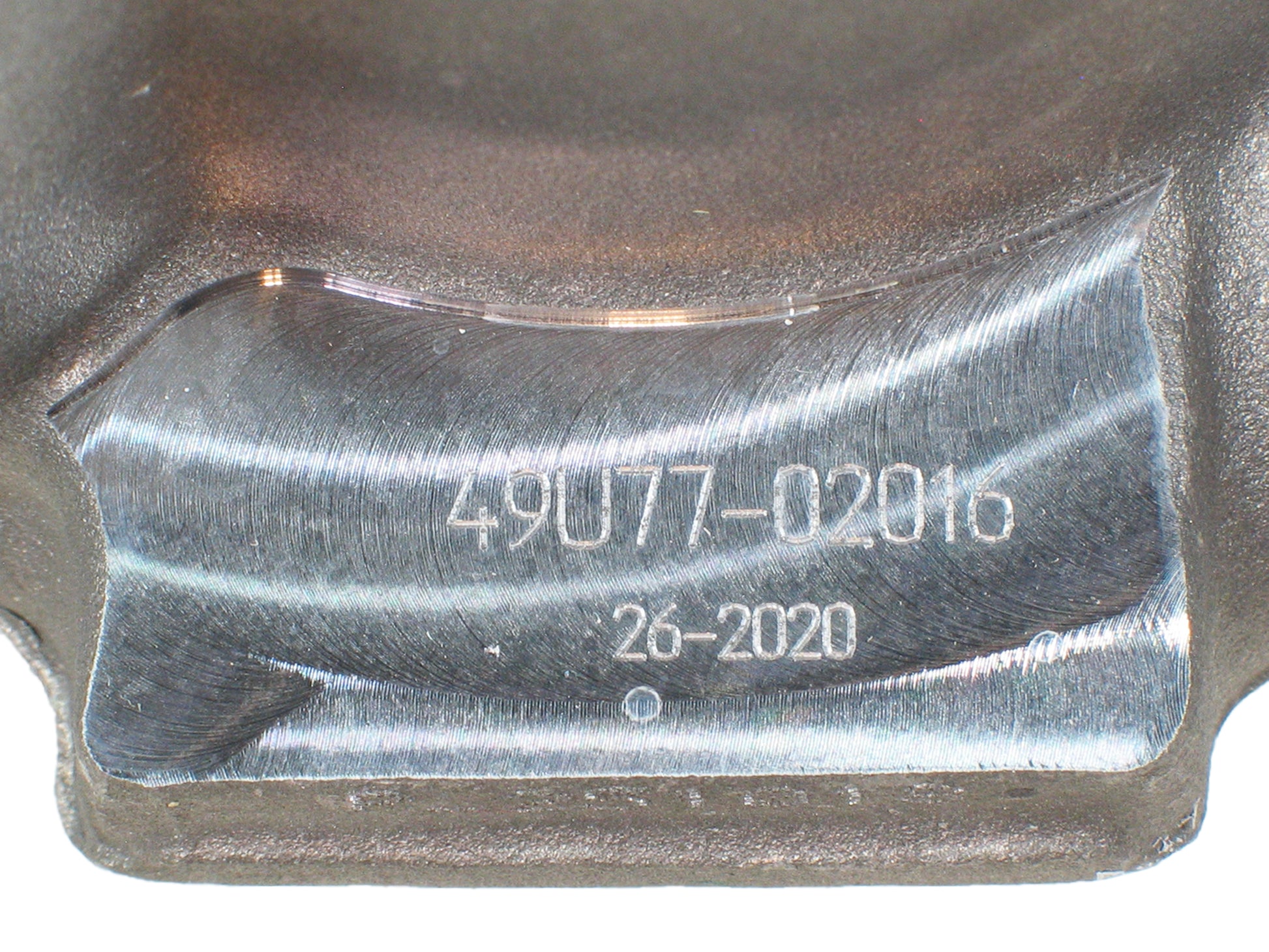

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
